2021 ACURA NSX Owners Manual

Continued439
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

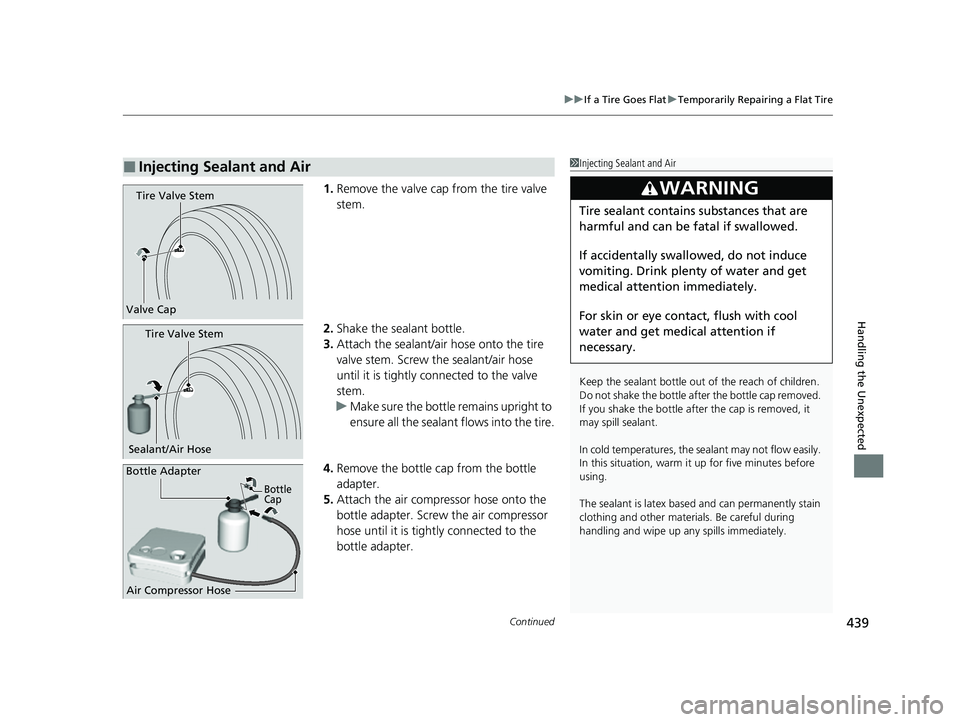

1. Remove the valve cap from the tire valve
stem.
2. Shake the sealant bottle.
3. Attach the sealant/air hose onto the tire
valve stem. Screw the sealant/air hose
until it is tightly connected to the valve
stem.
u Make sure the bottle remains upright to
ensure all the sealant flows into the tire.
4. Remove the bottle cap from the bottle
adapter.
5. Attach the air compre ssor hose onto the
bottle adapter. Screw the air compressor
hose until it is tigh tly connected to the
bottle adapter.
■Injecting Sealant and Air1 Injecting Sealant and Air
Keep the sealant bottle out of the reach of children.
Do not shake the bottle after the bottle cap removed.
If you shake the bottle after the cap is removed, it
may spill sealant.
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant is latex based and can permanently stain
clothing and other materi als. Be careful during
handling and wipe up an y spills immediately.
3WARNING
Tire sealant contains substances that are
harmful and can be fatal if swallowed.
If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.
For skin or eye contact, flush with cool
water and get medical attention if
necessary.
Tire Valve Stem
Valve Cap
Sealant/Air Hose Tire Valve Stem
Bottle Adapter
Air Compressor Hose
Bottle
Cap
21 ACURA NSX PMC-31T6N6400.book 439 ページ ２０２０年１０月８日　木曜日　午後３時７分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
440
Handling the Unexpected
6. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
2 Accessory Power Socket P. 157
7.Turn the power system on.
u Keep the power system on while
injecting sealant and air.
2 Carbon Monoxide Gas P. 70
8.Turn the air compressor on to inflate the
tire.
u The compressor starts injecting sealant
and air into the tire.
9. After the air pressure reaches 32 psi (220
kPa), turn off the compressor.
1Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit compressor
for more than 15 minutes. The compressor can overheat
and become permanently damagedM
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begi n to rise again as the tire
is inflated with air. This is normal. To accurately measure
the air pressure using the gauge, turn the air compressor
off only after the sealan t injection is complete.
If the required air pressure is not reached within 15
minutes, the tire may be too severely damaged for
the kit to provide the necessa ry seal and your vehicle
will need to be towed.
See an authorized Acura NSX dealer for a replacement
sealant bottle and proper disposal of an empty bottle.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
Air Compressor Switch
OFF
ON
21 ACURA NSX PMC-31T6N6400.book 440 ページ ２０２０年１０月８日　木曜日　午後３時７分

441
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

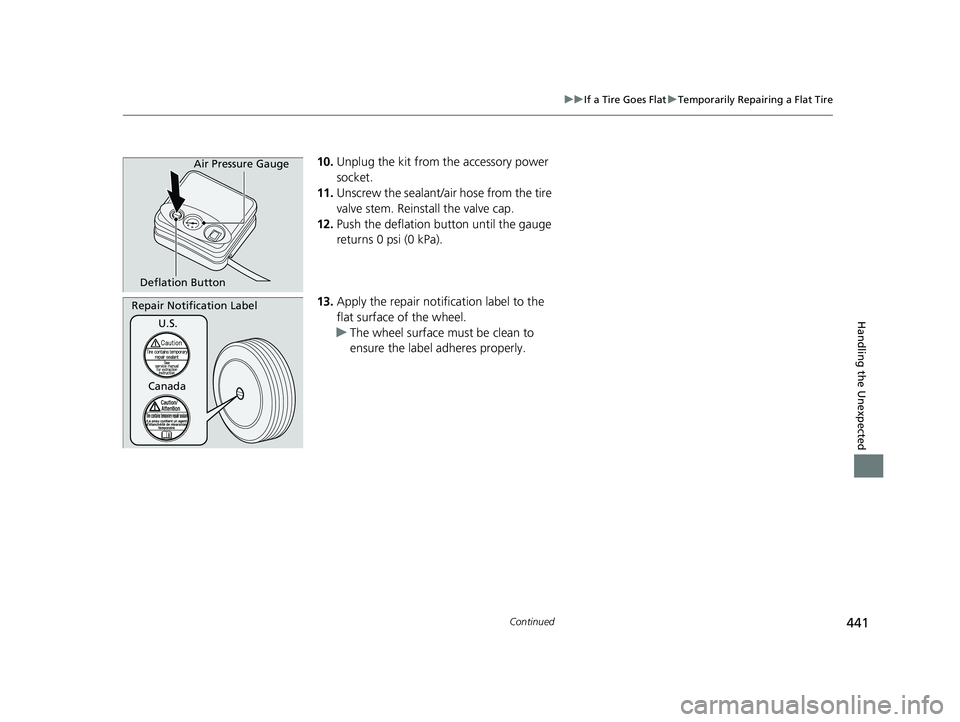

10. Unplug the kit from the accessory power
socket.
11. Unscrew the sealant/ai r hose from the tire
valve stem. Reinstall the valve cap.
12. Push the deflation button until the gauge
returns 0 psi (0 kPa).
13. Apply the repair notification label to the
flat surface of the wheel.
u The wheel surface must be clean to
ensure the label adheres properly.
Deflation Button Air Pressure Gauge
Repair Notification Label
U.S.
Canada
21 ACURA NSX PMC-31T6N6400.book 441 ページ ２０２０年１０月８日　木曜日　午後３時７分

442
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

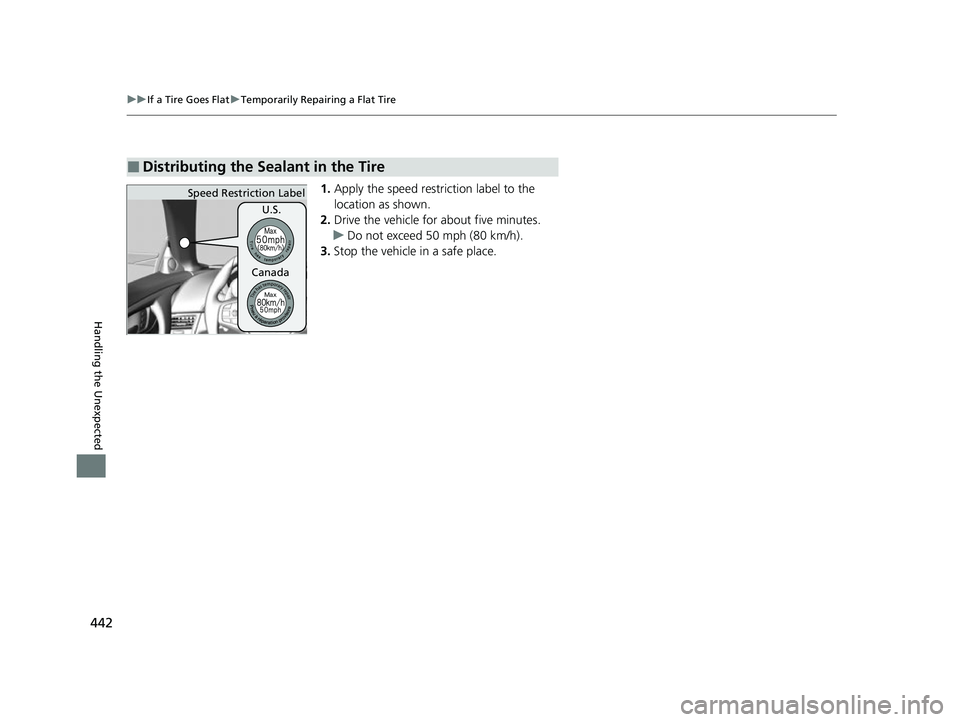

1. Apply the speed restriction label to the
location as shown.
2. Drive the vehicle for about five minutes.
u Do not exceed 50 mph (80 km/h).
3. Stop the vehicle in a safe place.
■Distributing the Sealant in the Tire
Speed Restriction Label
U.S.
Canada
21 ACURA NSX PMC-31T6N6400.book 442 ページ ２０２０年１０月８日　木曜日　午後３時７分

443
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
4. Recheck the air pressure using the gauge
on the air compressor.
u Do not turn the air compressor on to
check the pressure.
5. If the air pressure is:
• Less than 19 psi (130 kPa):
Do not add air or continue driving. The
leak is too severe. Call for help and have
your vehicle towed.
2 Emergency Towing P. 466
•32 psi (220 kPa) or more:
Continue driving for another five
minutes or until you reach the nearest
service station if less than five minutes
away. Do not exceed 50 mph (80 km/h).
u Stop and check the air pressure again. If
the air pressure does not go down after
the five minute drive, you do not need to
check the pressure any more. Drive to
the nearest service station to fix or
replace the tire.
21 ACURA NSX PMC-31T6N6400.book 443 ページ ２０２０年１０月８日　木曜日　午後３時７分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
444
Handling the Unexpected
• Greater than 19 psi (130 kPa), but less than
32 psi (220 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches 32 psi
(220 kPa).
2 Injecting Sealant and Air P. 439
Then drive carefully for five more minutes
or until you reach the nearest service station
if less than five minutes away.
Do not exceed 50 mph (80 km/h).
u You should repeat this procedure as long
as the air pressure is within this range.
1Distributing the Sealant in the Tire
Refer to the driver’s doorja mb label for the specified
pressure.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
Deflation ButtonAir Pressure Gauge
Air Compressor Switch
OFF
ON
21 ACURA NSX PMC-31T6N6400.book 444 ページ ２０２０年１０月８日　木曜日　午後３時７分

445
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

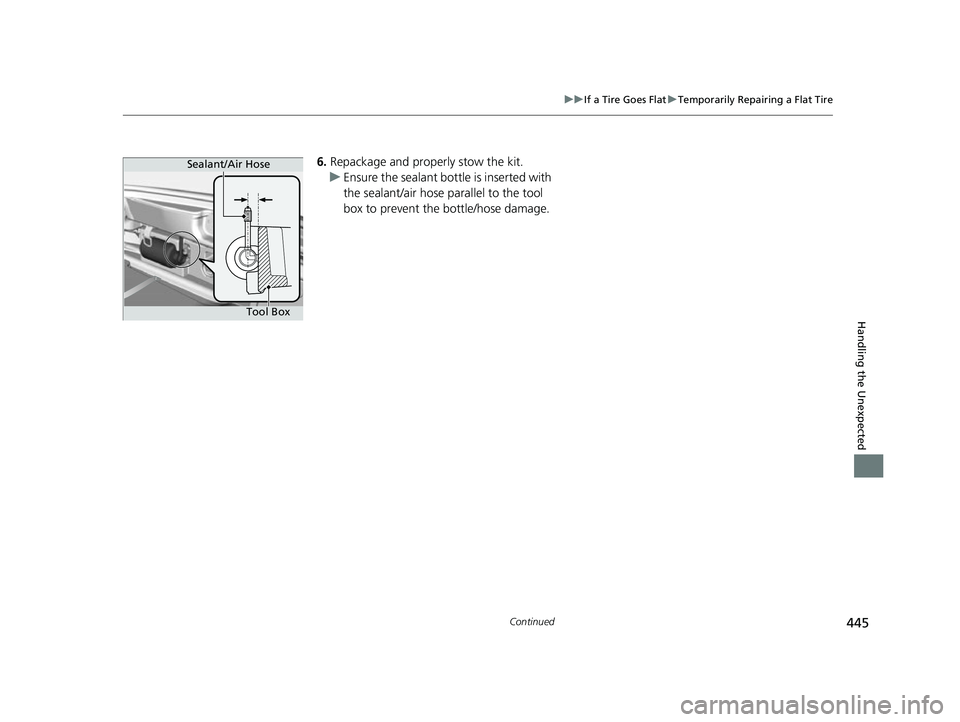

6. Repackage and properly stow the kit.
u Ensure the sealant bottl e is inserted with
the sealant/air hose pa rallel to the tool
box to prevent the bottle/hose damage.Sealant/Air Hose
Tool Box
21 ACURA NSX PMC-31T6N6400.book 445 ページ ２０２０年１０月８日　木曜日　午後３時７分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
446
Handling the Unexpected
You can use the kit to inflate a non-punctured under-inflated tire.
1.Take the kit out of the box.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 438
2.Place the kit, face up, on flat ground near
the flat tire, away from traffic. Do not
place the kit on its side.
3. Remove the valve cap from the tire valve
stem.
4. Attach the air compressor hose onto the
tire valve stem.
Screw the air compressor hose until it is
tightly connected to the valve stem.
5. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
2 Accessory Power Socket P. 157
6.Turn the power system on.
u Keep the power system on while
injecting air.
2 Carbon Monoxide Gas P. 70
■Inflating an Under-inflated Tire1Inflating an Under-inflated Tire
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.Tire Valve
Stem
Valve Cap
Tire Valve Stem
Air Compressor
Hose
