2021 ACURA NSX Owners Manual

431
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windsh ield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS AIRBAG, on the sides or
backs of the seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 461
•Before installing any electronic accessory, have the installer contact an authorized
Acura NSX dealer for assistance. If possibl e, have an authorized Acura NSX dealer
inspect the final installation.
1 Accessories and Modifications
Acura Genuine accessori es are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
3WARNING
Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.
A vehicle fire could result in a crash or
injury.
Only use a genuine Acura high-voltage
battery assembly, or it s equivalent, in your
vehicle.
21 ACURA NSX PMC-31T6N6400.book 431 ページ ２０２０年１０月８日　木曜日　午後３時７分

432
uuAccessories and Modifications uModifications
Maintenance
Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Acura parts or accessories that may have a similar
effect.
Even minor modifications to vehicle system s can affect overall vehicle performance.
Always make sure all equipment is prop erly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, prov ince, territory, and local regulations.
The on-board diagnostic port (OBD-II/SAE J1962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Acura has appr oved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.
Do not modify or attempt to repair your vehicle’s high-voltage hybrid power system
or otherwise modify vehicle electrical systems. Disassembling or modifying electrical
equipment can result in a crash or a fire.
If you ever need to replace your vehicle's high-voltage battery assembly outside of
warranty coverage, we highly recommend that you only use a genuine Acura high-
voltage battery assembly. Genuine Acur a high-voltage battery assemblies are
designed to work with your vehicle's hybrid power system and have been designed,
engineered and manufactured to avoid overcharging situations. Non-genuine high-
voltage battery assemblies may not have be en similarly designed, engineered and
manufactured, and installation of such assemblies could result in overcharging, fires,
loss of power, or other conditions that may increase the likelihood of a crash or
injury.
21 ACURA NSX PMC-31T6N6400.book 432 ページ ２０２０年１０月８日　木曜日　午後３時７分

433Continued
Maintenance
Storage
Vehicle Storage
If you need to park your vehicle for an extended period (more than one month),
there are several things you should do to pr epare it for storage. This helps reduce
possible deterioration of vehicle compone nts and overall condition, which allows
you to get the vehicle back on the road with minimal delay. These are:
• If possible, store your NSX in a garage or enclosed area.
• Fill the fuel tank completely.
• Change the engine oil and filter.
• Wash and dry the exterior completely.
• Clean the interior. Make sure the carpetin g, floor mats, etc., are completely dry.
• Put the transmission in
(P.
Release the parking brake.
• Leave one window open slightly (if the vehicle is being stored indoors).
• To maintain the low-voltage 12-volt battery, connect it to an accessory battery
charger. For more information on how to maintain your 12-volt battery, consult
an authorized Ac ura NSX dealer.
2Checking the 12-Volt Battery P. 421
•If the vehicle is to be stored for a longer period of time, it should be supported on
jack stands to raise the tires off the ground to prevent tire flat spotting.
2Handling of the Jack P. 448
•Support the front wiper blade arms with a folded towel or rag so they do not
touch the windshield.
• Cover the vehicle with a “breathable” co ver, one made from a porous material
such as cotton. Nonporous materials (such as plastic sheeting) may trap moisture,
which can damage the paint.
• If possible, remove the vehicle from the garage or enclosed area, remove
covering, and periodically run the en gine until it reaches full operating
temperature (the cooling fa n cycles on and off twice).
Preferably, do this once a month.
21 ACURA NSX PMC-31T6N6400.book 433 ページ ２０２０年１０月８日　木曜日　午後３時７分

434
uuStorage uVehicle Storage
Maintenance
• To maintain the High Voltage battery, drive your vehicle for more than 30 minutes
at least once every three months.
If road conditions are not suitable or desi rable for driving, the following alternate
procedure can be used to maintain the vehicle's High Voltage battery if local idling
by-laws permit:
1. Remove the vehicle from the garage or enclosed area to prevent carbon
monoxide accumulation.
2 Carbon Monoxide Gas P. 70
2.Depress the brake pedal and press the ENGINE START/STOP button as you
normally would to start the vehicle.
3. Allow the vehicle to run for 30 minutes. Time spent at idle stop still counts as part
of this 30-minute run.
21 ACURA NSX PMC-31T6N6400.book 434 ページ ２０２０年１０月８日　木曜日　午後３時７分

435
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 436
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 437
Handling of the Jack ......................... 448
Power System Won’t Start
Checking the Procedure ................... 449
If the Keyless Access Remote Battery is Weak ............................................. 450
Emergency Power System Off........... 451
If the 12-Volt Battery Is Dead .......... 452
Overheating
How to Handle Overheating ............. 454 Indicator, Coming On/Blinking
If the 12-Volt Battery Charging System Indicator Comes On ....................... 456
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 456
If the Brake System Indicator (Red) Comes
On ................................................. 457
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 457
If the Electric Parking Brake System Indicator Comes On ....................... 458
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks........................ 459 If the Transmission System Indicator Blinks
along with the Warning Message... 460
If the Low Oil Level Symbol Appears.....460
Fuses Fuse Locations ................................. 461
Inspecting and Changing Fuses ........ 465
Emergency Towing ........................... 466
If You Cannot Unlock the Fuel Fill Door.... 467
If You Cannot Open the Hatch............468
Refueling
Refueling from a Portable Fuel Container .... 469
21 ACURA NSX PMC-31T6N6400.book 435 ページ ２０２０年１０月８日　木曜日　午後３時７分

436
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the trunk.
Towing Hook Funnel
Tool Box
Wheel Bolt Cap Removal Tool
21 ACURA NSX PMC-31T6N6400.book 436 ページ ２０２０年１０月８日　木曜日　午後３時７分

437Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a sma ll puncture, from a small nail for instance,
you can use the temporary tire repair kit so that you can drive to the nearest service
station for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and non-slippery surface. Apply the parking
brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact an authorized Acura NSX dealer or a
roadside assistant to have the vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture isYKit Use
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
21 ACURA NSX PMC-31T6N6400.book 437 ページ ２０２０年１０月８日　木曜日　午後３時７分

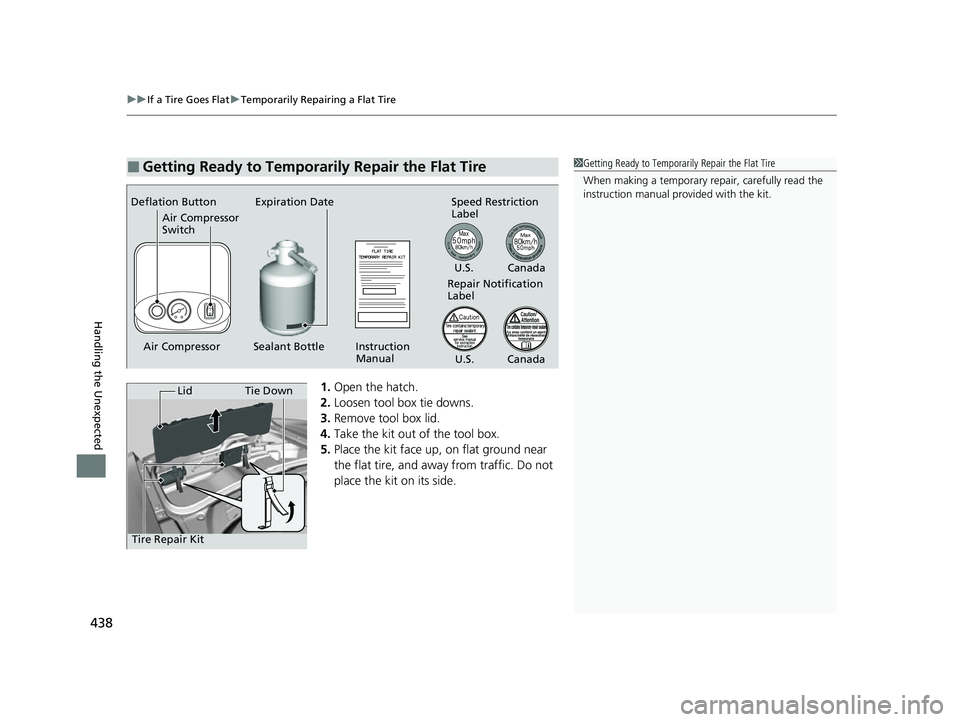

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
438
Handling the Unexpected
1. Open the hatch.
2. Loosen tool box tie downs.
3. Remove tool box lid.
4. Take the kit out of the tool box.
5. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.
■Getting Ready to Temporarily Repair the Flat Tire1Getting Ready to Temporarily Repair the Flat Tire
When making a temporary repair, carefully read the
instruction manual provided with the kit.
Air Compressor Instruction
Manual
Sealant Bottle Speed Restriction
Label
Expiration Date
Deflation Button
Air Compressor
Switch
Repair Notification
Label
U.S. Canada
U.S. Canada
Tie Down
Lid
Tire Repair Kit
