2021 ACURA NSX Owners Manual

7
Quick Reference Guide
❚Wipers/Washers (P 139)
❚Headlights/Turn Signals (P 134, 135)
❚Paddle Shifter (Shift down) (P 338)
❚Paddle Shifter (Shift up) (P 338)
❚Horn (Press an area around .)
❚Voice Control Buttons (P 188)
❚Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 274)
❚TRIP Button (P 103, 104)
❚Right Selector Wheel (P 102)
❚Audio Remote Controls (P 169)
❚Brightness Control (P 141)
❚Mph/Km/h Change Button (P 99)
❚Cruise Control Buttons (P 347)
* Not available on all models
21 ACURA NSX PMC-31T6N6400.book 7 ページ ２０２０年１０月８日　木曜日　午後３時７分

Visual Index
8
Quick Reference Guide❚Power Window Switches (P 129)
❚Driver’s Front Airbag (P 48)
❚Hatch Release Button (P 123)
❚Hood Release Handle (P 392)
❚Passenger’s Front Airbag
(P 48)
❚Glove Box (P 155)
❚Driver’s Knee Airbag (P 52)
❚Door Mirror Controls (P 146)
❚Power Door Lock Master Switch (P 121)
❚Fuel Fill Door Release Button (P 376)
❚USB Port (P 167)
❚Memory Buttons* (P 143)
❚SET Button* (P 143)
❚Rearview Mirror (P 145)
❚Driver’s Side Interior Fuse
Boxes
(P 463)
❚Passenger’s Side Interior Fuse
Box
(P 464)
❚USB Port (P 167)
❚Accessory Power Socket
(P 157)
❚Electric Parking Brake Switch
(P 361)
❚Automatic Brake Hold Button
(P 364)
❚Shift Button
Electronic Gear Selector
(P 330)
21 ACURA NSX PMC-31T6N6400.book 8 ページ ２０２０年１０月８日　木曜日　午後３時７分

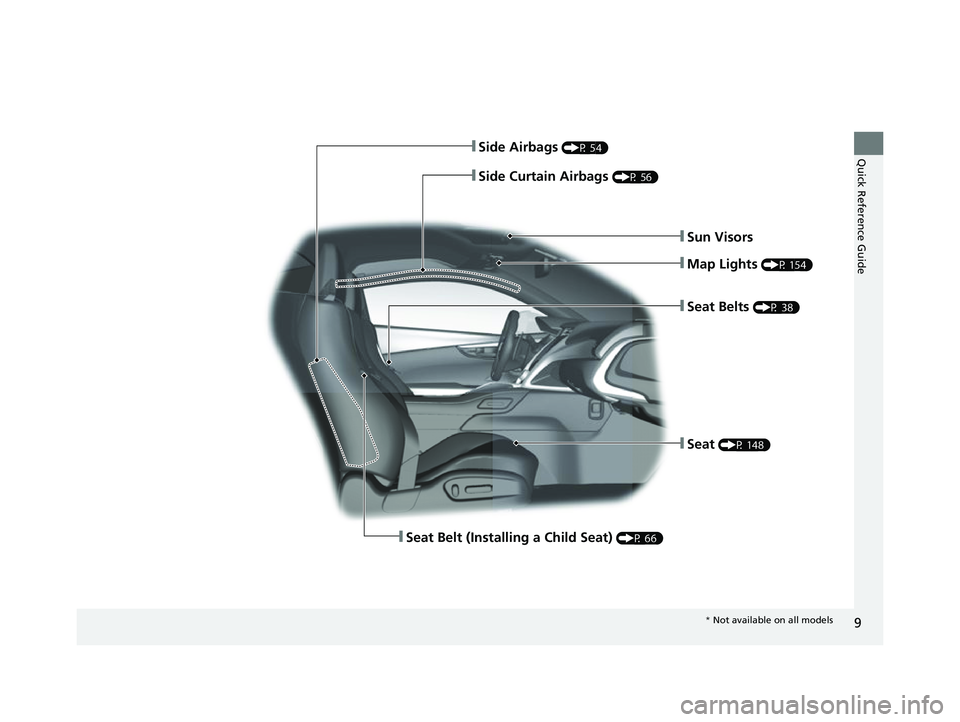

9
Quick Reference Guide❚Side Airbags (P 54)
❚Side Curtain Airbags (P 56)
❚Seat Belts (P 38)
❚Seat (P 148)
❚Sun Visors
❚Map Lights (P 154)
❚Seat Belt (Installing a Child Seat) (P 66)
* Not available on all models
21 ACURA NSX PMC-31T6N6400.book 9 ページ ２０２０年１０月８日　木曜日　午後３時７分

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P 389)
❚Windshield Wipers (P 139, 408)
❚Power Door Mirrors (P 146)
❚Headlights (P 135, 405)
❚How to Refuel (P 376)
❚High-Mount Brake Light (P 407)
❚Opening/Closing the Hatch (P 123)
❚Brake/Taillights (P 406)
❚Front Turn Signal/Parking Lights (P 134, 135, 405)
❚Back-Up Lights (P 406)
❚Rear License Plate Lights (P 407)
❚Hatch Release Button (P 123)
❚Door Lock/Unlock Control (P 111)
❚Front Side Marker Lights (P 135, 405)
❚Daytime Running Lights (P 138, 405)
❚Tires (P 411, 437)
❚Taillights (P 406)
❚Rear Turn Signal Lights (P 406)
❚Rear Side Marker Lights (P 406)
❚Multi-View Rear Camera (P 373)
21 ACURA NSX PMC-31T6N6400.book 10 ページ ２０２０年１０月８日　木曜日　午後３時７分

11
Quick Reference Guide
SPORT HYBRID Super Handling All-Wheel-
Drive
TM (SPORT HYBRID SH-AWD®)
Your SPORT HYBRID SH-AWD ® vehicle uses a Twin Motor Unit, Direct Drive Motor, and a gasoline engine as propulsion sources, with electric
motors receiving electricity from an internal High Voltage battery.
21 ACURA NSX PMC-31T6N6400.book 11 ページ ２０２０年１０月８日　木曜日　午後３時７分

12
Quick Reference Guide
*: When Integrated Dynamics System is in SPORT+ mode or TRACK mode, EV Launch and EV Cruising cannot be operated.
*: Operating paddle shifters wh en the gear position is in (D cancels EV Launch and EV Cruising.
Operating
modeEV Launch*Engine DriveEV Cruising*Power Acceleration
Vehicle
SpeedLaunch Acceleration:●Front Motor DriveGentle Acceleration:●Engine DriveLow Speed Cruise:●Front Motor DriveAggressive Acceleration:●Engine Drive●Motor Assist
Twin Motor UnitDrive-DriveDrive
Direct Drive
MotorStoppedGenerate / -StoppedGenerate / Drive
EngineStoppedRunningStoppedRunning
High Voltage batteryDischargesCharges/DischargesDischargesDischarges
21 ACURA NSX PMC-31T6N6400.book 12 ページ ２０２０年１０月８日　木曜日　午後３時７分

13
Quick Reference Guide
Operating modeEngine CruisingRegenerationAWD Mode
Vehicle
SpeedHigh Speed Cruise:●Engine DriveDeceleration:●Front & Rear RegenerationSlippery Condition:●Engine Drive●Front Motor Drive
Twin Motor Unit-RegenerateDrive
Direct Drive
MotorGenerate/DriveStoppedGenerate/Drive
EngineRunningRunning/StoppedRunning
High Voltage batteryCharges/DischargesChargesCharges/Discharges
21 ACURA NSX PMC-31T6N6400.book 13 ページ ２０２０年１０月８日　木曜日　午後３時７分

14
Quick Reference Guide
Energy Efficiency
As with a gasoline-powered vehicle, hybrid vehicle fuel efficiency and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engin e.
In addition, heavy climate control system us e negatively affects vehicle range and efficiency. Either of these use patterns wil l more quickly
reduce the High Voltage battery's state of charge.
Battery Types
There are two types of batteries used in this vehicle; a standa rd 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems; and a High Voltage battery that is used to power the propulsion motors and recharge the 12-volt battery.
Regenerative Energy and Regenerative Braking
When decelerating without the accelerator being depressed or the brake pedal being applied, or while driving downhill, the electric motors
act as generators that a portion of the elec trical energy that was used to accelerate the vehicle. This regenerative braking slows the vehicle
in a manner similar to engine braking in a gasoline-powered vehicle.
