2021 ACURA NSX Owners Manual

423
Maintenance
Climate Control System Maintenance
Air Conditioning
To ensure proper and safe operation, the Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant system only be serviced by trained and
certified technicians.
Never repair or replace the air conditio ning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.
New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.
Dust and Pollen Filters
The climate control system is equipped wi th dust and pollen filters that collect
pollen, dust, and other debris in the air. The Maintenance MinderTM messages will let
you know when to replace the filters.
We recommend that you replace the dust an d pollen filters sooner when using your
vehicle in areas with high concentrations of dust.
1 Air Conditioning
NOTICE
Vented refrigerant is harmful to the environmentM
To avoid refrigerant from venting, never replace the
evaporator with one re moved from a used or
salvaged vehicleM
Refrigerant in your vehicle

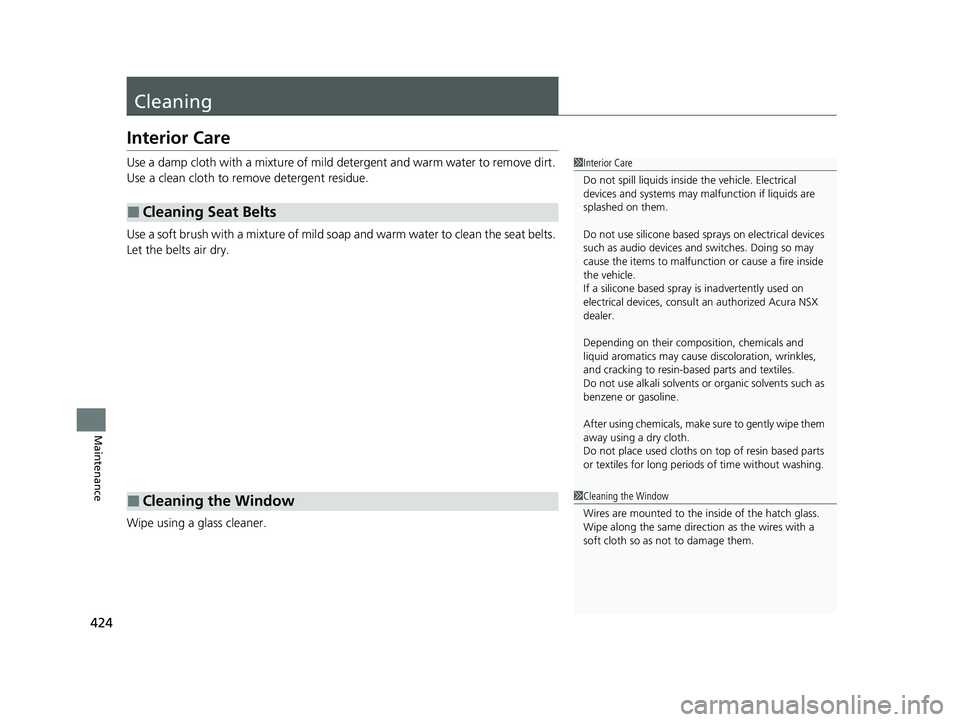

424
Maintenance
Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry.
Wipe using a glass cleaner.
■Cleaning Seat Belts
■Cleaning the Window
1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone based sprays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consul t an authorized Acura NSX
dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemicals, make su re to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
1Cleaning the Window
Wires are mounted to the in side of the hatch glass.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
21 ACURA NSX PMC-31T6N6400.book 424 ページ ２０２０年１０月８日　木曜日　午後３時７分

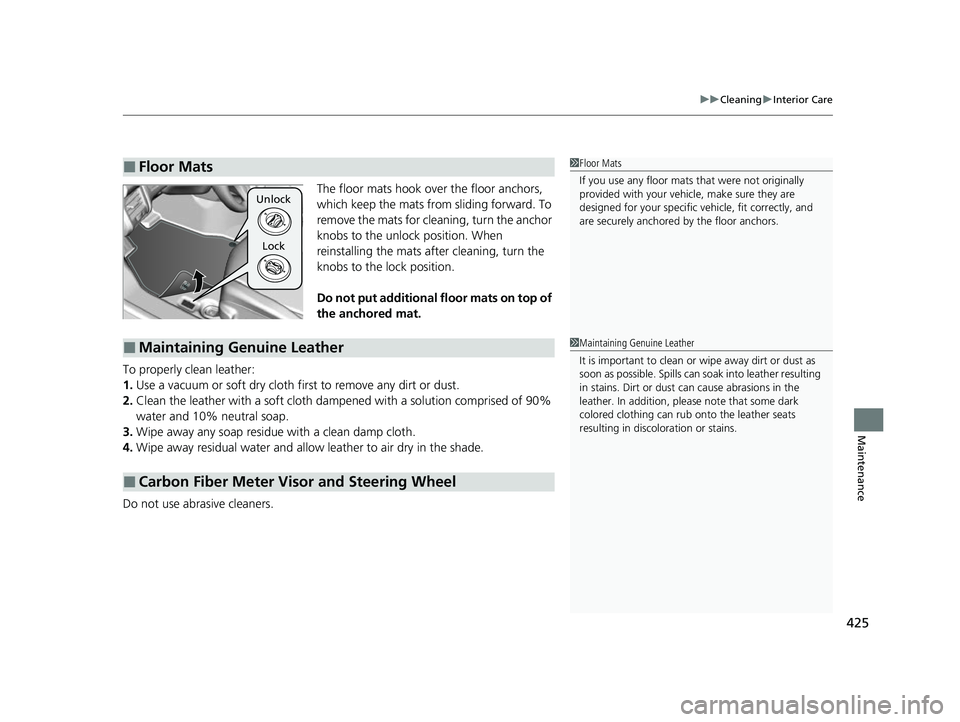

425
uuCleaning uInterior Care
Maintenance
The floor mats hook over the floor anchors,
which keep the mats from sliding forward. To
remove the mats for cleaning, turn the anchor
knobs to the unlock position. When
reinstalling the mats after cleaning, turn the
knobs to the lock position.
Do not put additional floor mats on top of
the anchored mat.
To properly clean leather:
1. Use a vacuum or soft dry cloth first to remove any dirt or dust.
2. Clean the leather with a soft cloth dampen ed with a solution comprised of 90%
water and 10% neutral soap.
3. Wipe away any soap residu e with a clean damp cloth.
4. Wipe away residual water and allo w leather to air dry in the shade.
Do not use abrasive cleaners.
■Floor Mats1 Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Unlock
Lock
■Maintaining Genuine Leather
■Carbon Fiber Meter Visor and Steering Wheel
1 Maintaining Genuine Leather
It is important to clean or wipe away dirt or dust as
soon as possible. Spills can soak into leather resulting
in stains. Dirt or dust ca n cause abrasions in the
leather. In addition, pl ease note that some dark
colored clothing can rub onto the leather seats
resulting in discol oration or stains.
21 ACURA NSX PMC-31T6N6400.book 425 ページ ２０２０年１０月８日　木曜日　午後３時７分

426
uuCleaning uExterior Care
Maintenance
Exterior Care
Dust off the vehicle body after you drive. Re gularly inspect your vehicle for scratches
on painted surfaces. A scratch on a painted surface can result in body rust. If you
find a scratch, pr omptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.
Do not use an automated car wash.
• Keep sufficient distance between the cleaning nozzl e and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
■Washing the Vehicle
■Using an Automated Car Wash
■Using High Pressure Cleaners
1 Washing the Vehicle
Do not spray water into the air intake vents. It can
cause a malfunction.
Do not spray water onto the capless unit when the
fuel fill door is open. It ca n cause damage to the fuel
system or engine.
If you need to lift the wiper arms away from the
windshield, first set the wiper arms to the
maintenance position.
2 Changing the Wiper Blade Rubber P. 408
NOTICE
Never run the vehicle through a conveyor-style car
wash or use any type of motorized cleaning device.
Doing so could damage the vehicle and the paint.
Always wash the vehicle by hand with a mild car
wash detergent and plenty of water.
Air Intake Vents
21 ACURA NSX PMC-31T6N6400.book 426 ページ ２０２０年１０月８日　木曜日　午後３時７分

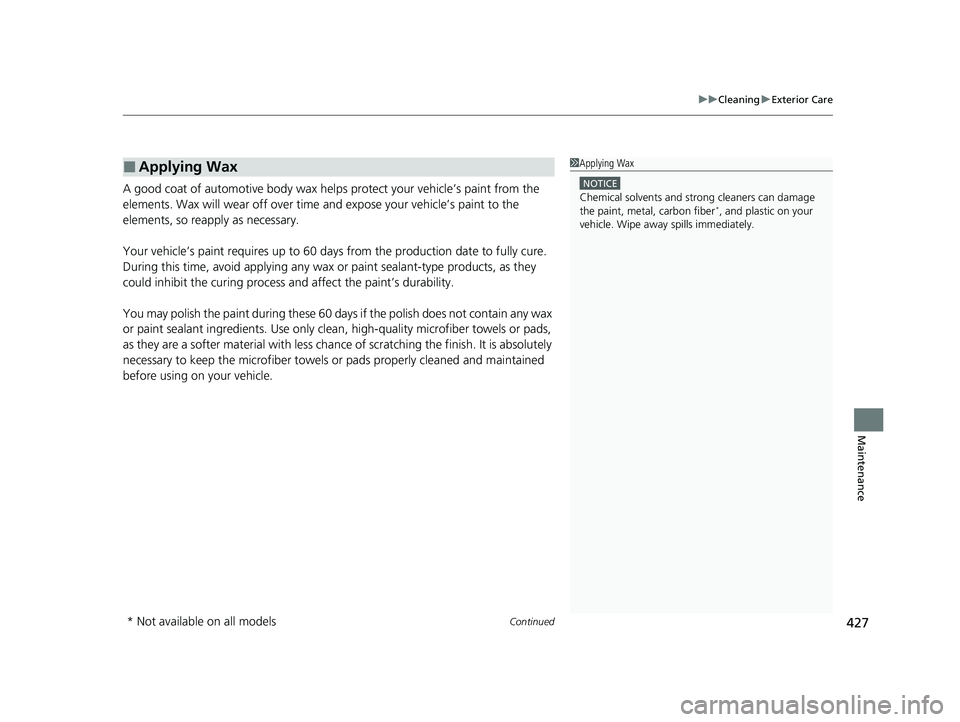

Continued427
uuCleaning uExterior Care
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
Your vehicle’s paint requires up to 60 da ys from the production date to fully cure.
During this time, avoid applying any wax or paint sealant-type products, as they
could inhibit the curing process and affect the paint’s durability.
You may polish the paint during these 60 days if the polish does not contain any wax
or paint sealant ingredients. Use only clean , high-quality microfiber towels or pads,
as they are a softer material with less chance of scratching the finish. It is absolutely
necessary to keep the microf iber towels or pads properly cleaned and maintained
before using on your vehicle.
■Applying Wax1 Applying Wax
NOTICE
Chemical solvents and strong cleaners can damage
the paint, metal, carbon fiber*, and plastic on your
vehicle. Wipe away spills immediately.
* Not available on all models
21 ACURA NSX PMC-31T6N6400.book 427 ページ ２０２０年１０月８日　木曜日　午後３時７分

uuCleaning uExterior Care
428
Maintenance
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Promptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lose their luster or appear burnished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask an authorized Acur a NSX dealer about the
correct coating material when you want to repair the
painted surface of the parts made of resin.
21 ACURA NSX PMC-31T6N6400.book 428 ページ ２０２０年１０月８日　木曜日　午後３時７分

Continued429
uuCleaning uExterior Care
Maintenance
The inside lenses of exterior lights (headlig hts, brake lights, etc.) may fog temporarily
if you have driven in the rain. Dew condensation also may build up inside the lenses
when there is a significant enough differe nce between the ambient and inside lens
temperatures (similar to vehicle windows fogging up in rainy conditions). These
conditions are natural processes, not structural design problems in the exterior
lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by an authorized Acura
NSX dealer.
Keep brake pads and rotors free of substances that are either abrasive or oil based,
as these substances can reduce brake system performance.
NSX brake pads and disks have a high meta llic content. Under certain conditions
these pad and disks may rust to varying degrees, which may cause a clunk noise or
rubbing sound if parked when brakes become wet. This is normal for brakes with
high friction pads and it does not affect operation of the brakes.
To prevent the iron contained in the brake pa ds and rotors from rusting and sticking,
brakes should be dried before parking the ve hicle after driving on wet roads or after
washing the vehicle (especially before long-term storage). To dry the brake pads and
rotors, drive the vehicle at a low sp eed and apply the brakes several times.
By regularly applying str ong pressure to the brakes, you can reduce corrosion
buildup on the brake pads and rotors.
■Fogged Exterior Light Lenses
■Cast Iron Brakes*
1 Brake Maintenance
Brake maintenance require s specialized knowledge.
We recommend maintenance to be carried out by an
authorized Acura NSX dealer.
1 Maintenance of Brake Surfaces
Brakes can be dried by driv ing on a dry road for few
miles/kilometers, and a pplying the brake pedal
normally, based on traffic and road conditions. These
steps help maintain br ake system performance.
* Not available on all models
21 ACURA NSX PMC-31T6N6400.book 429 ページ ２０２０年１０月８日　木曜日　午後３時７分

uuCleaning uExterior Care
430
Maintenance
Keep the brake pads and rotors free of subs tances that are either abrasive or oil
based, as these substances can reduce braking power. After driving in the presence
of salt and/or sand, briefly wash the ro tor/pad surfaces with low-pressure water,
then allow the brake system to dry. To dry the brake pads and rotors, drive the
vehicle at a low speed and apply the brakes several times.
Refer to the color code label and the temperature notice label affixed to the
underside of the hood before painting the vehicle.
■Carbon Ceramic Brakes*
■Painting the Vehicle
1 Painting the Vehicle
U.S. models
Canadian models
* Not available on all models
21 ACURA NSX PMC-31T6N6400.book 430 ページ ２０２０年１０月８日　木曜日　午後３時７分
