2021 ACURA NSX Owners Manual

87
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Roll the right selector wheel to see the message again with the
system message indicator on.
MessageConditionExplanation
• Appears when the washer fluid is low.•Refill the washer fluid.
2 Refilling Window Washer Fluid P. 404
•Appears when the scheduled maintenance is due soon.
• Consequently, Service Due Now and Service Past
Due follow.2Maintenance Minder Messages on the Driver
Information Interface P. 385
•Appears when the temperatur e of the transmission is
starting to get too hot.
• The performance of the vehicle may be reduced.•It may not be possible to use the paddle shifters.
• Until the message disappears, reduce your speed and
allow the system to cool down.
•Appears when the transmission system temperature is
too high. The vehicle does not operate properly.•You may find it difficult to accelerate, or to start the
vehicle on uphill.
• Immediately stop in a safe place in
(P.
• Let the engine idle until the message disappears.
21 ACURA NSX PMC-31T6N6400.book 87 ページ ２０２０年１０月８日　木曜日　午後３時７分

88
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when there is a problem with the sensor on
the 12-volt battery.•Have your vehicle checked by an authorized Acura NSX
dealer.
2 Checking the 12-Volt Battery P. 421
•Appears after the driver’s door is opened when the
power mode is in ACCESSORY.•Press the ENGINE START/STOP button twice with your
foot off the brake pedal to change the power mode to
VEHICLE OFF.
• Appears when the power mode is in ACCESSORY.
—
21 ACURA NSX PMC-31T6N6400.book 88 ページ ２０２０年１０月８日　木曜日　午後３時７分

89
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when you close the door with the power mode
in ON without the keyless access remote inside the
vehicle.•Disappears when you bring the keyless access remote
back inside the vehicle and close the door.
2 Keyless Access Remote Reminder P. 133
•Appears when the keyless access remote battery
becomes weak.• Replace the battery as soon as possible.
2 Replacing the Button Battery P. 422
•Appears if the keyless access remote battery is too weak
to turn on the power system or the key is not within
operating range to turn on the power system.
A beeper sounds six times.• Bring the keyless access remote in front of the ENGINE
START/STOP button to be touched with.
2If the Keyless Access Remote Battery is Weak P. 450
•Appears three seconds after you bring the keyless
access remote in front of the ENGINE START/STOP
button when To Start, Hold Remote Near Start
Button appears. To Start Engine: Brake + Push
appears sequentially.• Unless you bring the keyless access remote in front of
the ENGINE START/STOP button, this message does
not appear.
2 If the Keyless Access Remote Battery is Weak P. 450
•Appears when you set the power mode to ACCESSORY
or ON.
2 Turning on the Power P. 325
•Appears if you press the ENGINE START/STOP button
while the vehicle is moving.• The message will disappear after six seconds or when
the power mode is set to VEHICLE OFF.
21 ACURA NSX PMC-31T6N6400.book 89 ページ ２０２０年１０月８日　木曜日　午後３時７分

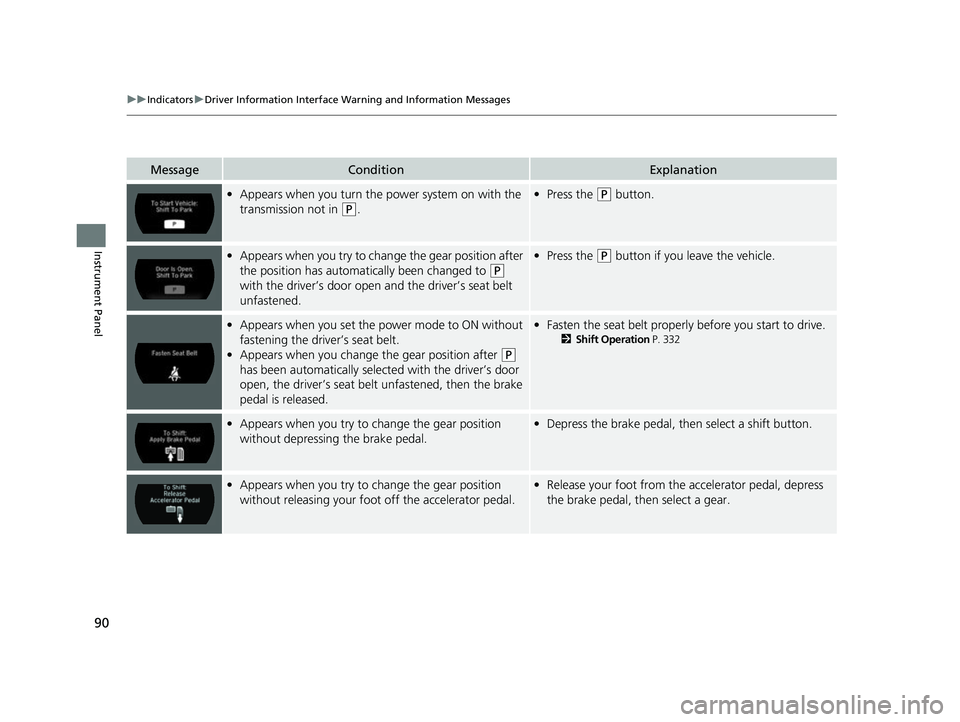

90
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when you turn the power system on with the
transmission not in
(P.
• Press the (P button.
•Appears when you try to chan ge the gear position after
the position has automatically been changed to
(P
with the driver’s door open and the driver’s seat belt
unfastened.
• Press the (P button if you leave the vehicle.
•Appears when you set the po wer mode to ON without
fastening the driver’s seat belt.
• Appears when you change the gear position after
(P
has been automatically select ed with the driver’s door
open, the driver’s seat belt unfastened, then the brake
pedal is released.
• Fasten the seat belt properly before you start to drive.
2 Shift Operation P. 332
•Appears when you try to change the gear position
without depressing the brake pedal.• Depress the brake pedal, then select a shift button.
•Appears when you try to change the gear position
without releasing your foot off the accelerator pedal.•Release your foot from the accelerator pedal, depress
the brake pedal, then select a gear.
21 ACURA NSX PMC-31T6N6400.book 90 ページ ２０２０年１０月８日　木曜日　午後３時７分

91
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the park bu tton is pressed while the
vehicle is moving.
• Appears if you change the gear position to
(R while the
vehicle is moving forward, or to D or M while the
vehicle is reversing.
• Make sure that the vehicle comes to a stop before
operating the select button.
• Appears if you depress the accelerator pedal when the
transmission is in
(N.
•Release the accelerator pedal. After that, depress the
brake pedal and change the transmission position.
•Appears when the shift is repeatedly changed between
(P and any other position.
•Wait for a while then ch ange the shift position.
•Appears if there is a proble m with the electric system.
• Appears when you set the power mode to OFF while
driving.•Immediately stop in a safe place and set the parking
brake.
• Continue driving if the message goes off soon after.
• If there is a problem with the transmission system, the
transmission system indicator comes on.
2Transmission System Indicator P. 80
•Appears when you change to (N, and press the
ENGINE START/STOP button within five seconds.•The gear position remains in (N for 15 minutes, then
automatically switches to
(P.
2 If you want to keep the transmission in (N
position (car wash mode) P. 333
•Appears when the vehicle is stopped with the driver’s
seat belt unfastened and there is a chance that the
vehicle may roll unintentionally.• Press the (P button before release the brake pedal
when idling, parking or exiting the vehicle.
2 Shift Operation P. 332
21 ACURA NSX PMC-31T6N6400.book 91 ページ ２０２０年１０月８日　木曜日　午後３時７分

92
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if any door or the trunk (hatch) is not
completely closed.
• Appears if any door or the trunk (hatch) is opened while
driving. The b eeper sounds.•Goes off when all doors and the trunk (hatch) are
closed.
• Appears if there is a proble m with the radiator system.•Drive slowly to prevent ov erheating and have your
vehicle checked by an author ized Acura NSX dealer as
soon as possible.
• Appears when there is a pr oblem with the headlights.•Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle checked by an authorized
Acura NSX dealer as soon as possible.
• Appears if there is a proble m with the parking sensor
system.• Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by an
authorized Acura NSX dealer.Models with
parking sensor
system
21 ACURA NSX PMC-31T6N6400.book 92 ページ ２０２０年１０月８日　木曜日　午後３時７分

93
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if the automatic brake hold is automatically
canceled while it is in operation.•Immediately depress the brake pedal.
•Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 364
•Appears if there is a problem with the acoustic vehicle
alerting system.•Have your vehicle checked by an authorized Acura NSX
dealer.
•Appears when the automatic brake hold button is
pressed without wearing th e driver’s seat belt.•Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 364
•Appears when the automatic brake hold button is
pressed without depressing the brake pedal while the
automatic brake hold is in operation.• Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 364
•Appears when the parking brake is applied
automatically while it is in operation.2 Automatic Brake Hold P. 364
2 Parking Brake P. 361
21 ACURA NSX PMC-31T6N6400.book 93 ページ ２０２０年１０月８日　木曜日　午後３時７分

94
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears after the 12-volt battery charging system
indicator comes on.• Your vehicle has less ability to accelerate and may be
harder to start on an incline.
• Contact an authorized Acura NSX dealer immediately.
•Appears when the transmission temperature is too low
to operate (approx. -13°F [-25°C] or below).• You can start the engine and use the climate control
system to warm up the interior, which will also warm
the transmission enough for you to drive the vehicle.
• The engine speed does not increase even if you fully
depress the accelerator pedal.
•Appears when the High Volt age battery temperature is
extremely low (-4°F [-20°C]).• Contact an authorized Acura NSX dealer immediately.
• To prevent the message to come on, store the vehicle in
the garage or drive in advance to warm up the High
Voltage battery.
• The minimum operation guarantee environmental
temperature is -4°F [-20°C].
•Appears when the twin motor unit fluid temperature is
extremely low.•Vehicle speed is limited to 109 mph (175 km/h) until
twin motor unit fluid warms up.
•Appears if the AWD system has a problem due to a
hybrid system or power distribution control failure.•Drives with the rear wheels only in this state.
Have your vehicle checked by an authorized Acura NSX
dealer.
21 ACURA NSX PMC-31T6N6400.book 94 ページ ２０２０年１０月８日　木曜日　午後３時７分
