No.FUSE RAT‐
ING PROTECTED COMPONENT
F7 15 A
―
20 A Fuel pump
F8 15 A Engine control system
F9 15 A
Transmission control system
*
F10 15 A Engine control system
F11 7.5 A Air conditioner
F12 15 A Engine control system
F13 15 A ―
F14 20 A
Front seat warmer
*
F15 20 A ―
F16 15 A For protection of various circuits
F17 ― ―
F18 15 A Accessory sockets
F19 60 A Power steering system
F20 15 A Headlight (LH) 1
F21 15 A Headlight (RH) 1
F22 15 A For protection of various circuits
F23 30 A ABS, Dynamic st ability control system
F24 15 A Headlight (LH) 2
F25 15 A Headlight (RH) 2
F26 7.5 A On board diagnostics
F27 25 A For protection of various circuits
F28 25 A For protection of various circuits
F29 15 A Windscreen washer
F30 15 A Accessory sockets
F31 15 A Horn
F32 ― ―
F33 ― ―
F34 ― ―
F35 50A ABS, Dynamic stability control system
F36 ― ―
F37 40 A Rear window defogger
F38 50 A For protection of various circuits
F39 ― ―
F40 40 A Air conditioner
Maintenance and Care
Owner Maintenance
*Some models.6-41
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

No.FUSE RAT‐
ING PROTECTED COMPONENT
F41 ― ―
F42 20 A Windshield wipers
F43 30 A Cooling fan
F44 30 A For protectio n of various circuits
F45 10 A Engine control system
F46 15 A Audio
F47 15 A For protectio n of various circuits
F48 7.5 A Air bag
F49 15 A Instrument cluster
F50 15 A Room lamp
F51 25 A Audio system
F52 10 A
Moonroof
*
F53 15 A Engine control system
F54 15 A i-ACTIVSENSE
F55 50 A ―
F56 50 A ―
Fuse block (Left side)
Maintenance and Care
Owner Maintenance
6-42*Some models.
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

No.FUSE RAT‐
ING PROTECTED COMPONENT
F1 ― ―
F2 ― ―
F3 ― ―
F4 15 A Power door locks (Driver)
F5 15 A Power door locks (Passenger)
F6 ― ―
F7 ― ―
F8 ― ―
F9 30 A Power windows (Driver)
F10 30 A Power windows (Passenger)
F11 30 A
Power seat (Driver)
*
F12 ― ―
F13 15 A Audio
F14 ― ―
F15 15 A Back door lock
F16 15 A Illumination
F17 10 A Brake lights
F18 10 A Back lights
F19 10 A Rear turn signal lights
F20 10 A Taillights
F21 10 A Taillights
F22 7.5 A
Electric steering lock
*
F23 ― ―
Maintenance and Care
Owner Maintenance
*Some models.6-43
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Exterior Care
▼Exterior Care
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.

Environmental hazards, however, can
harm the paint's prote
ctive properties, if
proper care is not taken.

Here are some examples of possible
damage, with tips on how to prevent them.
Etching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These steps
should be taken immediately after you
suspect that acid rain has settled on your
vehicle's finish.
Damage Caused by Bird Dropping,
Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these are
not removed they can eat away the clear
and color base coat of the vehicle's
paintwork.

When insects stick to the paint surface and
decompose, corrosive compounds form.
These can erode the clear and color base
coat of the vehicle's paintwork if they are
not removed.

Tree sap will harden and adhere
permanently to the pa int finish. If you
scratch the sap off wh ile it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda washed
and waxed to preserve its finish according
to the instructions in this section. This
should be done as soon as possible.

Bird droppings can be removed with a soft
sponge and water. If you are traveling and
these are not available, a moistened tissue
may also take care of the problem. The
cleaned area should be waxed according to
the instructions in this section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.

Another method is to cover the affected
area with dampened newspaper for 1 to 2
hours. After removing the newspaper,
rinse off the loosened debris with water.
Maintenance and Care
Appearance Care
6-44
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

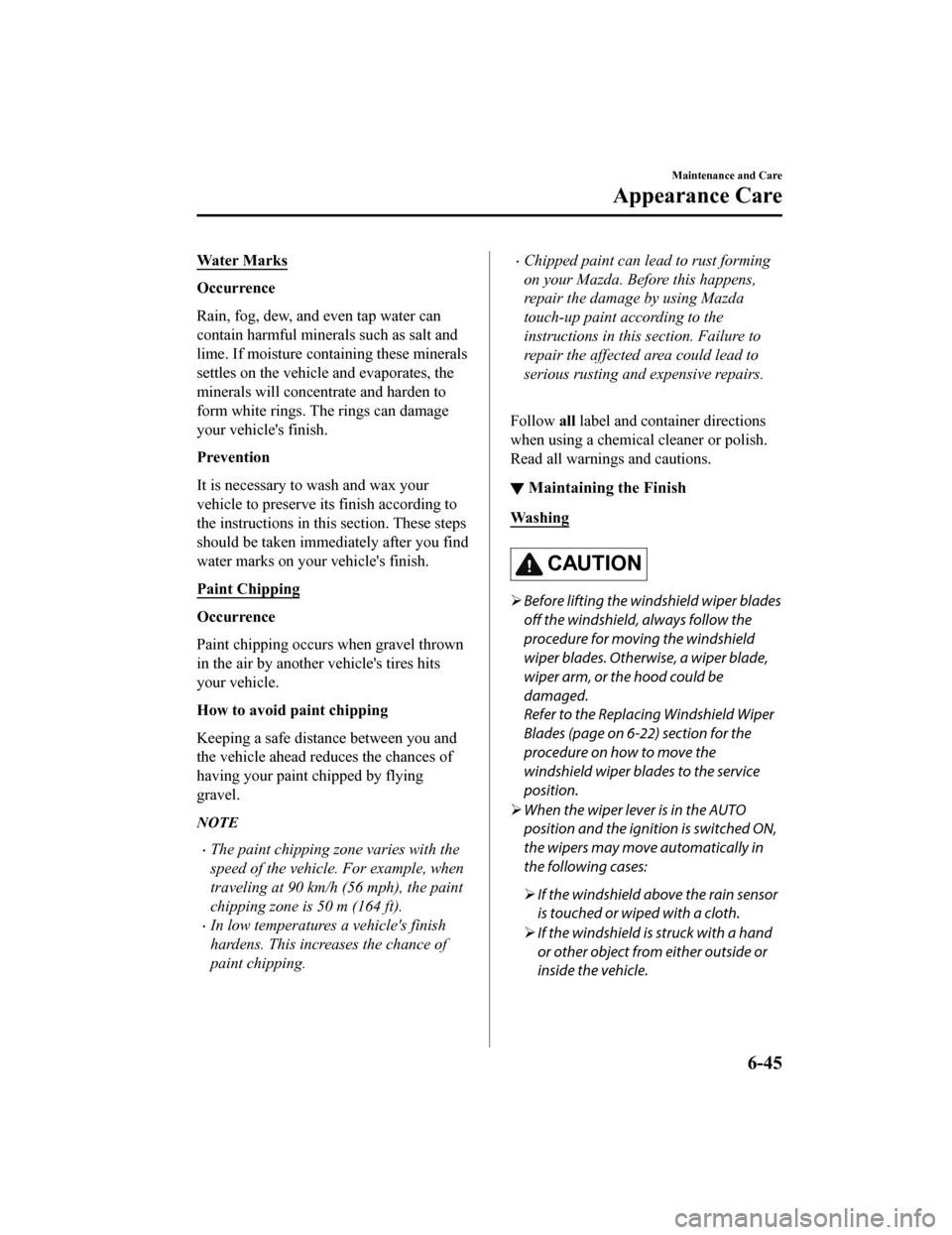

Water Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these minerals
settles on the vehicle and evaporates, the
minerals will concentrate and harden to
form white rings. The rings can damage
your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve it s finish according to
the instructions in this section. These steps
should be taken immediately after you find
water marks on your vehicle's finish.
Paint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.
NOTE
The paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).
In low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.
Chipped paint can lead to rust forming
on your Mazda. Before this happens,
repair the damage by using Mazda
touch-up paint according to the
instructions in this section. Failure to
repair the affected area could lead to
serious rusting and expensive repairs.

Follow all label and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
▼ Maintaining the Finish
Wa s h i n g
CAUTION

Before lifting the windshield wiper blades
off the windshield, always follow the
procedure for moving the windshield
wiper blades. Otherw ise, a wiper blade,
wiper arm, or the hood could be
damaged.
Refer to the Replacin g Windshield Wiper
Blades (page on 6-22) section for the
procedure on how to move the
windshield wiper blades to the service
position.
 When the wiper lever is in the AUTO
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windshield above the rain sensor
is touched or wiped with a cloth.
 If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
Maintenance and Care
Appearance Care
6-45
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Keep hands and scrapers clear of the
windshield when the wiper lever is in the
AUTO position and the ignition is
switched ON as fingers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely that the
engine is left running) this is particularly
important when clearing ice and snow.
 Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts.
 When washing and waxing the vehicle,
be careful not to apply excessive force to
any single area of the vehicle roof or the
antenna. Otherwise, you could dent the
vehicle or damage the antenna.
 Make sure that the fuel-filler lid is closed
and lock the doors. Otherwise, the
fuel-filler lid may be forcefully opened by
water pressure causing damage to the
vehicle or fuel-filler lid.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.

If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.

Scratches occur on the paint surface when:
The vehicle is washed without first
rinsing off dirt and other foreign matter.
The vehicle is washed with a rough, dry,
or dirty cloth.
The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff.
Cleansers or wax containing abrasives
are used.
NOTE
Mazda is not responsible for scratches
caused by automatic car washes or
improper washing.
Scratches are more noticeable on
vehicles with darker paint finishes.
To minimize scratche s on the vehicle's
paint finish:
Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.
Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
Rub gently when washing or drying the
vehicle.
Take your vehicle only to a car wash
that keeps its brush es well maintained.
Do not use abrasive cleansers or wax
that contain abrasives.
CAUTION
Do not use steel wool, abrasive cleaners,
or strong detergents containing highly
alkaline or caustic agents on
chrome-plated or anodized aluminum
parts. This may damage the protective
coating; also, cleaners and detergents
may discolor or deteriorate the paint.
Maintenance and Care
Appearance Care
6-46
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Pay special attention to removing salt, dirt,
mud, and other foreign material from the
underside of the fenders, and make sure
the drain holes in the lower edges of the
doors and rocker panels are clean.

Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.

Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the finish.

After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WA R N I N G
Dry off brakes that have become wet by
driving slowly, releasing the accelerator
pedal and lightly applying the brakes
several times until the brake performance
returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the vehicle
pulling to one side when braking could
result in a serious accident. Light braking
will indicate whether the brakes have been
affected.
When using an automatic car wash
Retract the door mirrors.
The automatic car wash brushes could
reduce the paint lustre or hasten paint
deterioration.
When using a high water pressure car
wash
High water temperature and high water
pressure car washers are available
depending on the type of car wash
machine. If the car washer nozzle is put
too close to the vehicle, the force of the
spray could damage or deform the
molding, affect the seal ability of parts, and
allow water to penetra te the interior. Keep
a sufficient space (30 cm (12 in) or more)
between the nozzle and the vehicle. In
addition, do not spend too much time
spraying the same area of the vehicle, and
be very careful when spraying between
gaps in doors and around windows.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.

1. Use wax which contains no abrasives. Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for
metallic, mica, and solid colors.
3. When waxing, coat evenly with the sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take off
the wax. Rewax these areas even if the rest
of the vehicle does not need it.
Maintenance and Care
Appearance Care
6-47
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

▼Repairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is da
maged and needs metal
parts repaired or replaced, make sure the
body shop applies anti -corrosion materials
to all parts, both repaired and new. This
will prevent them from rusting.
▼ Bright-Metal Maintenance
Use tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
To prevent corrosi
on on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
During cold weather o r in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
CAUTION
Do not use steel wool, abrasive cleaners, or
strong detergents containing highly
alkaline or caustic agents on
chrome-plated or anodized aluminum
parts. This may result in damage to the
protective coating and cause discoloration
or paint deterioration.
▼ Underbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of
such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.

Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also to
do this every month.

Pay special attention to these areas
because they easily hide mud and dirt. It
will do more harm than good to wet
down the road grime without removing
it.

The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped there
will cause rusting.
WA R N I N G
Dry off brakes that have become wet by
driving slowly, releasing the accelerator
pedal and lightly applying the brakes
several times until the brake performance
returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the vehicle
pulling to one side when braking could
result in a serious accident. Light braking
will indicate whether the brakes have been
affected.
Maintenance and Care
Appearance Care
6-48
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03
