System problem notification
The indication displays if the system has a
malfunction.
Without 360°view monitor
With 360°view monitor
Check the reason for the indication
displaying on the center display or
multi-information display.
Refer to If a Warning Light Turns On or
Flashes on page 7-27.
When Driving
Parking Sensor System
4-241
Mazda3_8HZ1-EA-19G_Edition1_old2019-5-17 13:49:03

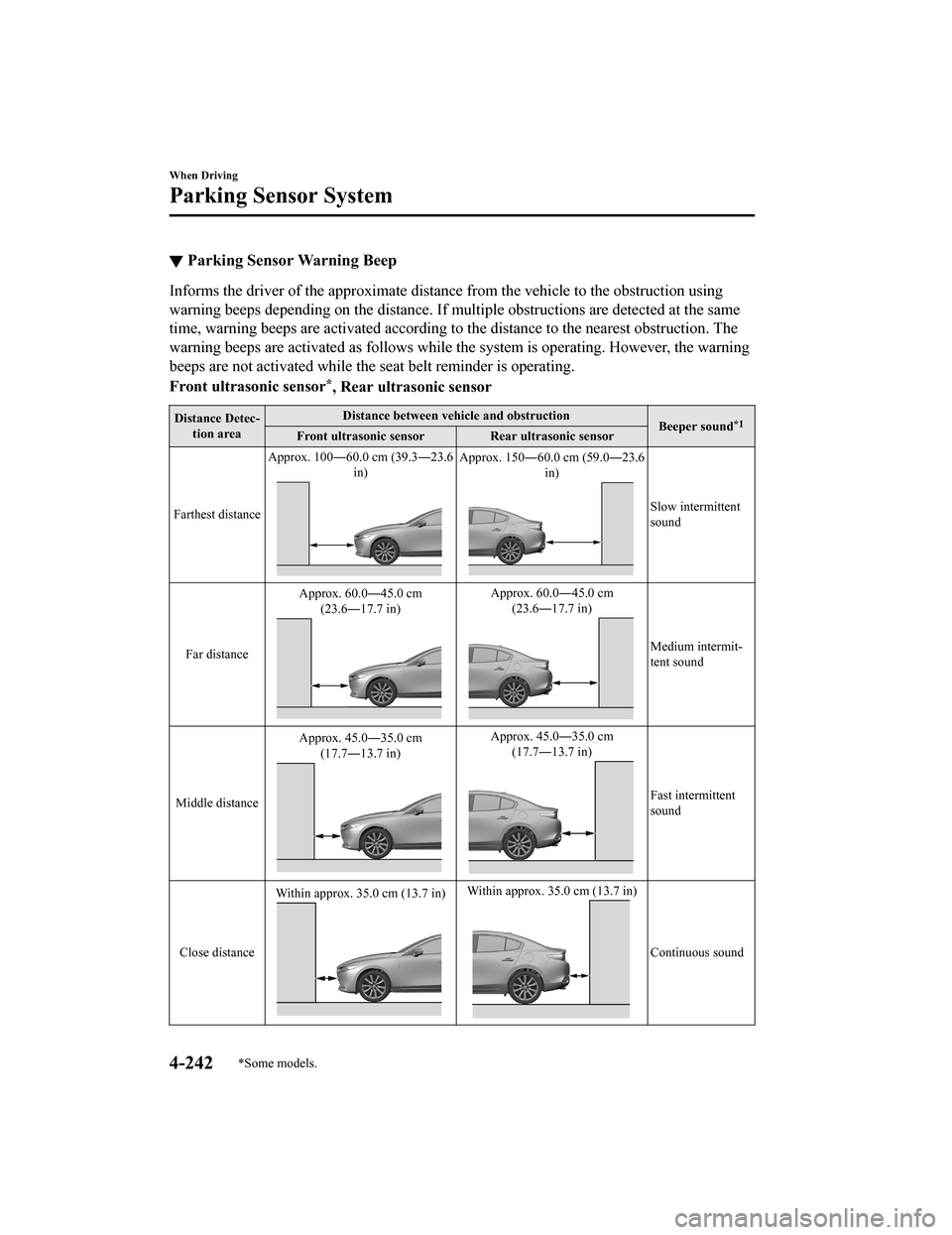

▼Parking Sensor Warning Beep
Informs the driver of the approximate distance from the vehicle
to the obstruction using
warning beeps depending on the d istance. If multiple obstructions are detected at the same
time, warning beeps are activated according to the distance to the nearest obstruction. The
warning beeps are activated as follows while the system is oper ating. However, the warning
beeps are not activated while t he seat belt reminder is operati ng.
Front ultrasonic sensor
*, Rear ultrasonic sensor
Distance Detec‐ tion area Distance between vehicle and obstruction
Beeper sound*1Front ultrasonic sensorRear ultrasonic sensor
Farthest distance Approx. 100―60.0 cm (39.3―23.6
in)
Approx. 150―60.0 cm (59.0―23.6in)
Slow intermittent
sound
Far distance Approx. 60.0―45.0 cm
(23.6―17.7 in)
Approx. 60.0―45.0 cm(23.6―17.7 in)
Medium intermit‐
tent sound
Middle distance Approx. 45.0―35.0 cm
(17.7―13.7 in)
Approx. 45.0―35.0 cm(17.7―13.7 in)
Fast intermittent
sound
Close distance Within approx. 35.0 cm (13.7 in)
Within approx. 35.0 cm (13.7 in)
Continuous sound
When Driving
Parking Sensor System
4-242*Some models.
Mazda3_8HZ1-EA-19G_Edition1_old
2019-5-17 13:49:03

*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
Front corner ultr asonic sensor*, Rear corner/Rear side* ultrasonic sensor
Distance Detection area Distance between vehicle and obstruction
Beeper sound*1Front corner ultrasonic sensor/Rear corner, Rearside ultrasonic sensor
Far distance Approx. 55.0―38.0 cm (21.6―14.9 in)
Medium intermittent sound
Middle distance Approx. 38.0―25 cm (14.9―9.8 in)
Fast intermittent sound
Close distance Within approx. 25 cm (9.8 in)
Continuous sound
*1 The rate at which the intermitte
nt sound beeps increases as the vehicle approaches the obstruction.
NOTE
If an obstruction in the same area excluding the close area is detected continuously for 6
seconds or longer, only the warning beeps stop activating. (Detection is indicated) If the
detection area changes to the close side, the warning beeps resumes. (If the detection area
changes to the far side, the warning beeps remain off)
The sound volume (each of front and rear) can be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
When Driving
Parking Sensor System
*Some models.4-243
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

▼When Warning Indicator/Beep is Activated
The system notifies the driver
of an abnormality by activating the beep sound and the
indicator light.
Indicator/Beep How to check
A message indicating a system
malfunction or sensor malfunc‐
tion is displayed. There may be a problem with the system. Have your vehicle inspe
cted by an
Authorized Mazda Dealer as soon as possible.
A message indicating that the
sensor is dirty is displayed. Remove any foreign matter from t
he sensor area. If the system does not recov‐
er, have the vehicle inspected by an Authorized Mazda Dealer.
A certain obstruction detection
indication is continuously dis‐
played. Foreign matter may have gotten on the sensor area corresponding
to the detec‐
tion indicator. If the system doe s not recover, have the vehicle inspected by an
Authorized Mazda Dealer.
When Driving
Parking Sensor System
4-244
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

5Interior Features
Use of various features for ride comfort, including air-conditioning
system and audio system.
Climate Control System.................... 5-2 Operating Tips.............................. 5-2
Vent Operation.............................. 5-3
Manual Type................................. 5-5
Fully Automatic Type................... 5-9
Mazda Connect................................ 5-14 What is Mazda Connect ?........... 5-14
Mazda Connect Basic
Operations...................................5-17
Connected Service (U.S.A
only)............................................5-33
Interior Equipment......................... 5-34
Sunvisors.................................... 5-34
Interior Lights............................. 5-35
Accessory Socket........................5-37
Cup Holder................................. 5-38
Bottle Holder.............................. 5-40
Assist Grips................................ 5-40
Rear Coat Hooks....... ..................5-41
Storage Compartments............... 5-41
5-1
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Operating Tips
▼Operating Tips
Operate the climate control system with
the engine running.
To prevent the battery from being
discharged, do not leave the fan control
switch on for a long
period of time with
the ignition switched ON when the
engine is not running.
Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.
Use the climate control system to defog
the windows and dehumidify the air.
The recirculate mode should be used
when driving through tunnels or while
in a traffic jam, or when you would like
to shut off outside air for quick cooling
of the interior.
Use the outside air position for
ventilation or windshield defrosting.
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the climate control system.
(With A/C switch)
Run the air conditioner about 10
minutes at least once a month to keep
internal parts lubricated.
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient.
The refrigerant specifications are
indicated on a label attached to the
inside of the engine compartment. If the
wrong type of refrigerant is used, it
could result in a ser ious malfunction of
the air conditioner. Consult a
professional, government certified
repairer for the inspection or repair
because a special device is required for
the air conditi oner maintenance.
For details, consult an Authorized
Mazda Dealer.
1. Label
Interior Features
Climate Control System
5-2
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Vent Operation
▼Adjusting the Vents
Directing airflow
To adjust the direction of airflow, move
the adjustment knob.
NOTE
When using the air conditioner under
humid ambient temperature conditions,
the system may blow fog from the vents.
This is not a sign of trouble but a result
of humid air being suddenly cooled.
The air vents can be fully opened and
closed by operating the knob.
Driver's Side Vents
Air vent open/close
Right side is symmetry.
1. Knob
2. Open
3. Close

Airflow direction adjustment
1. Knob

Passenger's Side Vents
Air vent open/close
1. Knob
2. Open
3. Close

Airflow direction adjustment
1. Knob

Interior Features
Climate Control System
5-3
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

▼Selecting the Airflow Mode
Dashboard Vents
Dashboard and Floor Vents
Floor Vents
Defroster and Floor Vents
Defroster Vents
NOTE
The location airflow exits the air vents and
the airflow amount may change depending
on the open or close status of the air vents.
Interior Features
Climate Control System
5-4
