2020 MAZDA MODEL 3 HATCHBACK Owners Manual (in English)

WA R N I N G
Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off, resulting in an accident. In
addition, lug nuts and bolts could be
damaged if tightened more than
necessary.
4. Turn the jack handle counterclockwise using the lug wrench and lower the
vehicle.
5. Use the lug wrench to tighten the nuts in the order shown.

If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108―147 (12―14,
80―108)
WA R N I N G
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result in
loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip off
and cause an accident.
6. (Aluminum wheel equipped vehicle)
Remove the center cap by tapping it
from the backside of the wheel using
the lug wrench.
7. Store the damaged tire in the trunk (4-door) or lugg age compartment
(5-door).

8. Secure the damaged tire to the vehicle using the following method.
If Trouble Arises
Flat Tire
7-13
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

(Vehicles with flat tire hold-down
bolt (excluding vehicles with
sub-woofer for 5-door))
1. Spread apart the tabs on the sparetire hold-down bolt that was
removed when removing the spare
tire and remove the bolt for
securing the spare tire.
1. Tabs
2. Bolt for securing spare tire
3. Spare tire hold-down bolt

2. Remove the bolt for securing the
flat tire from its stored position and
install it in place of the removed
spare tire hold-down bolt.
1. Bolt for securing the flat tire
2. Spare tire hold-down bolt

NOTE
The longer bolt is used as the bolt
for securing the flat tire, and the
shorter one is used as the bolt for
securing the spare tire. When
installing a bolt, check the bolt's
length.
3. Secure the damaged tire to the vehicle using the flat tire
hold-down bolt.
(Vehicles with flat tire hold-down
bolt and with sub-woofer for
5-door))
1. Remove the bolt for securing theflat tire from its stored position.
2. Secure the damaged tire to the vehicle using the flat tire
hold-down bolt.
1. Flat tire hold-down bolt
2. Sub-woofer

If Trouble Arises
Flat Tire
7-14
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

(Vehicles without flat tire hold-down
bolt)
1. Secure the damaged tire to thevehicle using the spare tire
hold-down bolt removed when
removing the spare tire.
9. Place the trunk mat (4-door) orluggage mat (5-door) on the damaged
tire.
10. Remove the tire blocks and store thetools and jack.
11. Check the inflation pressure. Refer to Tires on page 9-9.
12. Have the flat tire repaired or replaced
as soon as possible.
13. After repairing or replacing the flat
tire, install the wheel cover (vehicles
with steel wheels) or center cap
(vehicles with alumi num wheels) using
the following procedure.
(Wheel cover)
1. Align the notch on the wheel cover with the tire valve of the wheel and
install the whee l cover to the
wheel.
1. Notch
2. Tire valve
CAUTION
Always align the notch on the wheel
cover with the tire valve of the
wheel. Otherwise, it could cause
damage to the wheel cover and the
tire valve.
(Center cap)
1. Align the center cap with the center hole of the wheel and install the
center cap to the wheel.
If Trouble Arises
Flat Tire
7-15
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

WA R N I N G
Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air pressure
is dangerous. Tires with incorrect pressure
could affect handling and result in an
accident. When you check the regular tires'
air pressure, check the spare tire, too.
NOTE
To prevent the jack and tool from rattling,
store them properly.
If Trouble Arises
Flat Tire
7-16
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Jump-Starting
▼Jump-Starting
Jump-starting is dangerous if done incorrectly. S
o follow the procedure carefully. If you feel
unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WA R N I N G
Follow These Precautions Carefully:
To ensure safe and correct handling of the ba ttery, read the following precautions carefully
before using the battery or inspecting it.
Keep flames and sparks away from open battery cells and do not allow metal tools to
contact the positive (+) or negative (–) terminal of the battery when working near a battery.
Do not allow the positive (+) terminal to contact the vehicle body:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.
Keep all flames and sparks away from open battery cells because hydrogen gas is
produced from open battery cells while charging the battery or adding battery
fluid:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep al l flames including cigarettes and sparks away
from open battery cells.
Do not jump-start a frozen battery or one with a low fluid level:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may rupture or
explode, causing serious injury.
If Trouble Arises
Battery Runs Out
7-17
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

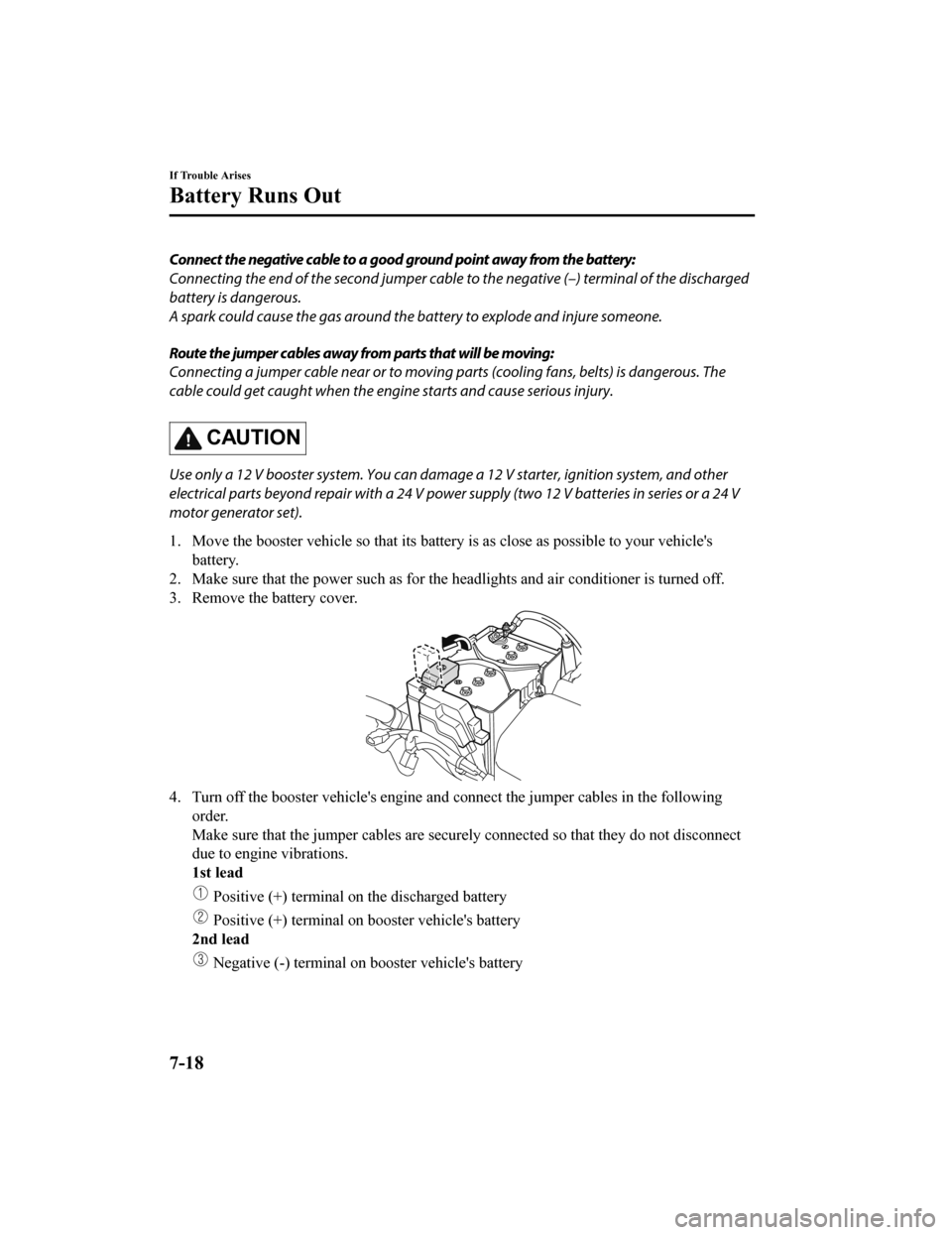

Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (–) terminal of the discharged
battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous. The
cable could get caught when the engine starts and cause serious injury.
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and other
electrical parts beyond repair with a 24 V power supply (two 12 V batteries in series or a 24 V
motor generator set).
1. Move the booster vehicle so that its battery is as close as p ossible to your vehicle's
battery.
2. Make sure that the power such as for the headlights and air c onditioner is turned off.
3. Remove the battery cover.
4. Turn off the booster vehicle's engine and connect the jumper cables in the following
order.
Make sure that the jumper cables are securely connected so that they do not disconnect
due to engine vibrations.
1st lead
Positive (+) terminal o n the discharged battery
Positive (+) terminal on booster vehicle's battery
2nd lead
Negative (-) terminal on booster vehicle's battery
If Trouble Arises
Battery Runs Out
7-18
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Location shown in the figure (do not connect to the negative (-) terminal of the
battery)
5. Start the booster vehicle's engine and rev the engine.
6. Start the engine of your vehicle. Run the engines for about 3 minutes to temporarily
charge the battery of your vehicle.
7. Disconnect the jumper cables in the reverse order of their co nnection.
8. Install the battery cover.
9. Have your vehicle inspected by an Authorized Mazda Dealer as soon as possible.
If Trouble Arises
Battery Runs Out
7-19
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Starting a Flooded Engine
▼Starting a Flooded Engine
If the engine fails to start, it may be
flooded (excessive fuel in the engine).

Follow this procedure:

1. If the engine does not start within 5
seconds on the first try, wait 10
seconds and try again.
2. Make sure the parking brake is on.
3. Depress the accelerator all the way and hold it there.
4. Depress the clutch pedal (manual
transmission) or the brake pedal
(automatic transmission), then press
the push button start. If the engine
starts, release the accelerator
immediately because the engine will
suddenly rev up.
5. If the engine fails to start, crank it
without depressing the accelerator.

If the engine still does not start using the
previous procedure, have your vehicle
inspected by an Authorized Mazda Dealer.
Push-Starting
▼ Push-Starting
Do not push-start your Mazda.
WA R N I N G
Never tow a vehicle to start it:
Towing a vehicle to start it is dangerous.
The vehicle being towed could surge
forward when its engine starts, causing the
2 vehicles to collide. The occupants could
be injured.
CAUTION
Do not push-start a vehicle that has a
manual transmission. It can damage the
emission control system.
NOTE
You cannot start a vehicle with an
automatic transmission by pushing it.
If Trouble Arises
Emergency Starting
7-20
