2020 MAZDA MODEL 3 HATCHBACK Owners Manual (in English)

If there is a malfunction with the
push button start function, the push
button start indicator light (amber)
flashes. In this case, the engine may
start, however, have the vehicle
checked at an Authorized Mazda
Dealer as soon as possible.
If the push button start indicator
light (green) does not illuminate,
perform the operation from the
beginning again. If it does not
illuminate, have the vehicle checked
at an Authorized Mazda Dealer.
To switch the ignition position
without starting the engine, perform
the following operations after the
push button start indicator light
(green) turns on.
1. Release the clutch pedal (manual transmission) or brake pedal
(automatic transmission).
2. Press the push button start to switch the ignition position. The
ignition switches in the order of
ACC, ON, and off each time the
push button start is pressed. To
switch the igni tion position
again, perform the operation
from the beginning.
▼ Emergency Operation for Starting
the Engine
If the KEY warning indication (red) is
displayed, or the push button start
indicator light (amber) flashes, this could
indicate that the engine may not start using
the usual starting method. Have your
vehicle inspected at an Authorized Mazda
Dealer as soon as poss
ible. If this occurs,
the engine can be force-started. Press and
hold the push button start until the engine
starts. Other procedures necessary for
starting the engine such as having the key
in the cabin, and depressing the clutch
pedal (manual transmi ssion) or the brake
pedal (automatic transmission) are
required.
When Driving
Start/Stop Engine
4-9
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Turning the Engine Off
▼Turning the Engine Off
WA R N I N G
Do not stop the engine while the vehicle is
moving:
Stopping the engine while the vehicle is
moving for any reason other than in an
emergency is dangerous. Stopping the
engine while the vehicle is moving will
result in reduced braking ability due to the
loss of power braking, which could cause
an accident and serious injury.
1. Stop the vehicle completely.
2.
(Manual transmission)
Shift into neutral an d set the parking
brake.
(Automatic transmission)
Shift the selector lever to the P
position and set the parking brake.
3. Press the push button start to turn off
the engine. The ignition position is off.
CAUTION
When leaving the vehicle, make sure the
push button start is off.
NOTE
The cooling fan in the engine
compartment could turn on for a few
minutes after the i gnition is switched
from ON to OFF, whether or not the A/C
is on or off, to cool the engine
compartment quickly.
If the system detects that the remaining
battery power of the key is low when the
ignition is switched from ON to ACC or
OFF, the following is indicated.
Replace with a new battery before the
key becomes unusable.
Refer to Key Battery Replacement on
page 6-28.
A message is indicated in the display of
the instrument cluster.
Refer to KEY Warning Indication/
Warning Light (Red) on page 7-33.
(Automatic transmission)
If the engine is turned off while the
selector lever is in a position other than
P, the ignition switches to ACC.
▼ Emergency Engine Stop
Continuously pressing the push button
start or quickly pressi
ng it any number of
times while the engin e is running or the
vehicle is being drive n will turn the engine
off immediately. The ignition switches to
ACC.
When Driving
Start/Stop Engine
4-10
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Cylinder Deactivation*
▼Cylinder Deactivation
The cylinder deactivation is a function
designed to reduce fuel consumption and
improve fuel economy by deactivating 2
out of the 4 cylinders while driving. The
function constantly determines which is
better for driving; 4 cylinders or 2
cylinders, regardless of the driver's
operations, and it performs the switching
automatically.
When the cylinder de
activation function
does not operate
The cylinder deactivation function does
not operate under the following
conditions.
The selector lever is in the P, N, or R
position (automatic transmission), or 1st
gear (manual transmission).
The engine oil temperature or engine
coolant temperature is low.
After disconnecting the battery
terminals for some reason, such as for
battery replacement.
When Driving
Start/Stop Engine
*Some models.4-11
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

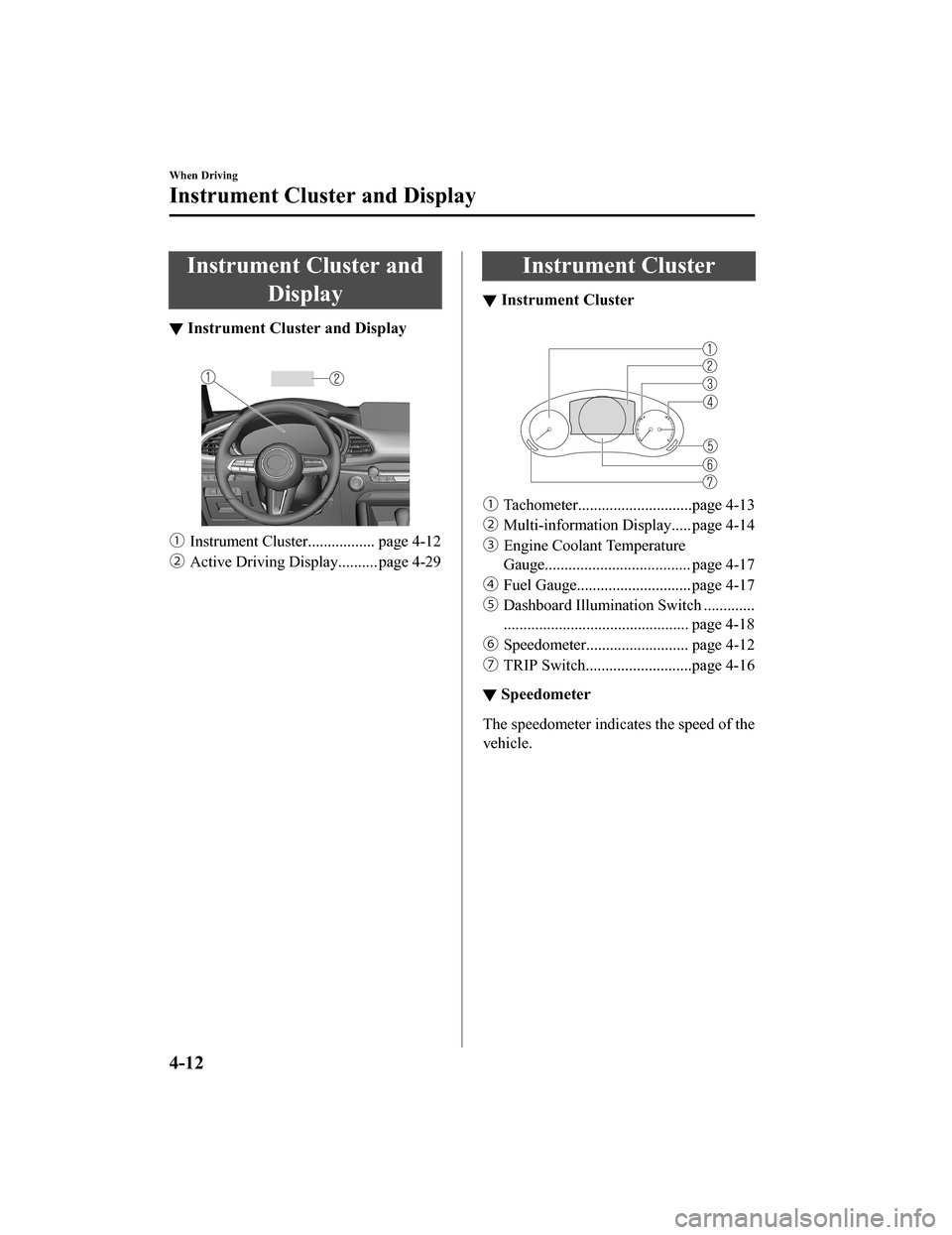

Instrument Cluster andDisplay
▼Instrument Cluster and Display

ƒ
Instrument Cluster................. page 4-12
„ Active Driving Displa y.......... page 4-29
Instrument Cluster
▼Instrument Cluster

ƒ
Tachometer.............................page 4-13
„ Multi-information Di splay..... page 4-14
… Engine Coolant Temperature
Gauge..................................... page 4-17
† Fuel Gauge............................. page 4-17
‡ Dashboard Illumination Switch .............
............................................... page 4-18
ˆ Speedometer.......................... page 4-12
‰ TRIP Switch...........................page 4-16
▼Speedometer
The speedometer indicates the speed of the
vehicle.
When Driving
Instrument Cluster and Display
4-12
Mazda3_8HZ1-EA-19G_Edition1_old
2019-5-17 13:49:03

▼Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the tachometer
needle in the RED ZONE.
This may cause severe engine damage.

1. STRIPED ZONE*1
2. RED ZONE*1
*1 The range varies depending on the type of gauge.
NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.
When Driving
Instrument Cluster and Display
4-13
Mazda3_8HZ1-EA-19G_Edition1_old
2019-5-17 13:49:03

▼Multi-information Display
1. Multi-information Display
2. INFO switch

The multi-information display in
dicates the following information.
Speedometer
Odometer
Trip meter
Outside temperature
Distance-to-empty
Average fuel economy
Current fuel economy
i-ACTIVSENSE Display
Compass Display
Door-Ajar/Trunk lid-Ajar/Liftgate-Ajar Warning Indication*1
Message Display
*1 Displayed when opening door/trunk lid/liftgate.
When Driving
Instrument Cluster and Display
4-14
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

The screen content changes each time the INFO switch is pressed.
1. Basic display
2. Drive information display
3. i-ACTIVSENSE display
4. Message display
*1
*1 Displayed only when a warning occurs.

The type of display for the fuel economy an d the maximum driving distance can be
changed.
Refer to the Settings section in the Mazda Connect Owner's Manu al.
When Driving
Instrument Cluster and Display
4-15
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

▼Odometer, Trip Meter and Trip
Meter Selector
You can switch between the odometer and
trip meter display usi
ng the TRIP switch.

1. TRIP switch
2. Odometer display
3. Trip meter A display
4. Trip meter B display
Odometer
The odometer records the total distance
the vehicle has been driven.
Tr i p m e t e r
The driving distance for a specified
interval is indicated . Two types (TRIP A,
TRIP B) of interva l distance and the
average fuel economy for each can be
measured.

For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.

When trip meter A is selected, TRIP A
will be displayed. Wh en trip meter B is
selected, TRIP B will be displayed.

The trip meter and average fuel economy
can be reset by pressi ng the TRIP switch
for 1.5 seconds or more while in each
mode.
NOTE
Only the trip meters record tenths of
kilometers (miles).
The trip record will be erased when:
The power supply is interrupted
(blown fuse or the battery is
disconnected).
The vehicle is driven over 9999.9 km
(mile).
When Driving
Instrument Cluster and Display
4-16
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03
