The temperature near the lens is high/
low.
Rainy conditions, water droplets on
the camera, or high humidity.
Mud or foreign matter near the
camera.
Extremely bright light such as sunlight
or headlights hitting the camera lens
directly.
The surroundings are illuminated by
vehicle lights, fluorescent lights, or
LED lights (Display may flicker).
Extremely small dark or white dots
appear on the screen (dots may
flicker).
Because the 360°View Monitor camera
uses a special lens, the distance
displayed on the screen differs from the
actual distance.
Obstructions displayed on the screen
may appear differently than in actuality.
(Obstructions may appear fallen, larger,
or longer than they actually are.)
Do not apply stickers to a camera or the
area around it. In addition, do not
install accessories or an illuminated
number/character license plate to the
area around a camera. Otherwise, the
camera may not correctly display the
surrounding conditions.
Free/open source software information
This product includes free/open sources.
Information about the licensing and
source code is available at the following
URL.
https://www.denso.com/global/en/
opensource/svss/mazda/
When Driving
i-ACTIVSENSE
4-169
Mazda3_8HZ1-EA-19G_Edition1_old2019-5-17 13:49:03

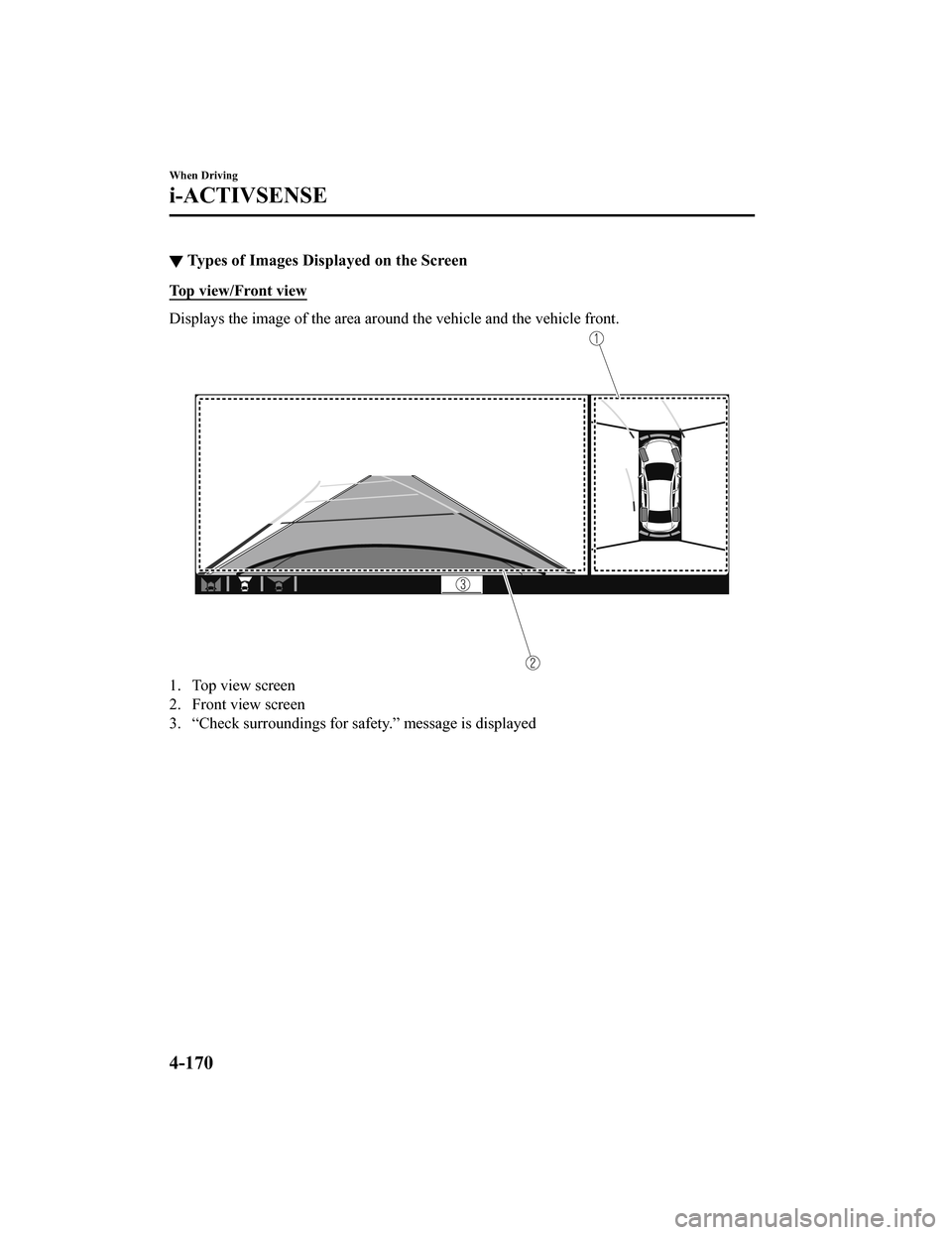

▼Types of Images Displayed on the Screen
Top view/Front view
Displays the image of the area around the vehicle and the vehic
le front.
1. Top view screen
2. Front view screen
3. “Check surroundings for safety.” message is displayed

When Driving
i-ACTIVSENSE
4-170
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Top view/Front wide view
Displays the image of the area around the vehicle and the front of the vehicle (wide-area).
1. Top view screen
2. Front wide view screen
3. “Check surroundings for safety.” message is displayed

When Driving
i-ACTIVSENSE
4-171
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Side view
Displays the image of the left and right sides of the vehicle.
1. Left side view screen
2. Right side view screen
3. “Check surroundings for safety.” message is displayed

When Driving
i-ACTIVSENSE
4-172
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Top view/Rear view
Displays the image of the area around the vehicle and the rear of the vehicle.
1. Top view screen
2. Rear view screen
3. “Check surroundings for safety.” message is displayed

When Driving
i-ACTIVSENSE
4-173
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Top view/Rear wide view
Displays the image of the area around the vehicle and the rear of the vehicle (wide-area).
1. Top view screen
2. Rear wide view screen
3. “Check surroundings for safety.” message is displayed
When Driving
i-ACTIVSENSE
4-174
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

▼How to Use the System
Top view/Front view, Top view/Front wide view, Side view
Indication
Images are displayed on the scr
een when the 360°View Monitor switch is pressed with all of
the following conditions met.
The ignition is switched ON.
The shift lever/selector lever is in a position other than R.

Display switching
The displayed screen can be chan ged each time the 360°view moni tor switch is pressed.
1. Top view/Front view
2. Top view/Front wide view
3. Side view
4. Home screen
When Driving
i-ACTIVSENSE
4-175
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

NOTE
When the shift lever/selector lever is in R position, the displayed screen does not switch to
the top view/front view, top view/front wide view, or the side view.
Display of the top view/front view, top view/front wide view, or the side view stops even
with the display conditions met if an y of the following conditions occurs.
When a switch around the commander knob is pressed.
(Manual transmission)
The parking brake is applied.
(Automatic transmission)
The selector lever is shifted to P position (displayed when the selector lever is in a
position other than P).
(Displayed when vehicle speed is less than 15 km/h (9.3 mph))
4 minutes and 30 seconds have passed.
The vehicle speed is about 15 km/h (9.3 mph) or faster.
(Displayed when the vehicle speed is about 15 km/h (9.3 mph) or faster)
The vehicle speed is about 15 km/h (9.3 mph) or faster after 8 seconds have passed
since pressing the 360°View Monitor switch.
Four minutes and 22 seconds have passed from the point when the vehicle speed was
less than 15 km/h (9.3 mph) after 8 seconds have passed since pressing the 360°View
Monitor switch.
The 360°View Monitor settings can be changed as follows.
Refer to the Settings section in the Mazda Connect Owner's Manual.
Automatic display of the 360°View Monitor when the ultrasonic senor detects an
obstruction.
Automatic display of the 360°View Moni tor when the ignition is switched ON.
Screen priority level when the system launches
Top view/Rear view, Top view/Rear wide view
The top view/rear view, top view/rear wide view displays when a ll of the following
conditions are met.
The ignition i s switched ON.
Shift lever/selector lever is in R position.
When Driving
i-ACTIVSENSE
4-176
