2019 NISSAN TITAN Owner´s Manual

The dry paper type filter element may be
cleaned and reused. Replace it according
to the maintenance log shown in the Titan
Owner’s Manual.
To remove the air cleaner filter:1. Unlatch the clips
Aand move the air
cleaner cover upward.
2. Remove the air cleaner filter.
3. Wipe the inside of the air cleaner filter housing and the cover with a damp
cloth. NOTE:
Af ter installing a new air cleaner filter,
make sure the air cleaner cover is seated
in the housing and latch the clips.
WARNING
∙ Operating the engine with the air
cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops the
flame if the engine backfires. If it isn’t
there, and the engine backfires, you
could be burned. Do not drive with the
air cleaner removed, and be careful
when working on the engine with the
air cleaner removed.
∙ Never pour fuel into the air intake sys- tem or attempt to start the engine
with the air cleaner removed. Doing so
could result in serious injury.
∙ Do not use starting fluids with this en- gine. The use of starting fluid could
cause an explosion, fire, personal in-
jury, system or engine damage.
CAUTION
∙ Operating the engine with the aircleaner removed can cause damage
to the turbocharger and major engine
damage.
∙ Never pour fuel into the intake or at- tempt to start the engine with the air
cleaner removed. Doing so could re-
sult in engine damage.
IN-CABIN MICROFILTER
The in-cabin microfilter restricts the entry
of airborne dust and pollen particles and
reduces some objectionable outside
odors. The filter is located behind the glove
box. For additional information on change
intervals, refer to “Gasoline standard main-
tenance" or "Diesel standard mainte-
nance" in the "Maintenance and sched-
ules" section of the Titan Owner’s Manual.
If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.
LDI2880
AIR CLEANER
7-12Do-it-yourself

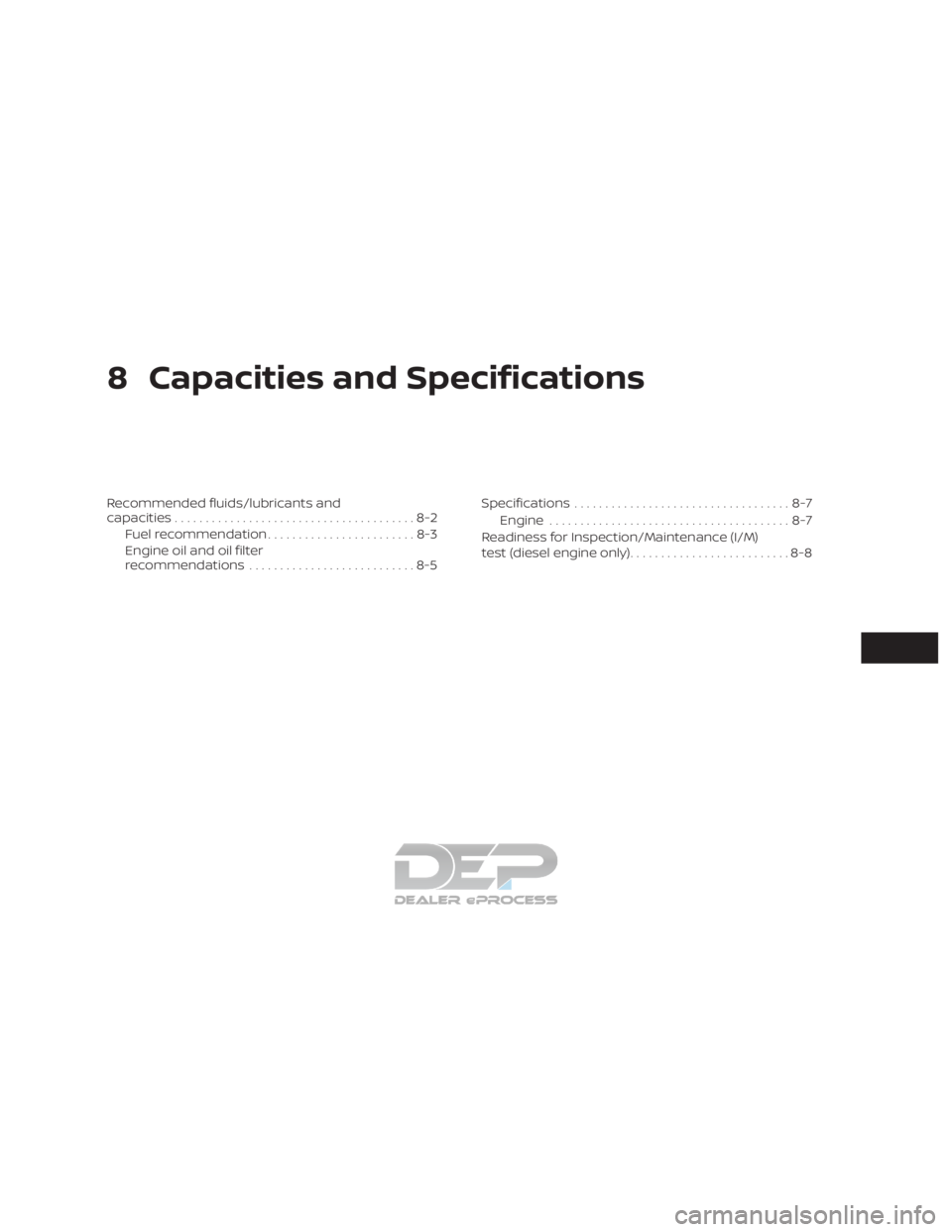

8 Capacities and Specifications
Recommended fluids/lubricants and
capacities.......................................8-2
Fuel recommendation ........................8-3
Engine oil and oil filter
recommendations ...........................8-5 Specifications
...................................8-7
Engine .......................................8-7
Readiness for Inspection/Maintenance (I/M)
test (diesel engine only) ..........................8-8

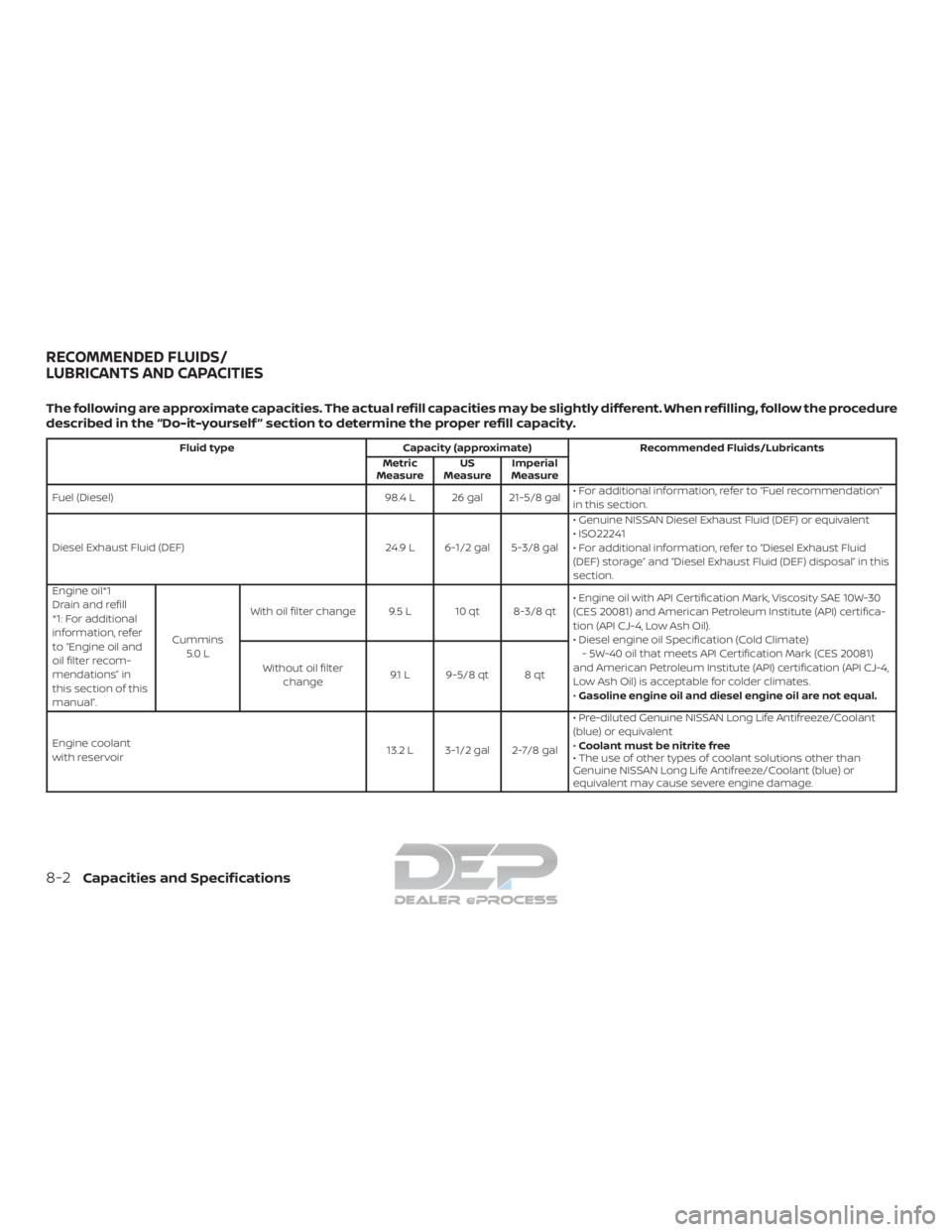

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure
described in the “Do-it-yourself ” section to determine the proper refill capacity.
Fluid typeCapacity (approximate) Recommended Fluids/Lubricants
Metric
Measure US
Measure Imperial
Measure
Fuel (Diesel) 98.4 L 26 gal 21-5/8 gal• For additional information, refer to “Fuel recommendation”
in this section.
Diesel Exhaust Fluid (DEF) 24.9 L 6-1/2 gal 5-3/8 gal• Genuine NISSAN Diesel Exhaust Fluid (DEF) or equivalent
• ISO22241
• For additional information, refer to “Diesel Exhaust Fluid
(DEF) storage” and “Diesel Exhaust Fluid (DEF) disposal” in this
section.
Engine oil*1
Drain and refill
*1: For additional
information, refer
to “Engine oil and
oil filter recom-
mendations” in
this section of this
manual”. Cummins
5.0 L With oil filter change 9.5 L 10 qt 8-3/8 qt
• Engine oil with API Certification Mark, Viscosity SAE 10W-30
(CES 20081) and American Petroleum Institute (API) certifica-
tion (API CJ-4, Low Ash Oil).
• Diesel engine oil Specification (Cold Climate)
- 5W-40 oil that meets API Certification Mark (CES 20081)
and American Petroleum Institute (API) certification (API CJ-4,
Low Ash Oil) is acceptable for colder climates.
• Gasoline engine oil and diesel engine oil are not equal.
Without oil filter
change 9.1 L 9-5/8 qt 8 qt
Engine coolant
with reservoir 13.2 L 3-1/2 gal 2-7/8 gal• Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant
(blue) or equivalent
•
Coolant must be nitrite free
• The use of other types of coolant solutions other than
Genuine NISSAN Long Life Antifreeze/Coolant (blue) or
equivalent may cause severe engine damage.
RECOMMENDED FLUIDS/
LUBRICANTS AND CAPACITIES
8-2Capacities and Specifications

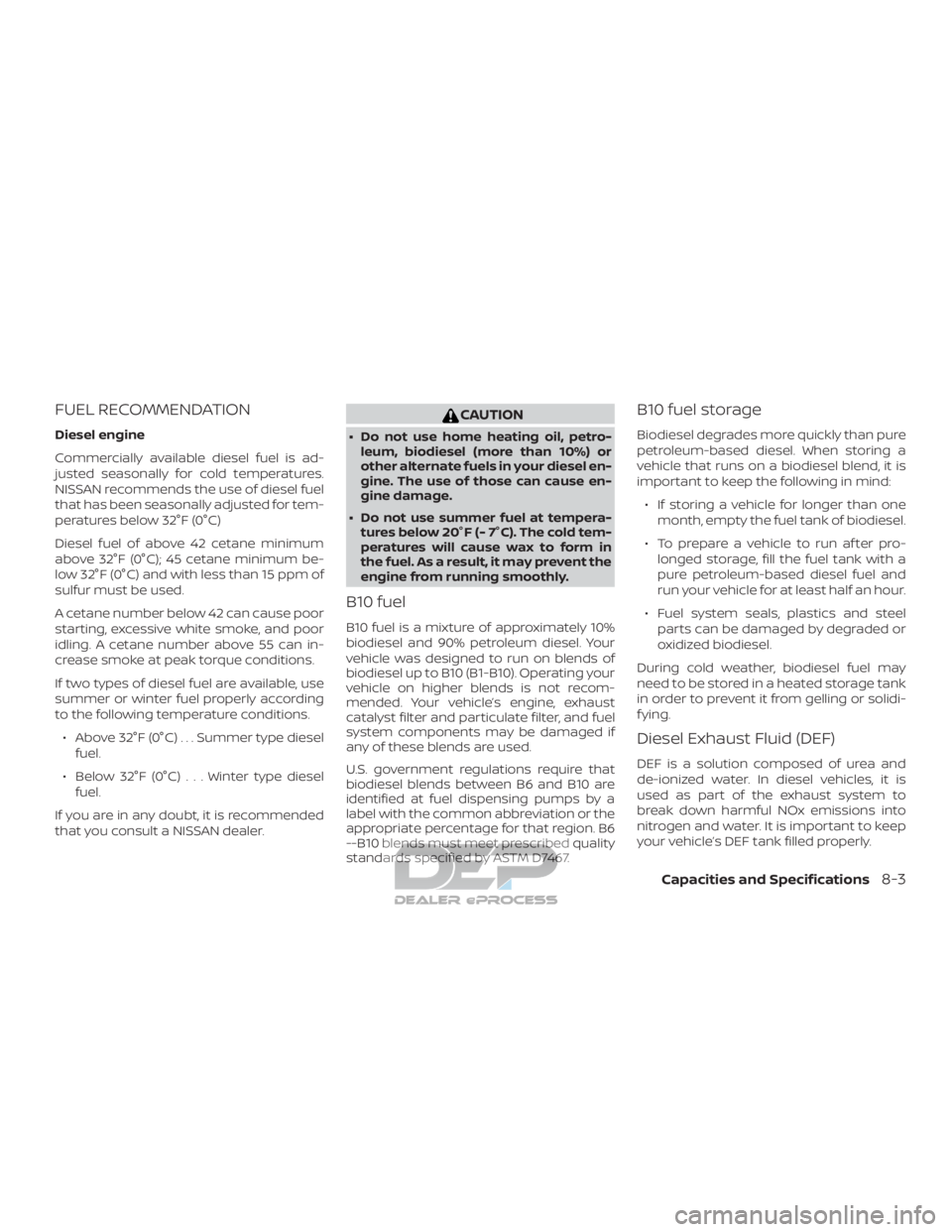

FUEL RECOMMENDATION
Diesel engine
Commercially available diesel fuel is ad-
justed seasonally for cold temperatures.
NISSAN recommends the use of diesel fuel
that has been seasonally adjusted for tem-
peratures below 32°F (0°C)
Diesel fuel of above 42 cetane minimum
above 32°F (0°C); 45 cetane minimum be-
low 32°F (0°C) and with less than 15 ppm of
sulfur must be used.
A cetane number below 42 can cause poor
starting, excessive white smoke, and poor
idling. A cetane number above 55 can in-
crease smoke at peak torque conditions.
If two types of diesel fuel are available, use
summer or winter fuel properly according
to the following temperature conditions.∙ Above 32°F (0°C) . . . Summer type diesel
fuel.
∙ Below 32°F (0°C) . . . Winter type diesel fuel.
If you are in any doubt, it is recommended
that you consult a NISSAN dealer.
CAUTION
∙ Do not use home heating oil, petro- leum, biodiesel (more than 10%) or
other alternate fuels in your diesel en-
gine. The use of those can cause en-
gine damage.
∙ Do not use summer fuel at tempera- tures below 20°F (- 7°C). The cold tem-
peratures will cause wax to form in
the fuel. As a result, it may prevent the
engine from running smoothly.
B10 fuel
B10 fuel is a mixture of approximately 10%
biodiesel and 90% petroleum diesel. Your
vehicle was designed to run on blends of
biodiesel up to B10 (B1-B10). Operating your
vehicle on higher blends is not recom-
mended. Your vehicle’s engine, exhaust
catalyst filter and particulate filter, and fuel
system components may be damaged if
any of these blends are used.
U.S. government regulations require that
biodiesel blends between B6 and B10 are
identified at fuel dispensing pumps by a
label with the common abbreviation or the
appropriate percentage for that region. B6
--B10 blends must meet prescribed quality
standards specified by ASTM D7467.
B10 fuel storage
Biodiesel degrades more quickly than pure
petroleum-based diesel. When storing a
vehicle that runs on a biodiesel blend, it is
important to keep the following in mind:
∙ If storing a vehicle for longer than one month, empty the fuel tank of biodiesel.
∙ To prepare a vehicle to run af ter pro- longed storage, fill the fuel tank with a
pure petroleum-based diesel fuel and
run your vehicle for at least half an hour.
∙ Fuel system seals, plastics and steel parts can be damaged by degraded or
oxidized biodiesel.
During cold weather, biodiesel fuel may
need to be stored in a heated storage tank
in order to prevent it from gelling or solidi-
f ying.
Diesel Exhaust Fluid (DEF)
DEF is a solution composed of urea and
de-ionized water. In diesel vehicles, it is
used as part of the exhaust system to
break down harmful NOx emissions into
nitrogen and water. It is important to keep
your vehicle’s DEF tank filled properly.
Capacities and Specifications8-3

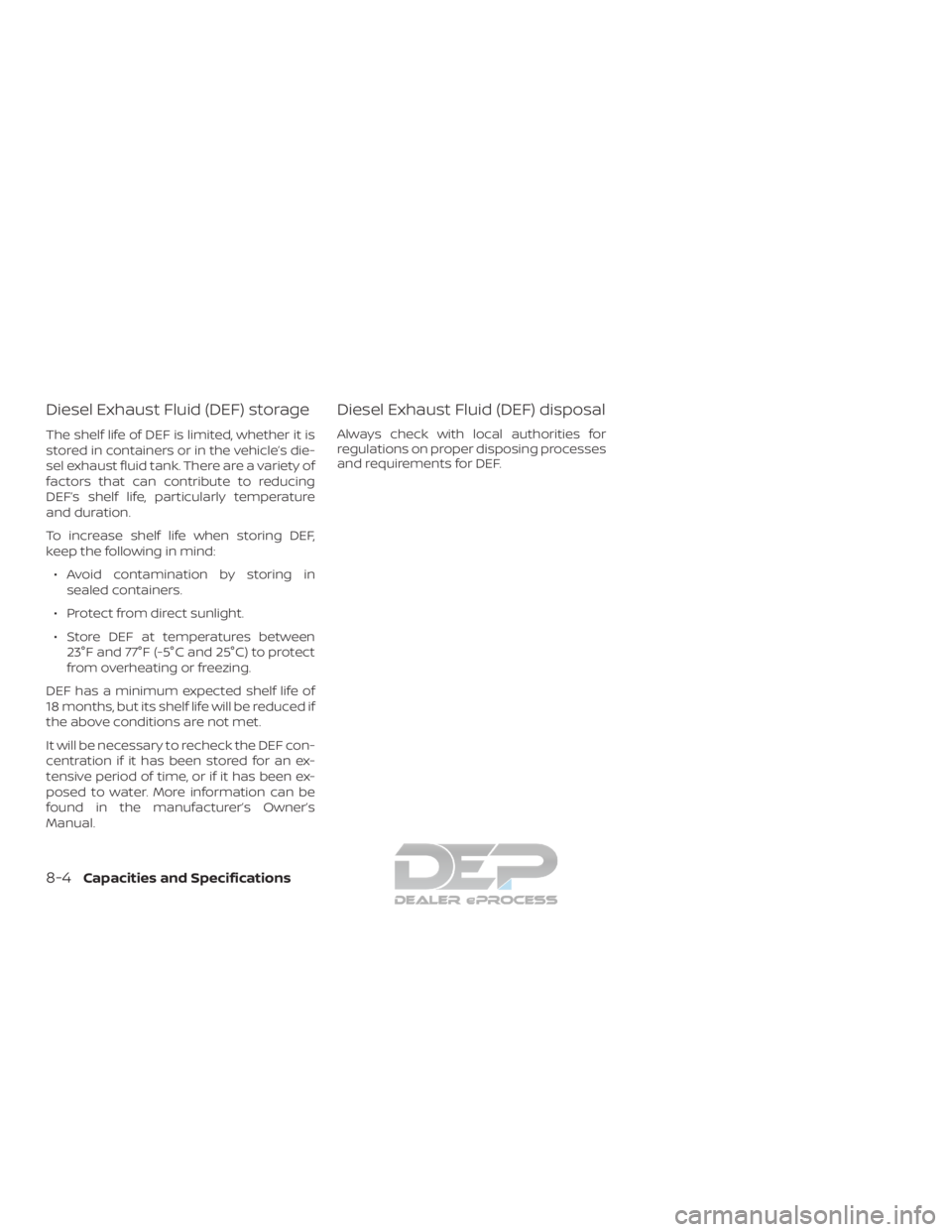

Diesel Exhaust Fluid (DEF) storage
The shelf life of DEF is limited, whether it is
stored in containers or in the vehicle’s die-
sel exhaust fluid tank. There are a variety of
factors that can contribute to reducing
DEF’s shelf life, particularly temperature
and duration.
To increase shelf life when storing DEF,
keep the following in mind:∙ Avoid contamination by storing in sealed containers.
∙ Protect from direct sunlight.
∙ Store DEF at temperatures between 23°F and 77°F (-5°C and 25°C) to protect
from overheating or freezing.
DEF has a minimum expected shelf life of
18 months, but its shelf life will be reduced if
the above conditions are not met.
It will be necessary to recheck the DEF con-
centration if it has been stored for an ex-
tensive period of time, or if it has been ex-
posed to water. More information can be
found in the manufacturer’s Owner’s
Manual.
Diesel Exhaust Fluid (DEF) disposal
Always check with local authorities for
regulations on proper disposing processes
and requirements for DEF.
8-4Capacities and Specifications

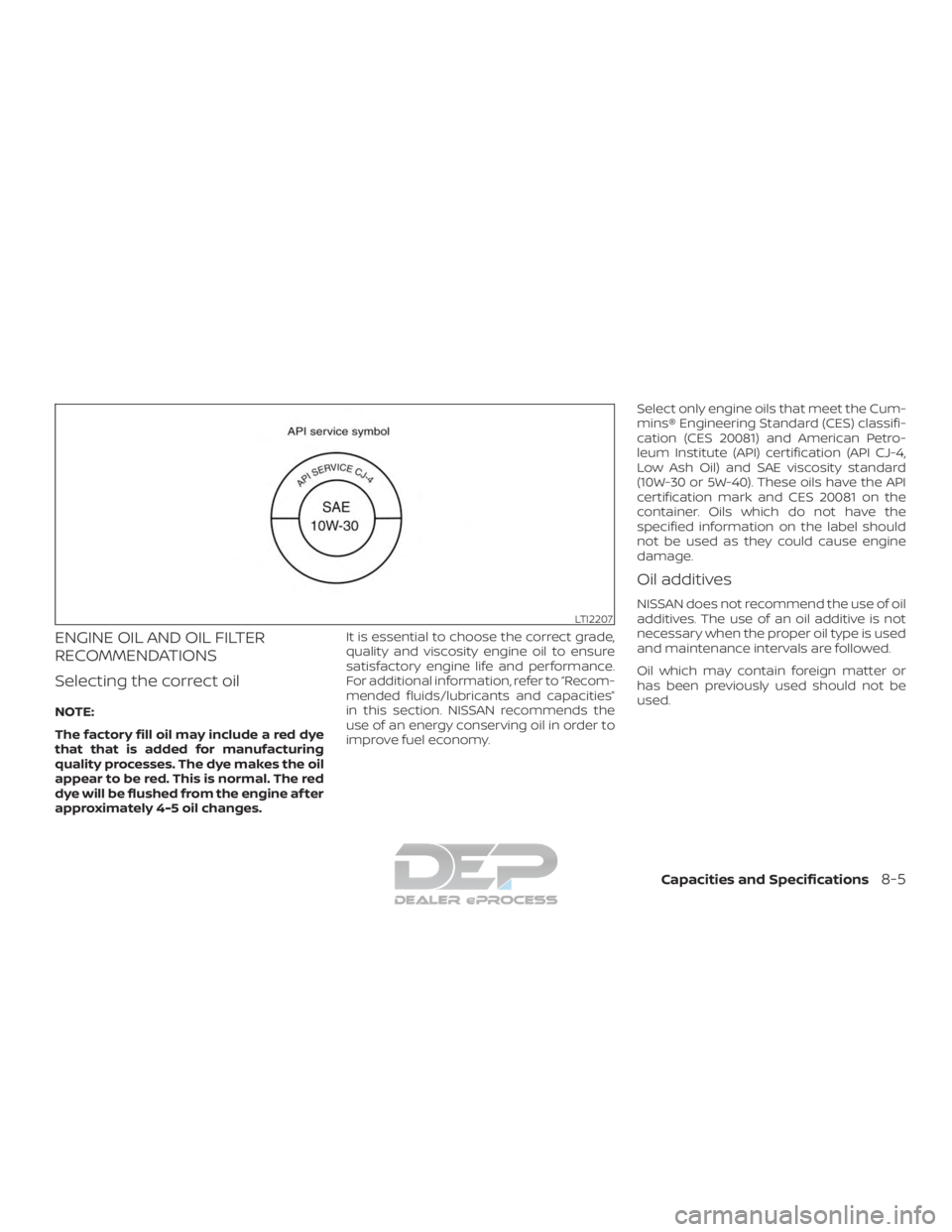

ENGINE OIL AND OIL FILTER
RECOMMENDATIONS
Selecting the correct oil
NOTE:
The factory fill oil may include a red dye
that that is added for manufacturing
quality processes. The dye makes the oil
appear to be red. This is normal. The red
dye will be flushed from the engine af ter
approximately 4-5 oil changes.It is essential to choose the correct grade,
quality and viscosity engine oil to ensure
satisfactory engine life and performance.
For additional information, refer to “Recom-
mended fluids/lubricants and capacities”
in this section. NISSAN recommends the
use of an energy conserving oil in order to
improve fuel economy.Select only engine oils that meet the Cum-
mins® Engineering Standard (CES) classifi-
cation (CES 20081) and American Petro-
leum Institute (API) certification (API CJ-4,
Low Ash Oil) and SAE viscosity standard
(10W-30 or 5W-40). These oils have the API
certification mark and CES 20081 on the
container. Oils which do not have the
specified information on the label should
not be used as they could cause engine
damage.
Oil additives
NISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used
and maintenance intervals are followed.
Oil which may contain foreign matter or
has been previously used should not be
used.LTI2207
Capacities and Specifications8-5

Oil viscosity
The engine oil viscosity or thickness
changes with temperature. Because of
this, it is important to select the engine oil
viscosity based on the temperatures at
which the vehicle will be operated beforethe next oil change. Choosing an oil viscos-
ity other than that recommended could
cause serious engine damage.
Selecting the correct oil filter
Your new NISSAN vehicle is equipped with a
high-quality Genuine NISSAN oil filter. When
replacing, use a Genuine NISSAN oil filter or
its equivalent for the reason described in
“Change intervals.”
Change intervals
The oil and oil filter change intervals for
your engine are based on the use of the
specified quality oils and filters. Using en-
gine oil and filters that are not of the speci-
fied quality, or exceeding recommended oil
and filter change intervals could reduce
engine life. Damage to the engine caused
by improper maintenance or use of incor-
rect oil and filter quality and/or viscosity is
not covered by the NISSAN New Vehicle
Limited Warranty.
Your engine was filled with a high-quality
engine oil when it was built. You do not have
to change the oil before the first recom-
mended change interval. Oil and filter
change intervals depend upon how you
use your vehicle.
Operation under the following conditions
may require more frequent oil and filter
changes:
∙ repeated short distance driving at cold outside temperatures
∙ driving in dusty conditions
∙ extensive idling
∙ towing a trailer
∙ stop and go commuting
∙ you must also change your oil and filter when the “Engine Oil-Service Due Now”
message is displayed.
For additional information, refer to the Ti-
tan Owner’s Manual.
LTI2208
8-6Capacities and Specifications

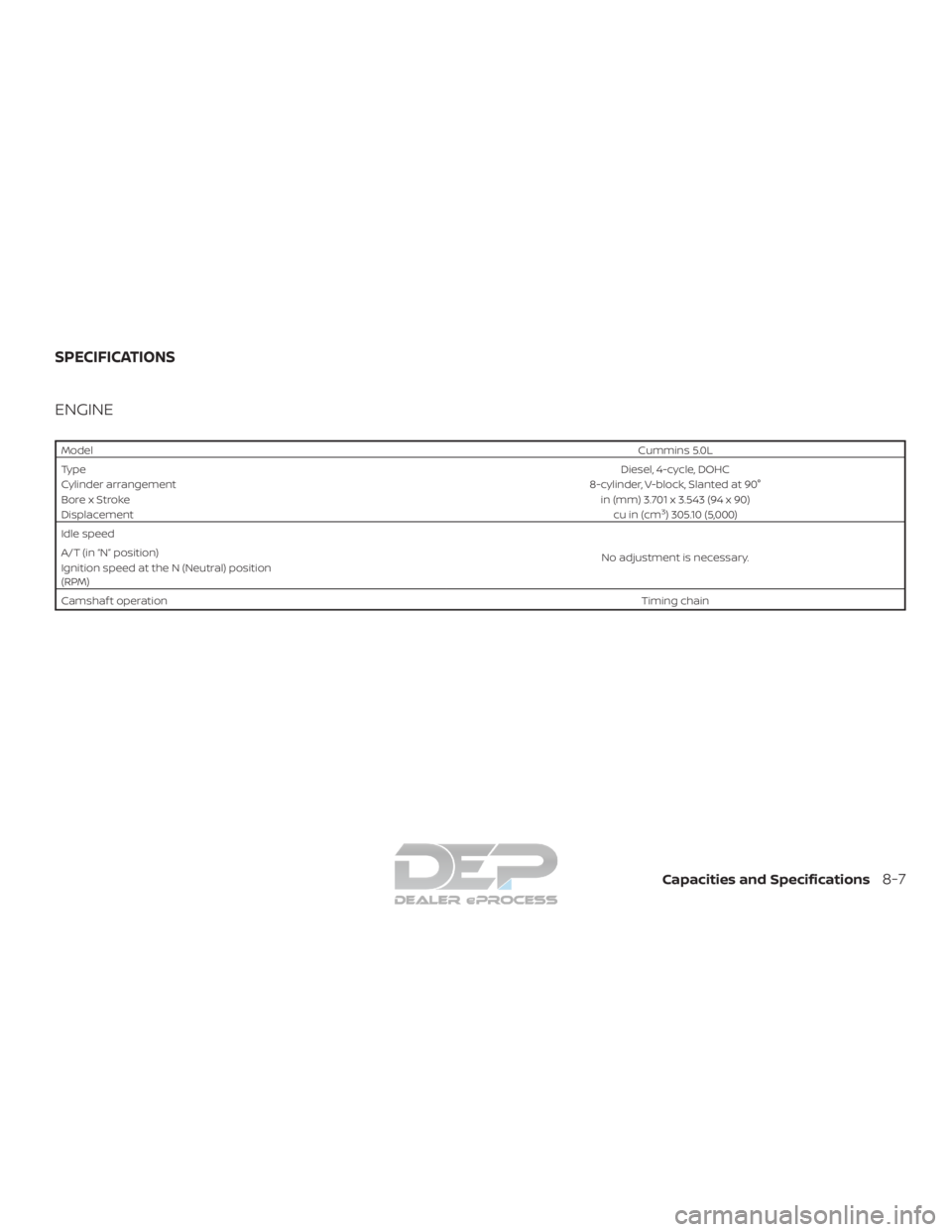

ENGINE
ModelCummins 5.0L
Type Diesel, 4-cycle, DOHC
Cylinder arrangement 8-cylinder, V-block, Slanted at 90°
Bore x Stroke in (mm) 3.701 x 3.543 (94 x 90)
Displacement cu in (cm
3) 305.10 (5,000)
Idle speed
No adjustment is necessary.
A/T (in “N” position)
Ignition speed at the N (Neutral) position
(RPM)
Camshaf t operation
Timing chain
SPECIFICATIONS
Capacities and Specifications8-7
