2019 NISSAN TITAN Owner´s Manual

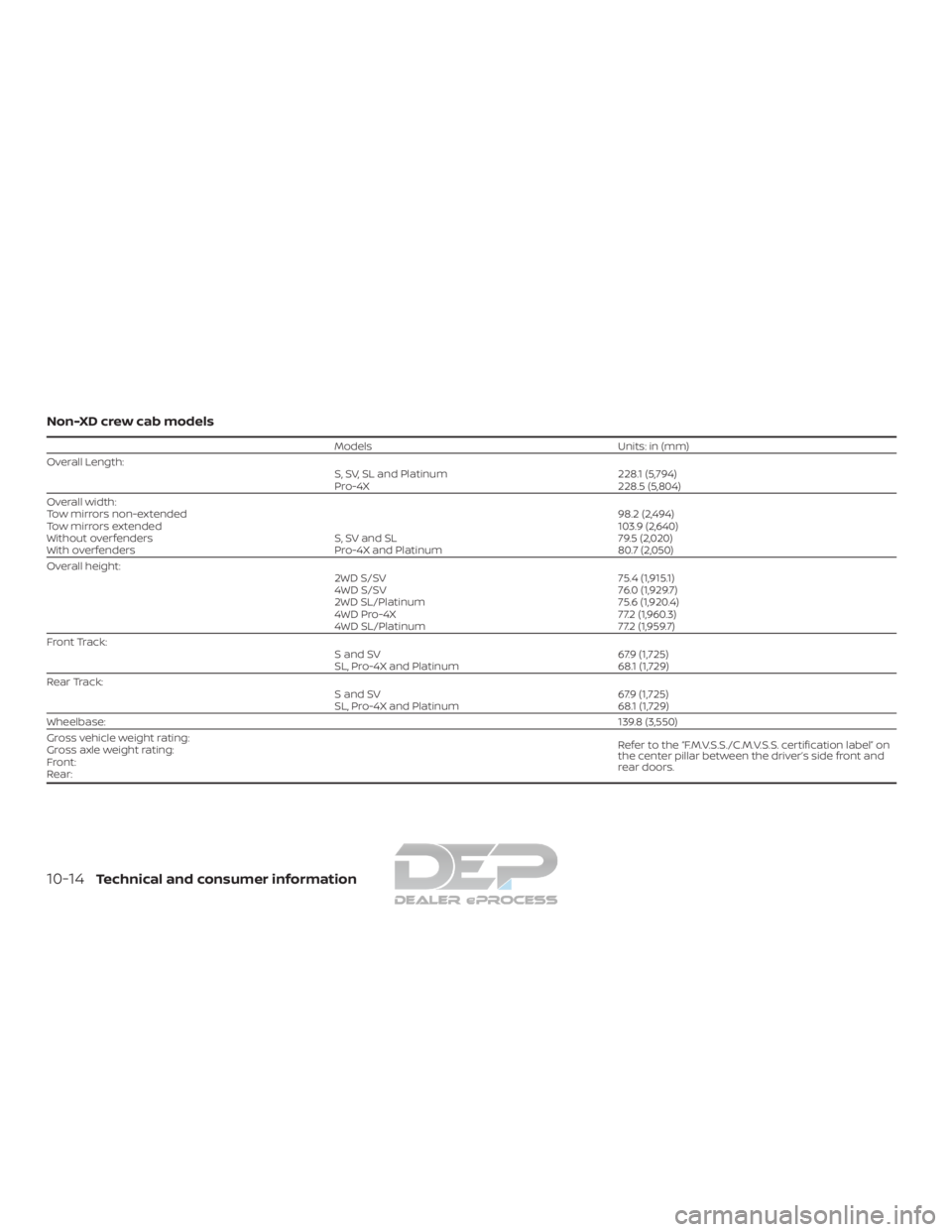

Non-XD crew cab models
ModelsUnits: in (mm)
Overall Length: S, SV, SL and Platinum228.1 (5,794)
Pro-4X 228.5 (5,804)
Overall width:
Tow mirrors non-extended 98.2 (2,494)
Tow mirrors extended 103.9 (2,640)
Without overfenders S, SV and SL79.5 (2,020)
With overfenders Pro-4X and Platinum80.7 (2,050)
Overall height: 2WD S/SV75.4 (1,915.1)
4WD S/SV 76.0 (1,929.7)
2WD SL/Platinum 75.6 (1,920.4)
4WD Pro-4X 77.2 (1,960.3)
4WD SL/Platinum 77.2 (1,959.7)
Front Track: S and SV67.9 (1,725)
SL, Pro-4X and Platinum 68.1 (1,729)
Rear Track: S and SV67.9 (1,725)
SL, Pro-4X and Platinum 68.1 (1,729)
Wheelbase: 139.8 (3,550)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.
Gross axle weight rating:
Front:
Rear:
10-14Technical and consumer information

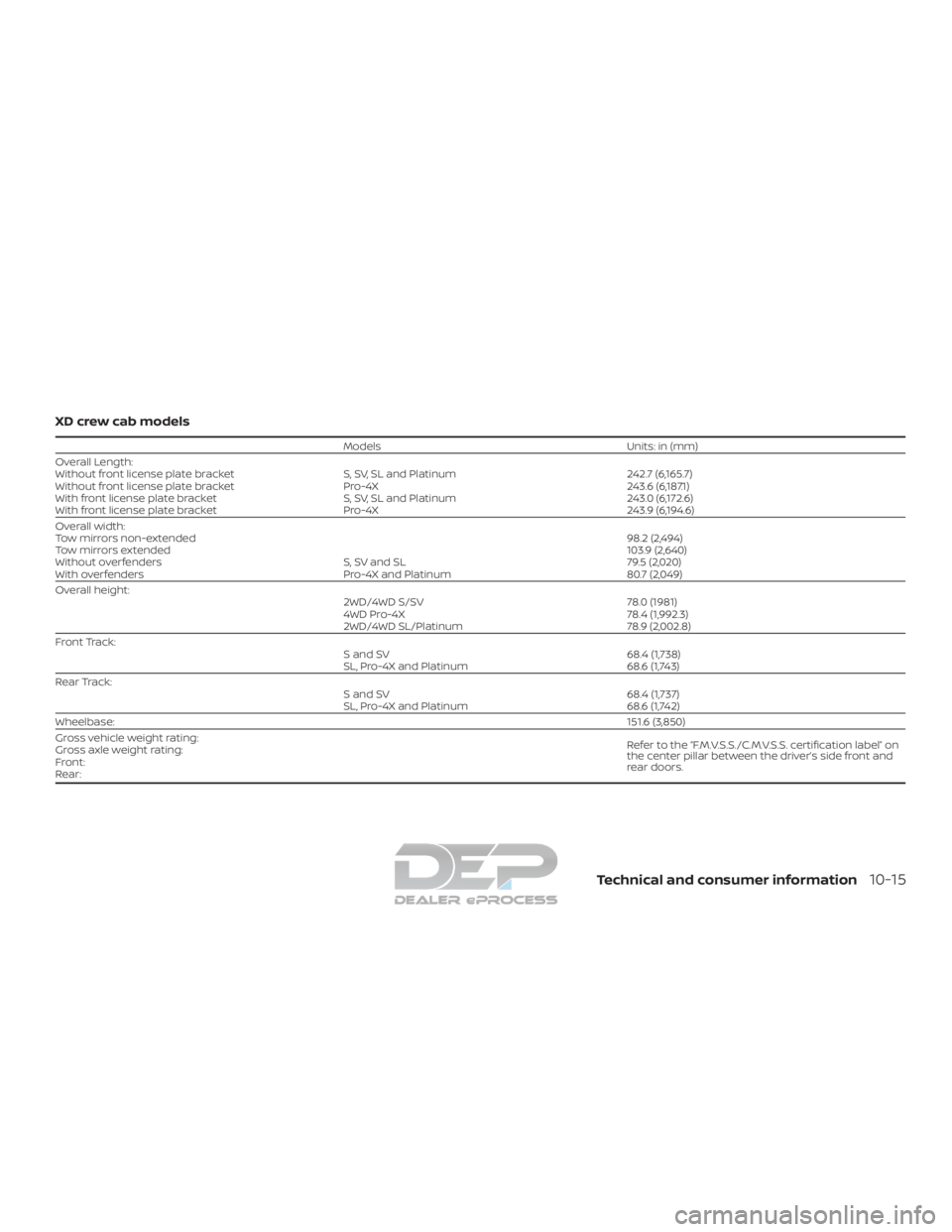

XD crew cab models
ModelsUnits: in (mm)
Overall Length:
Without front license plate bracket S, SV, SL and Platinum242.7 (6,165.7)
Without front license plate bracket Pro-4X243.6 (6,187.1)
With front license plate bracket S, SV, SL and Platinum243.0 (6,172.6)
With front license plate bracket Pro-4X243.9 (6,194.6)
Overall width:
Tow mirrors non-extended 98.2 (2,494)
Tow mirrors extended 103.9 (2,640)
Without overfenders S, SV and SL79.5 (2,020)
With overfenders Pro-4X and Platinum80.7 (2,049)
Overall height: 2WD/4WD S/SV78.0 (1981)
4WD Pro-4X 78.4 (1,992.3)
2WD/4WD SL/Platinum 78.9 (2,002.8)
Front Track: S and SV68.4 (1,738)
SL, Pro-4X and Platinum 68.6 (1,743)
Rear Track: S and SV68.4 (1,737)
SL, Pro-4X and Platinum 68.6 (1,742)
Wheelbase: 151.6 (3,850)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.
Gross axle weight rating:
Front:
Rear:
Technical and consumer information10-15

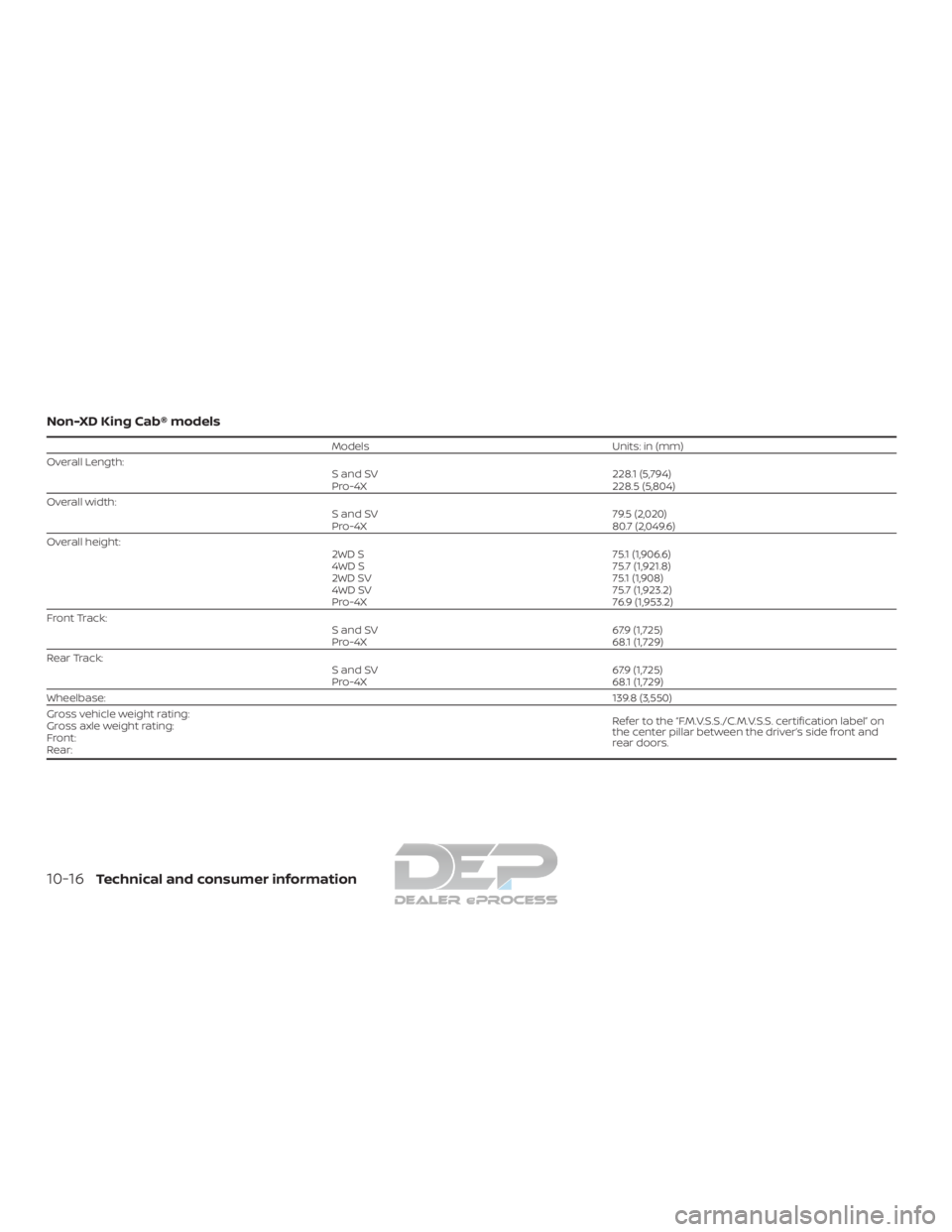

Non-XD King Cab® models
ModelsUnits: in (mm)
Overall Length: S and SV228.1 (5,794)
Pro-4X 228.5 (5,804)
Overall width: S and SV79.5 (2,020)
Pro-4X 80.7 (2,049.6)
Overall height: 2WD S75.1 (1,906.6)
4WD S 75.7 (1,921.8)
2WD SV 75.1 (1,908)
4WD SV 75.7 (1,923.2)
Pro-4X 76.9 (1,953.2)
Front Track: S and SV67.9 (1,725)
Pro-4X 68.1 (1,729)
Rear Track: S and SV67.9 (1,725)
Pro-4X 68.1 (1,729)
Wheelbase: 139.8 (3,550)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.
Gross axle weight rating:
Front:
Rear:
10-16Technical and consumer information

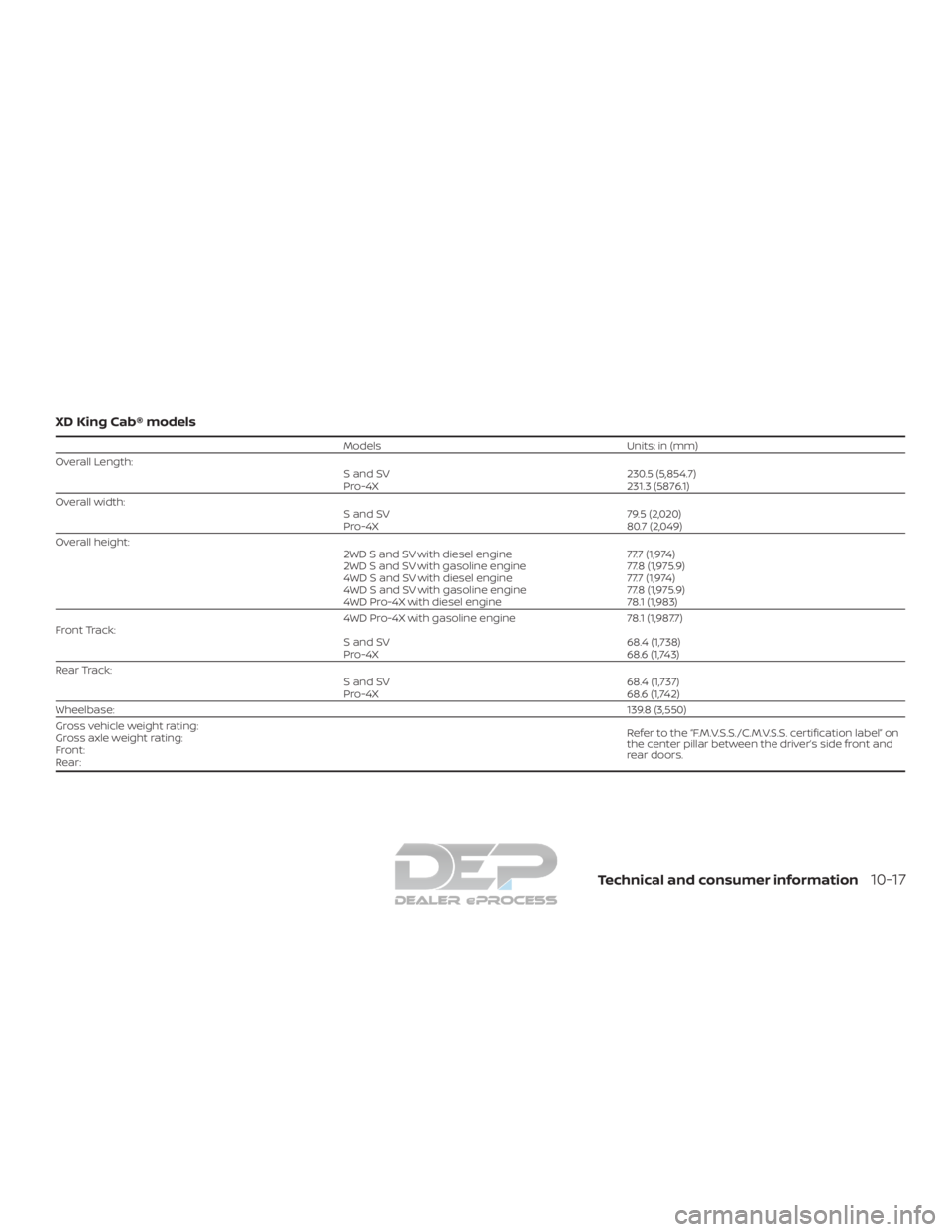

XD King Cab® models
ModelsUnits: in (mm)
Overall Length: S and SV230.5 (5,854.7)
Pro-4X 231.3 (5876.1)
Overall width: S and SV79.5 (2,020)
Pro-4X 80.7 (2,049)
Overall height: 2WD S and SV with diesel engine77.7 (1,974)
2WD S and SV with gasoline engine 77.8 (1,975.9)
4WD S and SV with diesel engine 77.7 (1,974)
4WD S and SV with gasoline engine 77.8 (1,975.9)
4WD Pro-4X with diesel engine 78.1 (1,983)
4WD Pro-4X with gasoline engine 78.1 (1,987.7)
Front Track: S and SV68.4 (1,738)
Pro-4X 68.6 (1,743)
Rear Track: S and SV68.4 (1,737)
Pro-4X 68.6 (1,742)
Wheelbase: 139.8 (3,550)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.
Gross axle weight rating:
Front:
Rear:
Technical and consumer information10-17

When planning to drive your NISSAN ve-
hicle in another country,you should first
find out if the fuel available is suitable for
your vehicle's engine.
Using fuel with an octane rating that is too
low may cause engine damage. All gaso-
line vehicles must be operated with un-
leaded gasoline. Therefore, avoid taking
your vehicle to areas where appropriate
fuel is not available.
When transferring the registration of
your vehicle to another country, state,
province or district, it may be necessary
to modif y the vehicle to meet local laws
and regulations.
The laws and regulations for motor vehicle
emission control and safety standards
vary according to the country, state, prov-
ince or district; therefore, vehicle specifica-
tions may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, trans-
portation and registration are the re-
sponsibility of the user. NISSAN is not re-
sponsible for any inconvenience that
may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number (VIN)
plate is attached as shown. This number is
the identification for your vehicle and is
used in the vehicle registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The vehicle identification number is lo-
cated as shown.
LTI2195LTI0086
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRY VEHICLE IDENTIFICATION
10-18Technical and consumer information

ENGINE SERIAL NUMBER
The engine serial number is stamped on
the engine as shown.
VK56VD
WTI0095
Cummins 5.0L
LTI2383
Cummins 5.0L
LTI2155
Technical and consumer information10-19

F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
The Federal/Canadian Motor Vehicle
Safety Standard (F.M.V.S.S./C.M.V.S.S.) certifi-
cation label is affixed as shown. This label
contains valuable vehicle information, such
as: (GVWR), (GAWR), month and year of
manufacture, (VIN), etc. Review it carefully.
EMISSION CONTROL
INFORMATION LABEL
The emission control information label is
attached to the underside of the hood as
shown.
Type A (if so equipped)
LTI0135
Type B (if so equipped)
WTI0099
XD models
LTI2197
10-20Technical and consumer information

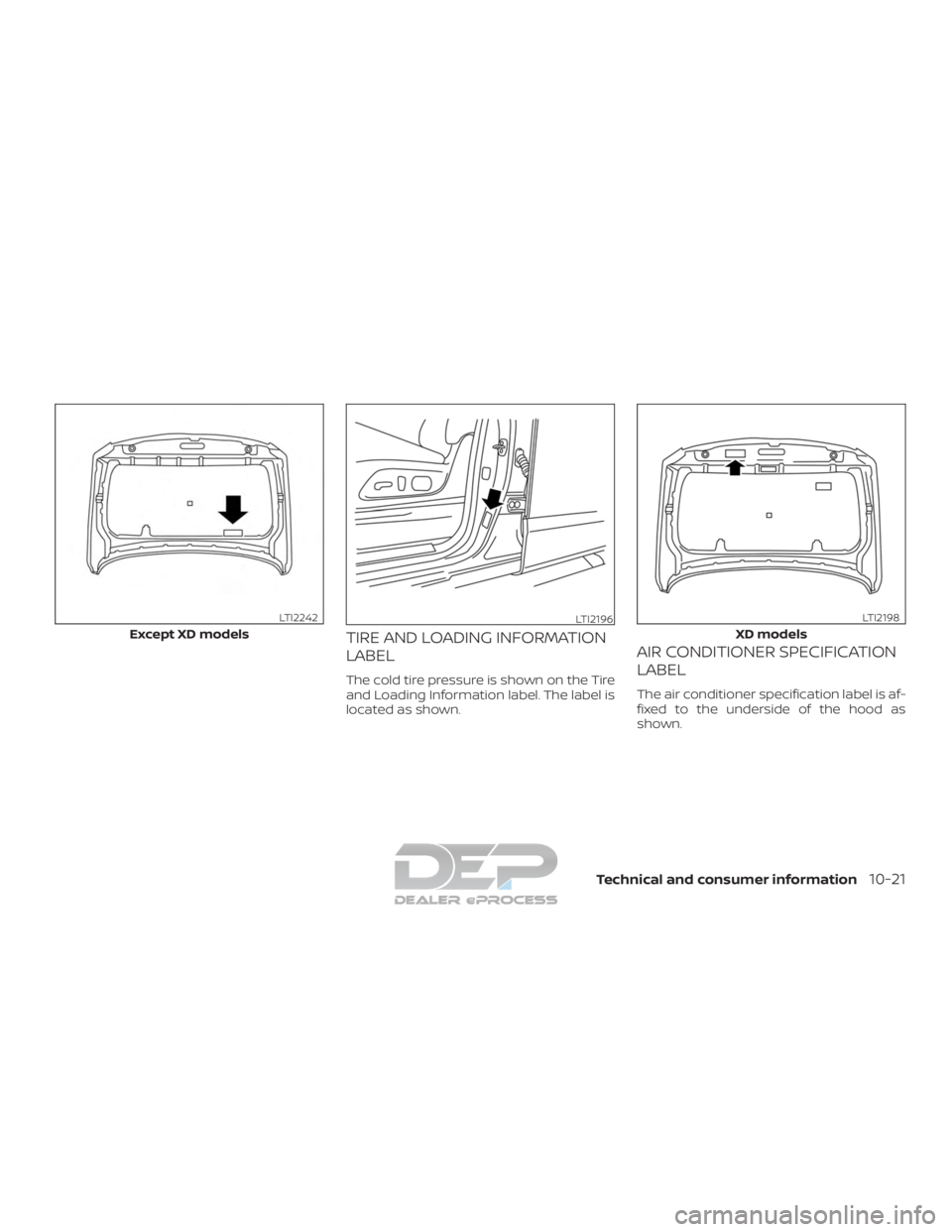

TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the Tire
and Loading Information label. The label is
located as shown.
AIR CONDITIONER SPECIFICATION
LABEL
The air conditioner specification label is af-
fixed to the underside of the hood as
shown.
Except XD models
LTI2242LTI2196
XD models
LTI2198
Technical and consumer information10-21
