2019 NISSAN TITAN Owner´s Manual

RECOMMENDED NEW VEHICLE
BREAK-IN PROCEDURE:
Gas engine only
During the first 1,200 miles (2,000 km) of
vehicle use, follow the break-in procedure
recommendations for the future reliability
and economy of your new vehicle. For ad-
ditional information, refer to “Break-in
schedule” in the “Starting and driving” sec-
tion of this manual. Failure to follow these
recommendations may result in vehicle
damage or shortened engine life.
Diesel engine only
For additional information, refer to “Engine
break-in recommendations” in the Titan
Diesel Owner’s Manual.

A61-D
Printing : July 2018
Publication No.:
Printed in the U.S.A. OM19EA 0A61U0

2019 TITAN DIESEL
OWNER’S MANUAL
and MAINTENANCE INFORMATION SUPPLEMENT
For your safety, read carefully and keep in this vehicle.

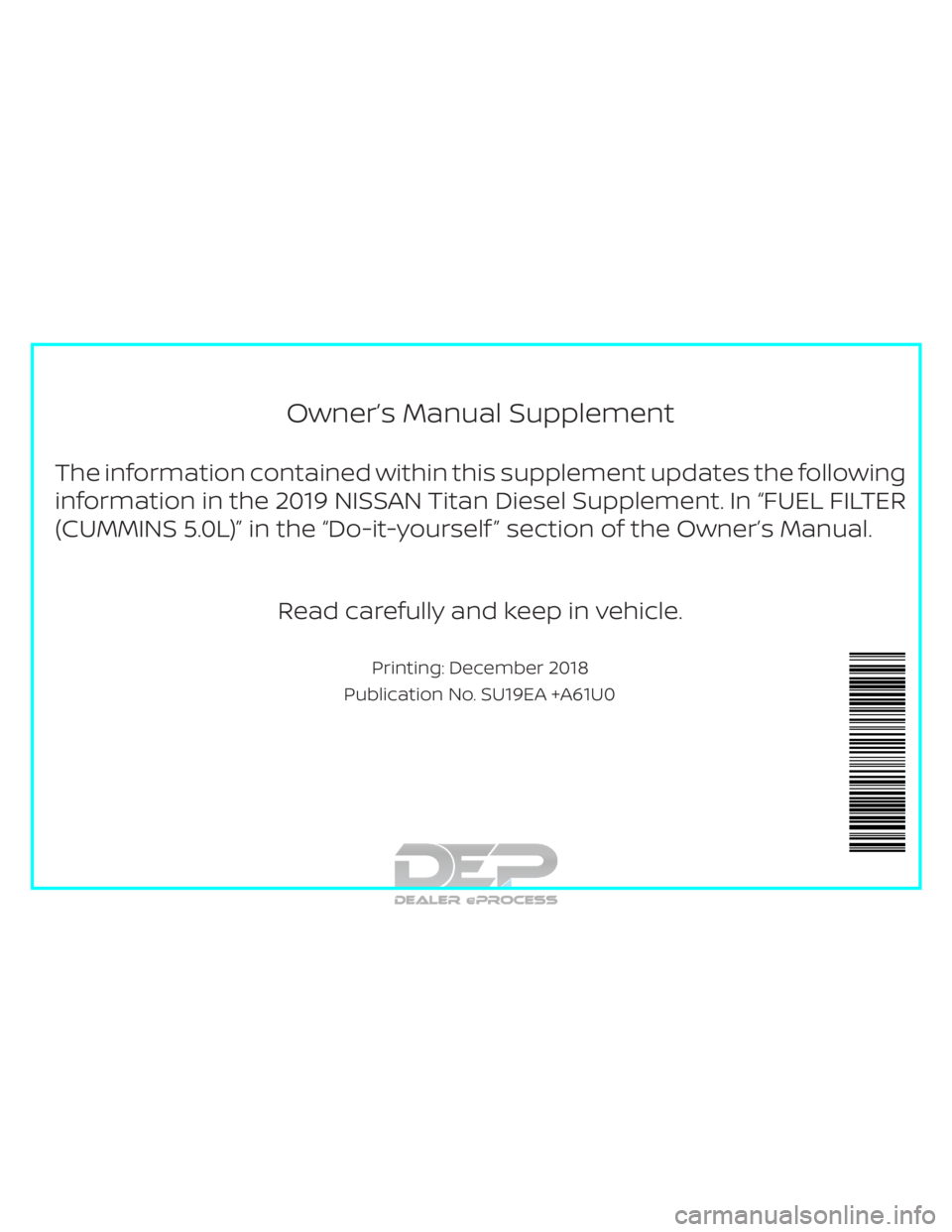

Owner’s Manual Supplement
The information contained within this supplement updates the following
information in the 2019 NISSAN Titan Diesel Supplement. In “FUEL FILTER
(CUMMINS 5.0L)” in the “Do-it-yourself ” section of the Owner’s Manual.Read carefully and keep in vehicle.
Printing: December 2018
Publication No. SU19EA +A61U0

CAUTION
Your vehicle may require more frequent
maintenance if it operates on biodiesel
blends between 6% and 10% (B6 and
B10). To avoid damage to your vehicle,
the oil, oil filter, and fuel filter will need
to be replaced af ter a shorter time in-
terval than if your vehicle was operat-
ing on pure petroleum-based diesel.
For additional information, refer to the
“Maintenance and schedules” section in
the Titan Owner’s Manual.
FUEL FILTER REPLACEMENT (stage
1)
NOTE:∙ It is possible the “Low Fuel Pressure:
See Owner’s Manual” message will
display on the vehicle information
display af ter fuel filter replacement
due to air being introduced into the
fuel system. ∙
If the “Low Fuel Pressure: See Owner’s
Manual” message is displayed on the
vehicle information display with the
engine running, complete a full key
cycle (turn the vehicle off and wait
2 minutes) and restart the vehicle. If
the message is still displayed or the
Malfunction Indicator Light is illumi-
nated af ter a full key cycle , it is rec-
ommended that you visit a NISSAN
dealer for service.
WARNING
∙ The fuel system (fuel pump, high pres- sure fuel lines, fuel rail, injectors) con-
tain very high pressure fuel. To avoid
the risk of personal injury or fire;
– Do not loosen any fittings while the engine is running.
– Wait at least 10 minutes af ter shut- ting down the engine before loos-
ening any fittings in the high-
pressure fuel system to allow
pressure to decrease to a lower
level.
– Wear appropriate eye protection and protective equipment as high-
pressure fuel spray can penetrate
the skin.
Fuel filter (stage 1) location
LDI2921
FUEL FILTER (CUMMINS 5.0L)

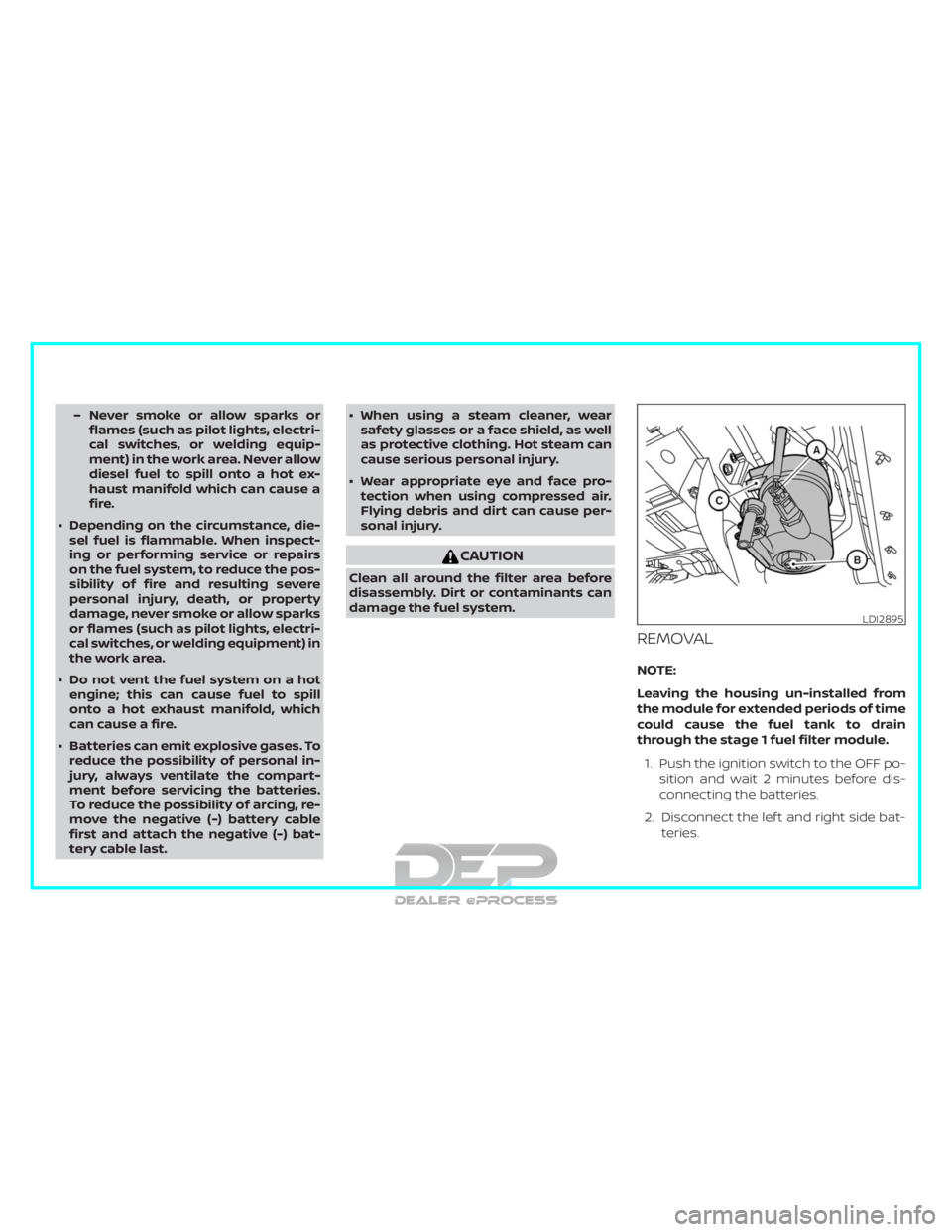

– Never smoke or allow sparks orflames (such as pilot lights, electri-
cal switches, or welding equip-
ment) in the work area. Never allow
diesel fuel to spill onto a hot ex-
haust manifold which can cause a
fire.
∙ Depending on the circumstance, die- sel fuel is flammable. When inspect-
ing or performing service or repairs
on the fuel system, to reduce the pos-
sibility of fire and resulting severe
personal injury, death, or property
damage, never smoke or allow sparks
or flames (such as pilot lights, electri-
cal switches, or welding equipment) in
the work area.
∙ Do not vent the fuel system on a hot engine; this can cause fuel to spill
onto a hot exhaust manifold, which
can cause a fire.
∙ Batteries can emit explosive gases. To reduce the possibility of personal in-
jury, always ventilate the compart-
ment before servicing the batteries.
To reduce the possibility of arcing, re-
move the negative (-) battery cable
first and attach the negative (-) bat-
tery cable last. ∙ When using a steam cleaner, wear
safety glasses or a face shield, as well
as protective clothing. Hot steam can
cause serious personal injury.
∙ Wear appropriate eye and face pro- tection when using compressed air.
Flying debris and dirt can cause per-
sonal injury.
CAUTION
Clean all around the filter area before
disassembly. Dirt or contaminants can
damage the fuel system.
REMOVAL
NOTE:
Leaving the housing un-installed from
the module for extended periods of time
could cause the fuel tank to drain
through the stage 1 fuel filter module.
1. Push the ignition switch to the OFF po- sition and wait 2 minutes before dis-
connecting the batteries.
2. Disconnect the lef t and right side bat- teries.
LDI2895

3. Clean the area around the stage 1 fuelfilter.
4. Drain the fuel filter housing. For addi- tional information, refer to “Draining
water” in this section.
5. Close the water-in-fuel drain.
6. Disconnect the wiring harness
Afrom
the water-in-fuel sensor.
7. Remove the fuel filter housing (Stage 1) protector
Bfrom the moduleC.
NOTE:
- It may be necessary to use a screw-
driver in the slots provided to remove the
fuel filter element from the housing.
- If fuel filter element does not release
with housing remove the element by
twisting and pulling directly away from
module simultaneously. Do not bend or
exert a side force as that may damage
the filter assembly and result in no-start.8. Remove the fuel filter element
Dby
lif ting it out of the fuel filter housing.
9. Remove and discard the sealing o-ring
Efrom the fuel filter housing.
INSPECTION
Inspect the fuel filter housing and module
for cracks, passage blockages, and other
damage. If damage is found, replacement
is mandatory.
It is recommended that you visit a NISSAN
dealer for this service.
LDI2896
