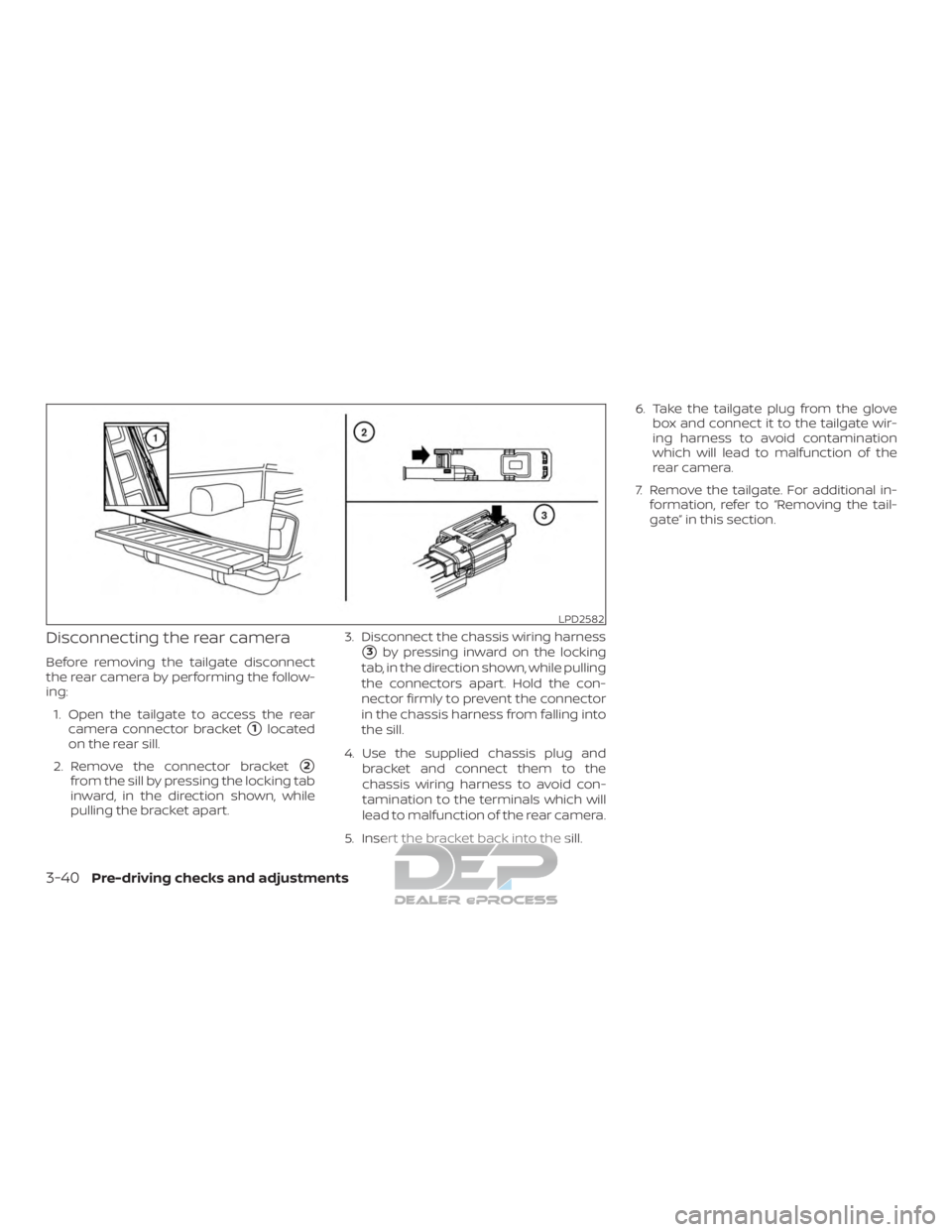

Disconnecting the rear camera
Before removing the tailgate disconnect
the rear camera by performing the follow-
ing:1. Open the tailgate to access the rear camera connector bracket
1located
on the rear sill.
2. Remove the connector bracket
2
from the sill by pressing the locking tab
inward, in the direction shown, while
pulling the bracket apart. 3. Disconnect the chassis wiring harness
3by pressing inward on the locking
tab, in the direction shown, while pulling
the connectors apart. Hold the con-
nector firmly to prevent the connector
in the chassis harness from falling into
the sill.
4. Use the supplied chassis plug and bracket and connect them to the
chassis wiring harness to avoid con-
tamination to the terminals which will
lead to malfunction of the rear camera.
5. Insert the bracket back into the sill. 6. Take the tailgate plug from the glove
box and connect it to the tailgate wir-
ing harness to avoid contamination
which will lead to malfunction of the
rear camera.
7. Remove the tailgate. For additional in- formation, refer to “Removing the tail-
gate” in this section.
LPD2582
3-40Pre-driving checks and adjustments

Removing the tailgate
1. Disconnect the wiring harness for therear camera (if so equipped). For addi-
tional information, refer to “Disconnect-
ing the rear camera” in this section.
2. Release the tailgate support cables.
CAUTION
∙ The tailgate is heavy. Two people should remove or install it. Be careful
not to drop it during removal.
∙ Af ter releasing the support cables, do not let the tailgate rest on the
bumper.
3. Hold the tailgate at a 45 degree angle.
4. Pull the tailgate out from the lef t side hinge.
5. Slide the tailgate out of the right side hinge.
Installing the tailgate
1. Insert the tailgate into the right sidehinge.
2. Hold the tailgate at a 45 degree angle and insert into the lef t side hinge.
3. Continue to hold the tailgate at a 45 degree angle and attach the tailgate
support cables. 4. For vehicles with rear camera: Be sure
the tailgate harness is not hanging be-
low the tailgate and keep the tailgate
open. For additional information, refer
to “Connecting the rear camera” in this
section before closing the tailgate.
5. For vehicles without rear camera: Close the tailgate securely.
LPD0271
Pre-driving checks and adjustments3-41

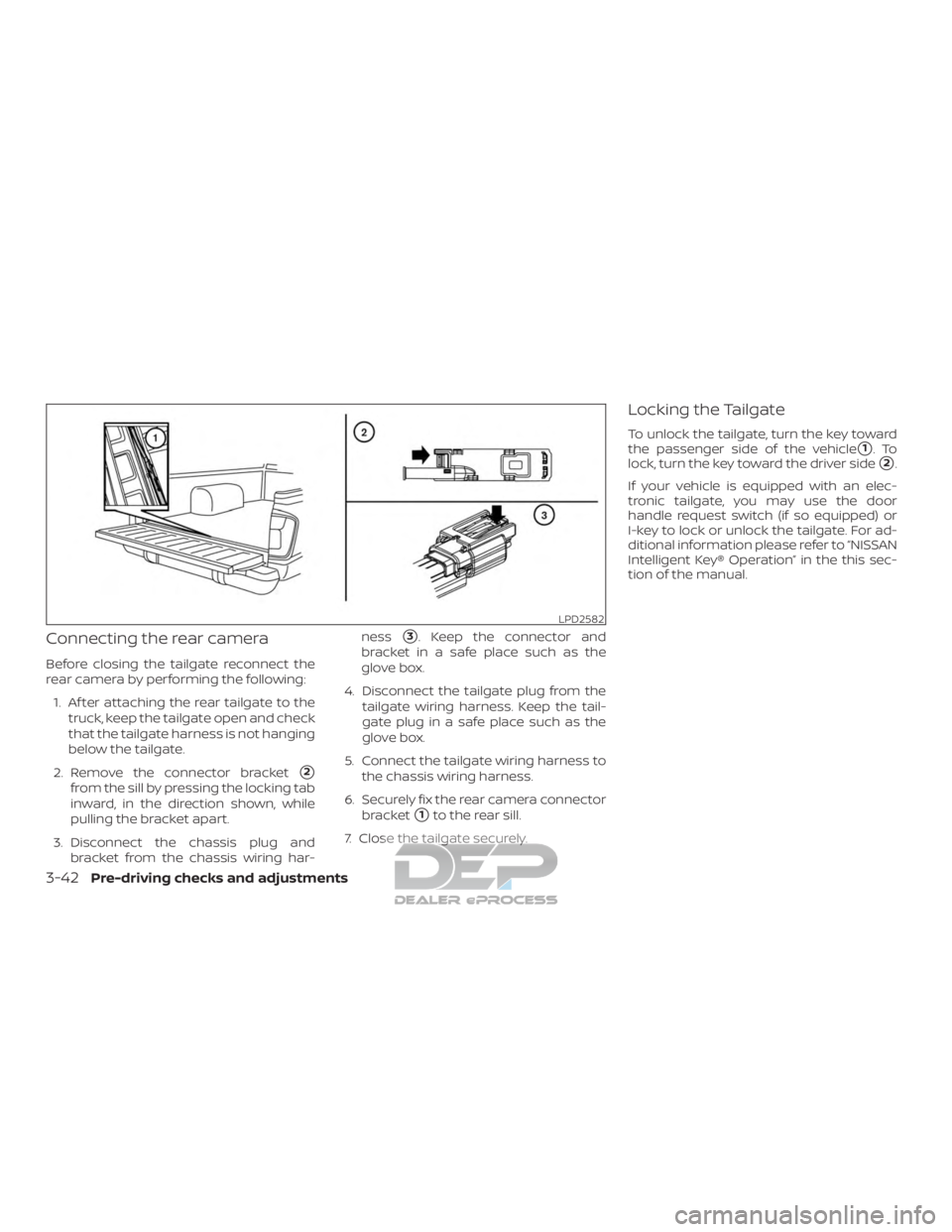

Connecting the rear camera
Before closing the tailgate reconnect the
rear camera by performing the following:1. Af ter attaching the rear tailgate to the truck, keep the tailgate open and check
that the tailgate harness is not hanging
below the tailgate.
2. Remove the connector bracket
2
from the sill by pressing the locking tab
inward, in the direction shown, while
pulling the bracket apart.
3. Disconnect the chassis plug and bracket from the chassis wiring har- ness
3. Keep the connector and
bracket in a safe place such as the
glove box.
4. Disconnect the tailgate plug from the tailgate wiring harness. Keep the tail-
gate plug in a safe place such as the
glove box.
5. Connect the tailgate wiring harness to the chassis wiring harness.
6. Securely fix the rear camera connector bracket
1to the rear sill.
7. Close the tailgate securely.
Locking the Tailgate
To unlock the tailgate, turn the key toward
the passenger side of the vehicle
1.To
lock, turn the key toward the driver side
2.
If your vehicle is equipped with an elec-
tronic tailgate, you may use the door
handle request switch (if so equipped) or
I-key to lock or unlock the tailgate. For ad-
ditional information please refer to “NISSAN
Intelligent Key® Operation” in the this sec-
tion of the manual.
LPD2582
3-42Pre-driving checks and adjustments

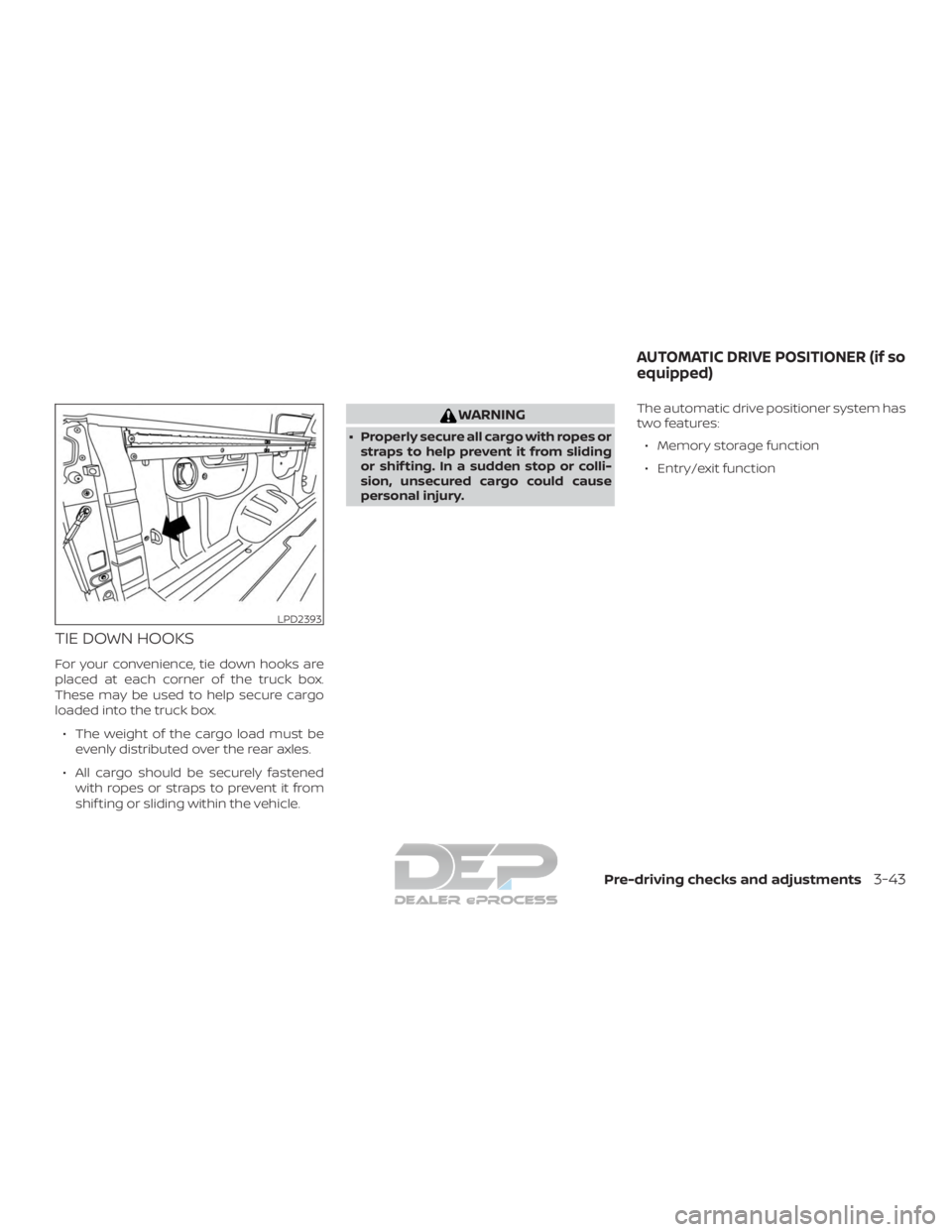

TIE DOWN HOOKS
For your convenience, tie down hooks are
placed at each corner of the truck box.
These may be used to help secure cargo
loaded into the truck box.∙ The weight of the cargo load must be evenly distributed over the rear axles.
∙ All cargo should be securely fastened with ropes or straps to prevent it from
shif ting or sliding within the vehicle.
WARNING
∙ Properly secure all cargo with ropes orstraps to help prevent it from sliding
or shif ting. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury. The automatic drive positioner system has
two features:
∙ Memory storage function
∙ Entry/exit function
LPD2393
AUTOMATIC DRIVE POSITIONER (if so
equipped)
Pre-driving checks and adjustments3-43

MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, steering
column, and outside mirrors (if so
equipped) can be stored in the automatic
drive positioner memory. Follow these pro-
cedures to set the memory system.1. Place the ignition in the ON or ACC po- sition (the vehicle should be stopped
while setting the memory).
2. Adjust the driver’s seat, steering col- umn, and outside mirrors (if so
equipped) to the desired positions by
manually operating each adjusting
switch. For additional information, refer to “Seats” in the “Safety—Seats, seat
belts and supplemental restraint sys-
tem” section of this manual, and “Steer-
ing wheel” and “Outside mirrors” in this
section.
3. Push the SET switch and, within 5 sec- onds, push the memory switch (1 or 2).
4. The indicator light for the pushed memory switch will come on and stay
on for approximately 5 seconds.
5. The chime will sound when the memory is stored.
NOTE:
If a NEW memory position is stored in the
same memory switch, the previous
memory position will be overwritten by
the new stored position.
Confirming memory storage
∙ Push the SET switch.
∙ If a memory position has been stored in the switch (1 or 2) then the indicator light
for the respective switch will stay on for
approximately 5 seconds.
Linking a key fob to a stored
memory position
Each key fob can be linked to a stored
memory position (memory switch 1 or 2)
with the following procedure.
1. Follow steps 1-3 in the “Memory storage function” section for storing the
memory position.
2. The indicator light for the pushed memory switch will come on. While the
indicator light is on for 5 seconds, press
the
button on the key fob. The
hazard lights will flash twice. The indi-
cator light of the linked memory switch
will blink and click twice. Af ter the indi-
cator light goes off, the key fob is linked
to that memory setting.
Once it is linked, when the ignition switch is
in the OFF position, pressing the
but-
ton on the key fob will move the driver’s
seat, steering wheel and outside mirrors to
the linked memory switch position.
NOTE:
If a new memory position is stored in the
linked memory switch, then the key fob
will link the new position and overwrites
the previous position.
LPD2302
3-44Pre-driving checks and adjustments

ENTRY/EXIT FUNCTION
This system is designed so that the driver’s
seat and steering column will automati-
cally move when the shif t lever is in the P
(Park) position. This allows the driver to
easily get in and out of the driver’s seat.
The driver’s seat will slide backward and
the steering column will move up:∙ When the driver’s door is opened with the ignition switch in the OFF position.
∙ When the ignition switch is changed from ACC to OFF with the driver’s door
open.
The driver’s seat and steering wheel will
return to the previous position: ∙ When the ignition switch is changed from ACC or ON while the shif t lever is in
the P (Park) position.
The entry/exit function can be adjusted or
canceled through the vehicle settings in
the vehicle information display by perform-
ing the following: ∙ Switch the Exit Seat Slide from ON to OFF.
∙ Switch the Exit Steering UP from ON to OFF.
Restarting the entry/exit function
If the battery cable is disconnected, or if the
fuse opens, the stored memory positions
will be lost and some of the functions will
be restricted:
1. Drive the vehicle over 25 mph (40 km/h).
OR 2. Open and close the driver’s door more than two times with the ignition switch
in the OFF position.
The entry/exit function should now work
properly.
SYSTEM OPERATION
The automatic drive positioner system will
not work or will stop operating under the
following conditions: ∙ When the vehicle speed is above 4 mph (7 km/h).
∙ When any of the memory switches are pushed while the automatic drive posi-
tioner is operating.
∙ When the switch for the driver’s seat and steering column is pushed while
the automatic drive positioner is oper-
ating. ∙ When the seat has already been moved
to the memorized position.
∙ When no seat position is stored in the memory switch.
∙ When the shif t lever is moved from P (Park) to any other position.
Pre-driving checks and adjustments3-45
