To turn off the hill descent control system,
push the switch to the OFF position.
For additional information, refer to “Hill de-
scent control system ON indicator light” in
this section and “Hill descent control sys-
tem” in the “Starting and driving” section of

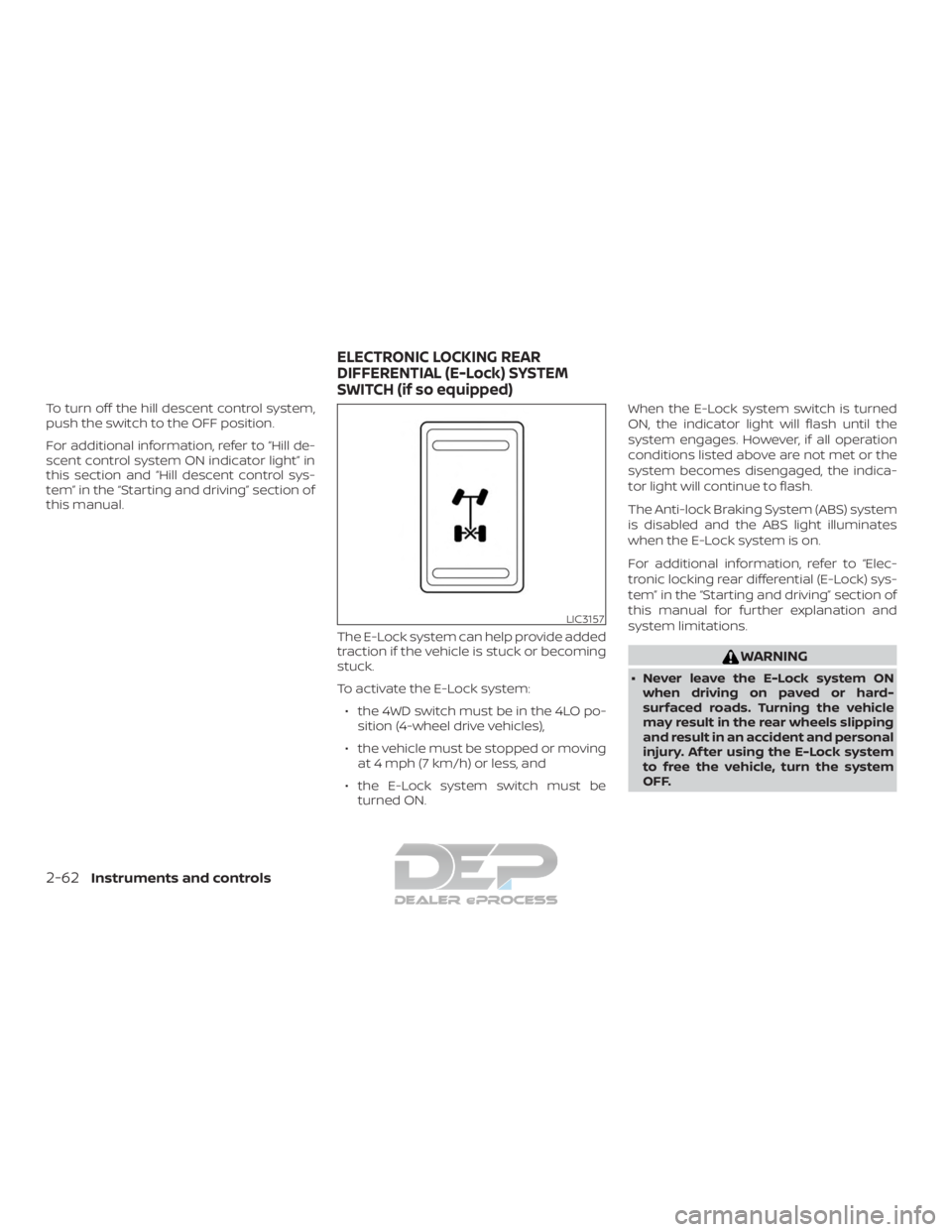

this manual.The E-Lock system can help provide added
traction if the vehicle is stuck or becoming
stuck.
To activate the E-Lock system:∙ the 4WD switch must be in the 4LO po- sition (4-wheel drive vehicles),
∙ the vehicle must be stopped or moving at 4 mph (7 km/h) or less, and
∙ the E-Lock system switch must be turned ON. When the E-Lock system switch is turned
ON, the indicator light will flash until the
system engages. However, if all operation
conditions listed above are not met or the
system becomes disengaged, the indica-
tor light will continue to flash.
The Anti-lock Braking System (ABS) system
is disabled and the ABS light illuminates
when the E-Lock system is on.
For additional information, refer to “Elec-
tronic locking rear differential (E-Lock) sys-
tem” in the “Starting and driving” section of
this manual for further explanation and
system limitations.
WARNING
∙ Never leave the E-Lock system ON
when driving on paved or hard-
surfaced roads. Turning the vehicle
may result in the rear wheels slipping
and result in an accident and personal
injury. Af ter using the E-Lock system
to free the vehicle, turn the system
OFF.
LIC3157
ELECTRONIC LOCKING REAR
DIFFERENTIAL (E-Lock) SYSTEM
SWITCH (if so equipped)
2-62Instruments and controls

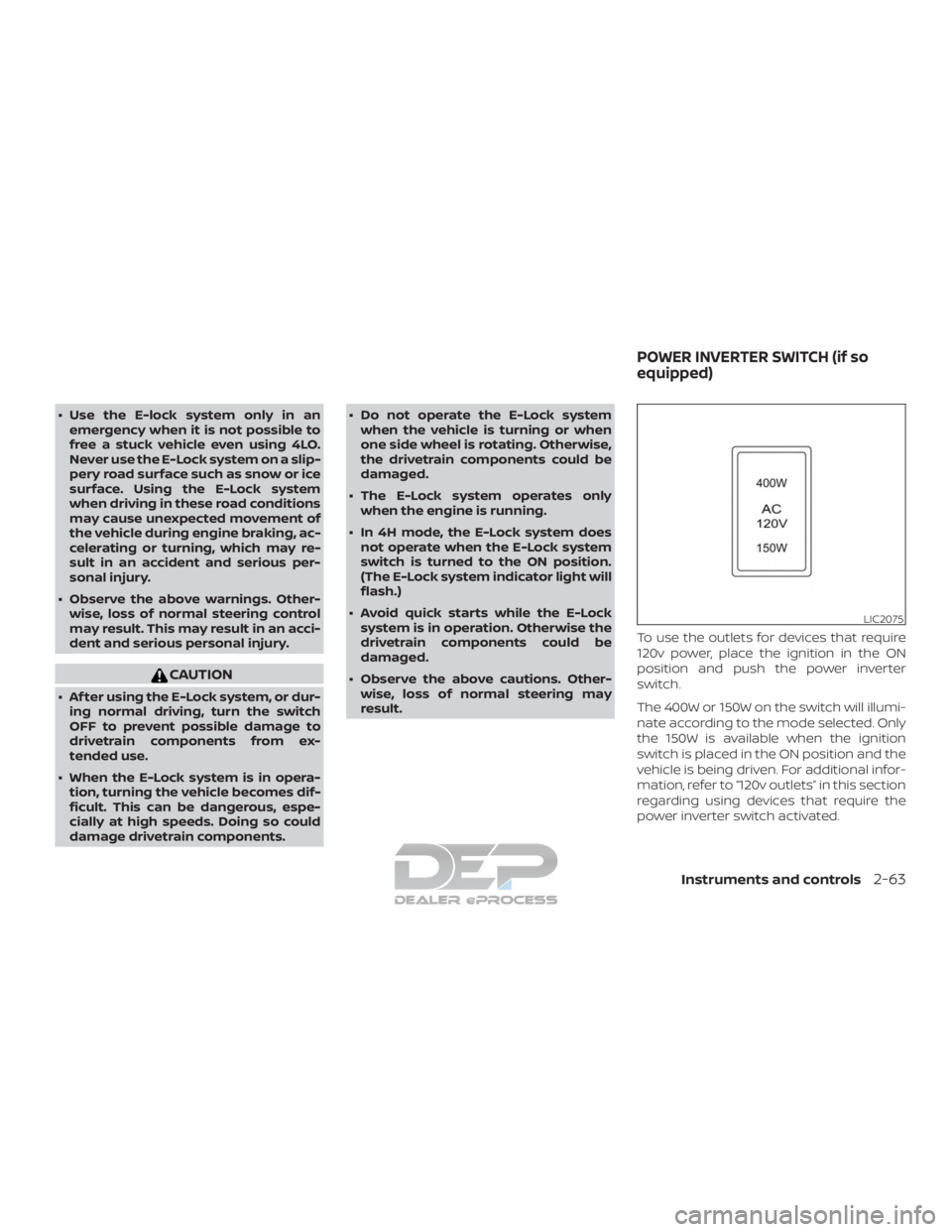

∙ Use the E-lock system only in anemergency when it is not possible to
free a stuck vehicle even using 4LO.
Never use the E-Lock system on a slip-
pery road surface such as snow or ice
surface. Using the E-Lock system
when driving in these road conditions
may cause unexpected movement of
the vehicle during engine braking, ac-
celerating or turning, which may re-
sult in an accident and serious per-
sonal injury.
∙ Observe the above warnings. Other- wise, loss of normal steering control
may result. This may result in an acci-
dent and serious personal injury.
CAUTION
∙ Af ter using the E-Lock system, or dur-ing normal driving, turn the switch
OFF to prevent possible damage to
drivetrain components from ex-
tended use.
∙ When the E-Lock system is in opera- tion, turning the vehicle becomes dif-
ficult. This can be dangerous, espe-
cially at high speeds. Doing so could
damage drivetrain components. ∙ Do not operate the E-Lock system
when the vehicle is turning or when
one side wheel is rotating. Otherwise,
the drivetrain components could be
damaged.
∙ The E-Lock system operates only when the engine is running.
∙ In 4H mode, the E-Lock system does not operate when the E-Lock system
switch is turned to the ON position.
(The E-Lock system indicator light will
flash.)
∙ Avoid quick starts while the E-Lock system is in operation. Otherwise the
drivetrain components could be
damaged.
∙ Observe the above cautions. Other- wise, loss of normal steering may
result. To use the outlets for devices that require
120v power, place the ignition in the ON
position and push the power inverter
switch.
The 400W or 150W on the switch will illumi-
nate according to the mode selected. Only
the 150W is available when the ignition
switch is placed in the ON position and the
vehicle is being driven. For additional infor-
mation, refer to “120v outlets” in this section
regarding using devices that require the
power inverter switch activated.
LIC2075
POWER INVERTER SWITCH (if so
equipped)
Instruments and controls2-63

CAUTION
∙ Use power outlets with the enginerunning to avoid discharging the ve-
hicle battery.
∙ Do not attempt to use this while driving.
∙ Do not use double adapters or more than one electrical accessory, doing
so could significantly drain the bat-
tery of your vehicle.
The Front and rear sonar system OFF
switch on the instrument panel allows the
driver to turn the Front and rear sonar sys-
tem, Moving Object Detection (MOD) (if so
equipped), and Rear Cross Traffic Alert
(RCTA) system on and off. To turn the sys-
tems on and off, the ignition switch must
be in the ON position.
The indicator light on the switch will illumi-
nate when the systems are turned on.
If the indicator light flashes when the Front
and rear sonar system, MOD (if so
equipped), or RCTA systems are not turned
off, it may indicate a malfunction in one or
more of these systems. The Front and rear sonar system, MOD (if so
equipped), or RCTA systems will be turned
on automatically under the following con-
ditions:
∙ When the ignition switch is switched from the OFF position to the ON posi-
tion.
∙ When the shif t lever is shif ted into the R (Reverse) position.
∙ When the vehicle speed increases to 6 mph (10 km/h) and decreases.
The automatic turning on function can be
turned on and off for these systems in the
vehicle information display. For additional
information, refer to “Settings” in the “In-
strument and controls” section of this
manual.
For additional information, refer to “Front
and rear sonar system” in the “Starting and
driving” section of this manual, or the “Mov-
ing Object Detection (MOD)” in the “Monitor,
climate, audio, phone and voice recogni-
tion systems” section of this manual.
LIC3596
FRONT AND REAR SONAR SYSTEM
OFF SWITCH (if so equipped)
2-64Instruments and controls

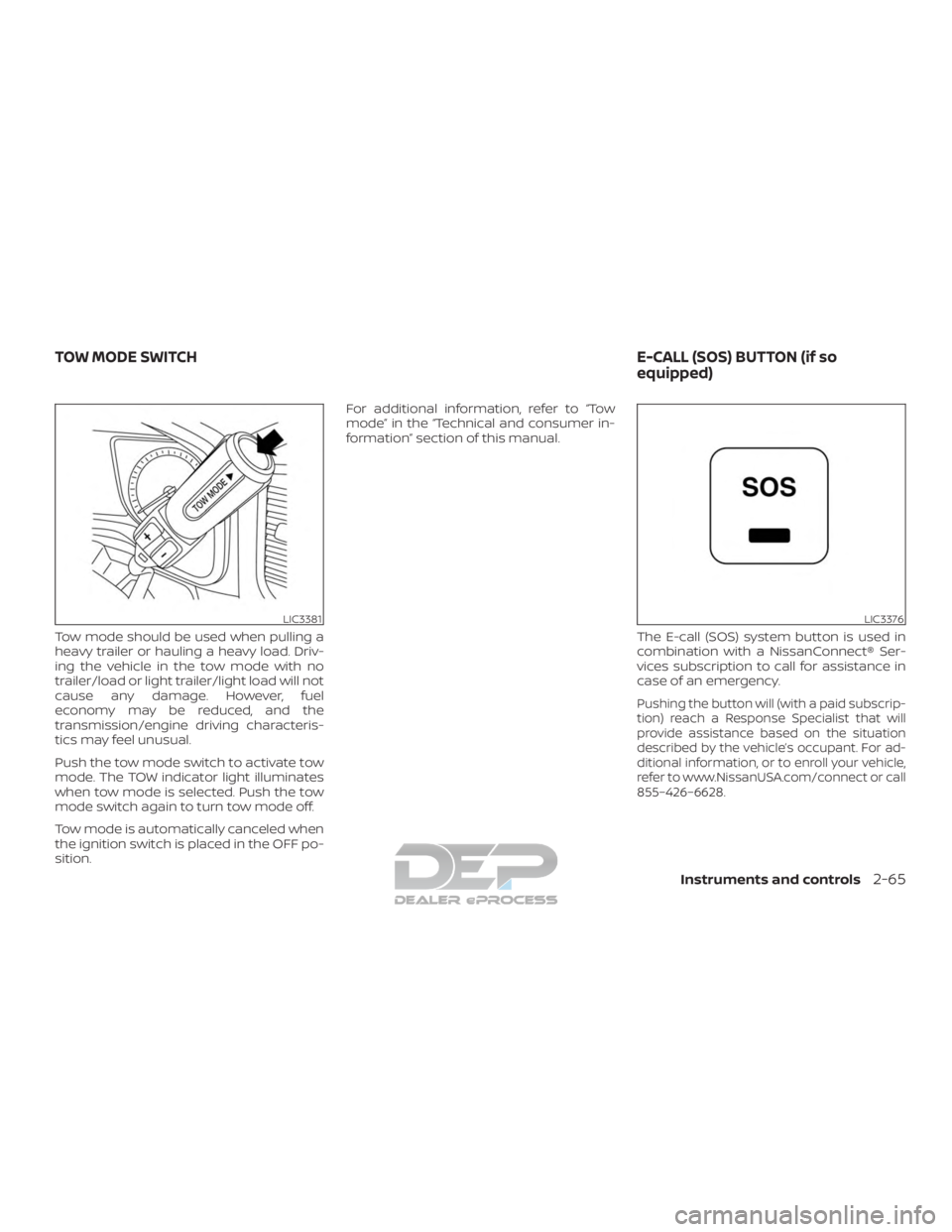

Tow mode should be used when pulling a
heavy trailer or hauling a heavy load. Driv-
ing the vehicle in the tow mode with no
trailer/load or light trailer/light load will not
cause any damage. However, fuel
economy may be reduced, and the
transmission/engine driving characteris-
tics may feel unusual.
Push the tow mode switch to activate tow
mode. The TOW indicator light illuminates
when tow mode is selected. Push the tow
mode switch again to turn tow mode off.
Tow mode is automatically canceled when
the ignition switch is placed in the OFF po-
sition.For additional information, refer to “Tow
mode” in the “Technical and consumer in-
formation” section of this manual.
The E-call (SOS) system button is used in
combination with a NissanConnect® Ser-
vices subscription to call for assistance in
case of an emergency.
Pushing the button will (with a paid subscrip-
tion) reach a Response Specialist that will
provide assistance based on the situation
described by the vehicle’s occupant. For ad-
ditional information, or to enroll your vehicle,
refer to www.NissanUSA.com/connect or call
855–426–6628.
LIC3381LIC3376
TOW MODE SWITCH E-CALL (SOS) BUTTON (if so
equipped)
Instruments and controls2-65

The TBCU on the instrument panel allows
the driver to adjust the braking force ap-
plied to the trailer brakes.
For additional information, refer to “Towing
a trailer” in the “Technical and consumer
information” section of this manual.The Rear Door Alert system functions un-
der certain conditions to indicate there
may be an object or passenger in the rear
seat(s). Check the seat(s) before exiting the
vehicle.
The Rear Door Alert system is initially dis-
abled. The driver can enable the system
using the vehicle information display. For
additional information, refer to “Vehicle in-
formation display warnings and indicators”
in this section.
When the system is enabled:
∙ The system is activated when a rear door is opened and closed approxi-
mately 10 minutes before the vehicle is
started. When the vehicle is started and
the system is activated, a visual mes-
sage appears in the vehicle information
display. For additional information, refer
to “Rear Door Alert is activated” in this
section.
∙ If a rear door is opened and closed but the vehicle is not started within approxi-
mately 10 minutes, the system will not
be activated. A rear door must be
opened and closed and the car started
within 10 minutes for the system to ac-
tivate. When the Rear Door Alert system is acti-
vated and a driver exits the vehicle af ter
arriving at a destination:
∙ When the driver puts the vehicle in the P (Park) position, a message appears in
the vehicle information display for a
driver to “Dismiss Message” or “Disable
Alert” if desired.
∙ With the system enabled, when the driver exits the vehicle, an audible alert
(horn sound) will occur unless a rear
door is opened and closed within a
short time to deactivate the alert.
∙ If the doors are locked before the alert is deactivated by opening a rear door, the
horn will sound.
∙ If the audible horn alert occurs, a mes- sage will also appear in the vehicle in-
formation display that states, “Check
Rear Seat for All Articles”.
WARNING
• If the driver selects “Disable Alert”, no
audible alert will be provided regard-
less of rear door open/close status.
LIC3382
TRAILER BRAKE CONTROLLER UNIT
(TBCU) (if so equipped) REAR DOOR ALERT (if so equipped)
2-66Instruments and controls

• There may be times when there is an
object or passenger in the rear seat(s)
but the audible alert does not sound.
For example, this may occur if the en-
gine is turned off and then on again in a
short period of time during a trip, or if
rear seat passengers enter or exit the
vehicle during a trip.
• The system does not directly detect
objects or passengers in the rear
seat(s). Instead, it can detect when a
rear door is opened and closed, indicat-
ing that there may be something in the
rear seat(s).
NOTE:
There may be times when the horn
sounds but there are no objects or pas-
sengers in the rear seat(s).
For additional information, refer to “Rear
Door Alert is activated” in this section.
12V OUTLETS
The power outlets are for powering electri-
cal accessories such as cellular tele-
phones. The power outlets located on the instru-
ment panel, inside the center armrest (if so
equipped), and on the back of the center
console (if so equipped) are powered only
when the ignition switch is placed in the
ACC or ON position.
Open the cap to use a power outlet.
Instrument panel
LIC4057
Inside center console (if so equipped)
LIC3385
POWER OUTLETS
Instruments and controls2-67

CAUTION
∙ The outlet and plug may be hot duringor immediately af ter use.
∙ Only certain power outlets are de- signed for use with a cigarette lighter
unit. Do not use any other power out-
let for an accessory lighter. It is rec-
ommended that you visit a NISSAN
dealer for additional information.
∙ Do not use with accessories that ex- ceed a 12 volt, 120W (10A) power draw. ∙ Do not use double adapters or more
than one electrical accessory.
∙ Use power outlets with the engine running to avoid discharging the ve-
hicle battery.
∙ Avoid using power outlets when the air conditioner, headlights, or rear
window defroster (if so equipped) is
on.
∙ Before inserting or disconnecting a plug, be sure the electrical accessory
being used is turned OFF.
∙ Push the plug in as far as it will go. If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
∙ When not in use, be sure to close the cap. Do not allow water or any other
liquid to contact the outlet.
Rear center console (if so equipped)
LIC3784
In truck box (if so equipped)
LIC0617
2-68Instruments and controls

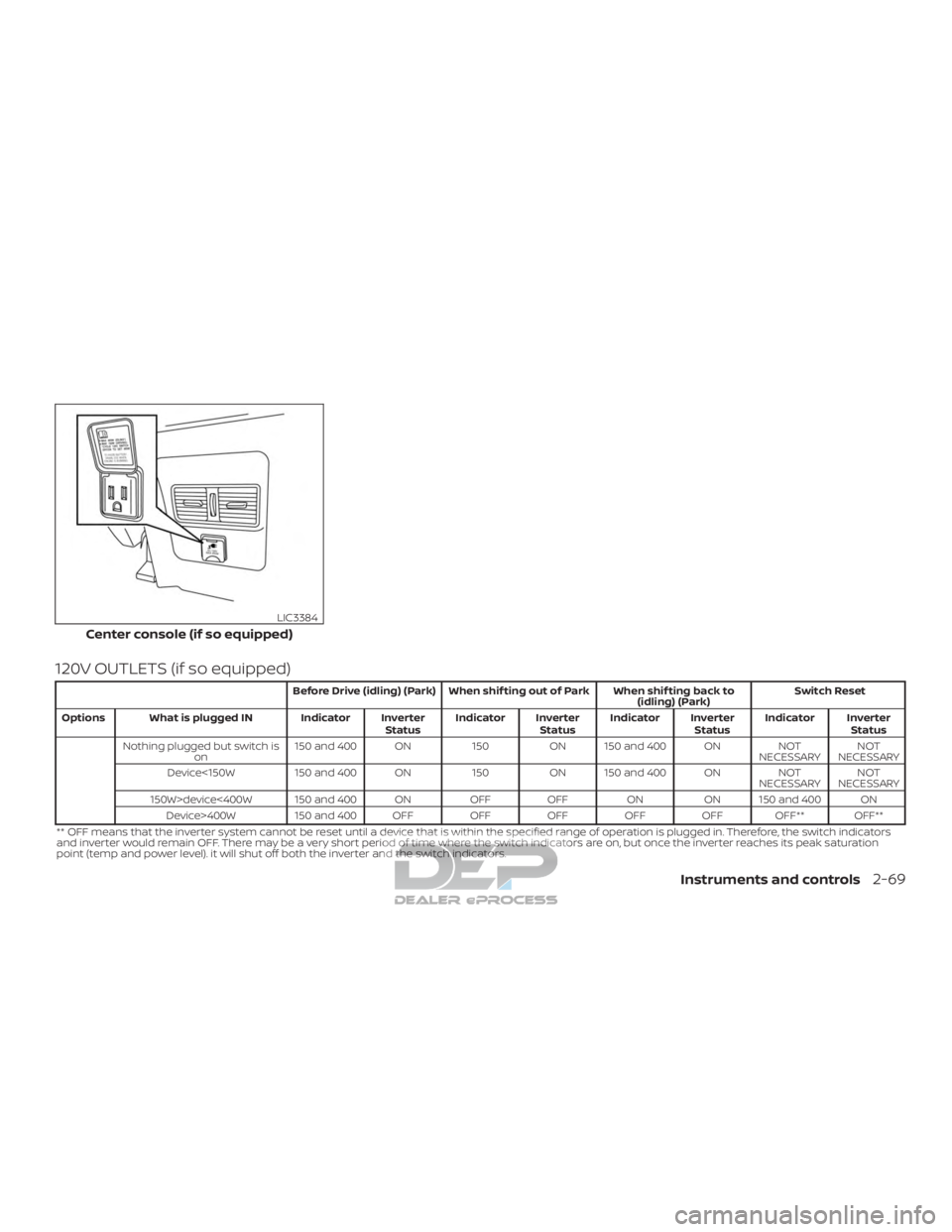

120V OUTLETS (if so equipped)
Before Drive (idling) (Park) When shif ting out of Park When shif ting back to(idling) (Park)Switch Reset
Options What is plugged IN Indicator Inverter StatusIndicator Inverter
StatusIndicator Inverter
StatusIndicator Inverter
Status
Nothing plugged but switch is on 150 and 400 ON
150ON 150 and 400 ON NOT
NECESSARY NOT
NECESSARY
Device<150W 150 and 400 ON 150ON 150 and 400 ON NOT
NECESSARY NOT
NECESSARY
150W>device<400W 150 and 400 ON OFFOFF ONON 150 and 400 ON
Device>400W 150 and 400 OFF OFFOFFOFFOFF OFF** OFF**
** OFF means that the inverter system cannot be reset until a device that is within the specified range of operation is plugged in. Therefore, the switch indicators
and inverter would remain OFF. There may be a very short period of time where the switch indicators are on, but once the inverter reaches its peak saturat ion
point (temp and power level). it will shut off both the inverter and the switch indicators.
Center console (if so equipped)
LIC3384
Instruments and controls2-69
