1. Tachometer
2. Warning and indicator lights
3. Vehicle information displayOdometer
Outside temperature display
4. Speedometer 5. Fuel gauge
6. Engine coolant temperature gauge
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located on the right side of the meter clus-
ter. The odometer is located in the vehicle
information display to the lef t of the speed-
ometer and can be accessed with the ve-
hicle in the ON position.
LIC3100
METERS AND GAUGES
2-6Instruments and controls

Speedometer
The speedometer indicates the vehicle
speed.
Odometer/Twin trip odometer
The odometer and the twin trip odometer
1are displayed in the vehicle information
display when the ignition switch is placed
in the ON position.
The odometer records the total distance
the vehicle has been driven.
The twin trip odometer records the dis-
tance of individual trips. Changing the display
Push the TRIP RESET switch
2on the lef t
side of the instrument panel to change the
display as follows:
ODO →Trip
→Trip→ ODO
Resetting the trip odometer
Pushing the TRIP RESET switch
2for about
2 seconds resets the currently displayed
trip odometer to zero.
LIC2255LIC3727
Instruments and controls2-7

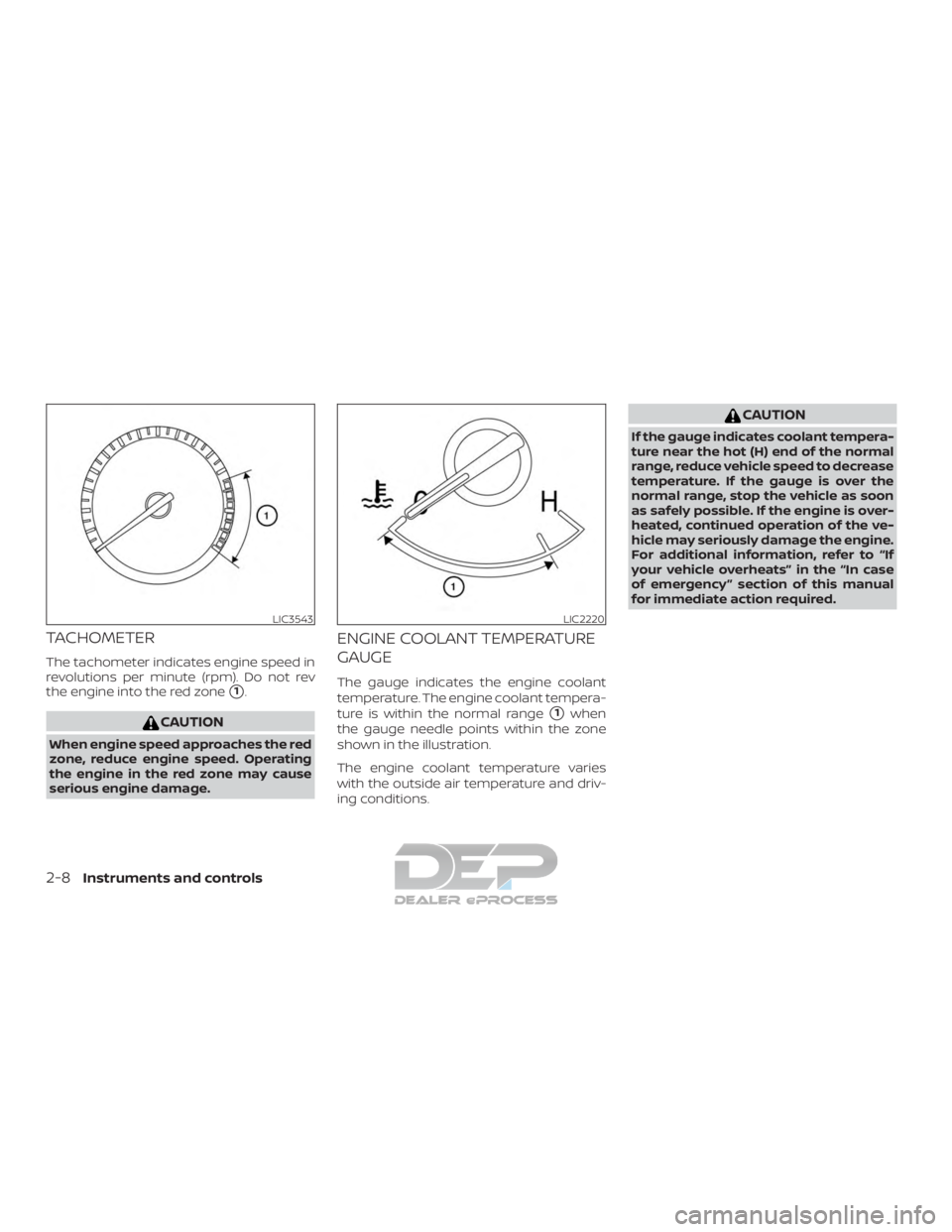

TACHOMETER
The tachometer indicates engine speed in
revolutions per minute (rpm). Do not rev
the engine into the red zone
1.
CAUTION
When engine speed approaches the red
zone, reduce engine speed. Operating
the engine in the red zone may cause
serious engine damage.
ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coolant
temperature. The engine coolant tempera-
ture is within the normal range
1when
the gauge needle points within the zone
shown in the illustration.
The engine coolant temperature varies
with the outside air temperature and driv-
ing conditions.
CAUTION
If the gauge indicates coolant tempera-
ture near the hot (H) end of the normal
range, reduce vehicle speed to decrease
temperature. If the gauge is over the
normal range, stop the vehicle as soon
as safely possible. If the engine is over-
heated, continued operation of the ve-
hicle may seriously damage the engine.
For additional information, refer to “If
your vehicle overheats” in the “In case
of emergency ” section of this manual
for immediate action required.
LIC3543LIC2220
2-8Instruments and controls

FUEL GAUGE
The gauge indicates theapproximatefuel
level in the tank.
The gauge may move slightly during brak-
ing, turning, acceleration, or going up or
down hills.
The gauge needle returns to 0 (Empty) af-
ter the ignition switch is placed in the OFF
position.
The low fuel warning light comes on when
the amount of fuel in the tank is getting low. Refill the fuel tank before the gauge reg-
isters 0 (Empty).
The
indicates that the fuel-filler
door is located on the driver’s side of the
vehicle.
CAUTION
∙ If the vehicle runs out of fuel, theMalfunction Indicator Light (MIL) may
come on. Refuel as soon as possible. If
the vehicle has run out of fuel, the sys-
tem will need to be primed. Turn the
key switch to ON for 20–30 seconds
and then back OFF. Repeat 3–4 times
or until the fuel pressure builds. Once
primed, start the vehicle. Af ter a few
driving trips. the
light should
turn off. If the light remains on af ter a
few driving trips, have the vehicle in-
spected. It is recommended that you
visit a NISSAN dealer for this service.
∙ For additional information, refer to “Malfunction Indicator Light (MIL)” in
this section.
LIC2222
Instruments and controls2-9

AUXILIARY GAUGES (if so
equipped)
1. Exhaust temperature gauge (if soequipped)
2. Automatic Transmission fluid tem- perature gauge
3. Turbo meter (if so equipped)
4. Engine oil pressure gauge
5. Engine oil temperature gauge
6. Voltmeter Exhaust temperature gauge (if so
equipped)
For additional information, refer to the Ti-
tan Diesel Owner’s Manual.
Automatic Transmission fluid tempera-
ture gauge
This gauge indicates the temperature of
the automatic transmission fluid.
CAUTION
∙ This gauge is not designed to indicate
low automatic transmission fluid
level. Use the dipstick to check the
fluid level. For additional information,
refer to “6- speed automatic trans-
mission fluid” in the “Do-it-yourself ”
section of this manual.
∙ If the gauge indicates automatic transmission fluid temperature over
the normal range, stop the vehicle as
soon as safely possible. It is recom-
mended that you have the vehicle
checked by a NISSAN dealer. Contin-
ued operation of the vehicle may seri-
ously damage the transmission.
Turbo meter (if so equipped)
For additional information, refer to the Ti-
tan Diesel Owner’s Manual.
Engine oil pressure gauge
The gauge indicates the engine lubrication
system oil pressure while the engine is run-
ning. The bar should be in the middle of the
gauge when the engine is running.
LIC3390
2-10Instruments and controls

CAUTION
∙ This gauge is not designed to indicatelow engine oil level. Use the dipstick to
check the oil level. For additional in-
formation, refer to “Engine oil” in the
“Do-it-yourself ” section of this
manual.
∙ If the gauge needle does not move with the proper amount of engine oil,
it is recommended that you have the
vehicle checked by a NISSAN dealer.
Continued vehicle operation in such a
condition could cause serious dam-
age to the engine.
Engine oil temperature gauge
This gauge measures the temperature of
the engine oil.
Voltmeter
When the ignition switch is placed in the ON
position, the voltmeter indicates the bat-
tery voltage. When the engine is running, it
indicates the generator voltage. While cranking the engine, the volts drop
below the normal range. If the range is not
within the normal range (11 – 15 volts) while
the engine is running, it may indicate that
the charging system is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.
DIESEL EXHAUST FLUID (DEF)
LEVEL (if so equipped)
This gauge measures the DEF level re-
maining in the vehicle. For additional infor-
mation, refer to “Fuel and refueling” in the
Titan Diesel Owner’s Manual.
LIC3479
Instruments and controls2-11

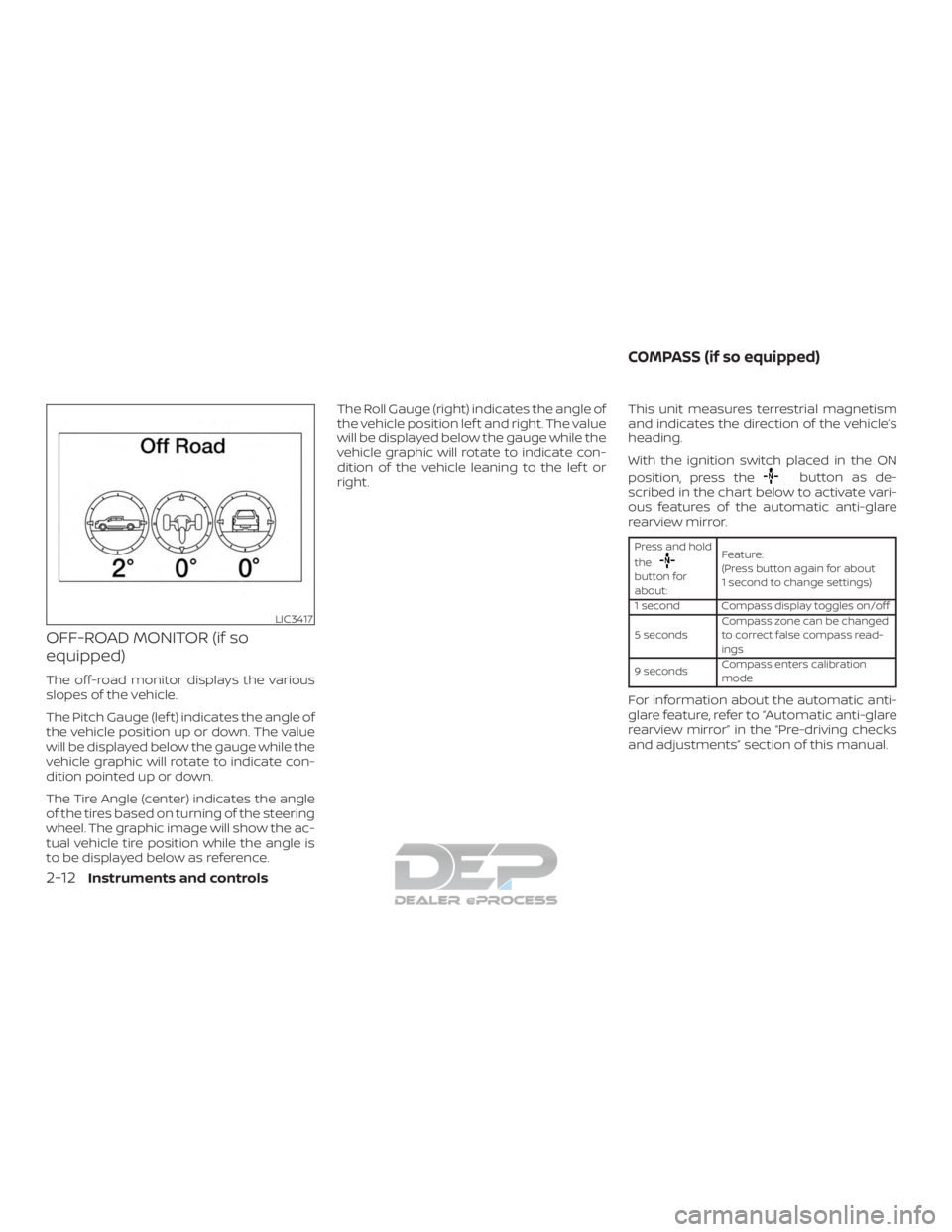

OFF-ROAD MONITOR (if so
equipped)
The off-road monitor displays the various
slopes of the vehicle.
The Pitch Gauge (lef t) indicates the angle of
the vehicle position up or down. The value
will be displayed below the gauge while the
vehicle graphic will rotate to indicate con-
dition pointed up or down.
The Tire Angle (center) indicates the angle
of the tires based on turning of the steering
wheel. The graphic image will show the ac-
tual vehicle tire position while the angle is
to be displayed below as reference.The Roll Gauge (right) indicates the angle of
the vehicle position lef t and right. The value
will be displayed below the gauge while the
vehicle graphic will rotate to indicate con-
dition of the vehicle leaning to the lef t or
right.
This unit measures terrestrial magnetism
and indicates the direction of the vehicle’s
heading.
With the ignition switch placed in the ON
position, press the
button as de-
scribed in the chart below to activate vari-
ous features of the automatic anti-glare
rearview mirror.
Press and hold
the
button for
about: Feature:
(Press button again for about
1 second to change settings)
1 second Compass display toggles on/off
5 seconds Compass zone can be changed
to correct false compass read-
ings
9 seconds Compass enters calibration
mode
For information about the automatic anti-
glare feature, refer to “Automatic anti-glare
rearview mirror” in the “Pre-driving checks
and adjustments” section of this manual.
LIC3417
COMPASS (if so equipped)
2-12Instruments and controls

Press thebutton for about 1 second
when the ignition switch is placed in the ON
position to toggle the compass display
1
on or off. The display will indicate the direc-
tion of the vehicle’s heading.
N: North
E: East
S: South
W: West
If the display reads “C”, calibrate the com-
pass by driving the vehicle in three com-
plete circles at less than 5 mph (8 km/h). You can also calibrate the compass by driv-
ing your vehicle on your everyday route.
The compass will be calibrated once it has
tracked three complete circles.
