2018 TOYOTA YARIS Owners Manual

6099-2. Customization
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52J66E
■Automatic air conditioning system ( P. 386)
FunctionDefault
setting
Customized
setting
Air conditioning control of Eco
drive mode ON OFF — O O
WARNING
■ During customization
As the hybrid system needs to be operating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ens ure that the hybrid system is oper-
ating while customizing features.
123

6109-3. Items to initialize
YARIS_HV_OM_Europe_OM52J66E
Items to initialize
*: If equipped
The following item must be initialized for normal system opera-
tion in cases such as after the battery is reconnected, or mainte-
nance is performed on the vehicle.
ItemWhen to initializeReference
Tire pressure
warning system*
• When rotating the tires on vehicles
with differing front and rear tire infla-
tion pressures
• When changing tire pressure (such
as when changing traveling speed)
• When changing the tire size
P. 454

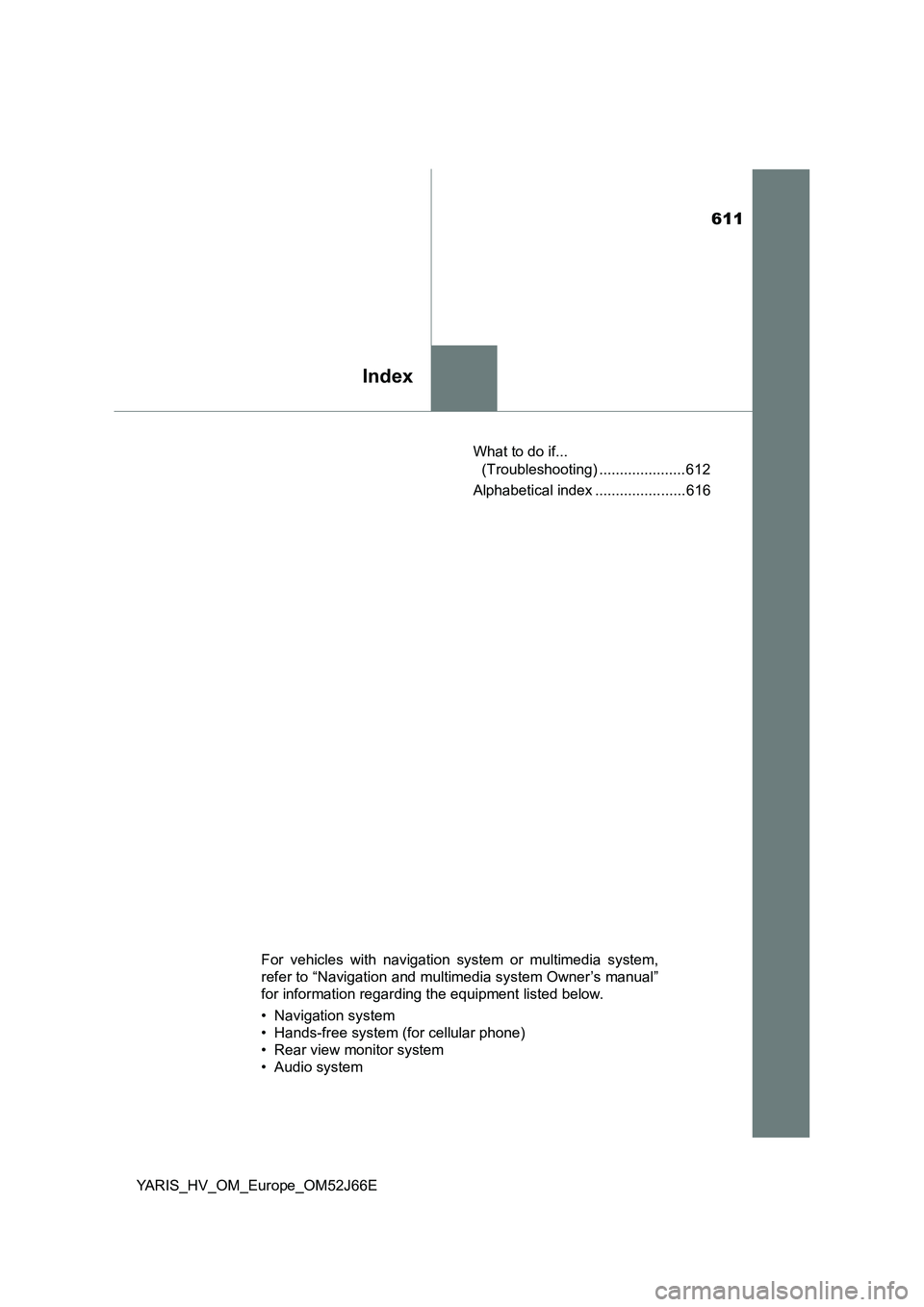

611
Index
YARIS_HV_OM_Europe_OM52J66E
What to do if...
(Troubleshooting) ..................... 612
Alphabetical index ...................... 616
For vehicles with navigation system or multimedia system,
refer to “Navigation and multimedia system Owner’s manual”
for information regarding the equipment listed below.
• Navigation system
• Hands-free system (for cellular phone)
• Rear view monitor system
• Audio system

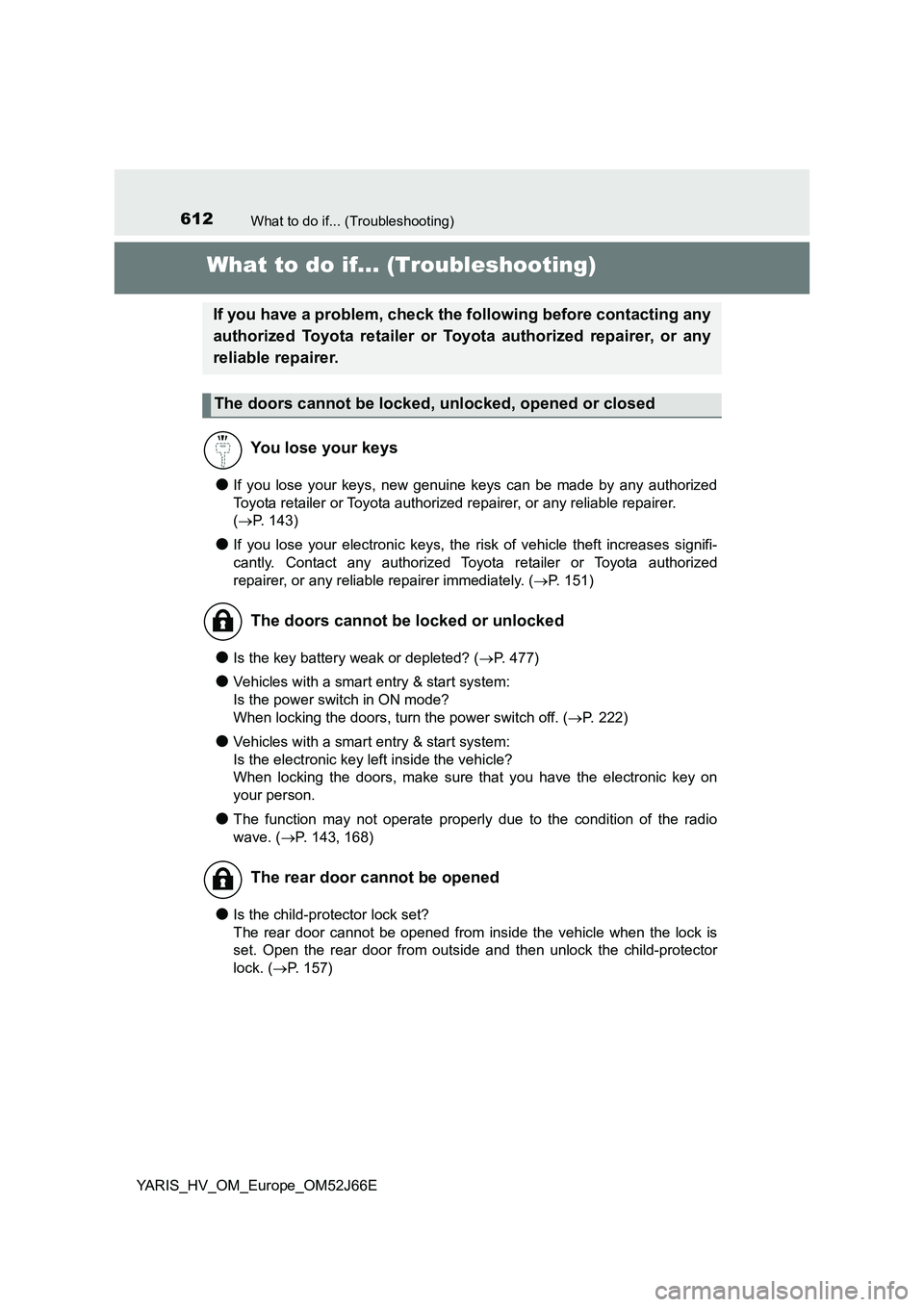

612What to do if... (Troubleshooting)
YARIS_HV_OM_Europe_OM52J66E
What to do if... (Troubleshooting)
●If you lose your keys, new genuine keys can be made by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
( P. 143)
●If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately. ( P. 151)
●Is the key battery weak or depleted? (P. 477)
●Vehicles with a smart entry & start system:
Is the power switch in ON mode?
When locking the doors, turn the power switch off. ( P. 222)
●Vehicles with a smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. ( P. 143, 168)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. ( P. 157)
If you have a problem, check the following before contacting any
authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

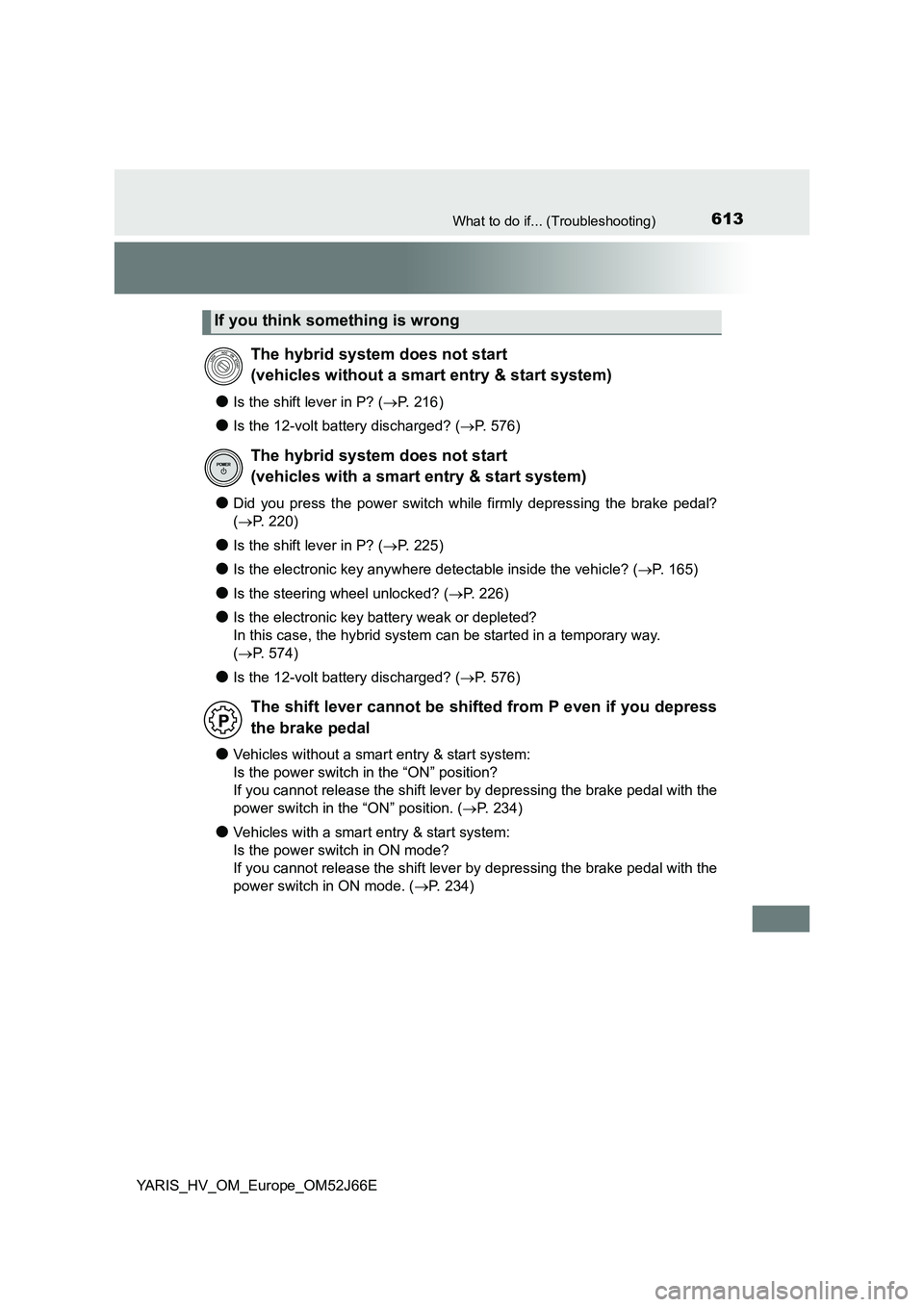

613What to do if... (Troubleshooting)
YARIS_HV_OM_Europe_OM52J66E
●Is the shift lever in P? (P. 2 1 6 )
●Is the 12-volt battery discharged? (P. 576)
●Did you press the power switch while firmly depressing the brake pedal?
( P. 220)
●Is the shift lever in P? (P. 2 2 5 )
●Is the electronic key anywhere detectable inside the vehicle? (P. 165)
●Is the steering wheel unlocked? (P. 226)
●Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way.
( P. 574)
●Is the 12-volt battery discharged? (P. 576)
●Vehicles without a smart entry & start system:
Is the power switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal with the
power switch in the “ON” position. ( P. 234)
●Vehicles with a smart entry & start system:
Is the power switch in ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
power switch in ON mode. ( P. 234)
If you think something is wrong
The hybrid system does not start
(vehicles without a smart entry & start system)
The hybrid system does not start
(vehicles with a smart entry & start system)
The shift lever cannot be shifted from P even if you depress
the brake pedal

614What to do if... (Troubleshooting)
YARIS_HV_OM_Europe_OM52J66E
●Vehicles without a smart entry & start system:
It is locked to prevent theft of the vehicle if the key is pulled from the power
switch. ( P. 218)
●Vehicles with a smart entry & start system:
It is locked automatically to prevent theft of the vehicle. ( P. 226)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( P. 199)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or ON mode (the hybrid system is not operating) for a period of
time. ( P. 225)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 521)
●The parking brake indicator is on
Is the parking brake released? ( P. 517)
Depending on the situation, other types of warning buzzer may also sound.
( P. 517, 531)
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches
The power switch is turned off automatically
(vehicles with a smart entry & start system)
A warning buzzer sounds during driving

615What to do if... (Troubleshooting)
YARIS_HV_OM_Europe_OM52J66E
●Is the electronic key left inside the vehicle?
Vehicles with color display: Check the message on the multi-information
display. ( P. 531)
●When a warning light turns on, refer to P. 517.
●When a warning light turns on or a warning message is displayed, refer to
P. 517, 531.
●Vehicles with an emergency tire puncture repair kit
Stop the vehicle in a safe place and repair the flat tire temporarily with the
emergency tire puncture repair kit. ( P. 537)
●Vehicles with a spare tire
Stop the vehicle in a safe place and replace the flat tire with the spare tire.
( P. 556)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. ( P. 587)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with monochrome display)
A warning light turns on or a warning message is displayed
(vehicles with color display)
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

616Alphabetical index
YARIS_HV_OM_Europe_OM52J66E
Alphabetical index
A/C............................................. 386
Air conditioning filter.............. 474
Automatic air conditioning
system ................................ 386
ABS (Anti-lock Brake
System) .................................. 303
Function ................................ 303
Warning light ......................... 519
Air conditioning filter .............. 474
Air conditioning system .......... 386
Air conditioning filter.............. 474
Automatic air conditioning
system ................................ 386
Airbag manual on-off system ... 56
Airbags ....................................... 43
Airbag manual
on-off system ........................ 56
Airbag operating conditions .... 50
Airbag precautions for
your child .............................. 45
Airbag warning light .............. 518
Correct driving posture............ 34
Curtain shield airbag
operating conditions ............. 51
Curtain shield airbag
precautions ........................... 45
General airbag precautions..... 45
Locations of airbags................ 43
Modification and
disposal of airbags ............... 49
Side airbag operating
conditions ............................. 51
Side airbag precautions .......... 45
Side and curtain shield
airbags operating
conditions ............................. 51
Side and curtain shield
airbags precautions .............. 45
SRS airbags............................ 43
Alarm
Warning buzzer..................... 517
Anchor brackets ........................ 83
Antenna
Radio ............................ 329, 415
Smart entry & start system ... 164
Anti-lock Brake System
(ABS) ...................................... 303
Function ................................ 303
Warning light ......................... 519
Armrest ..................................... 411
Ashtrays ................................... 408
Assist grips .............................. 412
Audio system (with a
Navigation/Multimedia
system)*
A
