2018 TOYOTA YARIS Owners Manual

4177-1. Maintenance and care
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
NOTICE
■To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels, etc.)
● Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the
paint surface
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
● If the paint is chipped or scratched, have it repaired immediately.
● To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
■ Cleaning the exterior lights
● Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
● Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■ Antenna installation and removal precautions
● Before driving, ensure that the antenna is installed.
● When the antenna is removed, such as before entering an automatic car
wash, make sure to store it in a suitable place so as not to lose it. Also,
before driving, make sure to reinstall the antenna in its original position.

4187-1. Maintenance and care
YARIS_HV_OM_Europe_OM52J66E

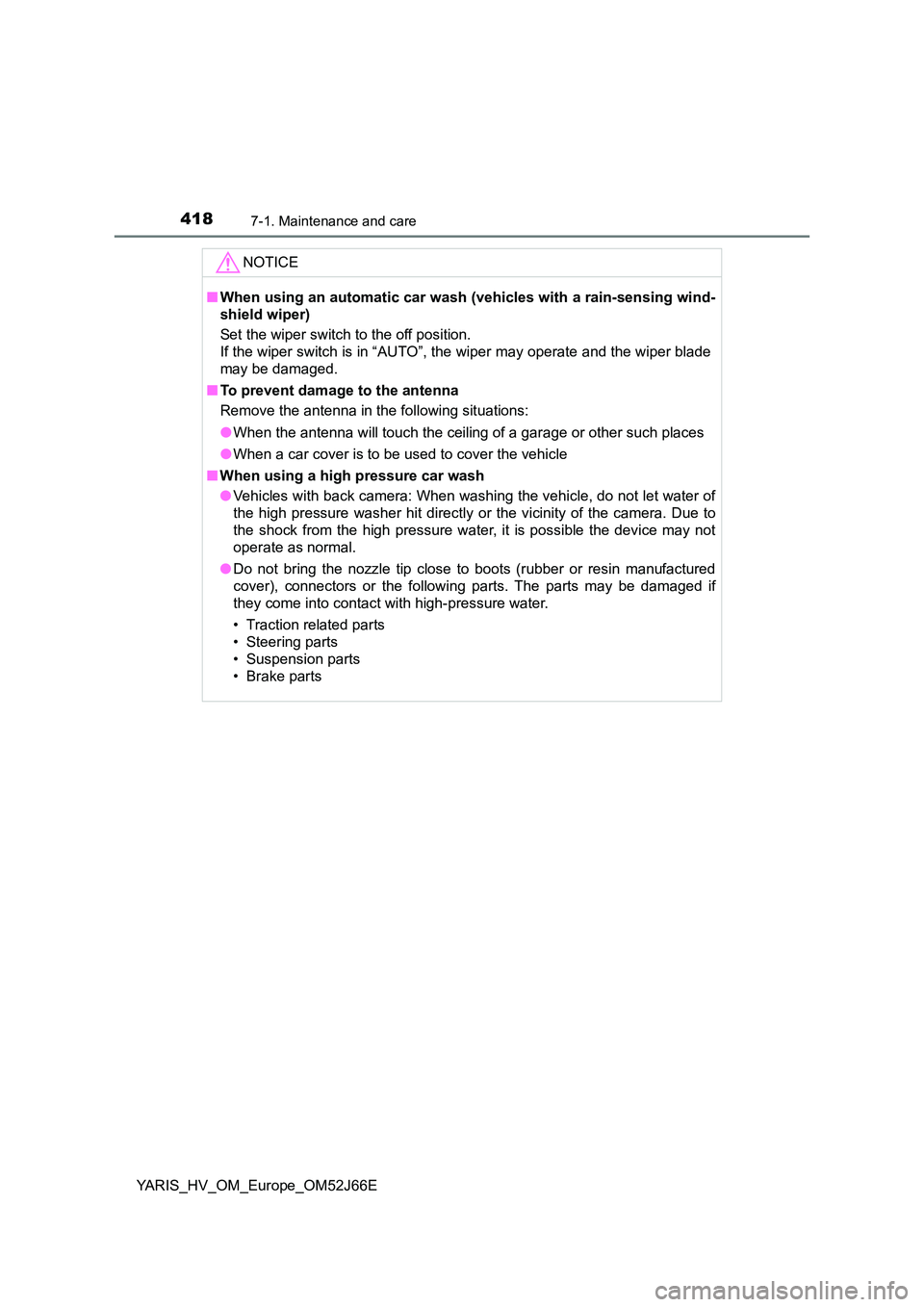

NOTICE
■When using an automatic car wash (vehicles with a rain-sensing wind-
shield wiper)
Set the wiper switch to the off position.
If the wiper switch is in “AUTO”, the wiper may operate and the wiper blade
may be damaged.
■ To prevent damage to the antenna
Remove the antenna in the following situations:
● When the antenna will touch the ceiling of a garage or other such places
● When a car cover is to be used to cover the vehicle
■ When using a high pressure car wash
● Vehicles with back camera: When washing the vehicle, do not let water of
the high pressure washer hit directly or the vicinity of the camera. Due to
the shock from the high pressure water, it is possible the device may not
operate as normal.
● Do not bring the nozzle tip close to boots (rubber or resin manufactured
cover), connectors or the following parts. The parts may be damaged if
they come into contact with high-pressure water.
• Traction related parts
• Steering parts
• Suspension parts
• Brake parts

4197-1. Maintenance and care
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E

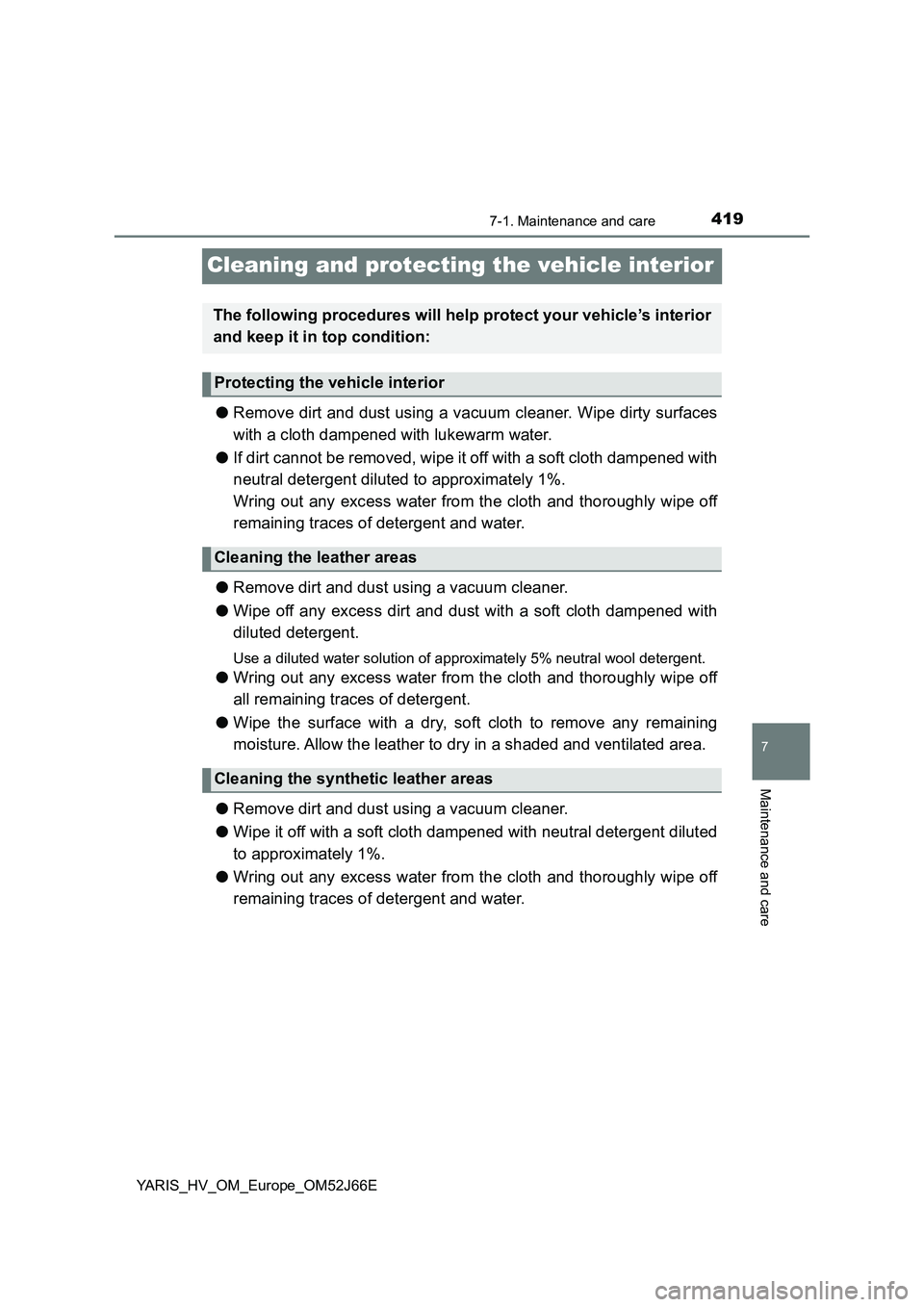

Cleaning and protecting the vehicle interior
●Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces
with a cloth dampened with lukewarm water.
● If dirt cannot be removed, wipe it off with a soft cloth dampened with
neutral detergent diluted to approximately 1%.
Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water.
● Remove dirt and dust using a vacuum cleaner.
● Wipe off any excess dirt and dust with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of appr oximately 5% neutral wool detergent.
●Wring out any excess water from the cloth and thoroughly wipe off
all remaining traces of detergent.
● Wipe the surface with a dry, soft cloth to remove any remaining
moisture. Allow the leather to dry in a shaded and ventilated area.
● Remove dirt and dust using a vacuum cleaner.
● Wipe it off with a soft cloth dampened with neutral detergent diluted
to approximately 1%.
● Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water.
The following procedures will help protect your vehicle’s interior
and keep it in top condition:
Protecting the vehicle interior
Cleaning the leather areas
Cleaning the synthetic leather areas

4207-1. Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
Clean periodically to prevent the air intake vent from being clogged.
■Method for cleaning the air intake vent
Remove any dust, sand, etc.,
using a vacuum cleaner.
A filter is installed in the air
intake vent.
When the go to service warning light comes on (vehicles with
monochrome display) or “Maintenance required for Traction battery
cooling parts. See owner’s manual.” is displayed on the multi-
information display (vehicles with color display), it is possible that
the filter is clogged. Clean the filter, if necessary.
■Cleaning method for the filter of the cooling air intake vent
The filter is located on lower left
side of the rear seat.
Maintenance for the cooling air intake vent of the hybrid battery
(traction battery)

4217-1. Maintenance and care
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E

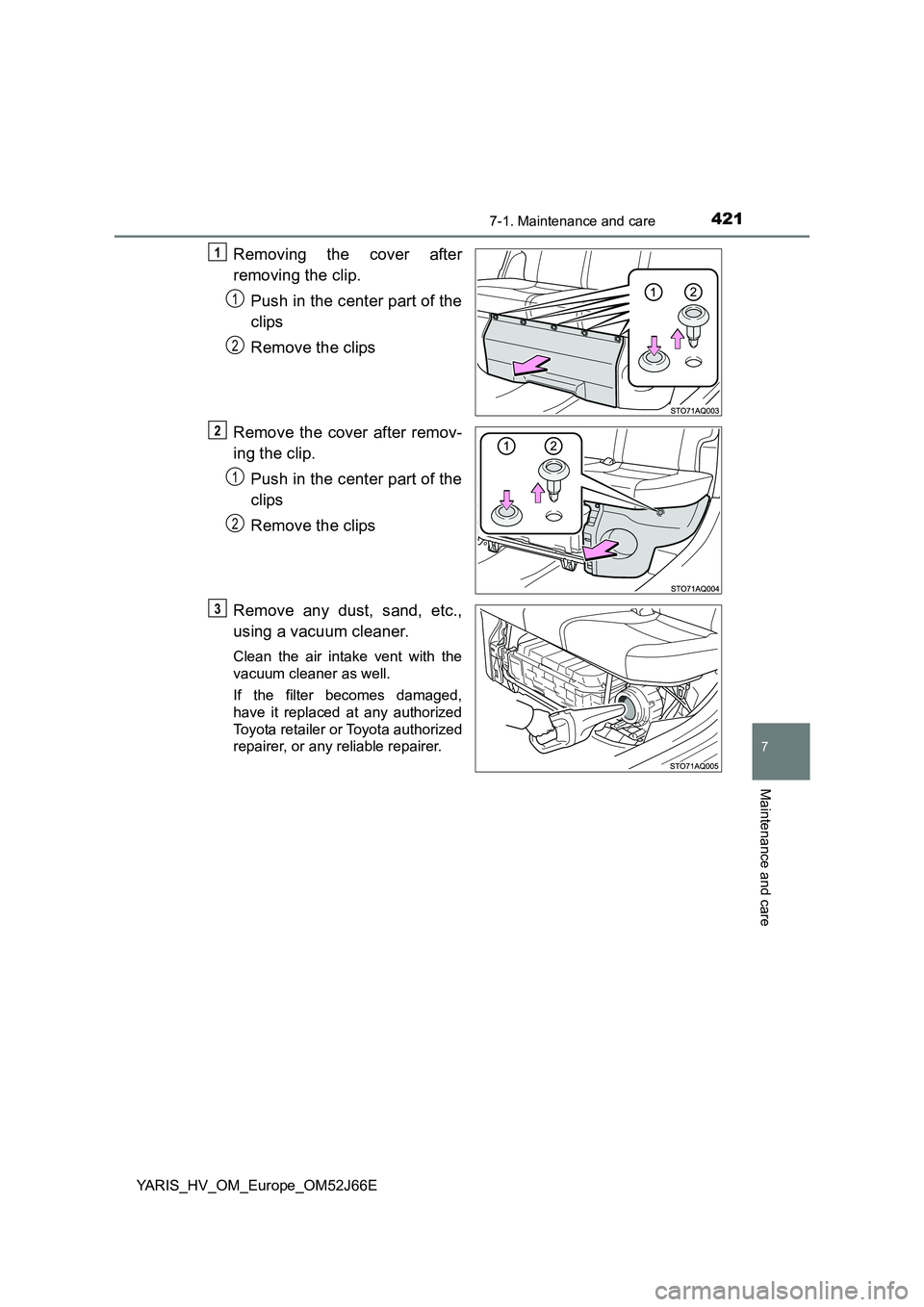

Removing the cover after
removing the clip.
Push in the center part of the
clips
Remove the clips
Remove the cover after remov-
ing the clip.
Push in the center part of the
clips
Remove the clips
Remove any dust, sand, etc.,
using a vacuum cleaner.
Clean the air intake vent with the
vacuum cleaner as well.
If the filter becomes damaged,
have it replaced at any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
1
1
2
2
1
2
3

4227-1. Maintenance and care
YARIS_HV_OM_Europe_OM52J66E

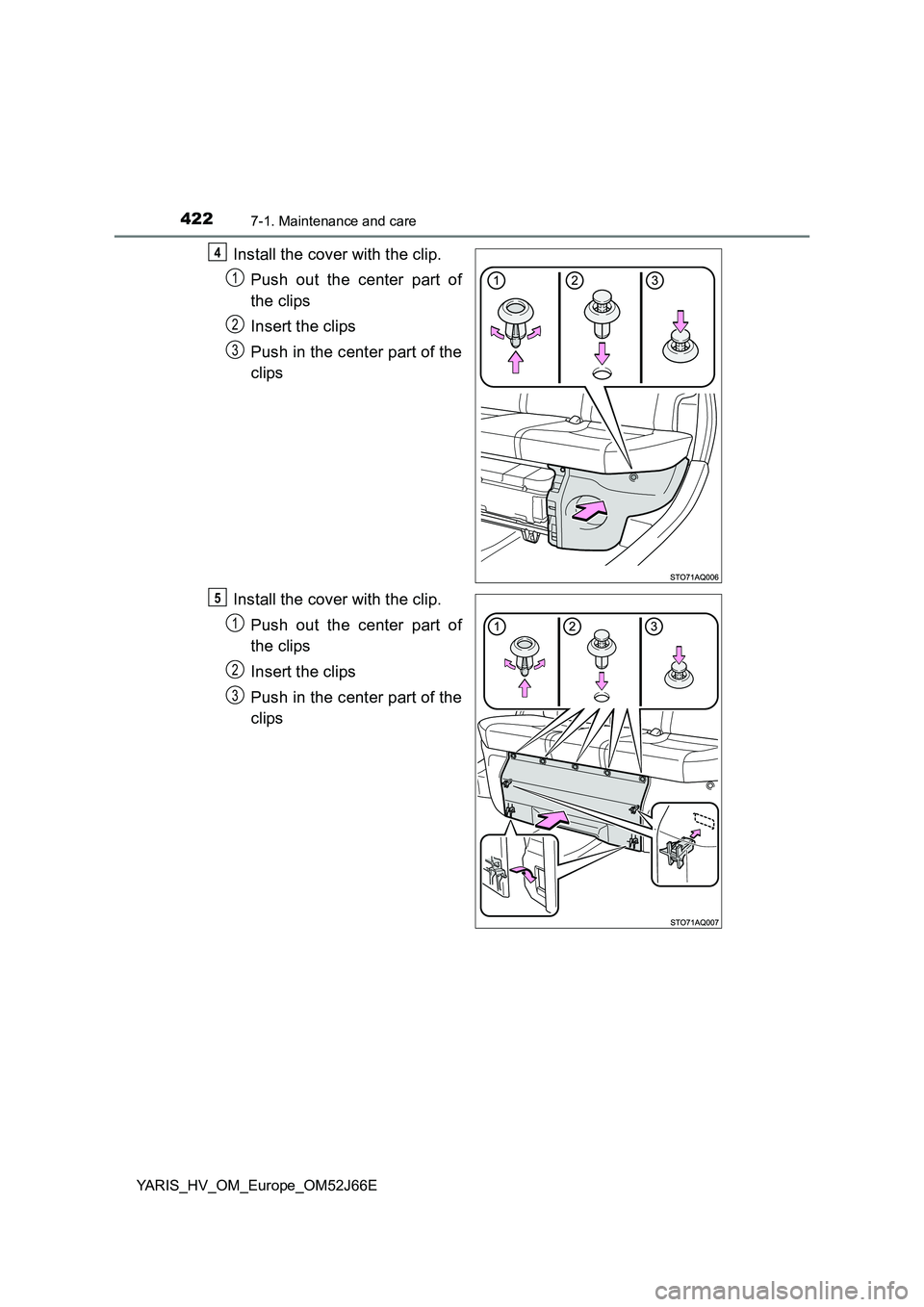

Install the cover with the clip.
Push out the center part of
the clips
Insert the clips
Push in the center part of the
clips
Install the cover with the clip.
Push out the center part of
the clips
Insert the clips
Push in the center part of the
clips
4
1
2
3
5
1
2
3

4237-1. Maintenance and care
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
Start the hybrid system and make sure that the go to service warn-
ing light (vehicles with monochrome display) or “Maintenance
required for Traction battery cooling parts. See owner’s manual.” on
the multi-information display (vehicles with color display) turns off.
Vehicles with monochrome display
It may take up to 20 minutes for the light to turns off, after the hybrid
system is started. If the light does not turns off, even though the fil-
ter is clean, consult any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
Vehicles with color display
It may take up to 20 minutes for the message to turns off, after the
hybrid system is started. If the message does not turns off, even
though the filter is clean, consult any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
■ Caring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year to
maintain the quality of the vehicle’s interior.
■ Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge
or brush to apply the foam. Rub in overlapping circles. Do not use water.
Wipe dirty surfaces and let them dry. Excellent results are obtained by keep-
ing the carpet as dry as possible.
■ Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.
6

4247-1. Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
■ Maintenance for air intake vent for cooling the hybrid battery (traction
battery)
● When the vehicle is continuously driven with the air intake vent blocked, the
traction battery may overheat and cause a decline in fuel consumption.
● The cleaning time for air intake vent differs depending on the driving envi-
ronment, etc.
■ Cleaning the cooling air intake vent
● If there are any uncertainties with cleaning the filter, consult any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer. Han-
dling mistakes may lead to the cover or filter becoming damaged.
● When the vehicle is continuously driven with the filter clogged, the traction
battery may overheat which could lead to a decline in fuel consumption and
a breakdown.
● The cleaning time for filter differs depending on the driving environment, etc.
■ When the go to service warning light turns on (vehicles with mono-
chrome display) or “Maintenance re quired for Traction battery cooling
parts. See owner’s manual.” is displayed on the multi-information dis-
play (vehicles with color display)
● It is possible the air intake vent or filter is clogged due to accumulated dust.
Clean the air intake vent and filter, referring to the cleaning method.
● When continuously driven in this state, the hybrid battery (traction battery)
may overheat, which may lead to the driving distance by the electric motor
getting shorter, the fuel consumption worsening, and causing damage.
Clean the air intake vent periodically to prevent dust, etc., from collecting in
the air intake vent or filter.
● If the go to service warning light (vehicles with monochrome display) or the
display message in the Multi-Informat ion display (vehicles with color dis-
play) does not turn off, even if the air intake vent is cleaned, have the vehi-
cle inspected at any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
