2018 TOYOTA YARIS Owners Manual

385
6Interior features
YARIS_HV_OM_Europe_OM52J66E
6-1. Using the air conditioning
system and defogger
Automatic air conditioning
system ............................. 386
Seat heaters ...................... 396
6-2. Using the interior lights
Interior lights list................. 398
• Interior light.................... 398
• Personal lights ............... 399
6-3. Using the storage features
List of storage features ...... 400
• Glove box ...................... 401
• Cup holders ................... 402
• Bottle holders ................ 403
• Auxiliary box .................. 403
Luggage compartment
features............................ 404
6-4. Using the other interior
features
Other interior features ........ 407
• Sun visors...................... 407
• Vanity mirrors ................ 407
• Portable ashtray ............ 408
• Cigarette lighter ............. 409
• Power outlet .................. 410
• Armrest .......................... 411
• Panoramic roof shade ... 411
• Assist grips .................... 412

3866-1. Using the air conditioning system and defogger
YARIS_HV_OM_Europe_OM52J66E

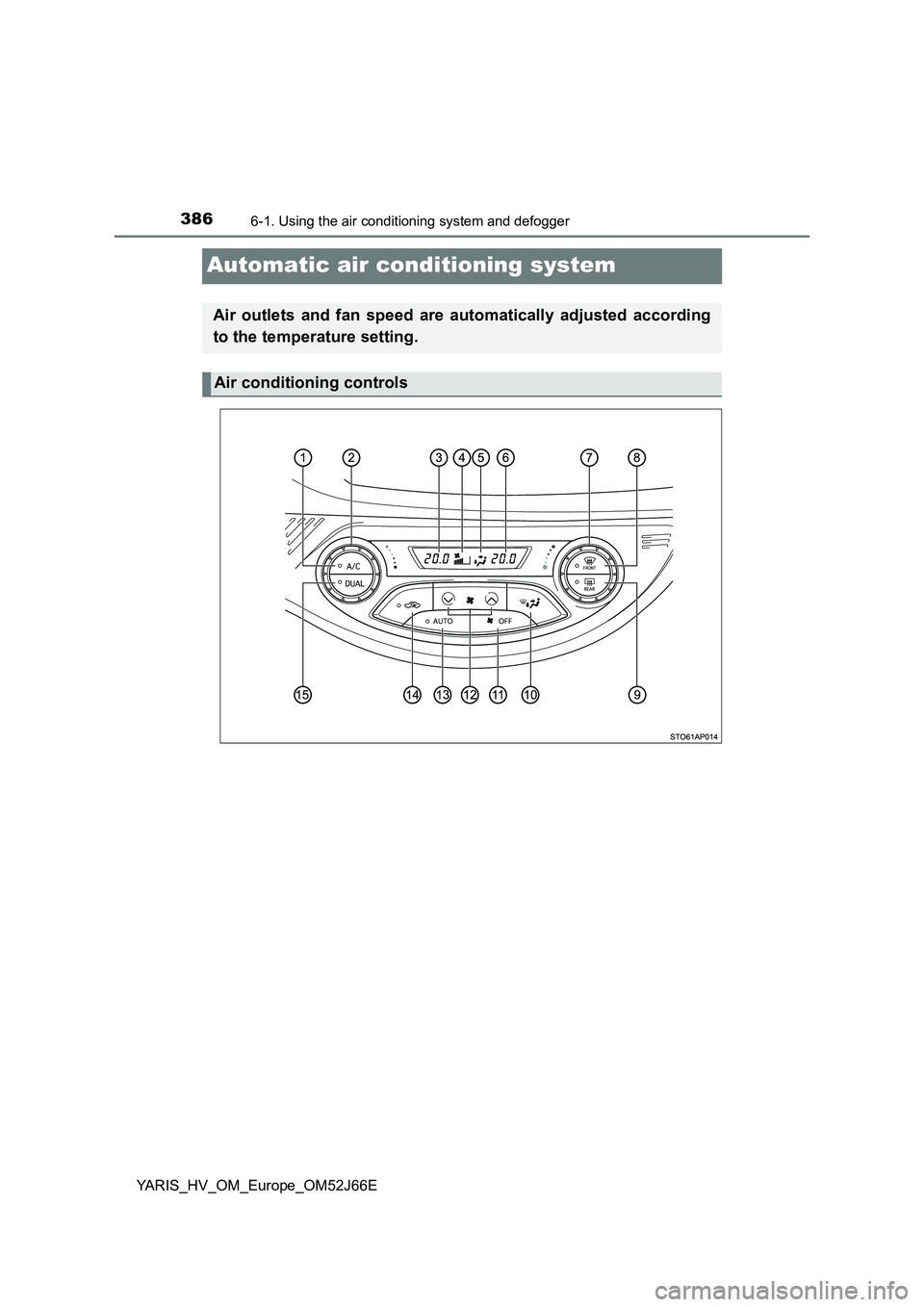

Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Air conditioning controls

3876-1. Using the air conditioning system and defogger
6
Interior features
YARIS_HV_OM_Europe_OM52J66E
■Adjusting the temperature setting
To adjust the temperature set-
ting, turn the temperature con-
trol dial clockwise or
counterclockwise.
If is not pressed, the sys-
tem will blow ambient tempera-
ture air or heated air.
Cooling and dehumidification
function on/off button
Left-hand side temperature
control dial
Left-hand side temperature
display
Fan speed display
Air outlet display
Right-hand side temperature
display
Right-hand side temperature
control dial
Windshield defogger button
Rear window defogger switch/
rear window defogger and out-
side rear view mirror defog-
gers switch (if equipped)
Air outlet selector button
“OFF” button
Fan speed control button
Automatic mode button
Outside/recirculated air mode
button
Dual mode button
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

3886-1. Using the air conditioning system and defogger
YARIS_HV_OM_Europe_OM52J66E
■Fan speed setting
Press “ ” on to increase the fan speed.
Press “ ” on to decrease the fan speed.
Press to turn the fan off.
■Change the airflow mode
To change the air outlets, press
.
The air outlets used are
switched each time the button is
pressed.
Air flows to the upper body
Air flows to the upper body
and feet
Air flows to the feet
Air flows to the feet and the windshield defogger operates
1
2
3
4

3896-1. Using the air conditioning system and defogger
6
Interior features
YARIS_HV_OM_Europe_OM52J66E

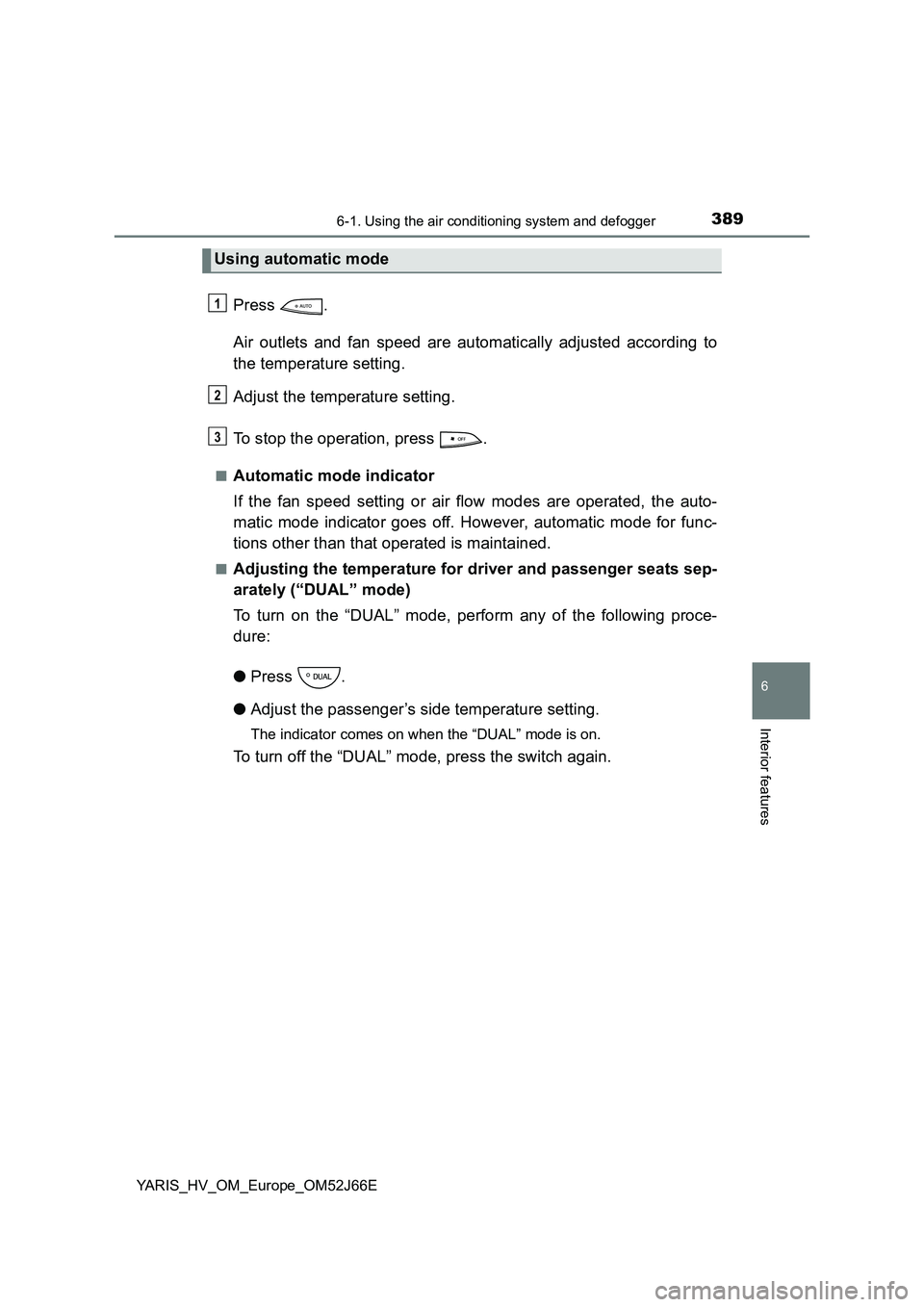

Press .
Air outlets and fan speed are automatically adjusted according to
the temperature setting.
Adjust the temperature setting.
To stop the operation, press .
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
■Adjusting the temperature for driver and passenger seats sep-
arately (“DUAL” mode)
To turn on the “DUAL” mode, perform any of the following proce-
dure:
● Press .
● Adjust the passenger’s side temperature setting.
The indicator comes on when the “DUAL” mode is on.
To turn off the “DUAL” mode, press the switch again.
Using automatic mode
1
2
3

3906-1. Using the air conditioning system and defogger
YARIS_HV_OM_Europe_OM52J66E

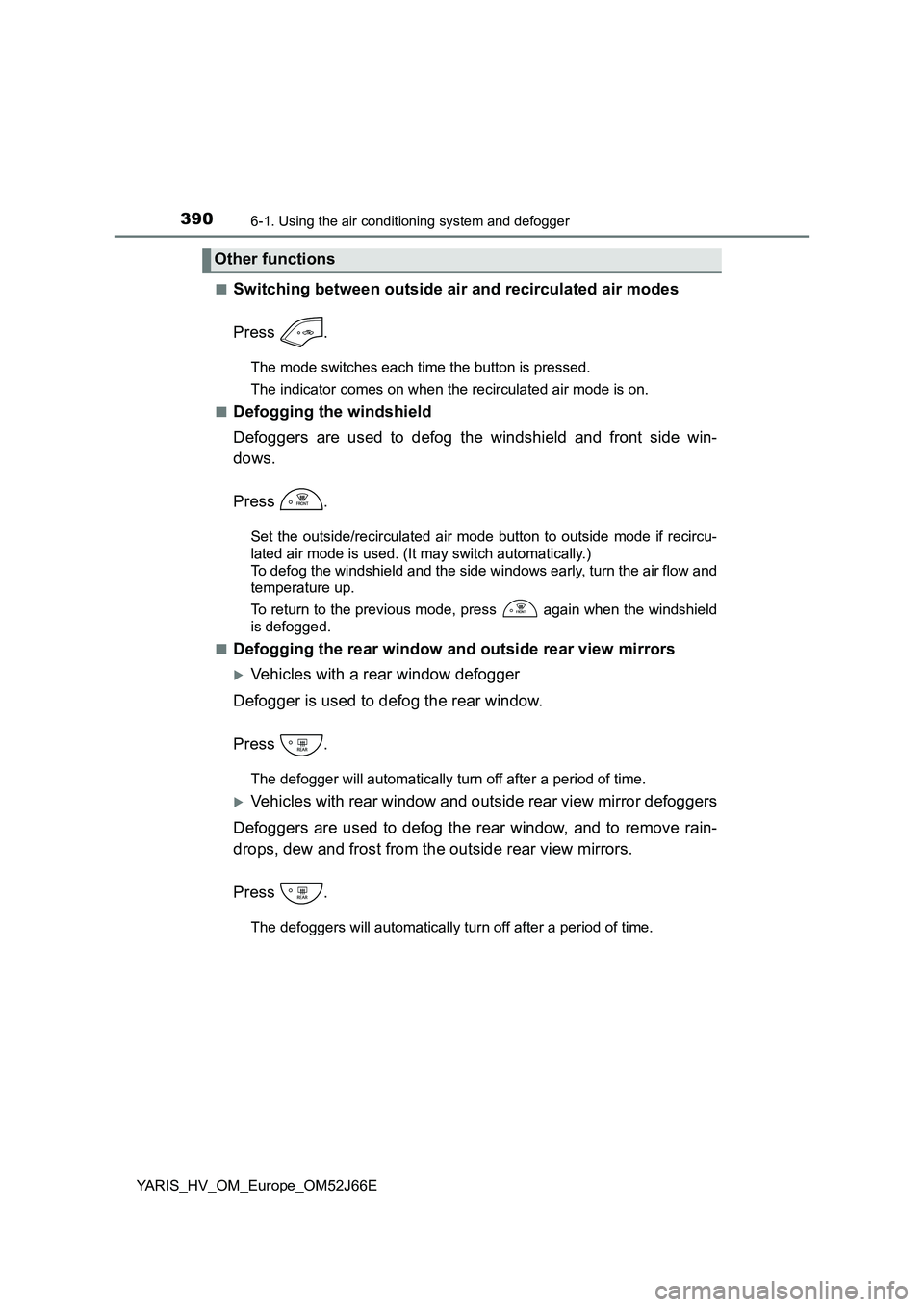

■Switching between outside air and recirculated air modes
Press .
The mode switches each time the button is pressed.
The indicator comes on when the recirculated air mode is on.
■Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
Set the outside/recirculated air mode button to outside mode if recircu-
lated air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the windshield
is defogged.
■Defogging the rear window and outside rear view mirrors
Vehicles with a rear window defogger
Defogger is used to defog the rear window.
Press .
The defogger will automatically turn off after a period of time.
Vehicles with rear window and outside rear view mirror defoggers
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
Other functions

3916-1. Using the air conditioning system and defogger
6
Interior features
YARIS_HV_OM_Europe_OM52J66E

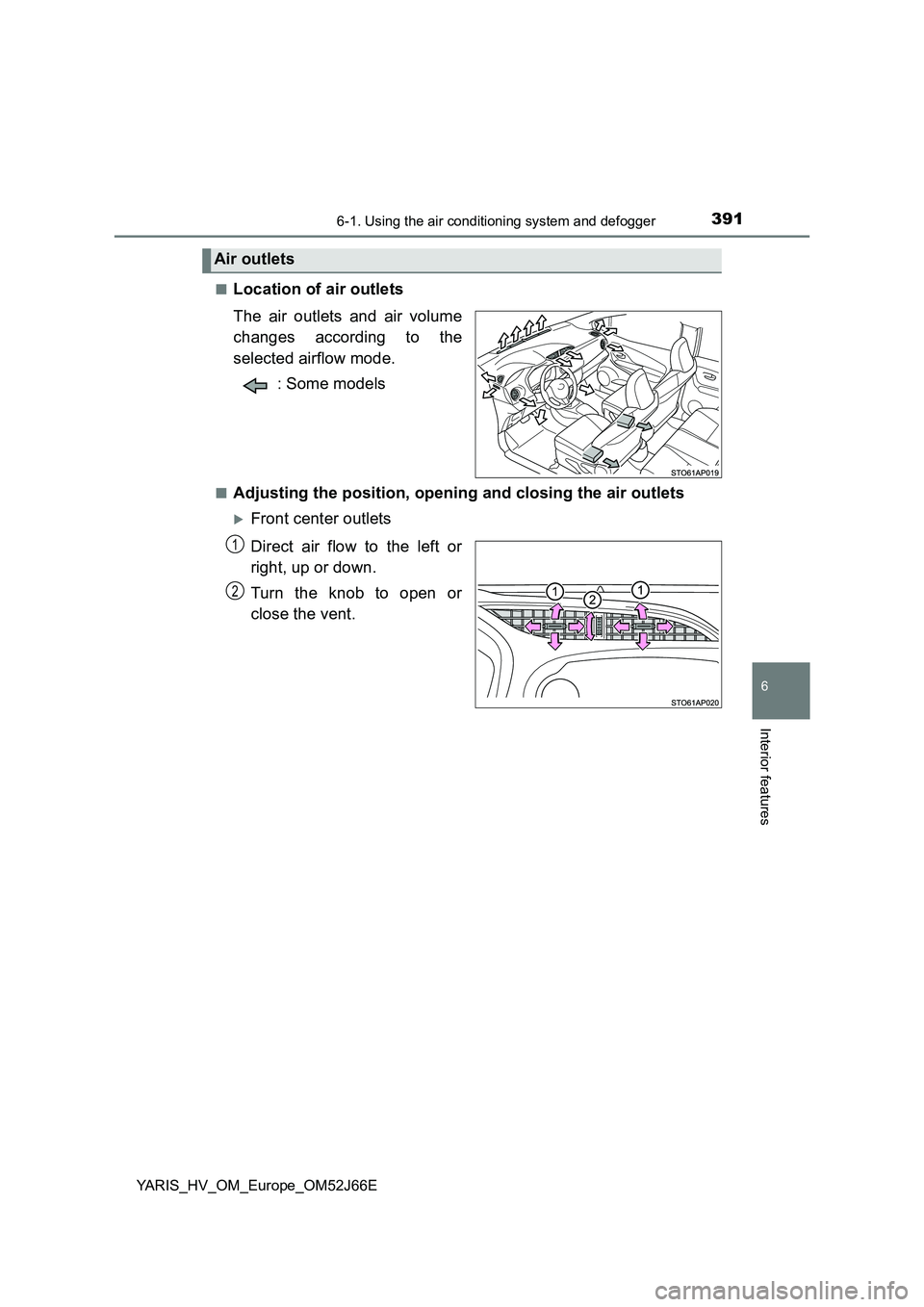

■Location of air outlets
The air outlets and air volume
changes according to the
selected airflow mode.
: Some models
■Adjusting the position, opening and closing the air outlets
Front center outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or
close the vent.
Air outlets
1
2

3926-1. Using the air conditioning system and defogger
YARIS_HV_OM_Europe_OM52J66E

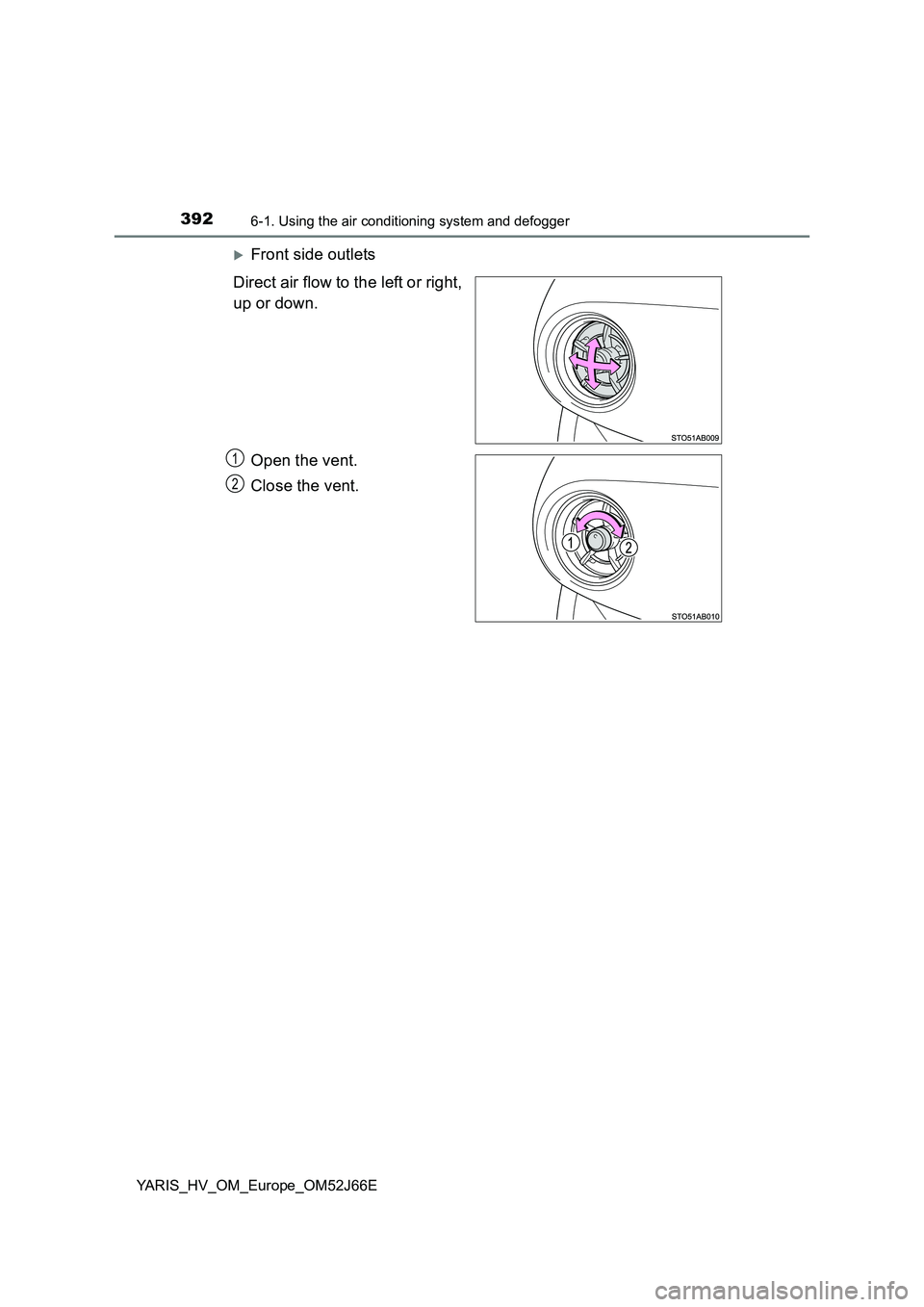

Front side outlets
Direct air flow to the left or right,
up or down.
Open the vent.
Close the vent.
1
2
