2018 TOYOTA YARIS Owners Manual

5858-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E
Start the hybrid system and check for the hybrid system overheat
warning light (with monochrome display) or warning message
(with color display).
If the warning light (with monochrome display) or warning mes-
sage (with color display) does not go off:
Stop the hybrid system and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
If the warning light (with monochrome display) or warning mes-
sage (with color display) goes off:
Have the vehicle inspected at the nearest any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
WARNING
■ To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
● After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fans may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
● Do not loosen the coolant reservoir cap while the hybrid system and radia-
tor are hot.
Serious injuries, such as burns, may result from hot coolant and steam
released under pressure.
6

5868-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52J66E
NOTICE
■When adding engine/power control unit coolant
Wait until the hybrid system has cooled down before adding engine/power
control unit coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot hybrid sys-
tem too quickly can cause damage to the hybrid system.
■ To prevent damage to the cooling system
Observe the following precautions.
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additives.

5878-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E

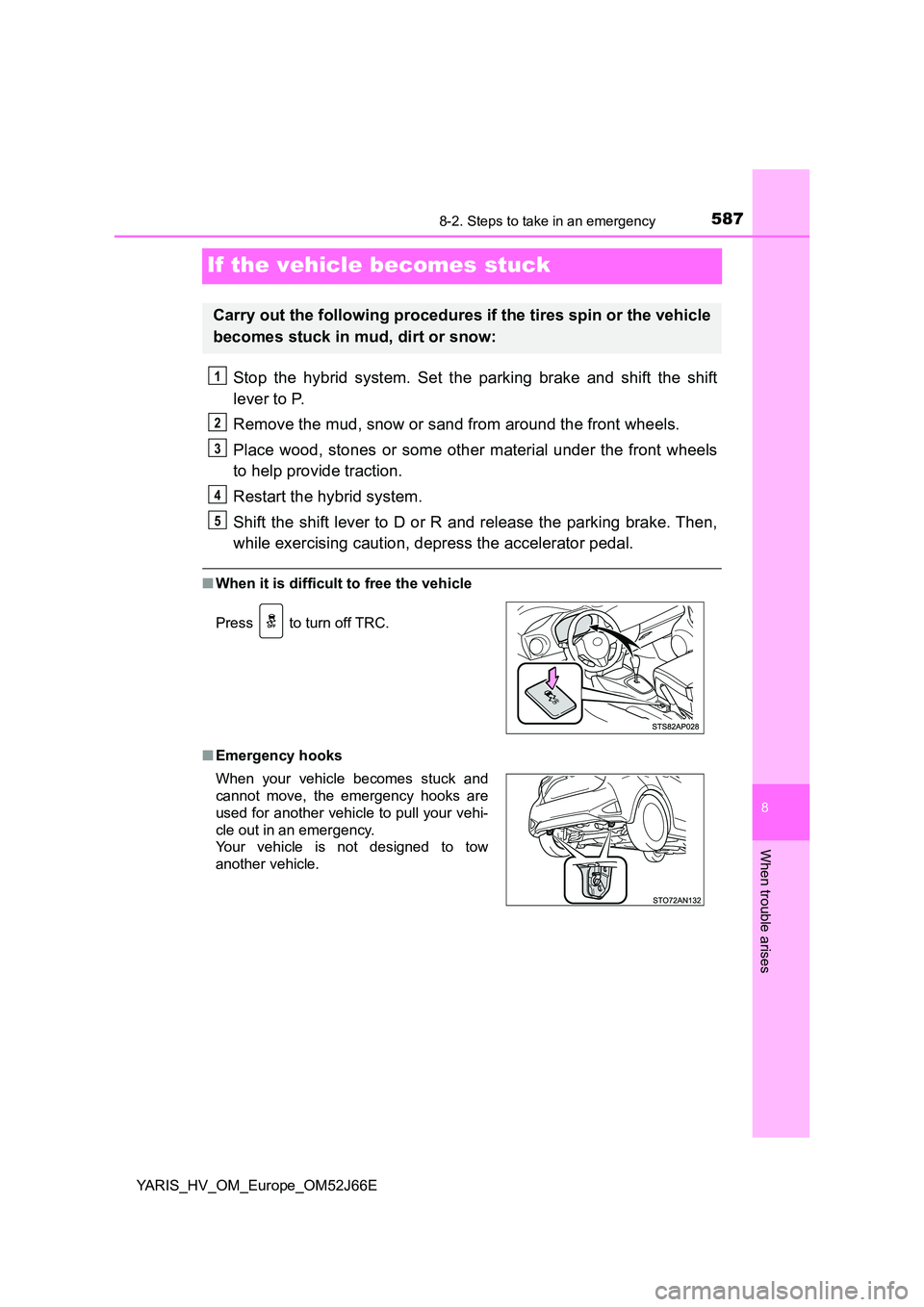

If the vehicle becomes stuck
Stop the hybrid system. Set the parking brake and shift the shift
lever to P.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the hybrid system.
Shift the shift lever to D or R and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.
■ When it is difficult to free the vehicle
■ Emergency hooks
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRC.
When your vehicle becomes stuck and
cannot move, the emergency hooks are
used for another vehicle to pull your vehi-
cle out in an emergency.
Your vehicle is not designed to tow
another vehicle.
1
2
3
4
5

5888-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52J66E
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the transmission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

589
9Vehicle specifications
YARIS_HV_OM_Europe_OM52J66E
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 590
Fuel information ................. 601
9-2. Customization
Customizable features ....... 603
9-3. Items to initialize
Items to initialize ................ 610

5909-1. Specifications
YARIS_HV_OM_Europe_OM52J66E

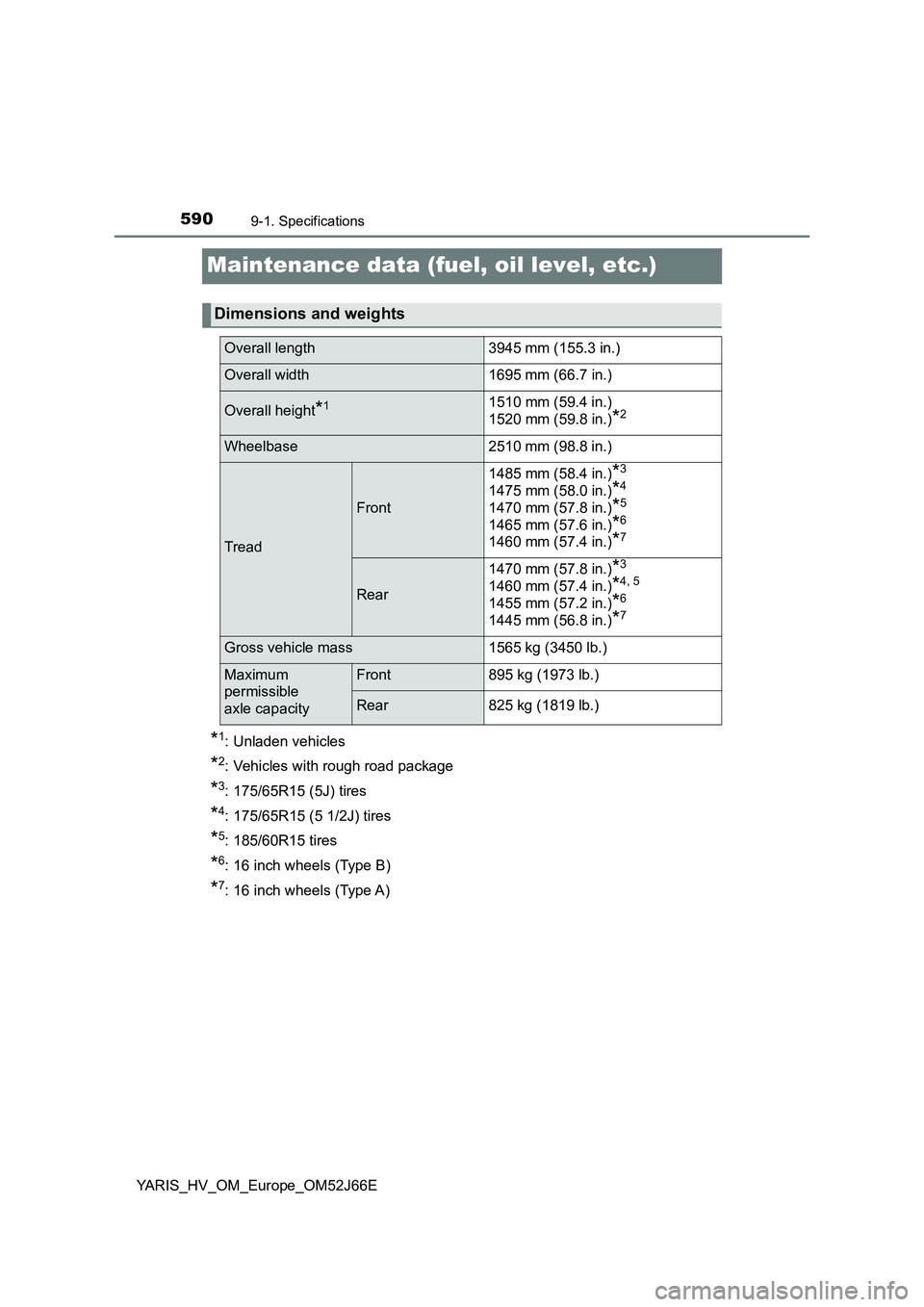

Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicles
*2: Vehicles with rough road package
*3: 175/65R15 (5J) tires
*4: 175/65R15 (5 1/2J) tires
*5: 185/60R15 tires
*6: 16 inch wheels (Type B)
*7: 16 inch wheels (Type A)
Dimensions and weights
Overall length 3945 mm (155.3 in.)
Overall width 1695 mm (66.7 in.)
Overall height*11510 mm (59.4 in.)
1520 mm (59.8 in.)*2
Wheelbase 2510 mm (98.8 in.)
Tread
Front
1485 mm (58.4 in.)*3
1475 mm (58.0 in.)*4
1470 mm (57.8 in.)*5
1465 mm (57.6 in.)*6
1460 mm (57.4 in.)*7
Rear
1470 mm (57.8 in.)*3
1460 mm (57.4 in.)*4, 5
1455 mm (57.2 in.)*6
1445 mm (56.8 in.)*7
Gross vehicle mass 1565 kg (3450 lb.)
Maximum
permissible
axle capacity
Front 895 kg (1973 lb.)
Rear 825 kg (1819 lb.)

5919-1. Specifications
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52J66E
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your Toy-
ota. It is used in registering the ownership of your vehicle.
This number is stamped under
the front right seat.
This number is also on the
manufacturer’s label on the left-
hand side of the center pillar.
■Engine number
The engine number is stamped on the engine block as shown.
Vehicle identification

5929-1. Specifications
YARIS_HV_OM_Europe_OM52J66E
Engine
Model1NZ-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke75.0  84.7 mm (2.95  3.33 in.)
Displacement1497 cm3 (91.3 cu.in.)
Valve clearance
(engine cold)
Intake: 0.15  0.25 mm (0.0060.010 in.)
Exhaust: 0.25 0.35 mm (0.010  0.014 in.)
Fuel
Fuel type
When you find these types of fuel label at the
gas station, use only the fuel with one of the fol-
lowing labels.

EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)36 L (9.5 gal., 7.9 Imp.gal.)
Electric motor (Traction motor)
Ty p ePermanent magnet motor
Maximum output45 kW
Maximum torque169 N·m (17.2 kgf·m, 125 ft·lbf)
