2018 TOYOTA YARIS Owners Manual

6019-1. Specifications
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52J66E
Fuel information
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If your engine knocks
● Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.

EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

6029-1. Specifications
YARIS_HV_OM_Europe_OM52J66E
NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
● Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.

6039-2. Customization
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52J66E
Customizable features
When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the shift lever in P and the parking brake set.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing using the multi-information display (vehicles with
color display)
Press or of the meter control switches and select
on the multi-information display.
Press or of the meter control switches and select then
press .
Press or of the meter control switches, and select the
desired setting, and then press .
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using the multi-information display, on the
navigation/multimedia system, or at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
Customizing vehicle features
1
2
3

6049-2. Customization
YARIS_HV_OM_Europe_OM52J66E
■Changing on the navigation or multimedia system screen
(vehicles with a navigation or multimedia system)
Press .
Select “Vehicle” on the “Setup” screen.
Select the desired item.
Various settings can be changed. Refer to the list of settings that can
be changed for details.
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
Settings that can be changed using the multi-information display
Vehicles with a Navigation/Multimedia system: Settings that can be
changed using the Navigation/Multimedia system
(For further information on customizing settings using the Naviga-
tion/Multimedia system, refer to the “Navigation and multimedia
system Owner’s Manual”.)
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Av ailable, — = Not available
Customizable features
1
2
1
2
3

6059-2. Customization
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52J66E
■Gauges, meters and multi-information display ( P. 123, 125)
*1: Vehicles with color display only
*2: The default setting varies according to countries.
*3: German, French, Spanish, Italian, Portuguese, Dutch, Swedish,
Norwegian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish,
Hungarian, Czech, Slovak, Romanian
FunctionDefault
setting
Customized
setting
Language*1English*3OOO
Units*1, 2
km
(km/L)
km
(L/100 km) OOO
miles
(MPG) OOO
°C °F O — O
EV Indicator Light ON OFF O — O
Drive information*1Elapsed
Time
Average
Speed O—O
Pop-up display*1Incoming
calls ON OFF O — O
123

6069-2. Customization
YARIS_HV_OM_Europe_OM52J66E

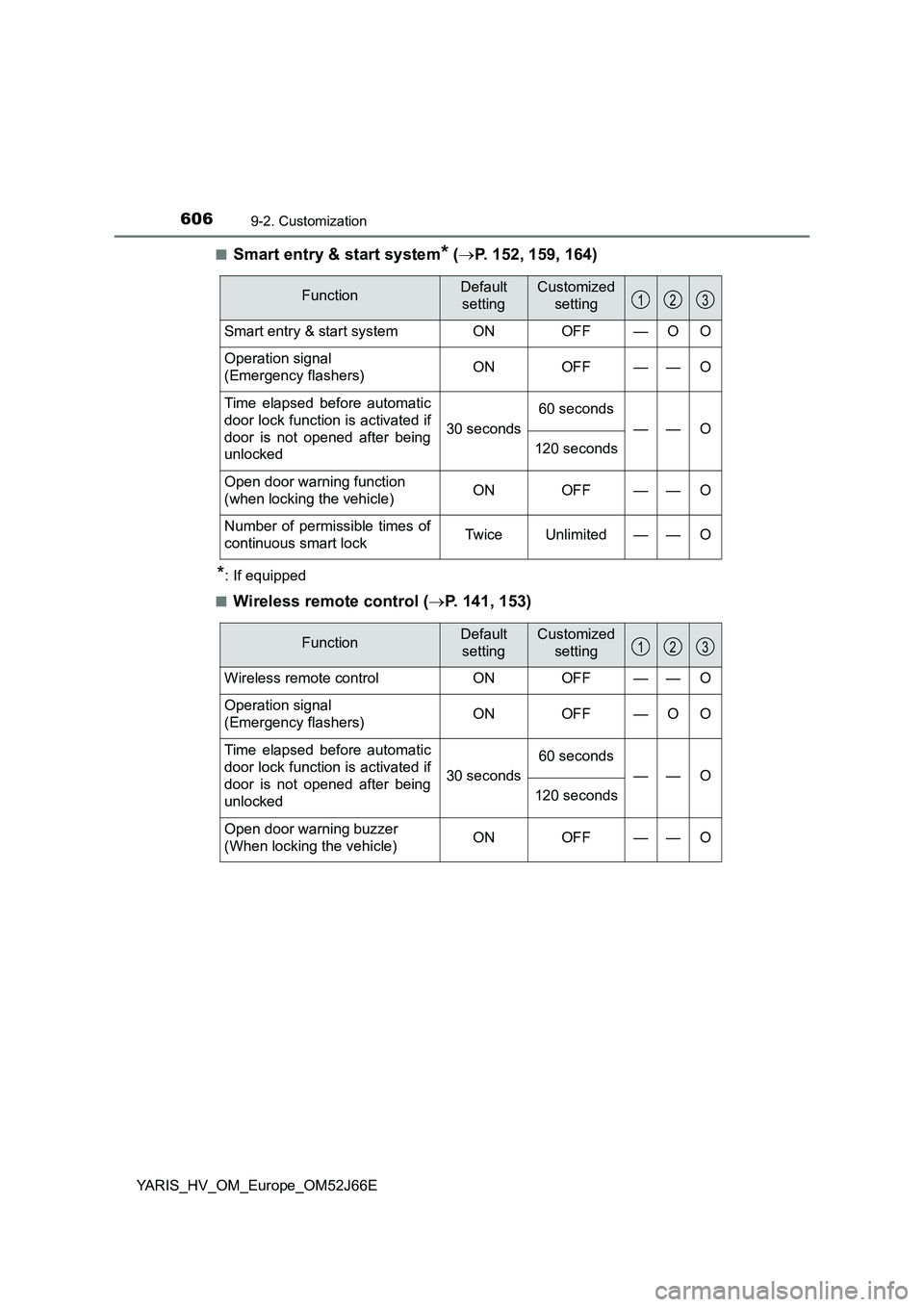

■Smart entry & start system* ( P. 152, 159, 164)
*: If equipped
■Wireless remote control ( P. 141, 153)
FunctionDefault
setting
Customized
setting
Smart entry & start system ON OFF—O O
Operation signal
(Emergency flashers) ON OFF—— O
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
30 seconds
60 seconds
——O
120 seconds
Open door warning function
(when locking the vehicle) ON OFF — — O
Number of permissible times of
continuous smart lock Twice Unlimited — — O
123
FunctionDefault
setting
Customized
setting
Wireless remote control ON OFF — — O
Operation signal
(Emergency flashers) ON OFF — O O
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
30 seconds
60 seconds
——O
120 seconds
Open door warning buzzer
(When locking the vehicle) ON OFF — — O
123

6079-2. Customization
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52J66E
■Follow me home system* ( P. 239)
*: If equipped
■Automatic light control system ( P. 238)
■PCS (Pre-Crash Safety system)* (P. 262)
*: If equipped
■LDA (Lane Departure Alert)* ( P. 279)
*: If equipped
FunctionDefault
setting
Customized
setting
Time elapsed before headlights
automatically turn off30 seconds
60 seconds
—— O90 seconds
120 seconds
123
FunctionDefault
setting
Customized
setting
Light sensor sensitivity Level 3 Level 1 to 5 — O O
123
FunctionDefault
setting
Customized
setting
Pre-Crash Safety systemONOFFO—O
Warning timingMiddleFarO—ONear
123
FunctionDefault
setting
Customized
setting
SensitivityHighStandardO—O
123

6089-2. Customization
YARIS_HV_OM_Europe_OM52J66E
■RSA (Road Sign Assist)* ( P. 293)
*: If equipped
■Illumination ( P. 398)
*: Vehicles with a smart entry & start system
FunctionDefault
setting
Customized
setting
RSA systemONOFFO—O
Excess speedOnly visual
No
notificationO—OVisual and
audible
Notification level0 km/h
(0 mph)
5 km/h
(3 mph)O—O-3 km/h
(-2 mph)
OthersOnly visual
No
notificationO—OVisual and
audible
123
FunctionDefault
setting
Customized
setting
Time elapsed before the interior
lights turn off15 seconds7.5 seconds —OO30 seconds
Operation when the doors are
unlocked ON OFF — — O
Operation after the power switch
is turned off ON OFF — — O
Operation when you approach
the vehicle with the electronic
key on your person*
ON OFF — — O
Interior lights illumination control ON OFF — — O
123
