2018 TOYOTA YARIS Owners Manual

505
8When trouble arises
YARIS_HV_OM_Europe_OM52J66E
8-1. Essential information
Emergency flashers ........... 506
If your vehicle has to
be stopped in
an emergency .................. 507
8-2. Steps to take in
an emergency
If your vehicle needs to
be towed .......................... 509
If you think something is
wrong ............................... 516
If a warning light turns on
or a warning buzzer
sounds ............................. 517
If a warning message is
displayed (vehicles with
color display) ................... 531
If you have a flat tire
(vehicles with
an emergency tire
puncture repair kit)........... 537
If you have a flat tire
(vehicles with
a spare tire) ..................... 556
If the hybrid system will
not start............................ 571
If the electronic key does
not operate properly
(vehicles with a smart
entry & start system)........ 573
If the vehicle 12-volt
battery is discharged ....... 576
If your vehicle overheats .... 581
If the vehicle becomes
stuck ................................ 587

5068-1. Essential information
YARIS_HV_OM_Europe_OM52J66E
Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■ Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicato r is not illuminated), the 12-volt bat-
tery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road to a breakdown, etc.

5078-1. Essential information
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E

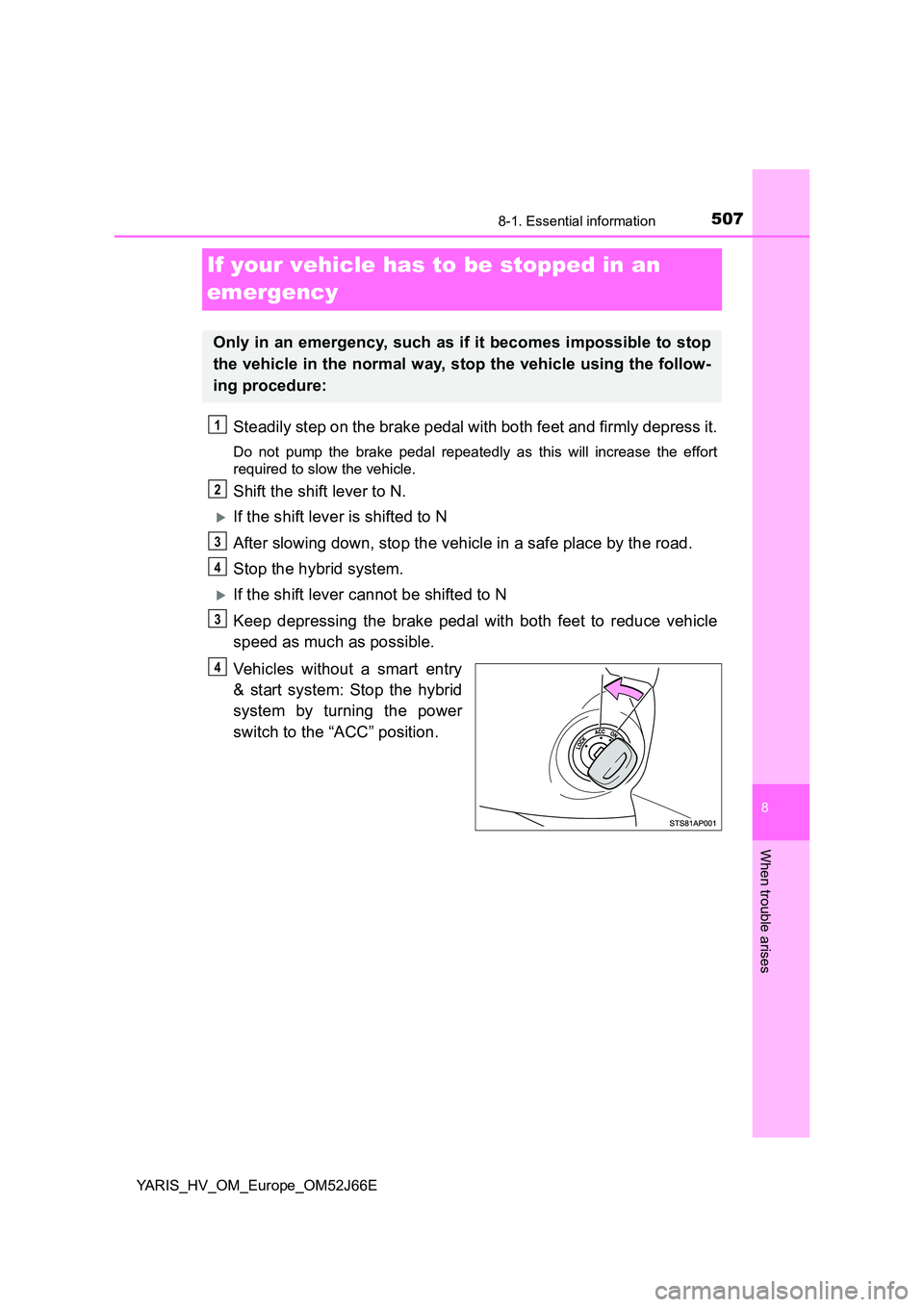

If your vehicle has to be stopped in an
emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart entry
& start system: Stop the hybrid
system by turning the power
switch to the “ACC” position.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
4

5088-1. Essential information
YARIS_HV_OM_Europe_OM52J66E

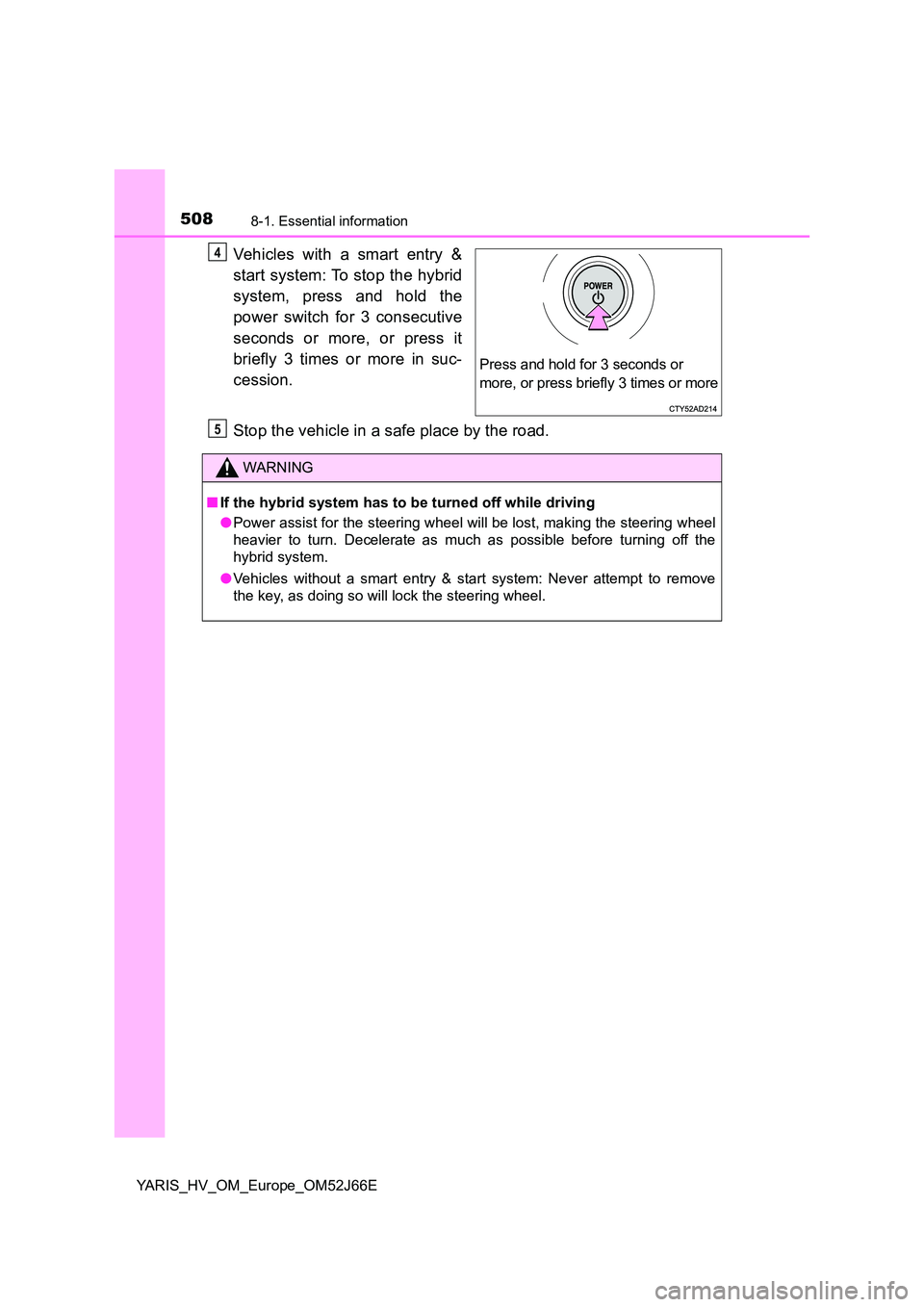

Vehicles with a smart entry &
start system: To stop the hybrid
system, press and hold the
power switch for 3 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
Press and hold for 3 seconds or
more, or press briefly 3 times or more
4
WARNING
■ If the hybrid system has to be turned off while driving
● Power assist for the steering wheel will be lost, making the steering wheel
heavier to turn. Decelerate as much as possible before turning off the
hybrid system.
● Vehicles without a smart entry & start system: Never attempt to remove
the key, as doing so will lock the steering wheel.
5

5098-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E
If your vehicle needs to be towed
The following may indicate a problem with your transmission. Contact
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer or commercial towing service before towing.
● The hybrid system warning light turns on (vehicles with mono-
chrome display) or warning message shown on the multi-informa-
tion display (vehicles with color display) and the vehicle does not
move.
● The vehicle makes an abnormal sound.
Do not tow with a sling-type truck
to prevent body damage.
If towing is necessary, we recommend having your vehicle
towed by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer or commercial towing service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
Situations when it is necessary to contact dealers before towing
Towing with a sling-type truck

5108-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52J66E
If your vehicle is transported by a
flatbed truck, it should be tied
down at the locations shown in the
illustration.
After transporting, return the cov-
ers that were attached to the rear
side.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie
downs or the vehicle may be dam-
aged.

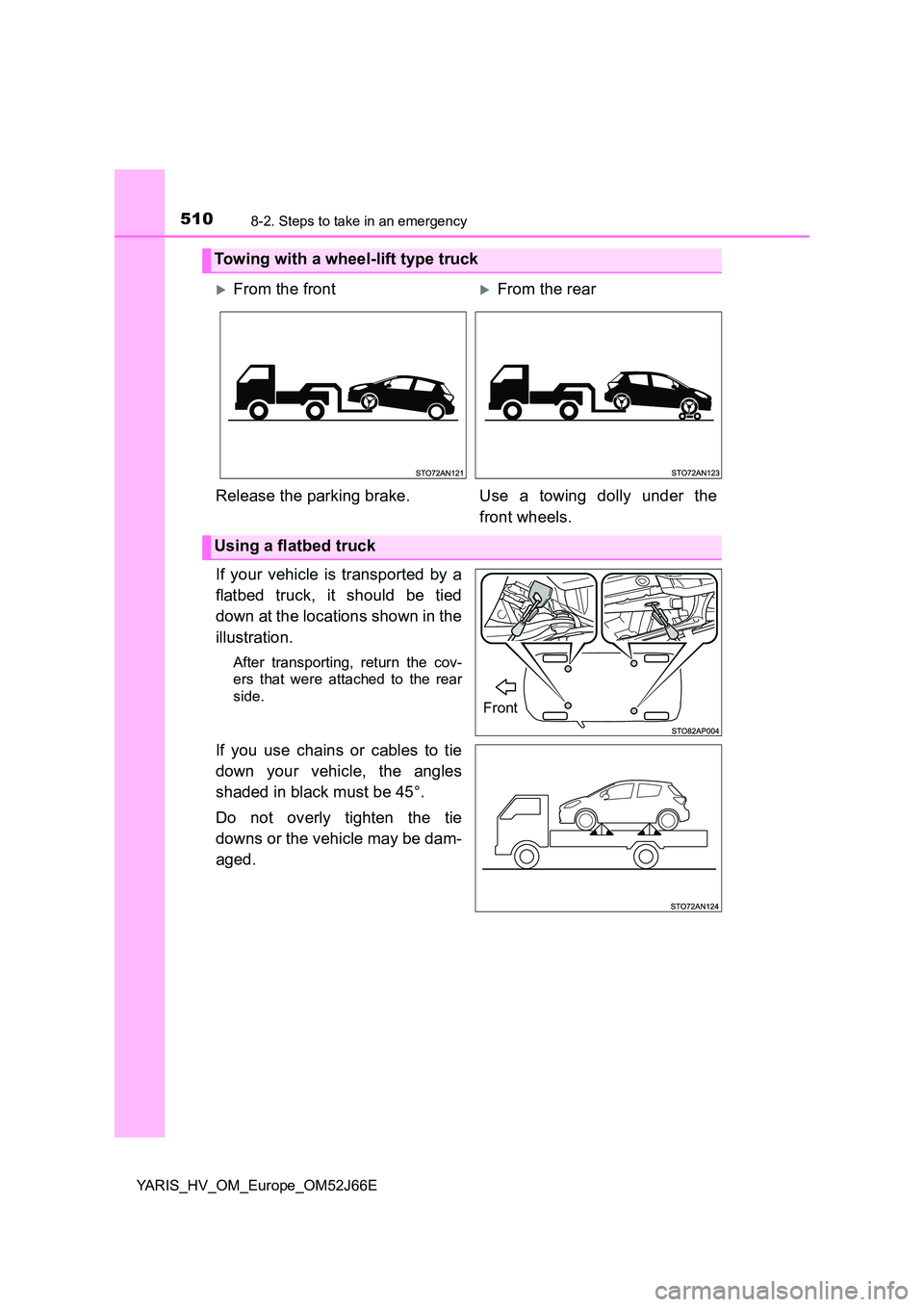

Towing with a wheel-lift type truck
From the frontFrom the rear
Release the parking brake. Use a towing dolly under the
front wheels.
Using a flatbed truck
Front

5118-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E
If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using cables or chains secured to the emergency
towing eyelets. This should only be attempted on hard surfaced roads
for a short distances at under 30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Take out the towing eyelet. ( P. 539, 557)
Remove the eyelet cover.
Type A
Push down the upper part of
the eyelet cover remove the
upper claw, and then pull on the
eyelet cover to disengage it
from the front grille.
Type B
Turn the eyelet cover.
Emergency towing
Emergency towing procedure
1
2
Claws

5128-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52J66E

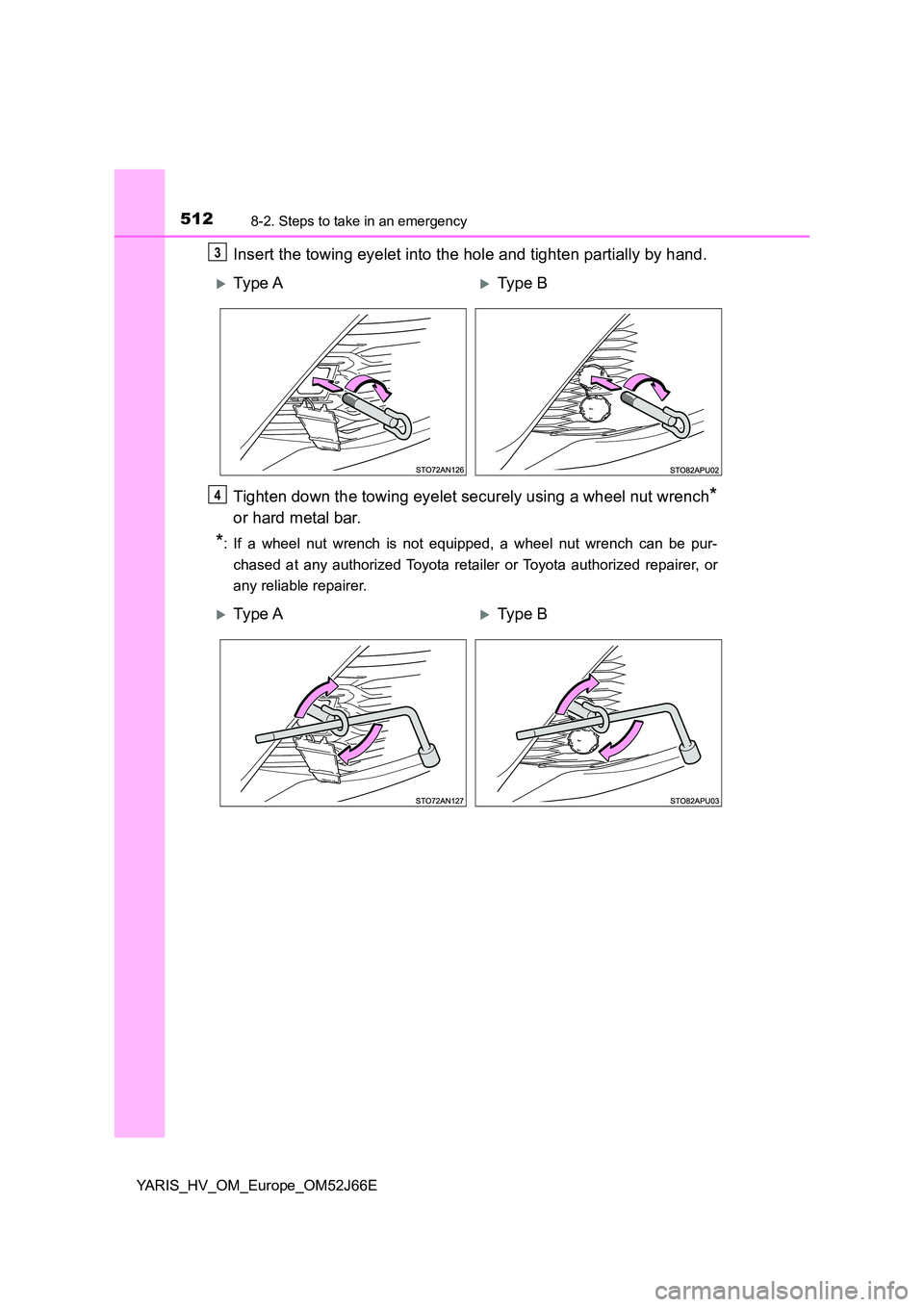

Insert the towing eyelet into the hole and tighten partially by hand.
Tighten down the towing eyelet securely using a wheel nut wrench*
or hard metal bar.
*: If a wheel nut wrench is not equipped, a wheel nut wrench can be pur-
chased at any authorized Toyota retail er or Toyota authorized repairer, or
any reliable repairer.
3
Ty pe AType B
4
Ty pe AType B
