2018 TOYOTA YARIS Owners Manual

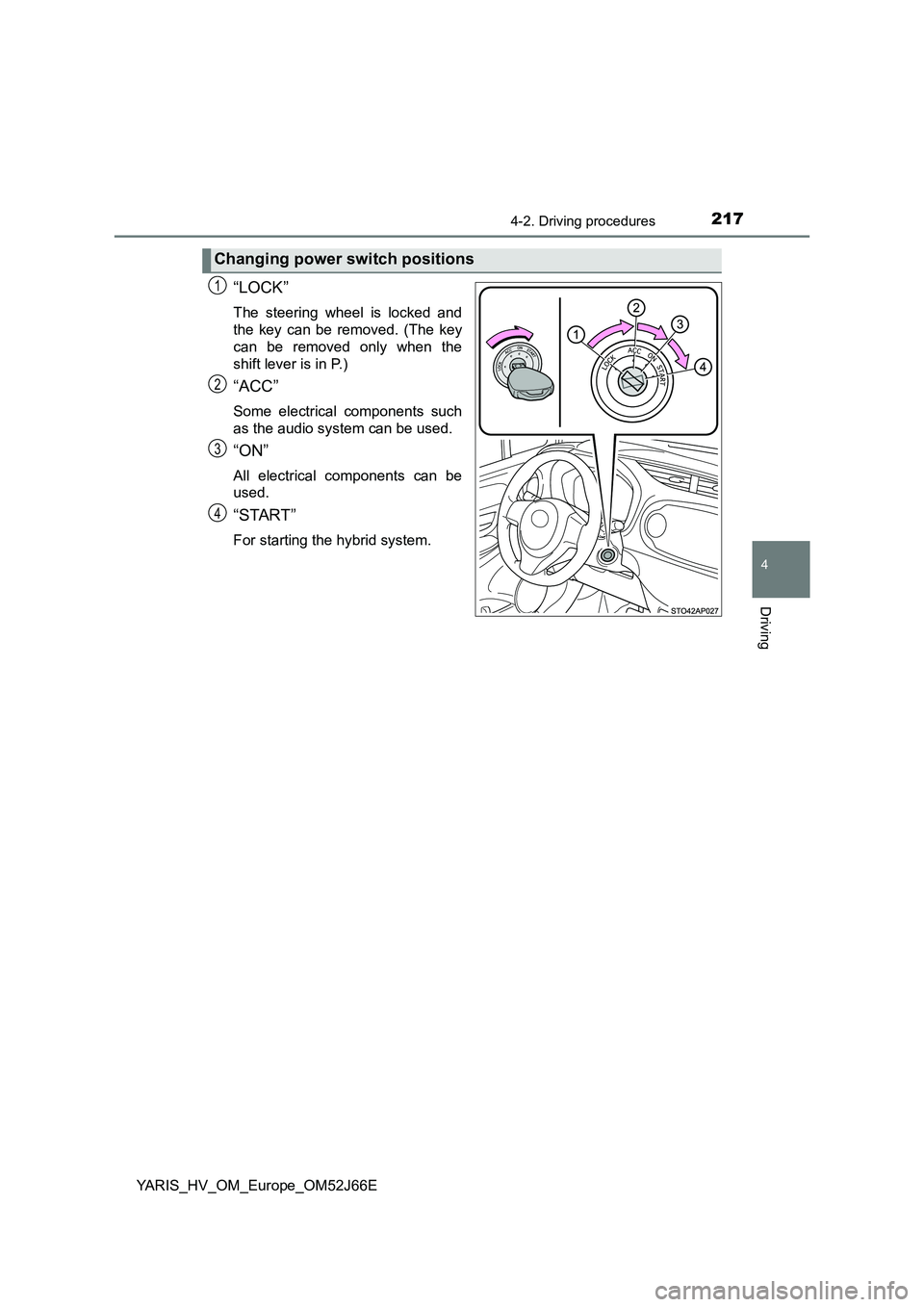

2174-2. Driving procedures
4
Driving
YARIS_HV_OM_Europe_OM52J66E
“LOCK”
The steering wheel is locked and
the key can be removed. (The key
can be removed only when the
shift lever is in P.)
“ACC”
Some electrical components such
as the audio system can be used.
“ON”
All electrical components can be
used.
“START”
For starting the hybrid system.
Changing power switch positions
1
2
3
4

2184-2. Driving procedures
YARIS_HV_OM_Europe_OM52J66E
■Sounds and vibrations specific to a hybrid vehicle
 P. 8 9
■ When the ambient temperature is low, such as during winter driving con-
ditions
When starting the hybrid system, the flashing time of the “READY” indicator
may be long. Leave the vehicle as it is until the “READY” indicator is steady
on, as steady means the vehicle is able to move.
■ If the hybrid system does not start
The immobilizer system may not have been deactivated. ( P. 96)
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
■ When the steering lock cannot be released
■ If the “READY” indicator does not come on
In the event that the “READY” indicator does not come on even after perform-
ing the proper procedures for starting the vehicle, contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer immedi-
ately.
■ If the hybrid system is malfunctioning
 P. 91, 518
■ Key reminder function
A buzzer sounds if the driver’s door is opened while the power switch is in the
“LOCK” or “ACC” position to remind you to remove the key.
When starting the hybrid system, the
power switch may seem stuck in the
“LOCK” position. To free it, turn the key
while turning the steering wheel slightly
left and right.

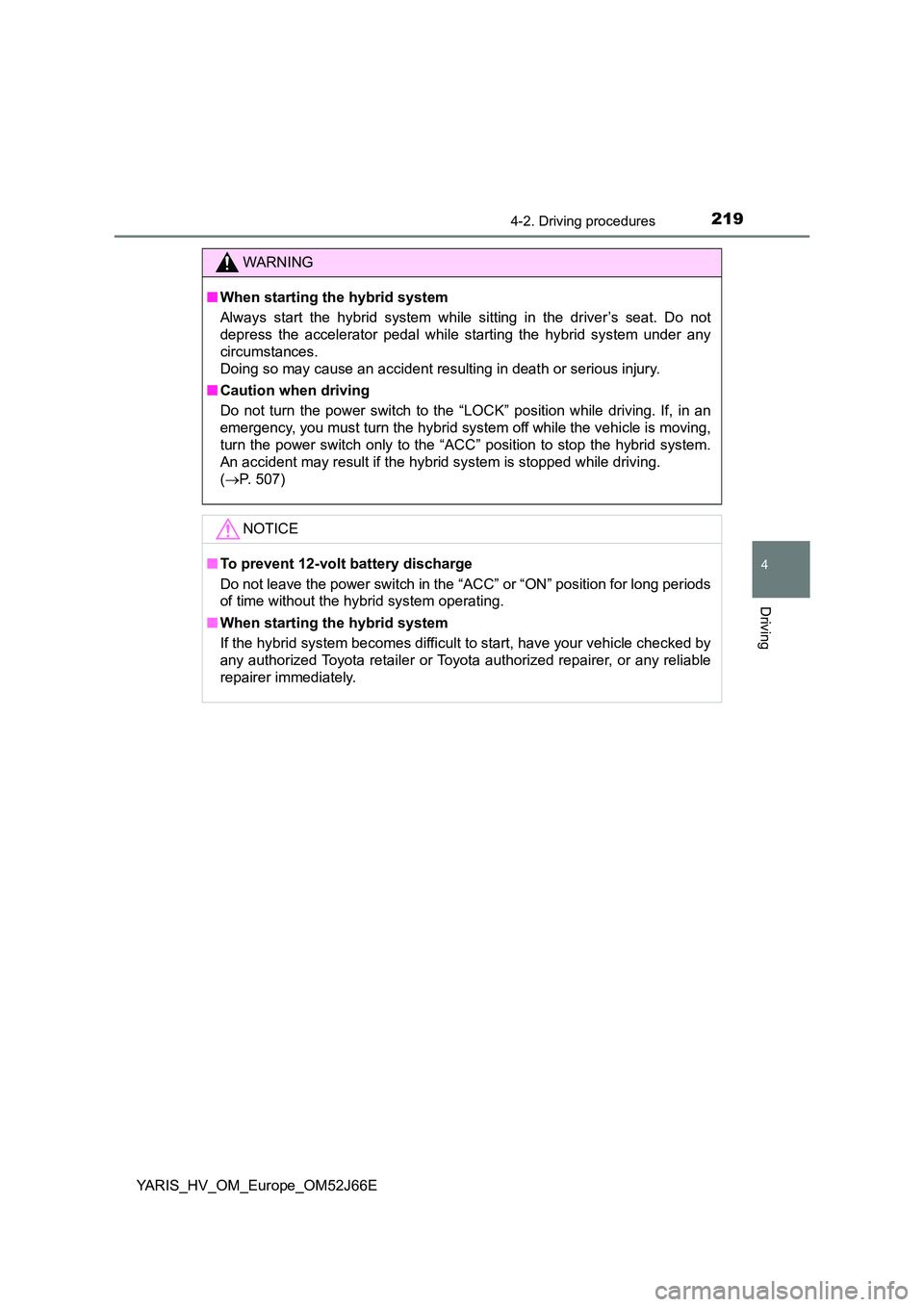

2194-2. Driving procedures
4
Driving
YARIS_HV_OM_Europe_OM52J66E
WARNING
■When starting the hybrid system
Always start the hybrid system while sitting in the driver’s seat. Do not
depress the accelerator pedal while starting the hybrid system under any
circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution when driving
Do not turn the power switch to the “LOCK” position while driving. If, in an
emergency, you must turn the hybrid system off while the vehicle is moving,
turn the power switch only to the “ACC” position to stop the hybrid system.
An accident may result if the hybrid system is stopped while driving.
( P. 5 0 7 )
NOTICE
■To prevent 12-volt battery discharge
Do not leave the power switch in the “ACC” or “ON” position for long periods
of time without the hybrid system operating.
■ When starting the hybrid system
If the hybrid system becomes difficult to start, have your vehicle checked by
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.

2204-2. Driving procedures
YARIS_HV_OM_Europe_OM52J66E
Power (ignition) switch (vehicles with a
smart entry & start system)
Check that the parking brake is set.
Check that the shift lever is in P.
Vehicles with monochrome display
Firmly depress the brake pedal.
The smart entry & start system indicator (green) will turn on.
If the indicator light does not turn on, the hybrid system cannot be started.
Press the power switch shortly
and firmly.
When operating the power switch,
one short, firm press is enough. It
is not necessary to press and hold
the switch.
If the “READY” indicator turns on,
the hybrid system will operate nor-
mally.
Continue depressing the brake
pedal until the “READY” indicator
is illuminated.
The hybrid system can be started
from any power switch mode.
Performing the following operations when carrying the elec-
tronic key on your person starts the hybrid system or changes
power switch mode.
Starting the hybrid system
1
2
3
4

2214-2. Driving procedures
4
Driving
YARIS_HV_OM_Europe_OM52J66E
Vehicles with color display
Firmly depress the brake pedal.
and message will be displayed on the multi-information display.
If it is not displayed, the hybrid system cannot be started.
Press the power switch shortly
and firmly.
When operating the power switch,
one short, firm press is enough. It
is not necessary to press and hold
the switch.
If the “READY” indicator turns on,
the hybrid system will operate nor-
mally.
Continue depressing the brake
pedal until the “READY” indicator
is illuminated.
The hybrid system can be started
from any power switch mode.
Check that the “READY” indicator is illuminated.
If the “READY” indicator changes from a flashing light to a solid light and a
beep sound, the hybrid system is starting normally.
The vehicle will not move when the “READY” indicator is off.
The vehicle can move when the “READY” indicator is on even if the engine
is stopped. (The engine starts or stops automatically in accordance with
the state of the vehicle.)
3
4
5

2224-2. Driving procedures
YARIS_HV_OM_Europe_OM52J66E
Stop the vehicle.
Set the parking brake ( P. 237), and shift the shift lever to P.
Press the power switch.
Vehicles with monochrome display: Release the brake pedal and
check that the smart entry & start system indicator (green) is off.
Vehicles with color display: Release the brake pedal and check that
“Power on” on the multi-information display is off.
Modes can be changed by pressing the power switch with brake pedal
released. (The mode changes each time the switch is pressed.)
Vehicles with monochrome display
Off*
The emergency flashers can be
used.
The smart entry & start system
indicator (green) is off.
ACCESSORY mode
Some electrical components such
as the audio system can be used.
The smart entry & start system
indicator (green) flashes slowly.
ON mode
All electrical components can be
used.
The smart entry & start system
indicator (green) flashes slowly.
*: If the shift lever is in a position other than P when turning off the hybrid sys-
tem, the power switch will be turned to ACCESSORY mode, not to off.
Stopping the hybrid system
Changing power switch modes
1
2
3
4

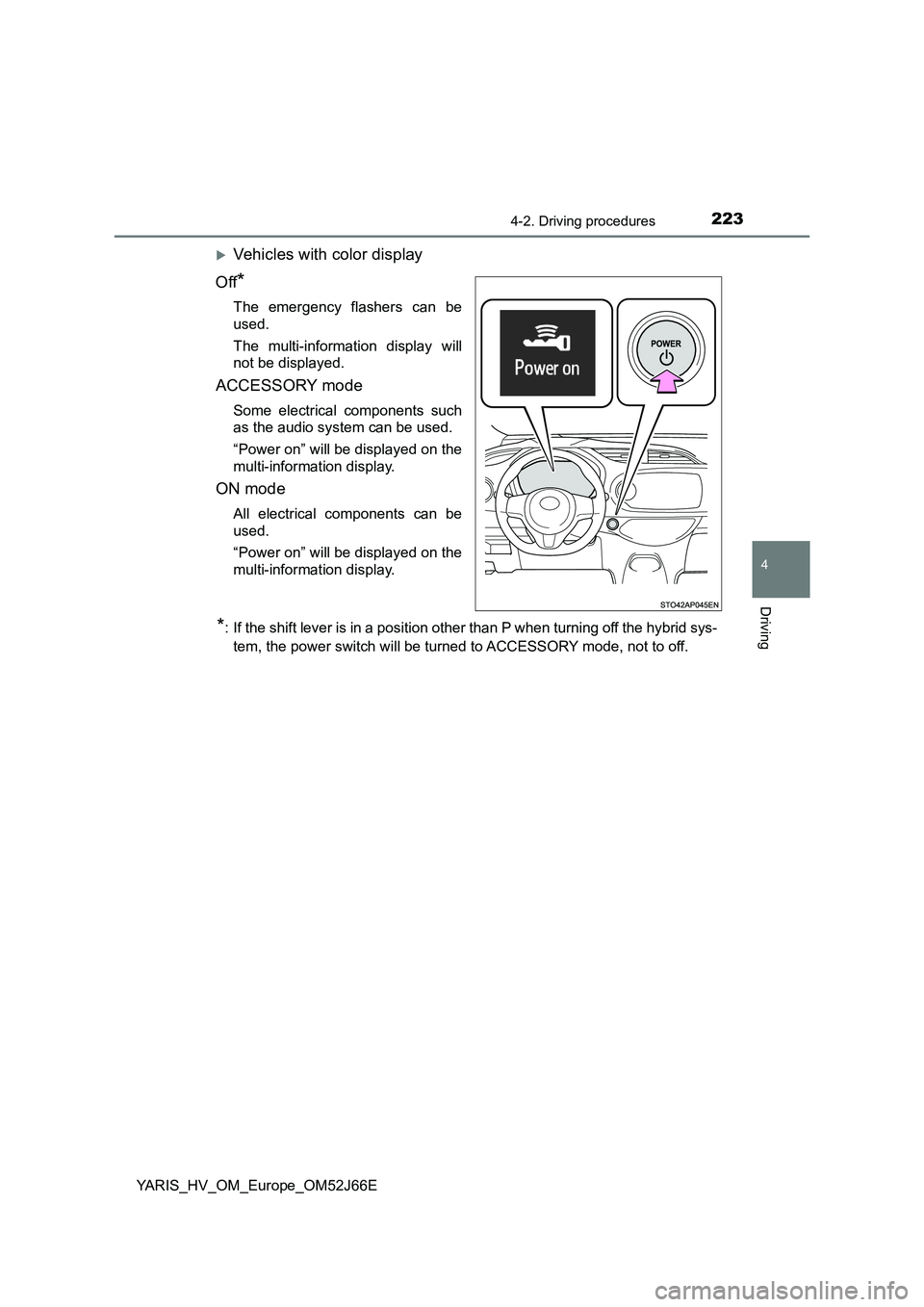

2234-2. Driving procedures
4
Driving
YARIS_HV_OM_Europe_OM52J66E
Vehicles with color display
Off*
The emergency flashers can be
used.
The multi-information display will
not be displayed.
ACCESSORY mode
Some electrical components such
as the audio system can be used.
“Power on” will be displayed on the
multi-information display.
ON mode
All electrical components can be
used.
“Power on” will be displayed on the
multi-information display.
*: If the shift lever is in a position other than P when turning off the hybrid sys-
tem, the power switch will be turned to ACCESSORY mode, not to off.

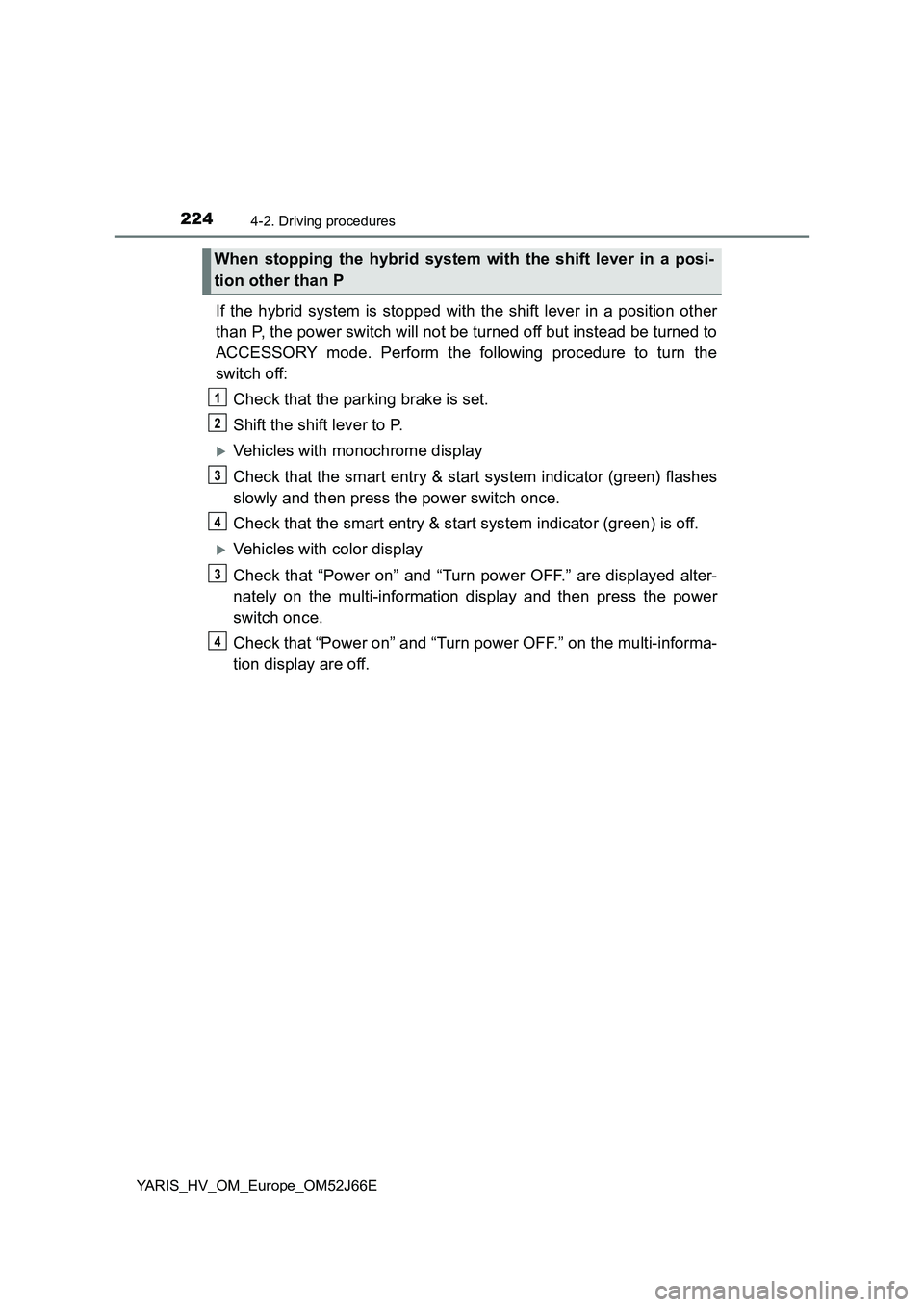

2244-2. Driving procedures
YARIS_HV_OM_Europe_OM52J66E
If the hybrid system is stopped with the shift lever in a position other
than P, the power switch will not be turned off but instead be turned to
ACCESSORY mode. Perform the following procedure to turn the
switch off:
Check that the parking brake is set.
Shift the shift lever to P.
Vehicles with monochrome display
Check that the smart entry & start system indicator (green) flashes
slowly and then press the power switch once.
Check that the smart entry & start system indicator (green) is off.
Vehicles with color display
Check that “Power on” and “Turn power OFF.” are displayed alter-
nately on the multi-information display and then press the power
switch once.
Check that “Power on” and “Turn power OFF.” on the multi-informa-
tion display are off.
When stopping the hybrid system with the shift lever in a posi-
tion other than P
1
2
3
4
3
4
