2018 TOYOTA YARIS Owners Manual

2334-2. Driving procedures
4
Driving
YARIS_HV_OM_Europe_OM52J66E
*: To improve fuel efficiency and reduce noises, set the shift lever in D for
normal driving.
Suitable for improving the fuel economy, because the torque corre-
sponding to the accelerator pedal depression amount can be gener-
ated more smoothly than it is in normal conditions and the operation
of the air conditioning system (heating/cooling) will be minimized.
Eco drive mode
When Eco drive mode is turned on,
the “ECO MODE” indicator will
come on.
Pressing the “ECO MODE” switch
again turns Eco drive mode off.
■ Operation of the air conditioning system in Eco drive mode
Eco drive mode controls the heating/cooling operations and fan speed of the
air conditioning system to enhance fuel efficiency. ( P. 393) To improve air
conditioning performance, adjust the temper ature setting or fan speed, or turn
off Eco drive mode.
Shift position purpose
Shift positionFunction
PParking the vehicle/starting the hybrid system
RReversing
NNeutral
DNormal driving*
BPosition for engine braking
Selecting Eco drive mode

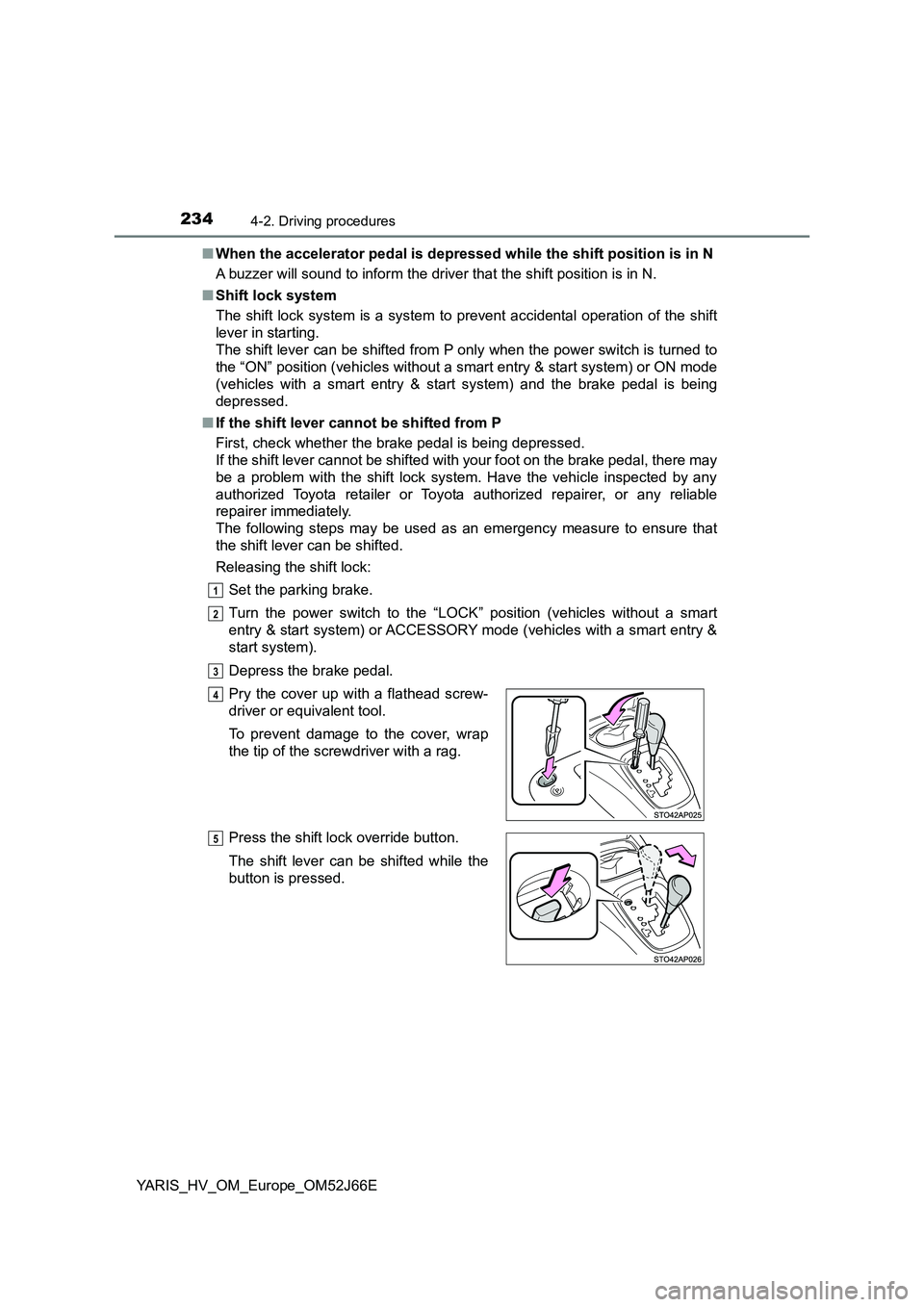

2344-2. Driving procedures
YARIS_HV_OM_Europe_OM52J66E
■ When the accelerator pedal is depressed while the shift position is in N
A buzzer will sound to inform the driver that the shift position is in N.
■ Shift lock system
The shift lock system is a system to prevent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the power switch is turned to
the “ON” position (vehicles without a smart entry & start system) or ON mode
(vehicles with a smart entry & start system) and the brake pedal is being
depressed.
■ If the shift lever cannot be shifted from P
First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there may
be a problem with the shift lock system. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Releasing the shift lock:
Set the parking brake.
Turn the power switch to the “LOCK” position (vehicles without a smart
entry & start system) or ACCESSORY mode (vehicles with a smart entry &
start system).
Depress the brake pedal.
Pry the cover up with a flathead screw-
driver or equivalent tool.
To prevent damage to the cover, wrap
the tip of the screwdriver with a rag.
Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.
1
2
3
4
5

2354-2. Driving procedures
4
Driving
YARIS_HV_OM_Europe_OM52J66E
WARNING
■When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.
■ To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pressed and the shift lever is shifted
out of P, the vehicle may suddenly start leading to an accident which may
result in death or serious injury.
NOTICE
■ Hybrid battery (traction battery) charge
If the shift lever is in N, the hybrid battery (traction battery) will not be
charged. To help prevent the battery fr om discharging, avoid leaving the N
position selected for an extended period of time.

2364-2. Driving procedures
YARIS_HV_OM_Europe_OM52J66E
Turn signal lever
Right turn
Lane change to the right (push
and hold the lever partway)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash until
you release the lever.
Left turn
■ Turn signals can be operated when
Vehicles without a smart entry & start system
The power switch is in the “ON” position.
Vehicles with a smart entry & start system
The power switch is in ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Operation instructions
1
2
3
4

237
4
4-2. Driving procedures
Driving
YARIS_HV_OM_Europe_OM52J66E
Parking brake
To set the parking brake, fully
pull the parking brake lever
while depressing the brake
pedal.
To release the parking brake,
slightly raise the lever and
lower it completely while press-
ing the button.
■ Parking the vehicle
 P. 204
■ Parking brake engaged warning buzzer
 P. 517
■ Usage in winter time
 P. 314
Operation instructions
1
2
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.

2384-3. Operating the lights and wipers
YARIS_HV_OM_Europe_OM52J66E
Headlight switch
Turning the end of the lever turns on the lights as follows:
Off
The front position, tail,
license plate and instru-
ment panel lights turn on.
The headlights and all the
lights listed above turn on.
Vehicles without a smart
entry & start system: The
headlights, front position
lights, daytime running
lights and so on turn on
and off automatically
(when the power switch is
in the “ON” position.)
Vehicles with a smart entry
& start system: The head-
lights, front position lights,
daytime running lights and
so on turn on and off auto-
matically (when the power
switch is in ON mode.)
The headlights can be operated manually or automatically.
Operation instructions
1
2
3
4

2394-3. Operating the lights and wipers
4
Driving
YARIS_HV_OM_Europe_OM52J66E
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams wi th the headlights on or off.
This system allows the low beam headlights to be turned on for 30
seconds when the power switch is turned off.
Pull the lever toward you and
release it with the light switch is in
or after turning the
power switch off.
Pull the lever toward you and
release it again to turn off the
lights.
Turning on the high beam headlights
1
2
Follow me home system (if equipped)

2404-3. Operating the lights and wipers
YARIS_HV_OM_Europe_OM52J66E
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
■Guide to dial settings
Manual headlight leveling dial
Left-hand drive vehiclesRight-hand drive vehicles
Raises the level of the headlights
Lowers the level of the headlights
1
2
Loading conditionControl switch position
Driver only0
Driver + one passenger in the front seat0
Driver + one passenger in the front seat
+ rear seat1
All passengers1
All passengers + full luggage loading to
the luggage compartment2
Driver + full luggage loading to the lug-
gage room3
