2018 TOYOTA YARIS steering wheel adjustment

191
3

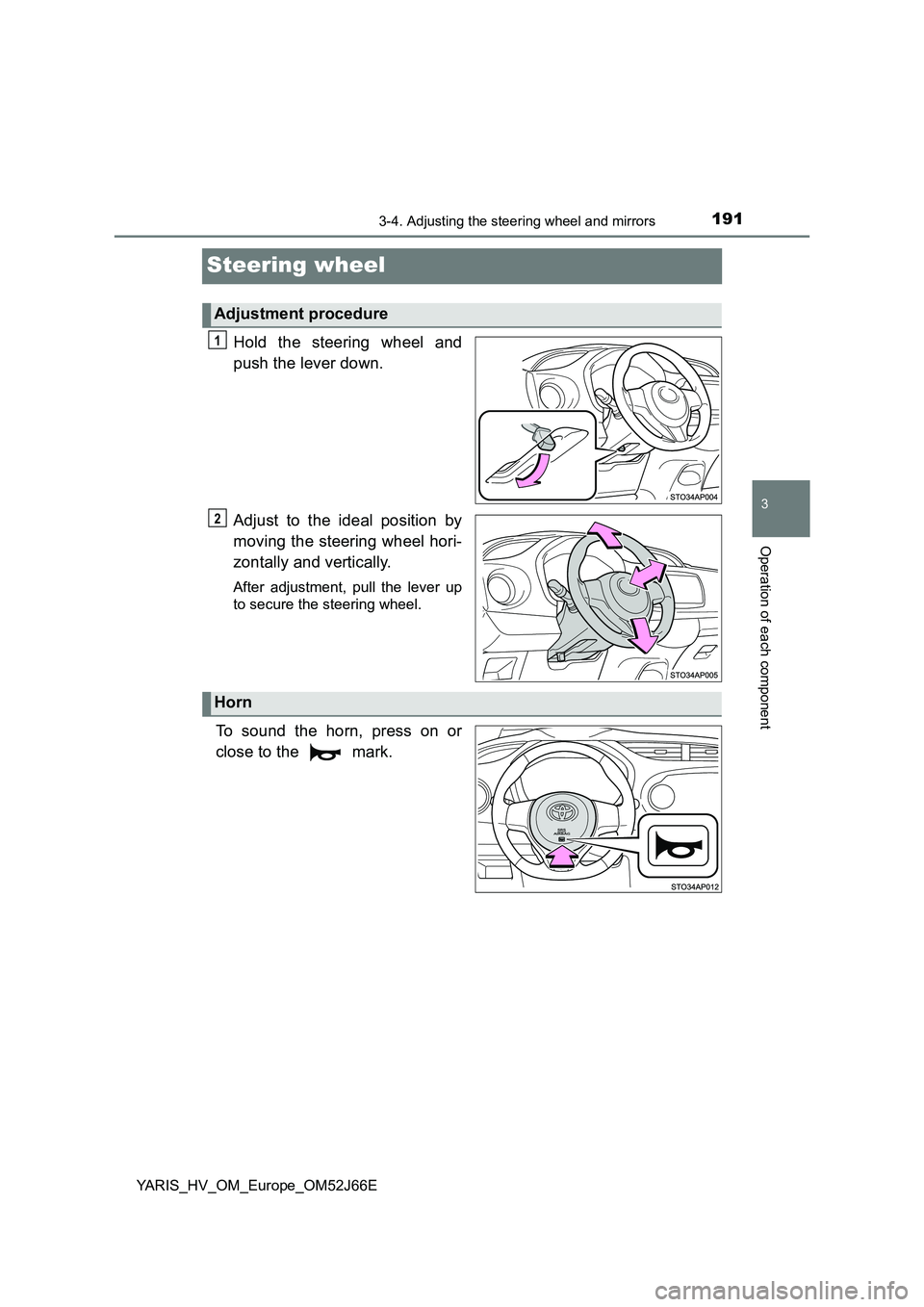

3-4. Adjusting the steering wheel and mirrors
Operation of each component
YARIS_HV_OM_Europe_OM52J66E
Steering wheel
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
Adjustment procedure
1
2
Horn

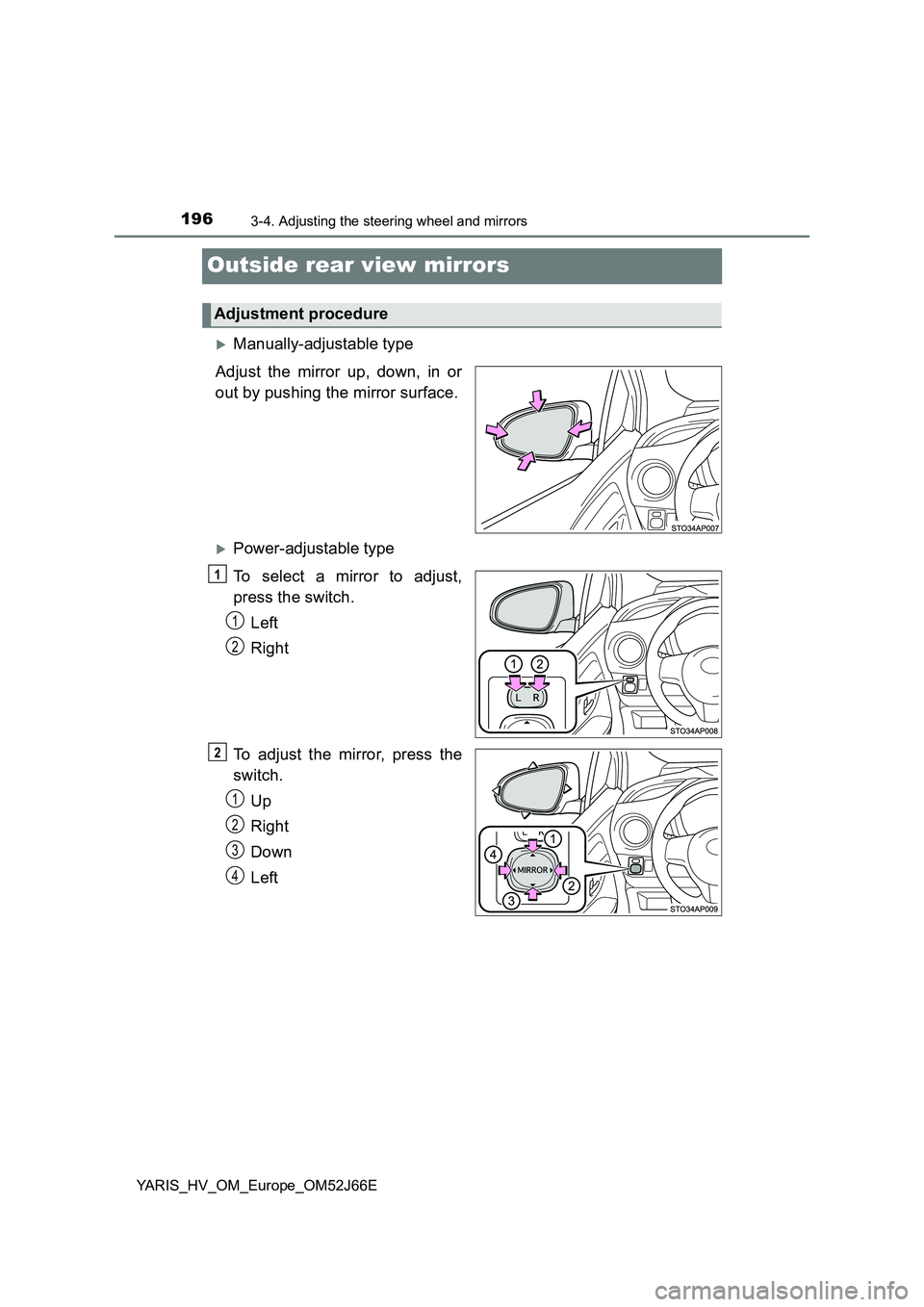

1963-4. Adjusting the steering wheel and mirrors
YARIS_HV_OM_Europe_OM52J66E
Outside rear view mirrors
Manually-adjustable type
Adjust the mirror up, down, in or
out by pushing the mirror surface.
Power-adjustable type
To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Adjustment procedure
1
1
2
2
1
2
3
4

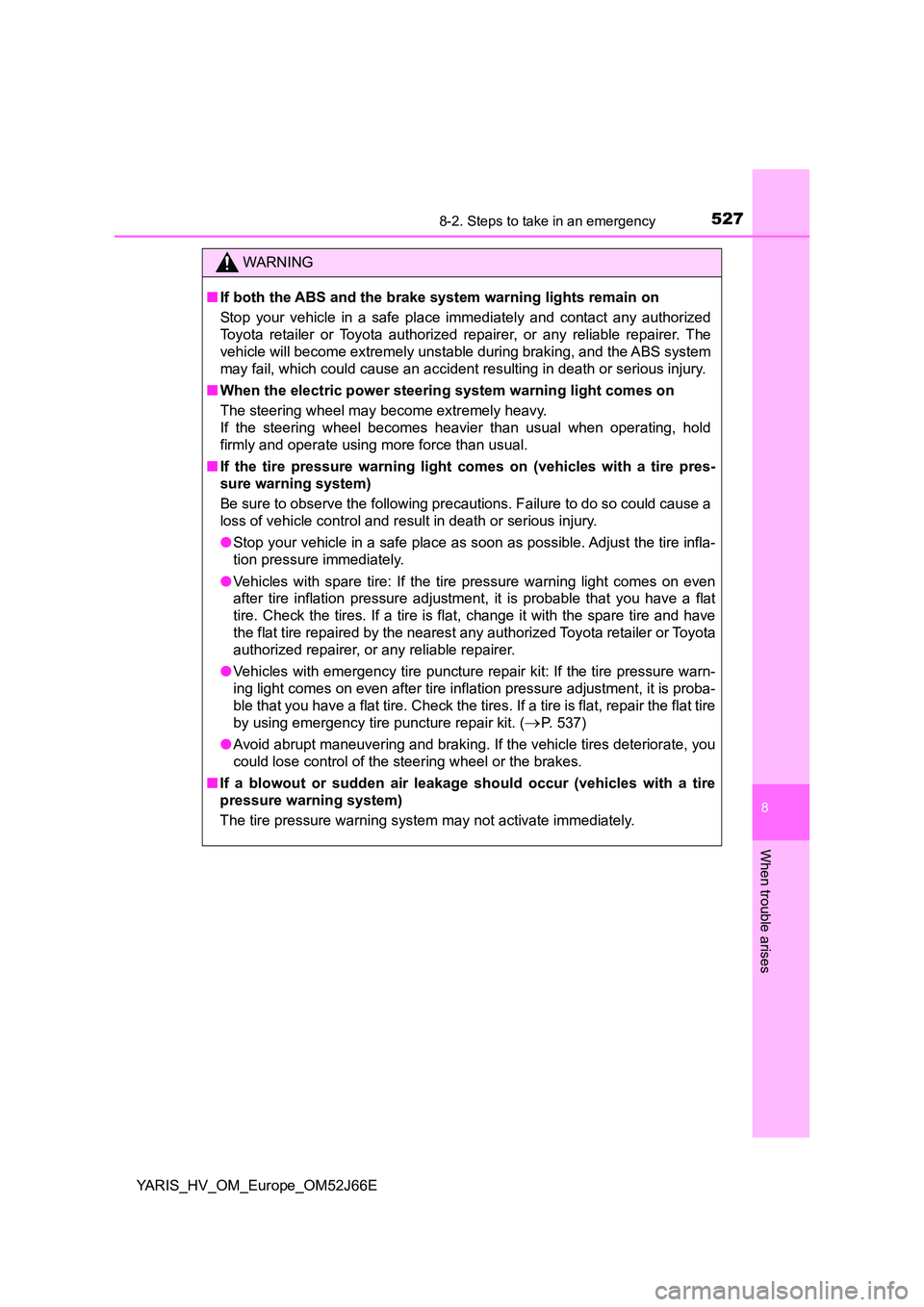

5278-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota retailer or Toyota authorized r epairer, or any reliable repairer. The
vehicle will become extremely unstable during braking, and the ABS system
may fail, which could cause an accident resulting in death or serious injury.
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■ If the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● Vehicles with spare tire: If the tire pressure warning light comes on even
after tire inflation pressure adjustment, it is probable that you have a flat
tire. Check the tires. If a tire is flat, change it with the spare tire and have
the flat tire repaired by the nearest any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
● Vehicles with emergency tire puncture repair kit: If the tire pressure warn-
ing light comes on even after tire inflat ion pressure adjustment, it is proba-
ble that you have a flat tire. Check the tire s. If a tire is flat, repair the flat tire
by using emergency tire puncture repair kit. (P. 537)
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.

628Alphabetical index
YARIS_HV_OM_Europe_OM52J66E
Side mirrors.............................. 196
Adjusting and folding............. 196
Heaters ................................. 390
Side turn signal lights ............. 236
Replacing light bulbs ............. 494
Turn signal lever ................... 236
Wattage................................. 600
Smart entry & start system ..... 164
Antenna location ................... 164
Entry functions .............. 152, 159
Starting the engine ................ 220
Warning lights ....................... 521
Warning messages ............... 166
Snow tires................................. 313
Spare tire .................................. 556
Inflation pressure .................. 598
Storage location .................... 557
Spark plug ................................ 596
Specifications .......................... 590
Speedometer .................... 114, 117
Steering lock .................... 218, 226
Steering wheel ......................... 191
Adjustment ............................ 191
Audio switches ...................... 322
Meter control switches .......... 126
Telephone switches .............. 360
“TRIP” switch ........................ 118
Stop lights
Emergency brake signal ....... 304
Replacing light bulbs ..... 496, 502
Wattage................................. 600
Storage feature ........................ 400
Stuck
If the vehicle becomes
stuck ................................... 587
Sun visors ................................ 407
Switches
Audio remote control
switches.............................. 322
Automatic High Beam
switch ................................. 287
Cruise control switch............. 299
Door lock switch.................... 156
Emergency flashers switch ... 506
EV drive mode switch ........... 229
Fog light switch ..................... 244
Hazard switch ....................... 506
Ignition switch ............... 216, 220
LDA (Lane Departure
Alert) switch ........................ 280
Light switch ........................... 238
Meter control switches .......... 126
Outside rear view mirror
switches.............................. 196
PCS (Pre-Crash Safety
system) switch .................... 266
Power door lock switch ......... 156
Power switch................. 216, 220
Power window switches ........ 199
Rear window defogger
switch ................................. 390
