If the inflation pressure is not main‐tained, drive the vehicle a secondtime, refer to Distributing the seal‐ant. Then repeat steps 1 to 4.Use of the TMK may be ineffectualfor tire damage larger than approxi‐mately 4 mm (0.16 in).We recommend that you contact anauthorized Kia dealer if the tire can‐not be made roadworthy with theTire Mobility Kit.
WARNING
The tire inflation pressure must beat least 200 kPa (29 psi). If it is not,do not continue driving.Call for road side service or towing.
Notes on the safe use of the
Tire Mobility Kit
• Park your car at the side of the roadso that you can work with the TMK
away from moving traffic. Place your warning triangle in a prominent place
to make passing vehicles aware of
your location. • To be sure your vehicle will not move,
even when you're on fairly level
ground, always set your parking brake.
• Only use the TMK for sealing/inflation passenger car tires. Do not use on
motorcycles, bicycles or any other
type of tires.
• Do not remove any foreign objects such as nails or screws -that have
penetrated the tire.
• Before using the TMK, read the pre‐ cautionary advice printed on the seal‐ ant bottle!
• Provided the car is outdoors, leave the engine running. Otherwise oper‐
ating the compressor may eventually
drain the car battery.
• Never leave the TMK unattended while it is being used.
• Do not leave the compressor running for more than 10 min. at a time or it
may overheat.
• Do not use the TMK if the ambient temperature is below -30°C (-22°F).
• When the tire and wheel are dam‐ aged, do not use Tire Mobility Kit foryour safety.
Technical data
System voltage: DC 12 V
Working voltage: DC 10 - 15 VAmperage rating: max. 15 A
Suitable for use at temperatures:
-30 ~ +70°C (-22 ~ +158°F)
Max. working pressure: 6 bar (87 psi)Size
Compressor: 168 x 150 x 68 mm (6.6 x 5.9 x 2.7 in)
Sealant bottle: 104 x 85 ø mm
(4.1 x 3.3 ø in.)
Compressor weight: 1.05 kg (2.31 lbs)
Sealant volume: 300 ml (18.3 cu. in.) ❈ Sealant and spare parts can be ob‐
tained and replaced at an author‐
ized vehicle or tire dealer. Empty
sealant bottles may be disposed of
at home. Liquid residue from the
sealant should be disposed of by
your vehicle or tire dealer or in ac‐
cordance with local waste disposal
regulations.
What to do in an emergency
8-20

TOWING
Towing service
0+'-
If emergency towing is necessary, we
recommend having it done by an au‐ thorized Kia dealer or a commercial
tow-truck service. Proper lifting and
towing procedures are necessary to prevent damage to the vehicle. The use
of wheel dollies (1) or flatbed is recom‐
mended. It is acceptable to tow the vehicle with
the rear wheels on the ground (without
dollies) and the front wheels off the
ground.
If any of the loaded wheels or suspen‐ sion components are damaged or the
vehicle is being towed with the front
wheels on the ground, use a towing dolly under the front wheels.
When being towed by a commercial
tow truck and wheel dollies are not
used, the front of the vehicle should al‐ ways be lifted, not the rear.
NOTICE
If the EPB does not release normally,
we recommend that you contact an
authorized Kia dealer.
)9%
)9%
CAUTION
•Do not tow the vehicle backwardswith the front wheels on theground as this may cause damageto the vehicle.
•Do not tow with sling-type equip‐ment. Use wheel lift or flatbedequipment.
When towing your vehicle in an emer‐
gency without wheel dollies: 1. Set the ignition switch in the ACC position.

8-21
8
What to do in an emergency

2. Place the transaxle shift lever in N(Neutral).
3. Release the parking brake.
CAUTION
Failure to place the transaxle shiftlever in N (Neutral) may cause inter‐nal damage to the transaxle.
Removable towing hook (if
equipped)
1. Open the trunk, and remove the towing hook from the tool case. 2. Remove the hole cover pressing the
lower part of the cover on the
bumper.
3. Install the towing hook by turning it clockwise into the hole until it is
fully secured.
4. Remove the towing hook and install the cover after use.
Emergency towing
'SPOU
3FBS
What to do in an emergency
8-22

If towing is necessary, we recommendyou to have it done by an authorizedKia dealer or a commercial tow truckservice.
If towing service is not available in an
emergency, your vehicle may be tem‐ porarily towed using a cable or chain
secured to the emergency towing hook
under the front (or rear) of the vehicle. Use extreme caution when towing the
vehicle. A driver must be in the vehicle
to steer it and operate the brakes.
Towing in this manner may be done on‐ ly on hard-surfaced roads for a short
distance and at low speed. Also, the
wheels, axles, power train, steering and brakes must all be in good condition. • Do not use the tow hooks to pull a vehicle out of mud, sand or other
conditions from which the vehicle
cannot be driven out under its own
power.
• Avoid towing a vehicle heavier than the vehicle doing the towing.
• The drivers of both vehicles should communicate with each other fre‐
quently.
CAUTION
•Attach a towing strap to the towhook.
•Using a portion of the vehicle oth‐er than the tow hooks for towingmay damage the body of your ve‐hicle.
•Use only a cable or chain specifi‐cally intended for use in towingvehicles. Securely fasten the cableor chain to the towing hook provi‐ded.
• Before emergency towing, check if the hook is not broken or damaged.
• Fasten the towing cable or chain se‐ curely to the hook.
• Do not jerk the hook. Apply it steadily and with even force.
• To avoid damaging the hook, do not pull from the side or at a vertical an‐
gle. Always pull straight ahead.
WARNING
Use extreme caution when towingthe vehicle.•Avoid sudden starts or erratic driv‐ing maneuvers which would placeexcessive stress on the emergencytowing hook and towing cable orchain. The hook and towing cableor chain may break and cause seri‐ous injury or damage.
•If the disabled vehicle is unable tobe moved, do not forcibly continuethe towing. We recommend thatyou contact an authorized Kiadealer or a commercial tow truckservice for assistance.
•Tow the vehicle as straight aheadas possible.
•Keep away from the vehicle duringtowing.

8-23
8
What to do in an emergency

• Use a towing strap less than 5 m(16 feet) long. Attach a white or red
cloth (about 30 cm (12 inches) wide) in the middle of the strap for easy
visibility.
• Drive carefully so that the towing strap is not loosened during towing.
Emergency towing precautions
• Turn the ignition switch to ACC so thesteering wheel isn’t locked.
• Place the transaxle shift lever in N (Neutral).
• Release the parking bake. • Press the brake pedal with more
force than normal since you will have
reduced brake performance.
• More steering effort will be required because the power steering system
will be disabled.
• If you are driving down a long hill, the brakes may overheat and brake per‐formance will be reduced. Stop often
and let the brakes cool off.
CAUTION
nAutomatic transaxle
•If the car is being towed with allfour wheels on the ground, it canbe towed only from the front. Besure that the transaxle is in neu‐tral. Be sure the steering is un‐locked by placing the ignitionswitch in the ACC position. A drivermust be in the towed vehicle tooperate the steering and brakes.
•To avoid serious damage to theautomatic transaxle, limit the ve‐hicle speed to 15 km/h (10 mph)and drive less than 1.5 km (1 mile)when towing.
(Continued)
(Continued)
•Before towing, check the auto‐matic transaxle for fluid leaks un‐der your vehicle. If the automatictransaxle fluid is leaking, flatbedequipment or a towing dolly mustbe used.
What to do in an emergency
8-24

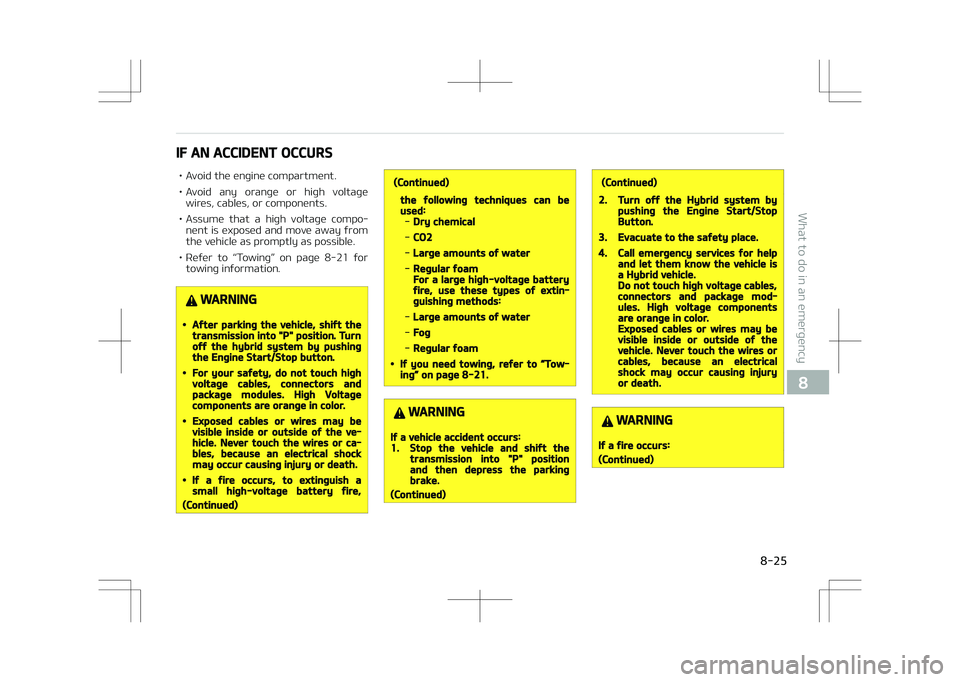

IF AN ACCIDENT OCCURS
• Avoid the engine compartment.
• Avoid any orange or high voltage wires, cables, or components.
• Assume that a high voltage compo‐ nent is exposed and move away fromthe vehicle as promptly as possible.
• Refer to L

(Continued)
1.Stop the vehicle and shift thetransmission in to "P" position,and then depress the parkingbrake. To ventilate smoke from afire, open the windows if possi‐ble.
2.Turn off the Hybrid system bypushing the Engine Start/StopButton.
3.Leave the vehicle and evacuateto the safety place.
4.Call emergency services for helpand let them know the vehicle isa Hybrid vehicle.
If you have an extinguisher, extin‐guish a fire carefully.Do not touch high voltage cables,connectors and package modules.High voltage components are orangein color.Exposed cables or wires may be visi‐ble inside or outside of the vehicle.Never touch the wires or cables, be‐cause an electrical shock may occurcausing injury or death.
WARNING
If a submersion in water occurs:If your vehicle was flooded and hassoaked carpeting or water on theflooring, you should not try to startthe Hybrid system. Never touch thehigh voltage cables, connectors andpackage modules, because an elec‐trical shock may occur causing injuryor death. High Voltage cables are or‐ange in color.We recommend that the car towedto an authorized Kia dealer.
What to do in an emergency
8-26

EMERGENCY COMMODITY (IF EQUIPPED)
There are some emergency commodi‐ ties in the vehicle to help you respond
to the emergency situation.
First aid kit
There are some items such as scissors,
bandage and adhesive tape and etc. in the kit to give first aid to an injured
person.
Triangle reflector
Place the triangle reflector on the road
to warn oncoming vehicles during emergencies, such as when the vehicle
is parked by the roadside due to any
problems.
Tire pressure gauge (if
equipped)
Tires normally lose some air in day-to-
day use, and you may have to add a few pounds of air periodically and it is
not usually a sign of a leaking tire, but
of normal wear. Always check tire pres‐ sure when the tires are cold because
tire pressure increases with tempera‐
ture.
To check the tire pressure, take the fol‐ lowing steps: 1. Unscrew the inflation valve cap that is located on the rim of the
tire. 2. Press and hold the gauge against
the tire valve. Some air will escape
as you begin and more will escape
if you don't press the gauge in
firmly.
3. A firm non-leaking push will acti‐ vate the gauge.
4. Read the tire pressure on the gauge to know whether the tire
pressure is low or high.
5. Adjust the tire pressures to the specified pressure. Refer to L
