2017 KIA OPTIMA PLUG-IN HYBRID Owners Manual

CAUTION
When replacing tires, use the same size originally supplied with the vehicle.Using tires of a different size can damage the related parts or make it work irregularly.

Specifications & Consumer information
10-10

RECOMMENDED LUBRICANTS AND CAPACITIES
LubricantVolumeClassification
Engine oil *1
*2
(drain and refill)
Recommends
4.1 l
(4.33 US qt.) ACEA A5 or above / 5W-30 (C)
*1
Automatic transaxle fluid 6.0 l
(6.34 US qt.) - ATF SP-IV
(Recommended SK ATF SP-IV, MICHANG ATF SP-IV, NOCA ATF SP-IV)
Coolant 6.744 l
(7.12 US qt.) Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Inverter coolant 3.13 l
(3.30 US qt.) Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Brake/Clutch fluid 0.49 ± 0.02 l
(0.52 ± 0.02 US qt.) DOT 3 or DOT 4
Fuel Hybrid
60 l
(63.42 US qt.) Refer to L

Recommended SAE viscosity number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before checking or draining any lubricant.This is especially important in dusty or sandy areas and when the vehicle is used on unpaved roads. Cleaning the plug anddipstick areas will prevent dirt and grit from entering the engine and other mechanisms that could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operating (engine start and engine oil flowabil‐
ity). Lower viscosity engine oils can provide better fuel economy and cold weather performance, however, higher viscosity en‐ gine oils are required for satisfactory lubrication in hot weather.
Using oils of any viscosity other than those recommended could result in engine damage. When choosing an oil, consider the
range of temperature your vehicle will be operated in before the next oil change. Proceed to select the recommended oil vis‐ cosity from the chart.
5FNQFSBUVSF
3BOHF
GPS
4"&
7JTDPTJUZ
/VNCFST
5FNQFSBUVSFFú$
Fú'

$
*1 : For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-30 (ACEA A5). However, if
the engine oil is not available in your country, select the proper engine oil using the engine oil viscosity chart.

Specifications & Consumer information
10-12

VEHICLE IDENTIFICATION NUMBER (VIN)
'SBNF
OVNCFS
0+'
The vehicle identification number (VIN)
is the number used in registering your vehicle and in all legal matters pertain‐
ing to its ownership, etc.
The number is punched on the floor un‐
der the passenger seat. To check the number, open the cover.
7*/
MBCFM
JG
FRVJQQFE

06.
The VIN is also on a plate attached to
the top of the dashboard. The number on the plate can easily be seen through
the windshield from outside.

10-13
10
Specifications & Consumer information

VEHICLE CERTIFICATION LABEL
0+'
The vehicle certification label attached
on the driver’s (or front passenger’s) side center pillar gives the vehicle iden‐
tification number (VIN).
Specifications & Consumer information
10-14

TIRE SPECIFICATION AND PRESSURE LABEL
0+'
The tires supplied on your new vehicle
are chosen to provide the best per‐ formance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres‐
sures recommended for your vehicle.

10-15
10
Specifications & Consumer information

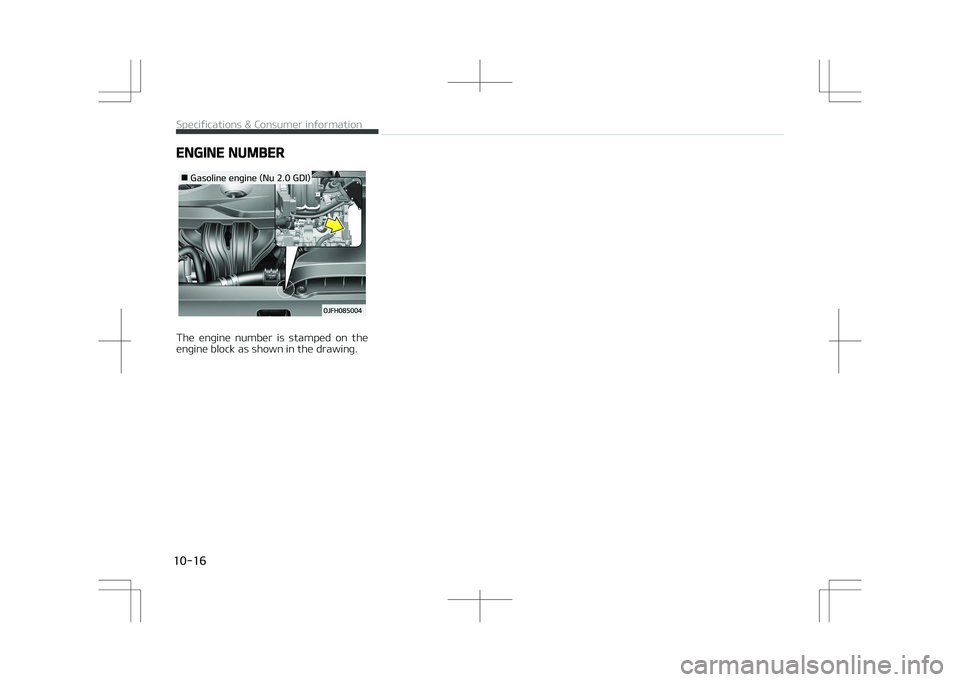

ENGINE NUMBER
(BTPMJOF
FOHJOF
/V

(%*

The engine number is stamped on the
engine block as shown in the drawing.
Specifications & Consumer information
10-16

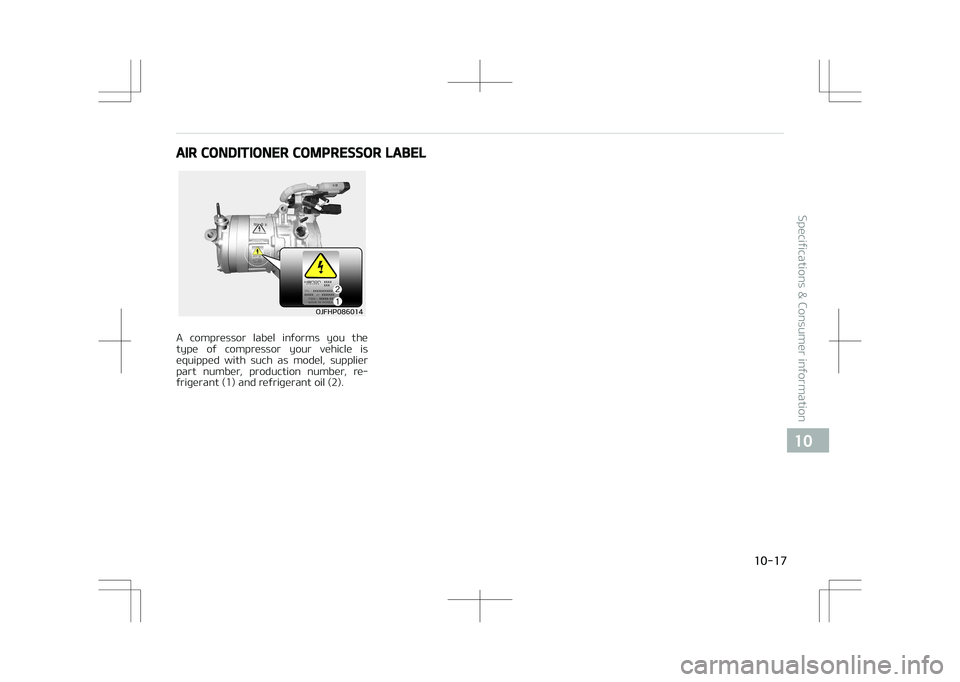

AIR CONDITIONER COMPRESSOR LABEL
0+')1
A compressor label informs you the
type of compressor your vehicle is equipped with such as model, supplier
part number, production number, re‐
frigerant (1) and refrigerant oil (2).

10-17
