2017 JEEP RENEGADE Owners Manual

Clock
After pressing the “Clock” button on the touchscreen, the
following settings will be available:
Setting NameSelectable Options
Show Time In Status Bar OnOff
Sync Time With GPS OnOff
Set Day +–
Set Month +–
Set Year +–
Set Hours +–
Set Minutes +–
Time Format 12 hrs24 hrs
10
MULTIMEDIA 463

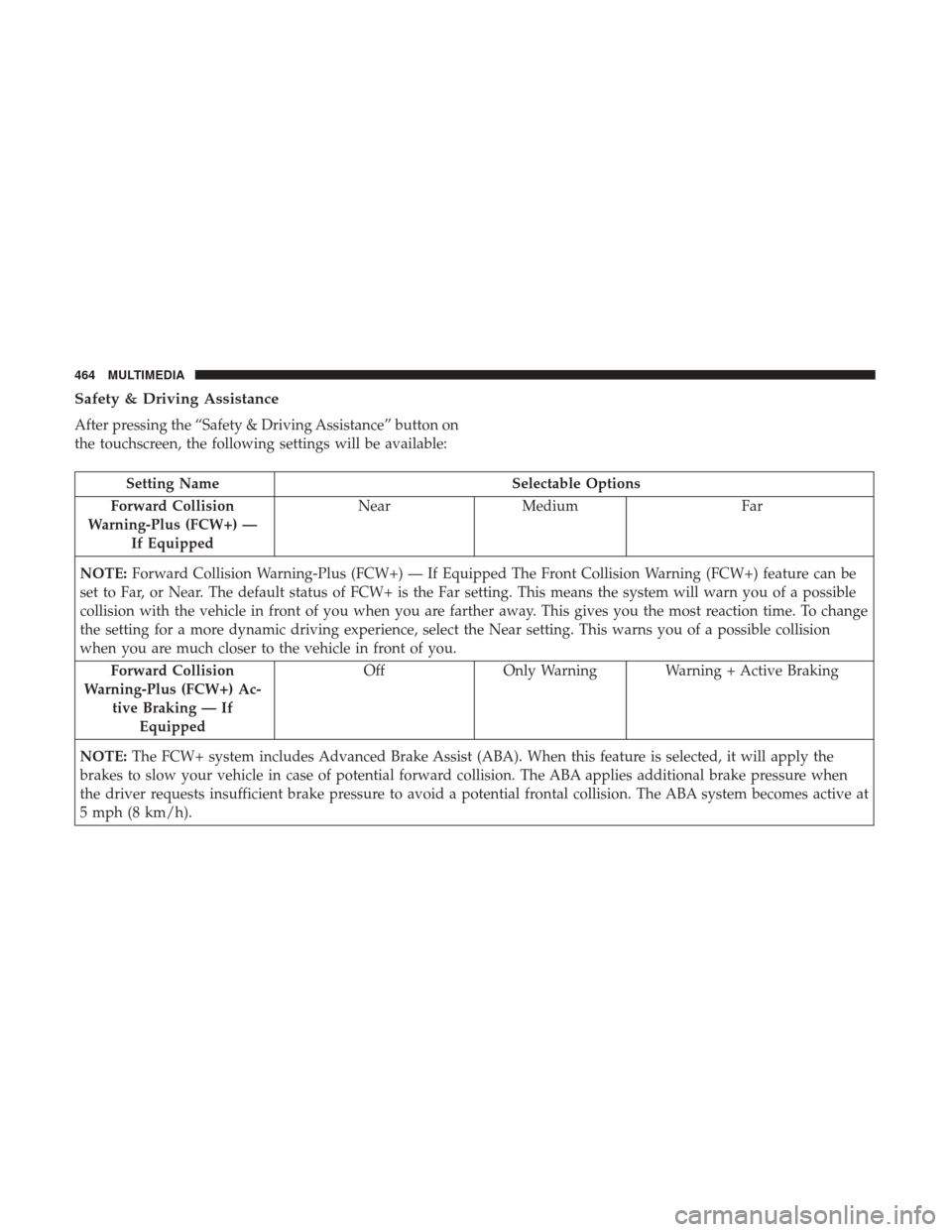

Safety & Driving Assistance
After pressing the “Safety & Driving Assistance” button on
the touchscreen, the following settings will be available:
Setting NameSelectable Options
Forward Collision
Warning-Plus (FCW+) — If Equipped Near
Medium Far
NOTE: Forward Collision Warning-Plus (FCW+) — If Equipped The Front Collision Warning (FCW+) feature can be
set to Far, or Near. The default status of FCW+ is the Far setting. This means the system will warn you of a possible
collision with the vehicle in front of you when you are farther away. This gives you the most reaction time. To change
the setting for a more dynamic driving experience, select the Near setting. This warns you of a possible collision
when you are much closer to the vehicle in front of you.
Forward Collision
Warning-Plus (FCW+) Ac- tive Braking — IfEquipped Off
Only Warning Warning + Active Braking
NOTE: The FCW+ system includes Advanced Brake Assist (ABA). When this feature is selected, it will apply the
brakes to slow your vehicle in case of potential forward collision. The ABA applies additional brake pressure when
the driver requests insufficient brake pressure to avoid a potential frontal collision. The ABA system becomes active at
5 mph (8 km/h).
464 MULTIMEDIA

Setting NameSelectable Options
LaneSense Warning — If Equipped Early
Med Late
NOTE: When this feature is selected, it sets the distance at which the steering wheel will provide feedback for poten-
tial lane departures. The LDW sensitivity can be set to provide either an “early,” “medium,” or “late” warning zone
start point.
LaneSense Strength — If Equipped Low
Med High
NOTE: When this feature is selected, it sets the strength of the steering wheel feedback for potential lane departures.
The amount of directional torque the steering system can apply to the steering wheel to correct for vehicle lane de-
parture can be set at “Low,” “Med” or “High.”
ParkSense — If Equipped Sound OnlySound & Display
NOTE: The ParkSense system will scan for objects behind the vehicle when the transmission gear selector is in RE-
VERSE and the vehicle speed is less than 11 mph (18 km/h). It will provide an alert (audible and/or visual) to indi-
cate the proximity to other objects. The system can be enabled with Sound Only, or Sound and Display.
10
MULTIMEDIA 465

Setting NameSelectable Options
Rear ParkSense Volume — If Equipped Low
Medium High
Front ParkSense Volume — If Equipped Low
Medium High
Blind Spot Alert — If Equipped Off
Lights Lights & Chime
NOTE:
•When this feature is selected, the Blind Spot Alert feature can be set to Off, Lights or Lights and Chime. The Blind
Spot Alert feature can be activated in Lights mode. When this mode is selected, the Blind Spot Monitor (BSM) sys-
tem is activated and will only show a visual alert in the outside mirrors. When Lights & Chime mode is activated,
the Blind Spot Monitor (BSM) will show a visual alert in the outside mirrors as well as an audible alert when the
turn signal is on. When Off is selected, the Blind Spot Monitor (BSM) system is deactivated.
•If your vehicle has experienced any damage in the area where the sensor is located, even if the fascia is not dam-
aged, the sensor may have become misaligned. Take your vehicle to an authorized dealer to verify sensor align-
ment. A sensor that is misaligned will result in the BSM not operating to specification.
ParkView Backup Camera Active Guidelines — If Equipped On Off
NOTE:
ParkView Backup Camera Active Guidelines — If Equipped Your vehicle may be equipped with the ParkView Rear
Back Up Camera Active Guidelines that allows you to see active guidelines over the ParkView Back up camera display
whenever the gear selector is put into REVERSE. The image will be displayed on the radio touchscreen display along with a
caution note to “check entire surroundings” across the top of the screen. After five seconds, this note will disappear.
466 MULTIMEDIA

Setting NameSelectable Options
ParkView Backup Camera Delay On
Off
NOTE: When the vehicle is shifted out of REVERSE (with camera delay turned off), the rear camera mode is exited
and the navigation or audio screen appears again. When the vehicle is shifted out of REVERSE (with camera delay
turned on), the rear view image with dynamic grid lines will be displayed for up to 10 seconds after shifting out of
“REVERSE” unless the forward vehicle speed exceeds 8 mph (12 km/h), the transmission is shifted into PARK or the
ignition is switched to the off position. To set the ParkView Backup Camera Delay press the “MORE” button on the
faceplate, the “settings” button on the touchscreen, then the “Safety & Driving Assistance” button on the touchscreen.
Rain Sensing Auto Wipers — If Equipped On
Off
NOTE: Rain Sensing Auto Wipers When this feature is selected, the system will automatically activate the windshield
wipers if it senses moisture on the windshield.
Electric Park Brake Service Mode — If Equipped On
Off
NOTE: This feature provides a means for a technician or vehicle owner to utilize a vehicle integrated, menu driven
system, to command the electric park brake retraction, to service the rear foundation brakes (brake pads, calipers, ro-
tors, etc.).
10
MULTIMEDIA 467

Lights
After pressing the “Lights” button on the touchscreen, the
following settings will be available:
Setting NameSelectable Options
Headlight Sensitiv- ity — If Equipped 12
3
NOTE:
The greater the sensitivity set, the less the external light variation required to turn on the lights (e.g. with a setting on
level 3 at sunset the headlights turn on earlier than in levels 1 and 2).
•Level 1 = minimum sensitivity
•Level 2 = medium sensitivity
•Level 3 = maximum sensitivity
Headlight Off Delay 030609 0
Greeting Lights — If Equipped On
Off
Auto High Beams — If Equipped On
Off
Daytime Running Lights — IfEquipped Ye s
N o
Cornering Lights — If Equipped On
Off
468 MULTIMEDIA

Setting NameSelectable Options
Flash Lights With
Lock — If Equipped On
Off
Setting Name Selectable Options
NOTE: When this feature is selected, the headlights turn relative to a change in direction of the steering wheel.
Doors & Locks
After pressing the “Doors & Locks” button on the touch-
screen, the following settings will be available:
Setting Name Selectable Options
Auto Door Lock Ye sN o
NOTE:
When this feature is selected, all doors will lock automatically when the vehicle reaches a speed of 15 mph (24 km/h).
Auto Unlock On Exit Ye sN o
Flash Lights With Lock — If Equipped Ye s
N o
Sound Horn With Remote Lock — If Equipped On
Off
Remote Door Unlock — If EquippedAllDriver
NOTE: This feature will allow you to program your remote door locks to open “All” or only the “Driver” with the
first push of the key fob or grabbing the Passive Entry door handle.
10
MULTIMEDIA 469

Setting NameSelectable Options
Passive Entry — If Equipped OnOff
NOTE: This feature allows you to lock and unlock the vehicles door(s) without having to press the key fob lock or
unlock buttons.
Sound Horn With Start — If Equipped On
Off
NOTE: When this feature is selected, the horn will sound when the Remote Start is activated.
Engine Off Options
After pressing the “Engine Off Options” button on the
touchscreen, the following settings will be available:
Setting Name Selectable Options
Radio Off Delay 0 MIN20 MIN
Headlight Off Delay — If Equipped +–
NOTE: When this feature is selected, the driver can choose to have the headlights remain on for 0, 30, 60, or 90 sec-
onds when exiting the vehicle.
