2017 JEEP RENEGADE Owners Manual

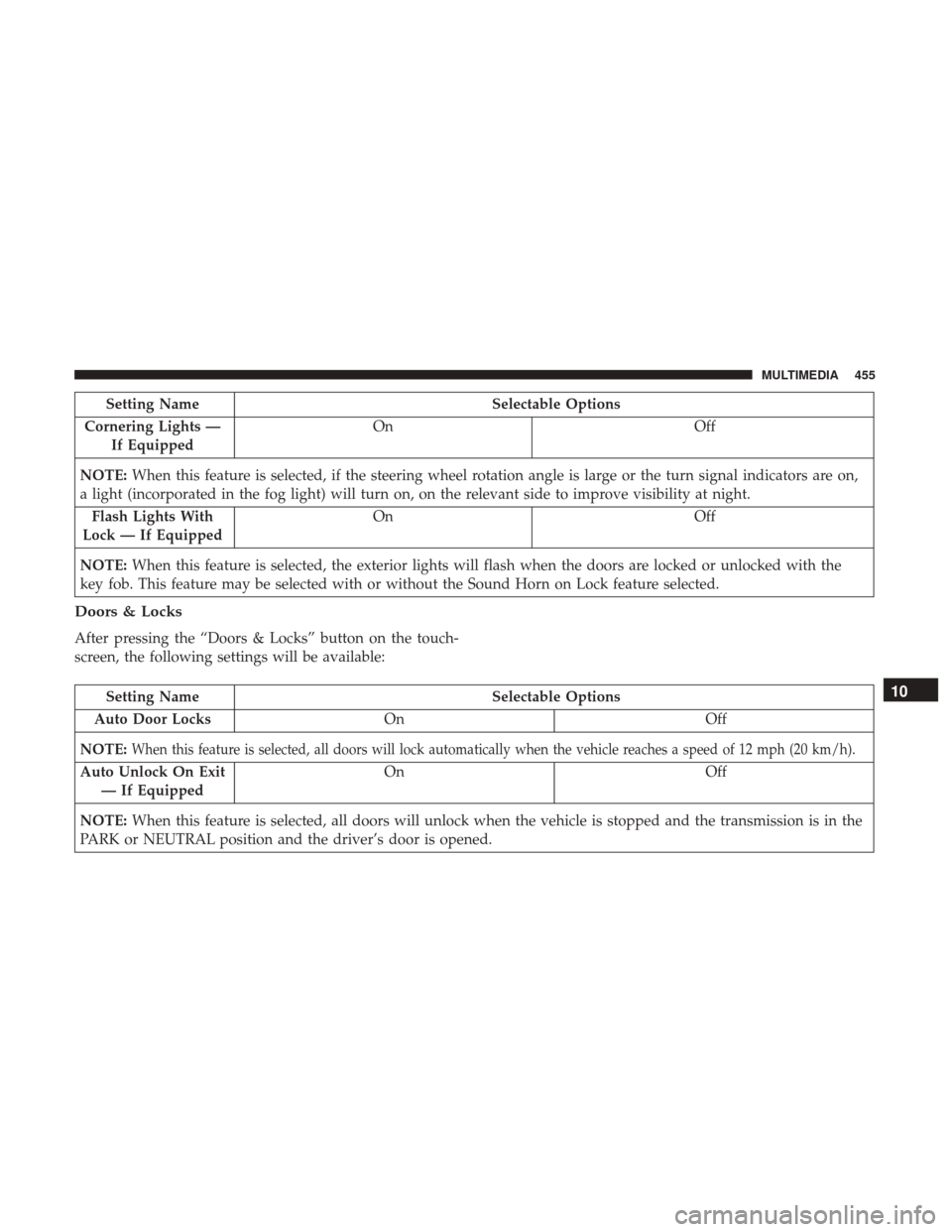

Setting NameSelectable Options
Cornering Lights — If Equipped On
Off
NOTE: When this feature is selected, if the steering wheel rotation angle is large or the turn signal indicators are on,
a light (incorporated in the fog light) will turn on, on the relevant side to improve visibility at night.
Flash Lights With
Lock — If Equipped On
Off
NOTE: When this feature is selected, the exterior lights will flash when the doors are locked or unlocked with the
key fob. This feature may be selected with or without the Sound Horn on Lock feature selected.
Doors & Locks
After pressing the “Doors & Locks” button on the touch-
screen, the following settings will be available:
Setting Name Selectable Options
Auto Door Locks On Off
NOTE:
When this feature is selected, all doors will lock automatically when the vehicle reaches a speed of 12 mph (20 km/h).
Auto Unlock On Exit — If Equipped On Off
NOTE: When this feature is selected, all doors will unlock when the vehicle is stopped and the transmission is in the
PARK or NEUTRAL position and the driver’s door is opened.
10
MULTIMEDIA 455

Setting NameSelectable Options
Flash Lights With
Lock — If Equipped On
Off
NOTE: When this feature is selected, the exterior lights will flash when the doors are locked or unlocked with the
key fob or the Passive Entry Feature.
Horn With Lock — If Equipped Off
1st Press 2nd Press
Horn With Remote
Start — If Equipped On
Off
Passive Entry — If Equipped On
Off
NOTE: Passive Entry This feature allows you to lock and unlock the vehicle’s door(s) without having to press the key
fob lock or unlock buttons.
Remote Door
Unlock/Door Unlock — If Equipped Driver
All
NOTE:
•When “Driver” is selected, only the driver’s door will unlock on the first push of the key fob unlock button, you
must push the key fob unlock button twice to unlock the passenger’s doors. When “All” is selected, all of the
doors will unlock on the first press of the key fob unlock button.
456 MULTIMEDIA

Setting NameSelectable Options
•If “All” is programmed, all doors will unlock no matter which Passive Entry equipped door handle is grasped. If
“Driver” is programmed, only the driver ’s door will unlock when the driver ’s door is grasped. Touching the
handle more than once will only result in the driver ’s door opening once. If the driver door is opened, the interior
door lock/unlock switch can be used to unlock all doors (or use key fob).
Engine Off Options
After pressing the “Engine Off Options” button on the
touchscreen, the following settings will be available:
Setting NameSelectable Options
Headlight Off Delay +–
NOTE: When this feature is selected, the driver can choose to have the headlights remain on for 0, 30, 60, or 90 sec-
onds when exiting the vehicle.
Radio Off Delay 0 MIN20 MIN
Phone/Bluetooth
After pressing the “Phone/Bluetooth” button on the touch-
screen, the following settings will be available:
Setting Name Selectable Options
Paired Phones This feature shows which phones are paired to the Phone/Bluetooth system.
For further information, refer to the Uconnect Owner ’s Manual Supplement
10
MULTIMEDIA 457

SiriusXM Setup — If Equipped
After pressing the “SiriusXM Setup” button on the touch-
screen, the following settings will be available:
Setting NameSelectable Options
Tune Start — If Equipped OnOff
NOTE: “Tune Start” begins playing the current song from the beginning when you tune to a music channel using one
of the twelve presets, so you can enjoy the complete song. This feature occurs the first time the preset is selected dur-
ing that current song. Tune Start works in the background, so you will not even realize it’s on, except that you will
miss the experience of joining your favorite song with only a few seconds left to play.
Channel Skip Channel Skip
NOTE: SiriusXM can be programmed to designate a group of channels that are the most desirable to listen to or to
exclude undesirable channels while scanning. To make your selection, press the “Channel Skip” button on the touch-
screen, select the channels you would like to skip.
Subscription Information Subscription Info
NOTE:
New vehicle purchasers or lessees will receive a free limited time subscription to SiriusXM Satellite Radio with your
radio. Following the expiration of the free services, it will be necessary to access the information on the Subscription
Information screen to re-subscribe.
1. Press the “Subscription Info” button on the touchscreen to access the Subscription Information screen.
458 MULTIMEDIA

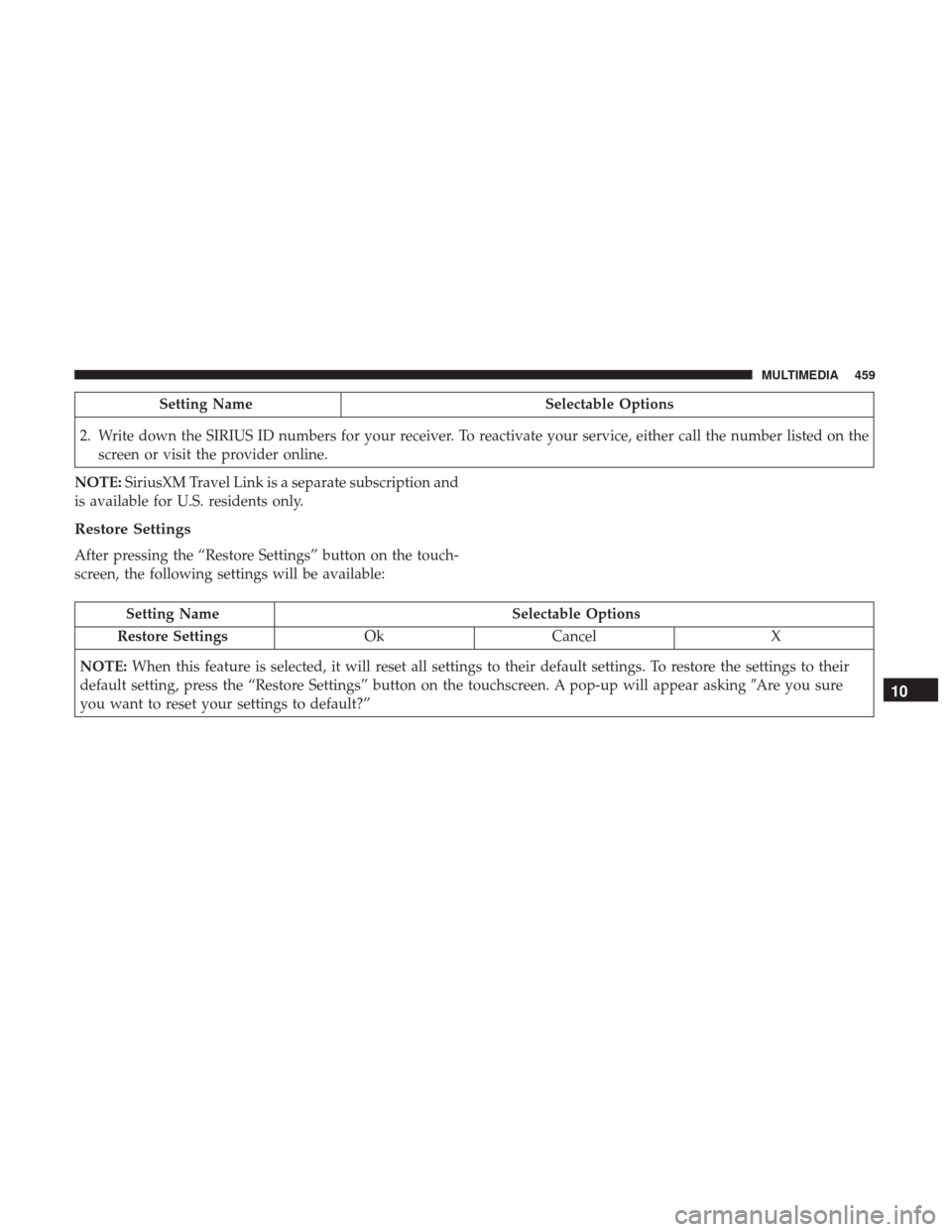

Setting NameSelectable Options
2. Write down the SIRIUS ID numbers for your receiver. To reactivate your service, either call the number listed on the screen or visit the provider online.
NOTE: SiriusXM Travel Link is a separate subscription and
is available for U.S. residents only.
Restore Settings
After pressing the “Restore Settings” button on the touch-
screen, the following settings will be available:
Setting Name Selectable Options
Restore Settings OkCancel X
NOTE: When this feature is selected, it will reset all settings to their default settings. To restore the settings to their
default setting, press the “Restore Settings” button on the touchscreen. A pop-up will appear asking Are you sure
you want to reset your settings to default?”
10
MULTIMEDIA 459

Clear Personal Data
After pressing the “Clear Personal Data” button on the
touchscreen, the following settings will be available:
Setting NameSelectable Options
Clear Personal Data OKCancel X
NOTE: When this feature is selected, it will remove all personal data including Bluetooth devices and presets. To re-
move personal information, press the “Clear Personal Data” button and a pop-up will appear asking Are you sure
you want to clear all personal data?”
Restore Apps — If Equipped OK
Cancel X
NOTE: When this feature is selected, it will reset Apps to their default settings. To remove restore apps, press the
“Restore Apps” button and a pop-up will appear.
Customer Programmable Features — Uconnect 6.5
NAV Settings
Press the Settings button to display the menu setting
screen. In this mode the Uconnect system allows you to
access programmable features that may be equipped such
as Display, Clock, Safety & Driving Assistance, Lights,
Doors & Locks, Engine Off Options, Audio, Phone/
Bluetooth, SiriusXM Setup, Restore Settings Defaults, Clear
Personal Data and System Information. NOTE:
•
Only one touchscreen area may be selected at a time.
• Depending on the vehicles options, feature settings may
vary.
460 MULTIMEDIA

When making a selection, press the button on the touch-
screen to enter the desired mode. Once in the desired
mode, press and release the preferred setting and make
your selection. Once the setting is complete, either press
the Back Arrow button on the touchscreen to return to the
previous menu, or press the “X” button on the touchscreen
to close out of the settings screen. Pressing the Up or DownArrow button on the right side of the screen will allow you
to toggle up or down through the available settings.
Display
After pressing the “Display” button on the touchscreen, the
following settings will be available:
Setting Name
Selectable Options
Display Mode AutoManual
NOTE: When Day or Night is selected for the Display Mode, the usage of the Parade Mode feature will cause the
radio to activate the Display Brightness Day control even though the headlights are on.
Display Brightness With Headlights ON +–
Display Brightness With Headlights OFF +–
Set Language English/Español/Français
Touchscreen Beep OnOff
10
MULTIMEDIA 461

Units
After pressing the “Units” button on the touchscreen, you
may select each unit of measure independently displayedin the instrument cluster display. The following selectable
units of measure are listed below:
Setting Name
Selectable Options
Units USMetric Custom
After pressing the “Custom” button with “Units” on the
touchscreen, you may select from the following menu
items:
Setting Name Selectable Options
Distance mi km
Fuel Consumption MPG (US)L/100 kmkm/L
Pressure psikPa bar
Temperature °C °F
Voice
After pressing the “Voice” button on the touchscreen, the
following settings will be available:
Setting Name Selectable Options
Voice Response Length Brief Detailed
Show Command List AlwaysWith Help Never
462 MULTIMEDIA
