2016 TOYOTA SIENNA Owners Manual

SIENNA_OM_OM08013U_(U)
6259-2. Customization
9
Vehicle specifications

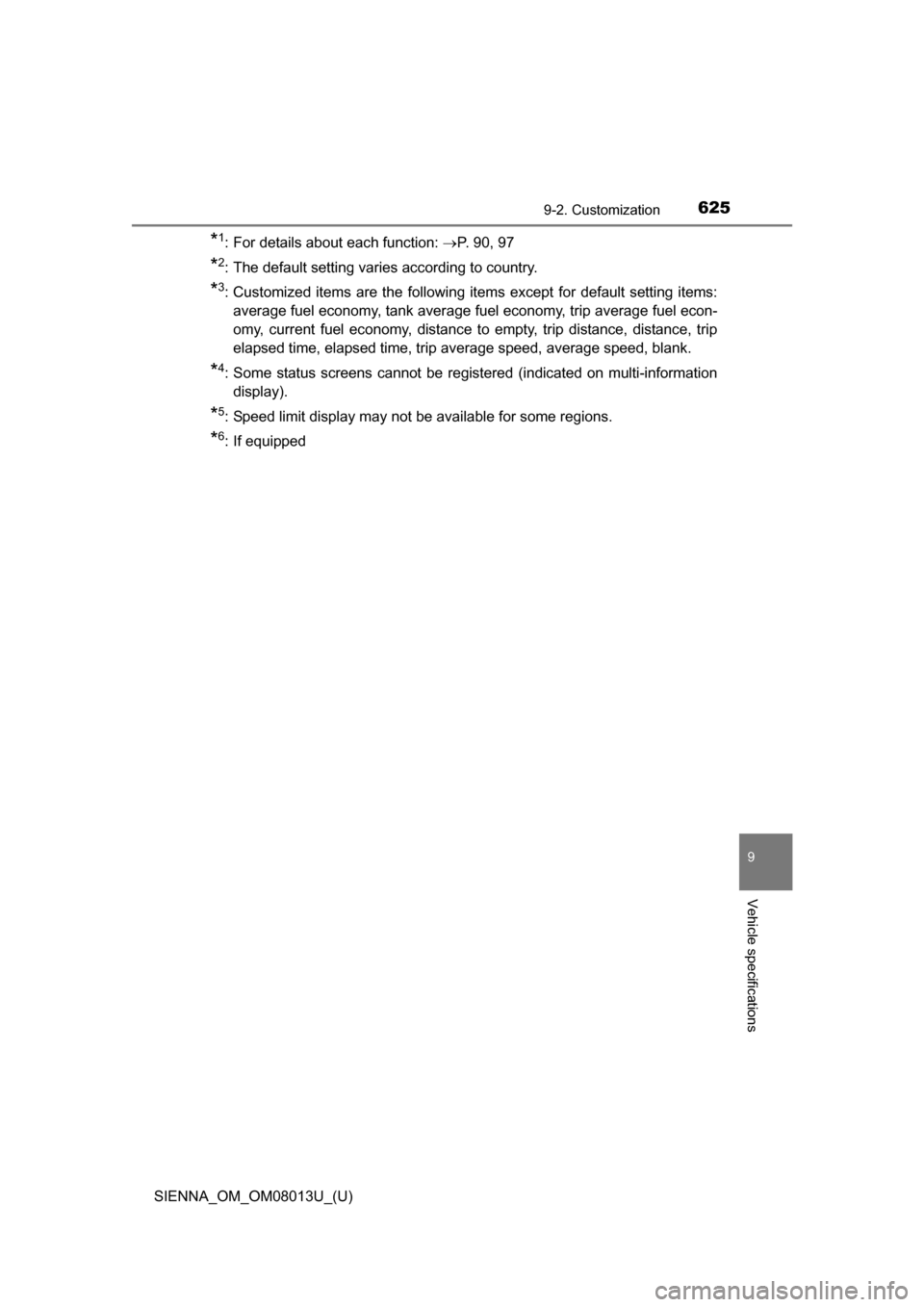

*1: For details about each function: P. 90, 97
*2: The default setting varies according to country.
*3: Customized items are the following items except for default setting items:average fuel economy, tank average fuel economy, trip average fuel econ-
omy, current fuel economy, distance to empty, trip distance, distance, trip
elapsed time, elapsed time, trip average speed, average speed, blank.
*4: Some status screens cannot be regist ered (indicated on multi-information
display).
*5: Speed limit display may not be available for some regions.
*6: If equipped

626
SIENNA_OM_OM08013U_(U)
9-2. Customization

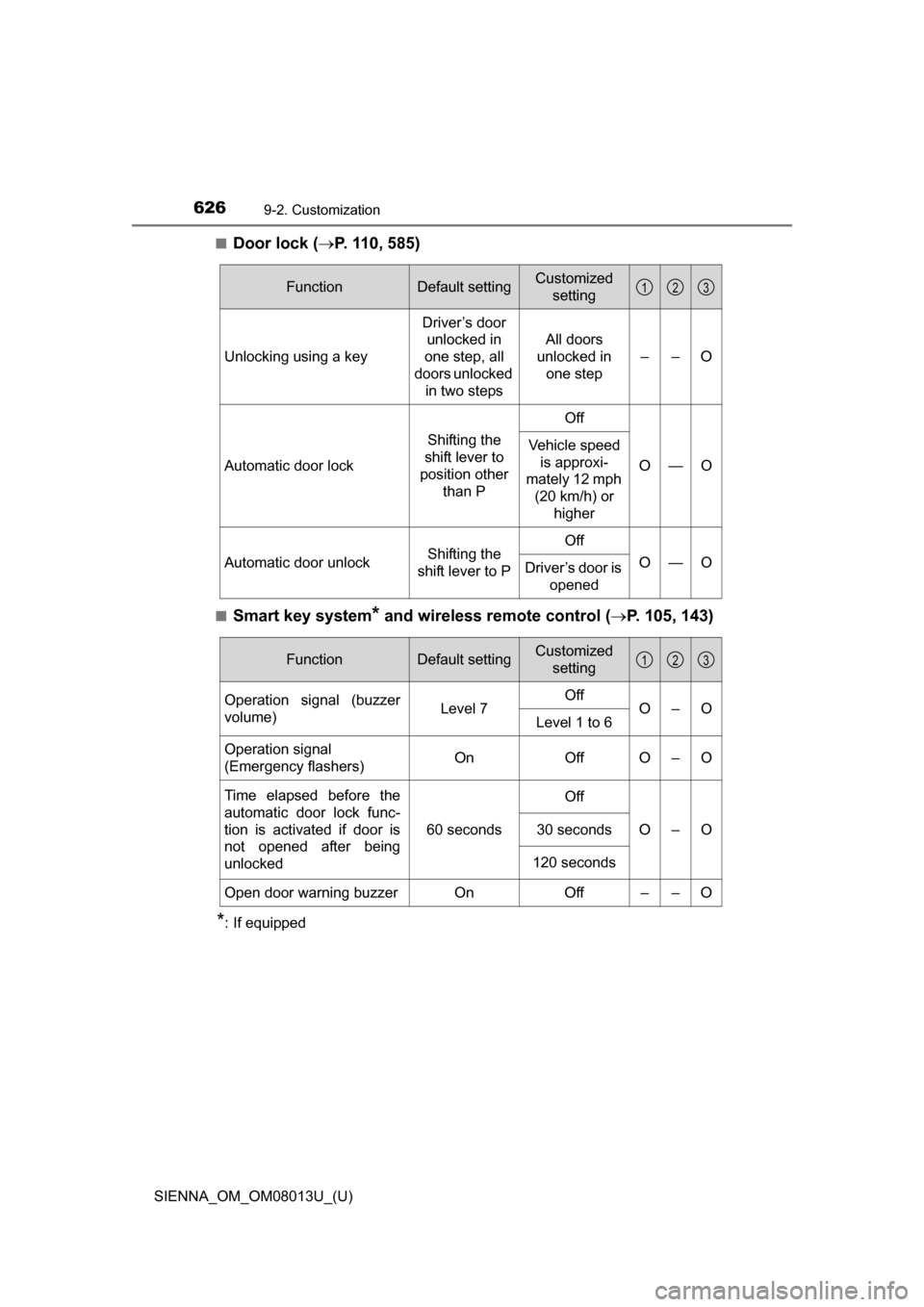

■Door lock (P. 110, 585)
■Smart key system* and wireless remote control ( P. 105, 143)
*: If equipped
FunctionDefault settingCustomized
setting
Unlocking using a key Driver’s door
unlocked in
one step, all
doors unlocked in two steps All doors
unlocked in
one step ––O
Automatic door lock
Shifting the
shift lever to
position other than P
Off
O—O
Vehicle speed
is approxi-
mately 12 mph (20 km/h) or
higher
Automatic door unlockShifting the
shift lever to POff
O—ODriver’s door is opened
123
FunctionDefault settingCustomized setting
Operation signal (buzzer
volume) Level 7Off
O–O
Level 1 to 6
Operation signal
(Emergency flashers) On Off O – O
Time elapsed before the
automatic door lock func-
tion is activated if door is
not opened after being
unlocked 60 seconds
Off
O–O
30 seconds
120 seconds
Open door warning buzzer On Off – – O
123

SIENNA_OM_OM08013U_(U)
6279-2. Customization
9
Vehicle specifications

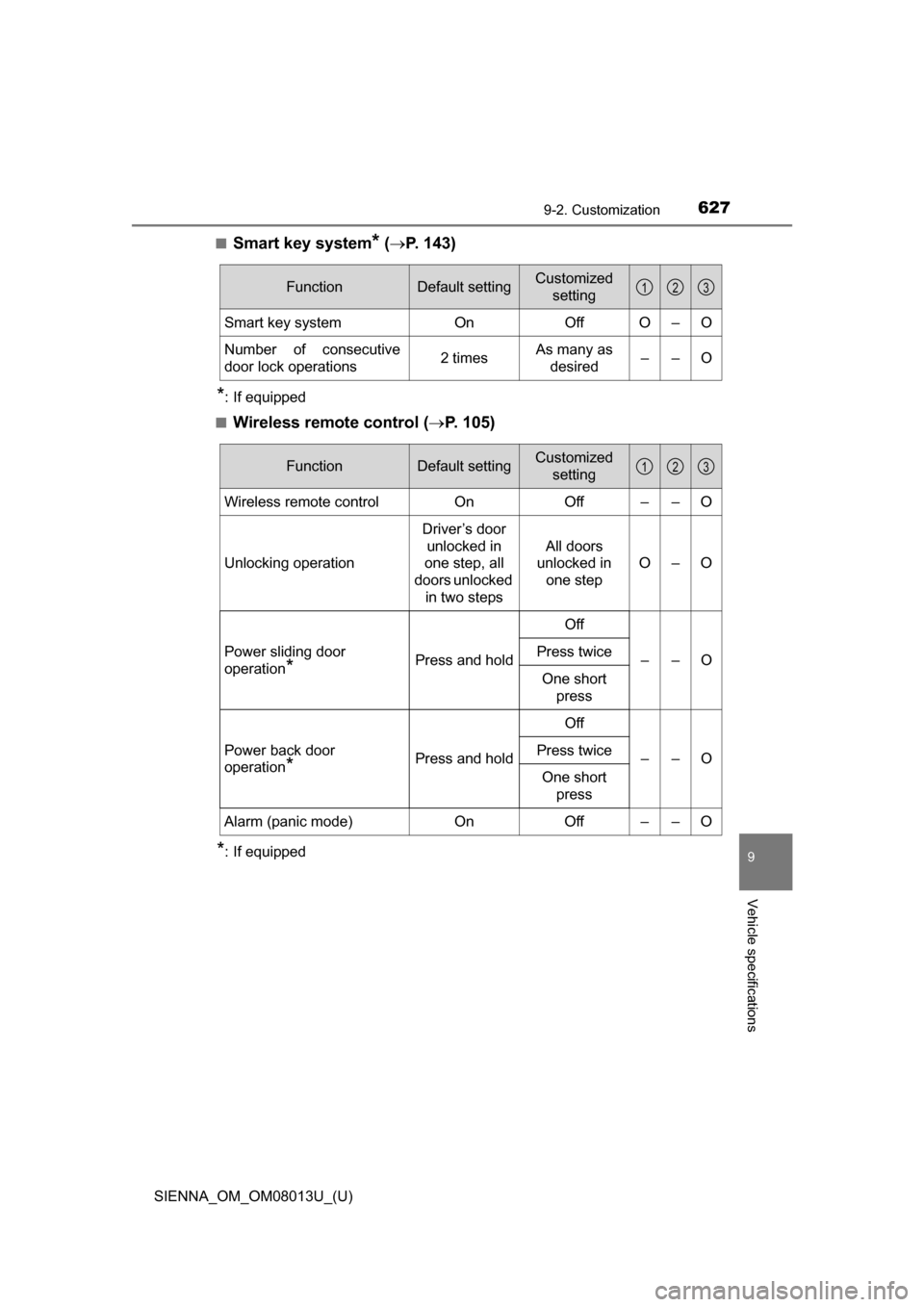

■Smart key system* ( P. 143)
*: If equipped
■
Wireless remote control ( P. 105)
*: If equipped
FunctionDefault settingCustomized
setting
Smart key system OnOff O – O
Number of consecutive
door lock operations 2 timesAs many as
desired ––O
123
FunctionDefault settingCustomized
setting
Wireless remote control OnOff – – O
Unlocking operation Driver’s door
unlocked in
one step, all
doors unlocked
in two steps All doors
unlocked in one step O–O
Power sliding door
operation
*Press and hold
Off
––O
Press twice
One short press
Power back door
operation
*Press and hold
Off
––O
Press twice
One short press
Alarm (panic mode) OnOff – – O
123

628
SIENNA_OM_OM08013U_(U)
9-2. Customization

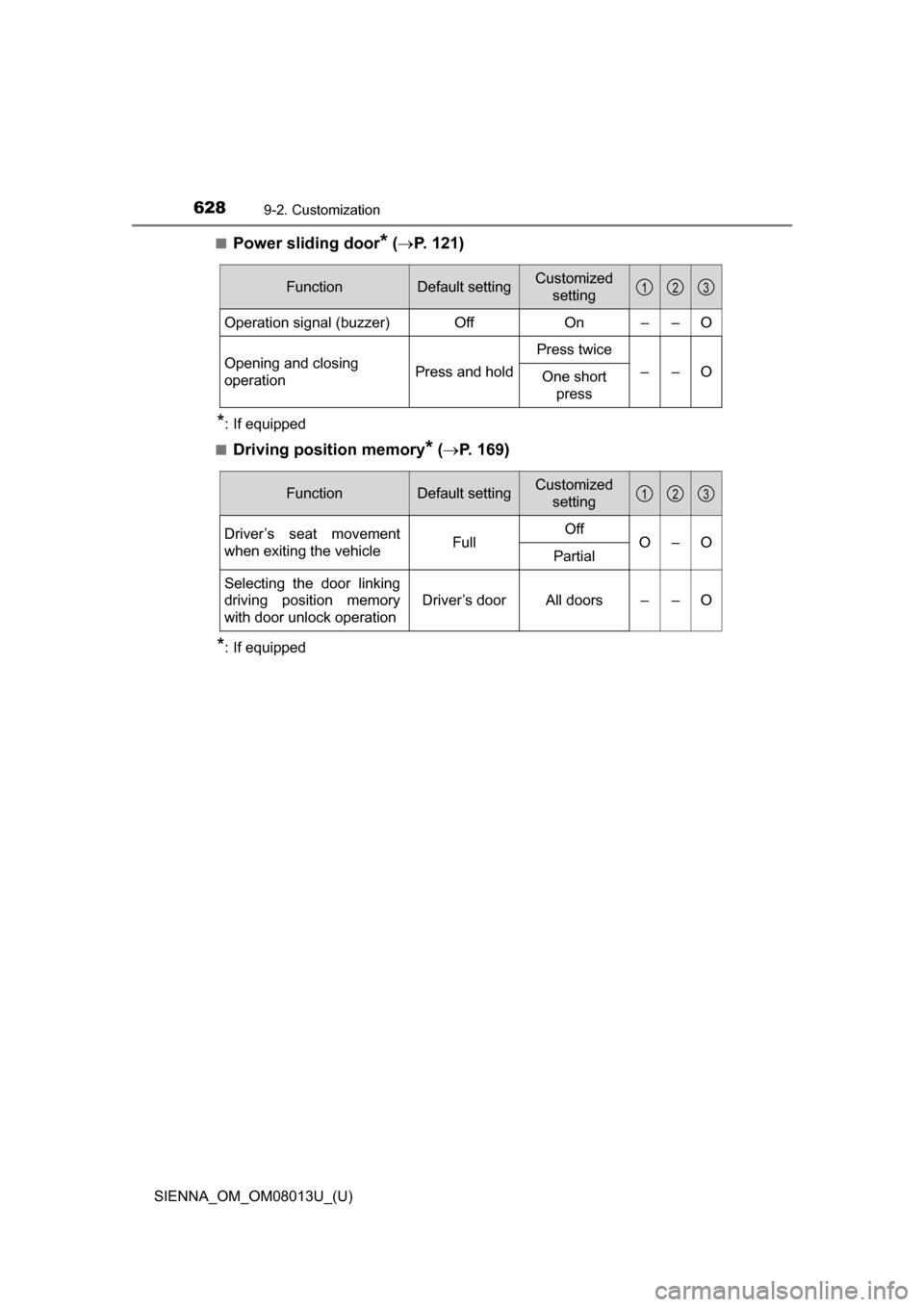

■Power sliding door* ( P. 121)
*: If equipped
■
Driving position memory* (  P. 169)
*: If equipped
FunctionDefault settingCustomized
setting
Operation signal (buzzer)OffOn – – O
Opening and closing
operationPress and hold
Press twice
––O
One short press
123
FunctionDefault settingCustomized
setting
Driver’s seat movement
when exiting the vehicleFullOff O–O
Partial
Selecting the door linking
driving position memory
with door unlock operation
Driver’s doorAll doors – – O
123

SIENNA_OM_OM08013U_(U)
6299-2. Customization
9
Vehicle specifications

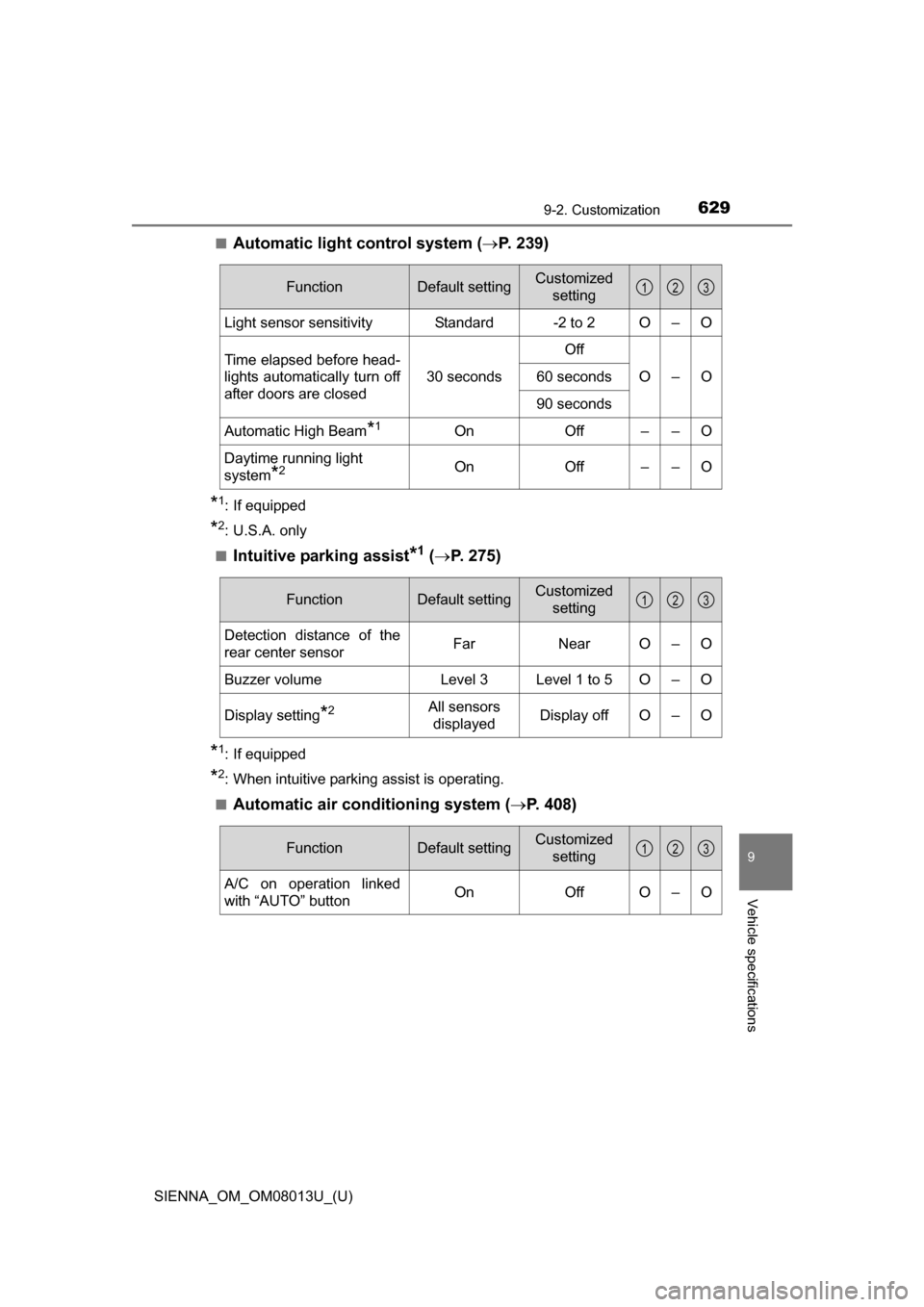

■Automatic light control system (P. 239)
*1: If equipped
*2: U.S.A. only
■
Intuitive parking assist*1 (  P. 275)
*1: If equipped
*2: When intuitive parking assist is operating.
■
Automatic air condi tioning system (P. 408)
FunctionDefault settingCustomized
setting
Light sensor sensitivity Standard -2 to 2 O – O
Time elapsed before head-
lights automatically turn off
after doors are closed 30 secondsOff
O–O
60 seconds
90 seconds
Automatic High Beam
*1On Off – – O
Daytime running light
system
*2On Off – – O
123
FunctionDefault settingCustomized
setting
Detection distance of the
rear center sensor Far Near O – O
Buzzer volume Level 3 Level 1 to 5 O – O
Display setting
*2All sensors displayed Display off O – O
123
FunctionDefault settingCustomized
setting
A/C on operation linked
with “AUTO” button On Off O – O
123

630
SIENNA_OM_OM08013U_(U)
9-2. Customization

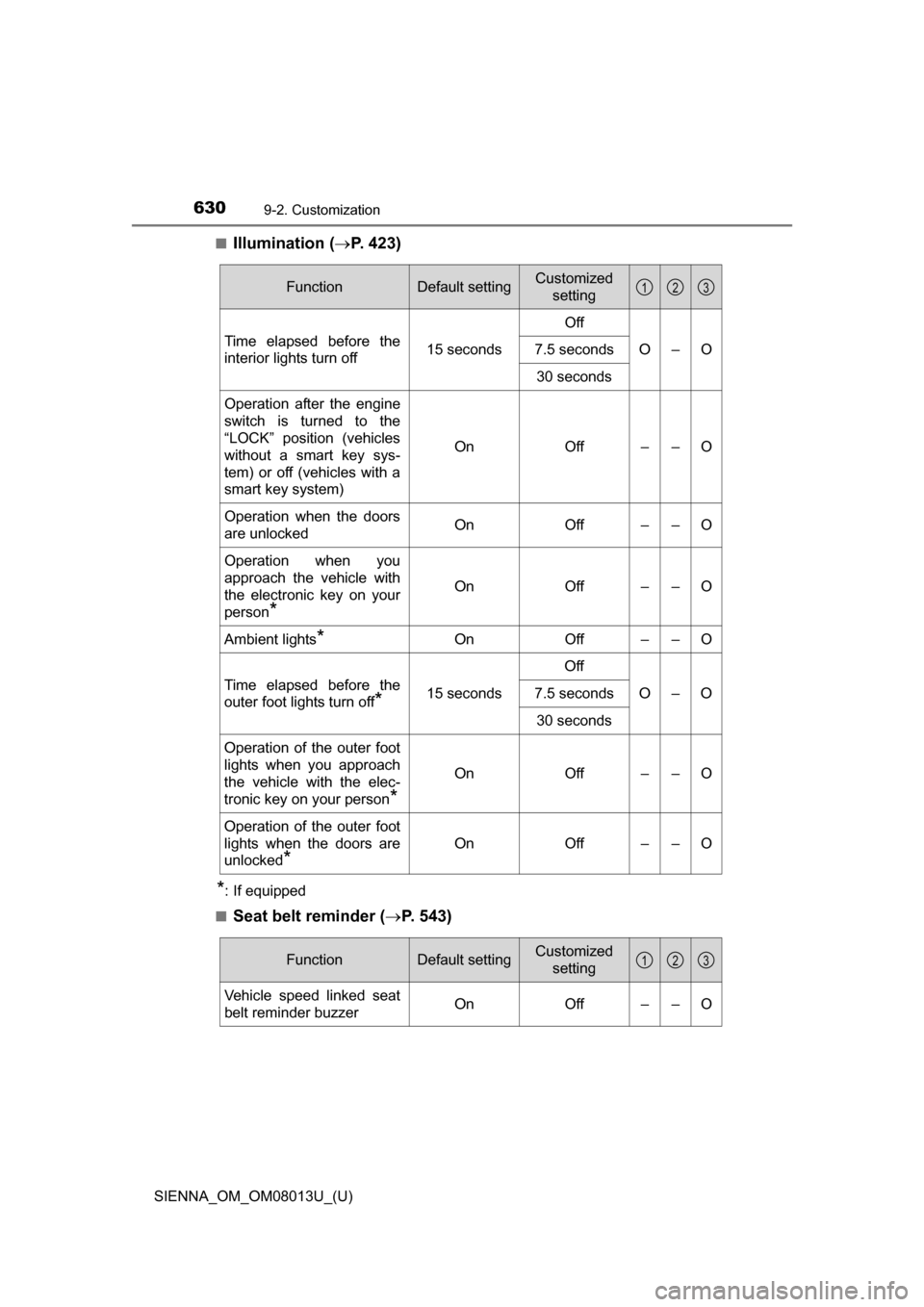

■Illumination (P. 423)
*: If equipped
■
Seat belt reminder ( P. 543)
FunctionDefault settingCustomized
setting
Time elapsed before the
interior lights turn off 15 secondsOff
O–O
7.5 seconds
30 seconds
Operation after the engine
switch is turned to the
“LOCK” position (vehicles
without a smart key sys-
tem) or off (vehicles with a
smart key system) On Off – – O
Operation when the doors
are unlocked On Off – – O
Operation when you
approach the vehicle with
the electronic key on your
person
*
On Off – – O
Ambient lights
*On Off – – O
Time elapsed before the
outer foot lights turn off
*15 seconds Off
O–O
7.5 seconds
30 seconds
Operation of the outer foot
lights when you approach
the vehicle with the elec-
tronic key on your person
*
On Off – – O
Operation of the outer foot
lights when the doors are
unlocked
*
On Off – – O
123
FunctionDefault settingCustomized
setting
Vehicle speed linked seat
belt reminder buzzer On Off – – O
123

SIENNA_OM_OM08013U_(U)
6319-2. Customization
9
Vehicle specifications

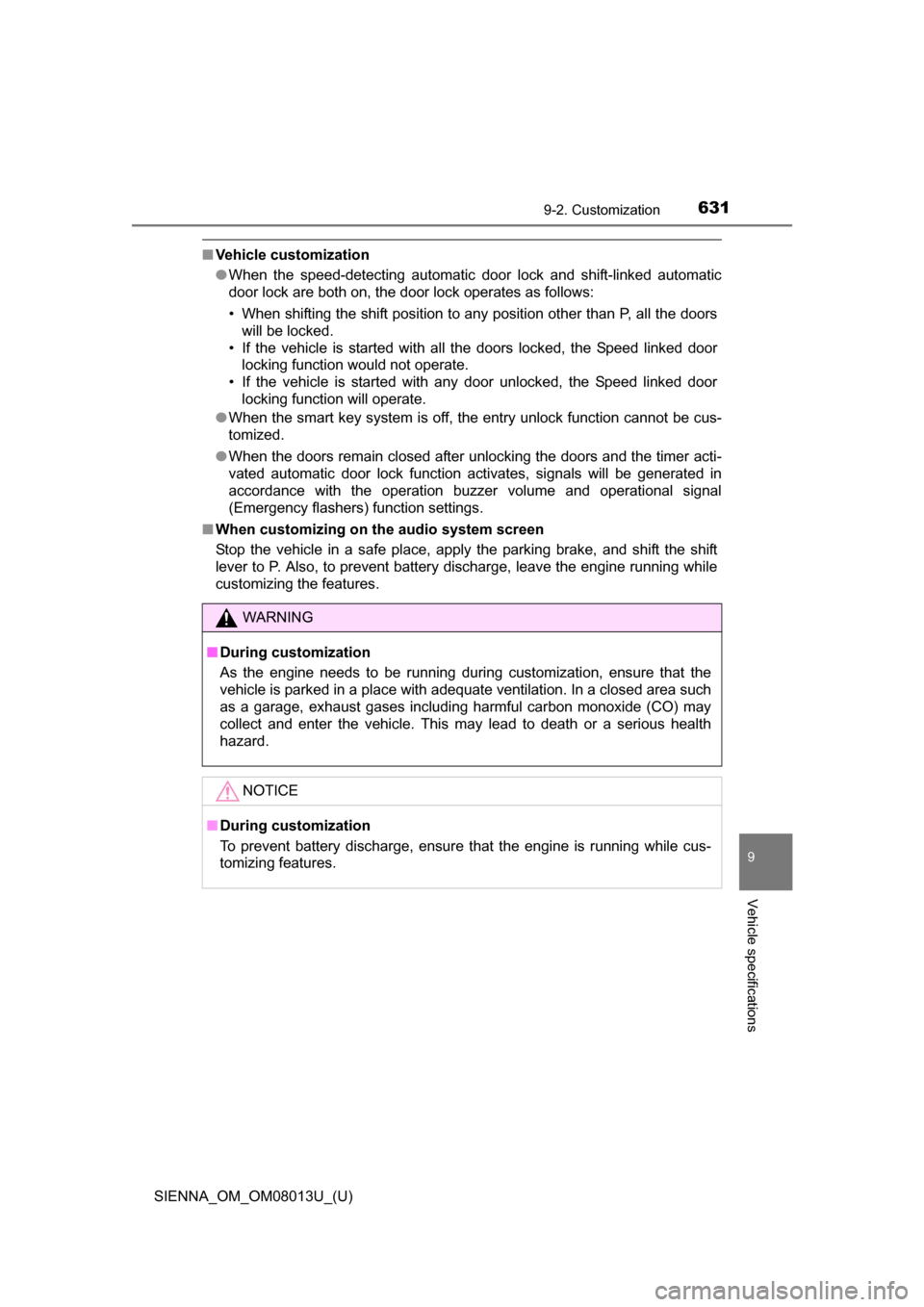

■Vehicle customization
●When the speed-detecting automatic door lock and shift-linked automatic
door lock are both on, the door lock operates as follows:
• When shifting the shift position to any position other than P, all the doors
will be locked.
• If the vehicle is started with all the doors locked, the Speed linked door locking function would not operate.
• If the vehicle is started with any door unlocked, the Speed linked door locking function will operate.
● When the smart key system is off, the entry unlock function cannot be cus-
tomized.
● When the doors remain closed after unlocking the doors and the timer acti-
vated automatic door lock function activates, signals will be generated in
accordance with the operation buzzer volume and operational signal
(Emergency flashers) function settings.
■ When customizing on the audio system screen
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P. Also, to prevent battery discharge, leave the engine running while
customizing the features.
WARNING
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

632
SIENNA_OM_OM08013U_(U)
9-3. Initialization

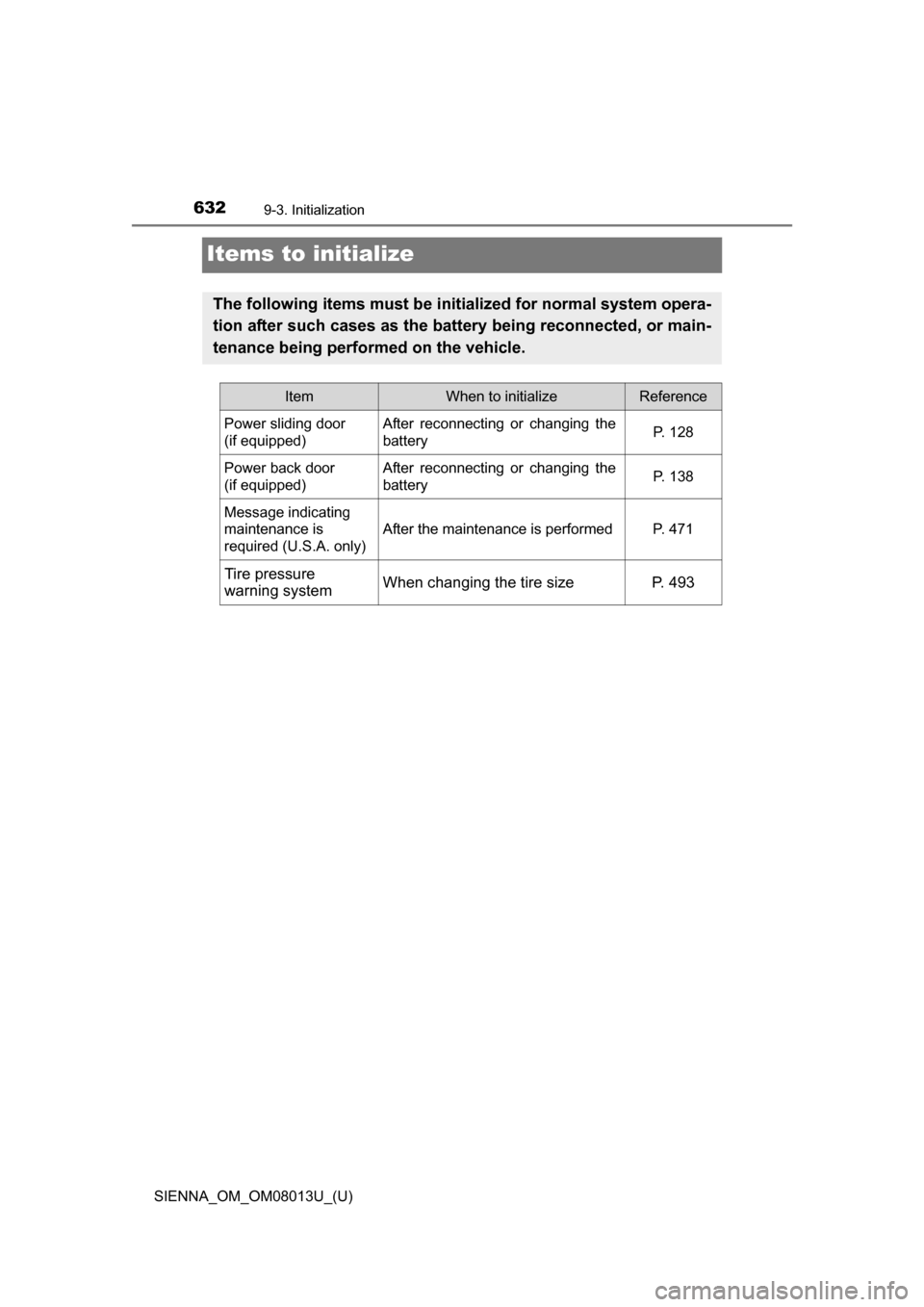

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle.
ItemWhen to initializeReference
Power sliding door
(if equipped) After reconnecting or changing the
battery
P. 128
Power back door
(if equipped) After reconnecting or changing the
battery
P. 138
Message indicating
maintenance is
required (U.S.A. only) After the maintenance is performed P. 471
Tire pressure
warning system
When changing the tire size
P. 493
