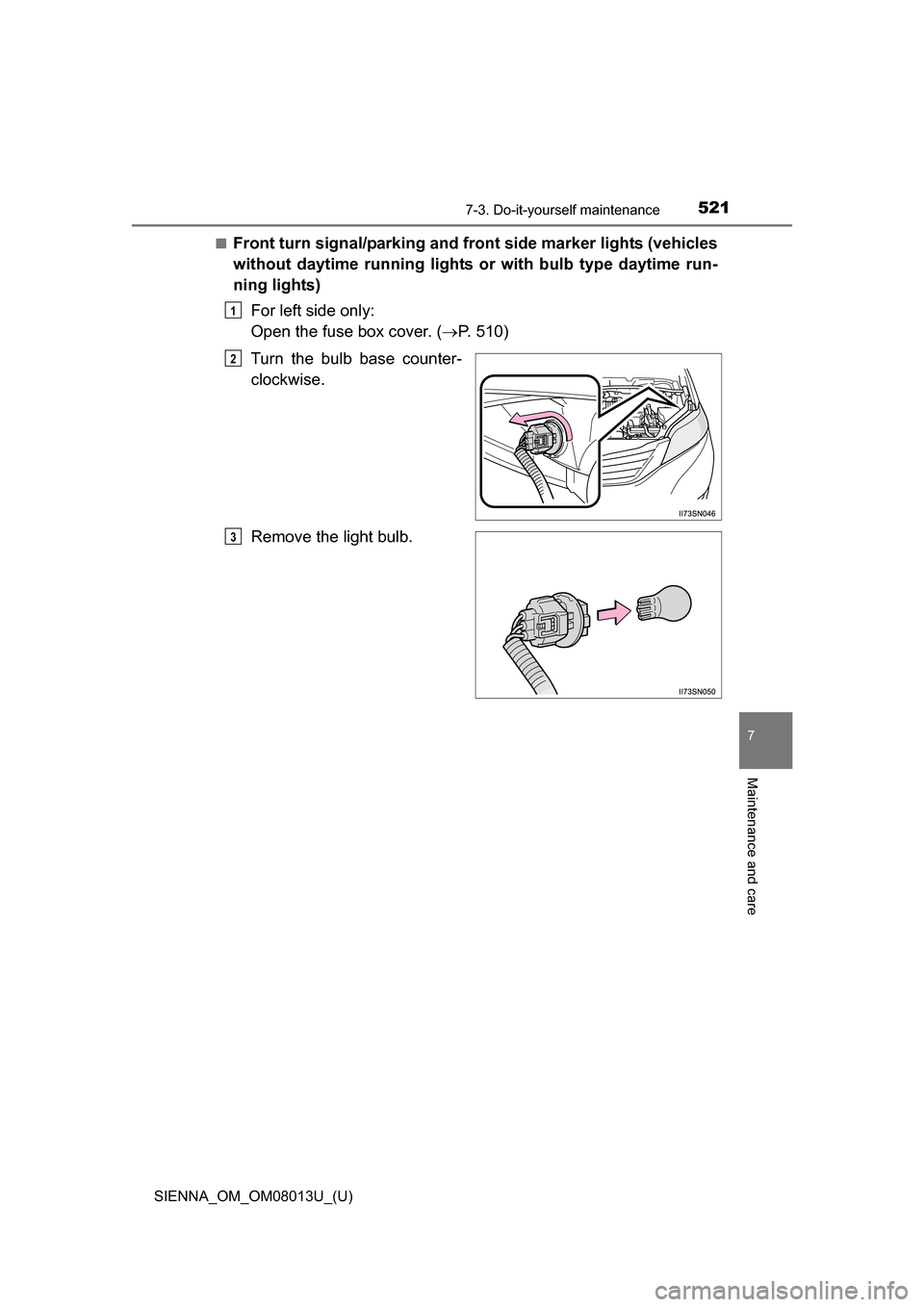

■Front turn signal/parking and front side marker lights (vehicles
without daytime running lights or with bulb type daytime run-
ning lights)
For left side only:
Open the fuse box cover. ( P. 510)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3

522
SIENNA_OM_OM08013U_(U)
7-3. Do-it-yourself maintenance

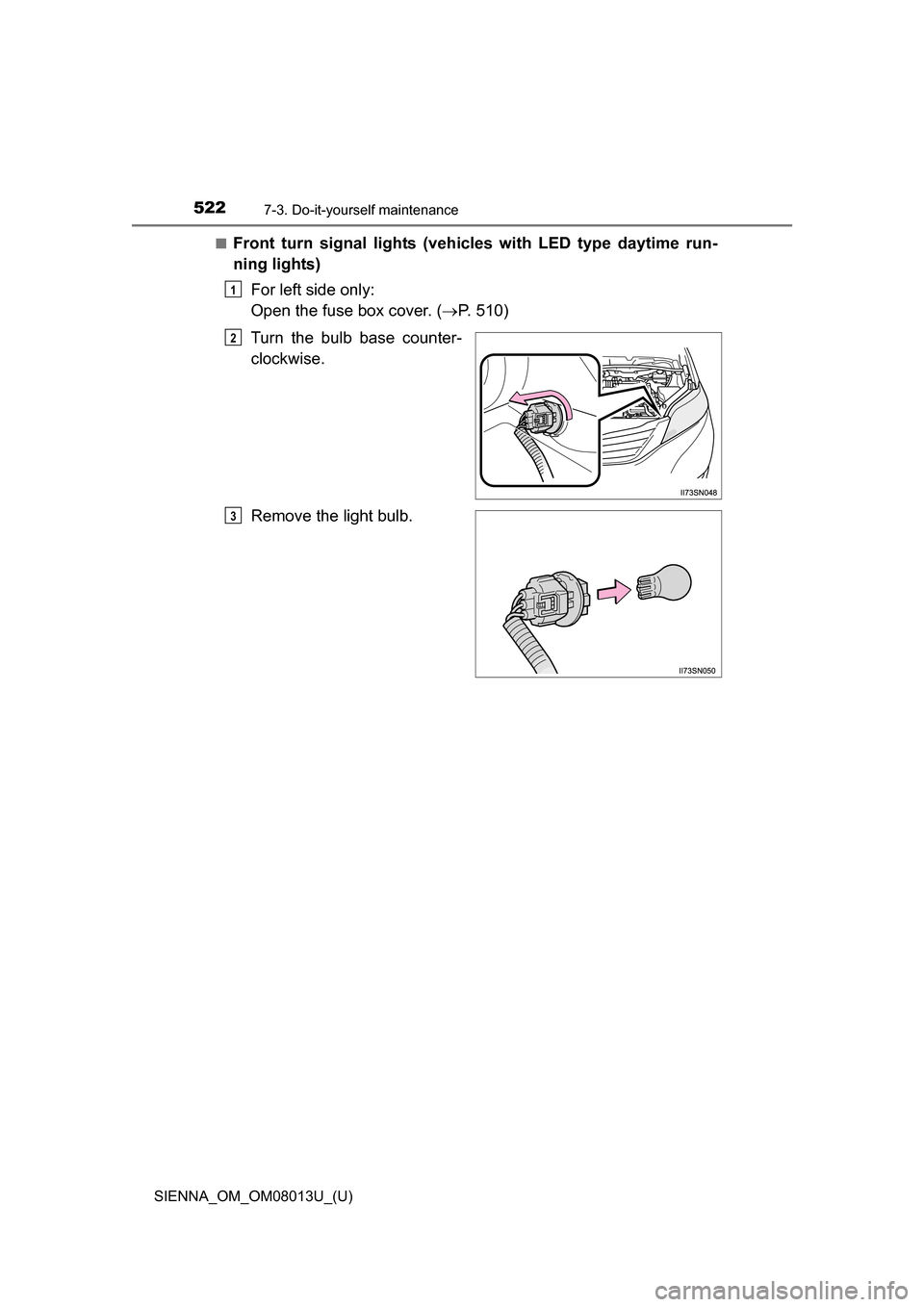

■Front turn signal lights (vehicles with LED type daytime run-
ning lights)For left side only:
Open the fuse box cover. ( P. 510)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3

SIENNA_OM_OM08013U_(U)
5237-3. Do-it-yourself maintenance
7
Maintenance and care

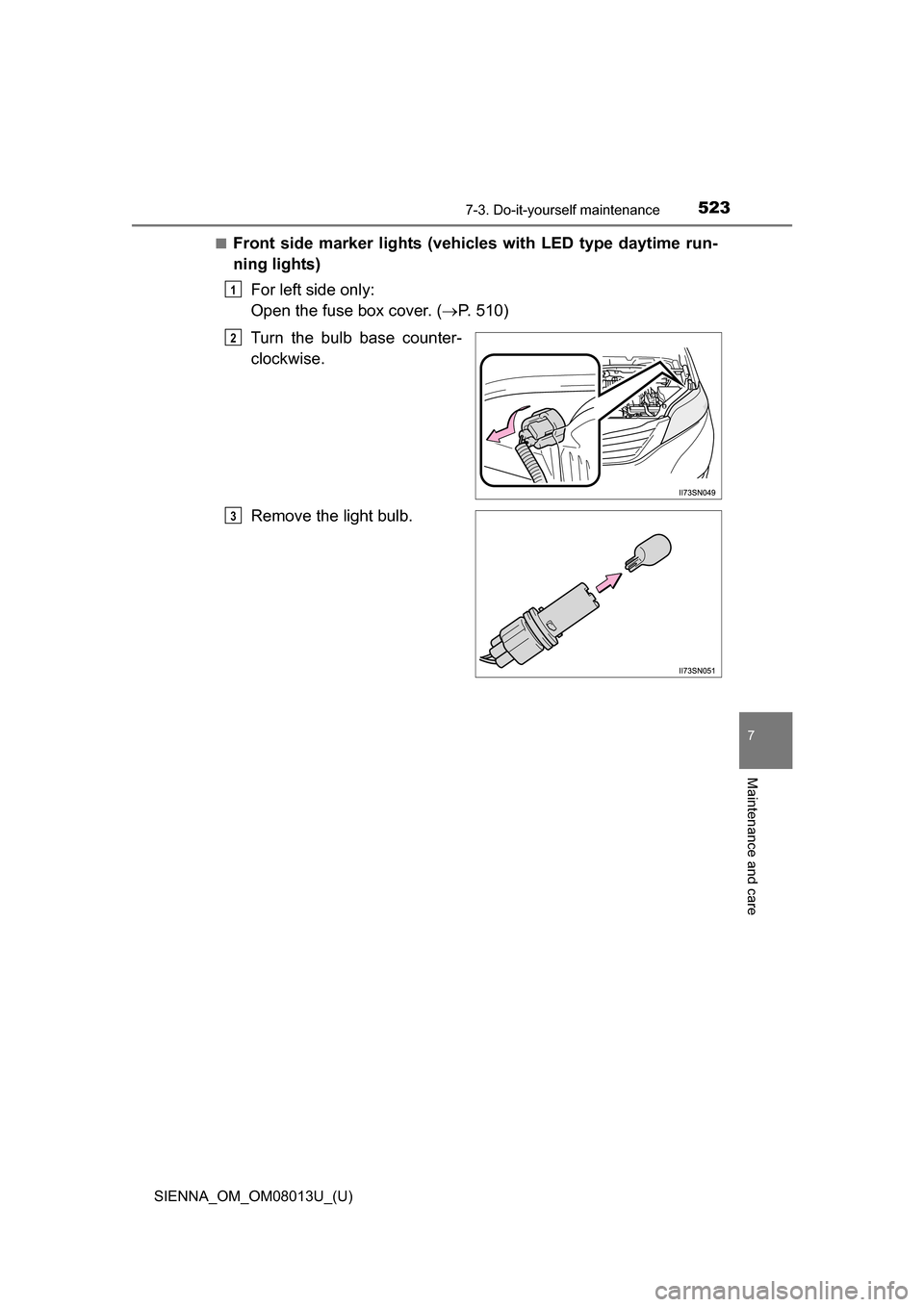

■Front side marker lights (vehicles with LED type daytime run-
ning lights)
For left side only:
Open the fuse box cover. ( P. 510)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3

524
SIENNA_OM_OM08013U_(U)
7-3. Do-it-yourself maintenance

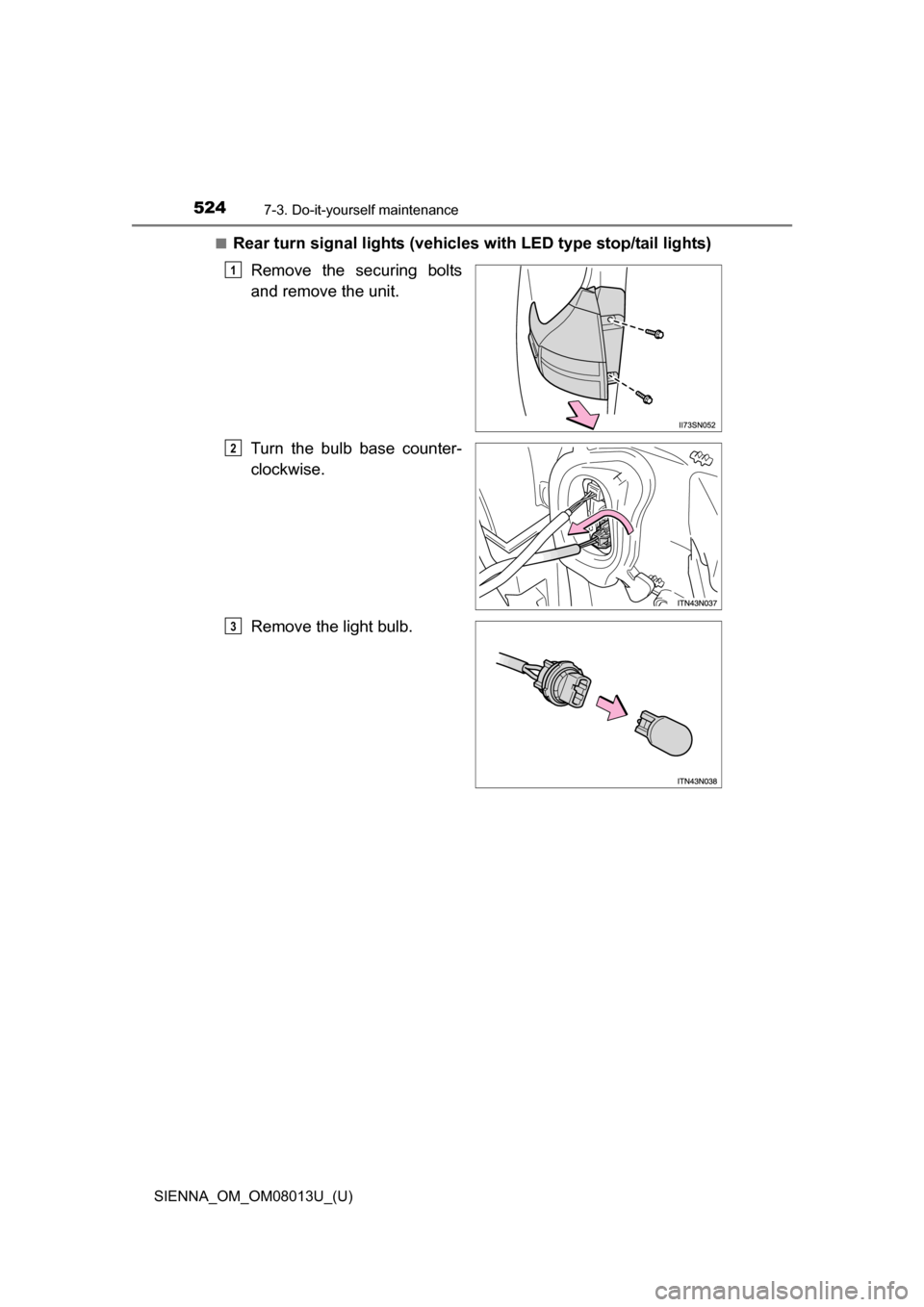

■Rear turn signal lights (vehicles with LED type stop/tail lights)Remove the securing bolts
and remove the unit.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3

SIENNA_OM_OM08013U_(U)
5257-3. Do-it-yourself maintenance
7
Maintenance and care

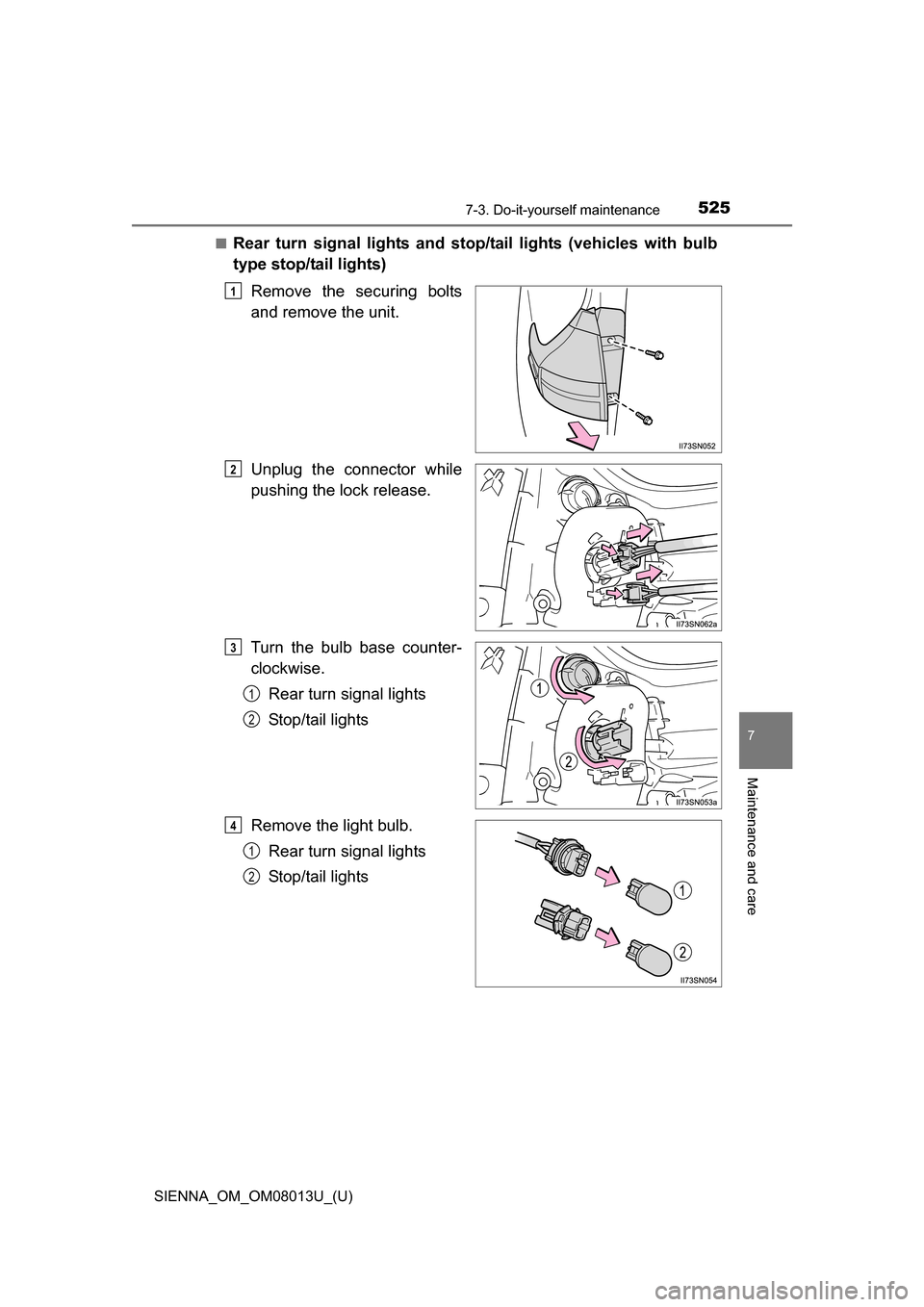

■Rear turn signal lights and stop/tail lights (vehicles with bulb
type stop/tail lights)
Remove the securing bolts
and remove the unit.
Unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.Rear turn signal lights
Stop/tail lights
Remove the light bulb. Rear turn signal lights
Stop/tail lights
1
2
3
1
2
4
1
2

526
SIENNA_OM_OM08013U_(U)
7-3. Do-it-yourself maintenance

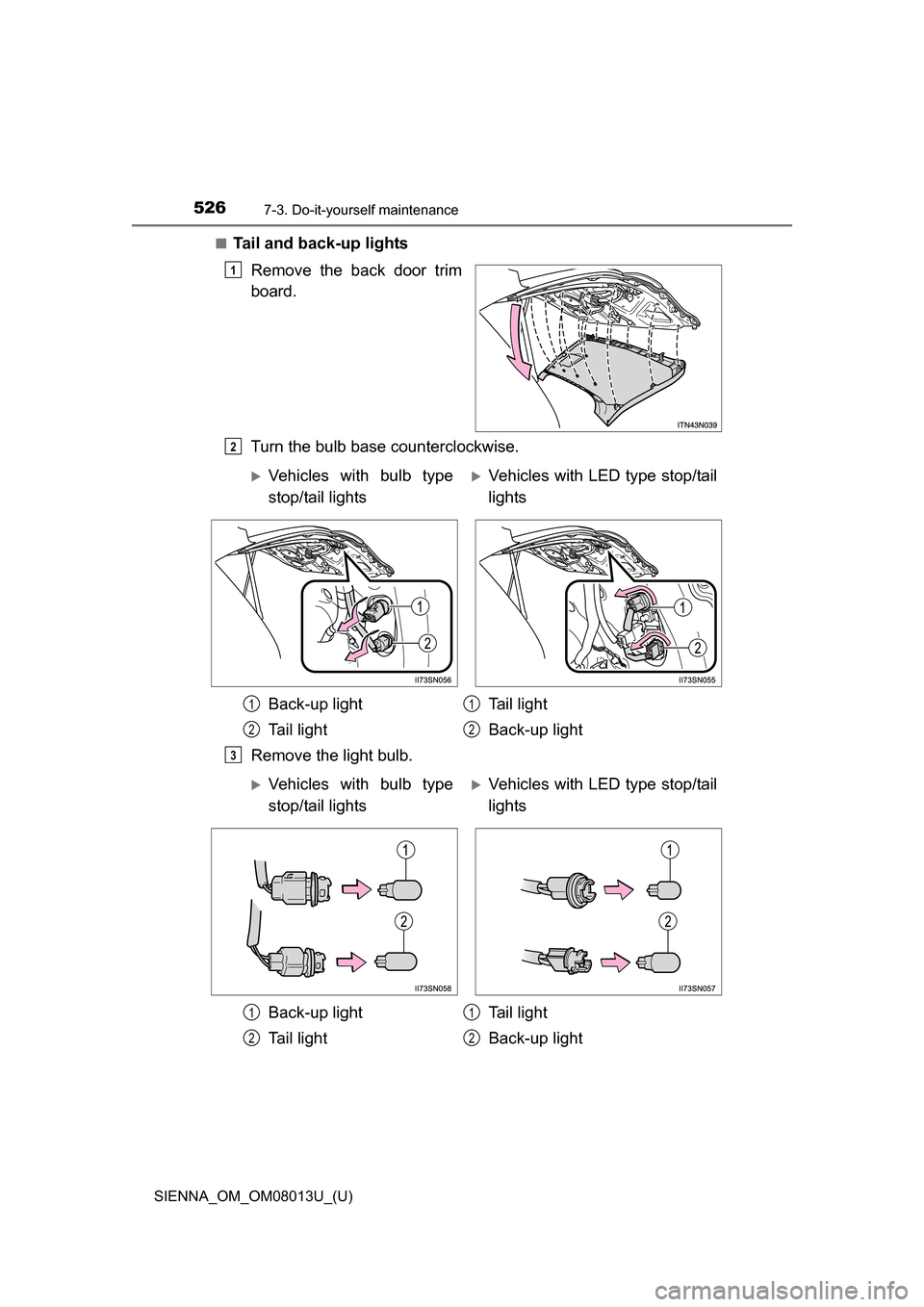

■Tail and back-up lightsRemove the back door trim
board.
Turn the bulb base counterclockwise.
Remove the light bulb.
1
2
Vehicles with bulb type
stop/tail lightsVehicles with LED type stop/tail
lights
Back-up light
Tail light Tail light
Back-up light
1
2
1
2
3
Vehicles with bulb type
stop/tail lightsVehicles with LED type stop/tail
lights
Back-up light
Tail light Tail light
Back-up light
1
2
1
2

SIENNA_OM_OM08013U_(U)
5277-3. Do-it-yourself maintenance
7
Maintenance and care

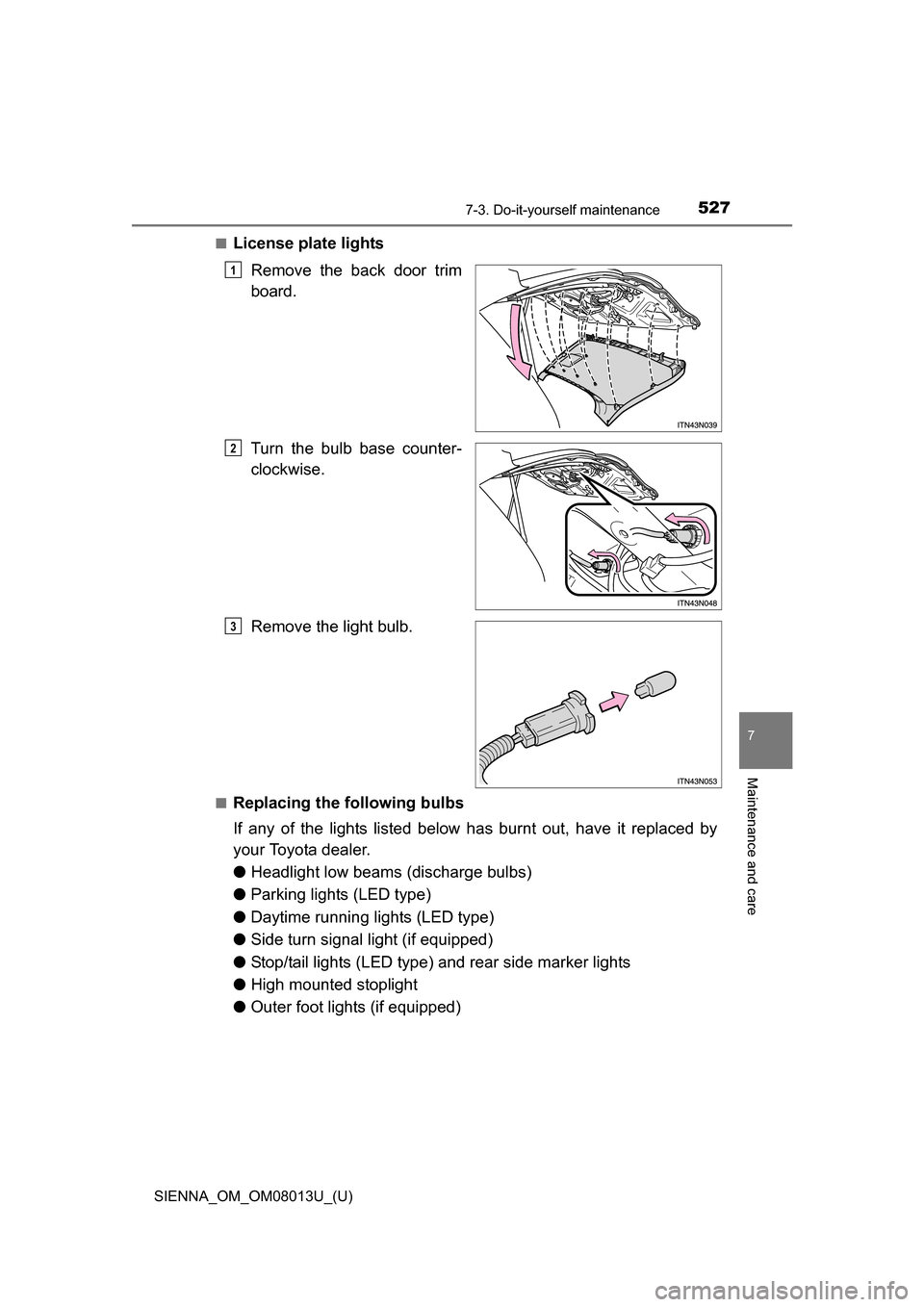

■License plate lightsRemove the back door trim
board.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlight low beams (discharge bulbs)
● Parking lights (LED type)
● Daytime running lights (LED type)
● Side turn signal light (if equipped)
● Stop/tail lights (LED type) and rear side marker lights
● High mounted stoplight
● Outer foot lights (if equipped)
1
2
3

528
SIENNA_OM_OM08013U_(U)
7-3. Do-it-yourself maintenance

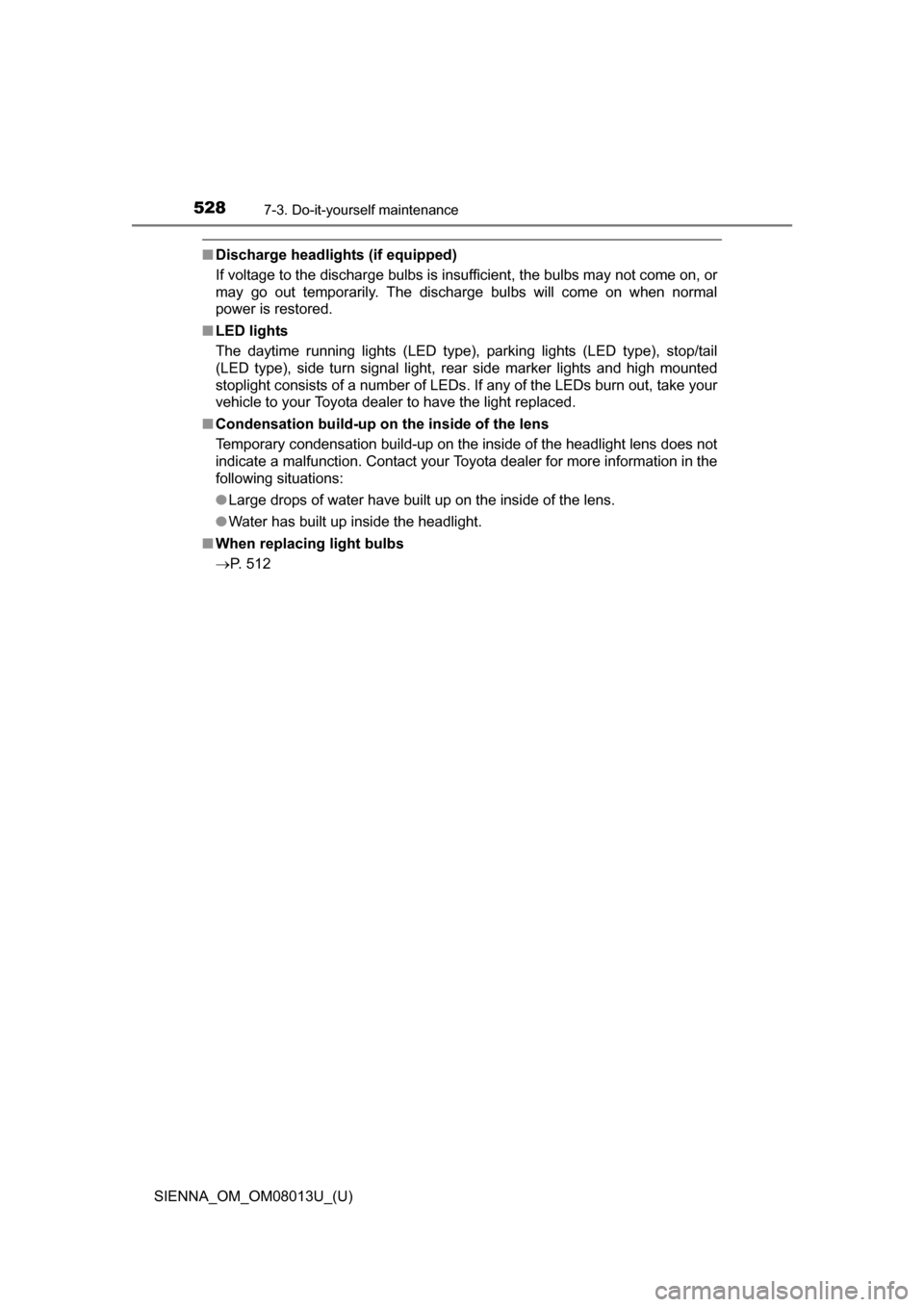

■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or
may go out temporarily. The discharge bulbs will come on when normal
power is restored.
■ LED lights
The daytime running lights (LED type), parking lights (LED type), stop/tail
(LED type), side turn signal light, r ear side marker lights and high mounted
stoplight consists of a number of LEDs. If any of the LEDs burn out, take your
vehicle to your Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact your Toyota dealer for more information in the
following situations:
●Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
P. 512
