2016 TOYOTA SIENNA Owners Manual

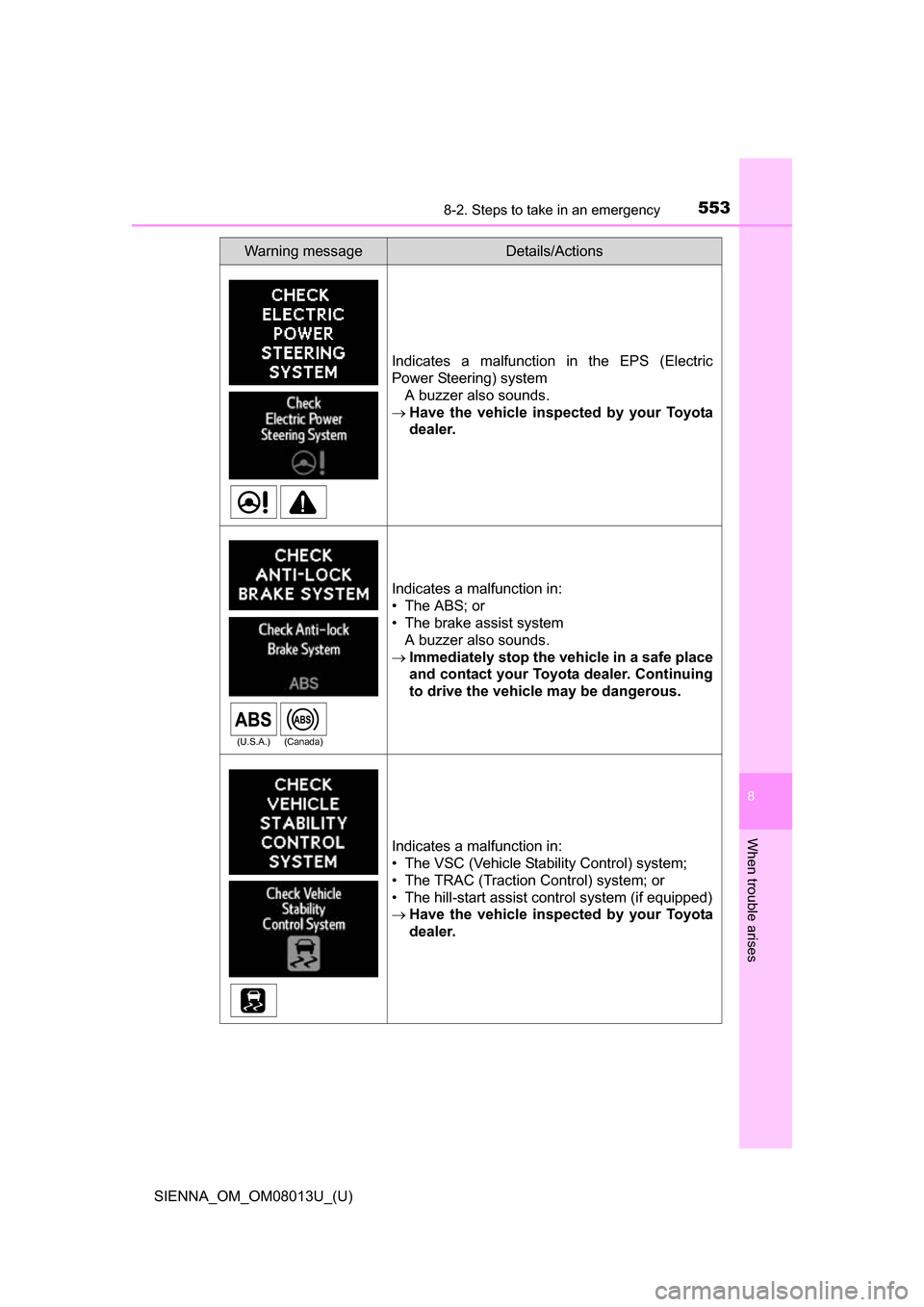

5538-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
8
When trouble arises
Indicates a malfunction in the EPS (Electric
Power Steering) systemA buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates a malfunction in:
• The ABS; or
• The brake assist system A buzzer also sounds.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRAC (Traction Control) system; or
• The hill-start assist control system (if equipped)
 Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions
(U.S.A.) (Canada)

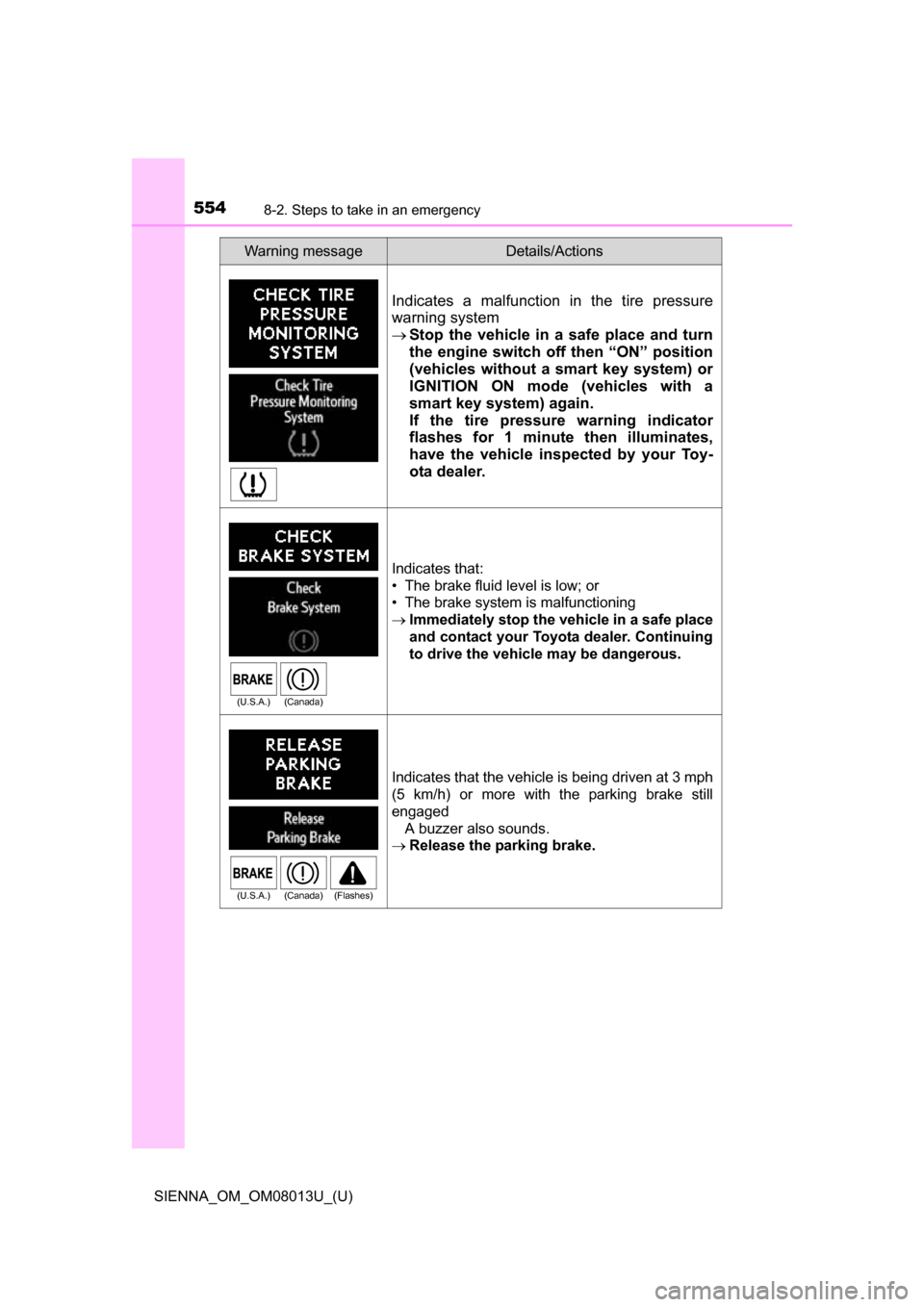

5548-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
Indicates a malfunction in the tire pressure
warning system
Stop the vehicle in a safe place and turn
the engine switch off then “ON” position
(vehicles without a smart key system) or
IGNITION ON mode (vehicles with a
smart key system) again.
If the tire pressure warning indicator
flashes for 1 minute then illuminates,
have the vehicle inspected by your Toy-
ota dealer.
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
Indicates that the vehicle is being driven at 3 mph
(5 km/h) or more with the parking brake still
engaged A buzzer also sounds.
 Release the parking brake.
Warning messageDetails/Actions
(U.S.A.) (Canada)
(U.S.A.) (Canada) (Flashes)

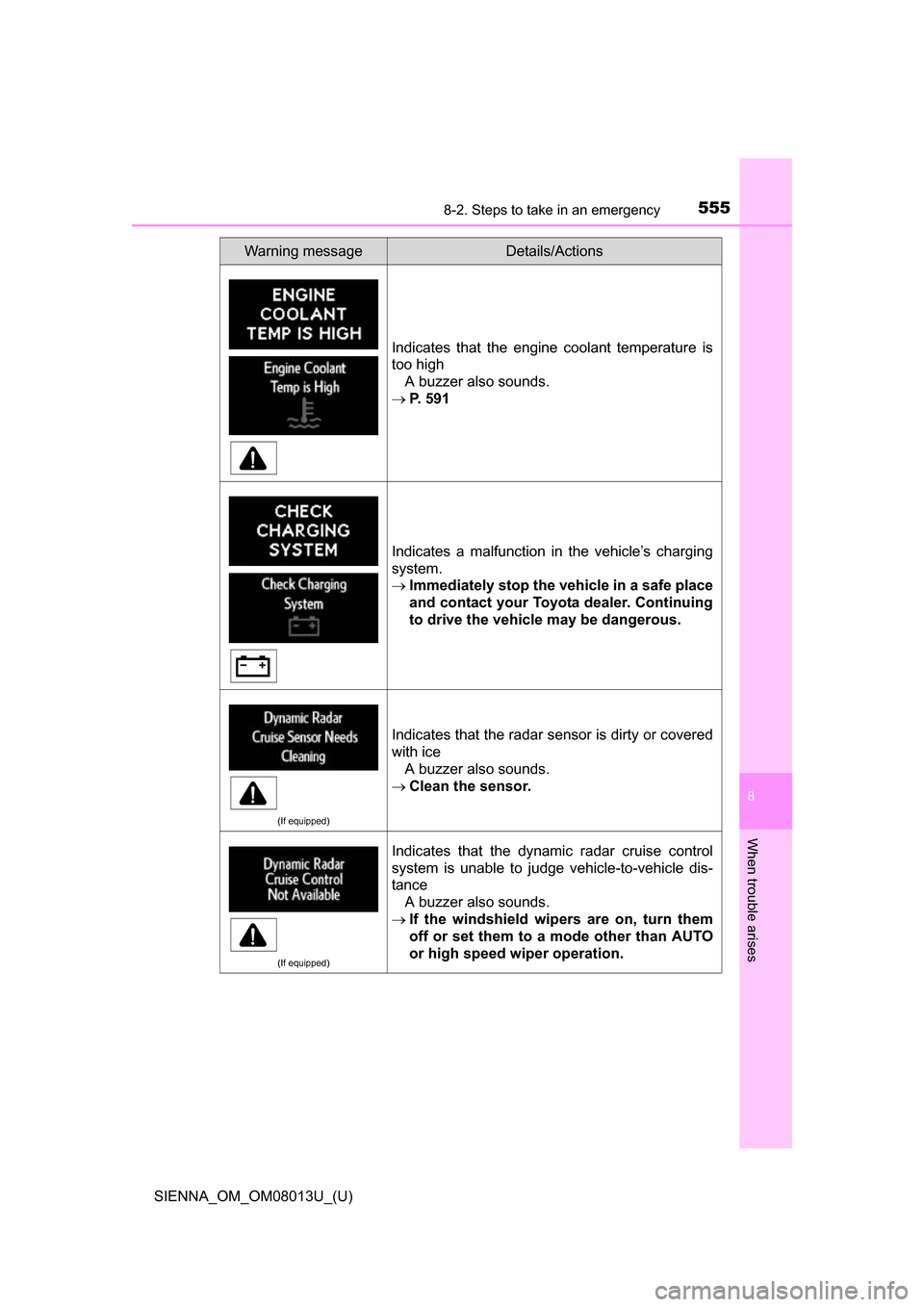

5558-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
8
When trouble arises
Indicates that the engine coolant temperature is
too highA buzzer also sounds.
 P. 591
Indicates a malfunction in the vehicle’s charging
system.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
(If equipped)
Indicates that the radar sensor is dirty or covered
with ice A buzzer also sounds.
 Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control
system is unable to judge vehicle-to-vehicle dis-
tance
A buzzer also sounds.
 If the windshield wipers are on, turn them
off or set them to a mode other than AUTO
or high speed wiper operation.
Warning messageDetails/Actions

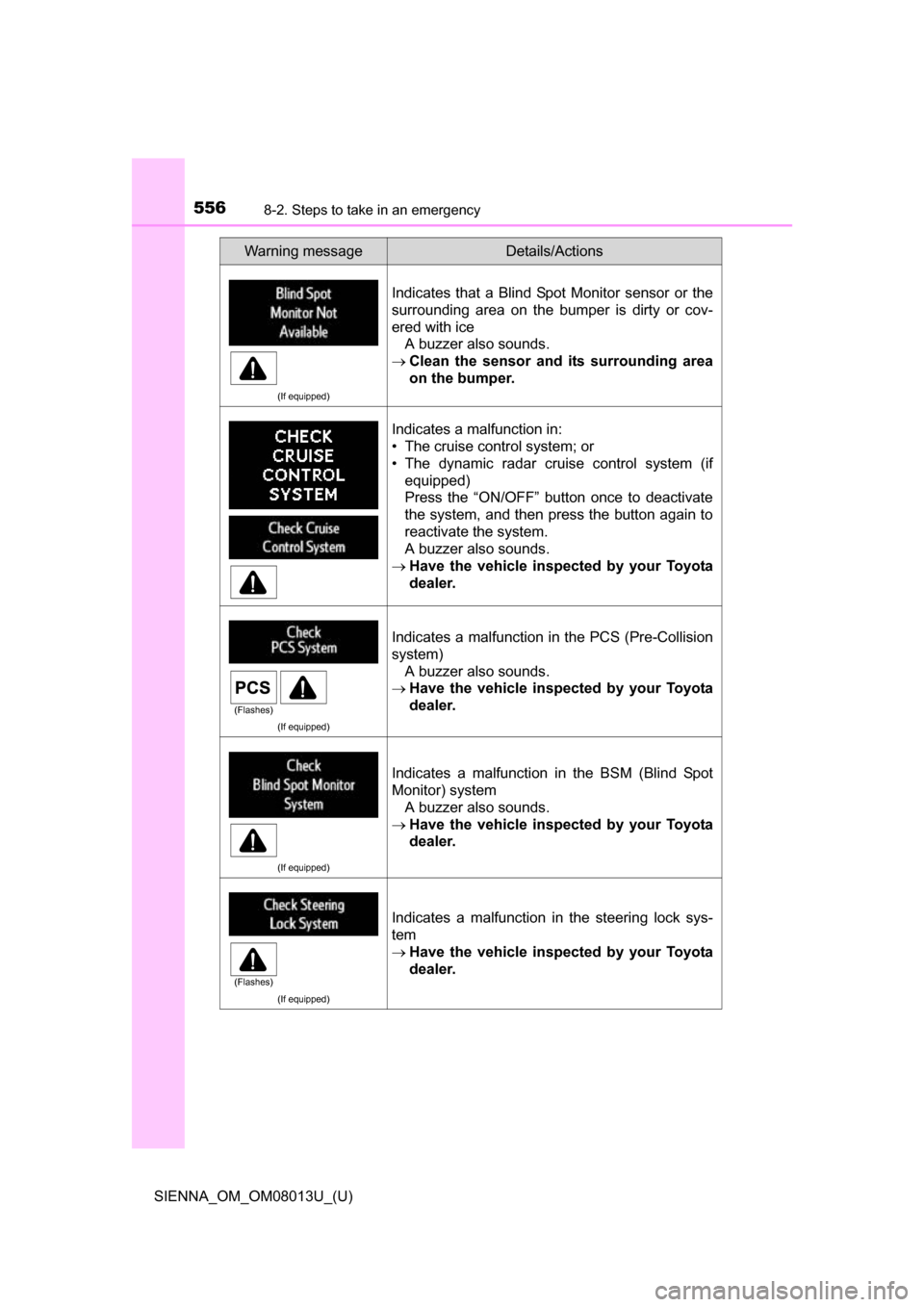

5568-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
(If equipped)
Indicates that a Blind Spot Monitor sensor or the
surrounding area on the bumper is dirty or cov-
ered with iceA buzzer also sounds.
 Clean the sensor and its surrounding area
on the bumper.
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control system (if equipped)
Press the “ON/OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision
system)
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot
Monitor) system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the steering lock sys-
tem
Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions
(Flashes)
(Flashes)

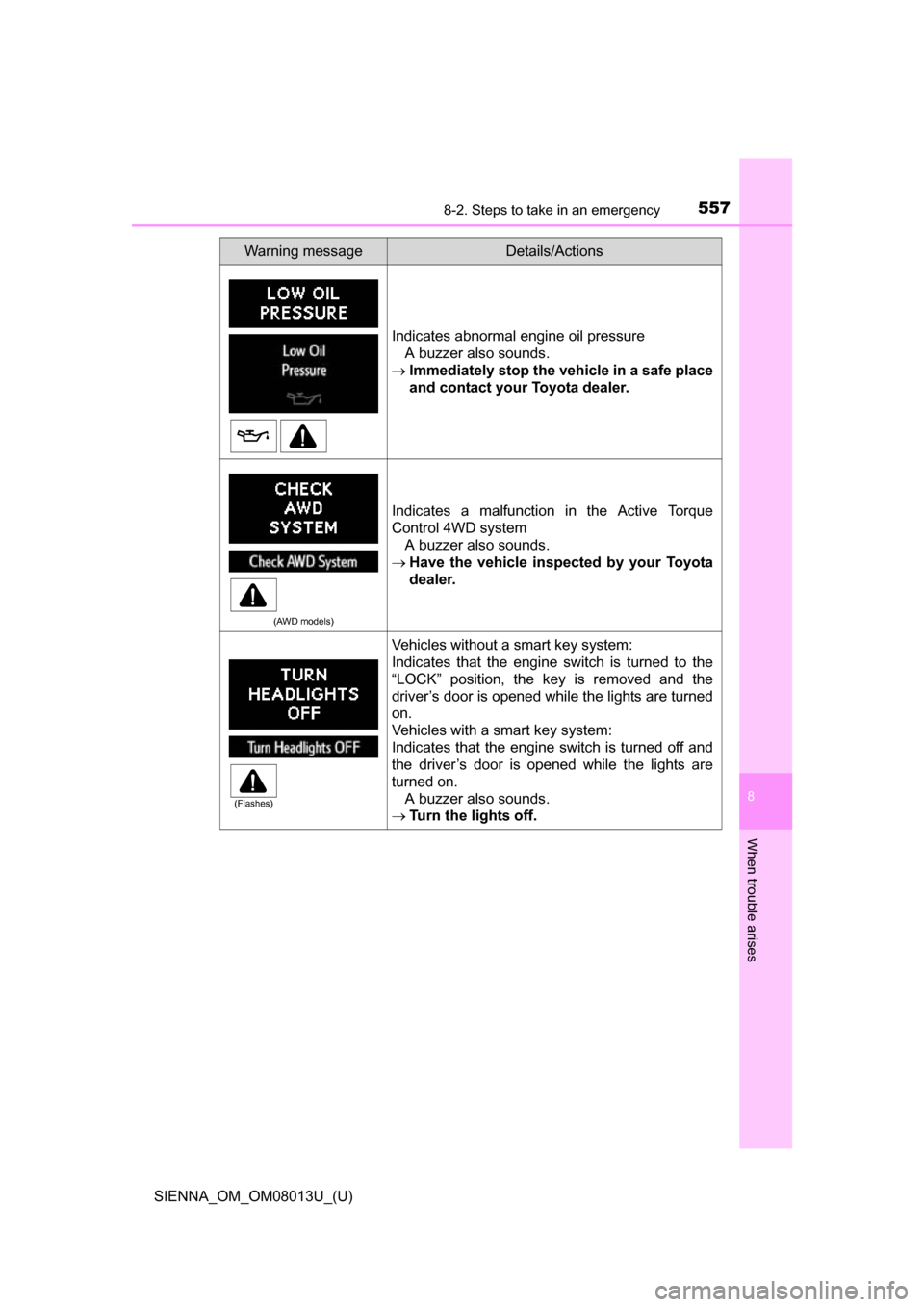

5578-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
8
When trouble arises
Indicates abnormal engine oil pressureA buzzer also sounds.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
(AWD models)
Indicates a malfunction in the Active Torque
Control 4WD system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Vehicles without a smart key system:
Indicates that the engine switch is turned to the
“LOCK” position, the key is removed and the
driver’s door is opened while the lights are turned
on.
Vehicles with a smart key system:
Indicates that the engine switch is turned off and
the driver’s door is opened while the lights are
turned on. A buzzer also sounds.
 Turn the lights off.
Warning messageDetails/Actions
(Flashes)

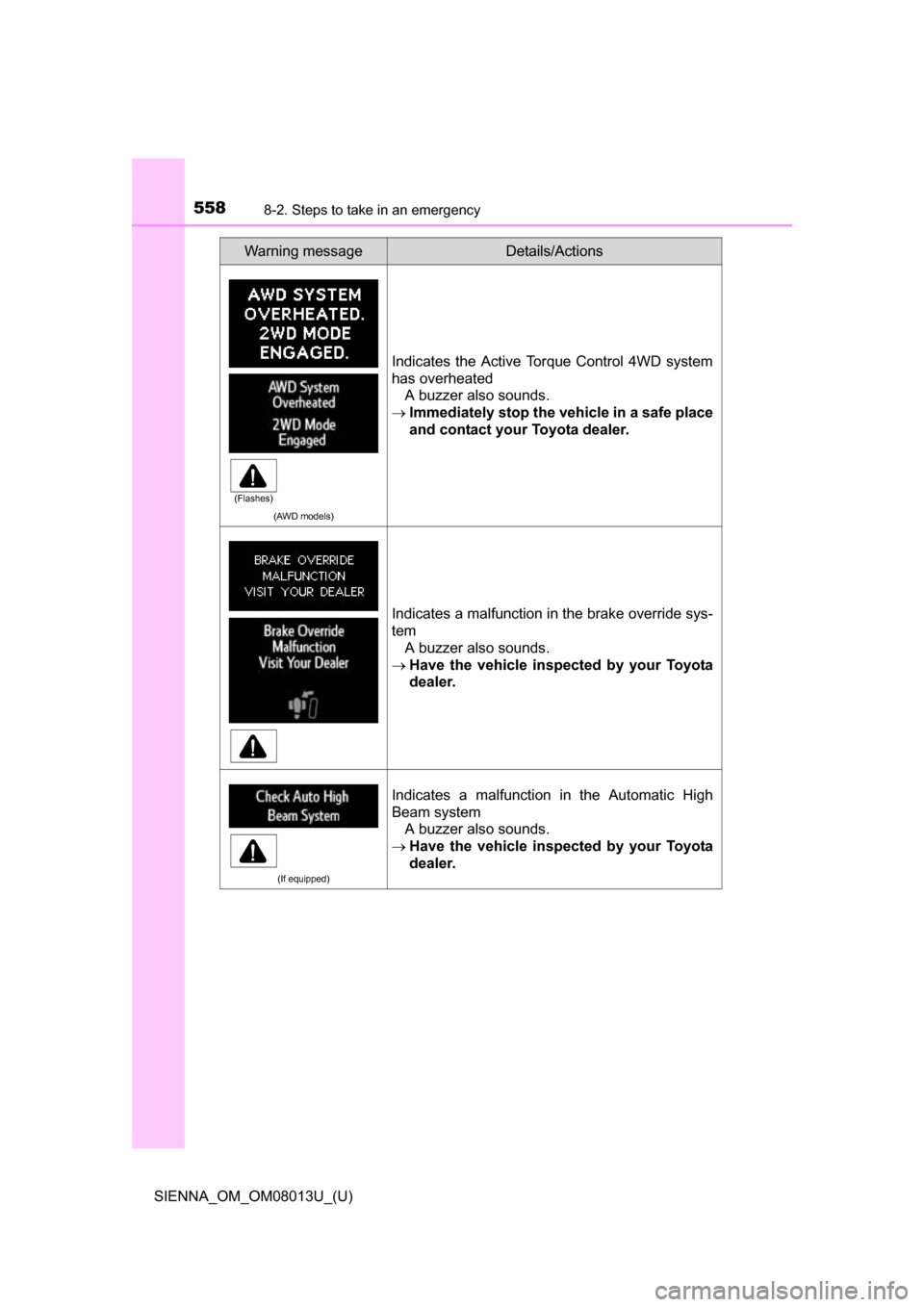

5588-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
(AWD models)
Indicates the Active Torque Control 4WD system
has overheatedA buzzer also sounds.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates a malfunction in the brake override sys-
tem A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the Automatic High
Beam system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions
(Flashes)

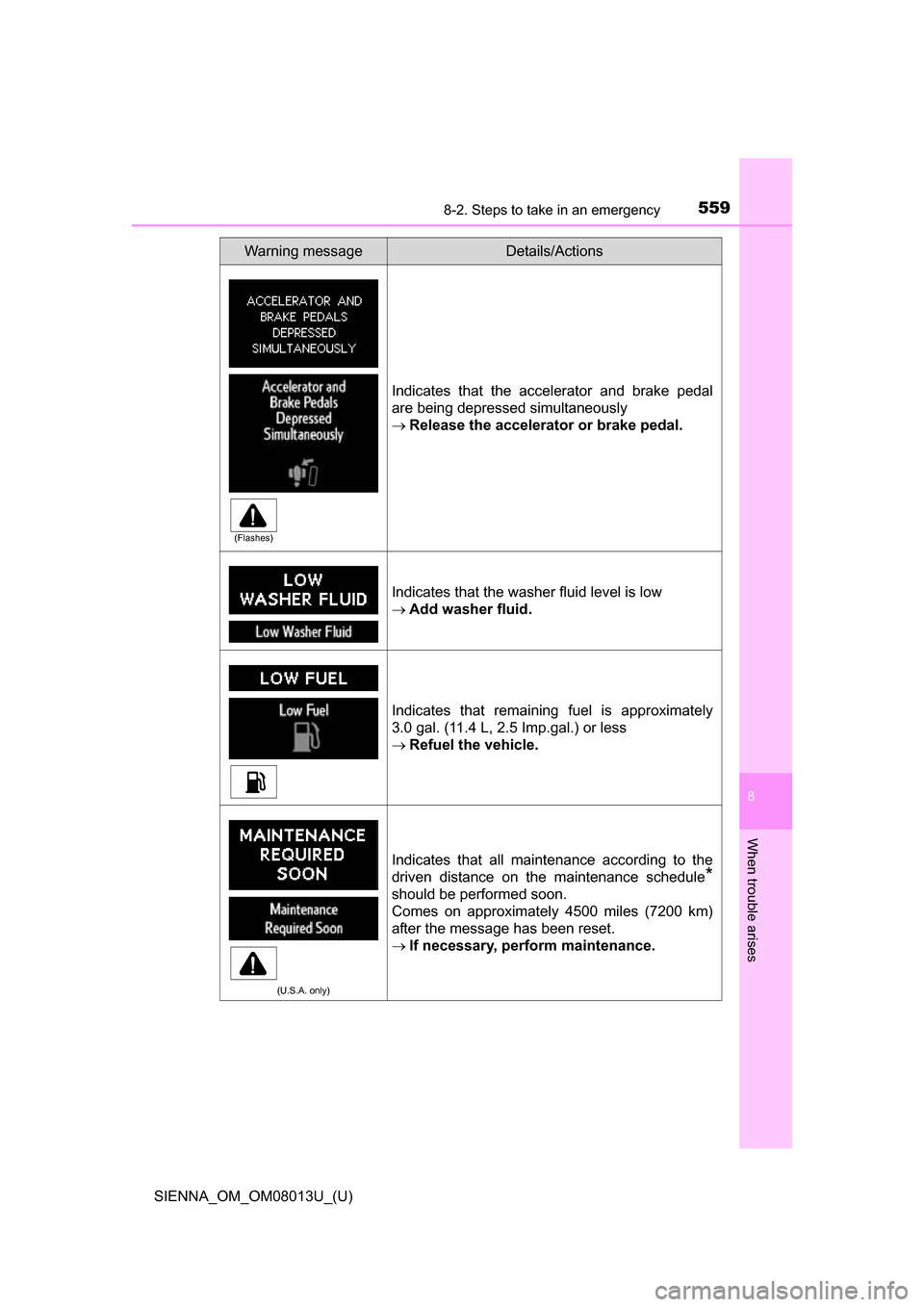

5598-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
8
When trouble arises
Indicates that the accelerator and brake pedal
are being depressed simultaneously
Release the accelerator or brake pedal.
Indicates that the washer fluid level is low
 Add washer fluid.
Indicates that remaining fuel is approximately
3.0 gal. (11.4 L, 2.5 Imp.gal.) or less
 Refuel the vehicle.
(U.S.A. only)
Indicates that all maintenance according to the
driven distance on the maintenance schedule
*
should be performed soon.
Comes on approximately 4500 miles (7200 km)
after the message has been reset.
If necessary, perform maintenance.
Warning messageDetails/Actions
(Flashes)

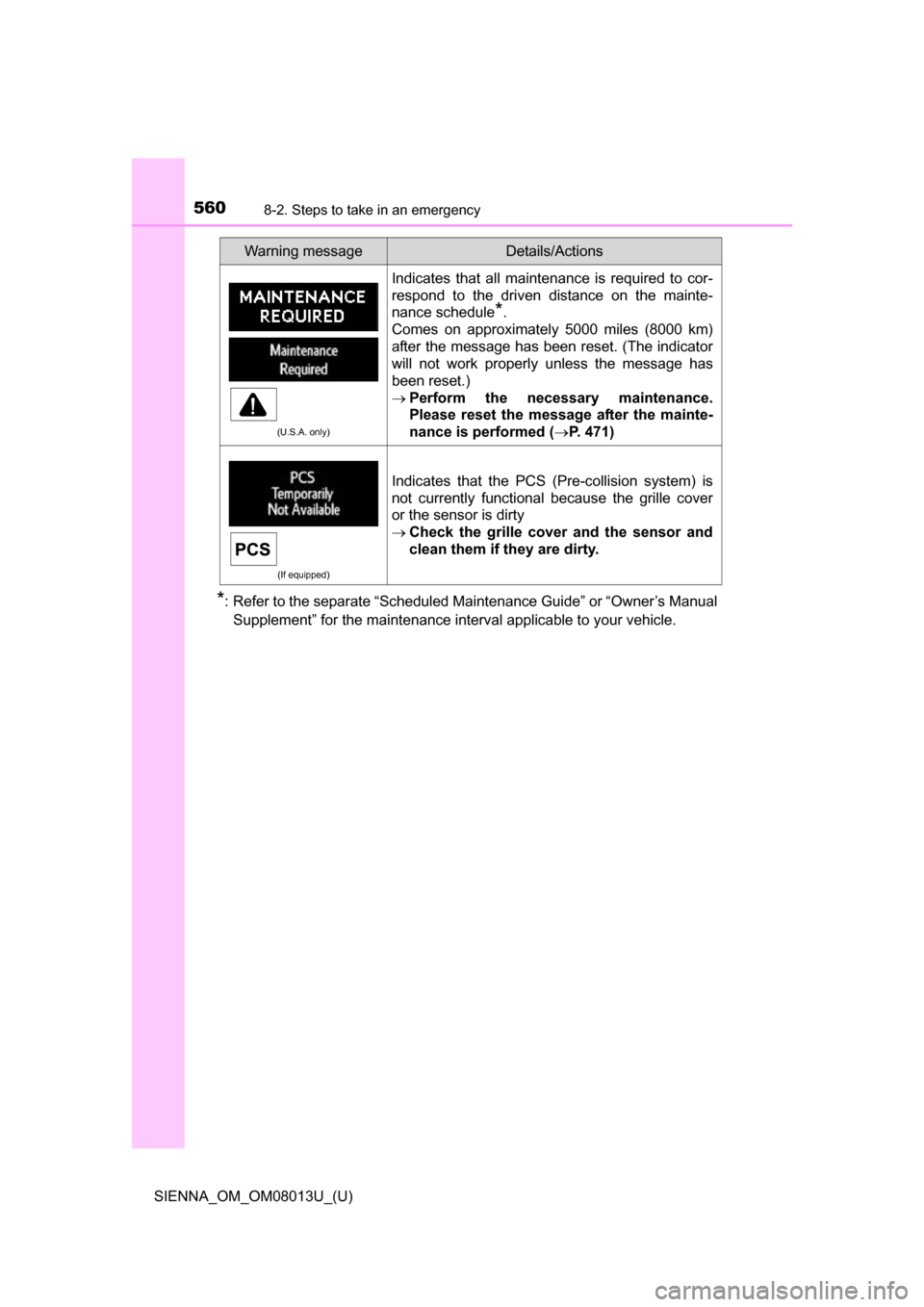

5608-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.
(U.S.A. only)
Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule
*.
Comes on approximately 5000 miles (8000 km)
after the message has been reset. (The indicator
will not work properly unless the message has
been reset.)
 Perform the necessary maintenance.
Please reset the message after the mainte-
nance is performed ( P. 471)
(If equipped)
Indicates that the PCS (Pre-collision system) is
not currently functional because the grille cover
or the sensor is dirty
Check the grille cover and the sensor and
clean them if they are dirty.
Warning messageDetails/Actions
