7-3. Do-it-yourself maintenance
7
Maintenance and care

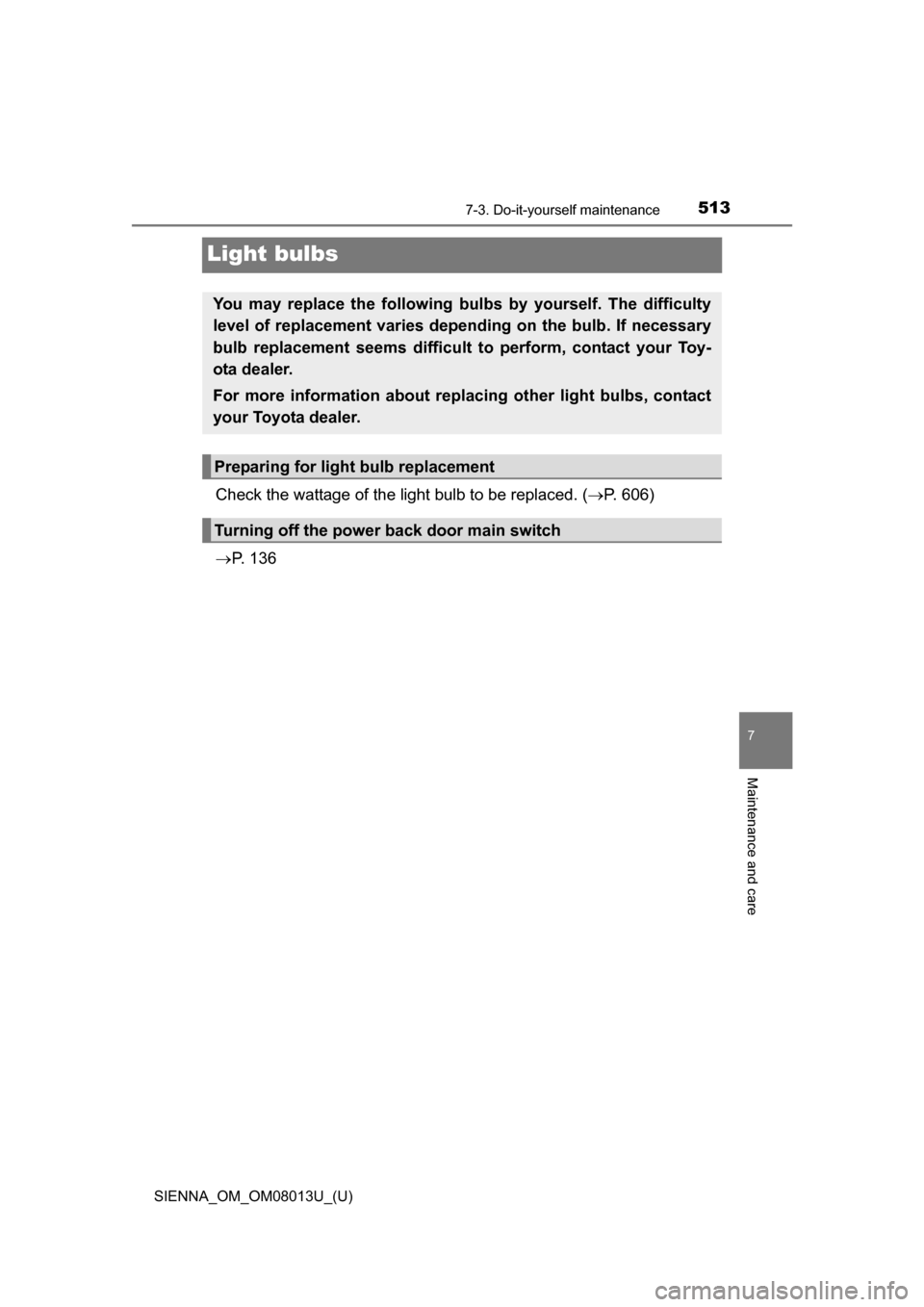

Light bulbs
Check the wattage of the light bulb to be replaced. (P. 606)
 P. 1 3 6
You may replace the following bulbs by yourself. The difficulty
level of replacement varies de pending on the bulb. If necessary
bulb replacement seems difficult to perform, contact your Toy-
ota dealer.
For more information about repl acing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Turning off the power back door main switch

514
SIENNA_OM_OM08013U_(U)
7-3. Do-it-yourself maintenance

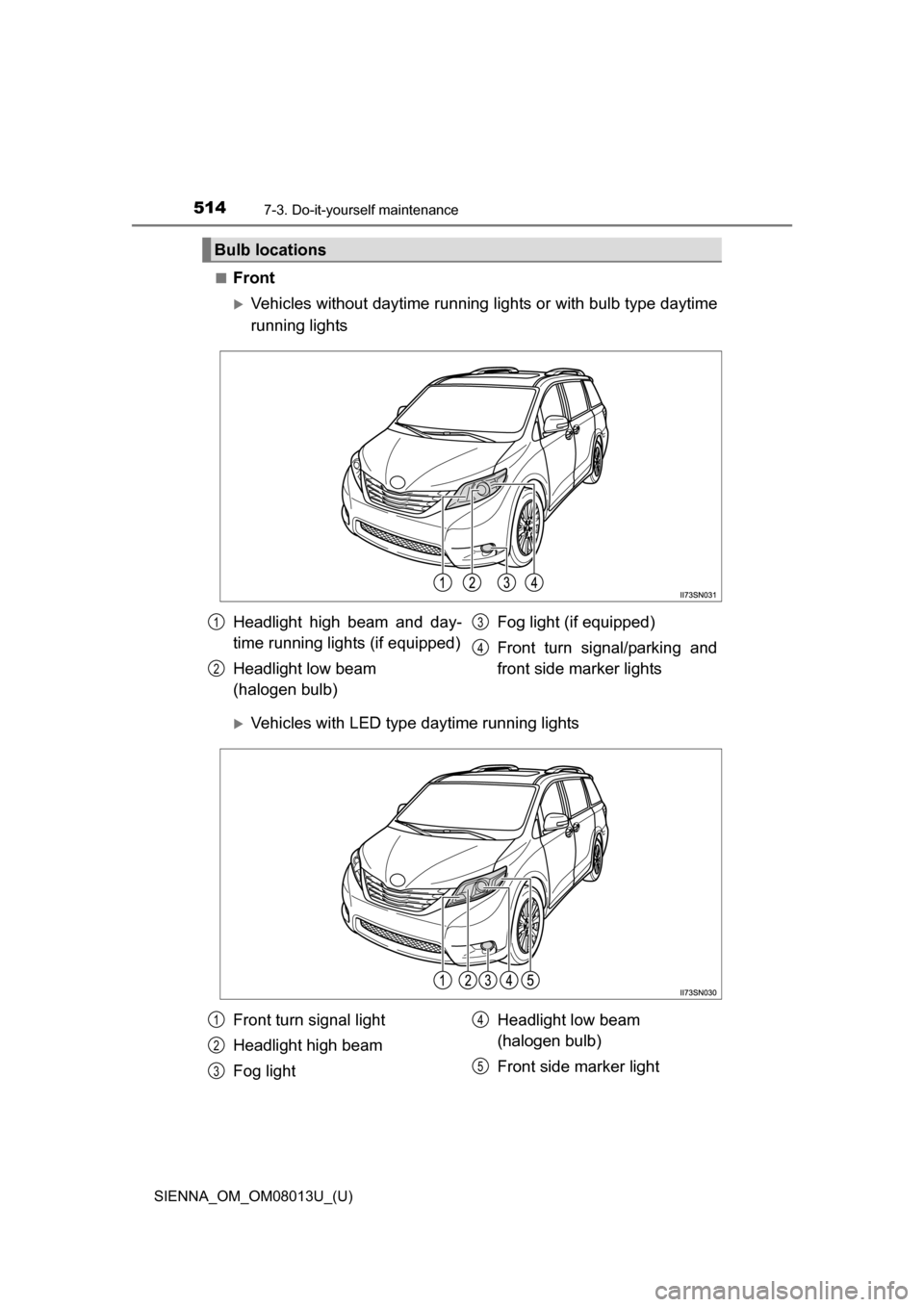

■Front
Vehicles without daytime running lights or with bulb type daytime
running lights
Vehicles with LED type daytime running lights
Bulb locations
Headlight high beam and day-
time running lights (if equipped)
Headlight low beam
(halogen bulb) Fog light (if equipped)
Front turn signal/parking and
front side marker lights1
2
3
4
Front turn signal light
Headlight high beam
Fog light
Headlight low beam
(halogen bulb)
Front side marker light1
2
3
4
5

SIENNA_OM_OM08013U_(U)
5157-3. Do-it-yourself maintenance
7
Maintenance and care

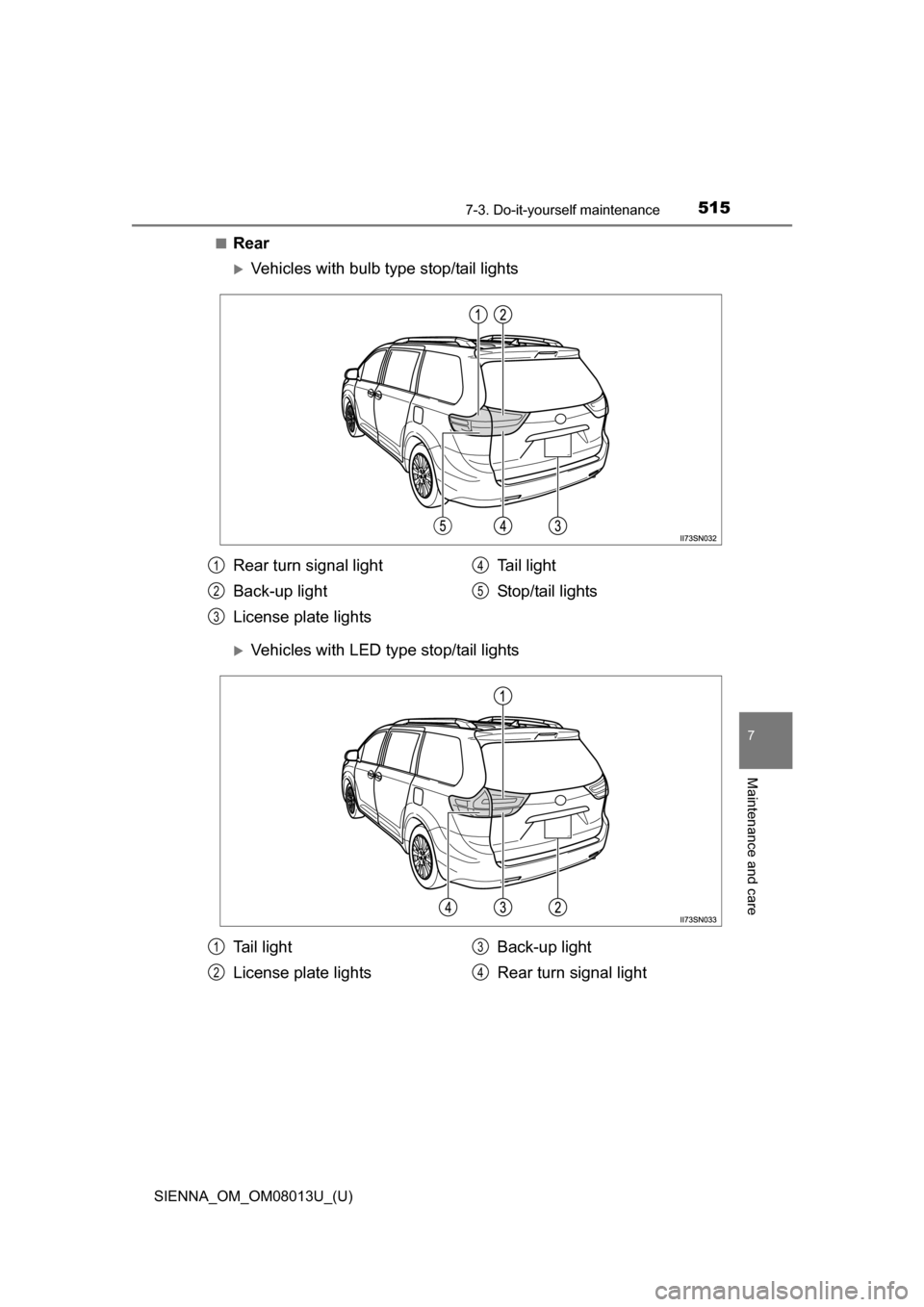

■Rear
Vehicles with bulb type stop/tail lights
Vehicles with LED type stop/tail lights
Rear turn signal light
Back-up light
License plate lightsTail light
Stop/tail lights1
2
3
4
5
Tail light
License plate lights
Back-up light
Rear turn signal light1
2
3
4

516
SIENNA_OM_OM08013U_(U)
7-3. Do-it-yourself maintenance

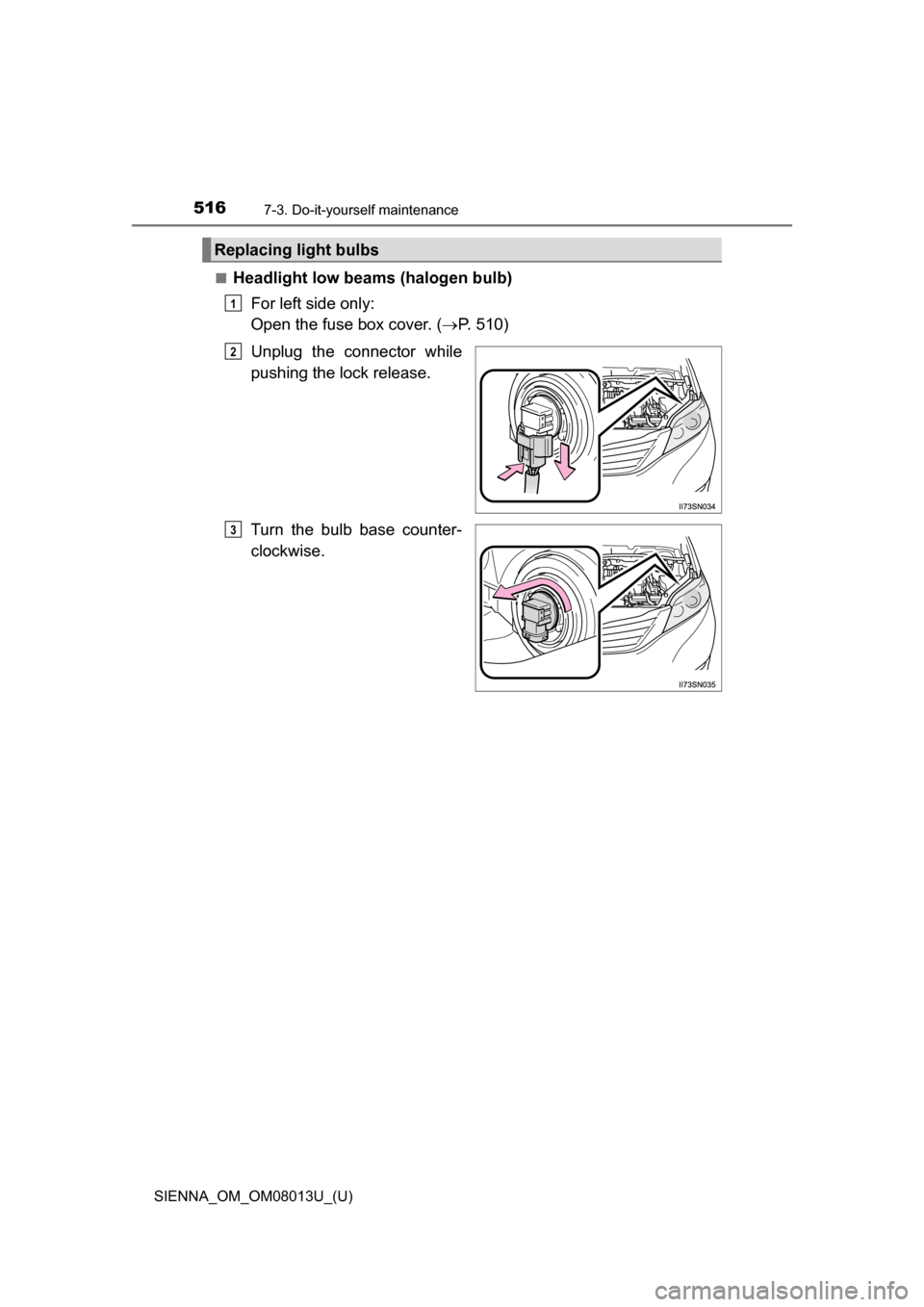

■Headlight low beams (halogen bulb)For left side only:
Open the fuse box cover. ( P. 510)
Unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.
Replacing light bulbs
1
2
3

SIENNA_OM_OM08013U_(U)
5177-3. Do-it-yourself maintenance
7
Maintenance and care

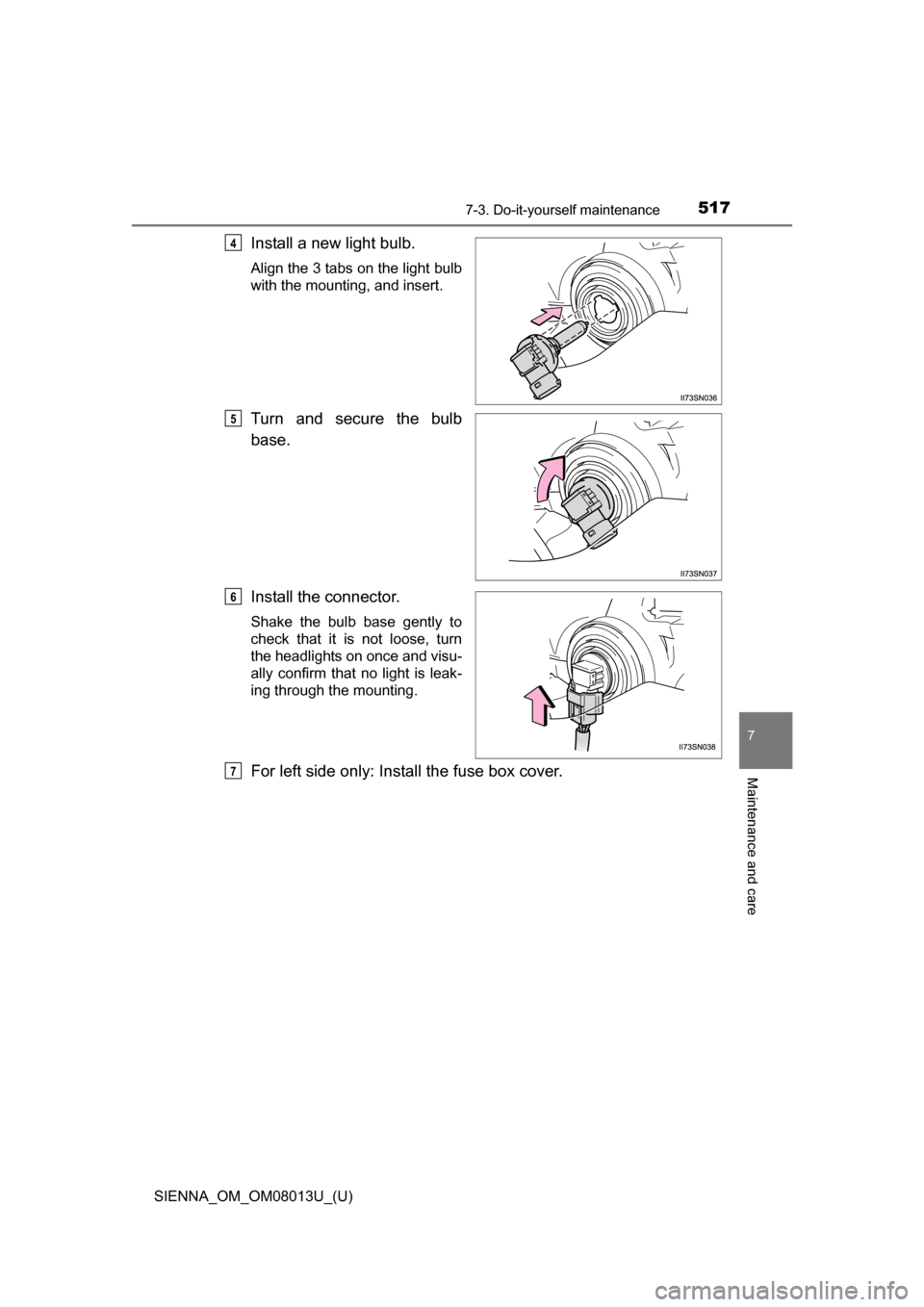

Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
For left side only: Install the fuse box cover.
4
5
6
7

518
SIENNA_OM_OM08013U_(U)
7-3. Do-it-yourself maintenance
■Headlight high beams and bulb type daytime running lights (if
equipped)
For left side only:
Open the fuse box cover. ( P. 510)
Turn the bulb base counter-
clockwise.
Unplug the connector while
pushing the lock release.

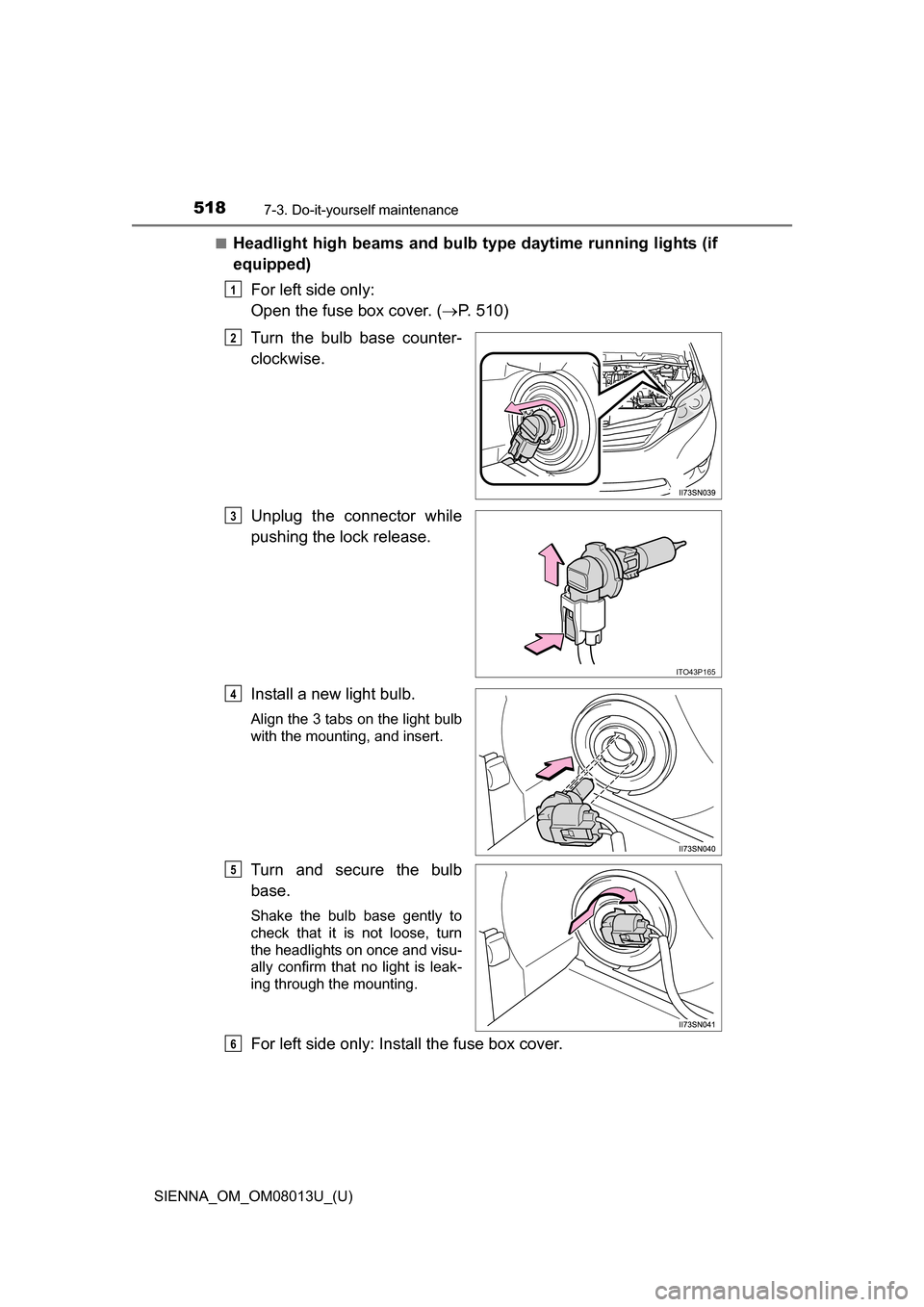

Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
For left side only: Install the fuse box cover.
1
2
ITO43P165
P
Q
R
S

SIENNA_OM_OM08013U_(U)
5197-3. Do-it-yourself maintenance
7
Maintenance and care

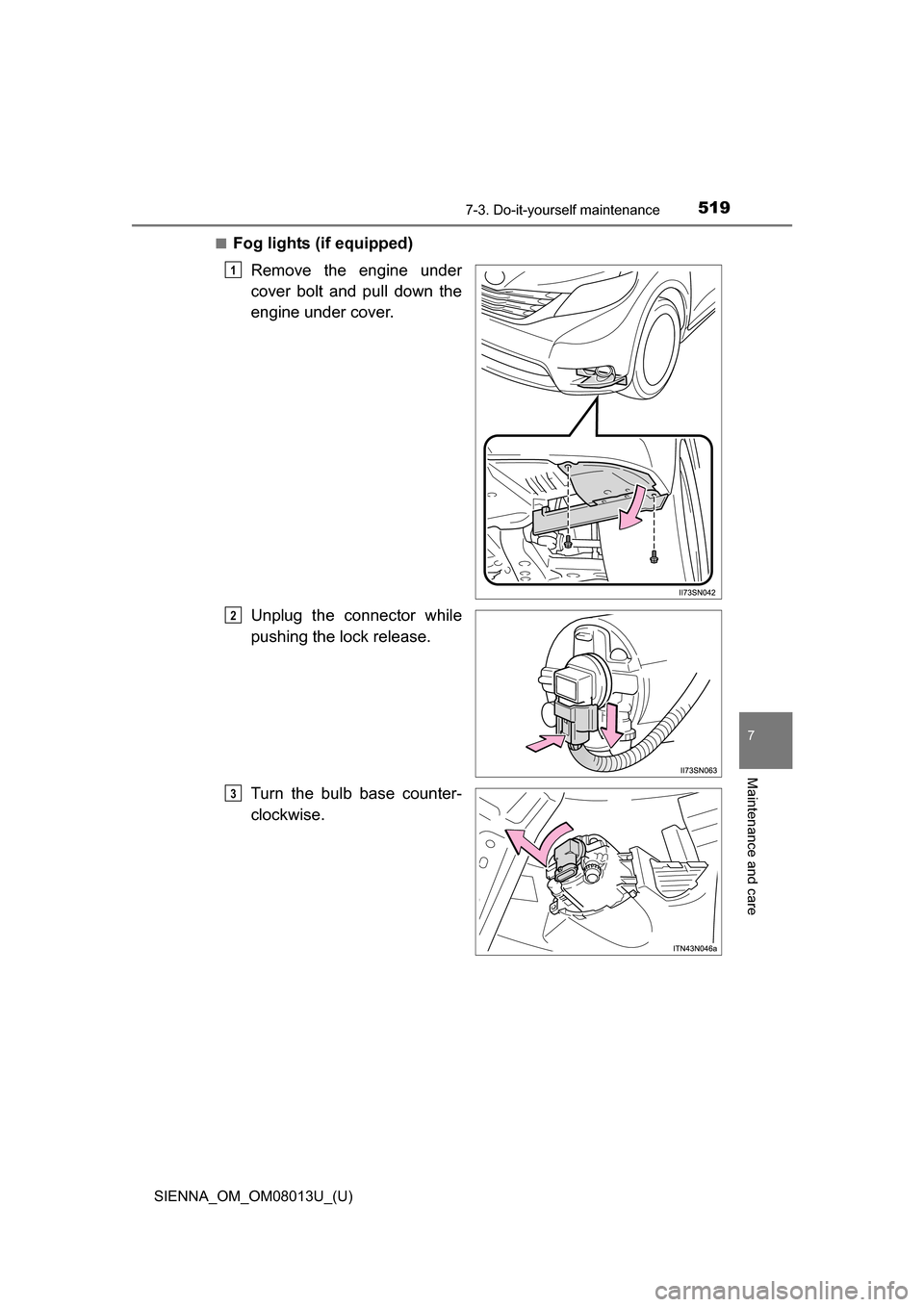

■Fog lights (if equipped)Remove the engine under
cover bolt and pull down the
engine under cover.
Unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.
1
2
3

520
SIENNA_OM_OM08013U_(U)
7-3. Do-it-yourself maintenance

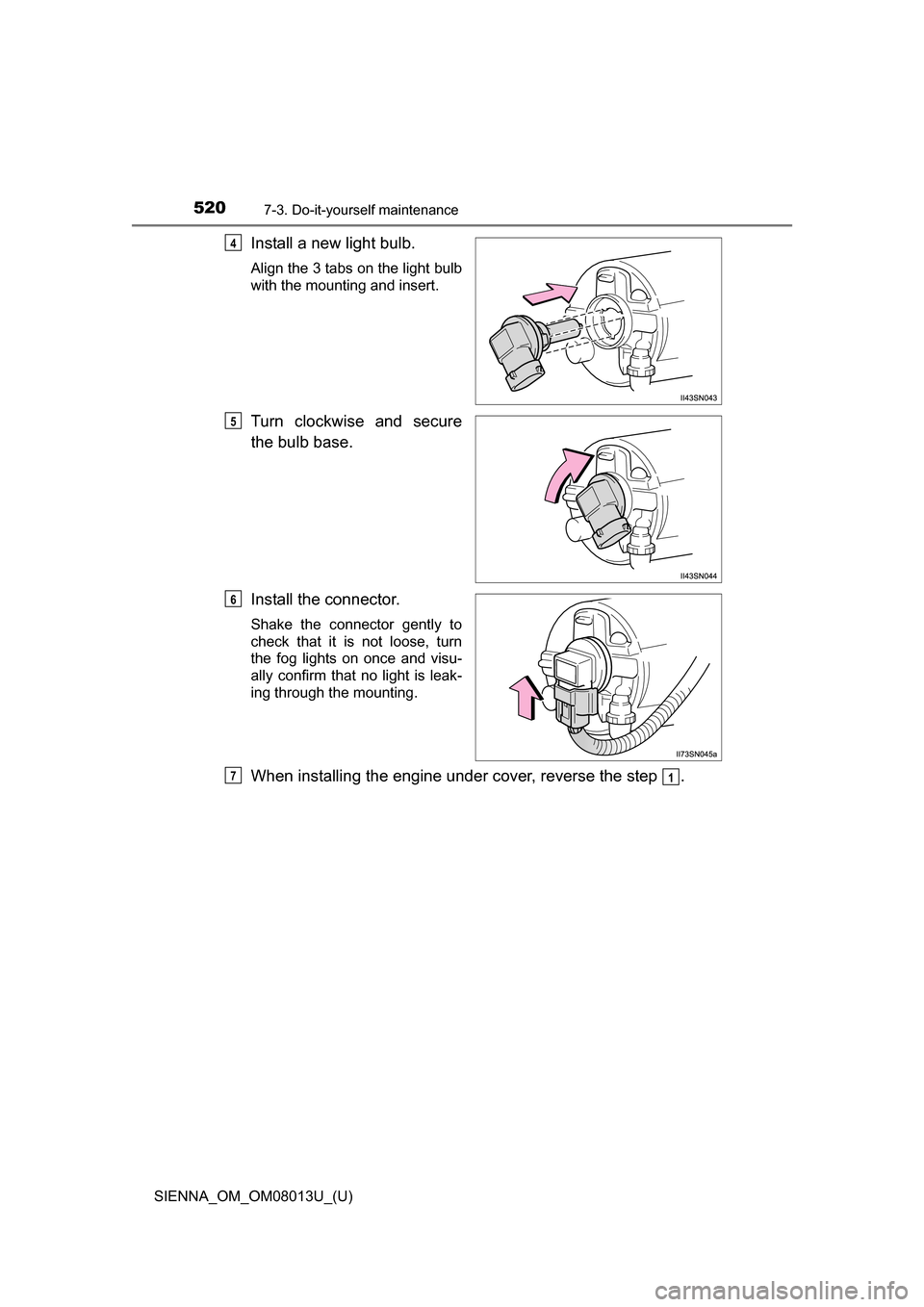

Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure
the bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn
the fog lights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
When installing the engine under cover, reverse the step .
4
5
6
71
