2016 TOYOTA SIENNA Owners Manual

401
SIENNA_OM_OM08013U_(U)

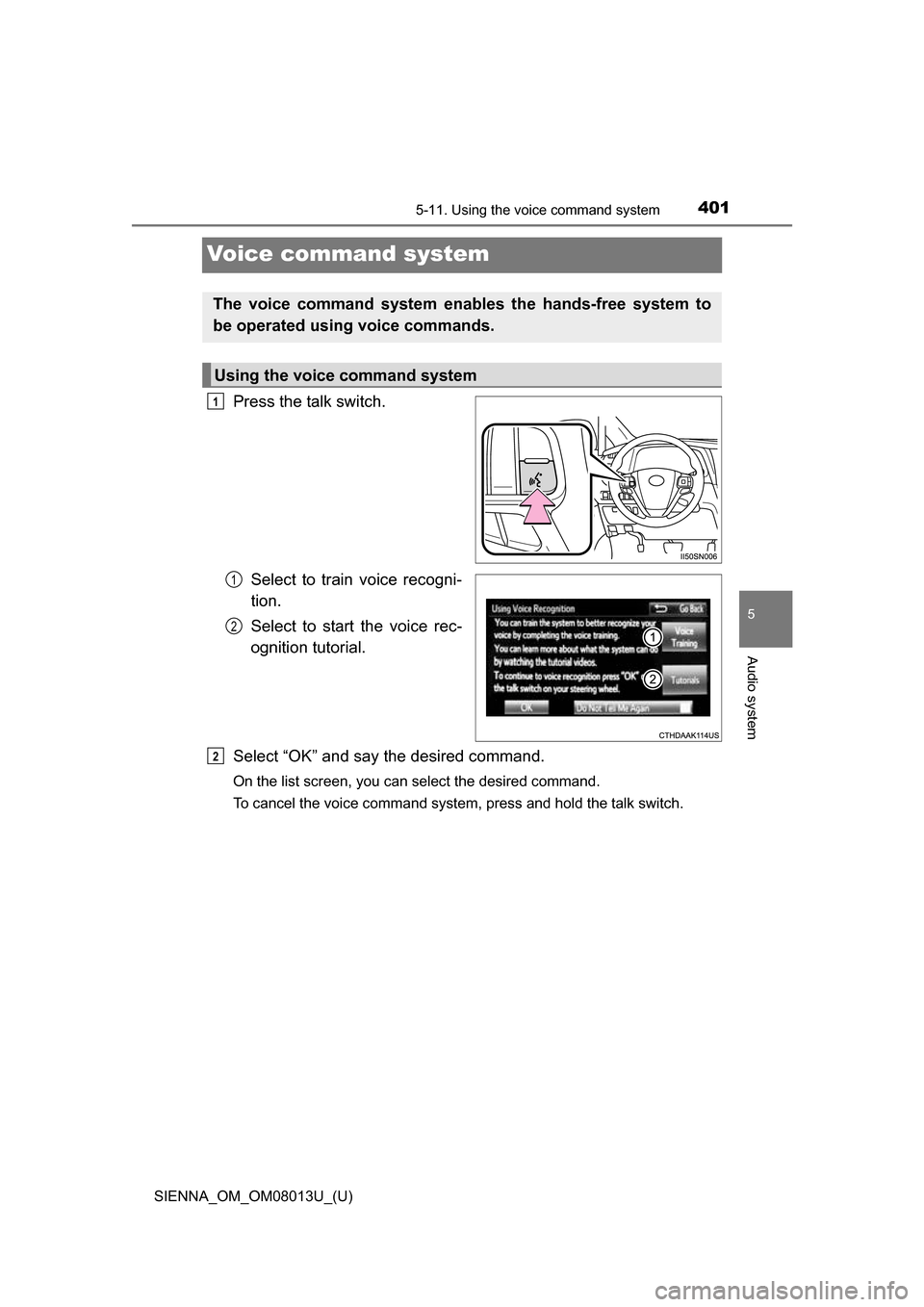

5-11. Using the voice command system
5
Audio system
Voice command system
Press the talk switch.Select to train voice recogni-
tion.
Select to start the voice rec-
ognition tutorial.
Select “OK” and say the desired command.
On the list screen, you can select the desired command.
To cancel the voice command system, press and hold the talk switch.
The voice command system enables the hands-free system to
be operated using voice commands.
Using the voice command system
1
1
2
2

4025-11. Using the voice command system
SIENNA_OM_OM08013U_(U)

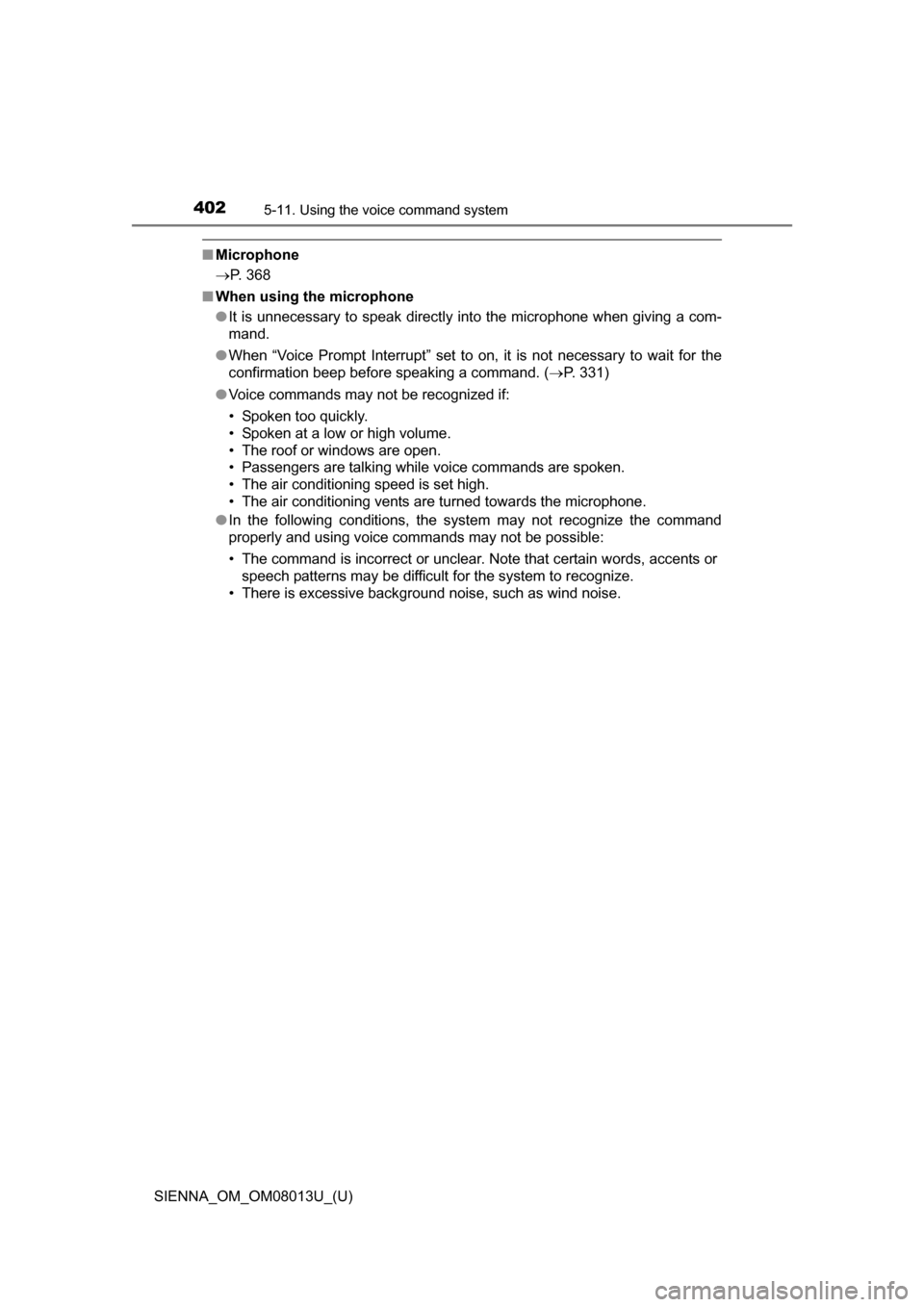

■Microphone
P. 368
■ When using the microphone
●It is unnecessary to speak directly into the microphone when giving a com-
mand.
● When “Voice Prompt Interrupt” set to on, it is not necessary to wait for the
confirmation beep before speaking a command. ( P. 331)
● Voice commands may not be recognized if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while voice commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone.
● In the following conditions, the system may not recognize the command
properly and using voice commands may not be possible:
• The command is incorrect or unclear. Note that certain words, accents or
speech patterns may be difficult for the system to recognize.
• There is excessive background noise, such as wind noise.

SIENNA_OM_OM08013U_(U)
4035-11. Using the voice command system
5
Audio system

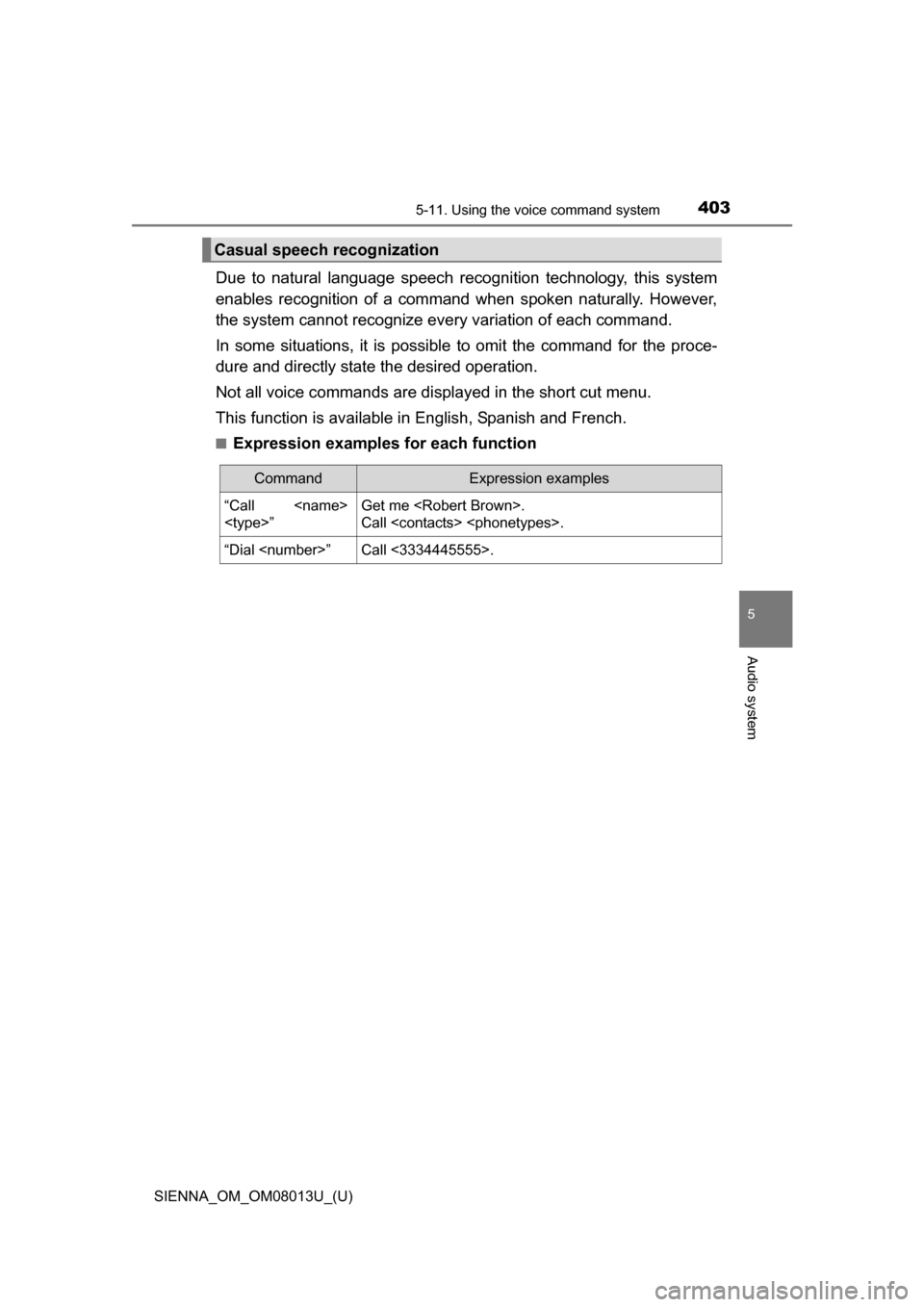

Due to natural language speech recognition technology, this system
enables recognition of a command when spoken naturally. However,
the system cannot recognize every variation of each command.
In some situations, it is possibl e to omit the command for the proce-
dure and directly state the desired operation.
Not all voice commands are displayed in the short cut menu.
This function is available in English, Spanish and French.
■Expression examples for each function
Casual speech recognization
CommandExpression examples
“Call
”Get me .
Call .
“Dial ”Call <3334445555>.

4045-11. Using the voice command system
SIENNA_OM_OM08013U_(U)

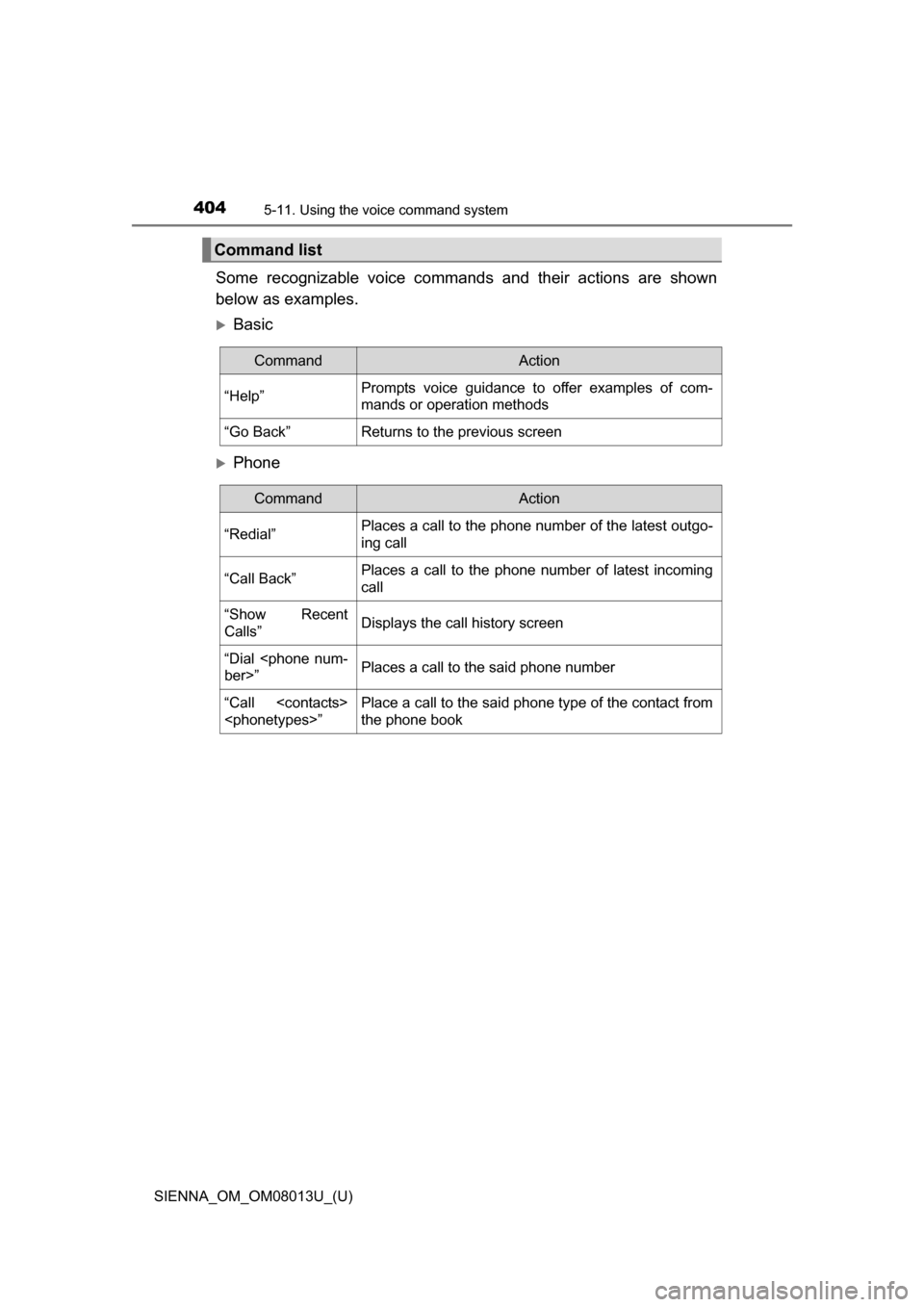

Some recognizable voice commands and their actions are shown
below as examples.
Basic
Phone
Command list
CommandAction
“Help”Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back”Returns to the previous screen
CommandAction
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent
Calls”Displays the call history screen
“Dial ber>”Places a call to the said phone number
“Call
”Place a call to the said phone type of the contact from
the phone book

SIENNA_OM_OM08013U_(U)
4055-11. Using the voice command system
5
Audio system

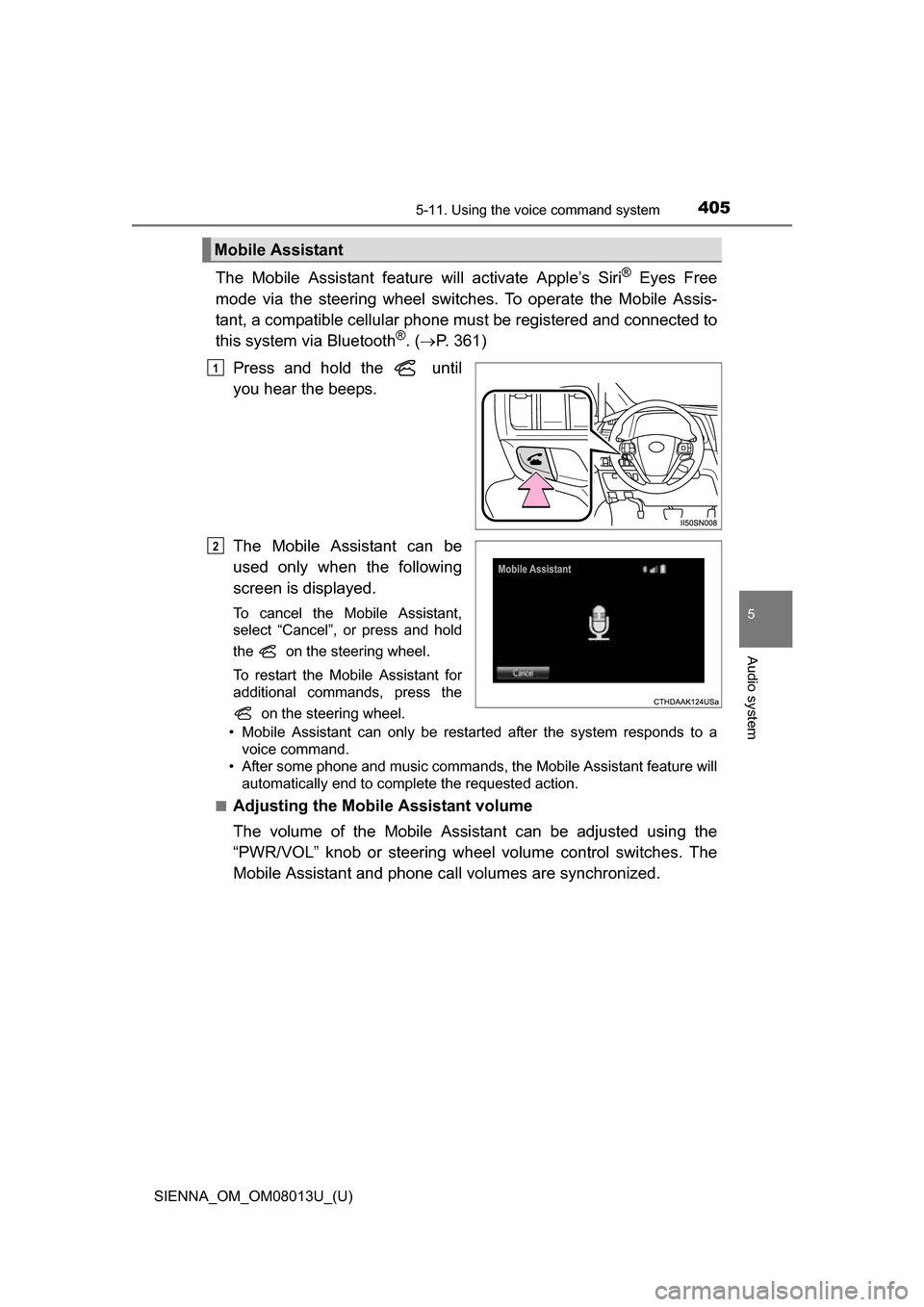

The Mobile Assistant feature will activate Apple’s Siri® Eyes Free
mode via the steering wheel switches. To operate the Mobile Assis-
tant, a compatible cellular phone must be registered and connected to
this system via Bluetooth
®. (  P. 361)
Press and hold the until
you hear the beeps.
The Mobile Assistant can be
used only when the following
screen is displayed.
To cancel the Mobile Assistant,
select “Cancel”, or press and hold
the on the steering wheel.
To restart the Mobile Assistant for
additional commands, press the on the steering wheel.
• Mobile Assistant can only be restarted after the system responds to a voice command.
• After some phone and music commands, the Mobile Assistant feature will automatically end to complete the requested action.
■
Adjusting the Mobile Assistant volume
The volume of the Mobile Assistant can be adjusted using the
“PWR/VOL” knob or steering wheel volume control switches. The
Mobile Assistant and phone call volumes are synchronized.
Mobile Assistant
1
2

4065-11. Using the voice command system
SIENNA_OM_OM08013U_(U)

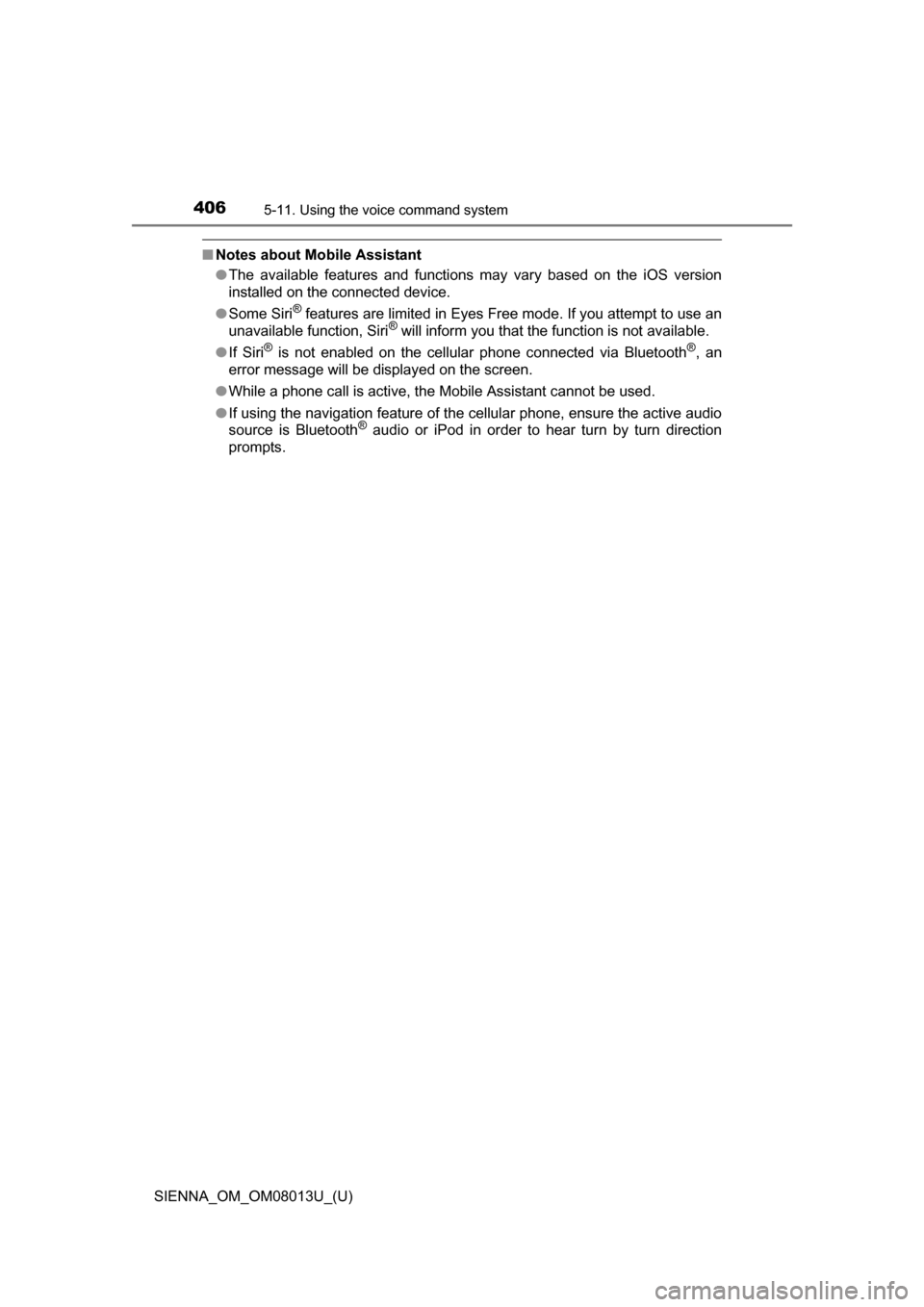

■Notes about Mobile Assistant
●The available features and functions may vary based on the iOS version
installed on the connected device.
● Some Siri
® features are limited in Eyes Free mode. If you attempt to use an
unavailable function, Siri® will inform you that the function is not available.
● If Siri
® is not enabled on the cellular phone connected via Bluetooth®, an
error message will be displayed on the screen.
● While a phone call is active, the Mobile Assistant cannot be used.
● If using the navigation feature of the cellular phone, ensure the active audio
source is Bluetooth
® audio or iPod in order to hear turn by turn direction
prompts.

407
SIENNA_OM_OM08013U_(U)

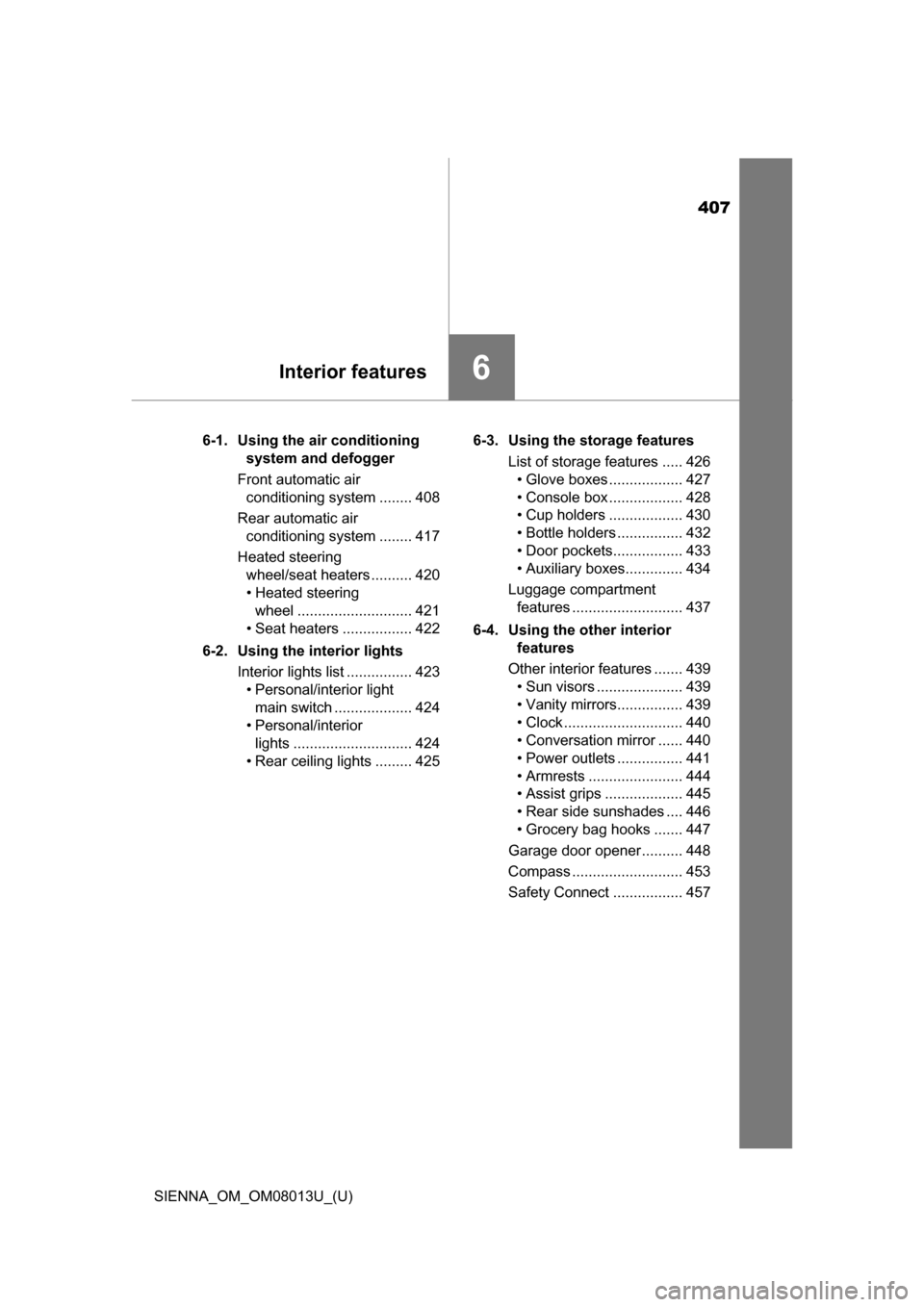

6Interior features
6-1. Using the air conditioning system and defogger
Front automatic air conditioning system ........ 408
Rear automatic air conditioning system ........ 417
Heated steering wheel/seat heaters .......... 420
• Heated steering wheel ............................ 421
• Seat heaters ................. 422
6-2. Using the interior lights Interior lights list ................ 423• Personal/interior light
main switch ................... 424
• Personal/interior lights ............................. 424
• Rear ceiling lights ......... 425 6-3. Using the storage features
List of storage features ..... 426• Glove boxes .................. 427
• Console box .................. 428
• Cup holders .................. 430
• Bottle holders ................ 432
• Door pockets................. 433
• Auxiliary boxes.............. 434
Luggage compartment features ........................... 437
6-4. Using the other interior features
Other interior features ....... 439 • Sun visors ..................... 439
• Vanity mirrors................ 439
• Clock ............................. 440
• Conversation mirror ...... 440
• Power outlets ................ 441
• Armrests ....................... 444
• Assist grips ................... 445
• Rear side sunshades .... 446
• Grocery bag hooks ....... 447
Garage door opener.......... 448
Compass ........................... 453
Safety Connect ................. 457

408
SIENNA_OM_OM08013U_(U)

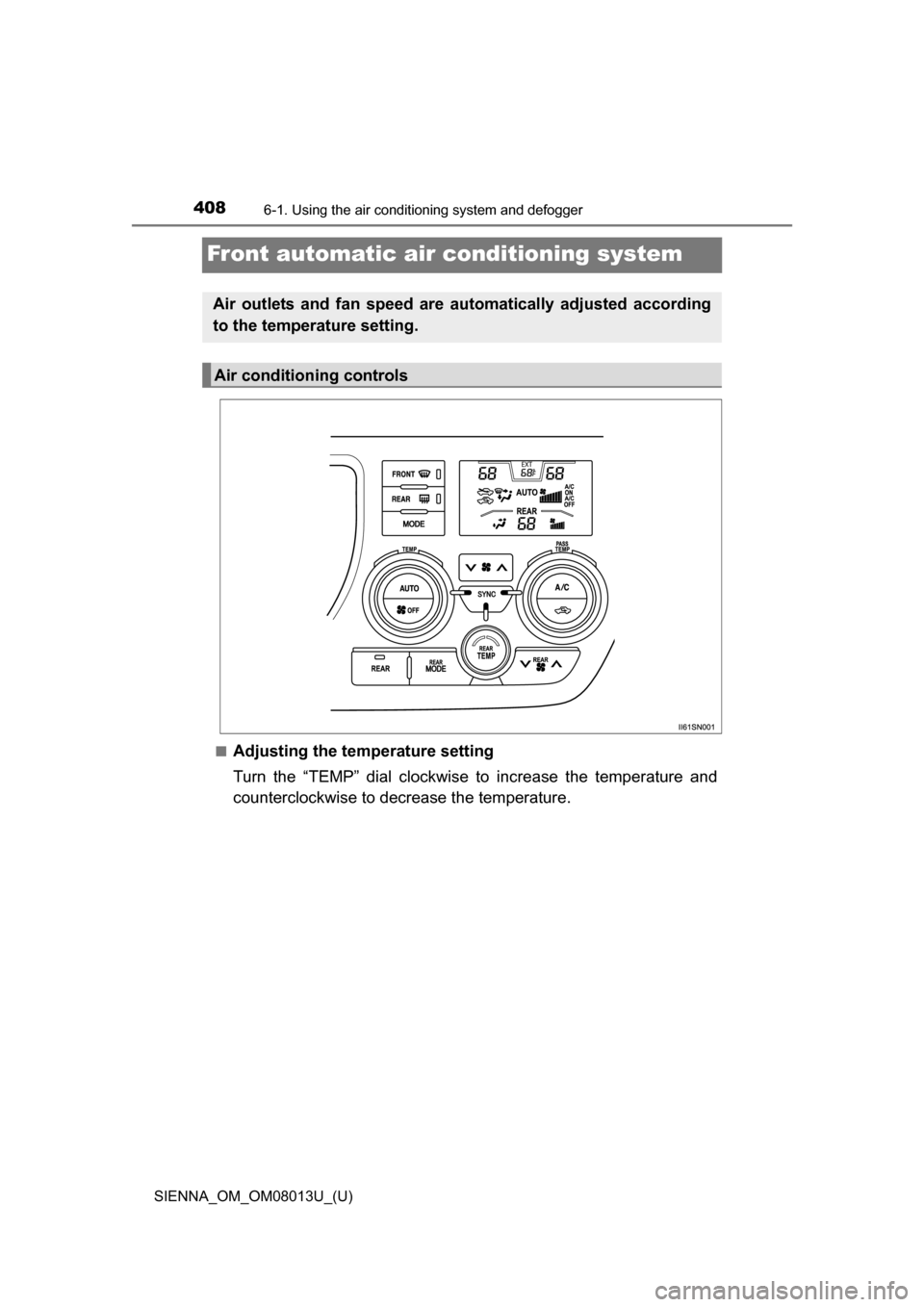

6-1. Using the air conditioning system and defogger
Front automatic air conditioning system
■Adjusting the temperature setting
Turn the “TEMP” dial clockwise to increase the temperature and
counterclockwise to decrease the temperature.
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Air conditioning controls
