2016 TOYOTA SIENNA Owners Manual

SIENNA_OM_OM08013U_(U)

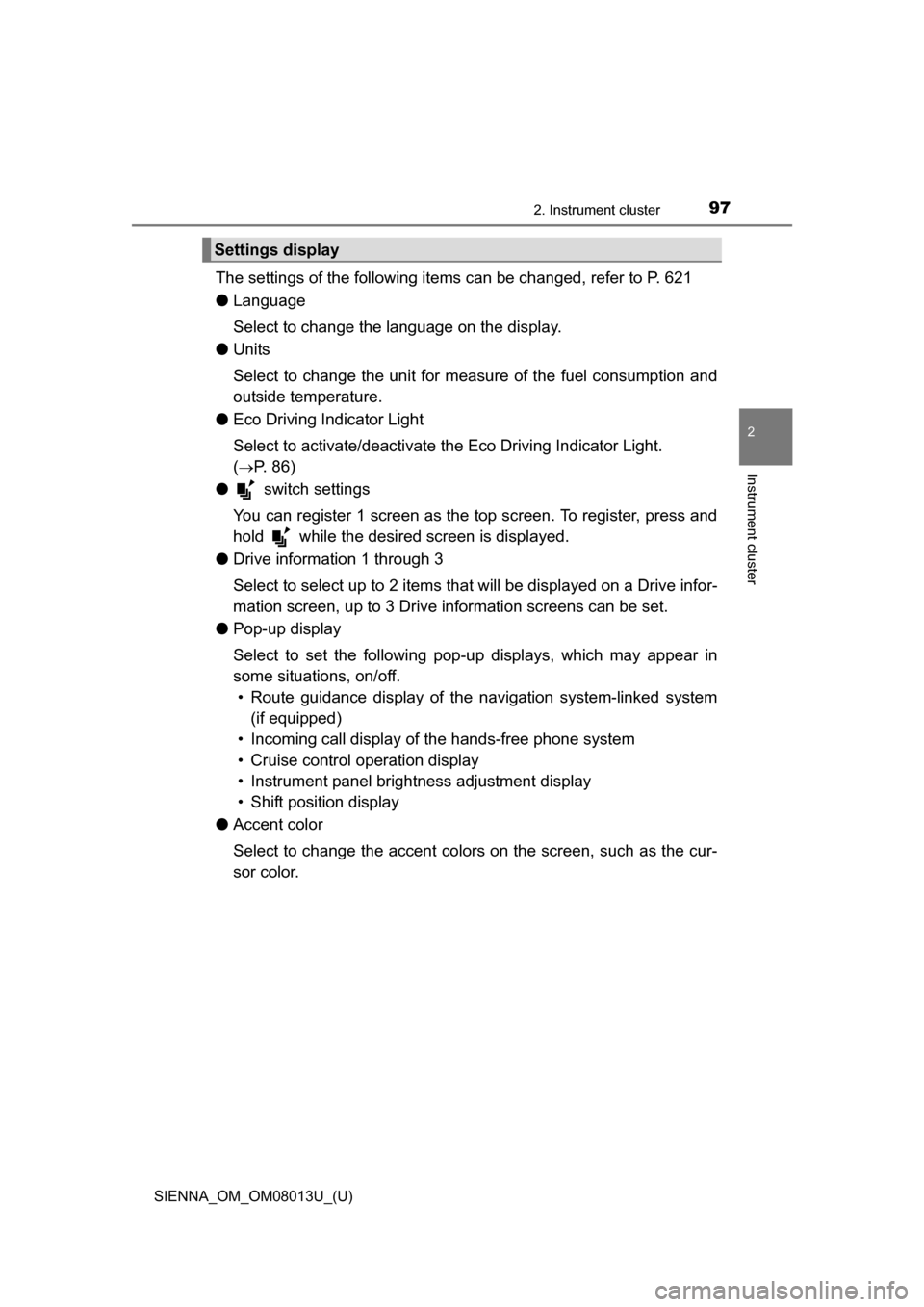

972. Instrument cluster
2
Instrument cluster
The settings of the following items can be changed, refer to P. 621
●Language
Select to change the language on the display.
● Units
Select to change the unit for meas ure of the fuel consumption and
outside temperature.
● Eco Driving Indicator Light
Select to activate/deactivate th e Eco Driving Indicator Light.
(
P. 8 6 )
● switch settings
You can register 1 screen as the top screen. To register, press and
hold while the desired screen is displayed.
● Drive information 1 through 3
Select to select up to 2 items that will be displayed on a Drive infor-
mation screen, up to 3 Drive information screens can be set.
● Pop-up display
Select to set the following pop-up displays, which may appear in
some situations, on/off.
• Route guidance display of the navigation system-linked system
(if equipped)
• Incoming call display of the hands-free phone system
• Cruise control operation display
• Instrument panel brightness adjustment display
• Shift position display
● Accent color
Select to change the accent colors on the screen, such as the cur-
sor color.
Settings display

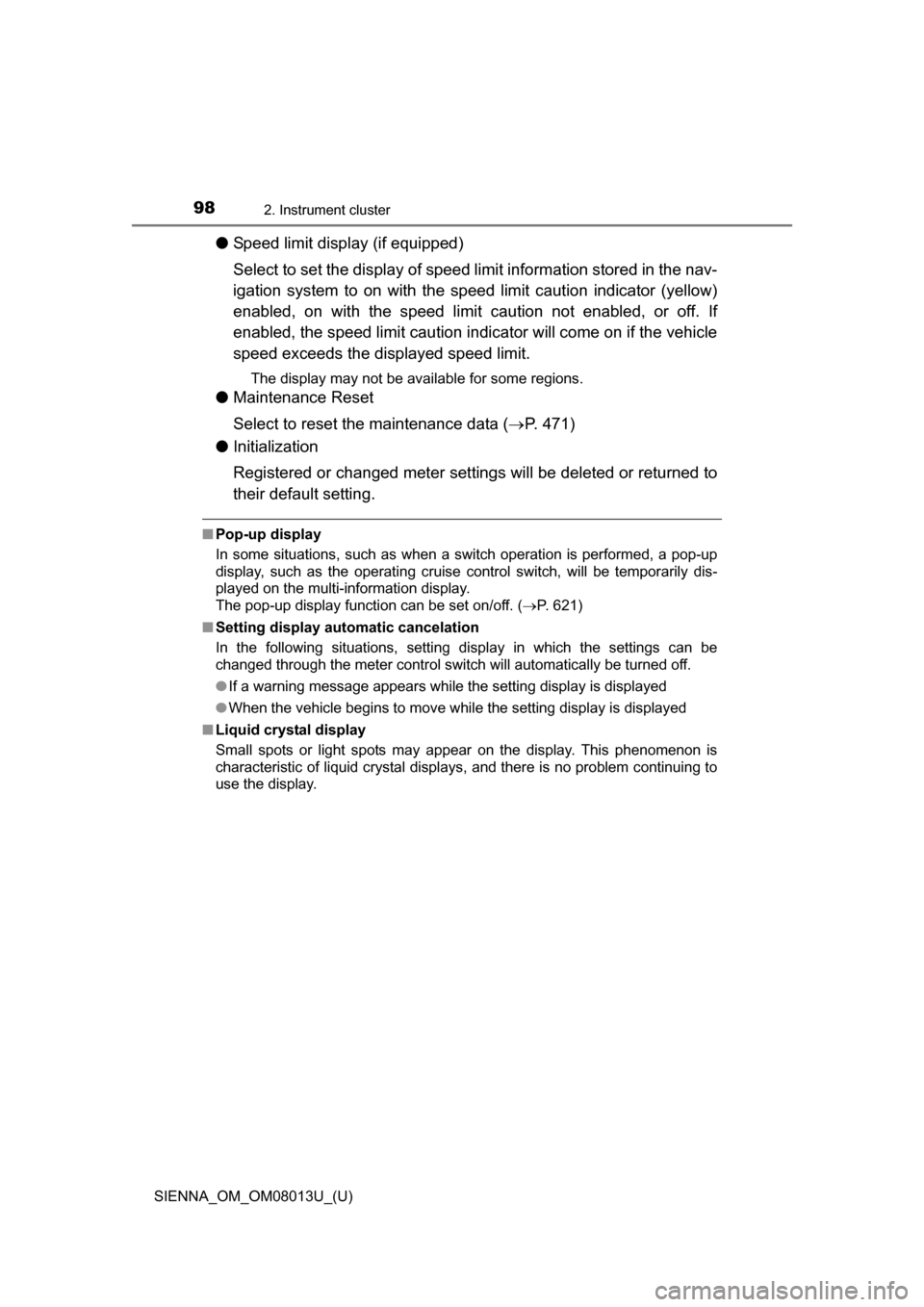

98
SIENNA_OM_OM08013U_(U)
2. Instrument cluster
●Speed limit display (if equipped)
Select to set the display of speed limit information stored in the nav-
igation system to on with the speed limit caution indicator (yellow)
enabled, on with the speed limit c aution not enabled, or off. If
enabled, the speed limit caution indicator will come on if the vehicle
speed exceeds the displayed speed limit.
The display may not be available for some regions.
● Maintenance Reset
Select to reset the maintenance data ( P. 471)
● Initialization
Registered or cha nged meter settings will be deleted or returned to
their default setting.
■ Pop-up display
In some situations, such as when a switch operation is performed, a pop-up
display, such as the operating cruise control switch, will be temporarily dis-
played on the multi-information display.
The pop-up display function can be set on/off. ( P. 621)
■ Setting display automatic cancelation
In the following situations, setting display in which the settings can be
changed through the meter control switch will automatically be turned off.
●If a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

SIENNA_OM_OM08013U_(U)

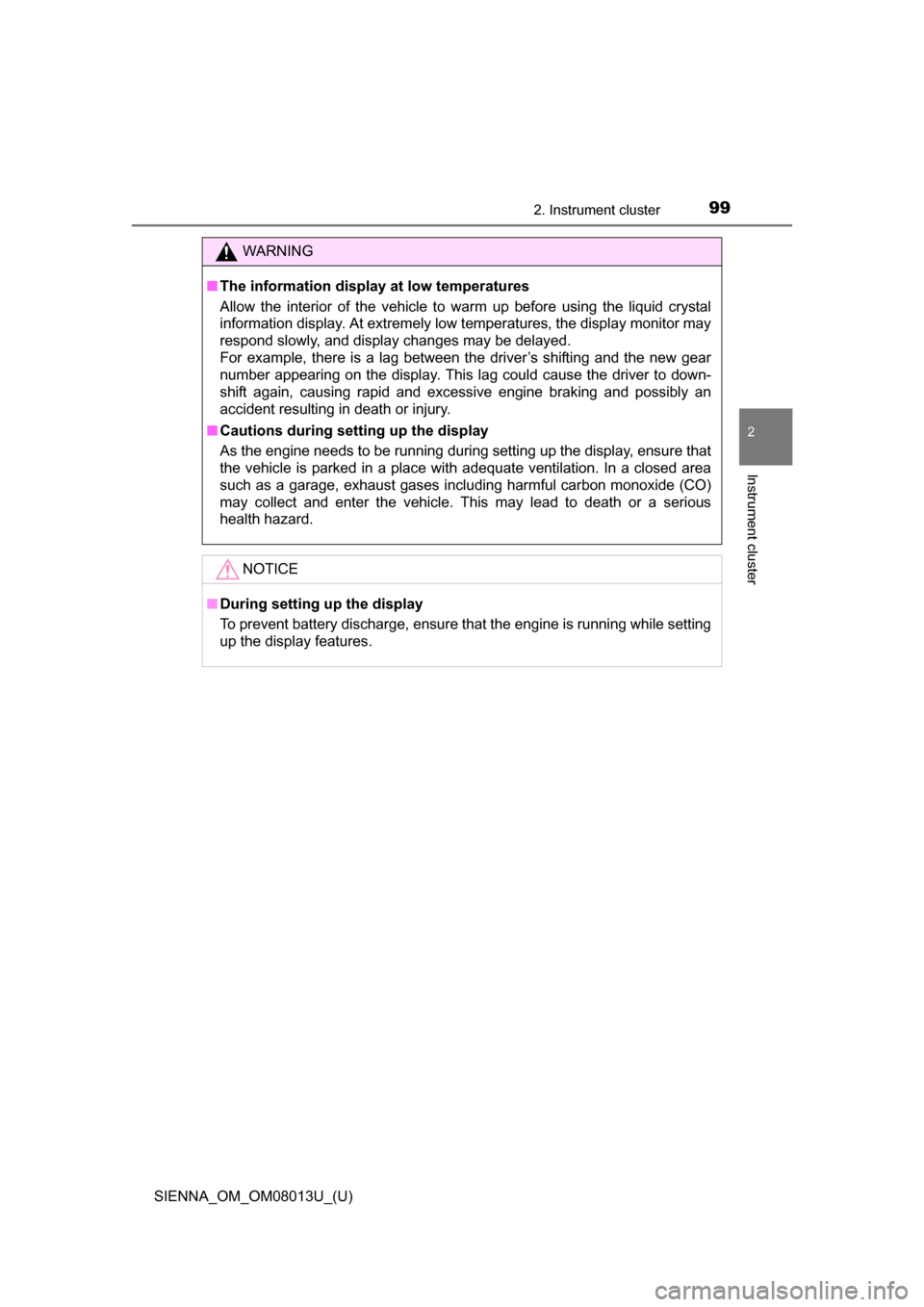

992. Instrument cluster
2
Instrument cluster
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■During setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

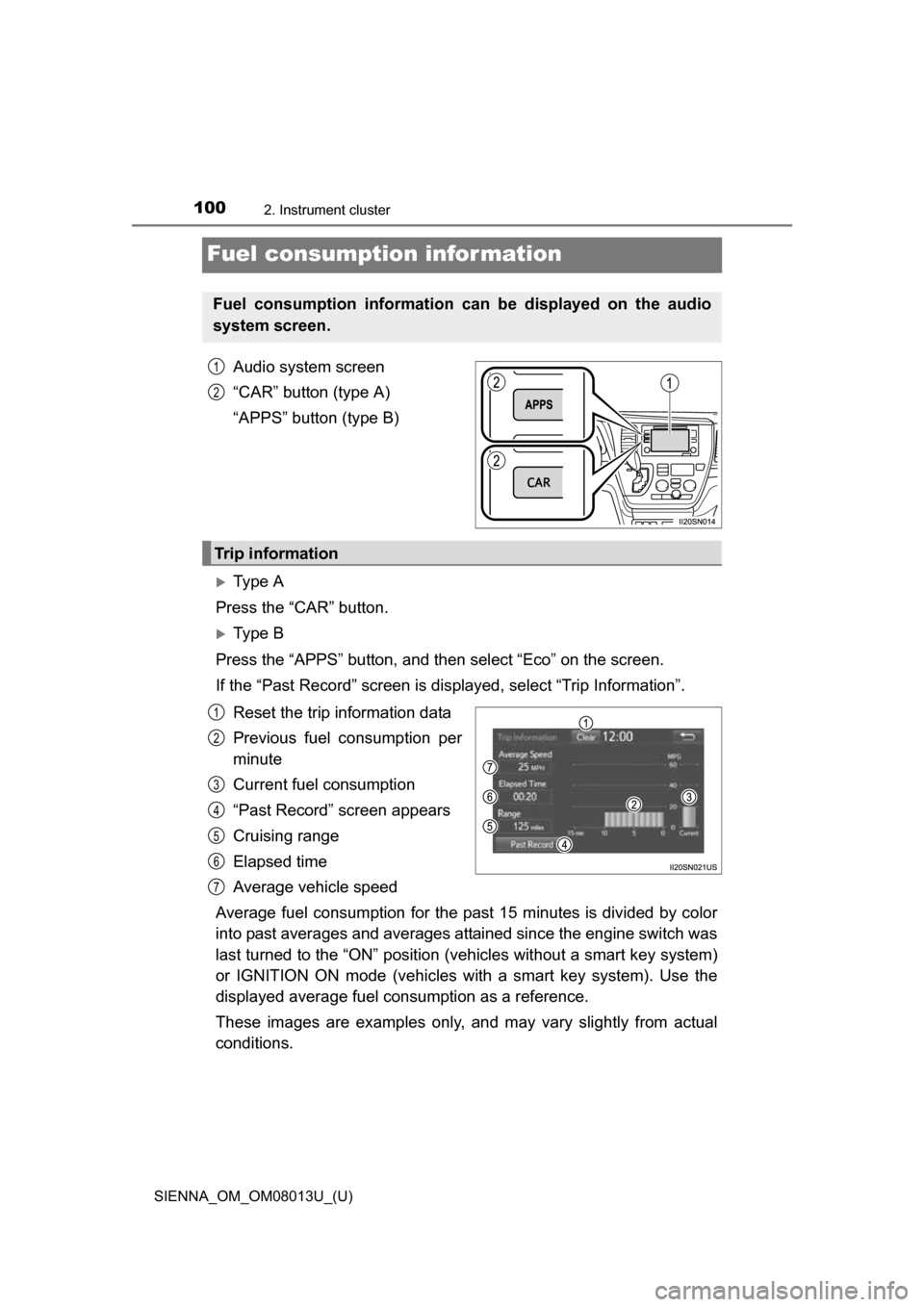

100
SIENNA_OM_OM08013U_(U)
2. Instrument cluster
Fuel consumption information
Audio system screen
“CAR” button (type A)
“APPS” button (type B)
Ty p e A
Press the “CAR” button.
Ty p e B
Press the “APPS” button, and t hen select “Eco” on the screen.
If the “Past Record” screen is displayed, select “Trip Information”.
Reset the trip information data
Previous fuel consumption per
minute
Current fuel consumption
“Past Record” screen appears
Cruising range
Elapsed time
Average vehicle speed
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to the “ON” position (v ehicles without a smart key system)
or IGNITION ON mode (vehicles wi th a smart key system). Use the
displayed average fuel co nsumption as a reference.
These images are examples only, an d may vary slightly from actual
conditions.
Fuel consumption information can be displayed on the audio
system screen.
1
2
Trip information
1
2
3
4
5
6
7

SIENNA_OM_OM08013U_(U)

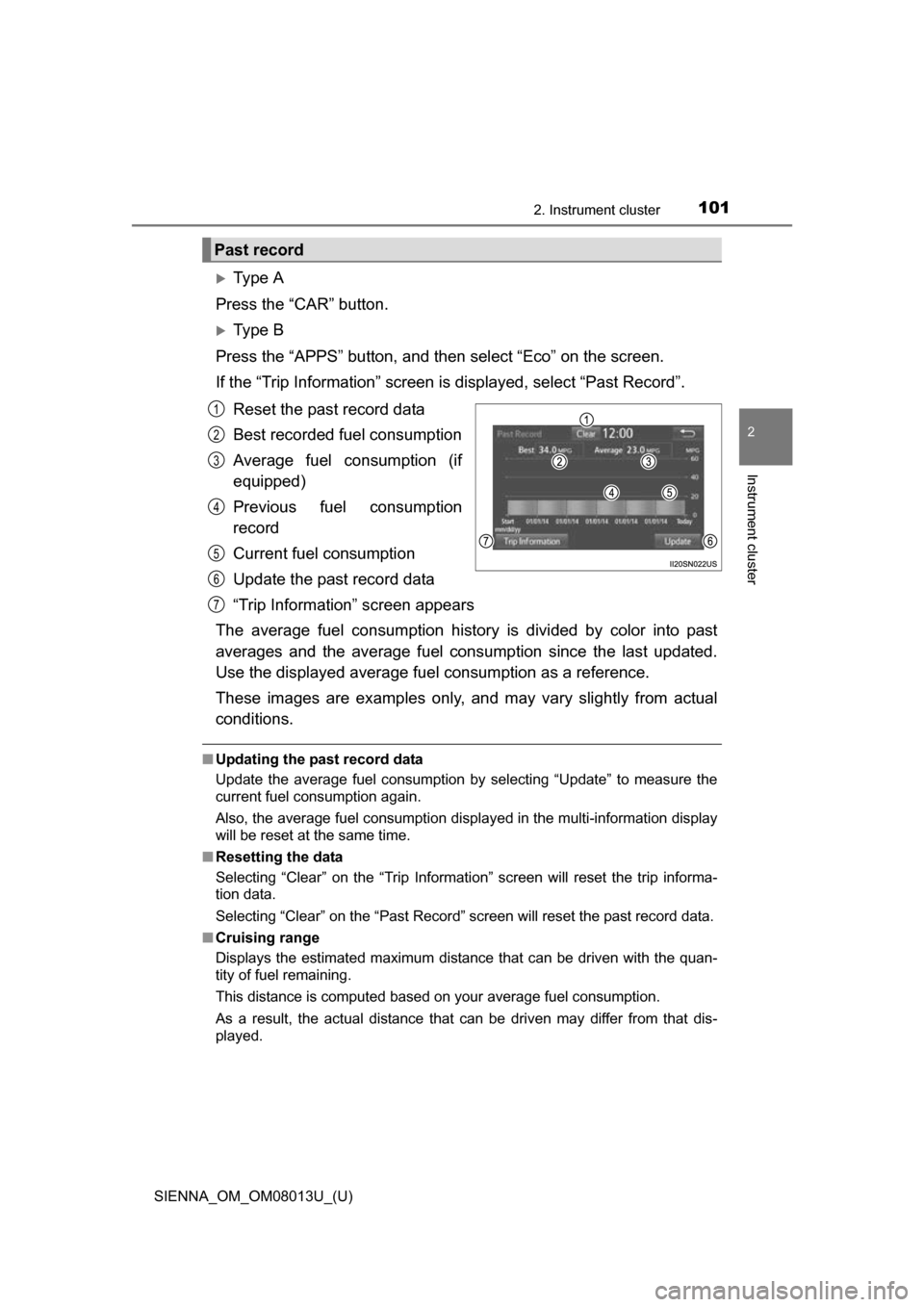

1012. Instrument cluster
2
Instrument cluster
Ty p e A
Press the “CAR” button.
Ty p e B
Press the “APPS” button, and t hen select “Eco” on the screen.
If the “Trip Information” screen is displayed, select “Past Record”.
Reset the past record data
Best recorded fuel consumption
Average fuel consumption (if
equipped)
Previous fuel consumption
record
Current fuel consumption
Update the past record data
“Trip Information” screen appears
The average fuel consumption history is divided by color into past
averages and the average fuel cons umption since the last updated.
Use the displayed average fuel consumption as a reference.
These images are examples only, an d may vary slightly from actual
conditions.
■ Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
Also, the average fuel consumption displa yed in the multi-information display
will be reset at the same time.
■ Resetting the data
Selecting “Clear” on the “Trip Information” screen will reset the trip informa-
tion data.
Selecting “Clear” on the “Past Record” screen will reset the past record data.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
Past record
1
2
3
4
5
6
7

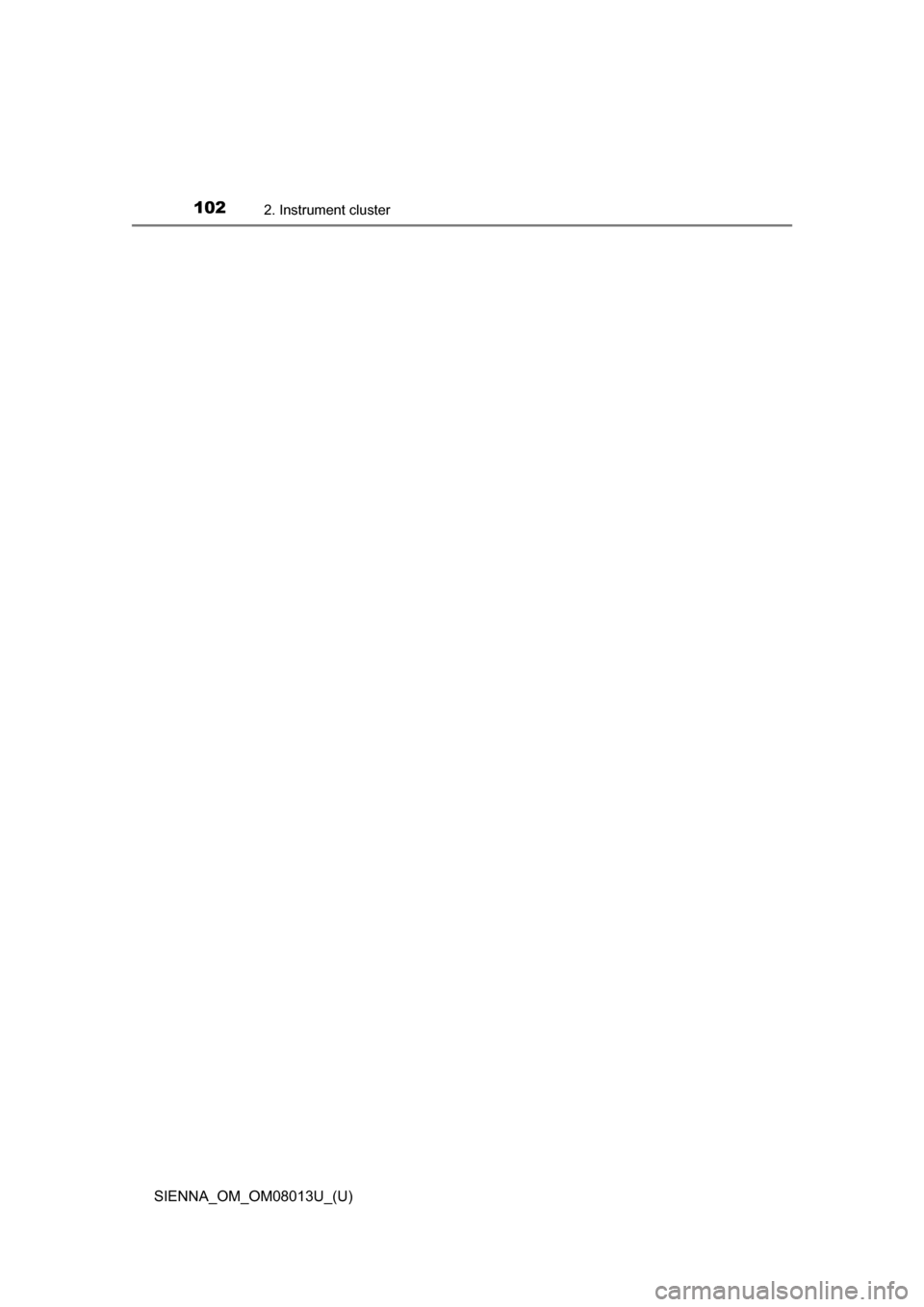

102
SIENNA_OM_OM08013U_(U)
2. Instrument cluster

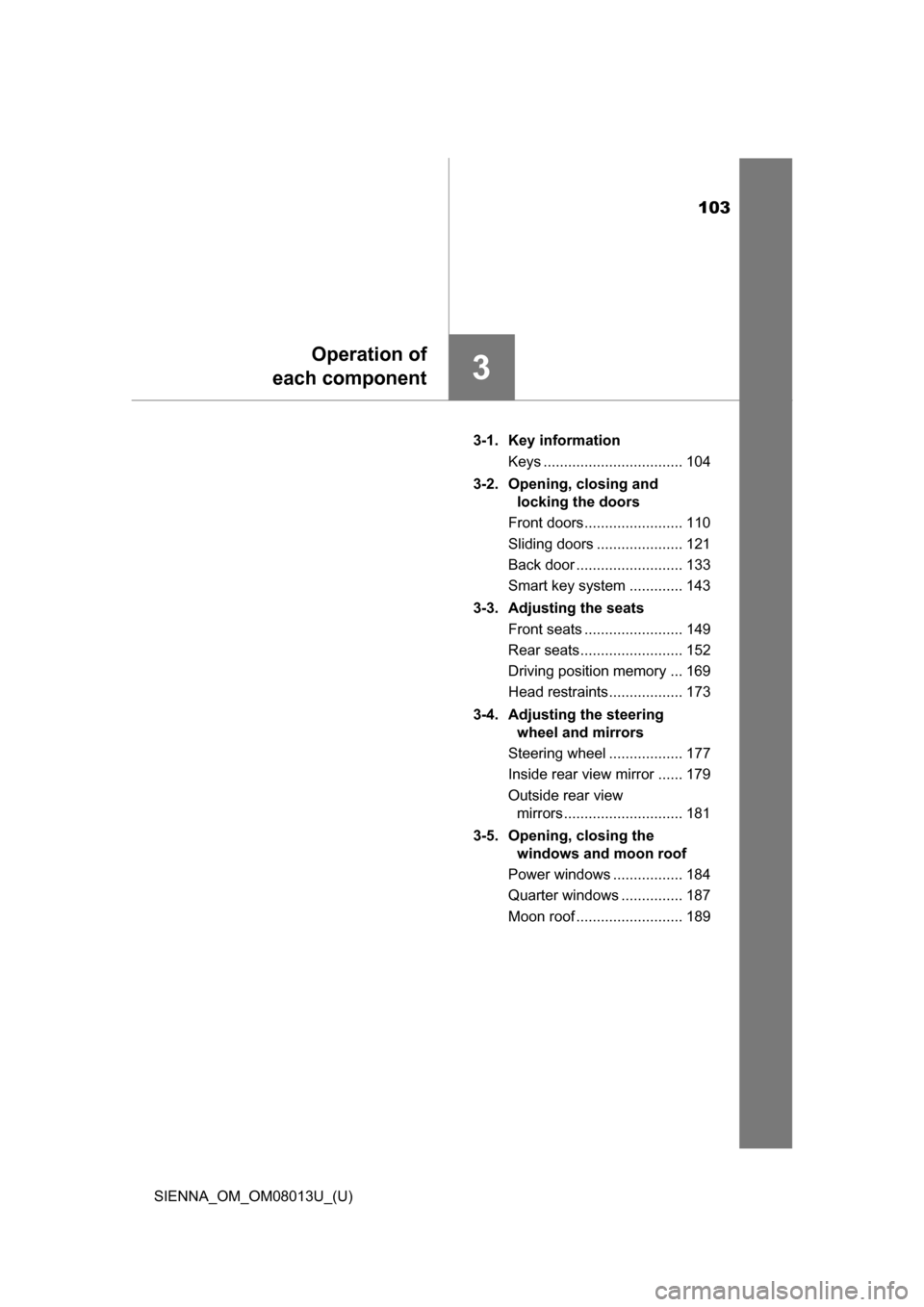

103
SIENNA_OM_OM08013U_(U)
3
Operation of
each component
3-1. Key information
Keys .................................. 104
3-2. Opening, closing and locking the doors
Front doors........................ 110
Sliding doors ..................... 121
Back door .......................... 133
Smart key system ............. 143
3-3. Adjusting the seats Front seats ........................ 149
Rear seats......................... 152
Driving position memory ... 169
Head restraints.................. 173
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 177
Inside rear view mirror ...... 179
Outside rear view mirrors ............................. 181
3-5. Opening, closing the windows and moon roof
Power windows ................. 184
Quarter windows ............... 187
Moon roof .......................... 189

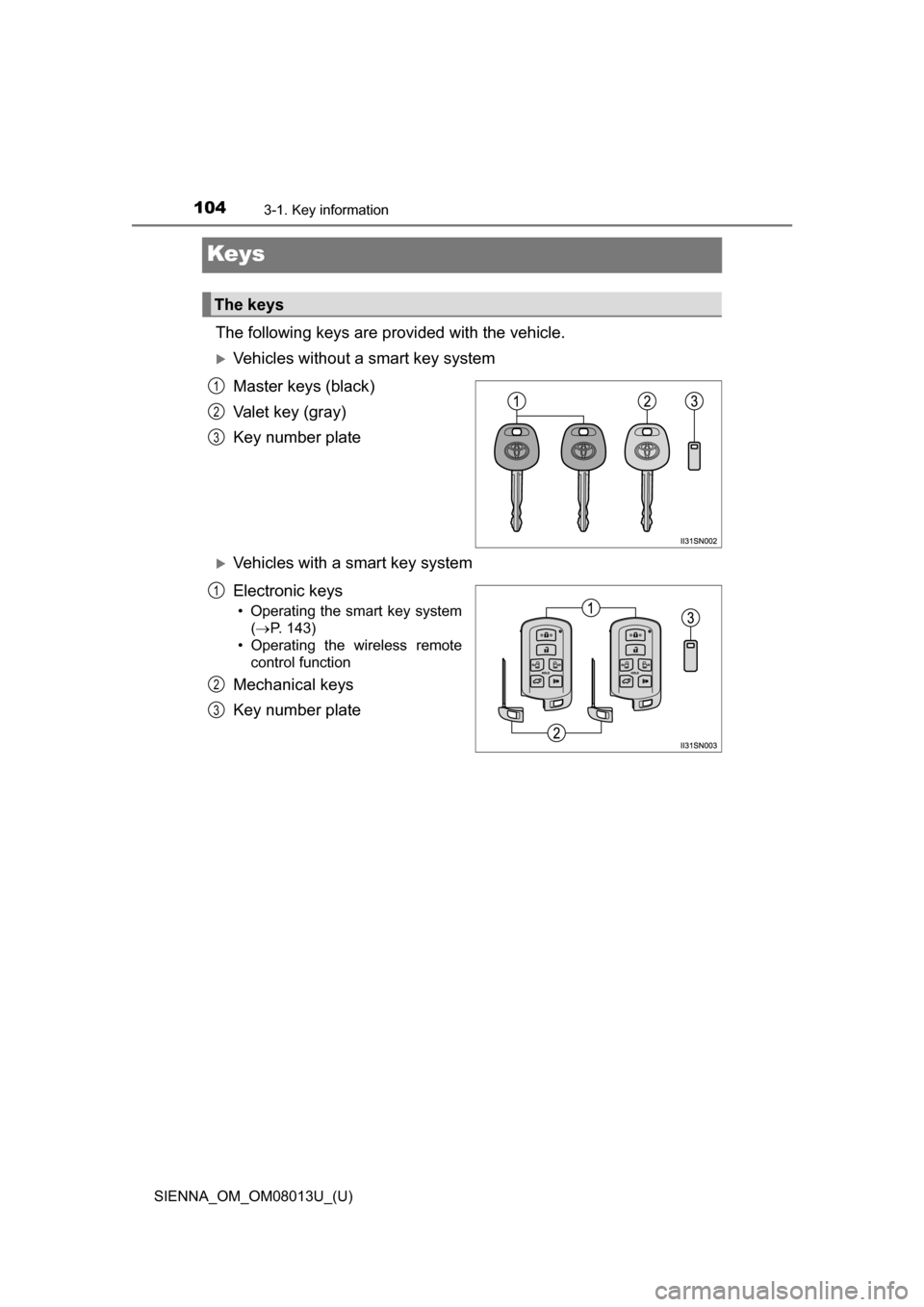

104
SIENNA_OM_OM08013U_(U)
3-1. Key information
Keys
The following keys are provided with the vehicle.
Vehicles without a smart key system
Master keys (black)
Valet key (gray)
Key number plate
Vehicles with a smart key system
Electronic keys
• Operating the smart key system( P. 143)
• Operating the wireless remote control function
Mechanical keys
Key number plate
The keys
1
2
3
1
2
3
