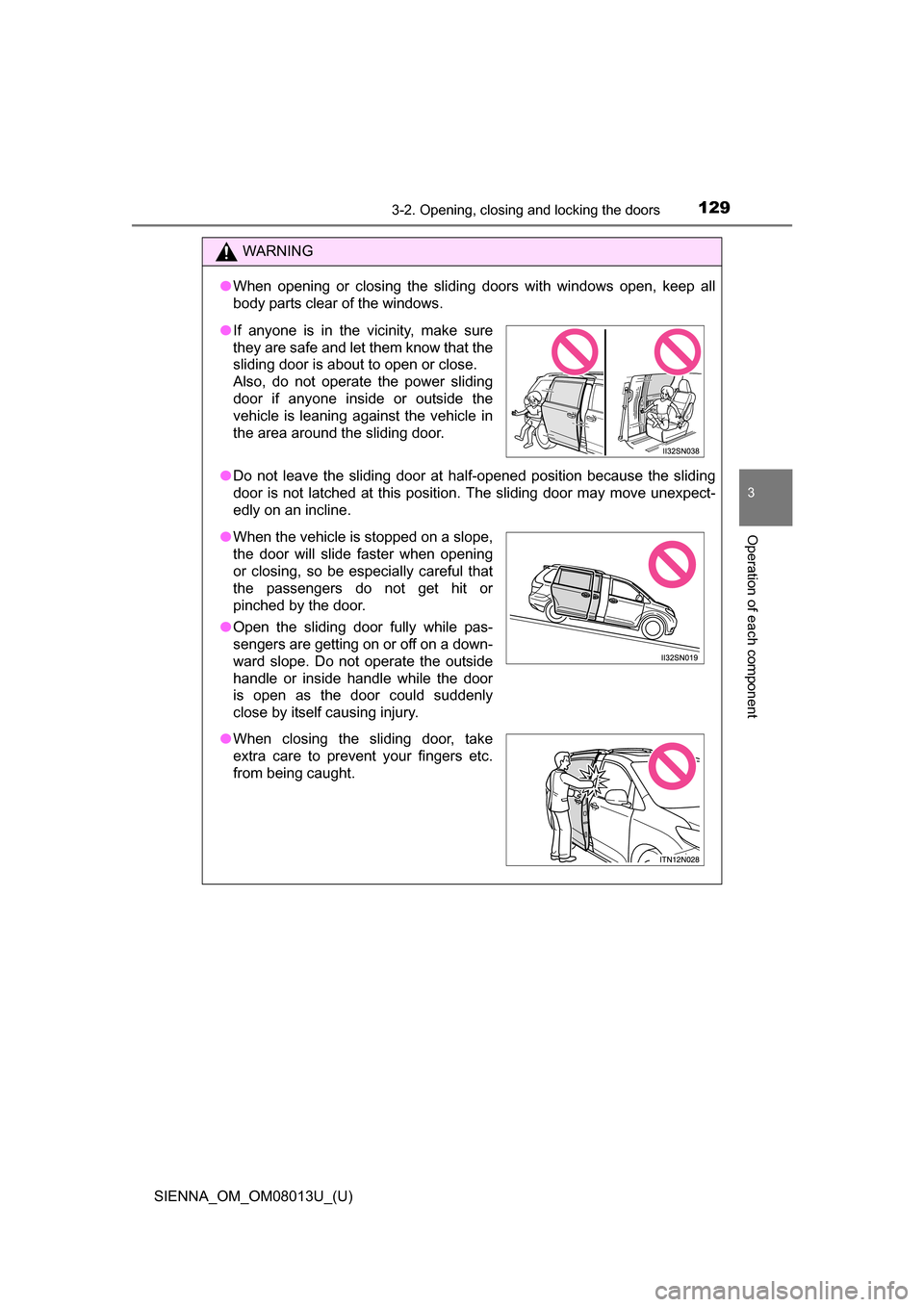

2016 TOYOTA SIENNA Owners Manual

SIENNA_OM_OM08013U_(U)
1293-2. Opening, closing and locking the doors
3
Operation of each component
WARNING
●When opening or closing the sliding doors with windows open, keep all
body parts clear of the windows.
● Do not leave the sliding door at half-opened position because the sliding
door is not latched at this position. The sliding door may move unexpect-
edly on an incline.
●If anyone is in the vicinity, make sure
they are safe and let them know that the
sliding door is about to open or close.
Also, do not operate the power sliding
door if anyone inside or outside the
vehicle is leaning against the vehicle in
the area around the sliding door.
●When the vehicle is stopped on a slope,
the door will slide faster when opening
or closing, so be especially careful that
the passengers do not get hit or
pinched by the door.
● Open the sliding door fully while pas-
sengers are getting on or off on a down-
ward slope. Do not operate the outside
handle or inside handle while the door
is open as the door could suddenly
close by itself causing injury.
● When closing the sliding door, take
extra care to prevent your fingers etc.
from being caught.

130
SIENNA_OM_OM08013U_(U)
3-2. Opening, closing and locking the doors
WARNING
■Sliding door clo ser (if equipped)
● Use caution when using the sliding door closer. The sliding door closer
operates even when the power sliding door system is canceled.
■ Power sliding doors (vehicles with power sliding doors)
Observe the following precautions when the power sliding door system is
on.
Failure to do so may cause death or serious injury.
●When using the door handle to open or close the power sliding door,
remove your hand from the door handle immediately after starting power
sliding door operation. If you leave your hand on the door handle during
operation, your hand, fingers, wrist etc. may be subjected to an excessive
amount of force.
● Check the safety of the surrounding area to make sure there are no obsta-
cles or anything that could cause any of your belongings to get caught.
● If anyone is in the vicinity, make sure they are safe and let them know that
the sliding door is about to open or close.
● If the power sliding door system is turned off with the main switch while the
sliding door is operating automatica lly, the automatic operation is stopped.
The sliding door then has to be operated manually. Take extra care when
on an incline, as the sliding door may open or close unexpectedly.
● If the operating conditions of the power sliding door are no longer met, a
buzzer may sound and the sliding door may stop opening or closing. The
sliding door then has to be operated manually. Take extra care when on an
incline, as the sliding door may open or close abruptly.
●In the event that the sliding door is left
slightly open, the sliding door closer will
automatically close it to the fully closed
position. It takes several seconds
before the sliding door closer begins to
operate. Be careful not to catch fingers
or anything else in the sliding door, as
this may cause bone fractures or other
serious injuries.

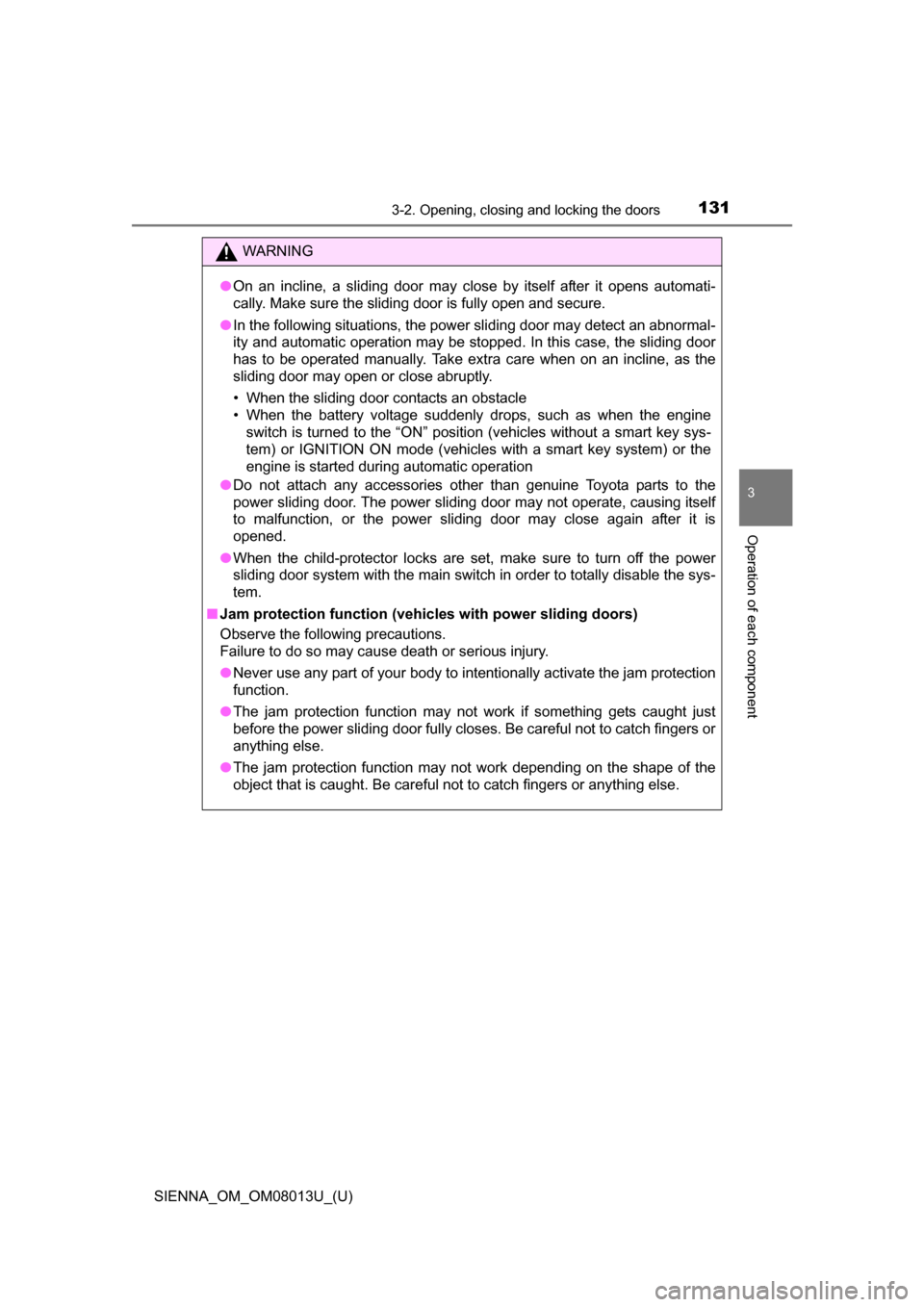

SIENNA_OM_OM08013U_(U)
1313-2. Opening, closing and locking the doors
3
Operation of each component
WARNING
●On an incline, a sliding door may close by itself after it opens automati-
cally. Make sure the sliding door is fully open and secure.
● In the following situations, the power sliding door may detect an abnormal-
ity and automatic operation may be stopped. In this case, the sliding door
has to be operated manually. Take extra care when on an incline, as the
sliding door may open or close abruptly.
• When the sliding door contacts an obstacle
• When the battery voltage suddenly drops, such as when the engine
switch is turned to the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system) or the
engine is started during automatic operation
● Do not attach any accessories other than genuine Toyota parts to the
power sliding door. The power sliding door may not operate, causing itself
to malfunction, or the power sliding door may close again after it is
opened.
● When the child-protector locks are set, make sure to turn off the power
sliding door system with the main switch in order to totally disable the sys-
tem.
■ Jam protection function (vehic les with power sliding doors)
Observe the following precautions.
Failure to do so may cause death or serious injury.
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the power sliding door fully closes. Be careful not to catch fingers or
anything else.
● The jam protection function may not work depending on the shape of the
object that is caught. Be careful not to catch fingers or anything else.

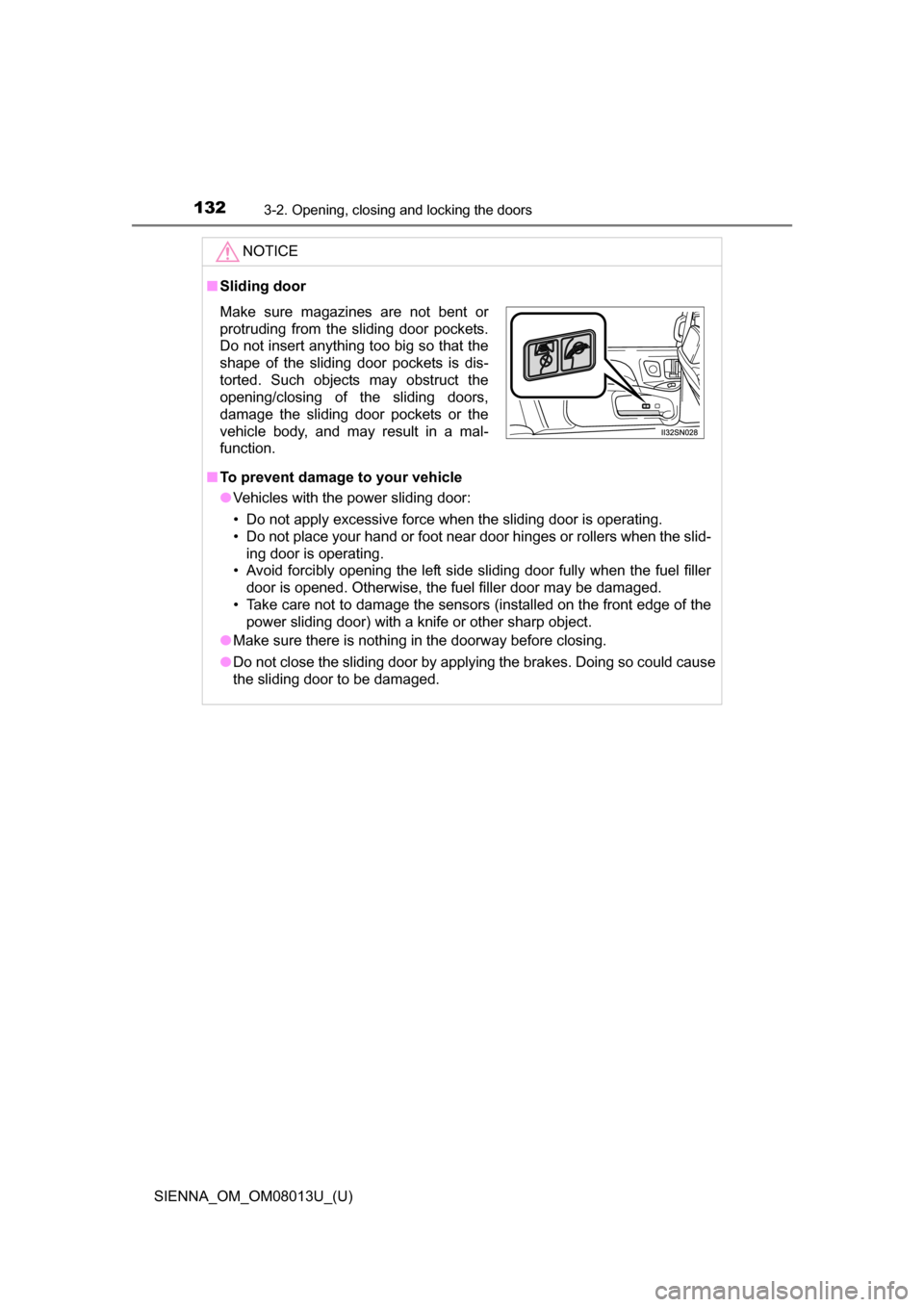

132
SIENNA_OM_OM08013U_(U)
3-2. Opening, closing and locking the doors
NOTICE
■Sliding door
■ To prevent damage to your vehicle
●Vehicles with the power sliding door:
• Do not apply excessive force when the sliding door is operating.
• Do not place your hand or foot near door hinges or rollers when the slid-
ing door is operating.
• Avoid forcibly opening the left side sliding door fully when the fuel filler door is opened. Otherwise, the fuel filler door may be damaged.
• Take care not to damage the sensors (installed on the front edge of the power sliding door) with a knife or other sharp object.
● Make sure there is nothing in the doorway before closing.
● Do not close the sliding door by applying the brakes. Doing so could cause
the sliding door to be damaged.
Make sure magazines are not bent or
protruding from the sliding door pockets.
Do not insert anything too big so that the
shape of the sliding door pockets is dis-
torted. Such objects may obstruct the
opening/closing of the sliding doors,
damage the sliding door pockets or the
vehicle body, and may result in a mal-
function.

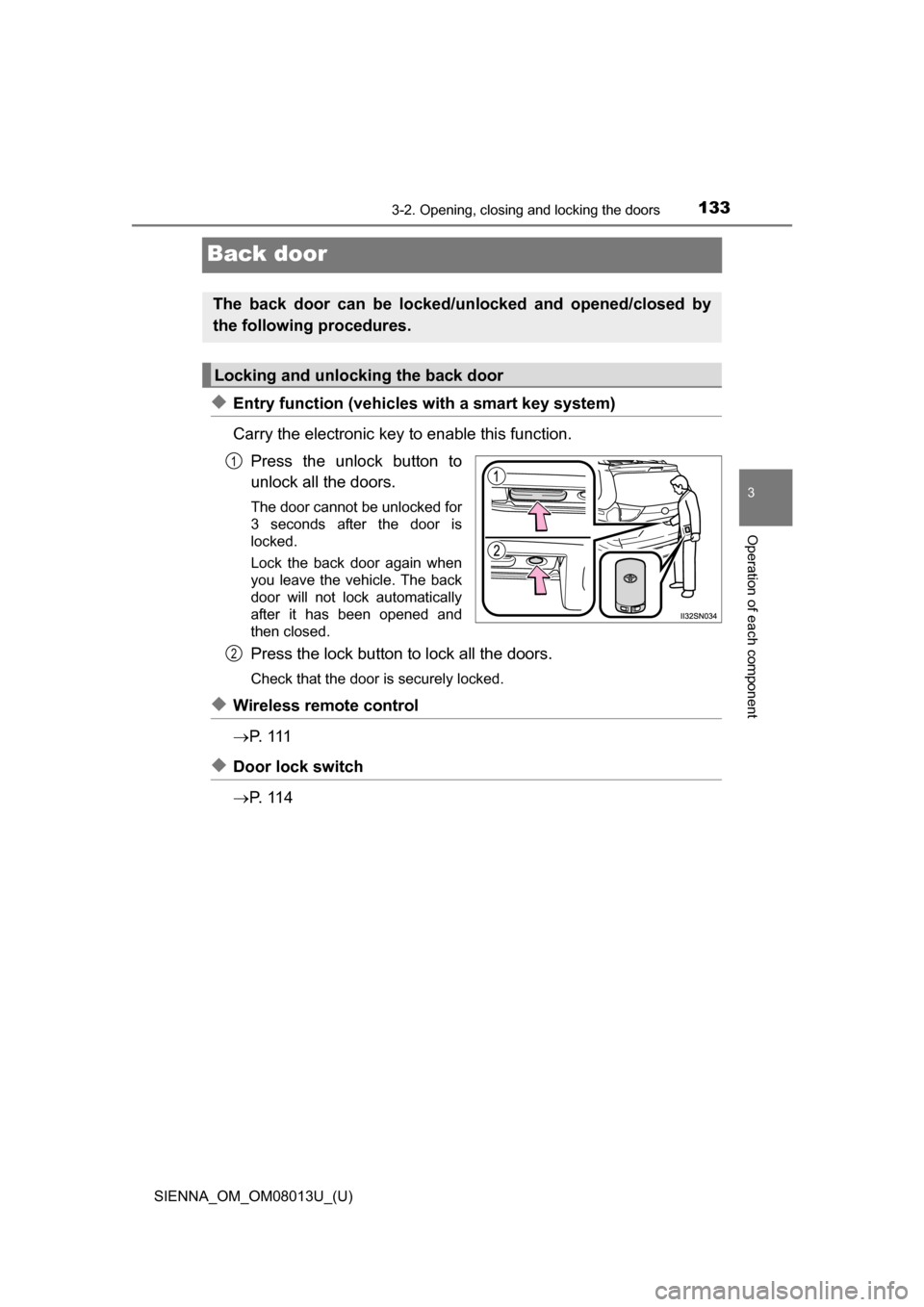

133
SIENNA_OM_OM08013U_(U)
3-2. Opening, closing and locking the doors
3
Operation of each component
Back door
◆Entry function (vehicles with a smart key system)
Carry the electronic key to enable this function.Press the unlock button to
unlock all the doors.
The door cannot be unlocked for
3 seconds after the door is
locked.
Lock the back door again when
you leave the vehicle. The back
door will not lock automatically
after it has been opened and
then closed.
Press the lock button to lock all the doors.
Check that the door is securely locked.
◆Wireless remote control
P. 1 1 1
◆Door lock switch
P. 1 1 4
The back door can be locked/unl ocked and opened/closed by
the following procedures.
Locking and unlocking the back door
1
2

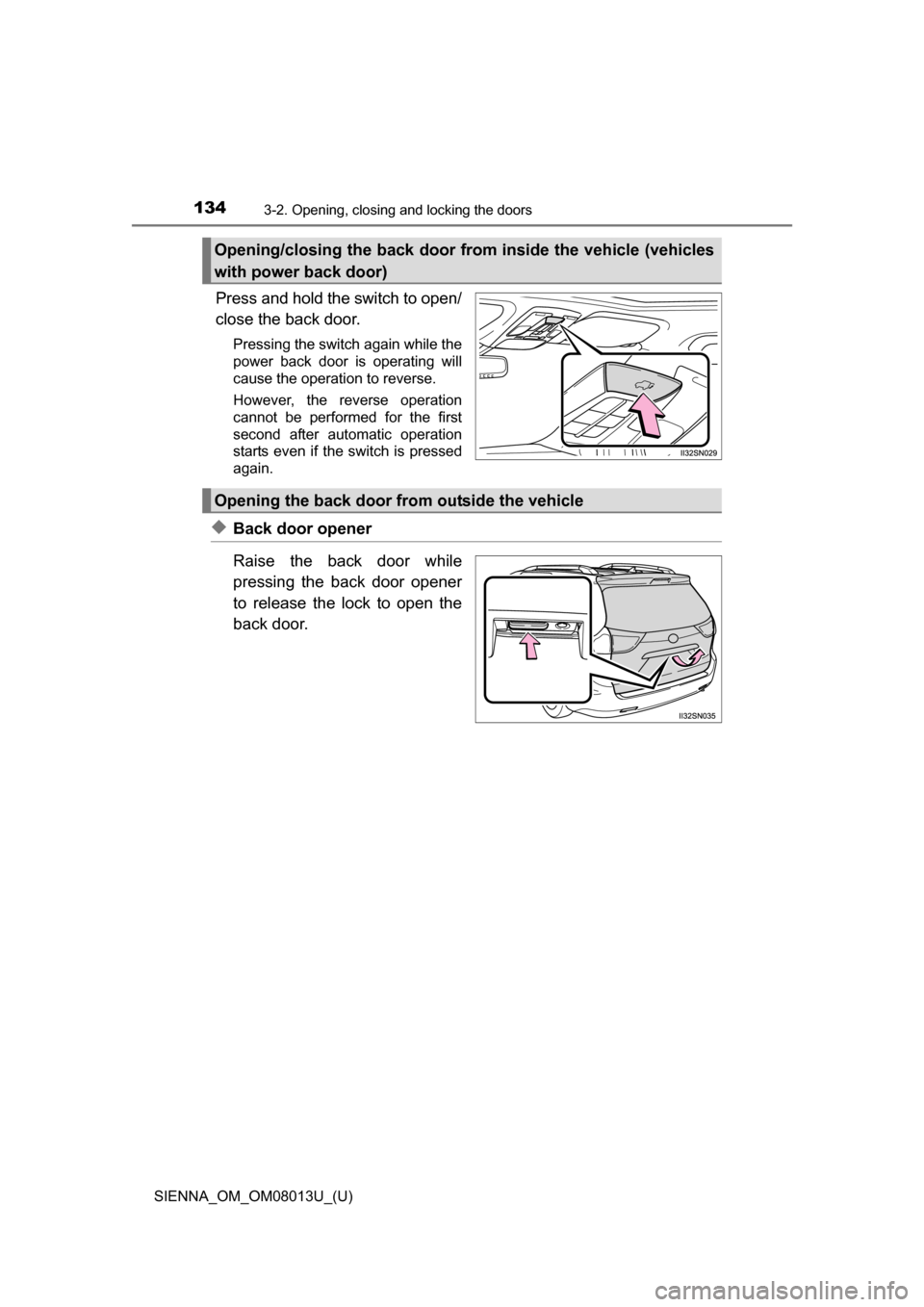

134
SIENNA_OM_OM08013U_(U)
3-2. Opening, closing and locking the doors
Press and hold the switch to open/
close the back door.
Pressing the switch again while the
power back door is operating will
cause the operation to reverse.
However, the reverse operation
cannot be performed for the first
second after automatic operation
starts even if the switch is pressed
again.
◆Back door opener
Raise the back door while
pressing the back door opener
to release the lock to open the
back door.
Opening/closing the back door from inside the vehicle (vehicles
with power back door)
Opening the back door from outside the vehicle

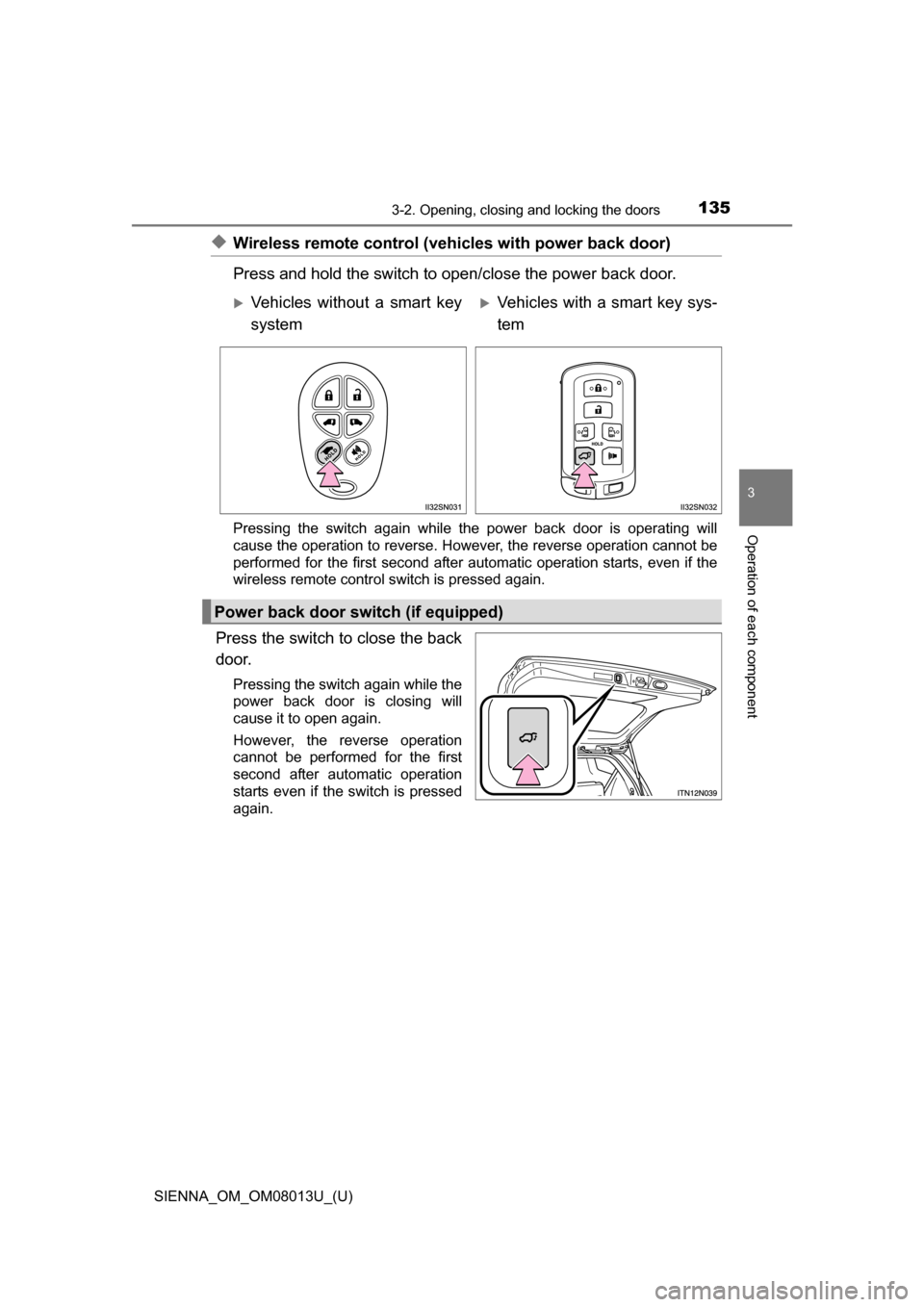

SIENNA_OM_OM08013U_(U)
1353-2. Opening, closing and locking the doors
3
Operation of each component
◆Wireless remote control (vehicles with power back door)
Press and hold the switch to open/close the power back door.
Pressing the switch again while the power back door is operating will
cause the operation to reverse. However, the reverse operation cannot be
performed for the first second after automatic operation starts, even if the
wireless remote control switch is pressed again.
Press the switch to close the back
door.
Pressing the switch again while the
power back door is closing will
cause it to open again.
However, the reverse operation
cannot be performed for the first
second after automatic operation
starts even if the switch is pressed
again.
Vehicles without a smart key
systemVehicles with a smart key sys-
tem
Power back door switch (if equipped)

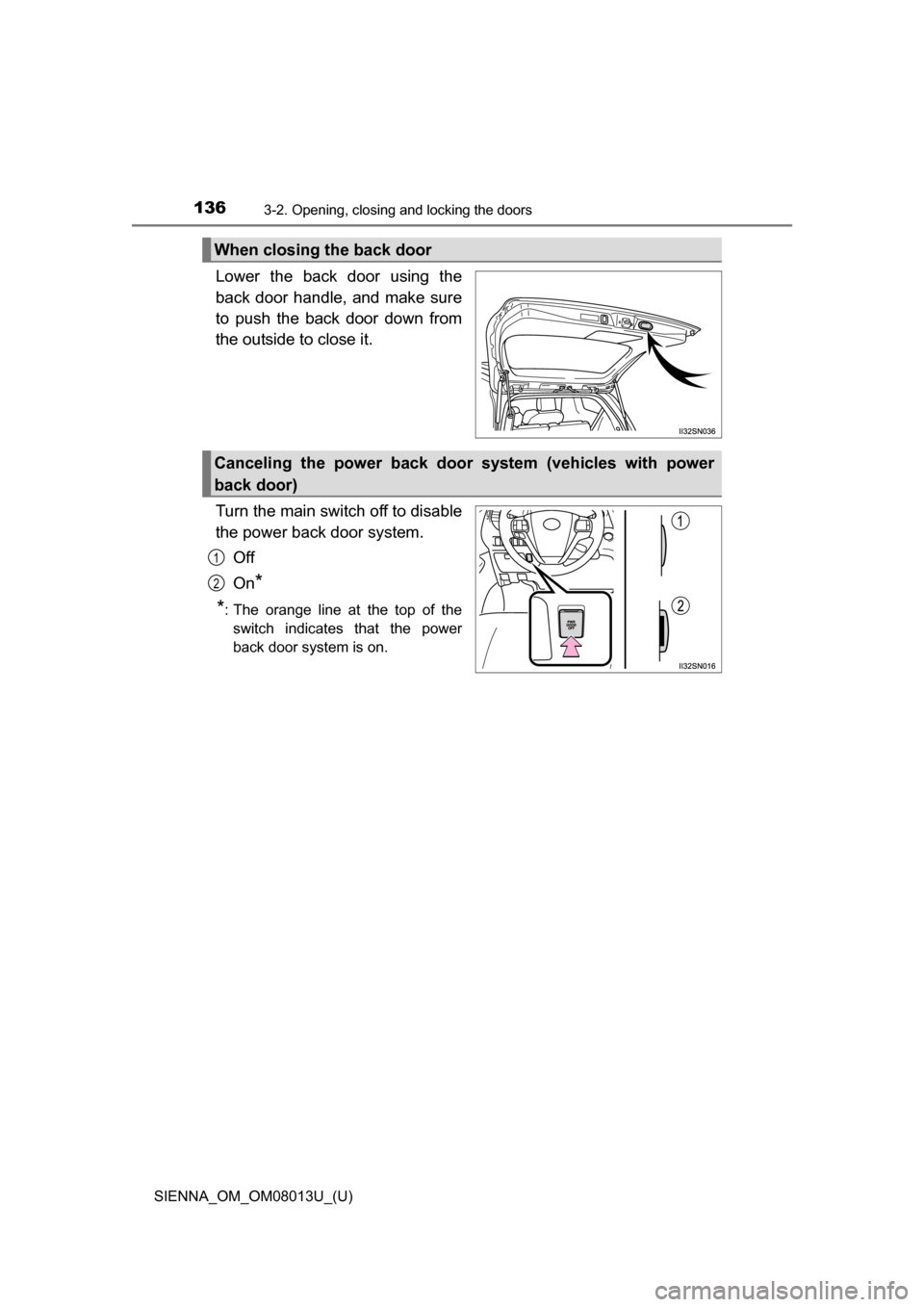

136
SIENNA_OM_OM08013U_(U)
3-2. Opening, closing and locking the doors
Lower the back door using the
back door handle, and make sure
to push the back door down from
the outside to close it.
Turn the main switch off to disable
the power back door system.Off
On
*
*
: The orange line at the top of the switch indicates that the power
back door system is on.
When closing the back door
Canceling the power back door system (vehicles with power
back door)
1
2
