2016 TOYOTA SIENNA service indicator

457
SIENNA_OM_OM08013U_(U)
6-4. Using the other interior features
6
Interior features

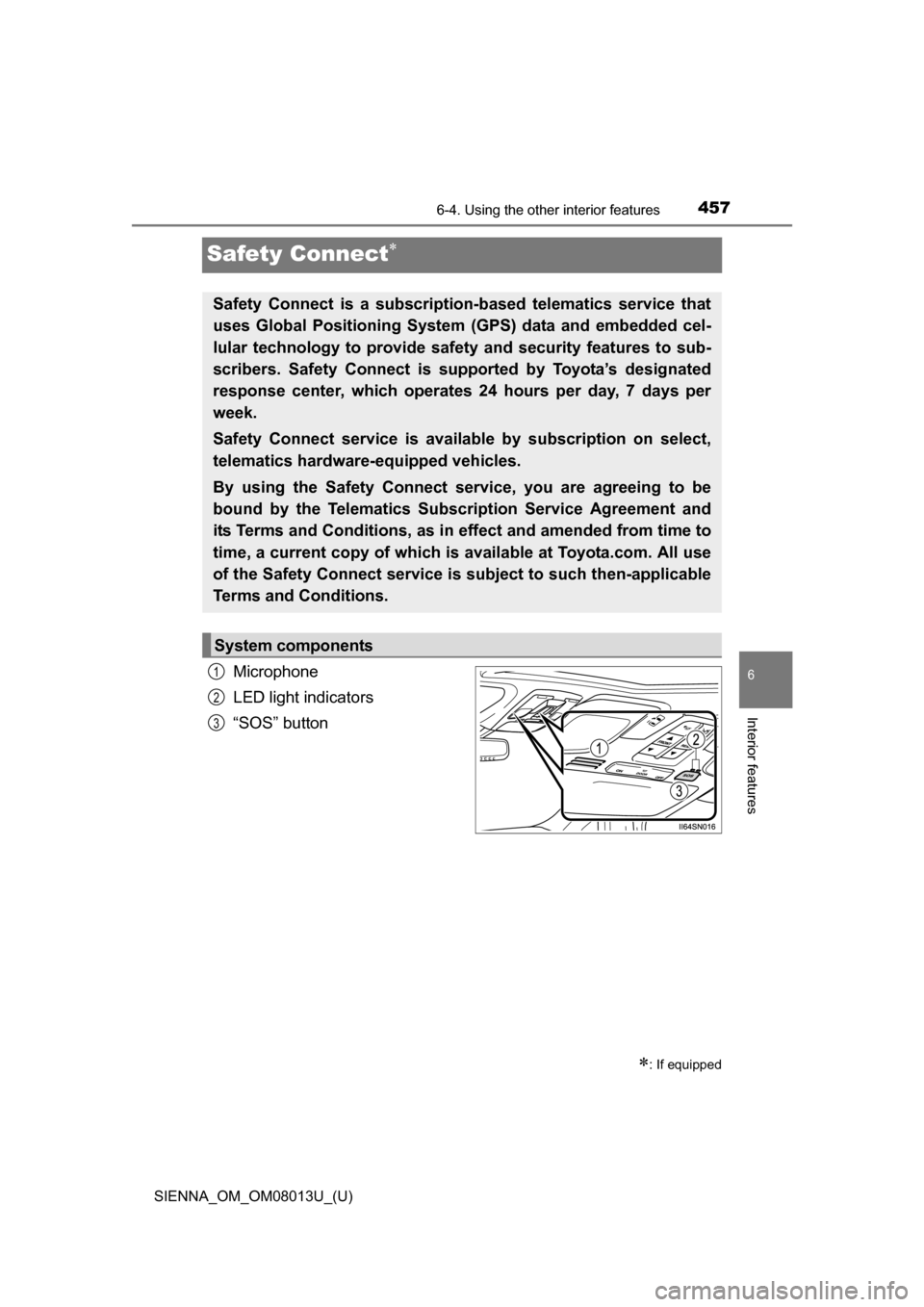

Safety Connect
Microphone
LED light indicators
“SOS” button
: If equipped
Safety Connect is a subscription-based telematics service that
uses Global Positioning System (GPS) data and embedded cel-
lular technology to provide safety and security features to sub-
scribers. Safety Connect is supported by Toyota’s designated
response center, which operates 24 hours per day, 7 days per
week.
Safety Connect service is avai lable by subscription on select,
telematics hardware-equipped vehicles.
By using the Safety Connect service, you are agreeing to be
bound by the Telematics Subscription Service Agreement and
its Terms and Conditions, as in ef fect and amended from time to
time, a current copy of which is available at Toyota.com. All use
of the Safety Connect service is subject to such then-applicable
Terms and Conditions.
System components
1
2
3

SIENNA_OM_OM08013U_(U)
4596-4. Using the other interior features
6
Interior features
■Safety Connect Services Information
●Phone calls using the vehicles Bluetooth® technology will not be possible
during Safety Connect.
● Safety Connect is available beginning Fall 2009 on select Toyota models.
Contact with the Safety Connect response center is dependent upon the
telematics device being in operative condition, cellular connection availabil-
ity, and GPS satellite signal reception, which can limit the ability to reach the
response center or receive emergency service support. Enrollment and
Telematics Subscription Service Agreement are required. A variety of sub-
scription terms is available; charges vary by subscription term selected.
● Automatic Collision Notification, Emergency Assistance, Stolen Vehicle
Location, and Enhanced Roadside Assistance will function in the United
States, including Hawaii and Alaska, and in Canada. No Safety Connect
services will function outside of the United States in countries other than
Canada.
● Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.
■ Languages
The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English and Spanish.
Please indicate your language of choice when enrolling.
■ When contacting th e response center
You may be unable to contact the response center if the network is busy.
When the engine switch is turned to the “ON” position (vehicles with-
out a smart key system) or IGNITION ON mode (vehicles with a smart
key system), the red indicator light comes on for 2 seconds then turns
off. Afterward, the green indicator light comes on, indicating that the
service is active.
The following indicator light patterns indicate specific system usage
conditions:
● Green indicator light on = Active service
● Green indicator light flashing = Sa fety Connect call in process
● Red indicator light (except at vehi cle start-up) = System malfunction
(contact your Toyota dealer)
● No indicator light (off) = Safety Connect service not active
Safety Connect LE D light Indicators

476
SIENNA_OM_OM08013U_(U)
7-2. Maintenance

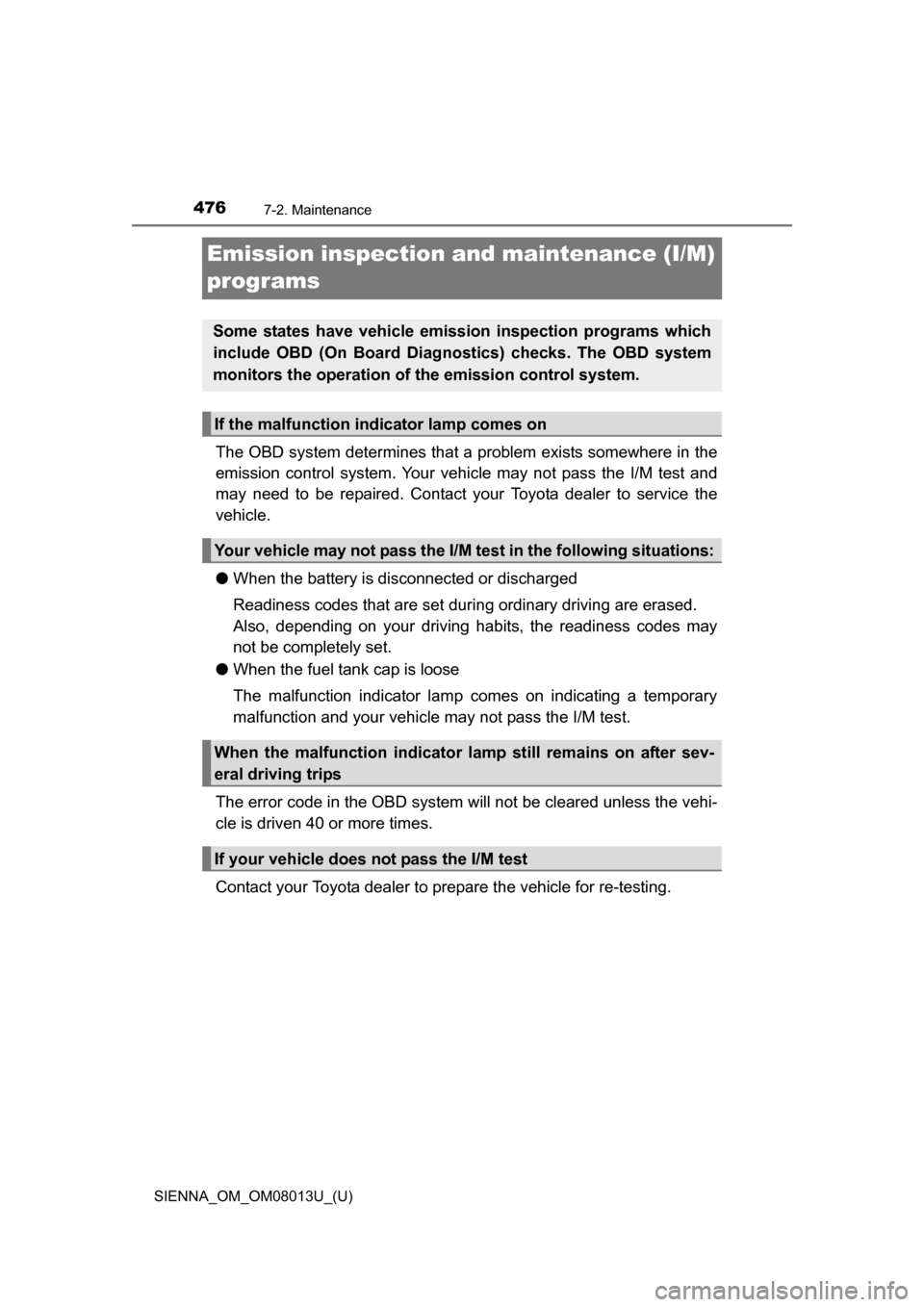

Emission inspection and maintenance (I/M)
programs
The OBD system determines that a problem exists somewhere in the
emission control system. Your vehicl e may not pass the I/M test and
may need to be repaired. Contact your Toyota dealer to service the
vehicle.
● When the battery is disconnected or discharged
Readiness codes that are set duri ng ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a temporary
malfunction and your vehicle may not pass the I/M test.
The error code in the OBD system will not be cleared unless the vehi-
cle is driven 40 or more times.
Contact your Toyota dealer to prepare the vehicle for re-testing.
Some states have vehicle emission inspection programs which
include OBD (On Board Diagnos tics) checks. The OBD system
monitors the operation of the emission control system.
If the malfunction indicator lamp comes on
Your vehicle may not pass the I/M test in the following situations:
When the malfunction indicator lamp still remains on after sev-
eral driving trips
If your vehicle does not pass the I/M test

608
SIENNA_OM_OM08013U_(U)
9-1. Specifications

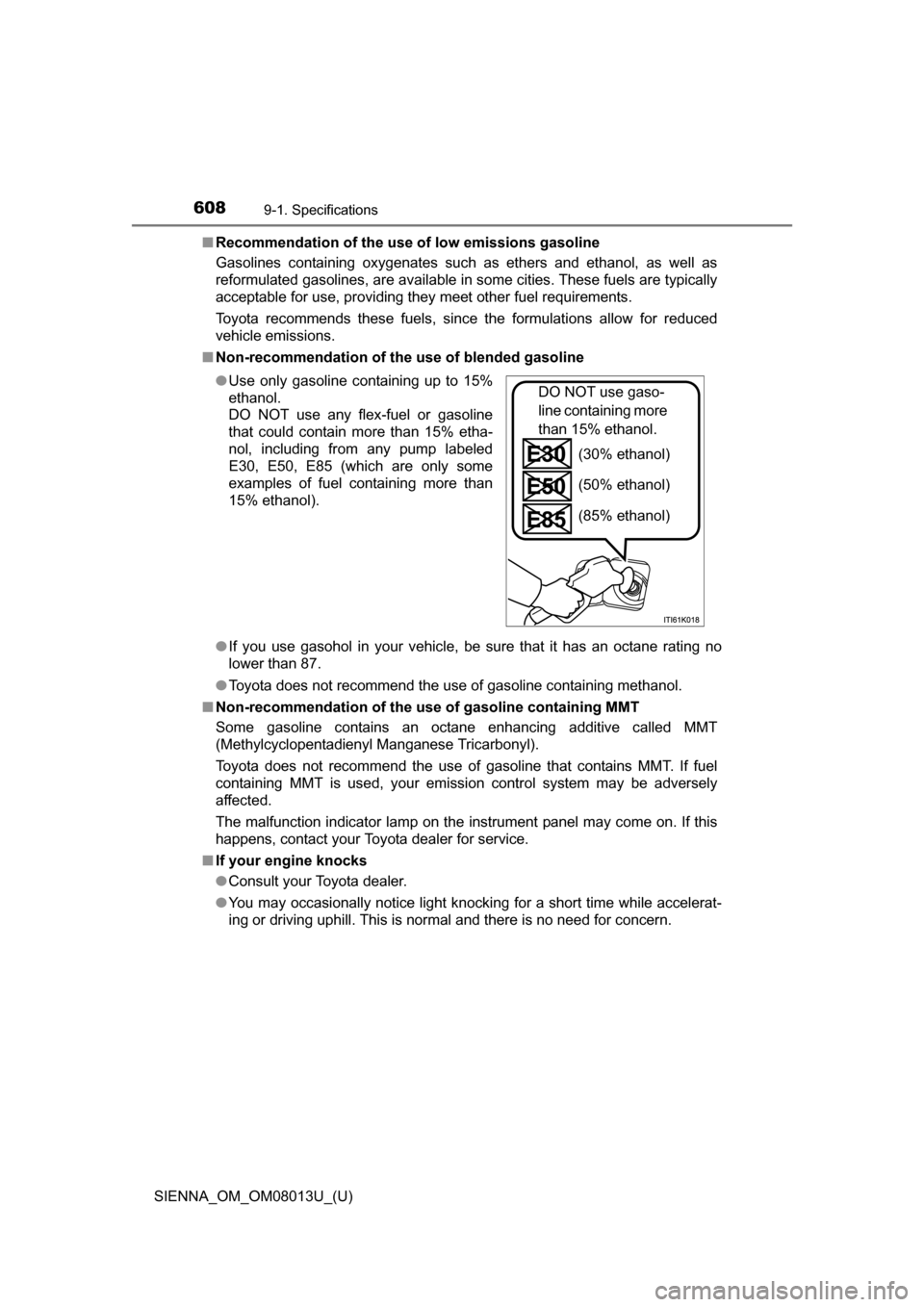

■Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.
■ Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
■ Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT
(Methylcyclopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument panel may come on. If this
happens, contact your Toyota dealer for service.
■ If your engine knocks
●Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
●
Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).
DO NOT use gaso-
line containing more
than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

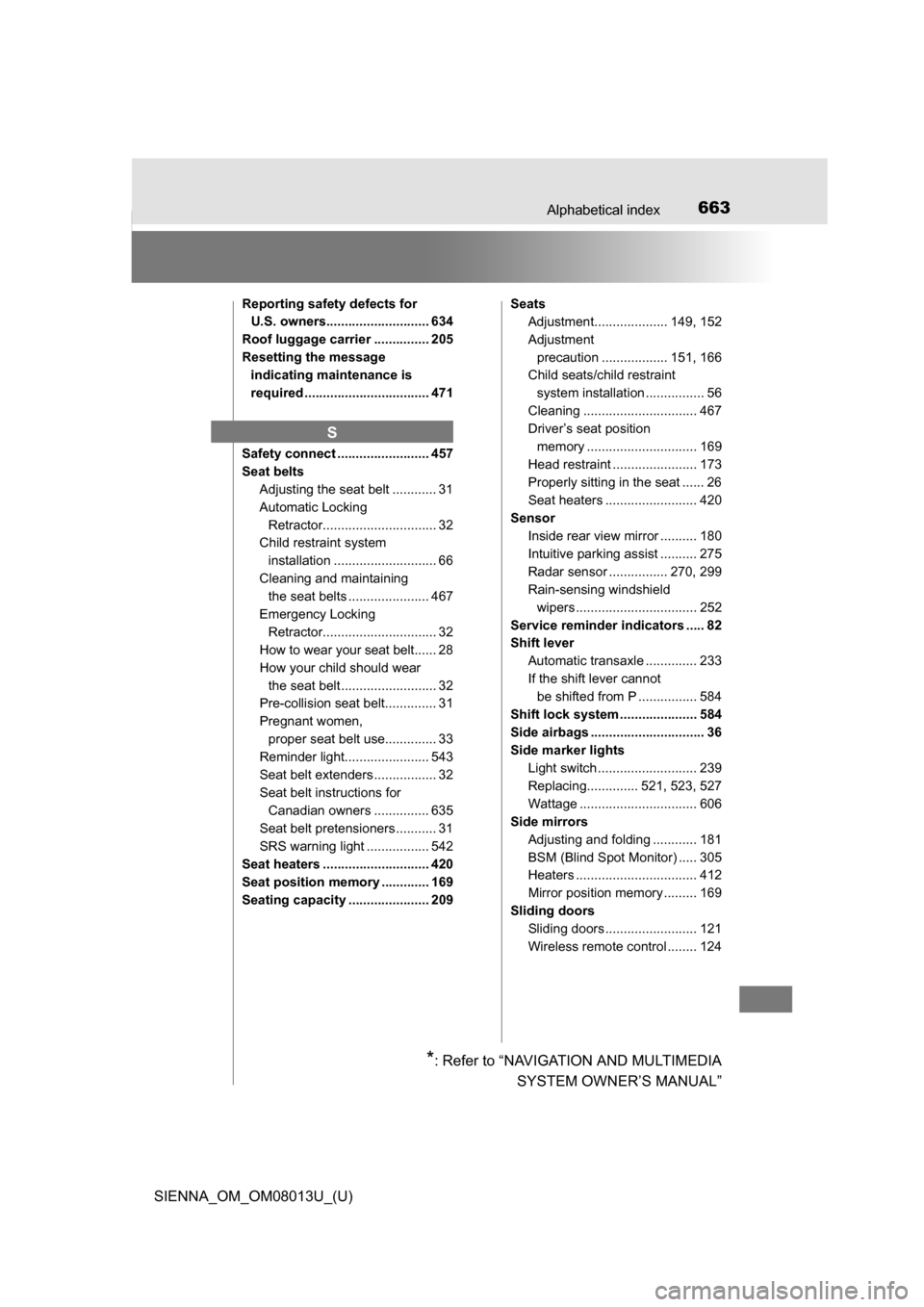

663Alphabetical index
SIENNA_OM_OM08013U_(U)
Reporting safety defects for U.S. owners............................ 634
Roof luggage carrier ............... 205
Resetting the message indicating maintenance is
required .................................. 471
Safety connect ......................... 457
Seat belts Adjusting the seat belt ............ 31
Automatic Locking
Retractor............................... 32
Child restra int system
installation ............................ 66
Cleaning and maintaining the seat belts ...................... 467
Emergency Locking Retractor............................... 32
How to wear your seat belt...... 28
How your child should wear the seat belt .......................... 32
Pre-collision seat belt.............. 31
Pregnant women,
proper seat belt use.............. 33
Reminder light....................... 543
Seat belt extenders ................. 32
Seat belt instructions for Canadian owners ............... 635
Seat belt pretensioners ........... 31
SRS warning light ................. 542
Seat heaters ............................. 420
Seat position memory ............. 169
Seating capacity ...................... 209 Seats
Adjustment.................... 149, 152
Adjustment
precaution .................. 151, 166
Child seats/child restraint
system installation ................ 56
Cleaning ............................... 467
Driver’s seat position memory .............................. 169
Head restraint ....................... 173
Properly sitting in the seat ...... 26
Seat heaters ......................... 420
Sensor Inside rear view mirror .......... 180
Intuitive parking assist .......... 275
Radar sensor ................ 270, 299
Rain-sensing windshield
wipers ................................. 252
Service reminder indicators ..... 82
Shift lever Automatic transaxle .............. 233
If the shift lever cannot be shifted from P ................ 584
Shift lock system ..................... 584
Side airbags ............................... 36
Side marker lights Light switch ........................... 239
Replacing.............. 521, 523, 527
Wattage ................................ 606
Side mirrors
Adjusting and folding ............ 181
BSM (Blind Spot Monitor) ..... 305
Heaters ................................. 412
Mirror position memory ......... 169
Sliding doors Sliding doors ......................... 121
Wireless remote control ........ 124
S
