2016 TOYOTA SIENNA Owners Manual

SIENNA_OM_OM08013U_(U)
892. Instrument cluster
2
Instrument cluster

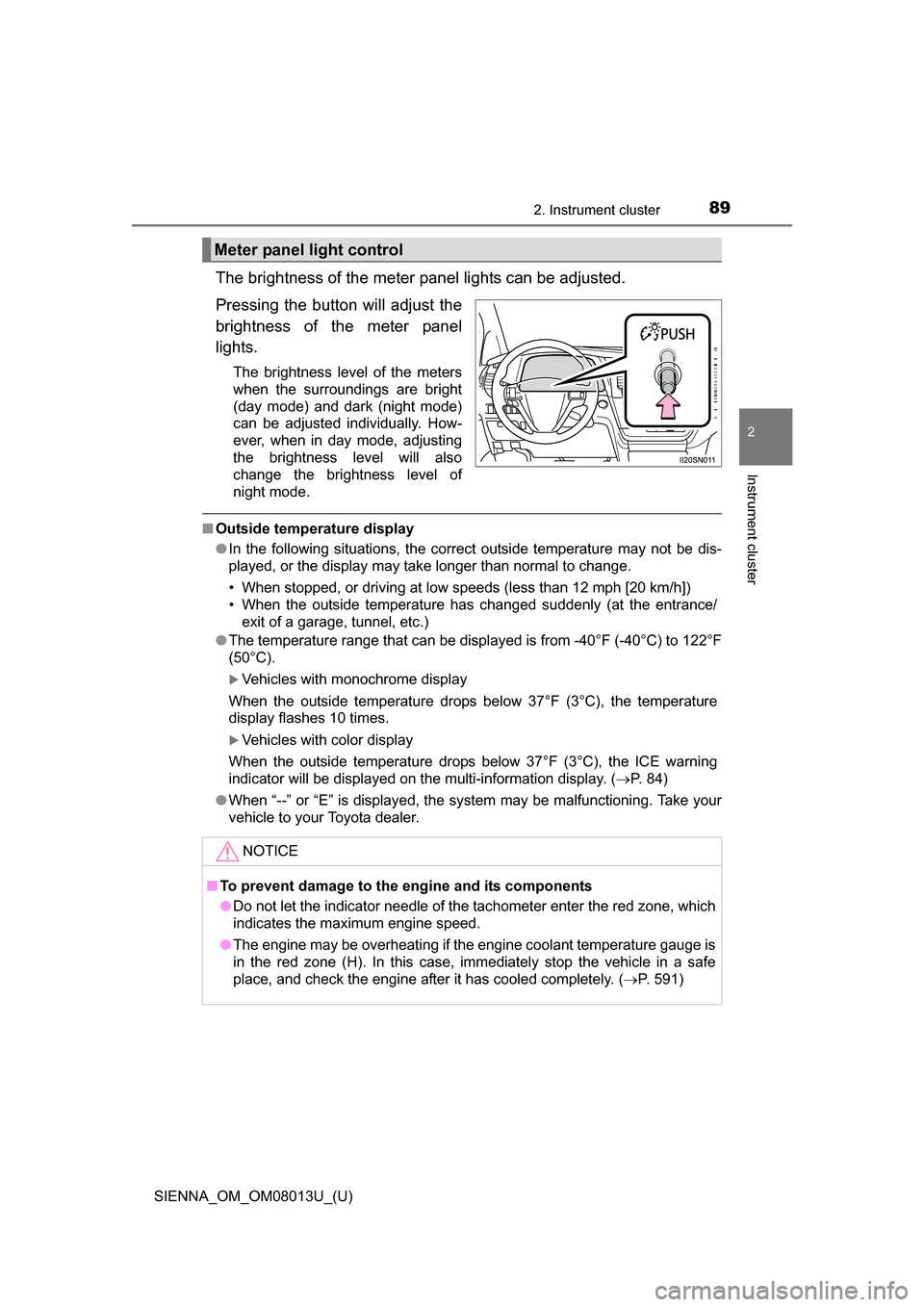

The brightness of the meter panel lights can be adjusted.
Pressing the button will adjust the
brightness of the meter panel
lights.
The brightness level of the meters
when the surroundings are bright
(day mode) and dark (night mode)
can be adjusted individually. How-
ever, when in day mode, adjusting
the brightness level will also
change the brightness level of
night mode.
■ Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● The temperature range that can be displa yed is from -40°F (-40°C) to 122°F
(50°C).
Vehicles with monochrome display
When the outside temperature drops below 37°F (3°C), the temperature
display flashes 10 times.
Vehicles with color display
When the outside temperature drops below 37°F (3°C), the ICE warning
indicator will be displayed on the multi-information display. ( P. 84)
● When “--” or “E” is displayed, the system may be malfunctioning. Take your
vehicle to your Toyota dealer.
Meter panel light control
NOTICE
■ To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 591)

90
SIENNA_OM_OM08013U_(U)
2. Instrument cluster

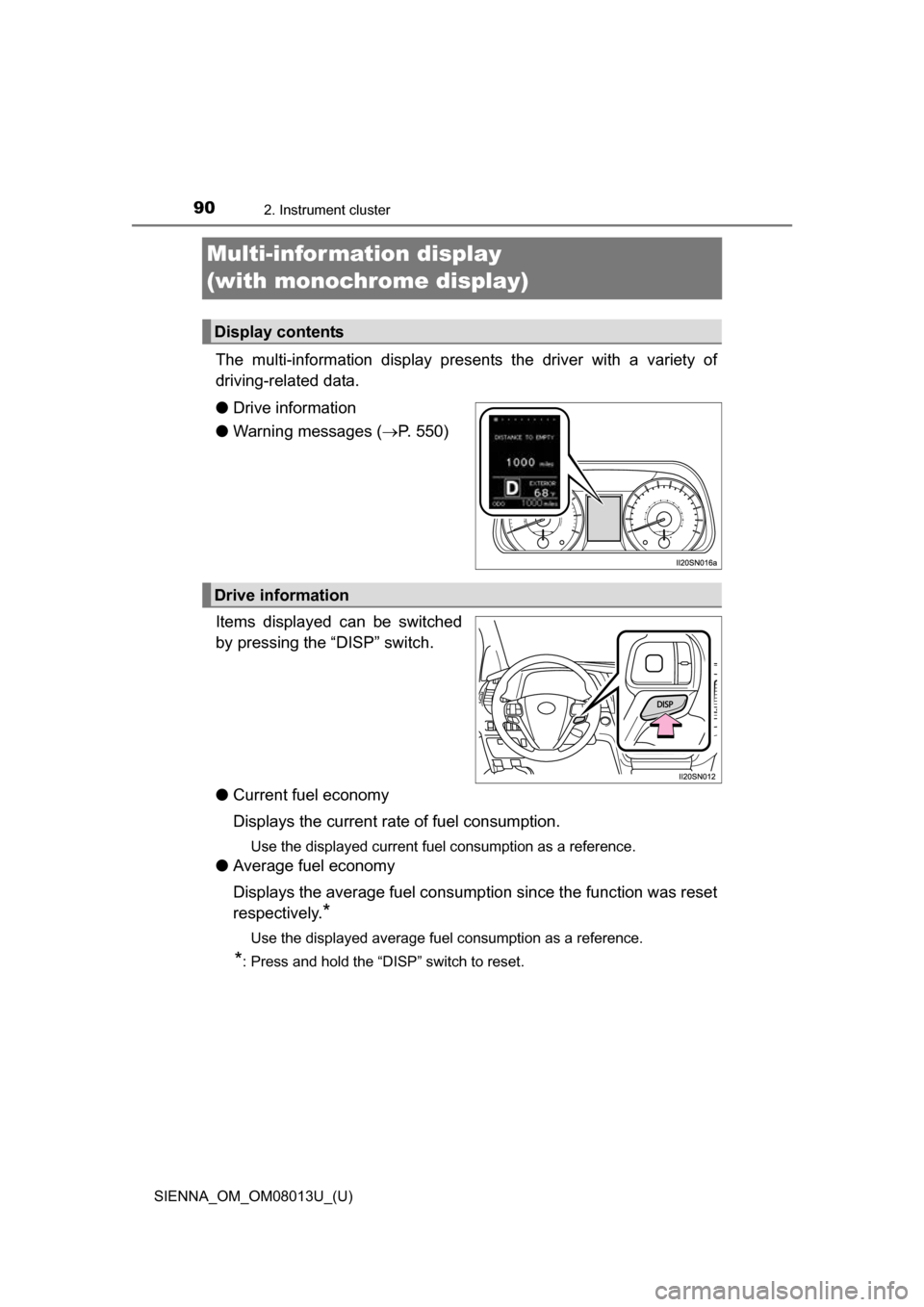

Multi-infor mation display
(with monochrome display)
The multi-information display presents the driver with a variety of
driving-related data.
●Drive information
● Warning messages ( P. 550)
Items displayed can be switched
by pressing the “DISP” switch.
● Current fuel economy
Displays the current rate of fuel consumption.
Use the displayed current fuel consumption as a reference.
●Average fuel economy
Displays the average fuel consumption since the function was reset
respectively.
*
Use the displayed average fuel consumption as a reference.
*: Press and hold the “DISP” switch to reset.
Display contents
Drive information

SIENNA_OM_OM08013U_(U)
912. Instrument cluster
2
Instrument cluster

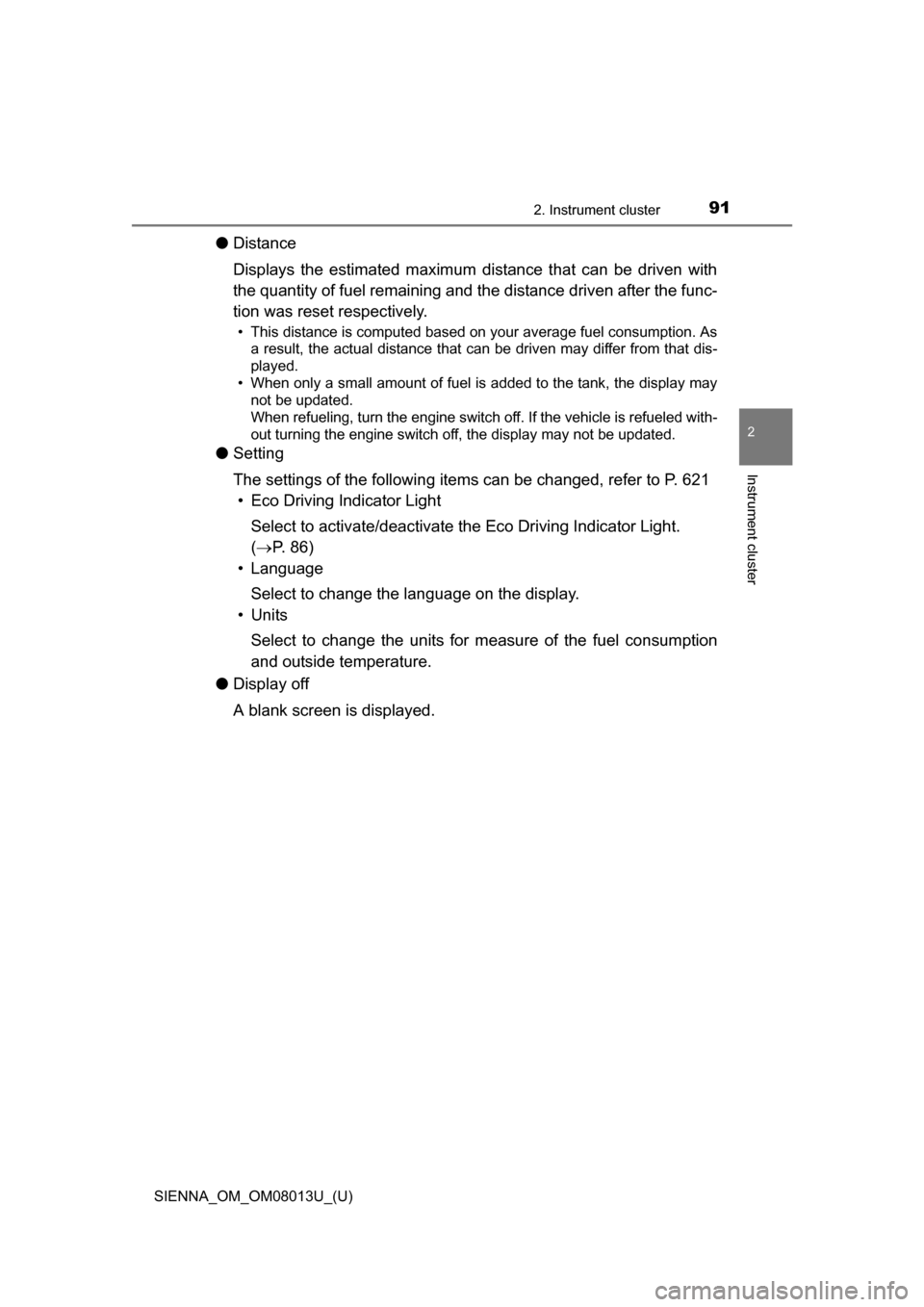

●Distance
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining and t he distance driven after the func-
tion was reset respectively.
• This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
● Setting
The settings of the following items can be changed, refer to P. 621
• Eco Driving Indicator Light
Select to activate/deactivate th e Eco Driving Indicator Light.
(  P. 86)
• Language
Select to change the language on the display.
•Units
Select to change the units for m easure of the fuel consumption
and outside temperature.
● Display off
A blank screen is displayed.

92
SIENNA_OM_OM08013U_(U)
2. Instrument cluster

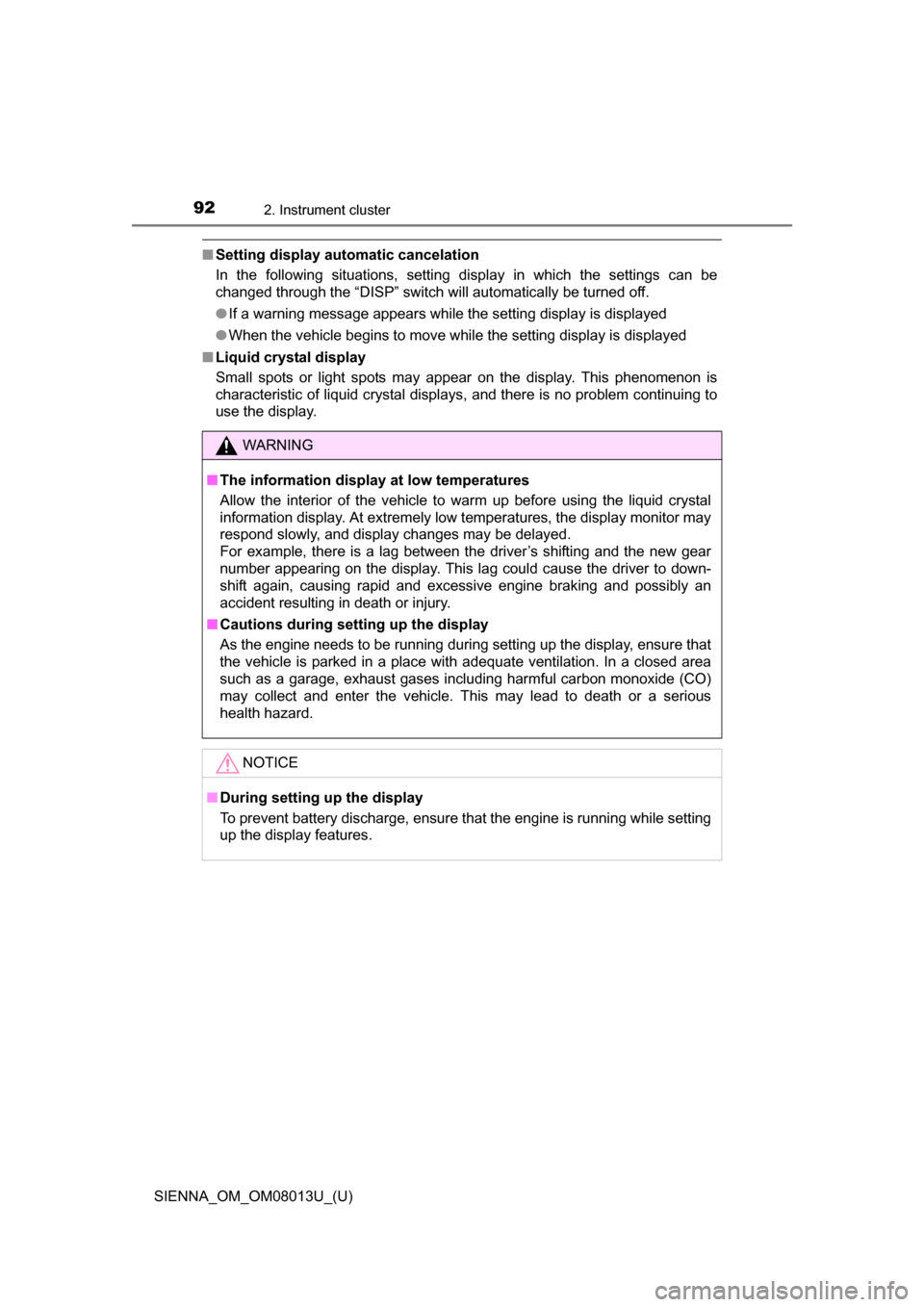

■Setting display automatic cancelation
In the following situations, setting display in which the settings can be
changed through the “DISP” switch will automatically be turned off.
●If a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■During setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

93
SIENNA_OM_OM08013U_(U)
2. Instrument cluster
2
Instrument cluster

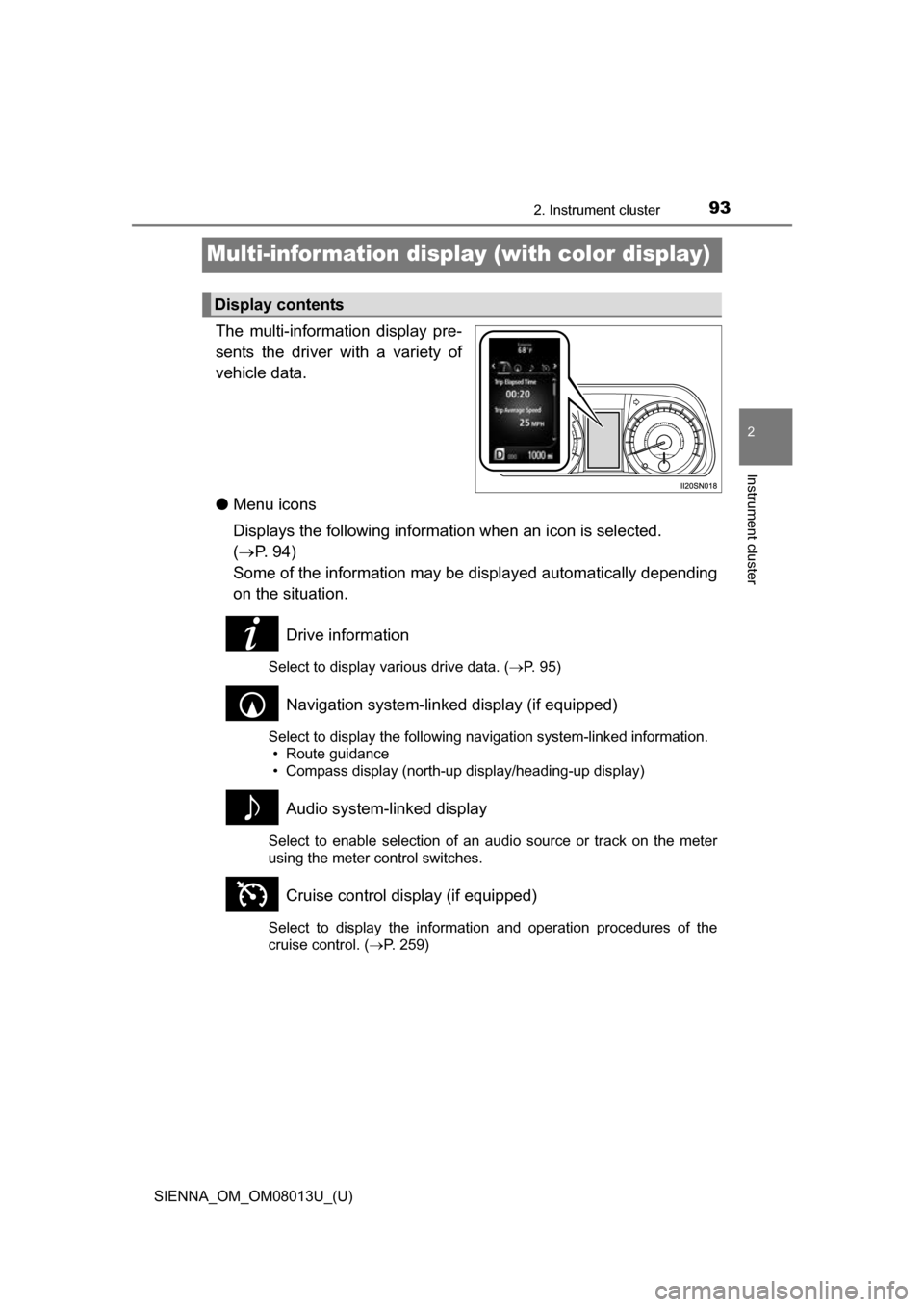

Multi-information display (with color display)
The multi-information display pre-
sents the driver with a variety of
vehicle data.
●Menu icons
Displays the following information when an icon is selected.
( P. 94)
Some of the information may be displayed automatically depending
on the situation.
Drive information
Select to display various drive data. ( P. 95)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Cruise control display (if equipped)
Select to display the information and operation procedures of the
cruise control. ( P. 259)
Display contents

94
SIENNA_OM_OM08013U_(U)
2. Instrument cluster

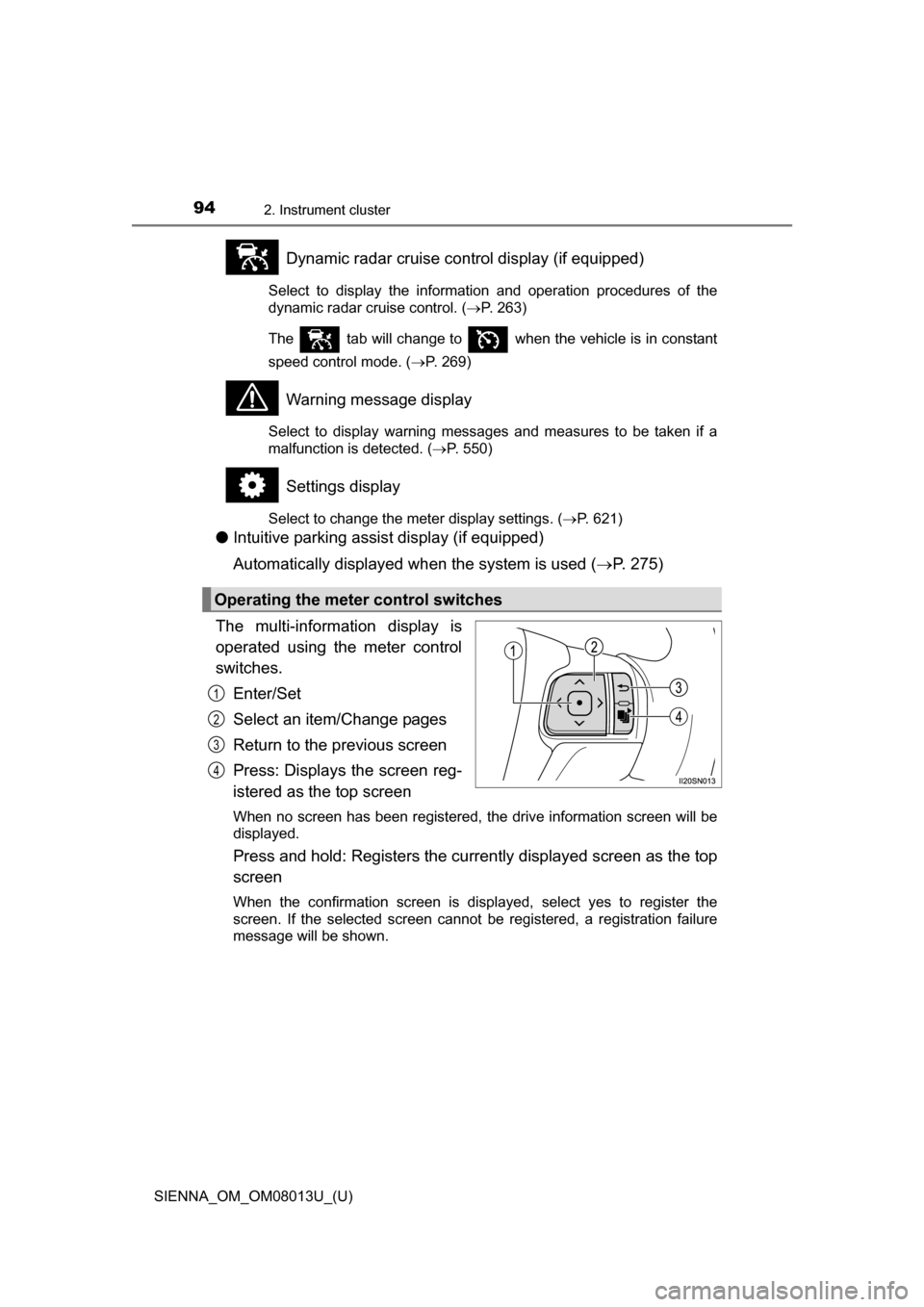

Dynamic radar cruise control display (if equipped)
Select to display the information and operation procedures of the
dynamic radar cruise control. (P. 263)
The tab will change to when the vehicle is in constant
speed control mode. ( P. 269)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( P. 550)
Settings display
Select to change the meter display settings. ( P. 621)
●Intuitive parking assist display (if equipped)
Automatically displayed wh en the system is used (P. 275)
The multi-information display is
operated using the meter control
switches. Enter/Set
Select an item/Change pages
Return to the previous screen
Press: Displays the screen reg-
istered as the top screen
When no screen has been registered, the drive information screen will be
displayed.
Press and hold: Registers the current ly displayed screen as the top
screen
When the confirmation screen is displayed, select yes to register the
screen. If the selected screen cannot be registered, a registration failure
message will be shown.
Operating the meter control switches
1
2
3
4

SIENNA_OM_OM08013U_(U)
952. Instrument cluster
2
Instrument cluster

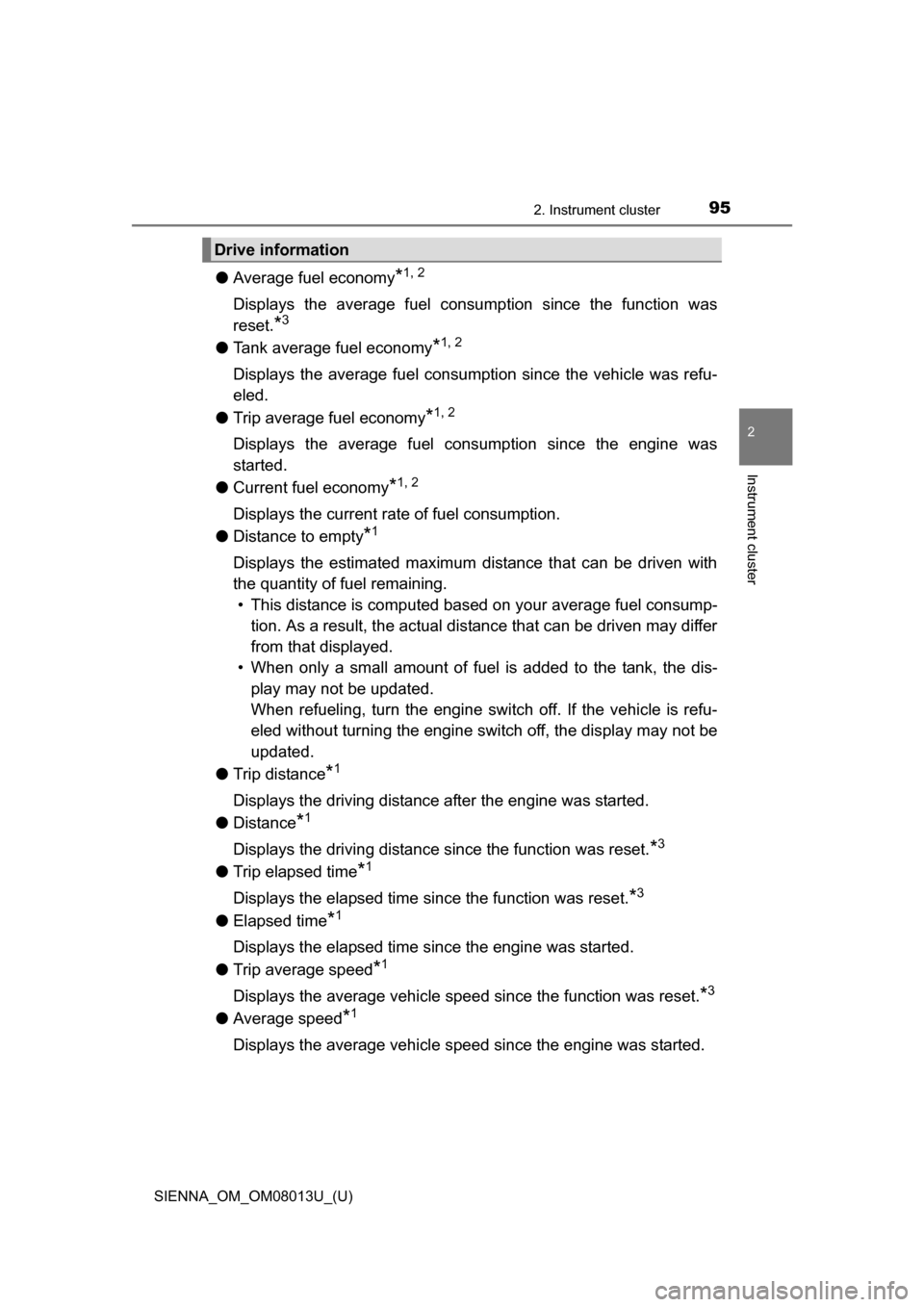

●Average fuel economy*1, 2
Displays the average fuel consum ption since the function was
reset.
*3
● Tank average fuel economy*1, 2
Displays the average fuel consumption since the vehicle was refu-
eled.
● Trip average fuel economy
*1, 2
Displays the average fuel co nsumption since the engine was
started.
● Current fuel economy
*1, 2
Displays the current rate of fuel consumption.
● Distance to empty
*1
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consump-
tion. As a result, the actual distance that can be driven may differ
from that displayed.
• When only a small amount of fuel is added to the tank, the dis- play may not be updated.
When refueling, turn the engine switch off. If the vehicle is refu-
eled without turning the engine switch off, the display may not be
updated.
● Trip distance
*1
Displays the driving distance after the engine was started.
● Distance
*1
Displays the driving distance since the function was reset.*3
●Trip elapsed time*1
Displays the elapsed time since the function was reset.*3
●Elapsed time*1
Displays the elapsed time since the engine was started.
● Trip average speed
*1
Displays the average vehicle spe ed since the function was reset.*3
●Average speed*1
Displays the average vehicle speed since the engine was started.
Drive information

96
SIENNA_OM_OM08013U_(U)
2. Instrument cluster

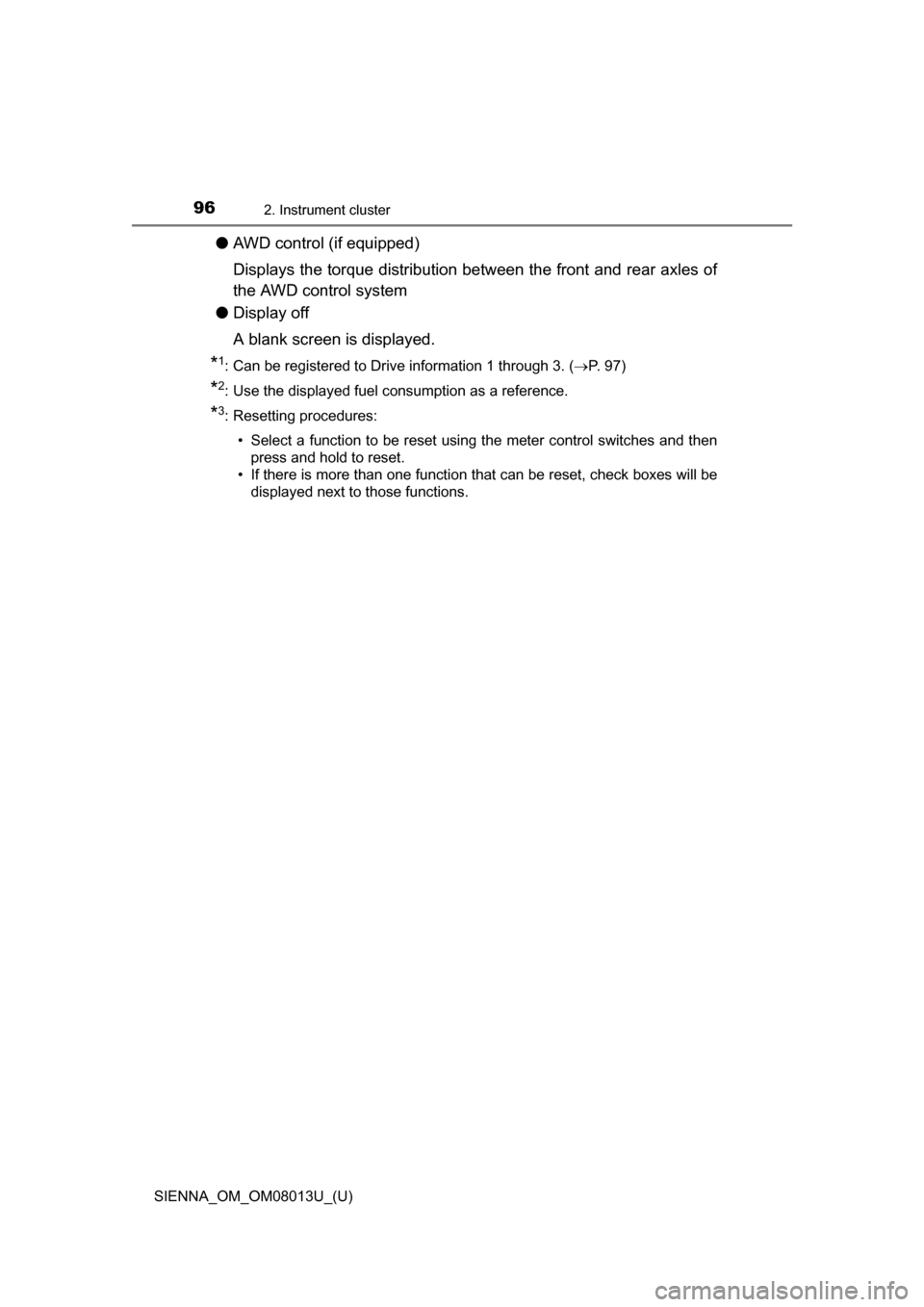

●AWD control (if equipped)
Displays the torque distribution between the front and rear axles of
the AWD control system
● Display off
A blank screen is displayed.
*1: Can be registered to Drive information 1 through 3. ( P. 97)
*2: Use the displayed fuel consumption as a reference.
*3: Resetting procedures:
• Select a function to be reset using the meter control switches and then press and hold to reset.
• If there is more than one function that can be reset, check boxes will be displayed next to those functions.
