2016 TOYOTA AURIS TOURING SPORTS Owners Manual

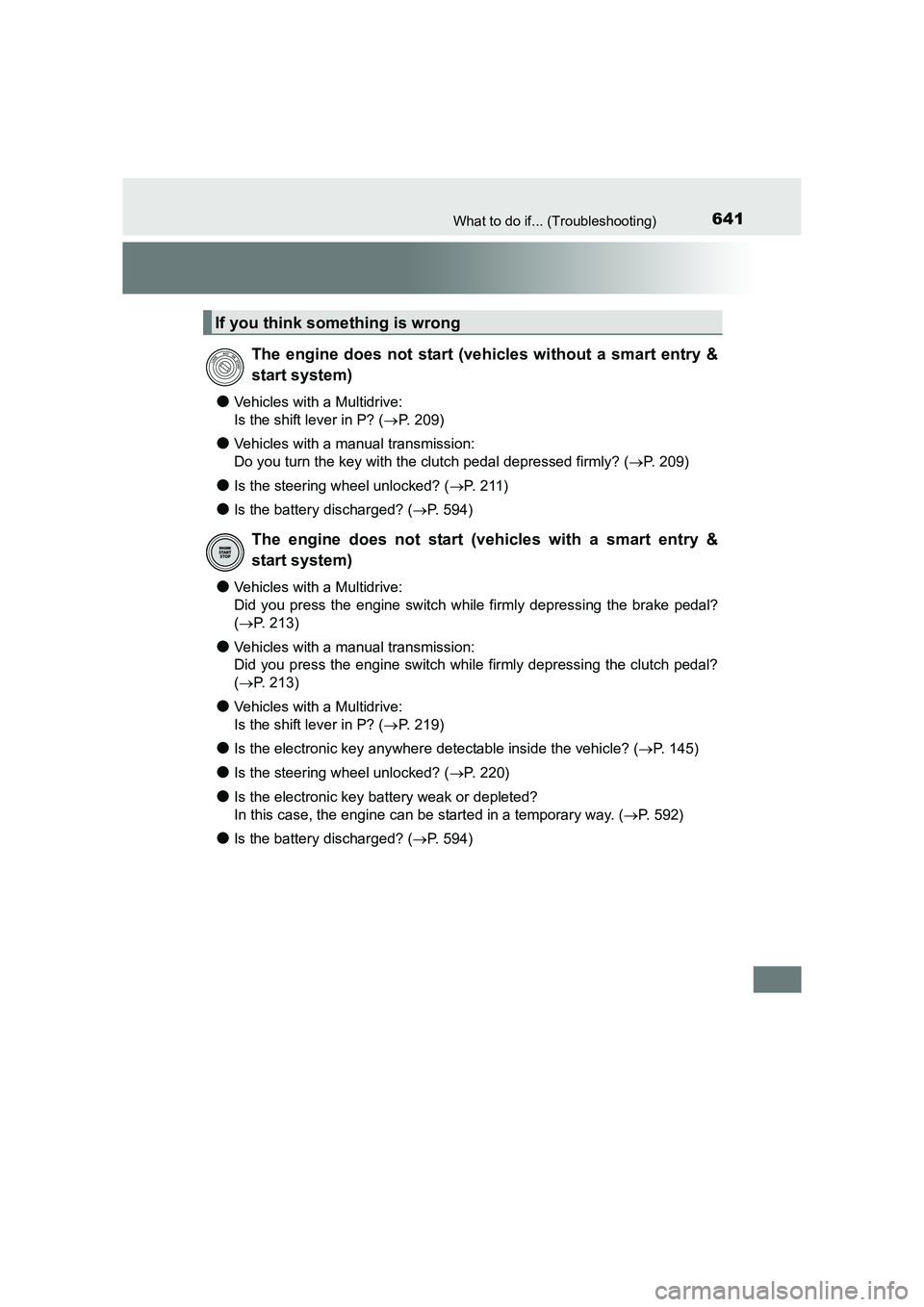

641What to do if... (Troubleshooting)
AURIS Touring Sports_EE (12K53E)
●Vehicles with a Multidrive:
Is the shift lever in P? (→P. 209)
●Vehicles with a manual transmission:
Do you turn the key with the clutch pedal depressed firmly? ( →P. 209)
●Is the steering wheel unlocked? ( →P. 211)
●Is the battery discharged? ( →P. 594)
●Vehicles with a Multidrive:
Did you press the engine switch while firmly depressing the brake pedal?
(→ P. 213)
●Vehicles with a manual transmission:
Did you press the engine switch while firmly depressing the clutch pedal?
(→ P. 213)
●Vehicles with a Multidrive:
Is the shift lever in P? ( →P. 219)
●Is the electronic key anywhere detectable inside the vehicle? ( →P. 145)
●Is the steering wheel unlocked? ( →P. 220)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( →P. 592)
●Is the battery discharged? ( →P. 594)
If you think something is wrong
The engine does not start (vehicles without a smart entry &
start system)
The engine does not start (vehicles with a smart entry &
start system)

642What to do if... (Troubleshooting)
AURIS Touring Sports_EE (12K53E)
●Vehicles without a smart entry & start system:
Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in the “ON” position. (→P. 590)
●Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode. ( →P. 590)
●Vehicles without a smart entry & start system:
It is locked to prevent theft of the vehicle if the key is pulled from the engine
switch. ( →P. 210)
●Vehicles with a smart entry & start system:
It is locked automatically to prevent theft of the vehicle. ( →P. 219)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( →P. 181)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( →P. 219)
The shift lever cannot be shifted from P even if you depress
the brake pedal (vehicles with a Multidrive)
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches
The engine switch is turned off automatically (vehicles with
a smart entry & start system)

643What to do if... (Troubleshooting)
AURIS Touring Sports_EE (12K53E)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (→P. 545)
●The brake system warning light is on
Is the parking brake released? ( →P. 232)
Depending on the situation, other types of warning buzzer may also sound.
( → P. 541, 553)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( →P. 87)
XVehicles without a smart entry & start system
To stop the alarm, turn the engine switch to the “ON” position or start the
engine.
XVehicles with a smart entry & start system
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
●Is the electronic key left inside the vehicle?
Vehicles with a 2-ring meter: Check the message on the multi-information
display. ( →P. 553)
●When a warning light turns on, refer to P. 541.
●When a warning light turns on or a warning message is displayed, refer to
P. 541, 553.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with a 3-ring meter)
A warning light turns on or a warning message is displayed
(vehicles with a 2-ring meter)

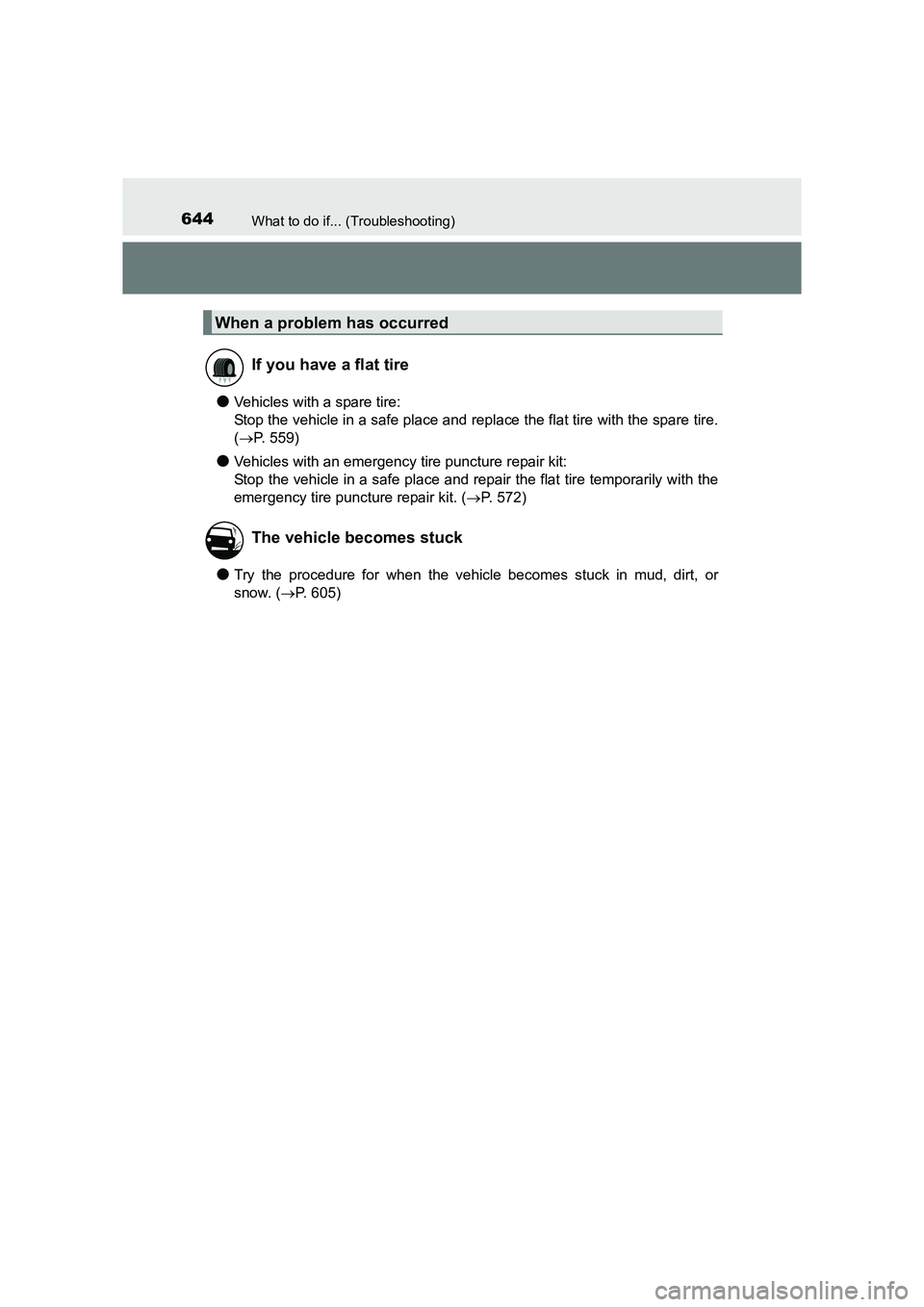

644What to do if... (Troubleshooting)
AURIS Touring Sports_EE (12K53E)
●Vehicles with a spare tire:
Stop the vehicle in a safe place and replace the flat tire with the spare tire.
(→ P. 559)
●Vehicles with an emergency tire puncture repair kit:
Stop the vehicle in a safe place and repair the flat tire temporarily with the
emergency tire puncture repair kit. ( →P. 572)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. ( →P. 605)
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

645
AURIS Touring Sports_EE (12K53E)
Alphabetical index
Alphabetical index
A/C............................................. 405Air conditioning filter.............. 505
ABS (Anti-lock Brake System) ...... 328Warning light ......................... 542
Air conditioning filter .............. 505
Air conditioning system .................................... 405
Air conditioning filter.............. 505
Airbag manual on-off system ... 52
Airbags ....................................... 42 Airbag manual on-off system .................................. 52
Airbag operating conditions .... 48
Airbag precautions for your child .............................. 44
Correct driving posture............ 36
Curtain shield airbag operating conditions ............. 48
Curtain shield airbag precautions ........................... 46
General airbag precautions..... 44
Locations of airbags................ 42
Modification and disposal of airbags................ 47
Side airbag operating conditions ............................. 48
Side airbag precautions .......... 44
Side and curtain shield airbags operating conditions ............. 48
Side and curtain shield airbags precautions ........................... 44
SRS airbags ............................ 42
SRS warning light ................. 542 Alarm .......................................... 87
Warning buzzer............. 541, 553
Anchor brackets ........................ 64
Antennas (smart entry & start system) .......................... 145
Anti-lock Brake System (ABS) ........................ 328Warning light ......................... 542
Armrest ..................................... 442
Ashtrays ................................... 440
Assist grips .............................. 443
Audio input
*............................ 340
Audio system
*......................... 338
Audio input ............................ 340
AUX port/USB port................ 340
Bluetooth
® audio................... 370
CD player .............................. 346
iPod....................................... 354
MP3/WMA disc ..................... 346
Optimal use........................... 341
Portable music player ........... 369
Radio .................................... 343
Steering wheel audio switch ................................. 339
USB memory ........................ 362
Automatic headlight leveling system .................................... 238
Automatic High Beam ............. 273
Automatic light control system .................................... 233
AUX port
*................................. 369
Auxiliary boxes ................ 425, 431
A
*: For vehicles with navigation/multimedia system, refer to “Navigation and multimedia system Owner’s manual”.

646Alphabetical index
AURIS Touring Sports_EE (12K53E)
Back door ................................ 140
Back-up lightsReplacing light bulb............... 515
Wattage................................. 628
Battery ...................................... 480 Battery checking ................... 480
If the vehicle has discharged battery................................. 594
Preparing and checking before winter ....................... 334
Warning light ......................... 541
Bluetooth
®*
Audio system ........................ 387
Hands-free system (for cellular phone).............. 390
Bottle holders........................... 423
Brake Emergency brake signal ....... 328
Fluid ...................................... 625
Parking brake........................ 232
Warning light ......................... 541
Brake assist.............................. 328
Break-in tips ............................ 189
Brightness control Meter light control ......... 103, 113 Care................................... 448, 452
Aluminum wheels.................. 449
Exterior ................................. 448
Interior................................... 452
Seat belts.............................. 453
Cargo hooks............................. 427
CD player
*................................ 346
Chains....................................... 335
Child restraint system ............... 55
Baby seats, definition.............. 55
Baby seats, installation ........... 65
Child seats, definition.............. 55
Child seats, installation ........... 65
Installing CRS with ISOFIX rigid anchors ......................... 69
Installing CRS with seat belts .............................. 65
Installing CRS with top strap... 70
Junior seats, definition ............ 55
Junior seats, installation ......... 67
Child safety ................................ 54
Airbag precautions .................. 44
Battery precautions ....... 481, 599
Child restraint system ............. 55
How your child should wear the seat belt.......................... 39
Installing child restraints ......... 64
Panoramic roof shade
precautions ......................... 445
Power window lock switch .... 181
Power window precautions ... 184
Rear door child-protectors .... 138
Removed electronic key battery precautions ............. 509
Seat belt precautions .............. 41
Seat heater precautions........ 415
BC

647Alphabetical index
AURIS Touring Sports_EE (12K53E)
Child-protectors ....................... 138
Cleaning............................ 448, 452Aluminum wheels.................. 449
Exterior.................................. 448
Interior................................... 452
Seat belts .............................. 453
Clock ......................................... 440
Coat hooks ............................... 443
Condenser ................................ 479
Console box ............................. 422
Cooling system ........................ 477 Engine overheating ............... 600
Cruise control .......................... 296
Cup holders .............................. 424
Curtain shield airbags ............... 42
Customizable features ............ 631
Daytime running light system .................................... 237
Deck board ............................... 428
Defogger
Outside rear view mirrors ........................ 402, 409
Rear window ................. 402, 409
Windshield .................... 402, 409
Dimensions .............................. 608
Display
Multi-information display ........................ 101, 107
Warning message ................ 553 Do-it-yourself maintenance .... 458
Door lock
Back door.............................. 140
Side doors............................. 134
Smart entry & start system ................ 134, 140
Wireless remote control......................... 134, 140
Doors Back door.............................. 140
Door lock....................... 134, 140
Door windows ....................... 181
Double locking system ............ 90
Open door warning buzzer......................... 138, 141
Open door warning light........ 545
Outside rear view mirrors...... 178
Rear door child-protector ...... 138
Side doors............................. 134
Double locking system ............. 90
DPF Diesel Particulate Filter system ................................ 326
Warning light ......................... 544
Drive information ..................... 111
Driving ...................................... 186 Break-in tips .......................... 189
Correct driving posture ........... 36
Procedures ........................... 186
Winter drive tips .................... 334
D
*: For vehicles with navigation/multimedia system, refer to “Navigation and multimedia system Owner’s manual”.

648Alphabetical index
AURIS Touring Sports_EE (12K53E)
Eco Driving Indicator....... 105, 115
Electric Power Steering (EPS) ....................................... 328Warning light ......................... 542
Electronic key .......................... 122 Battery-saving function ......... 147
If the electronic key does not operate properly ................. 591
Replacing the battery ............ 507
Emergency, in case of If a warning buzzer sounds ................................ 541
If a warning light turns on ...... 541
If a warning message is displayed ............................ 553
If the battery is discharged .... 594
If the electronic key does not operate properly ........... 591
If the engine will not start ...... 588
If the shift lever cannot be shifted from P ..................... 590
If you have a flat tire...... 559, 572
If you run out of fuel and the engine stalls.................. 604
If you think something is wrong.................................. 539
If your vehicle becomes
stuck ................................... 605
If your vehicle has to be stopped in an emergency ... 531
If your vehicle needs to be towed .................................. 533
If your vehicle overheats ....... 600
Emergency brake signal ......... 328
Emergency flashers................. 530 Emergency tire puncture
repair kit ................................. 572
Engine....................................... 612 ACCESSORY mode ............. 216
Compartment ........................ 464
Engine switch................ 209, 213
Hood ..................................... 461
How to start the engine......................... 209, 213
Identification number ............ 611
If the engine will not start ...... 588
Ignition switch (engine switch) ........... 209, 213
Overheating .......................... 600
Engine coolant ......................... 477 Capacity ................................ 621
Checking ............................... 477
Preparing and checking before winter....................... 334
Warning light ......................... 541
Engine coolant temperature gauge........................................ 98
Engine immobilizer system ...... 75
Engine oil ................................. 469 Capacity ................................ 615
Checking ............................... 469
Oil level warning light ............ 544
Oil pressure warning light ..... 541
Preparing and checking before winter....................... 334
Engine oil maintenance data ......................................... 474
Engine switch .................. 209, 213
EPS (Electric Power Steering)................................. 328Warning light ......................... 542
E
