2016 TOYOTA AURIS TOURING SPORTS Owners Manual

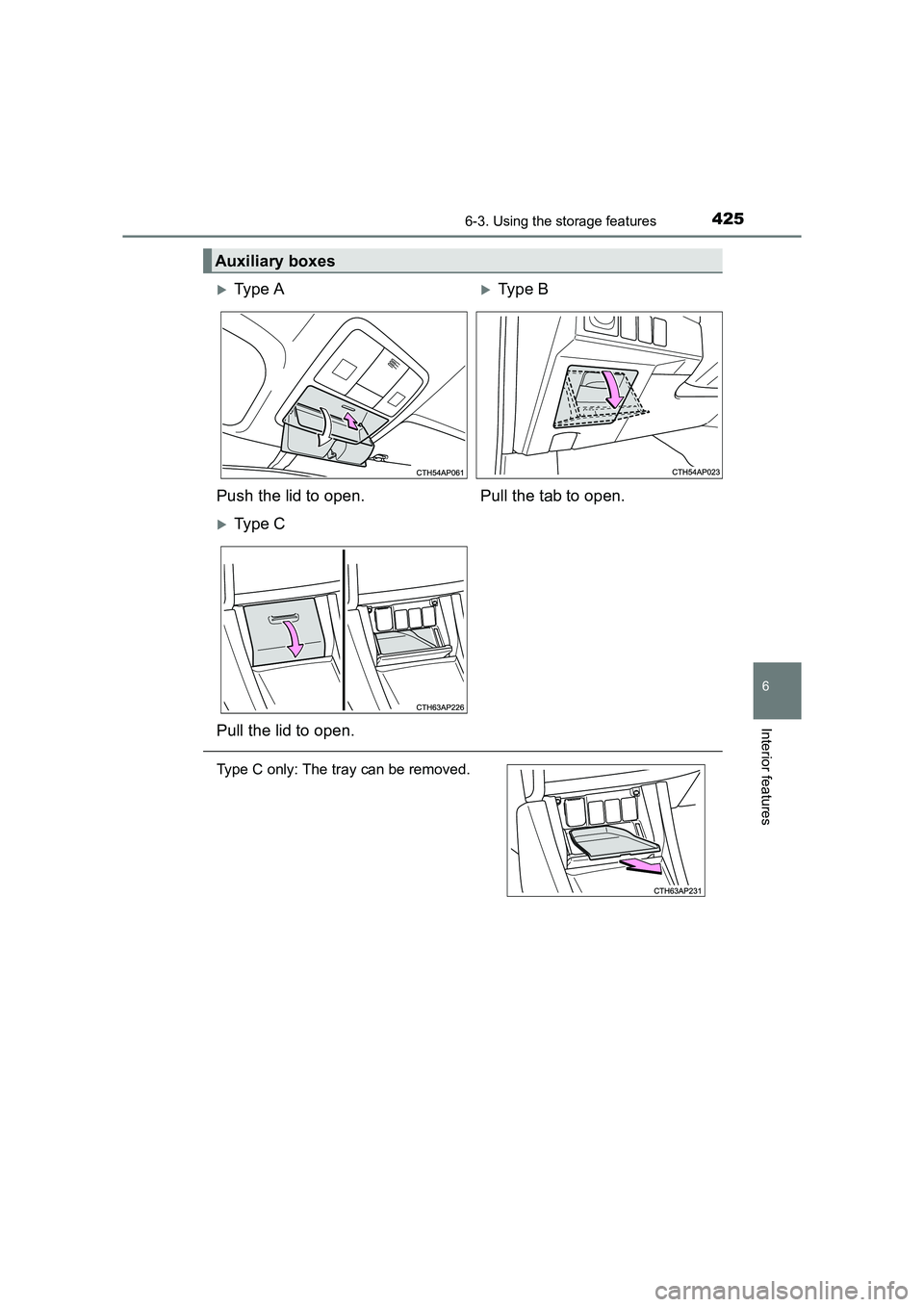

4256-3. Using the storage features
AURIS Touring Sports_EE (12K53E)
6
Interior features
Auxiliary boxes
XTy pe AXType B
Push the lid to open. Pull the tab to open.
XTy pe C
Pull the lid to open.
Type C only: The tray can be removed.

4266-3. Using the storage features
AURIS Touring Sports_EE (12K53E)
WARNING
● Keep the auxiliary boxes closed. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by an open auxiliary box
or the items stored inside.
● Type A only: Do not store items heavier than 0.2 kg (0.4 lb.).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.

4276-3. Using the storage features
AURIS Touring Sports_EE (12K53E)
6
Interior features
Raise the hooks to use.
Cargo hooks are provided for
securing loose items.
Luggage compartment features
Cargo hooks
WARNING
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
Grocery bag hooks
NOTICE
Do not hang any object heavier than 4 kg (8.8 lb.) on the grocery bag hooks.

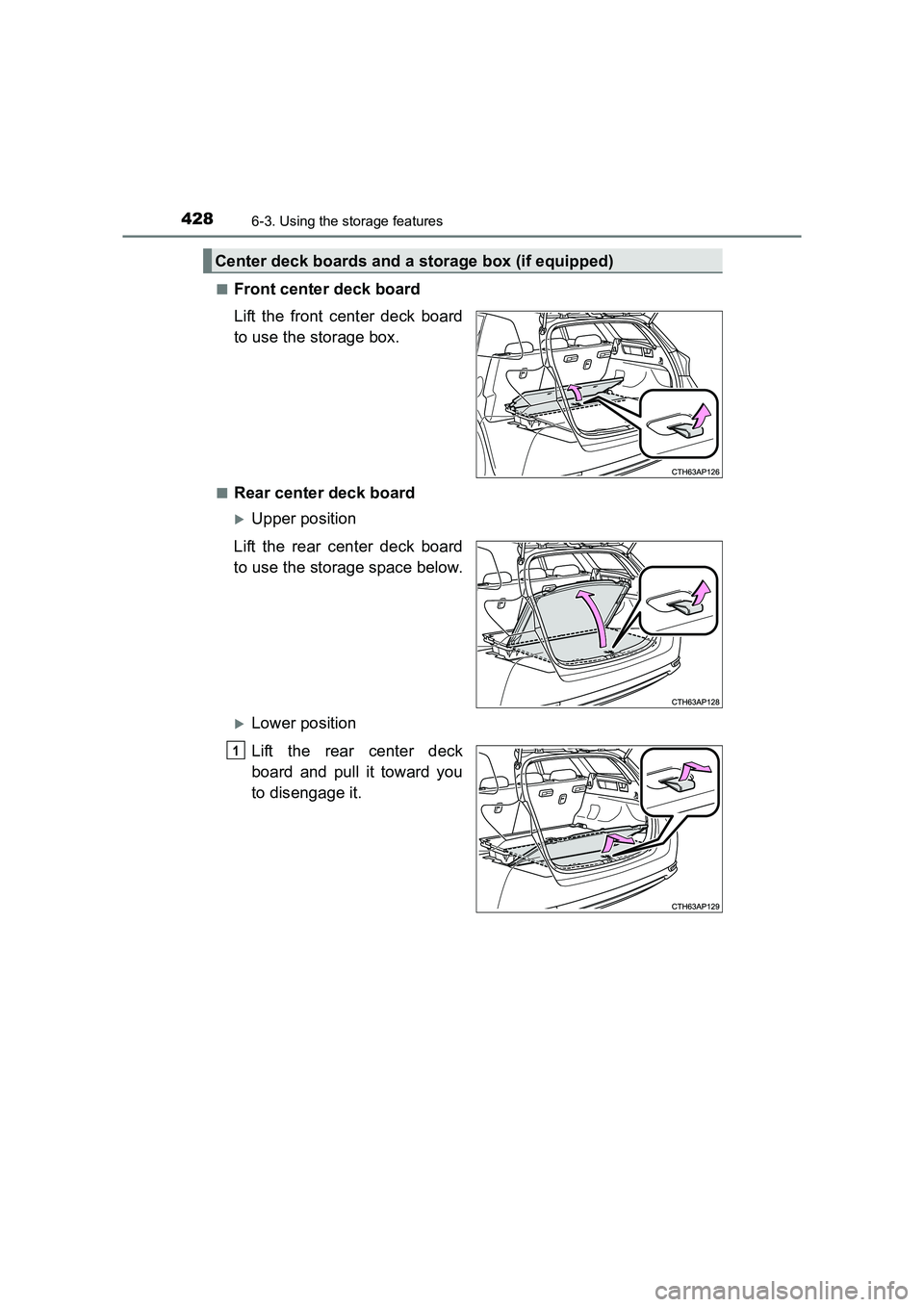

4286-3. Using the storage features
AURIS Touring Sports_EE (12K53E)■
Front center deck board
Lift the front center deck board
to use the storage box.
■Rear center deck board
XUpper position
Lift the rear center deck board
to use the storage space below.
XLower position
Lift the rear center deck
board and pull it toward you
to disengage it.
Center deck boards and a storage box (if equipped)
1

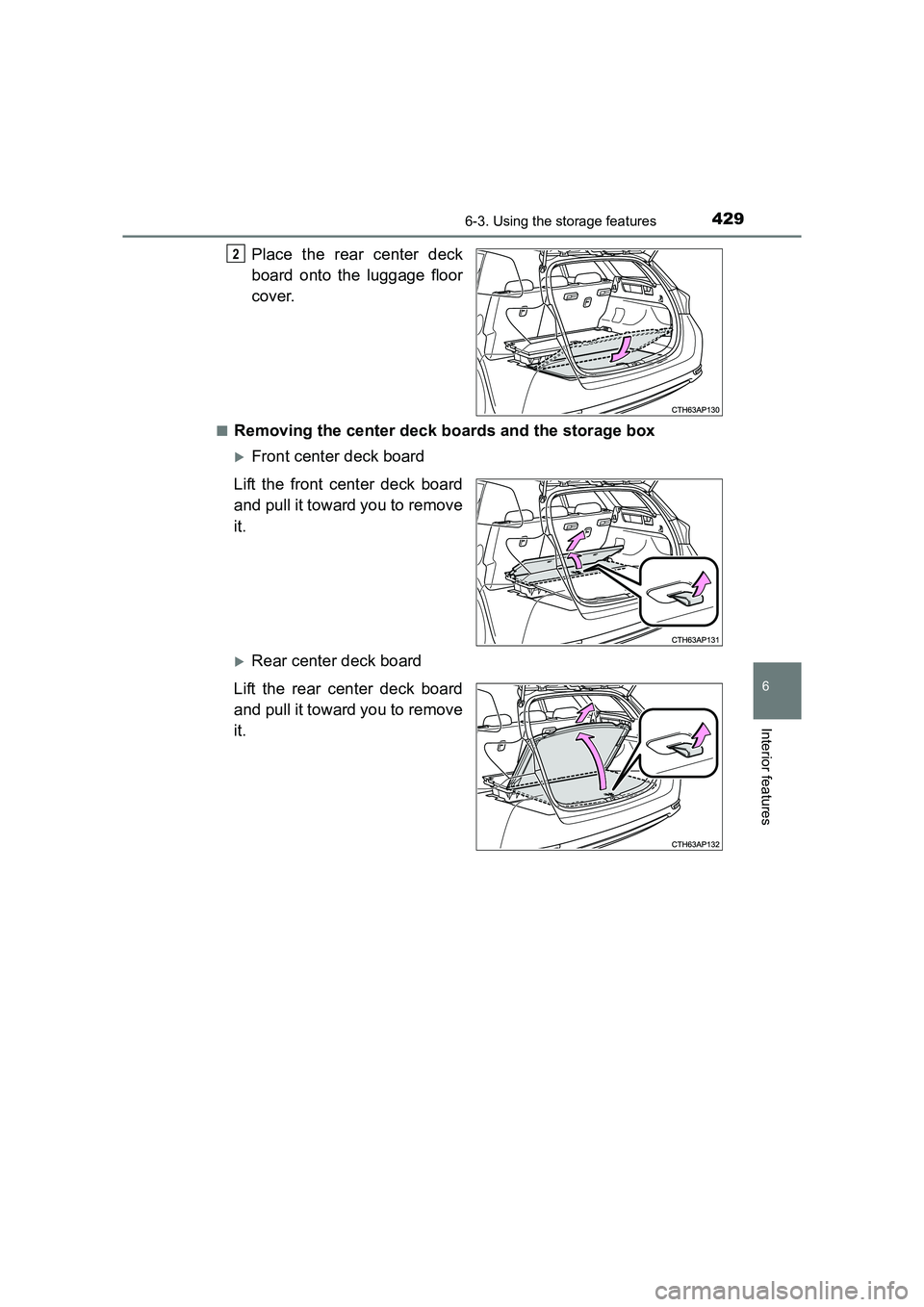

4296-3. Using the storage features
AURIS Touring Sports_EE (12K53E)
6
Interior features
Place the rear center deck
board onto the luggage floor
cover.
■Removing the center deck boards and the storage box
XFront center deck board
Lift the front center deck board
and pull it toward you to remove
it.
XRear center deck board
Lift the rear center deck board
and pull it toward you to remove
it.
2

4306-3. Using the storage features
AURIS Touring Sports_EE (12K53E)
XStorage box
Remove the front and rear center deck boards.
Lift the storage box and pull it
toward you to remove it.
1
2
WARNING
● Do not place anything on the center deck boards when operating the
board. Otherwise, your fingers may be caught or an accident may result
causing injuries.
● Do not drive with any of the center deck boards opened. Items may fall out
and cause injury.

4316-3. Using the storage features
AURIS Touring Sports_EE (12K53E)
6
Interior features
Auxiliary boxes
XTy pe AXType B
XTy pe C
Lift the side deck boards.
The separator for the right side auxiliary
box can be removed as shown in the illus-
tration.
WARNING
Type C only: Do not drive with any of the side deck boards opened. Items
may fall out and cause injury.

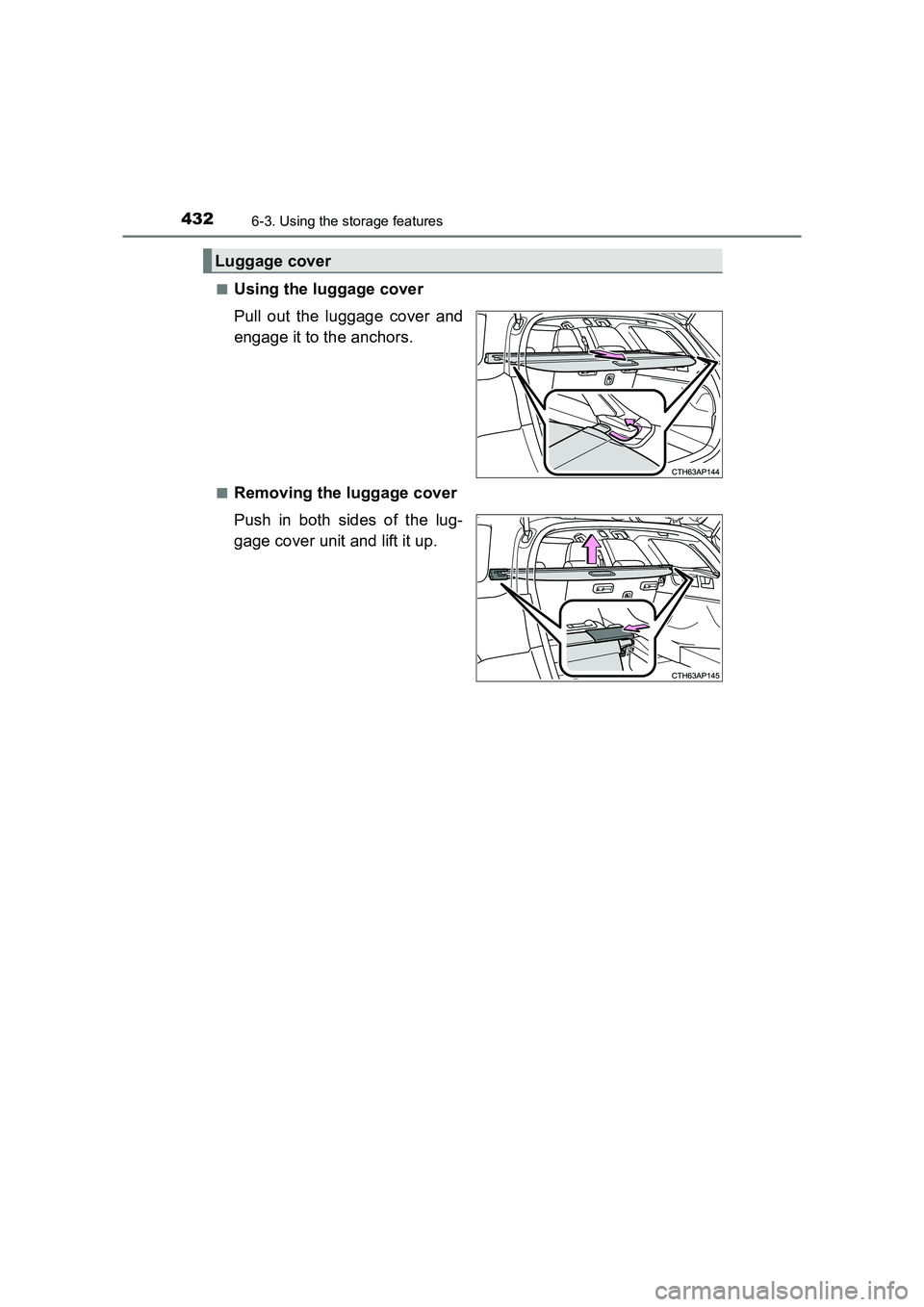

4326-3. Using the storage features
AURIS Touring Sports_EE (12K53E)■
Using the luggage cover
Pull out the luggage cover and
engage it to the anchors.
■Removing the luggage cover
Push in both sides of the lug-
gage cover unit and lift it up.
Luggage cover
