2016 TOYOTA AURIS TOURING SPORTS Owners Manual

5458-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises
(If equipped)
Open door warning light (warning buzzer)*3
Indicates that a door is not fully closed
→ Check that all the doors are closed.
(Flashes in yellow for
15 seconds.)(If equipped)
Smart entry & start system indicator
Indicates a malfunction in the smart entry & start system.
→ Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
Low fuel level warning light 3-ring meter:
Indicates that remaining fuel is approximately 7.5 L (2.0
gal., 1.6 Imp. gal.) or less
2-ring meter:
• Gasoline engine: Indicates that remaining fuel is approx- imately 7.5 L (2.0 gal., 1.6 Imp. gal.) or less
• Diesel engine: Indicates that remaining fuel is approxi-
mately 8.3 L (2.2 gal., 1.8 Imp. gal.) or less
→ Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light
(warning buzzer)
*4
Warns the driver and/or front passenger to fasten their
seat belts
→ Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (warning buzzer) turn off.
Rear passengers’ seat belt reminder lights (warning
buzzer)
*4
Warns the rear passengers to fasten their seat belts.
→ Fasten the seat belt.
Warning lightWarning light/Details/Actions

5468-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
*1: Parking brake engaged warning buzzer: The buzzer sounds to indicate that the parking brake is still engaged (with
the vehicle having reached a speed of 5 km/h [3 mph]).
*2: The DPF system warning light may not turn off when the engine oil changereminder light is on. In this event, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
*3: Open door warning buzzer: A buzzer will sound if the vehicle reaches a speed of 5 km/h (3 mph) or
more with any door open.
*4: Driver’s and passengers’ seat belt buzzer:
The driver’s and passengers’ seat belt buzzer sounds to alert the driver and
passengers that his or her seat belt is not fastened. The buzzer sounds for
30 seconds after the vehicle reaches a speed of at least 20 km/h (12 mph).
Then, if the seat belt is still unfastened, the buzzer will sound in a different
tone for 90 more seconds.
(If equipped)
Tire pressure warning light When the light comes on:
Low tire inflation pressure such as
• Natural causes ( →P. 549)
• Flat tire ( →P. 559, 572)
→ Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case the
light does not turn off even if the tire inflation pres-
sure is adjusted, have the system checked by any
authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system ( →P. 550)
→ Have the system checked by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional.
(If equipped)
Master warning light A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
→ P. 553
Warning lightWarning light/Details/Actions

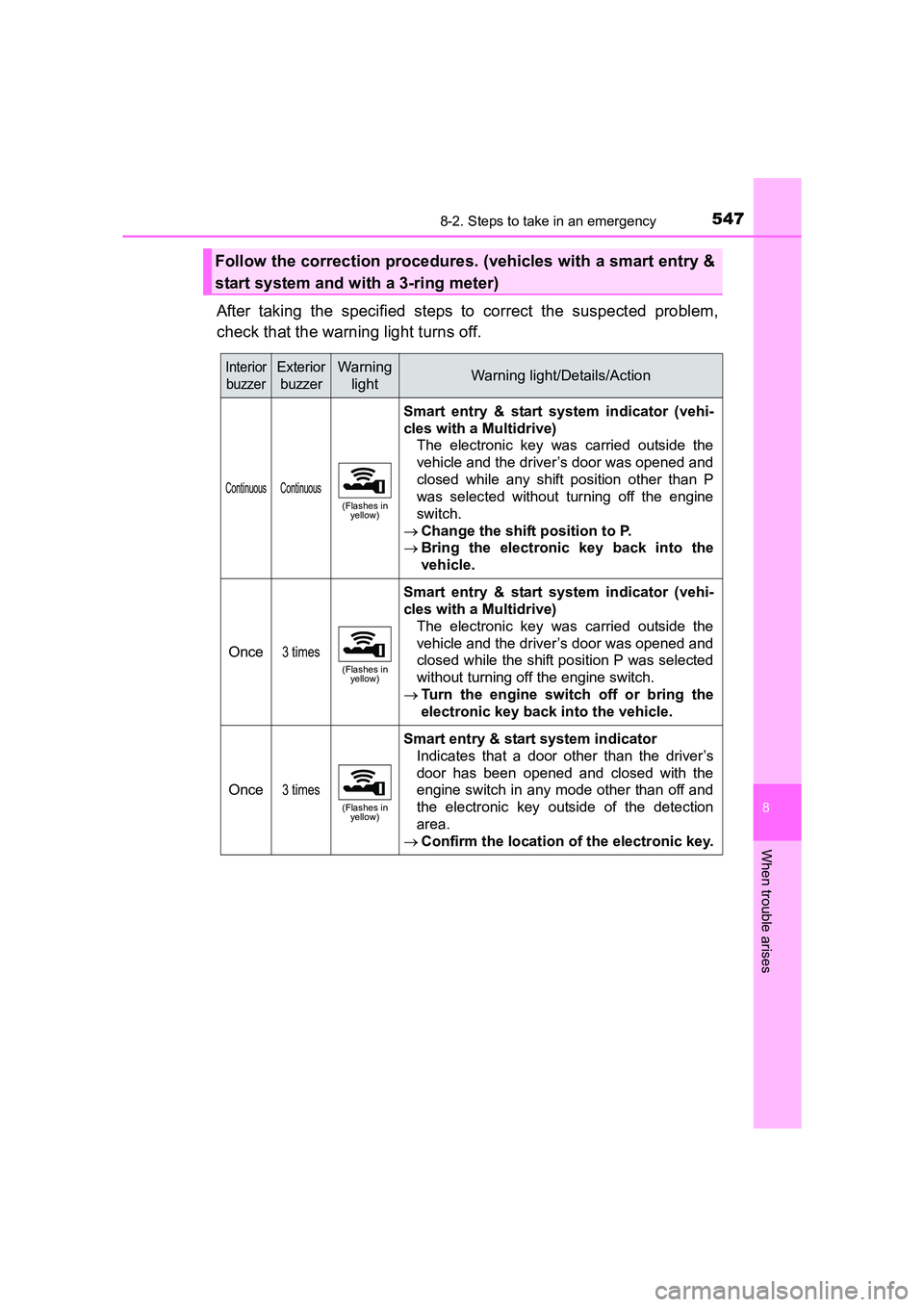

5478-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Follow the correction procedures. (vehicles with a smart entry &
start system and with a 3-ring meter)
InteriorbuzzerExterior buzzerWarning lightWarning light/Details/Action
Continuous Continuous
(Flashes in yellow)
Smart entry & start system indicator (vehi-
cles with a Multidrive)
The electronic key was carried outside the
vehicle and the driver’s door was opened and
closed while any shift position other than P
was selected without turning off the engine
switch.
→ Change the shift position to P.
→ Bring the electronic key back into the
vehicle.
Once3 times
(Flashes in
yellow)
Smart entry & start system indicator (vehi-
cles with a Multidrive)
The electronic key was carried outside the
vehicle and the driver’s door was opened and
closed while the shift position P was selected
without turning off the engine switch.
→ Turn the engine switch off or bring the
electronic key back into the vehicle.
Once3 times
(Flashes in
yellow)
Smart entry & start system indicator
Indicates that a door other than the driver’s
door has been opened and closed with the
engine switch in any mode other than off and
the electronic key outside of the detection
area.
→ Confirm the location of the electronic key.

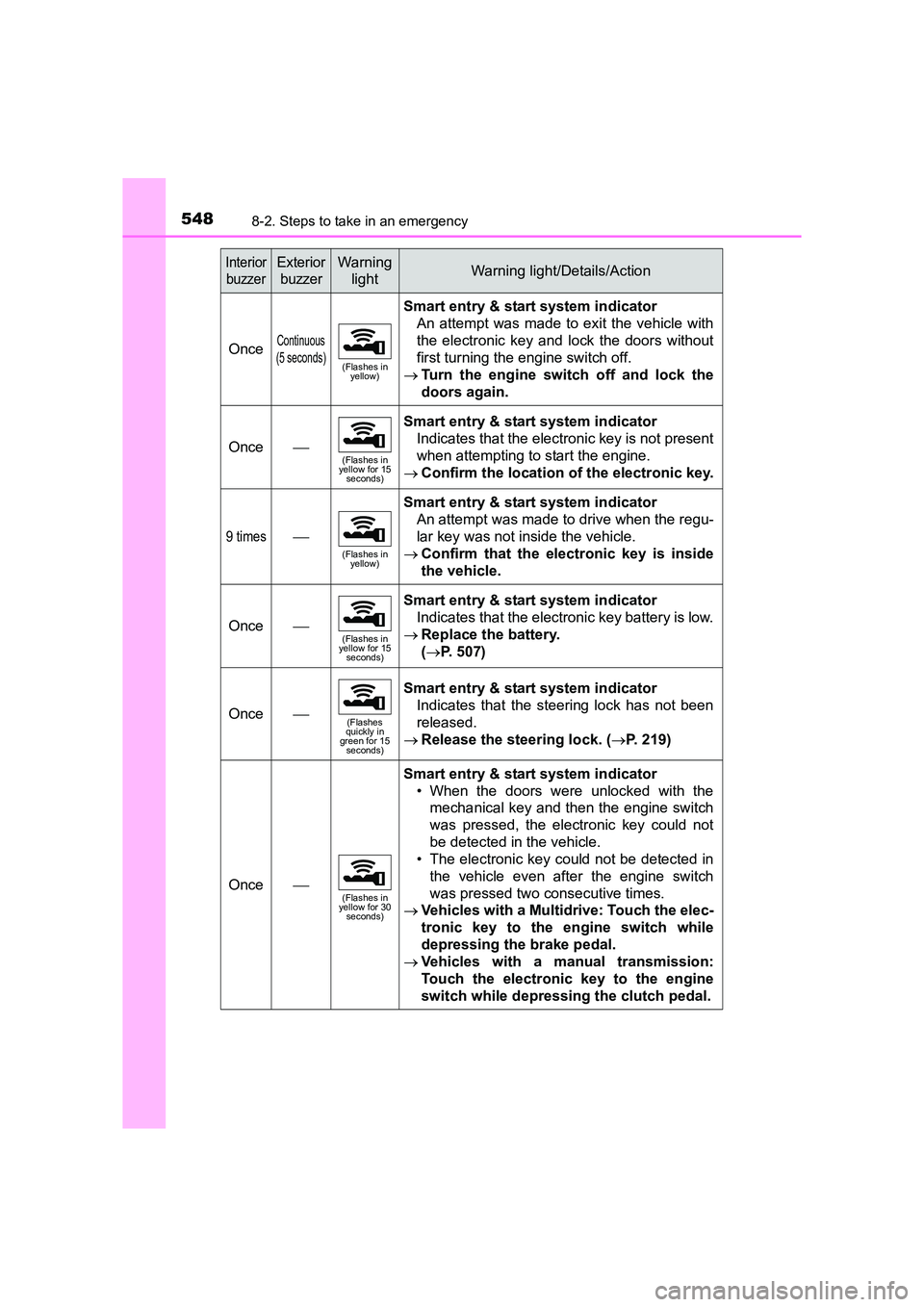

5488-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
OnceContinuous
(5 seconds)
(Flashes in yellow)
Smart entry & start system indicator
An attempt was made to exit the vehicle with
the electronic key and lock the doors without
first turning the engine switch off.
→ Turn the engine switch off and lock the
doors again.
Once 
(Flashes in
yellow for 15 seconds)
Smart entry & start system indicator
Indicates that the electronic key is not present
when attempting to start the engine.
→ Confirm the location of the electronic key.
9 times
(Flashes in
yellow)
Smart entry & start system indicator
An attempt was made to drive when the regu-
lar key was not inside the vehicle.
→ Confirm that the electronic key is inside
the vehicle.
Once(Flashes in
yellow for 15 seconds)
Smart entry & start system indicator
Indicates that the electronic key battery is low.
→ Replace the battery.
(→ P. 507)
Once(Flashes
quickly in
green for 15 seconds)
Smart entry & start system indicator
Indicates that the steering lock has not been
released.
→ Release the steering lock. ( →P. 219)
Once(Flashes in
yellow for 30 seconds)
Smart entry & start system indicator
• When the doors were unlocked with the mechanical key and then the engine switch
was pressed, the electronic key could not
be detected in the vehicle.
• The electronic key could not be detected in
the vehicle even after the engine switch
was pressed two consecutive times.
→ Vehicles with a Multidrive: Touch the elec-
tronic key to the engine switch while
depressing the brake pedal.
→ Vehicles with a manual transmission:
Touch the electronic key to the engine
switch while depressing the clutch pedal.
Interior
buzzerExterior buzzerWarning lightWarning light/Details/Action

5498-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises
■Front passenger detection sensor, seat belt reminder and warning
buzzer
● If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle imme-
diately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
■ When the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
● Check the tire inflation pressure and adjust it to the appropriate level.
● If the warning light does not go out after several minutes, check that the tire
inflation pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
■ The tire pressure warning light may come on due to natural causes
(vehicles with a tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
■ When a tire is replaced with a spare tire (vehicles with a tire pressure
warning system)
The compact spare tire is not equipped with a tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off
even though the flat tire has been replaced with the spare tire. Replace the
spare tire with the repaired tire and adjus t the tire inflation pressure. The tire
pressure warning light will go off after a few minutes.
■ Conditions that the tire pressure warning system may not function prop-
erly (vehicles with a ti re pressure warning system)
→ P. 490

5508-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)■
If the tire pressure warning light fre quently comes on after blinking for 1
minute (vehicles with a tire pressure warning system)
XVehicles without a smart entry & start system
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the engine switch is turned to the “ON” position, have it
checked by any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
XVehicles with a smart entry & start system
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the engine switch is turned to IGNITION ON mode, have it
checked by any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
■ If the engine oil change reminder light flashes (diesel engine)
Repeated short trips and/or low-speed dr iving may cause the oil to degrade
sooner than usual, regardless of the actual distance driven. If this happens,
the engine oil change reminder will flash.
■ Engine oil change reminder light comes on (diesel engine)
Replace the engine oil filter when t he engine oil change reminder light does
not come on even if you have driven over 15000 km (9300 miles) after the
engine oil was changed.
There is a possibility that the engine oil change reminder light has been illumi-
nated when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.
■ Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.

5518-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises
WARNING
■ If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■ When driving to clean the DPF cat alytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
■ If the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● Vehicles with a compact spare tire: If the tire pressure warning light comes
on even after tire inflation pressure adjustment, it is probable that you have
a flat tire. Check the tires. If a tire is flat, change it with the spare tire and
have the flat tire repaired by the nearest authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
● Vehicles with an emergency tire puncture repair kit: If the tire pressure
warning light comes on even after tire inflation pressure adjustment, it is
probable that you have a flat tire. Check the tires. If a tire is flat, repair the
flat tire by using emergency tire puncture repair kit.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.

5528-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)NOTICE
■

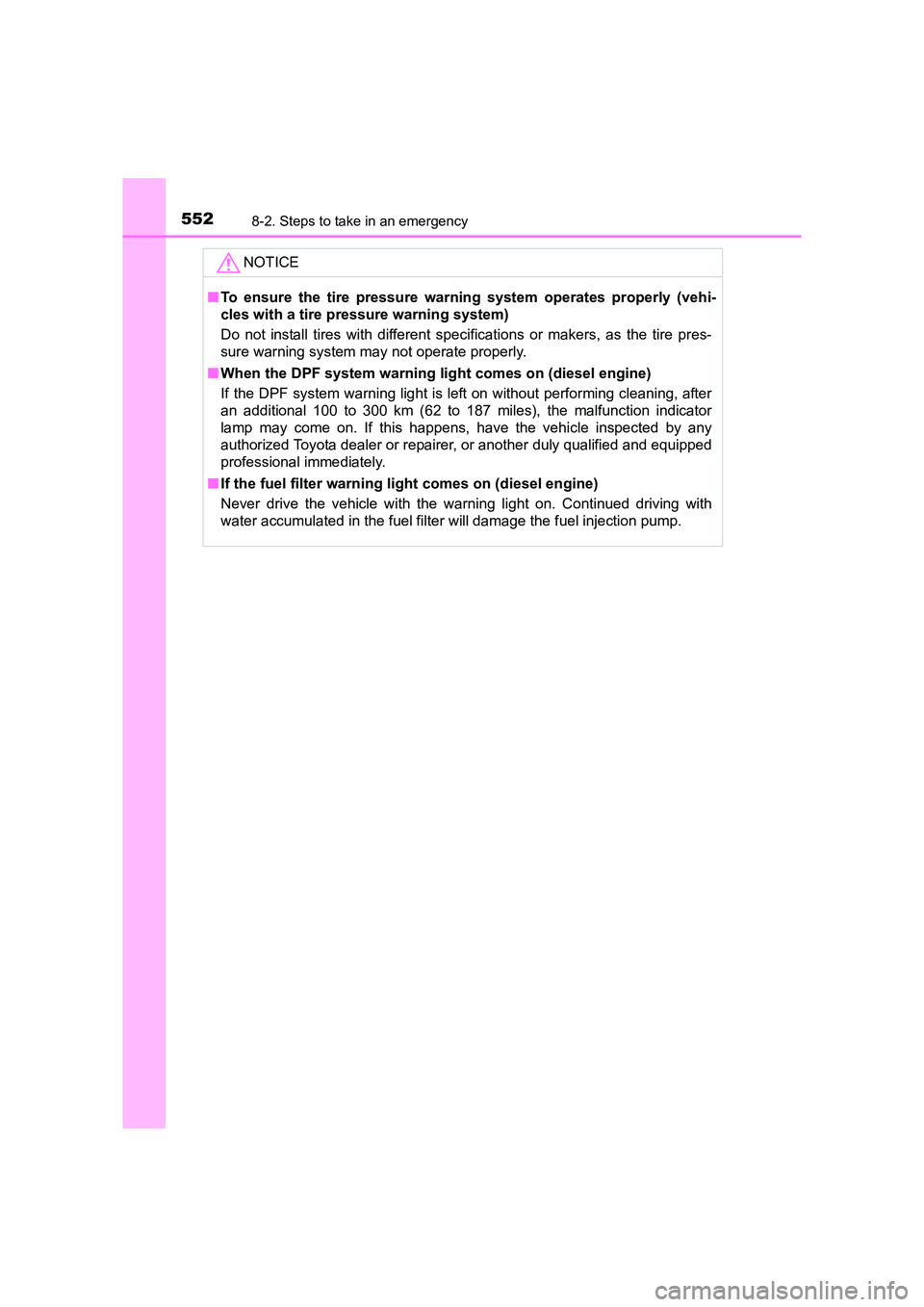

To ensure the tire pressure warn ing system operates properly (vehi-
cles with a tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.
■ When the DPF system warning light comes on (diesel engine)
If the DPF system warning light is left on without performing cleaning, after
an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
■ If the fuel filter warning light comes on (diesel engine)
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.
