2016 TOYOTA AURIS TOURING SPORTS USB port

TABLE OF CONTENTS4
AURIS Touring Sports_EE (12K53E)5-1. Basic Operations
Audio system types............338
Steering wheel audio switches ...........................339
AUX port/USB port.............340
5-2. Using the audio system Optimal use of the audio system .............................341
5-3. Using the radio Radio operation .................343
5-4. Playing audio CDs and MP3/WMA discs
CD player operation ...........346
5-5. Using an external device Listening to an iPod ...........354
Listening to a USB memory device ................362
Using the AUX port ............369 5-6. Using Bluetooth
®
devices
Bluetooth
® audio/phone .... 370
Using the steering wheel switches ................ 375
Registering a Bluetooth
®
device.............................. 376
5-7. “SET UP” menu Using the “SET UP” menu (“Bluetooth” menu) .......... 377
Using the “SET UP” menu (“Phone” menu) ............... 382
5-8. Bluetooth
® Audio
Operating a Bluetooth®
enabled portable
player .............................. 387
5-9. Bluetooth
® Phone
Making a phone call .......... 390
Receiving a phone call ...... 392
Speaking on the phone ..... 393
5-10. Bluetooth
®
Bluetooth®......................... 395
5Audio system

337
5Audio system
AURIS Touring Sports_EE (12K53E)5-1. Basic Operations
Audio system types ........... 338
Steering wheel audio switches ........................... 339
AUX port/USB port ............ 340
5-2. Using the audio system Optimal use of the audio system ............................. 341
5-3. Using the radio Radio operation ................. 343
5-4. Playing audio CDs and MP3/WMA discs
CD player operation........... 346
5-5. Using an external device Listening to an iPod ........... 354
Listening to a USB memory device ................ 362
Using the AUX port ............ 369 5-6. Using Bluetooth
®
devices
Bluetooth
® audio/phone..... 370
Using the steering wheel switches ........................... 375
Registering a Bluetooth
®
device .............................. 376
5-7. “SET UP” menu Using the “SET UP” menu (“Bluetooth” menu)........... 377
Using the “SET UP” menu (“Phone” menu) ............... 382
5-8. Bluetooth
® Audio
Operating a Bluetooth®
enabled portable
player ............................... 387
5-9. Bluetooth
® Phone
Making a phone call ...........390
Receiving a phone call.......392
Speaking on the phone ......393
5-10. Bluetooth
®
Bluetooth®......................... 395

3395-1. Basic Operations
AURIS Touring Sports_EE (12K53E)
5
Audio system
Vo lu m e swi tc h :• Press: Increases/decreases
volume
• Press and hold: Continuously
increases/decreases volume
Radio mode: • Press: Selects a radio station
• Press and hold: Seeks up/ down
CD, MP3/WMA disc, Bluetooth
®, iPod or USB mode:
• Press: Selects a track/file/song
• Press and hold: Selects a folder or album (MP3/WMA disc, Bluetooth
®, iPod or USB)
“MODE” switch: • Press: Turns the power on, selects an audio source
• Press and hold: Mutes or pauses the current operation. To cancel the mute or pause, press and hold again.
Steering wheel audio switches
Some audio features can be controlled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
Operating the audio system using the steering wheel switches
1
2
3
WARNING
■ To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

3405-1. Basic Operations
AURIS Touring Sports_EE (12K53E)■
iPod
Push the cover to open and
connect an iPod using an iPod
cable.
Turn on the power of the iPod if
it is not turned on.
■
USB memory
Push the cover to open and connect a USB memory device.
Turn on the power of the USB memory device if it is not turned on.
■
Portable audio player
Push the cover to open and connect a portable audio player.
Turn on the power of the portable audio player if it is not turned on.
AUX port/USB por t
Connect an iPod, USB memory device or portable audio player
to the AUX port/USB port as indicated below. Press the “MODE”
button to select “iPod”, “USB” or “AUX”.
Connecting using the AUX port/USB port
WARNING
■ While driving
Do not connect a device or operate the device controls.

3625-5. Using an external device
AURIS Touring Sports_EE (12K53E)
→P. 3 4 0

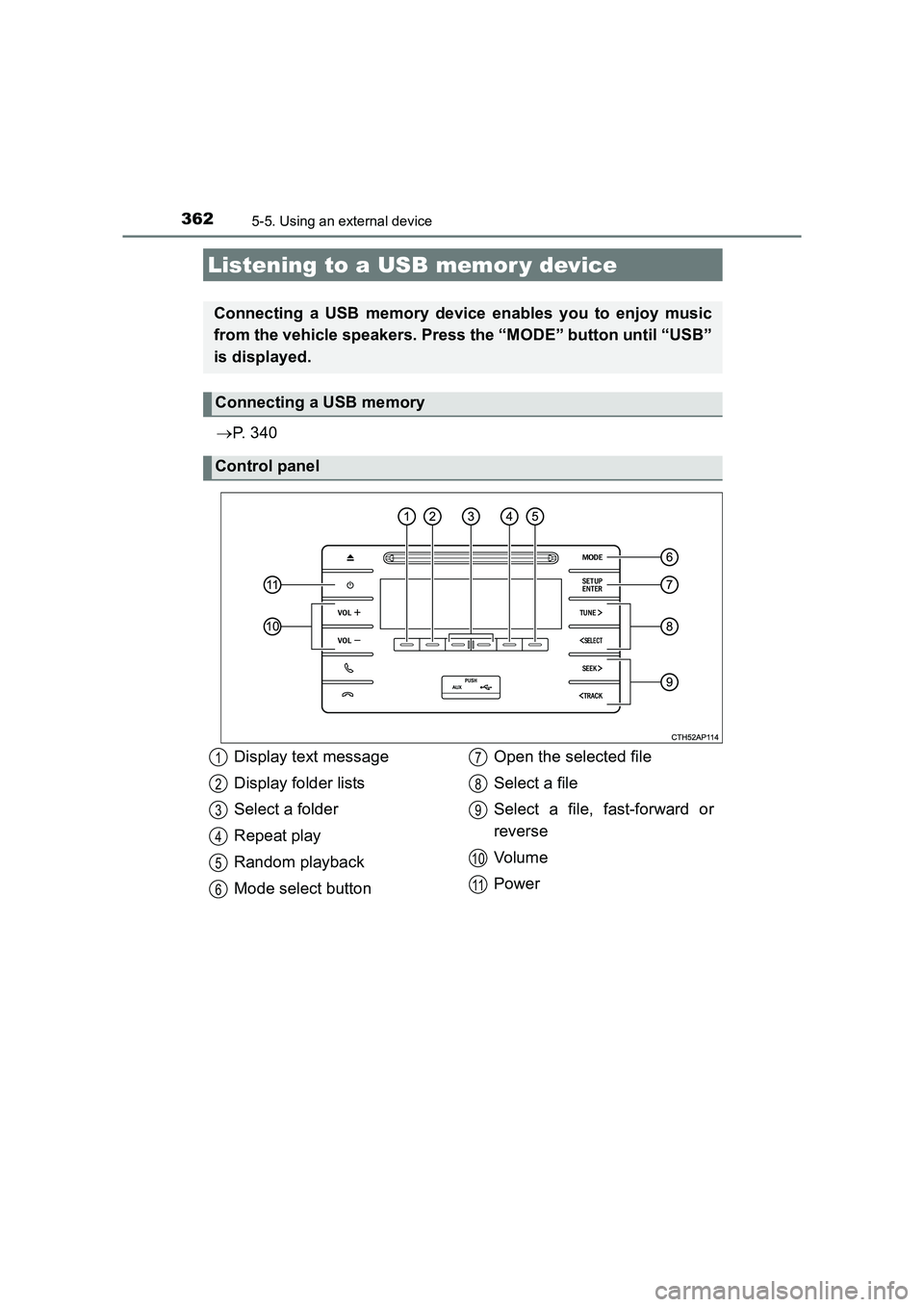

Listening to a USB memor y device
Connecting a USB memory device enables you to enjoy music
from the vehicle speakers. Press the “MODE” button until “USB”
is displayed.
Connecting a USB memory
Control panel
Display text message
Display folder lists
Select a folder
Repeat play
Random playback
Mode select button Open the selected file
Select a file
Select a file, fast-forward or
reverse
Vol um e
Power1
2
3
4
5
6
7
8
9
10
11

3645-5. Using an external device
AURIS Touring Sports_EE (12K53E)

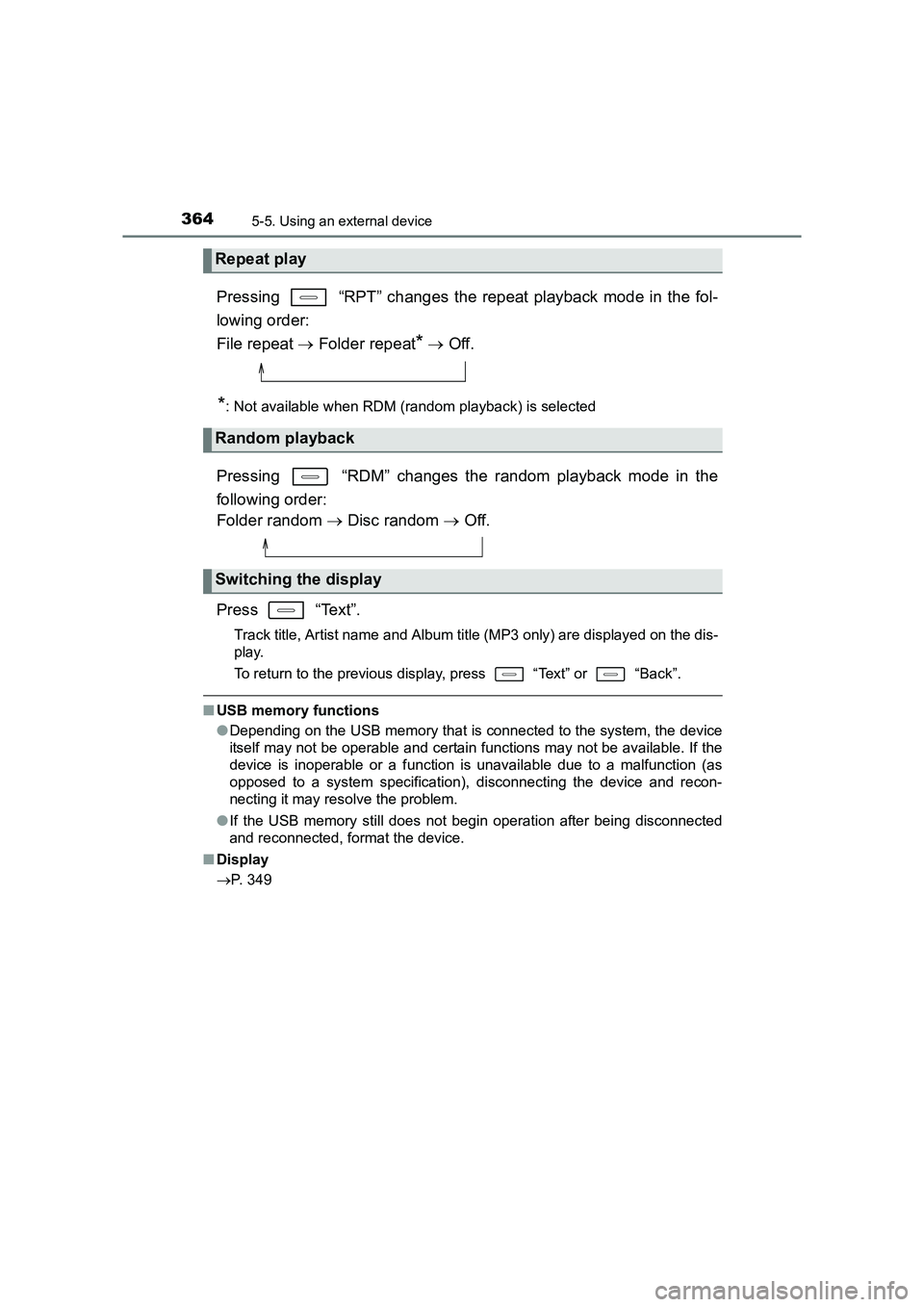

Pressing “RPT” changes the repeat playback mode in the fol-
lowing order:
File repeat → Folder repeat
* → Off.
*: Not available when RDM (random playback) is selected
Pressing “RDM” changes the random playback mode in the
following order:
Folder random → Disc random → Off.
Press “Text”.
Track title, Artist name and Album title (MP3 only) are displayed on the dis-
play.
To return to the previous display, press “Text” or “Back”.
■ USB memory functions
●Depending on the USB memory that is connected to the system, the device
itself may not be operable and certain functions may not be available. If the
device is inoperable or a function is unavailable due to a malfunction (as
opposed to a system specification), disconnecting the device and recon-
necting it may resolve the problem.
● If the USB memory still does not begin operation after being disconnected
and reconnected, format the device.
■ Display
→ P. 349
Repeat play
Random playback
Switching the display

3655-5. Using an external device
AURIS Touring Sports_EE (12K53E)
5
Audio system

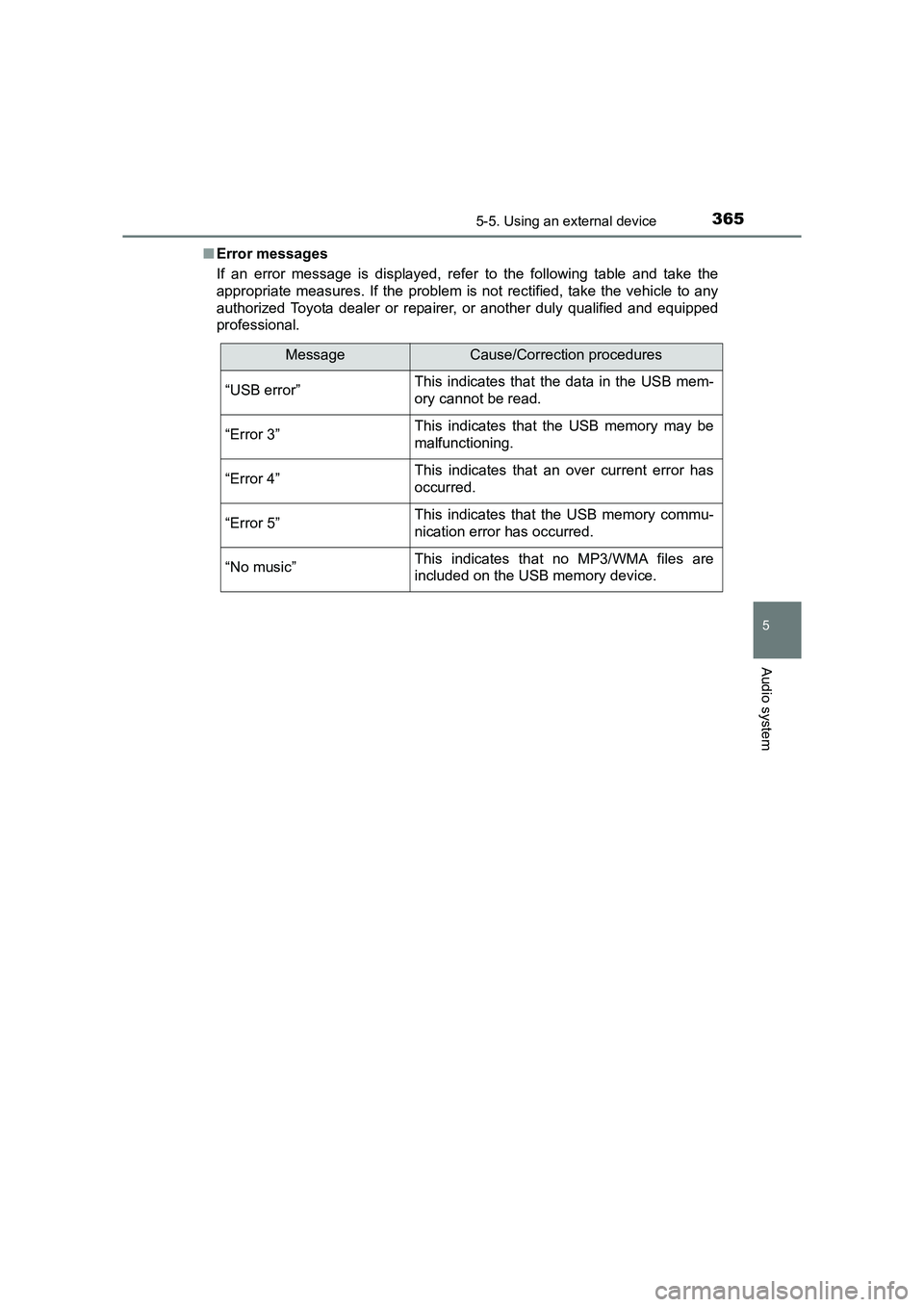

■Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota dealer or repair er, or another duly qualified and equipped
professional.
MessageCause/Correction procedures
“USB error”This indicates that the data in the USB mem-
ory cannot be read.
“Error 3”This indicates that the USB memory may be
malfunctioning.
“Error 4”This indicates that an over current error has
occurred.
“Error 5”This indicates that the USB memory commu-
nication error has occurred.
“No music”This indicates that no MP3/WMA files are
included on the USB memory device.

3665-5. Using an external device
AURIS Touring Sports_EE (12K53E)■
USB memory
●Compatible devices
USB memory that can be used for MP3 and WMA playback
● Compatible device formats
The following device formats can be used:
• USB communication formats: USB 2.0 FS (12 Mbps)
• File formats: FAT12/16/32 (Windows)
• Correspondence class: Mass storage class
MP3 and WMA files written in any format other than those listed above may
not play correctly, and their file names and folder names may not be dis-
played correctly.
Items related to standards and limitations are as follows:
• Maximum directory hierarchy: 8 levels
• Maximum number of folders in a device: 999 (including the root)
• Maximum number of files in a device: 9999
• Maximum number of files per folder: 255
● MP3 and WMA files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size using
MP3 compression.
WMA (Windows Media Audio) is a Mi crosoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3
format.
There is a limit to the MP3 and WMA file standards that can be used and to
the media/formats on which the files are recorded.
● MP3 file compatibility
• Compatible standards
MP3 (MPEG1 AUDIO LAYERII, III, MPEG2 AUDIO LAYERII, III,
MPEG2.5)
• Compatible sampling frequencies
MPEG1 AUDIO LAYERII, III: 32, 44.1, 48 (kHz)
MPEG2 AUDIO LAYERII, III: 16, 22.05, 24 (kHz)
MPEG2.5: 8, 11.025, 12 (kHz)
• Compatible bit rates (compatible with VBR) MPEG1 AUDIO LAYERII, III: 32-320 (kbps)
MPEG2 AUDIO LAYERII, III: 8-160 (kbps)
MPEG2.5: 8-160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and mon- aural
