2016 TOYOTA AURIS TOURING SPORTS Owners Manual

4416-4. Other interior features
AURIS Touring Sports_EE (12K53E)
6
Interior features

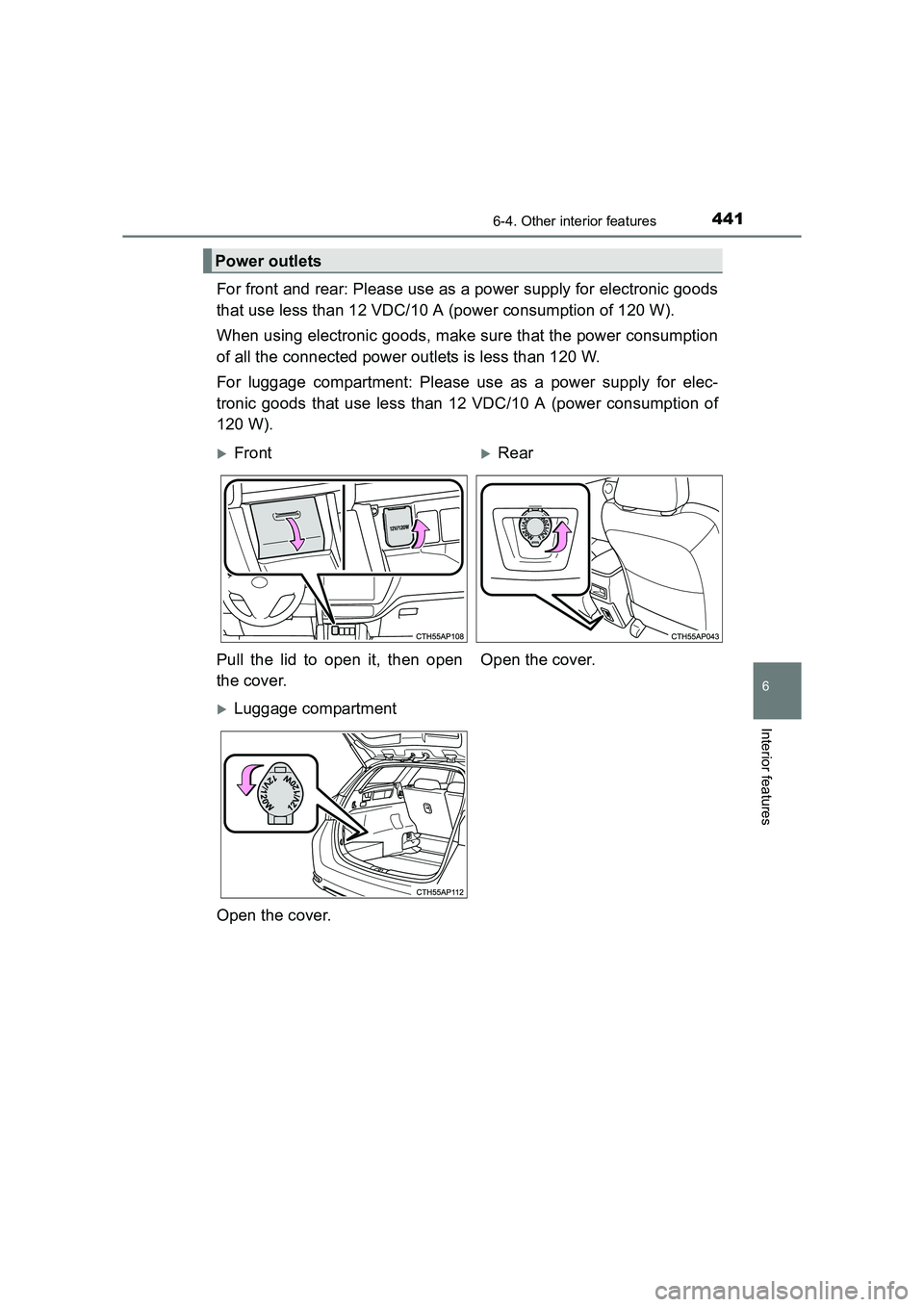

For front and rear: Please use as a power supply for electronic goods
that use less than 12 VDC/10 A (power consumption of 120 W).
When using electronic goods, make sure that the power consumption
of all the connected power outlets is less than 120 W.
For luggage compartment: Please use as a power supply for elec-
tronic goods that use less than 12 VDC/10 A (power consumption of
120 W).
Power outlets
XFrontXRear
Pull the lid to open it, then open
the cover. Open the cover.
XLuggage compartment
Open the cover.

4426-4. Other interior features
AURIS Touring Sports_EE (12K53E)

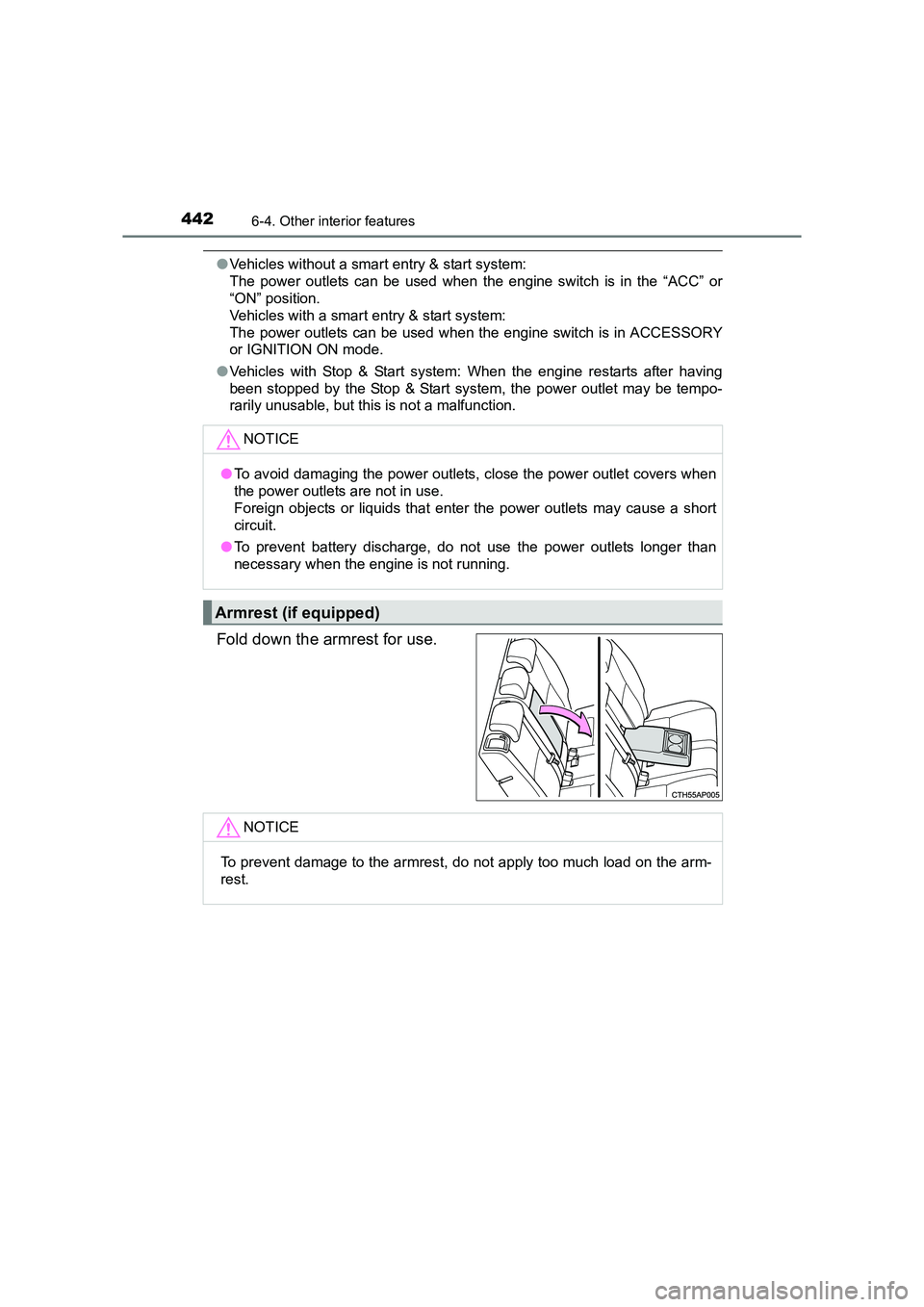

●Vehicles without a smart entry & start system:
The power outlets can be used when the engine switch is in the “ACC” or
“ON” position.
Vehicles with a smart entry & start system:
The power outlets can be used when the engine switch is in ACCESSORY
or IGNITION ON mode.
● Vehicles with Stop & Start system: When the engine restarts after having
been stopped by the Stop & Start system, the power outlet may be tempo-
rarily unusable, but this is not a malfunction.
Fold down the armrest for use.
NOTICE
● To avoid damaging the power outlets, close the power outlet covers when
the power outlets are not in use.
Foreign objects or liquids that enter the power outlets may cause a short
circuit.
● To prevent battery discharge, do not use the power outlets longer than
necessary when the engine is not running.
Armrest (if equipped)
NOTICE
To prevent damage to the armrest, do not apply too much load on the arm-
rest.

4436-4. Other interior features
AURIS Touring Sports_EE (12K53E)
6
Interior features

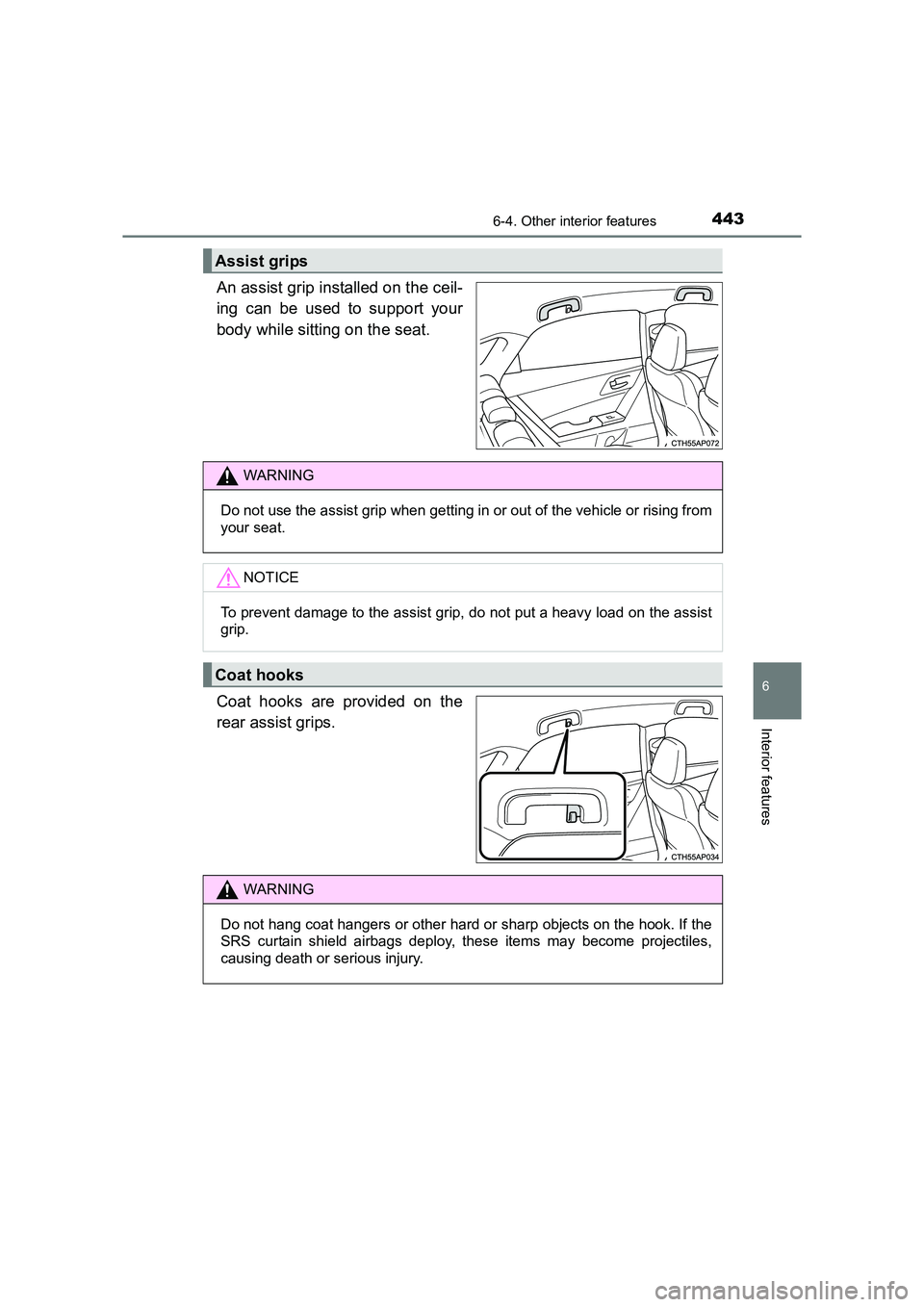

An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Coat hooks are provided on the
rear assist grips.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist
grip.
Coat hooks
WARNING
Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become projectiles,
causing death or serious injury.

4446-4. Other interior features
AURIS Touring Sports_EE (12K53E)

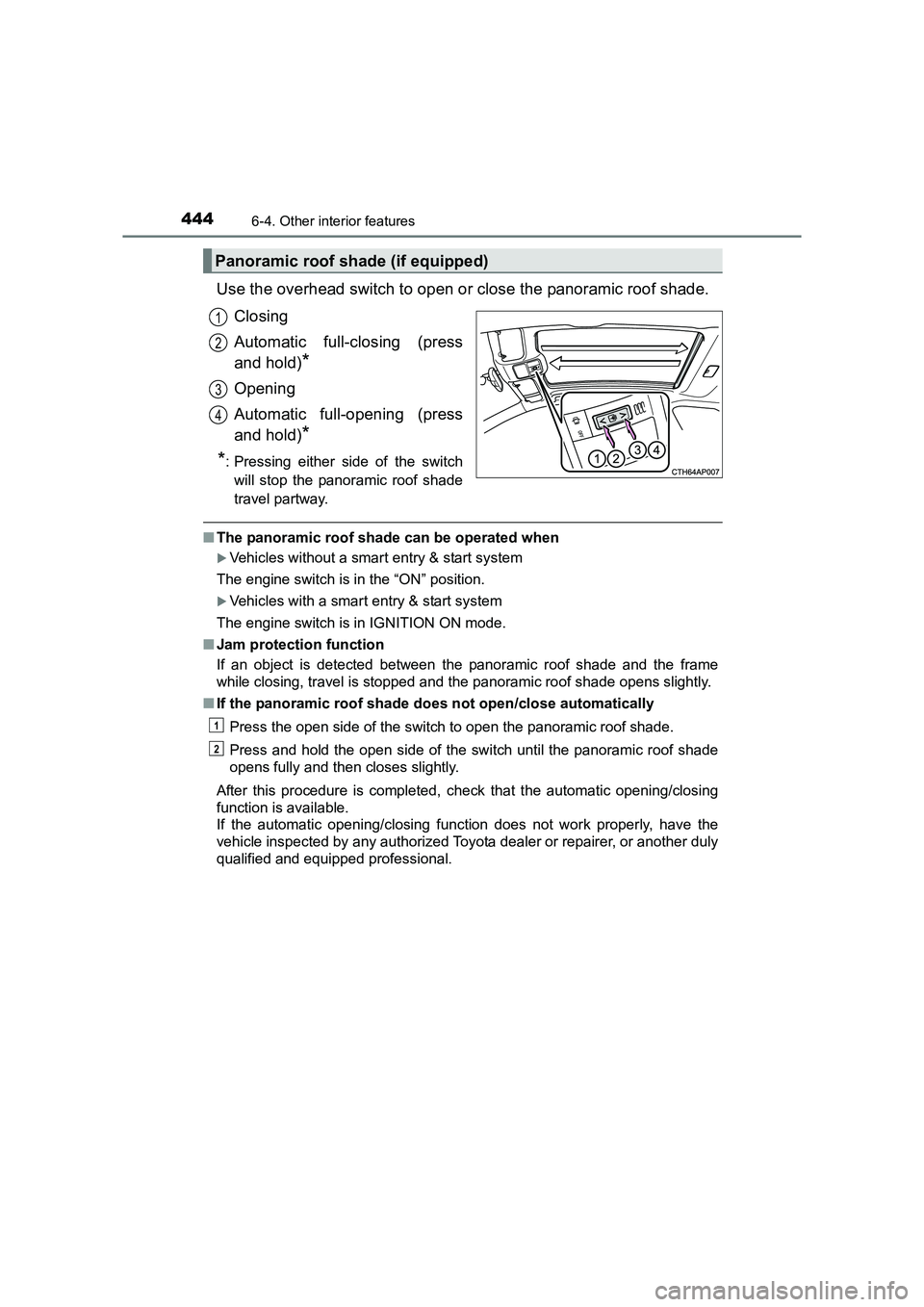

Use the overhead switch to open or close the panoramic roof shade.Closing
Automatic full-closing (press
and hold)
*
Opening
Automatic full-opening (press
and hold)
*
*
: Pressing either side of the switch will stop the panoramic roof shade
travel partway.
■ The panoramic roof shade can be operated when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ Jam protection function
If an object is detected between the panoramic roof shade and the frame
while closing, travel is stopped and the panoramic roof shade opens slightly.
■ If the panoramic roof shade does not open/close automatically
Press the open side of the switch to open the panoramic roof shade.
Press and hold the open side of the switch until the panoramic roof shade
opens fully and then closes slightly.
After this procedure is completed, check that the automatic opening/closing
function is available.
If the automatic opening/closing function does not work properly, have the
vehicle inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Panoramic roof shade (if equipped)
1
2
3
4
1
2

4456-4. Other interior features
AURIS Touring Sports_EE (12K53E)
6
Interior features

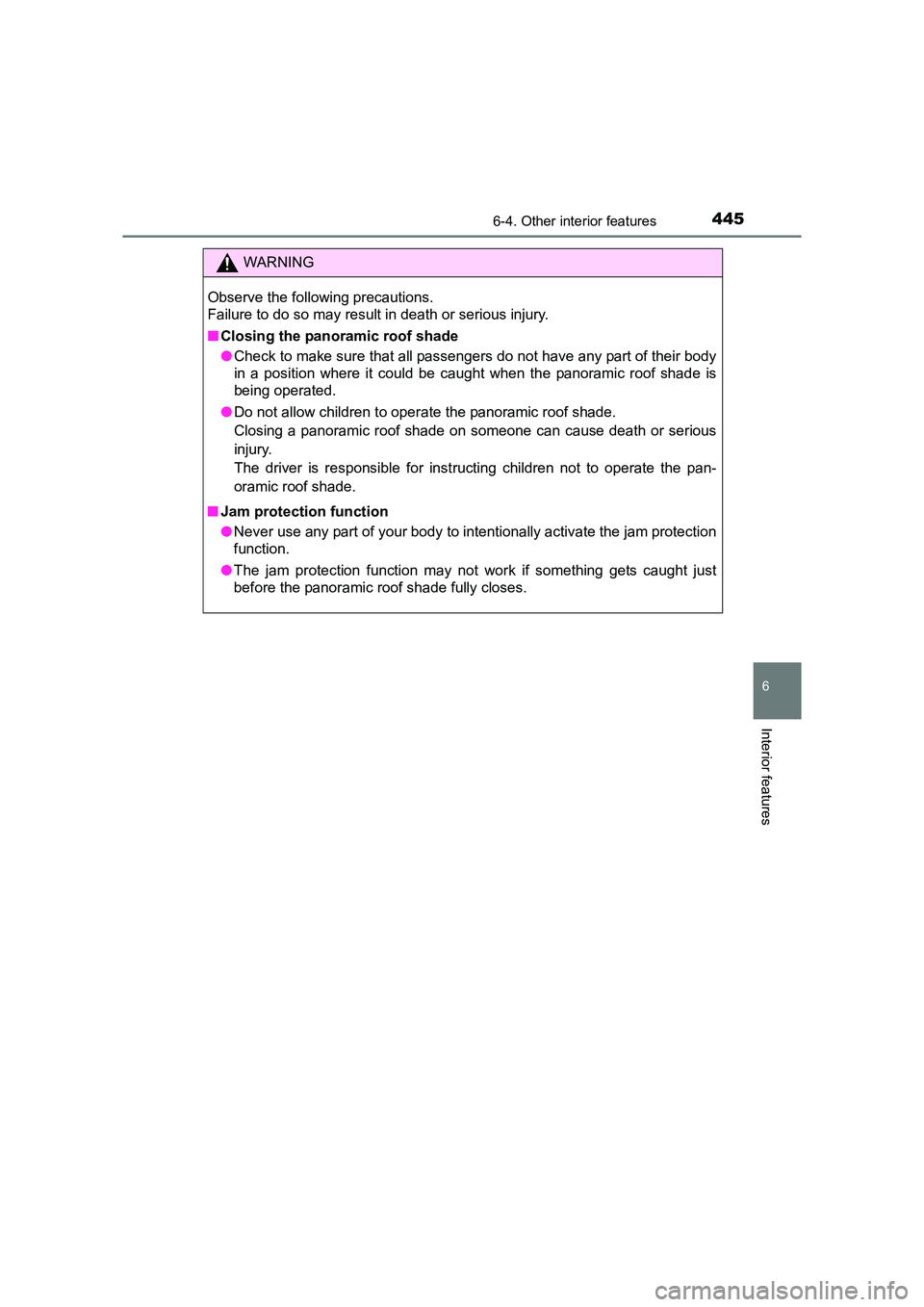

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Closing the panoramic roof shade
●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the panoramic roof shade is
being operated.
● Do not allow children to operate the panoramic roof shade.
Closing a panoramic roof shade on someone can cause death or serious
injury.
The driver is responsible for instructing children not to operate the pan-
oramic roof shade.
■ Jam protection function
●Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the panoramic roof shade fully closes.

4466-4. Other interior features
AURIS Touring Sports_EE (12K53E)

447
7Maintenance and care
AURIS Touring Sports_EE (12K53E)7-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 448
Cleaning and protecting the vehicle interior ........... 452
7-2. Maintenance Maintenance requirements.................... 455
7-3. Do-it-yourself maintenance
Do-it-yourself service precautions ...................... 458
Hood .................................. 461
Positioning a floor jack .......463
Engine compartment..........464
Tires ................................... 486
Tire inflation pressure ........ 500
Wheels ............................... 502
Air conditioning filter ..........505
Wireless remote control/ electronic key battery....... 507
Checking and replacing fuses ................ 510
Light bulbs ......................... 515

448
AURIS Touring Sports_EE (12K53E)
7-1. Maintenance and care
●Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
■Automatic car washes
●Fold the mirrors before washing the vehicle. Start washing from the front of
the vehicle. Make sure to extend the mirrors before driving.
● Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
■ High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of
the windows.
● Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
Cleaning and protecting the vehicle
exterior
Perform the following to protect the vehicle and maintain it in
prime condition:
