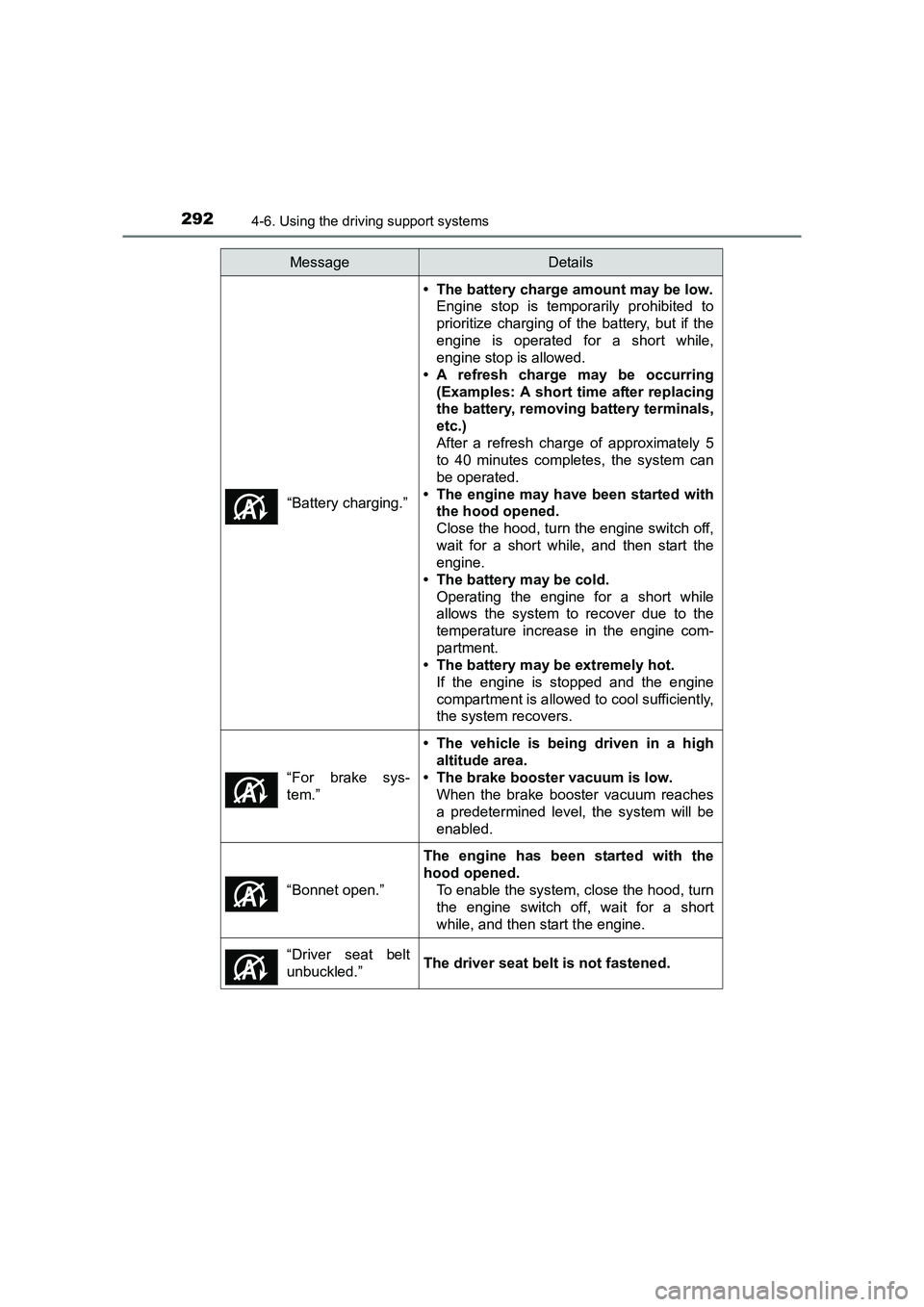

2924-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)“Battery charging.”
• The battery charge amount may be low.
Engine stop is temporarily prohibited to
prioritize charging of the battery, but if the
engine is operated for a short while,
engine stop is allowed.
• A refresh charge may be occurring (Examples: A short time after replacing
the battery, removing battery terminals,
etc.)
After a refresh charge of approximately 5
to 40 minutes completes, the system can
be operated.
• The engine may have been started with the hood opened.
Close the hood, turn the engine switch off,
wait for a short while, and then start the
engine.
• The battery may be cold. Operating the engine for a short while
allows the system to recover due to the
temperature increase in the engine com-
partment.
• The battery may be extremely hot.
If the engine is stopped and the engine
compartment is allowed to cool sufficiently,
the system recovers.
“For brake sys-
tem.”
• The vehicle is being driven in a high altitude area.
• The brake booster vacuum is low. When the brake booster vacuum reaches
a predetermined level, the system will be
enabled.
“Bonnet open.”
The engine has been started with the
hood opened. To enable the system, close the hood, turn
the engine switch off, wait for a short
while, and then start the engine.
“Driver seat belt
unbuckled.”
The driver seat belt is not fastened.
MessageDetails

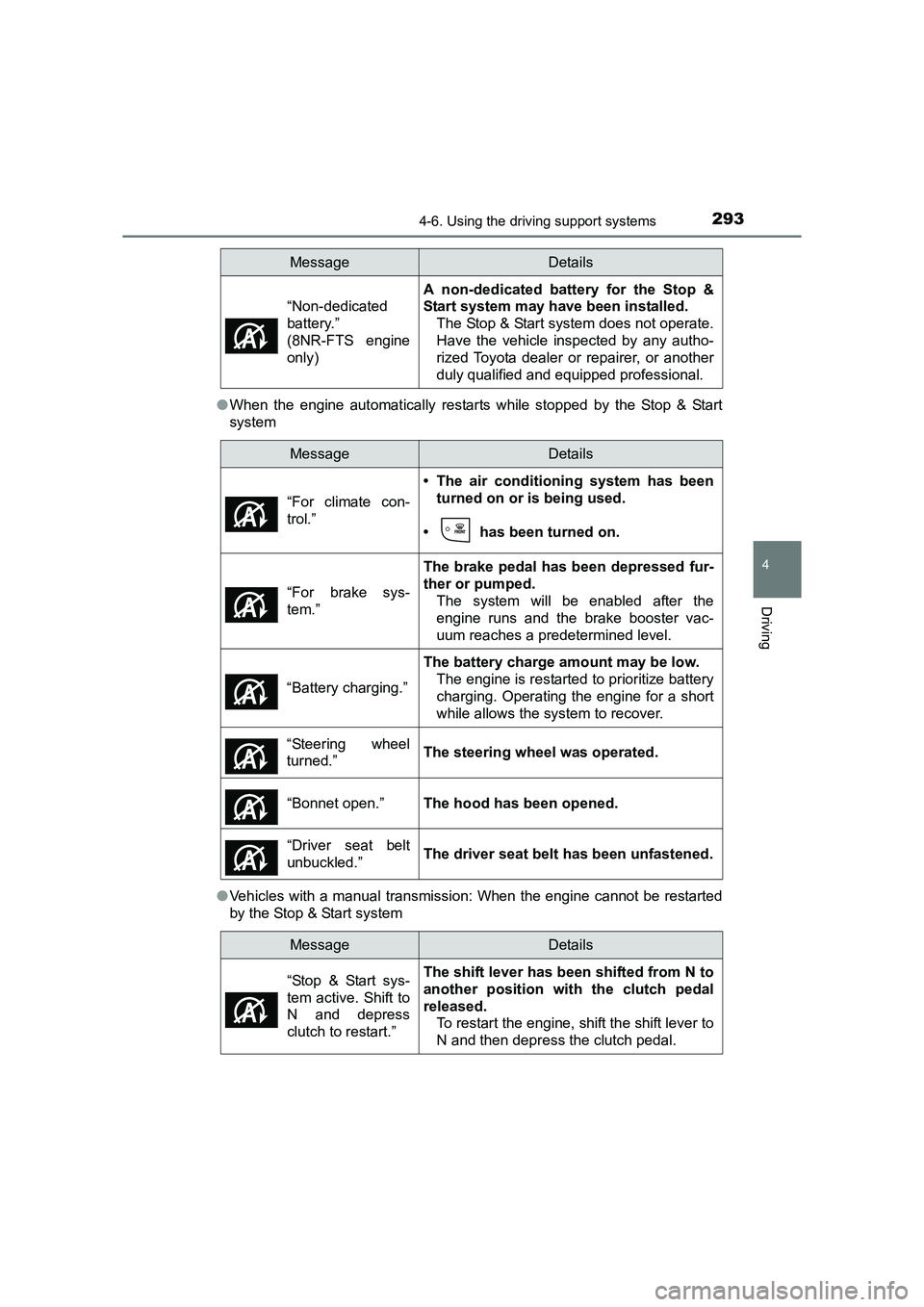

2934-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving
●When the engine automatically restarts while stopped by the Stop & Start
system
● Vehicles with a manual transmission: When the engine cannot be restarted
by the Stop & Start system “Non-dedicated
battery.”
(8NR-FTS engine
only)
A non-dedicated battery for the Stop &
Start system may have been installed.
The Stop & Start system does not operate.
Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
MessageDetails
MessageDetails
“For climate con-
trol.”
• The air conditioning system has been turned on or is being used.
• has been turned on.
“For brake sys-
tem.”
The brake pedal has been depressed fur-
ther or pumped. The system will be enabled after the
engine runs and the brake booster vac-
uum reaches a predetermined level.
“Battery charging.”
The battery charge amount may be low. The engine is restarted to prioritize battery
charging. Operating the engine for a short
while allows the system to recover.
“Steering wheel
turned.”
The steering wheel was operated.
“Bonnet open.”
The hood has been opened.
“Driver seat belt
unbuckled.”
The driver seat belt has been unfastened.
MessageDetails
“Stop & Start sys-
tem active. Shift to
N and depress
clutch to restart.”
The shift lever has been shifted from N to
another position with the clutch pedal
released. To restart the engine, shift the shift lever to
N and then depress the clutch pedal.
