2016 TOYOTA AURIS TOURING SPORTS Owners Manual

2814-5. Toyota Safety Sense
AURIS Touring Sports_EE (12K53E)
4
Driving
■Conditions in which the function may not operate or detect correctly
In the following situations, RSA does not operate normally and may not rec-
ognize signs, display the incorrect sign, etc. However, this does not indicate a
malfunction.
● The front sensor is misaligned due to a strong impact being applied to the
sensor, etc.
● Dirt, snow, stickers, etc., are on the windshield near the front sensor.
● In inclement weather such as heavy rain, fog, snow or sand storms
● Light from an oncoming vehicle, the sun, etc., enters the front sensor.
● The sign is small, dirty, faded, tilted or bent, and if an electronic sign, the
contrast is poor.
● All or part of the sign is hidden by the leaves of a tree, a pole, etc.
● The sign is only visible to the front sensor for a short amount of time.
● The driving scene (turning, lane change, etc.) is judged incorrectly.
● Even if it is a sign not appropriate for the currently traveled lane, such a sign
exists directly after a freeway branches, or in an adjacent lane just before
merging.
● Stickers are attached to the rear of the preceding vehicle.
● A sign resembling a system compatible sign is recognized.
● The vehicle is driven in a country with a different direction of traffic.
● Side road speed signs may be detected and displayed (if positioned in sight
of the front sensor) while the vehicle is traveling on the main road.
● Roundabout exit road speed signs may be detected and displayed (if posi-
tioned in sight of the front sensor) while traveling on a roundabout.
● The speed information displayed on the meter and that displayed on the
Navigation system (if equipped) may be different due to the Navigation sys-
tem using map data.

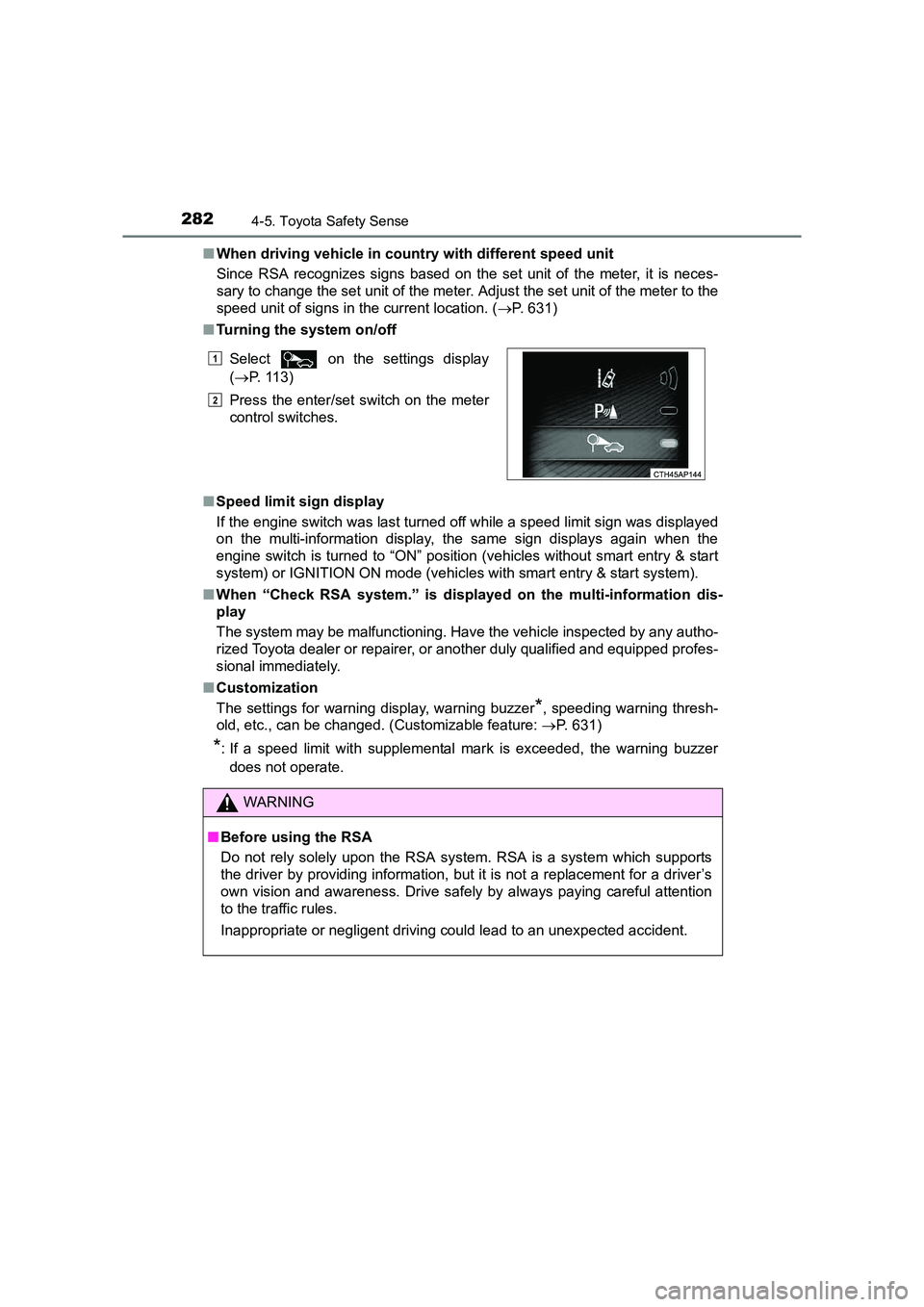

2824-5. Toyota Safety Sense
AURIS Touring Sports_EE (12K53E)■
When driving vehicle in country with different speed unit
Since RSA recognizes signs based on the set unit of the meter, it is neces-
sary to change the set unit of the meter. Adjust the set unit of the meter to the
speed unit of signs in the current location. ( →P. 631)
■ Turning the system on/off
■ Speed limit sign display
If the engine switch was last turned off while a speed limit sign was displayed
on the multi-information display, the same sign displays again when the
engine switch is turned to “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
■ When “Check RSA system.” is displ ayed on the multi-information dis-
play
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately.
■ Customization
The settings for warning display, warning buzzer
*, speeding warning thresh-
old, etc., can be changed. (Customizable feature: →P. 631)
*: If a speed limit with supplemental mark is exceeded, the warning buzzer
does not operate. Select on the settings display
(→ P. 113)
Press the enter/set switch on the meter
control switches.
WARNING
■ Before using the RSA
Do not rely solely upon the RSA system. RSA is a system which supports
the driver by providing information, but it is not a replacement for a driver’s
own vision and awareness. Drive safely by always paying careful attention
to the traffic rules.
Inappropriate or negligent driving could lead to an unexpected accident.
1
2

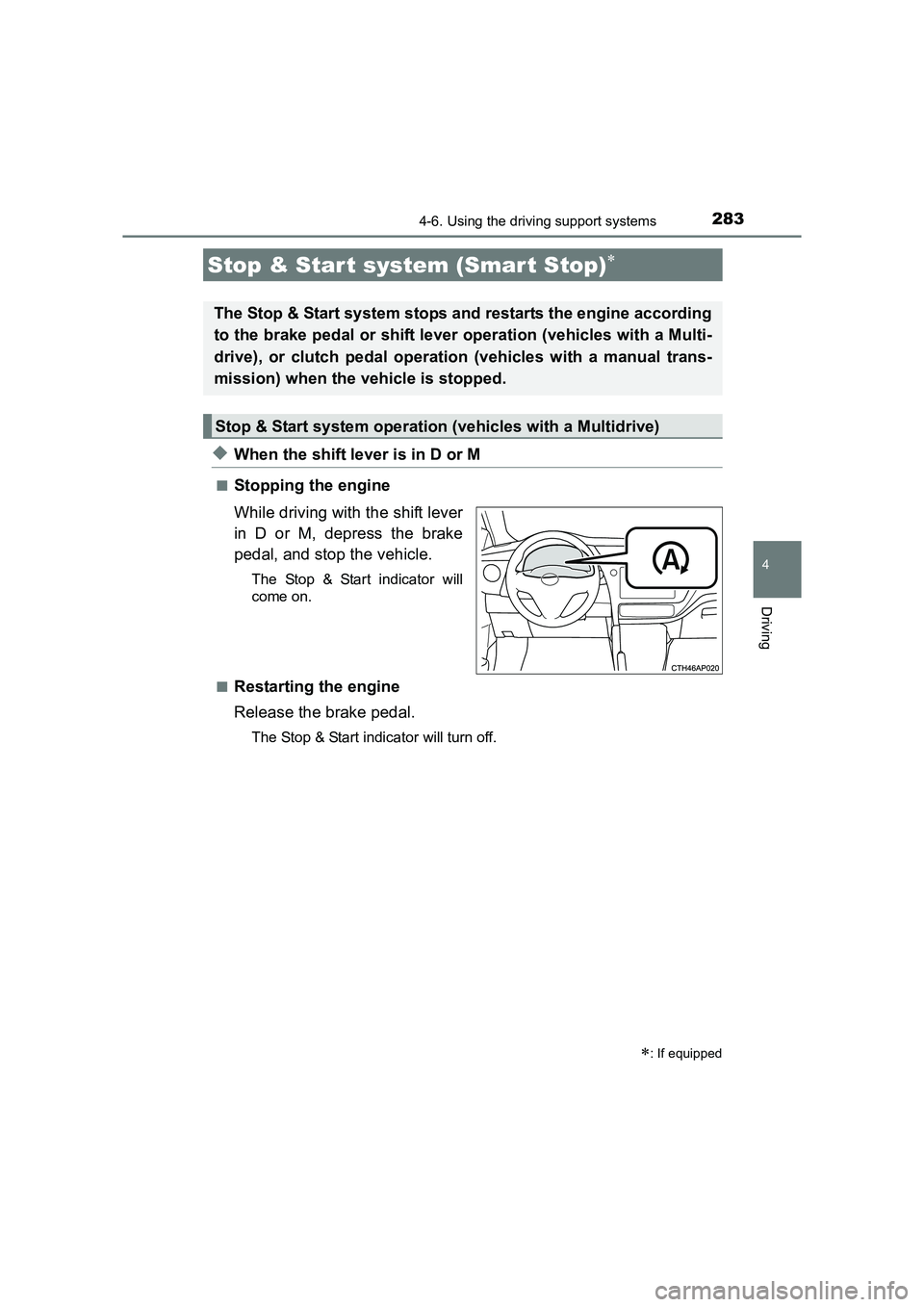

283
AURIS Touring Sports_EE (12K53E)
4
Driving
4-6. Using the driving support systems
◆When the shift lever is in D or M
■Stopping the engine
While driving with the shift lever
in D or M, depress the brake
pedal, and stop the vehicle.
The Stop & Start indicator will
come on.
■
Restarting the engine
Release the brake pedal.
The Stop & Start indicator will turn off.
Stop & Star t system (Smar t Stop)∗
∗: If equipped
The Stop & Start system stops and restarts the engine according
to the brake pedal or shift lever operation (vehicles with a Multi-
drive), or clutch pedal operation (vehicles with a manual trans-
mission) when the vehicle is stopped.
Stop & Start system operation (vehicles with a Multidrive)

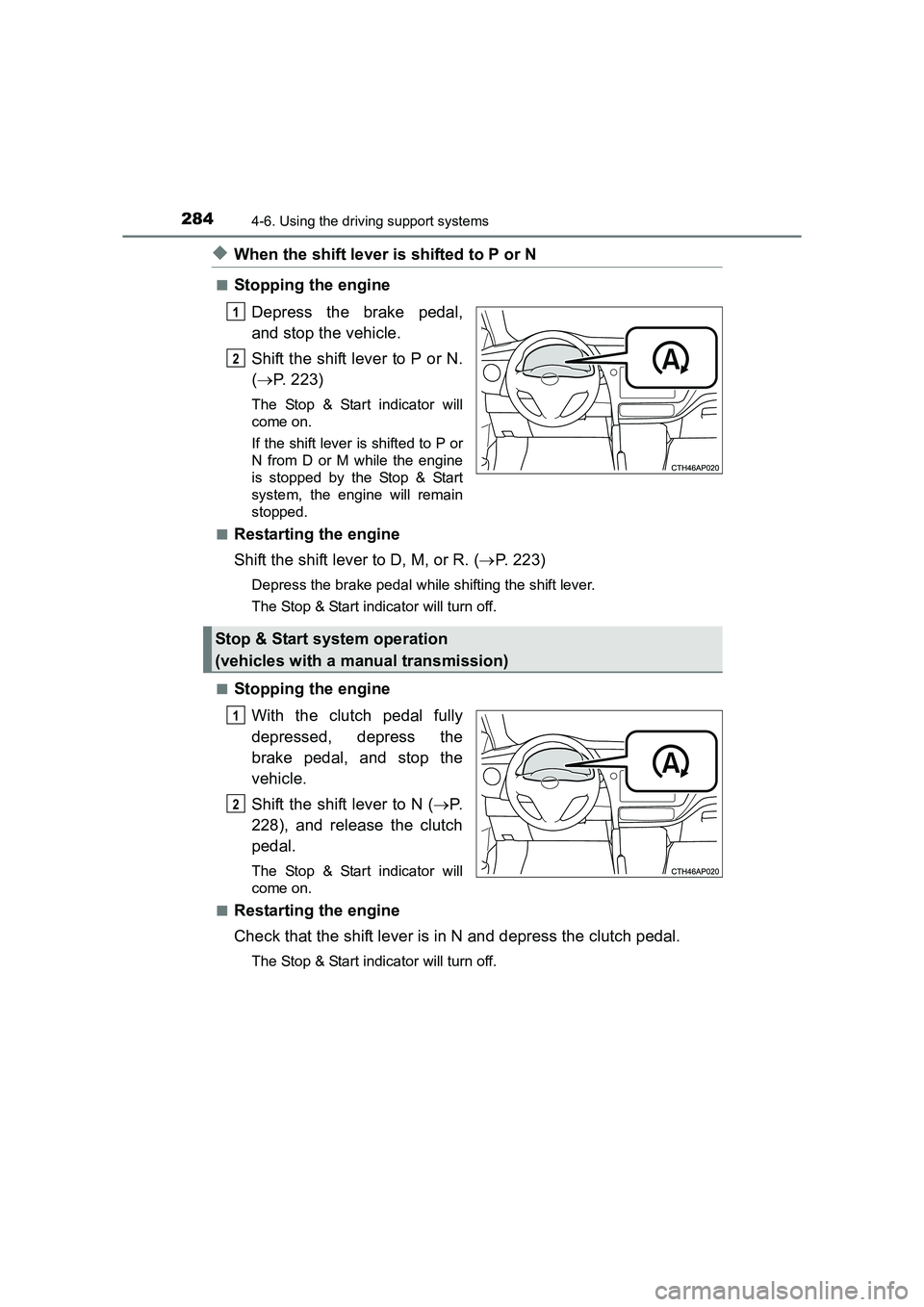

2844-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
◆When the shift lever is shifted to P or N
■Stopping the engineDepress the brake pedal,
and stop the vehicle.
Shift the shift lever to P or N.
(→ P. 223)
The Stop & Start indicator will
come on.
If the shift lever is shifted to P or
N from D or M while the engine
is stopped by the Stop & Start
system, the engine will remain
stopped.
■
Restarting the engine
Shift the shift lever to D, M, or R. ( →P. 223)
Depress the brake pedal while shifting the shift lever.
The Stop & Start indicator will turn off.
■
Stopping the engine With the clutch pedal fully
depressed, depress the
brake pedal, and stop the
vehicle.
Shift the shift lever to N ( →P.
228), and release the clutch
pedal.
The Stop & Start indicator will
come on.
■
Restarting the engine
Check that the shift lever is in N and depress the clutch pedal.
The Stop & Start indicator will turn off.
1
2
Stop & Start system operation
(vehicles with a manual transmission)
1
2

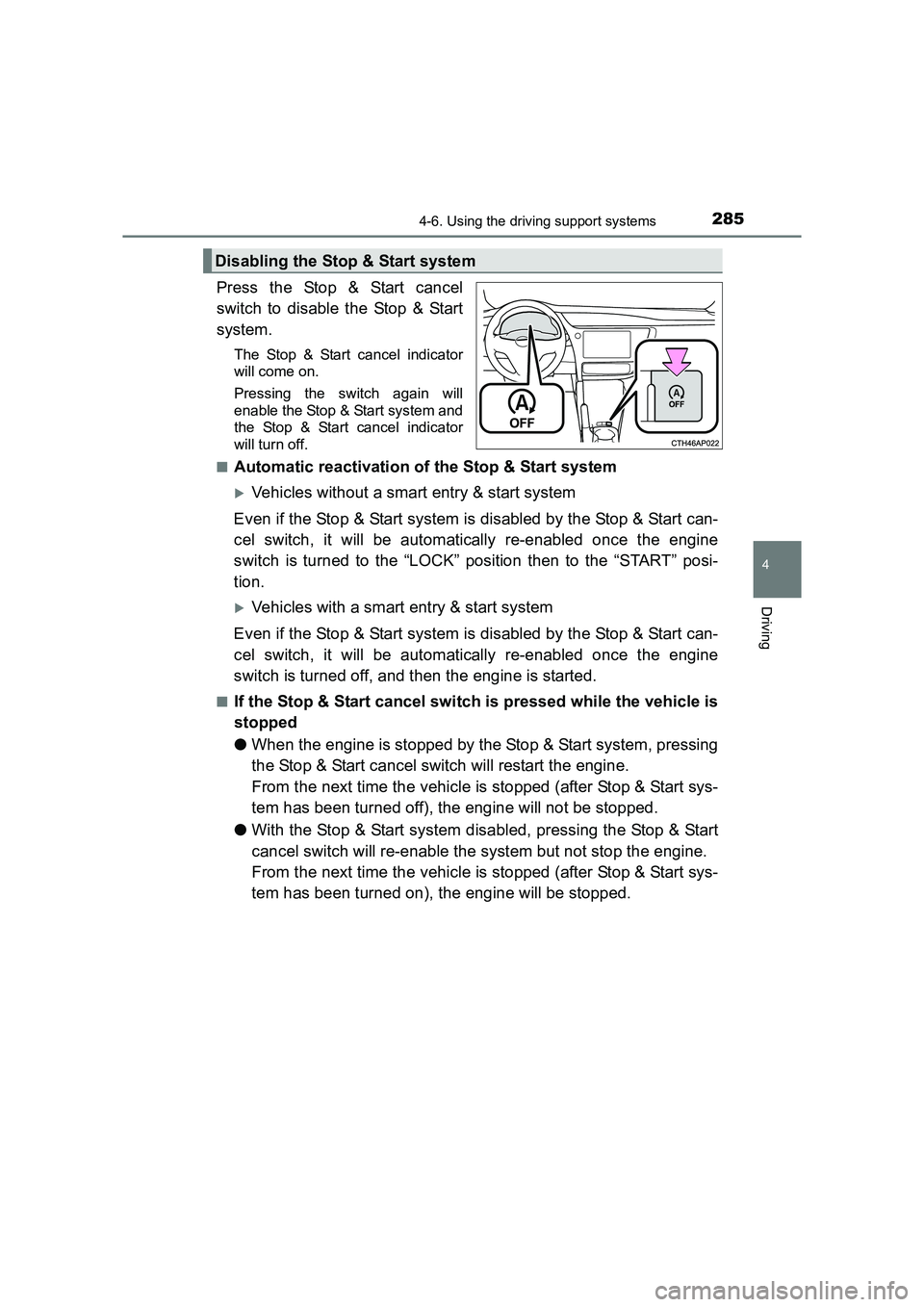

2854-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving
Press the Stop & Start cancel
switch to disable the Stop & Start
system.
The Stop & Start cancel indicator
will come on.
Pressing the switch again will
enable the Stop & Start system and
the Stop & Start cancel indicator
will turn off.
■
Automatic reactivation of the Stop & Start system
XVehicles without a smart entry & start system
Even if the Stop & Start system is disabled by the Stop & Start can-
cel switch, it will be automatically re-enabled once the engine
switch is turned to the “LOCK” position then to the “START” posi-
tion.
XVehicles with a smart entry & start system
Even if the Stop & Start system is disabled by the Stop & Start can-
cel switch, it will be automatically re-enabled once the engine
switch is turned off, and then the engine is started.
■If the Stop & Start cancel switch is pressed while the vehicle is
stopped
● When the engine is stopped by the Stop & Start system, pressing
the Stop & Start cancel switch will restart the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned off), the engine will not be stopped.
● With the Stop & Start system disabled, pressing the Stop & Start
cancel switch will re-enable the system but not stop the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned on), the engine will be stopped.
Disabling the Stop & Start system

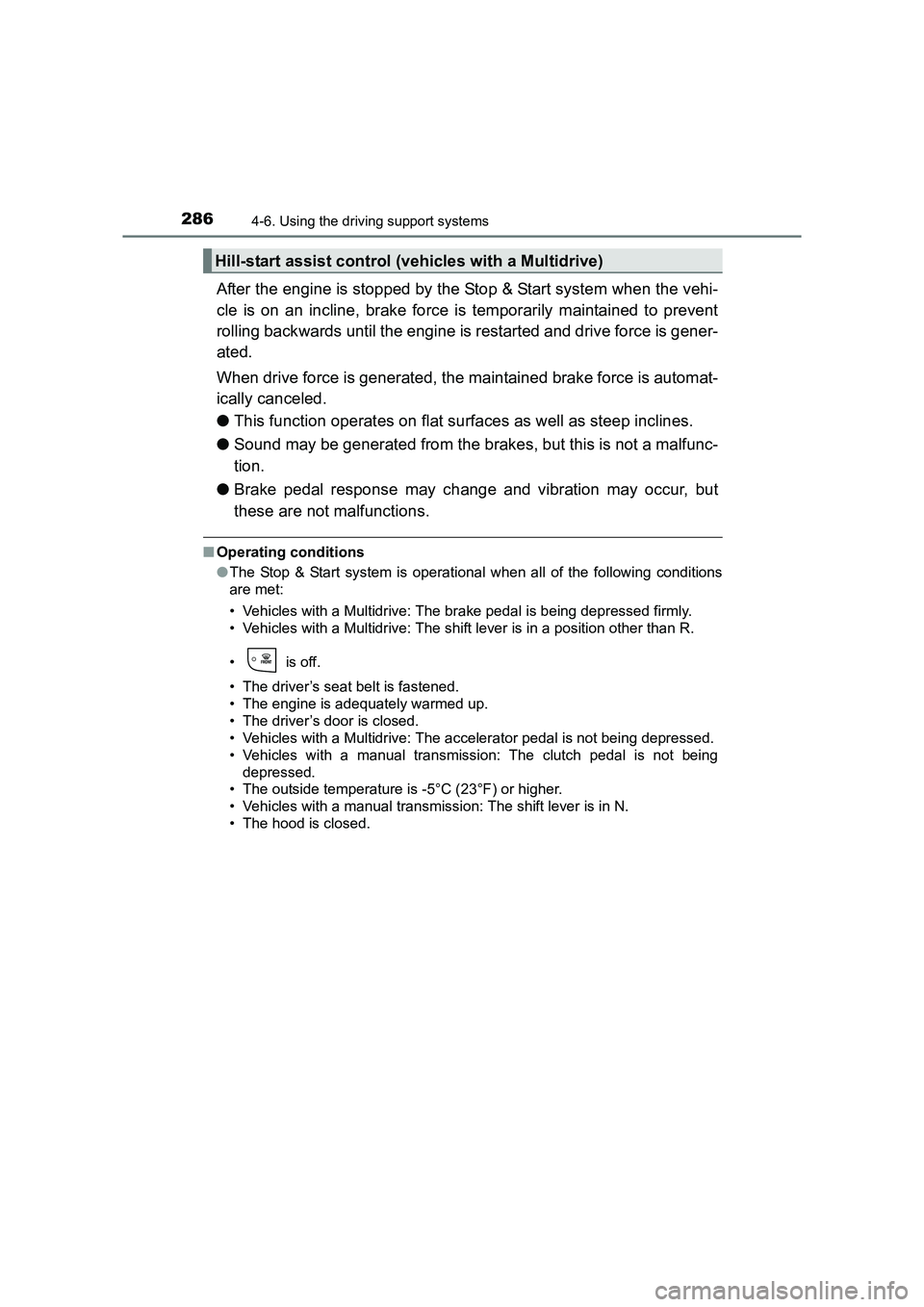

2864-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
After the engine is stopped by the Stop & Start system when the vehi-
cle is on an incline, brake force is temporarily maintained to prevent
rolling backwards until the engine is restarted and drive force is gener-
ated.
When drive force is generated, the maintained brake force is automat-
ically canceled.
●This function operates on flat surfaces as well as steep inclines.
● Sound may be generated from the brakes, but this is not a malfunc-
tion.
● Brake pedal response may change and vibration may occur, but
these are not malfunctions.
■Operating conditions
●The Stop & Start system is operational when all of the following conditions
are met:
• Vehicles with a Multidrive: The brake pedal is being depressed firmly.
• Vehicles with a Multidrive: The shift lever is in a position other than R.
• is off.
• The driver’s seat belt is fastened.
• The engine is adequately warmed up.
• The driver’s door is closed.
• Vehicles with a Multidrive: The accelerator pedal is not being depressed.
• Vehicles with a manual transmission: The clutch pedal is not being
depressed.
• The outside temperature is -5°C (23°F) or higher.
• Vehicles with a manual transmission: The shift lever is in N.
• The hood is closed.
Hill-start assist control (vehicles with a Multidrive)

2874-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving
●In the following situations the engine may not be stopped by the Stop & Start
system. This is not a malfunction of the Stop & Start system.
• The air conditioning system is being used when the ambient temperature
is high or low.
• The battery is not sufficiently charged or is undergoing a periodic recharge.
• The brake booster vacuum is low.
• Vehicles with a Multidrive: The vehicle is stopped on a steep incline.
• The steering wheel is being operated.
• Due to traffic or other circumstances the vehicle is stopped repeatedly.
• The vehicle is being driven in a high altitude area.
• Engine coolant temperature or tr ansmission fluid temperature is
extremely low or high.
• The battery fluid temperature is extremely low or high.
• The battery was recently replaced or the battery terminals were recently
disconnected.
• Vehicles with a power heater: The power heater is being used.
● In the following situations, the engine will restart automatically if the engine
is stopped by the Stop & Start system. (To enable stopping of the engine by
the Stop & Start system, drive the vehicle.)
• The air conditioning system is turned on.
• is turned on.
• The steering wheel is operated.
• Vehicles with a Multidrive: The shift lever is shifted to R from D or M.
• Vehicles with a Multidrive: The shift lever is shifted to D, M or R from P or
N.
• The driver’s seat belt is unfastened.
• The driver’s door is opened.
• Vehicles with a Multidrive: The accelerator pedal is depressed.
• The Stop & Start cancel switch is pressed.
• The vehicle starts to roll on an incline.
• Vehicles with a power heater: The power heater is turned on.
● In the following situations, the engine may restart automatically if the engine
is stopped by the Stop & Start system. (To enable stopping of the engine by
the Stop & Start system, drive the vehicle.)
• The brake pedal is pumped or strongly depressed.
• The air conditioning system is being used.
• The battery is not sufficiently charged.

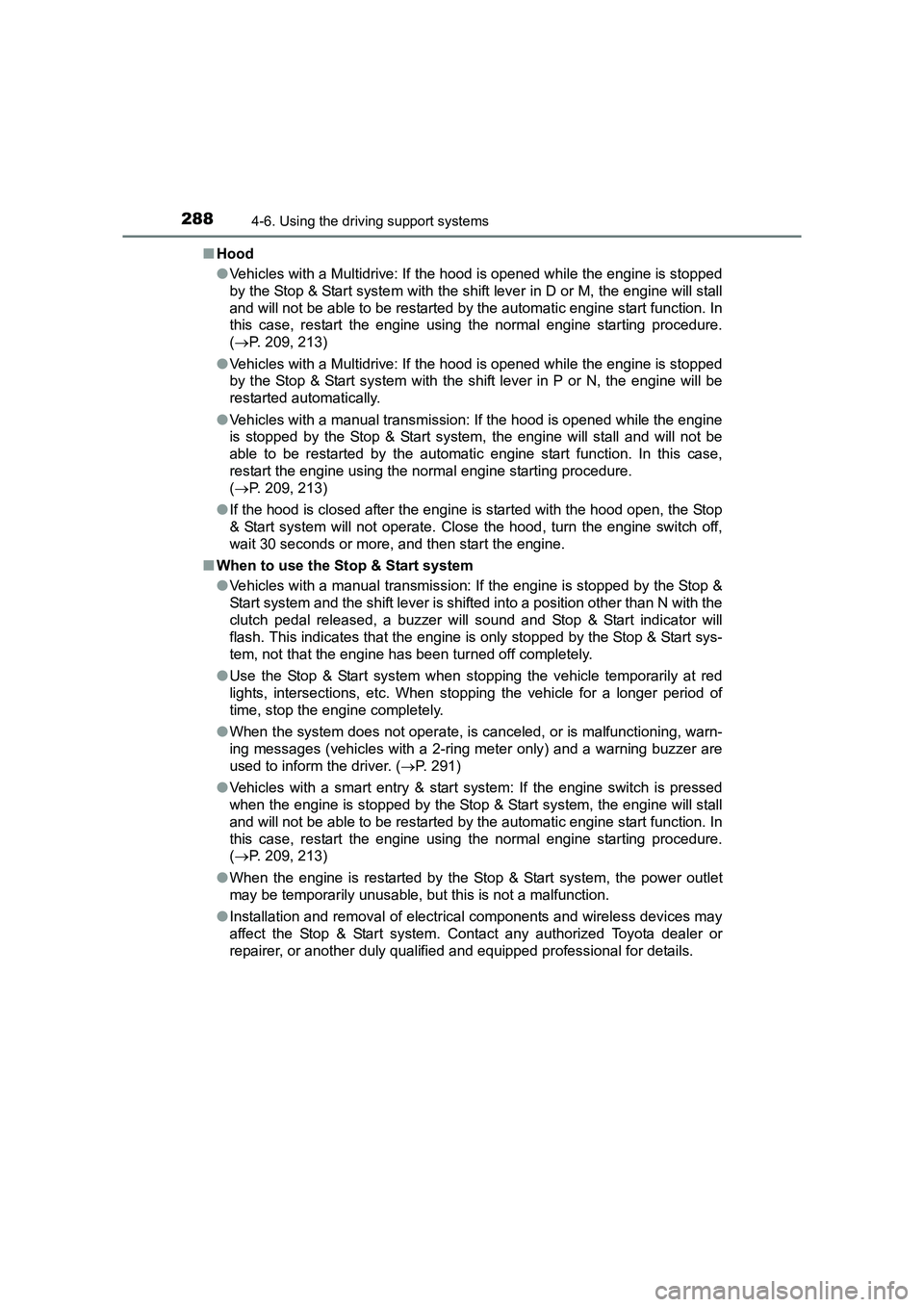

2884-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)■
Hood
●Vehicles with a Multidrive: If the hood is opened while the engine is stopped
by the Stop & Start system with the shift lever in D or M, the engine will stall
and will not be able to be restarted by the automatic engine start function. In
this case, restart the engine using the normal engine starting procedure.
(→ P. 209, 213)
● Vehicles with a Multidrive: If the hood is opened while the engine is stopped
by the Stop & Start system with the shift lever in P or N, the engine will be
restarted automatically.
● Vehicles with a manual transmission: If the hood is opened while the engine
is stopped by the Stop & Start system, the engine will stall and will not be
able to be restarted by the automatic engine start function. In this case,
restart the engine using the normal engine starting procedure.
(→ P. 209, 213)
● If the hood is closed after the engine is started with the hood open, the Stop
& Start system will not operate. Close the hood, turn the engine switch off,
wait 30 seconds or more, and then start the engine.
■ When to use the Stop & Start system
●Vehicles with a manual transmission: If the engine is stopped by the Stop &
Start system and the shift lever is shifted into a position other than N with the
clutch pedal released, a buzzer will sound and Stop & Start indicator will
flash. This indicates that the engine is only stopped by the Stop & Start sys-
tem, not that the engine has been turned off completely.
● Use the Stop & Start system when stopping the vehicle temporarily at red
lights, intersections, etc. When stopping the vehicle for a longer period of
time, stop the engine completely.
● When the system does not operate, is canceled, or is malfunctioning, warn-
ing messages (vehicles with a 2-ring meter only) and a warning buzzer are
used to inform the driver. ( →P. 291)
● Vehicles with a smart entry & start system: If the engine switch is pressed
when the engine is stopped by the Stop & Start system, the engine will stall
and will not be able to be restarted by the automatic engine start function. In
this case, restart the engine using the normal engine starting procedure.
(→ P. 209, 213)
● When the engine is restarted by the Stop & Start system, the power outlet
may be temporarily unusable, but this is not a malfunction.
● Installation and removal of electrical components and wireless devices may
affect the Stop & Start system. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details.
