2016 TOYOTA AURIS TOURING SPORTS Owners Manual

2174-2. Driving procedures
AURIS Touring Sports_EE (12K53E)
4
Driving

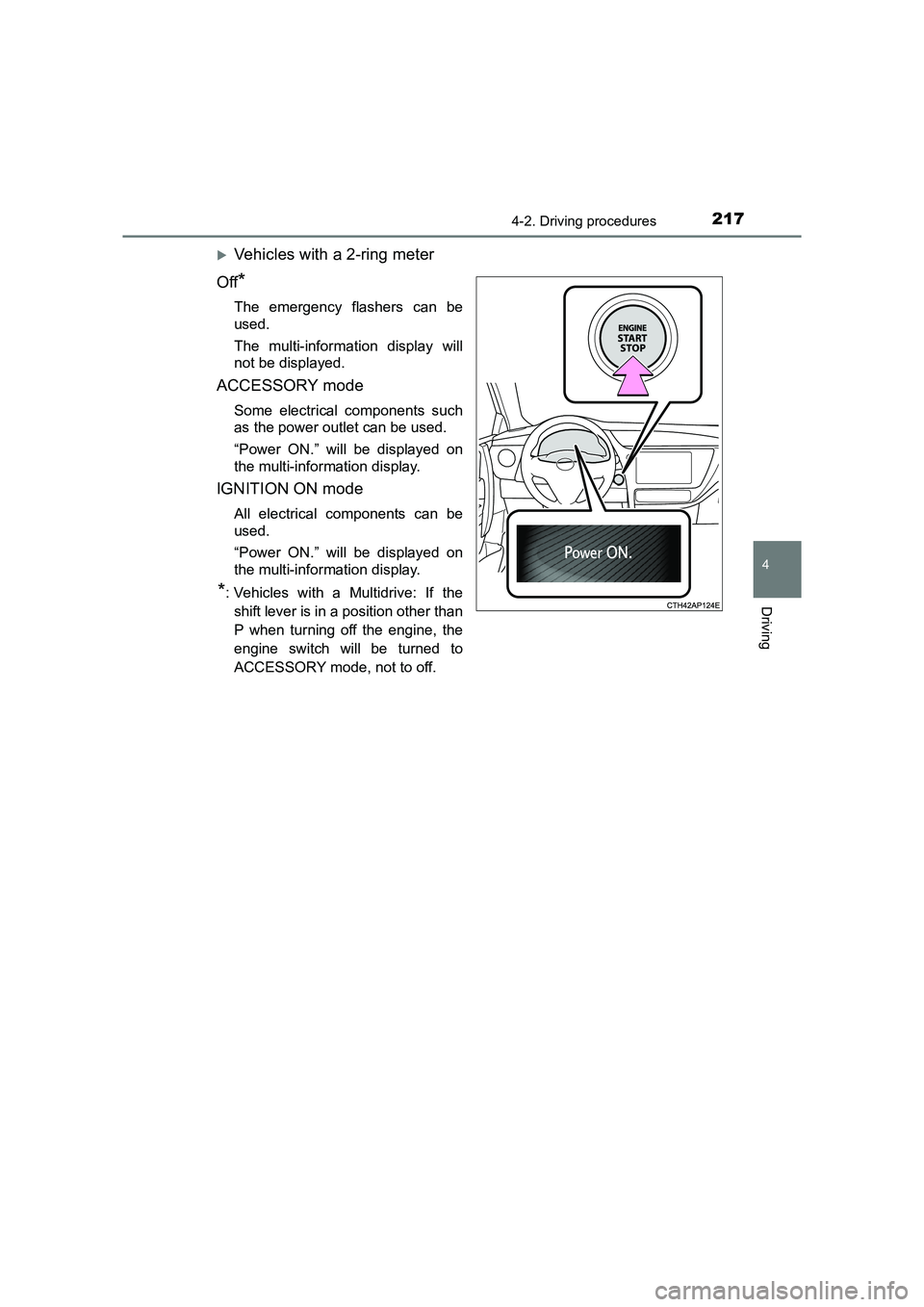

XVehicles with a 2-ring meter
Off
*
The emergency flashers can be
used.
The multi-information display will
not be displayed.
ACCESSORY mode
Some electrical components such
as the power outlet can be used.
“Power ON.” will be displayed on
the multi-information display.
IGNITION ON mode
All electrical components can be
used.
“Power ON.” will be displayed on
the multi-information display.
*: Vehicles with a Multidrive: If the shift lever is in a position other than
P when turning off the engine, the
engine switch will be turned to
ACCESSORY mode, not to off.

2184-2. Driving procedures
AURIS Touring Sports_EE (12K53E)

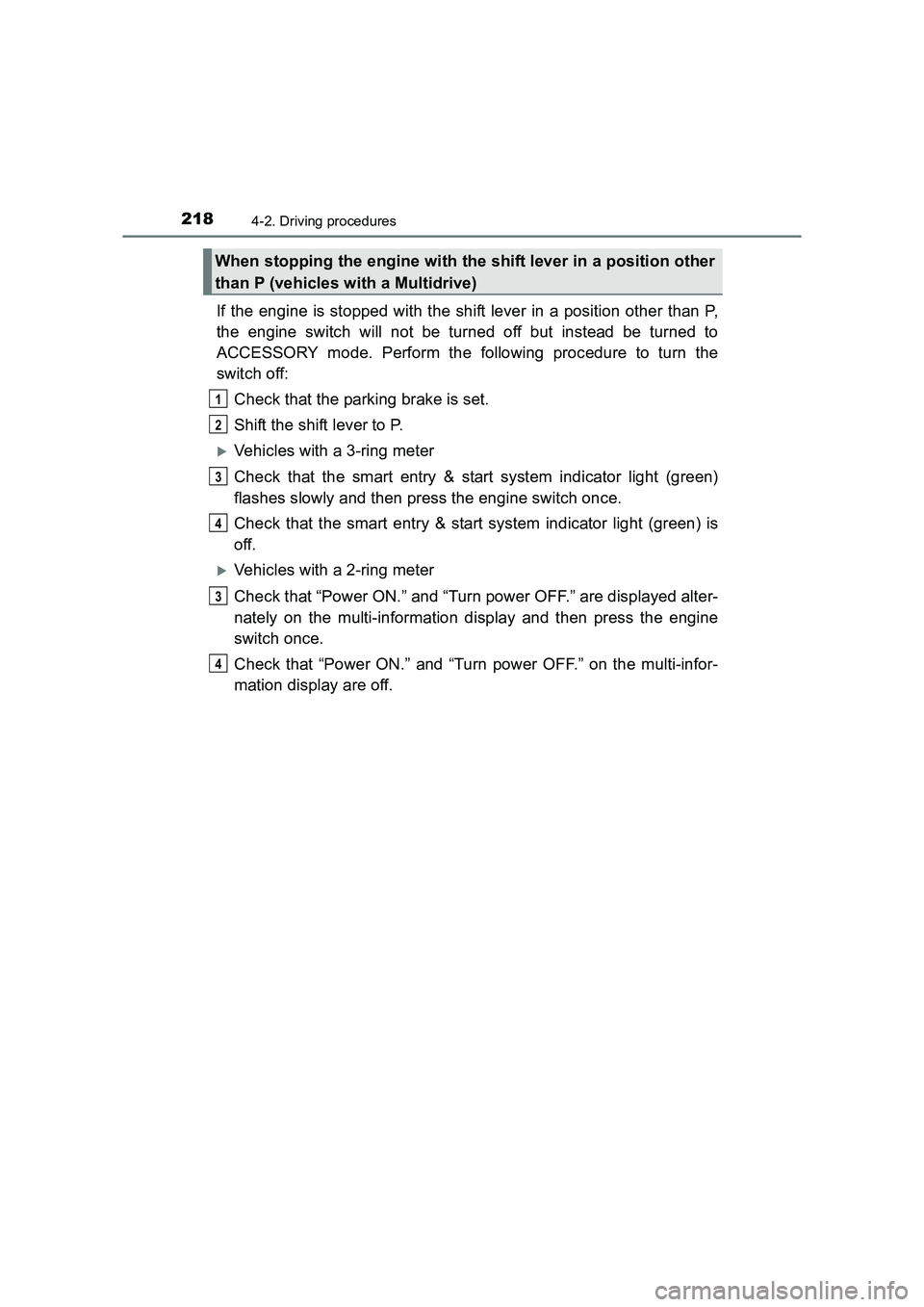

If the engine is stopped with the shift lever in a position other than P,
the engine switch will not be turned off but instead be turned to
ACCESSORY mode. Perform the following procedure to turn the
switch off:Check that the parking brake is set.
Shift the shift lever to P.
XVehicles with a 3-ring meter
Check that the smart entry & start system indicator light (green)
flashes slowly and then press the engine switch once.
Check that the smart entry & start system indicator light (green) is
off.
XVehicles with a 2-ring meter
Check that “Power ON.” and “Turn power OFF.” are displayed alter-
nately on the multi-information display and then press the engine
switch once.
Check that “Power ON.” and “Turn power OFF.” on the multi-infor-
mation display are off.
When stopping the engine with the shift lever in a position other
than P (vehicles with a Multidrive)
1
2
3
4
3
4

2194-2. Driving procedures
AURIS Touring Sports_EE (12K53E)
4
Driving
■Auto power off function
Vehicles with a Multidrive: If the vehicle is left in ACCESSORY mode for more
than 20 minutes or IGNITION ON mode (the engine is not running) for more
than an hour with the shift lever in P, the engine switch will automatically turn
off.
Vehicles with a manual transmission: If the vehicle is left in ACCESSORY
mode for more than 20 minutes or IGNITION ON mode (the engine is not run-
ning) for more than an hour, the engine switch will automatically turn off.
However, this function cannot entirely prevent battery discharge. Do not leave
the vehicle with the engine switch in ACCESSORY or IGNITION ON mode for
long periods of time when the engine is not running.
■ Key battery depletion
→ P. 126
■ Conditions affecting operation
→ P. 148
■ Notes for the entry function
→ P. 149
■ If the engine does not start
●The engine immobilizer system may not have been deactivated. ( →P. 75)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● Vehicles with a Multidrive: Check that the shift lever is securely set in P. The
engine may not start if the shift lever is displaced out of P.
XVehicles with a 3-ring meter
The smart entry & start system indica tor light (green) will flash quickly.
XVehicles with a 2-ring meter
“Shift to P position to start.” will be displayed on the multi-information dis-
play.
■ Steering lock
After turning the engine switch off and opening and closing the doors, the
steering wheel will be locked due to the steering lock function. Operating the
engine switch again automatically cancels the steering lock.

2204-2. Driving procedures
AURIS Touring Sports_EE (12K53E)■

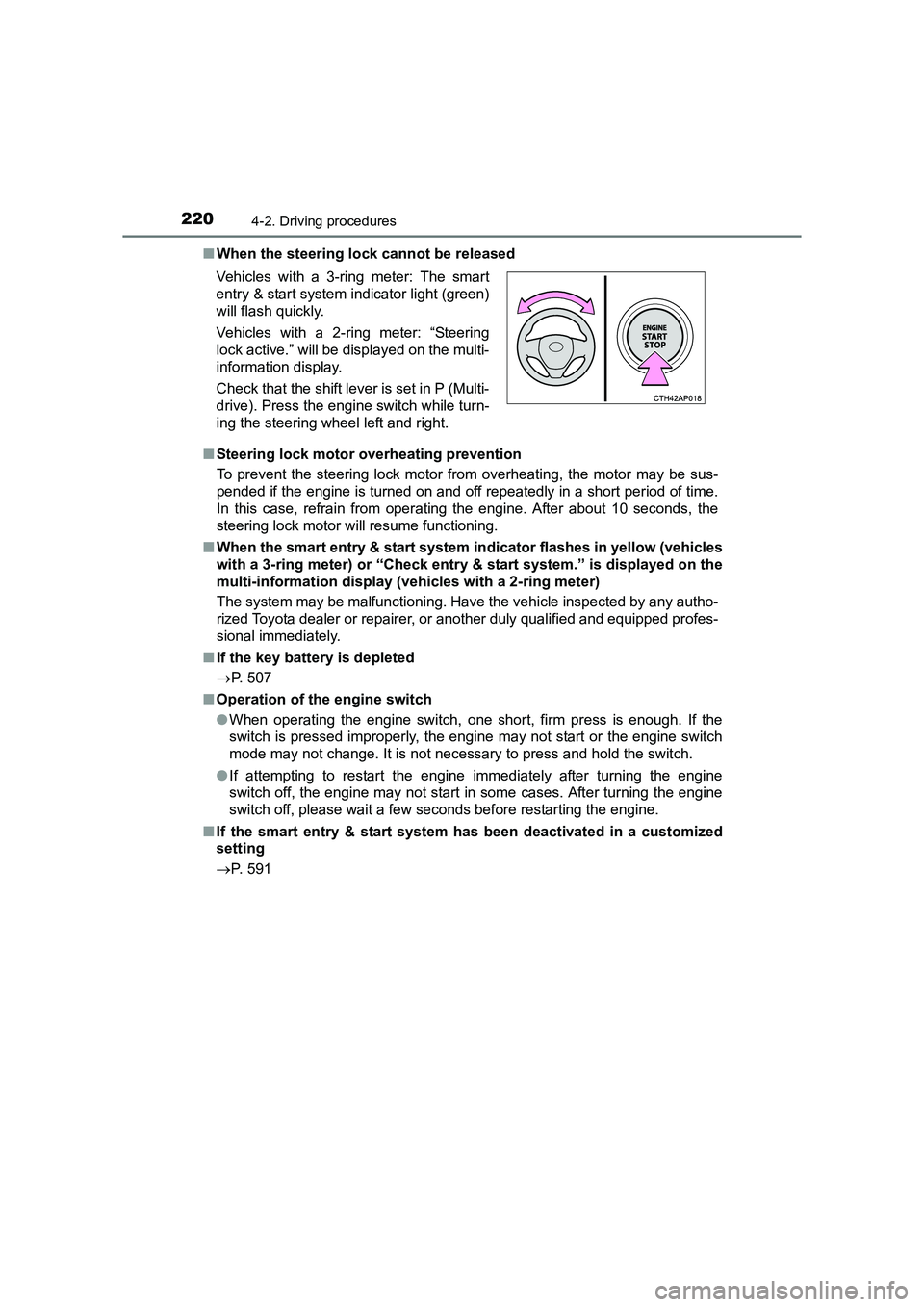

When the steering lock cannot be released
■ Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be sus-
pended if the engine is turned on and off repeatedly in a short period of time.
In this case, refrain from operating the engine. After about 10 seconds, the
steering lock motor will resume functioning.
■ When the smart entry & start system indicator flashes in yellow (vehicles
with a 3-ring meter) or “Check entry & start system.” is displayed on the
multi-information display (vehicles with a 2-ring meter)
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately.
■ If the key battery is depleted
→ P. 507
■ Operation of the engine switch
●When operating the engine switch, one short, firm press is enough. If the
switch is pressed improperly, the engi ne may not start or the engine switch
mode may not change. It is not necessary to press and hold the switch.
● If attempting to restart the engine i mmediately after turning the engine
switch off, the engine may not start in some cases. After turning the engine
switch off, please wait a few seconds before restarting the engine.
■ If the smart entry & start system h as been deactivated in a customized
setting
→ P. 591
Vehicles with a 3-ring meter: The smart
entry & start system indicator light (green)
will flash quickly.
Vehicles with a 2-ring meter: “Steering
lock active.” will be displayed on the multi-
information display.
Check that the shift lever is set in P (Multi-
drive). Press the engine switch while turn-
ing the steering wheel left and right.

2214-2. Driving procedures
AURIS Touring Sports_EE (12K53E)
4
Driving

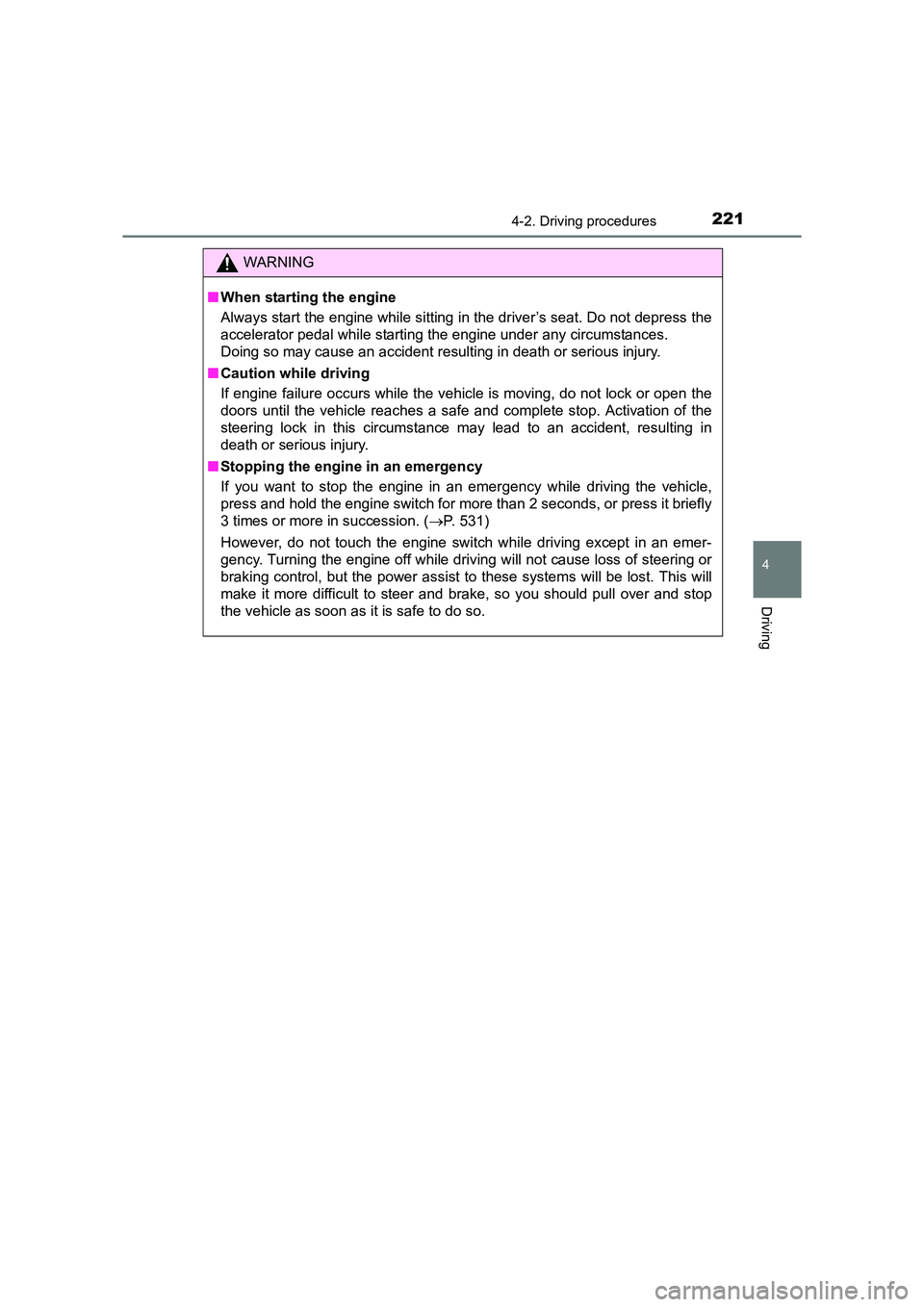

WARNING
■ When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution while driving
If engine failure occurs while the vehicle is moving, do not lock or open the
doors until the vehicle reaches a safe and complete stop. Activation of the
steering lock in this circumstance may lead to an accident, resulting in
death or serious injury.
■ Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle,
press and hold the engine switch for more than 2 seconds, or press it briefly
3 times or more in succession. ( →P. 531)
However, do not touch the engine switch while driving except in an emer-
gency. Turning the engine off while driving will not cause loss of steering or
braking control, but the power assist to these systems will be lost. This will
make it more difficult to steer and brake, so you should pull over and stop
the vehicle as soon as it is safe to do so.

2224-2. Driving procedures

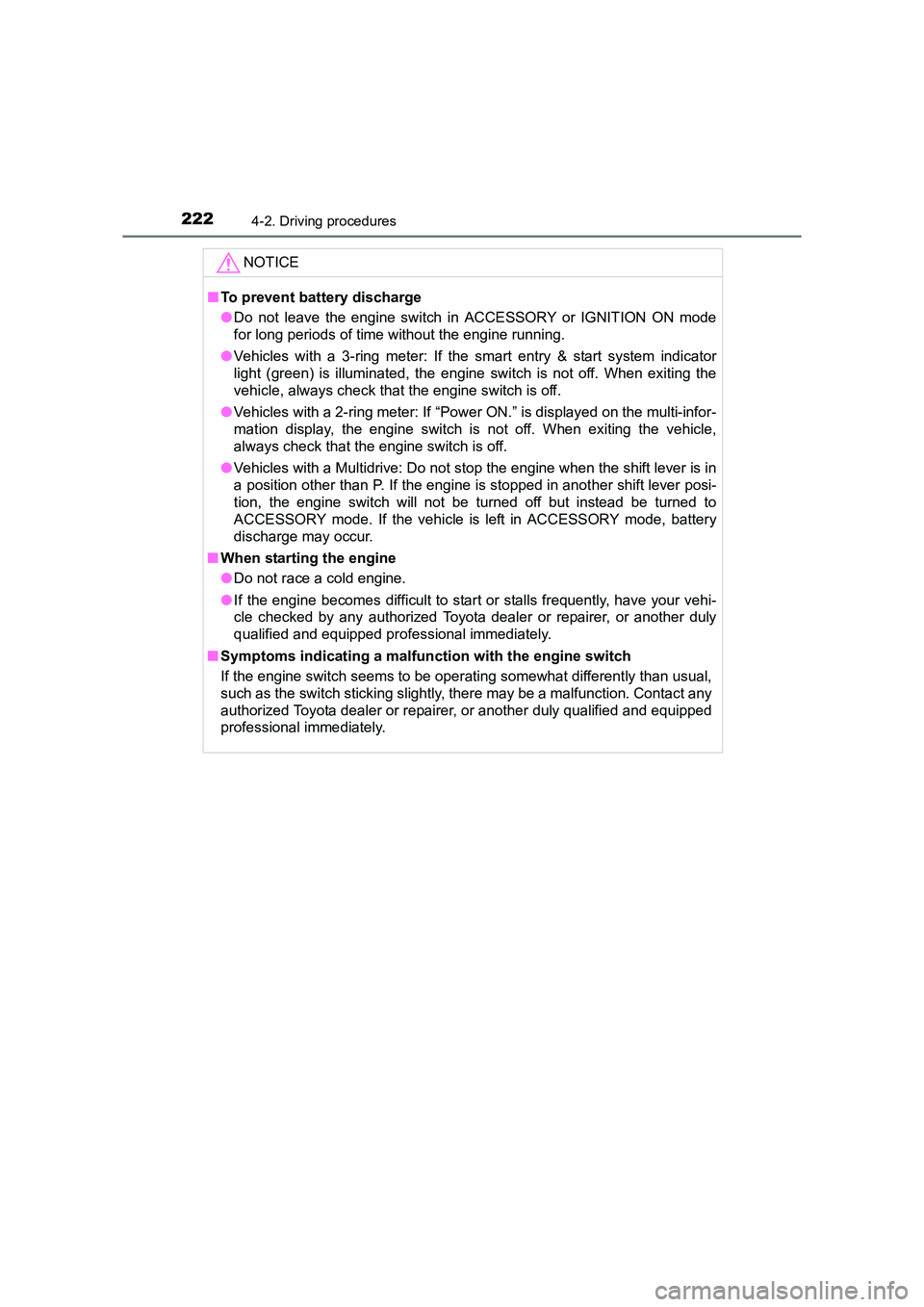

AURIS Touring Sports_EE (12K53E)NOTICE
■
To prevent battery discharge
●Do not leave the engine switch in ACCESSORY or IGNITION ON mode
for long periods of time without the engine running.
● Vehicles with a 3-ring meter: If the smart entry & start system indicator
light (green) is illuminated, the engine switch is not off. When exiting the
vehicle, always check that the engine switch is off.
● Vehicles with a 2-ring meter: If “Power ON.” is displayed on the multi-infor-
mation display, the engine switch is not off. When exiting the vehicle,
always check that the engine switch is off.
● Vehicles with a Multidrive: Do not stop the engine when the shift lever is in
a position other than P. If the engine is stopped in another shift lever posi-
tion, the engine switch will not be turned off but instead be turned to
ACCESSORY mode. If the vehicle is left in ACCESSORY mode, battery
discharge may occur.
■ When starting the engine
●Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately.
■ Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.

2234-2. Driving procedures
AURIS Touring Sports_EE (12K53E)
4

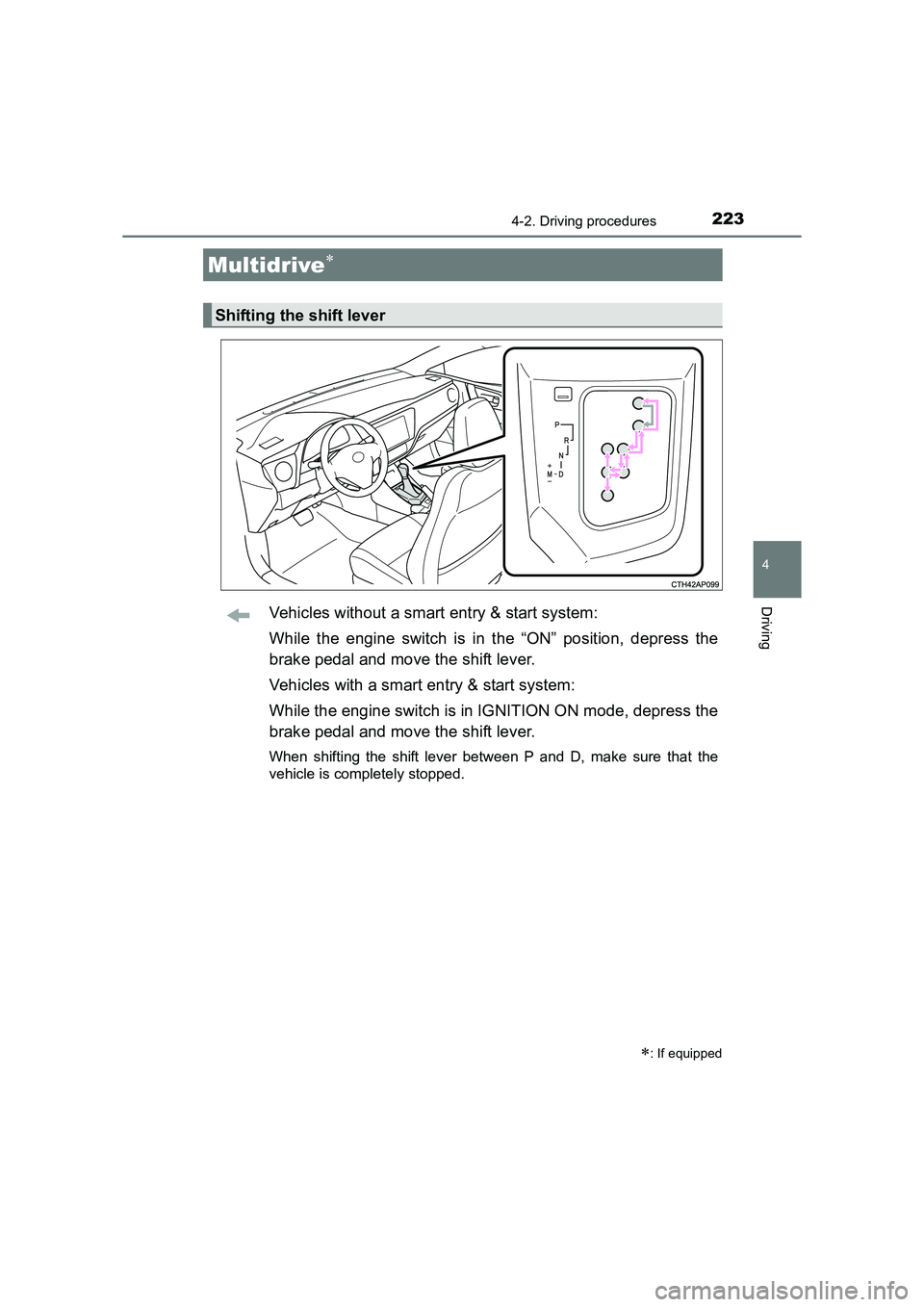

DrivingVehicles without a smart entry & start system:
While the engine switch is in the “ON” position, depress the
brake pedal and move the shift lever.
Vehicles with a smart entry & start system:
While the engine switch is in IGNITION ON mode, depress the
brake pedal and move the shift lever.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.
Multidrive∗
∗: If equipped
Shifting the shift lever

2244-2. Driving procedures
AURIS Touring Sports_EE (12K53E)
*1: To improve fuel efficiency and reduce noises, set the shift lever in D fornormal driving.
*2: Selecting gear step using the M posit ion achieves suitable engine braking
forces by operating the shift lever.
Press the switch.
For powerful acceleration and driv-
ing in mountainous regions.
Press the switch again to return to
normal mode.
*1: Vehicles with a 3-ring meter
*2: Vehicles with a 2-ring meter

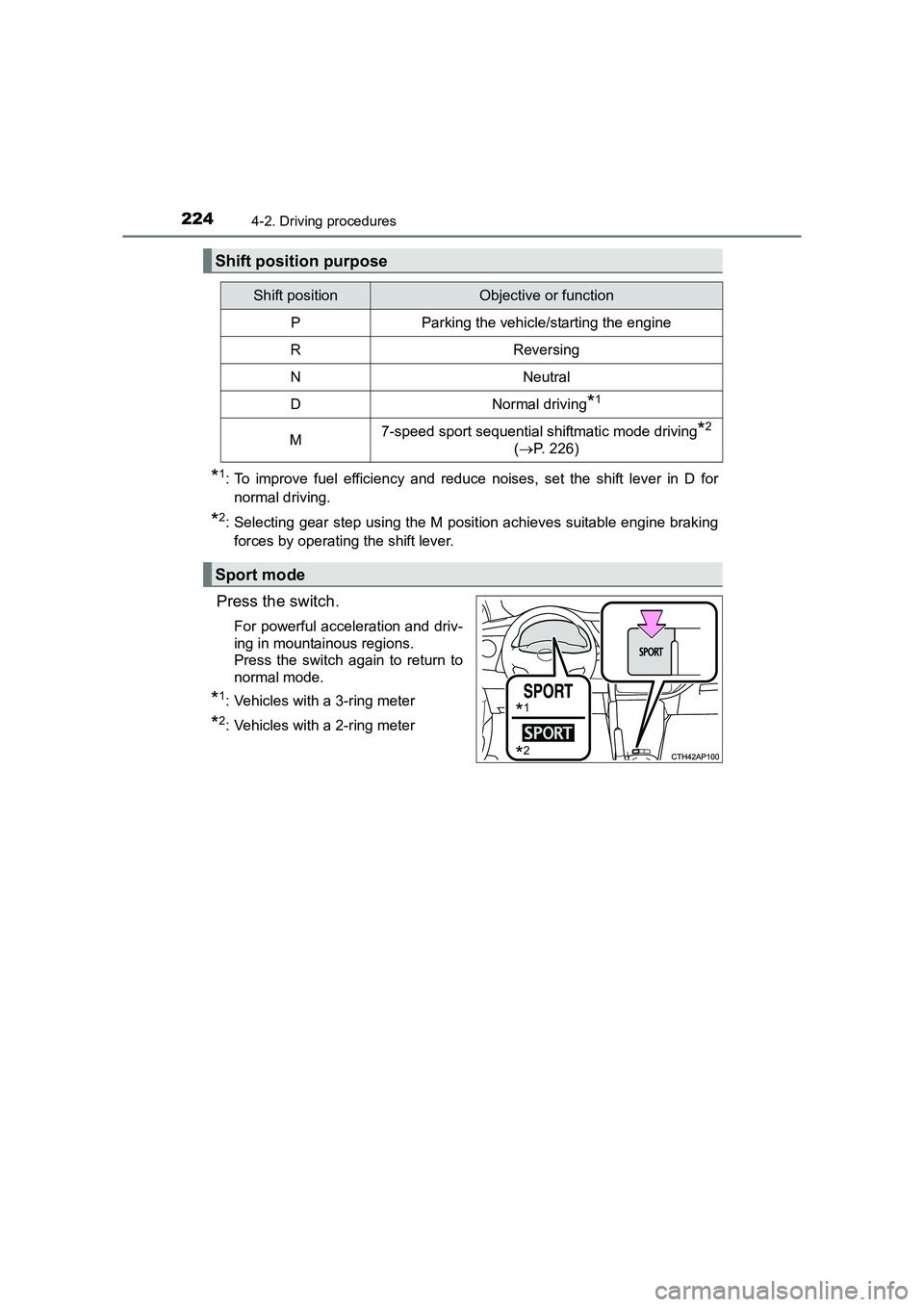

Shift position purpose
Shift positionObjective or function
PParking the vehicle/starting the engine
RReversing
NNeutral
DNormal driving*1
M7-speed sport sequential shiftmatic mode driving*2
( → P. 226)
Sport mode
*1
*2
