17Pictorial index
AURIS Touring Sports_EE (12K53E)Multi-information display . . . . . . . .
. . . . . . . . . . . . . . . P. 101, 107
If a warning message or indicator is displayed
*1 . . . . . . . . . . P. 553
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 335
Warning buzzer/message
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Front fog lights
*3/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 241
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 483
Headlight cleaners
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 530
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 461
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 174
Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Heater system
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400
Air conditioning system
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400, 405
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 402, 409
Audio system
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Navigation/multimedia system
*3, 4
Trip information/past record . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 118
Tire pressure warning reset switch
*3 . . . . . . . . . . . . . . . . . P. 488
*1: Vehicles with a 2-ring meter
*2: Vehicles with a Multidrive
*3: If equipped
*4: Refer to “Navigation and multimedia system Owner’s manual”.
4
5
6
7
8
9
10
11
12
13

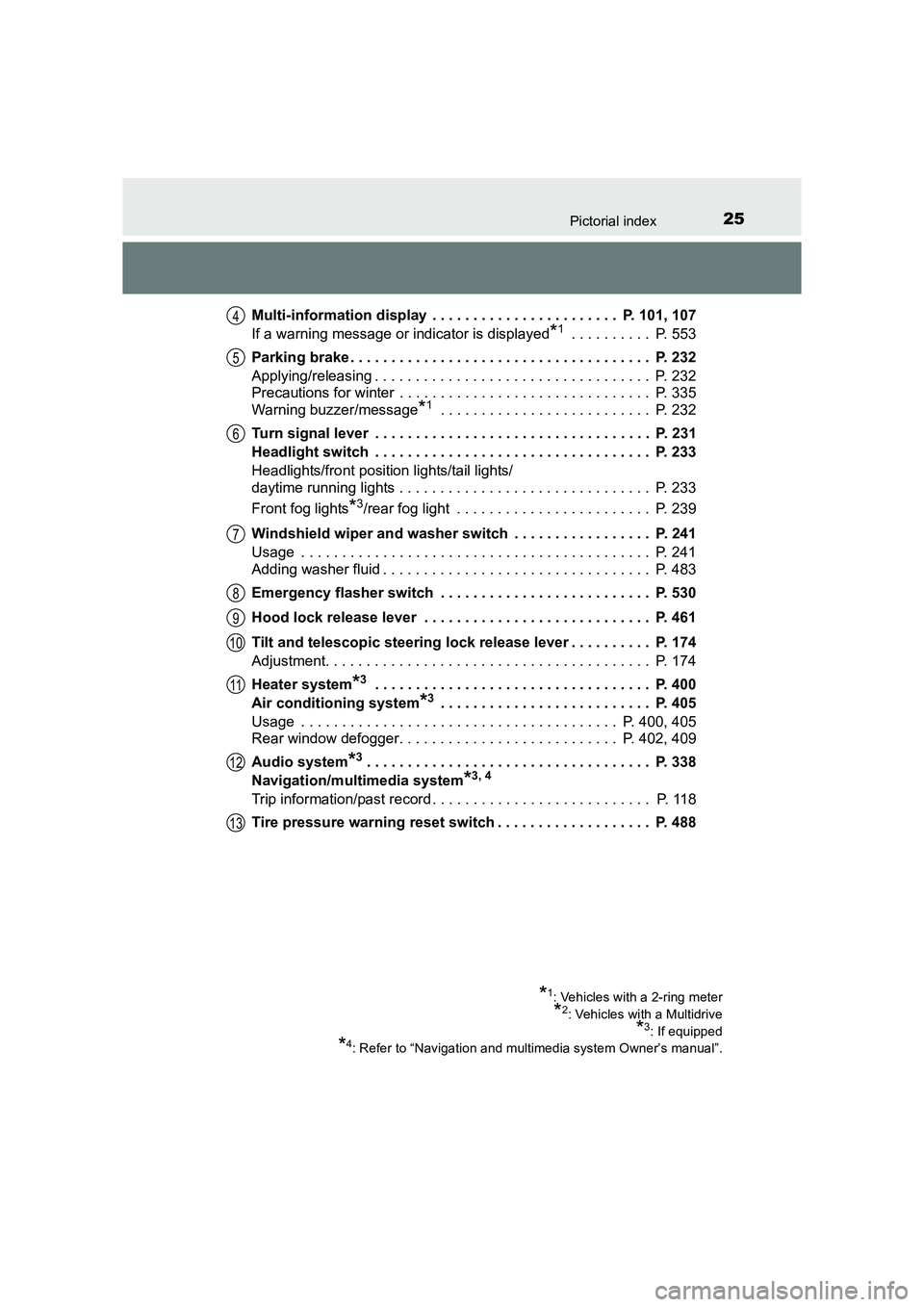

25Pictorial index
AURIS Touring Sports_EE (12K53E)Multi-information display . . . . . . . .
. . . . . . . . . . . . . . . P. 101, 107
If a warning message or indicator is displayed
*1 . . . . . . . . . . P. 553
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 335
Warning buzzer/message
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Front fog lights
*3/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 241
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 483
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 530
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 461
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 174
Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Heater system
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400
Air conditioning system
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400, 405
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 402, 409
Audio system
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Navigation/multimedia system
*3, 4
Trip information/past record . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 118
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 488
*1: Vehicles with a 2-ring meter
*2: Vehicles with a Multidrive
*3: If equipped
*4: Refer to “Navigation and multimedia system Owner’s manual”.
4
5
6
7
8
9
10
11
12
13

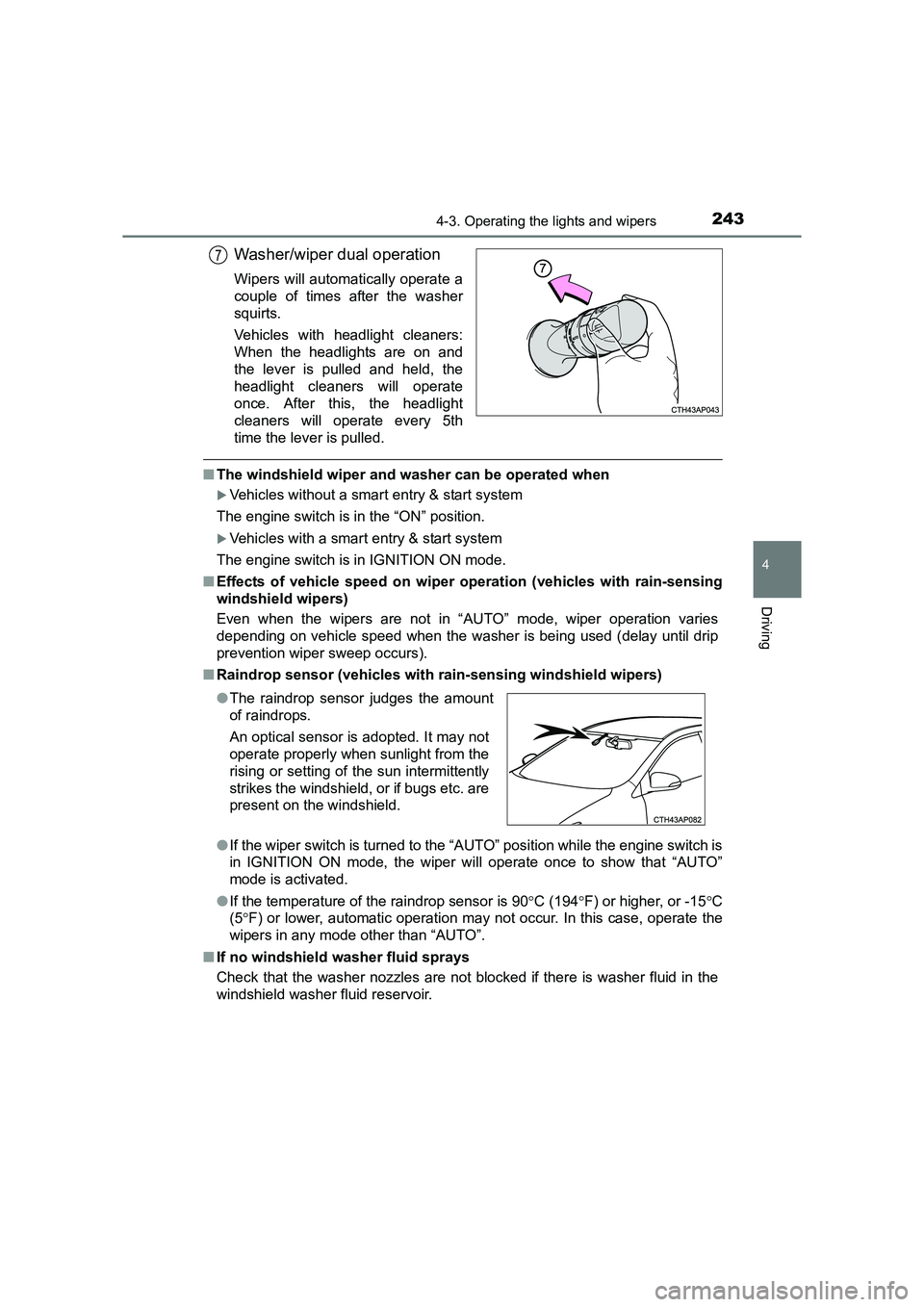

2434-3. Operating the lights and wipers
AURIS Touring Sports_EE (12K53E)
4
Driving
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.
Vehicles with headlight cleaners:
When the headlights are on and
the lever is pulled and held, the
headlight cleaners will operate
once. After this, the headlight
cleaners will operate every 5th
time the lever is pulled.
■The windshield wiper and washer can be operated when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ Effects of vehicle speed on wiper op eration (vehicles with rain-sensing
windshield wipers)
Even when the wipers are not in “AUTO” mode, wiper operation varies
depending on vehicle speed when the washer is being used (delay until drip
prevention wiper sweep occurs).
■ Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If the wiper switch is turned to the “AUTO” position while the engine switch is
in IGNITION ON mode, the wiper will operate once to show that “AUTO”
mode is activated.
● If the temperature of the raindrop sensor is 90 °C (194 °F) or higher, or -15 °C
(5 °F) or lower, automatic operation may not occur. In this case, operate the
wipers in any mode other than “AUTO”.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
7
●The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.

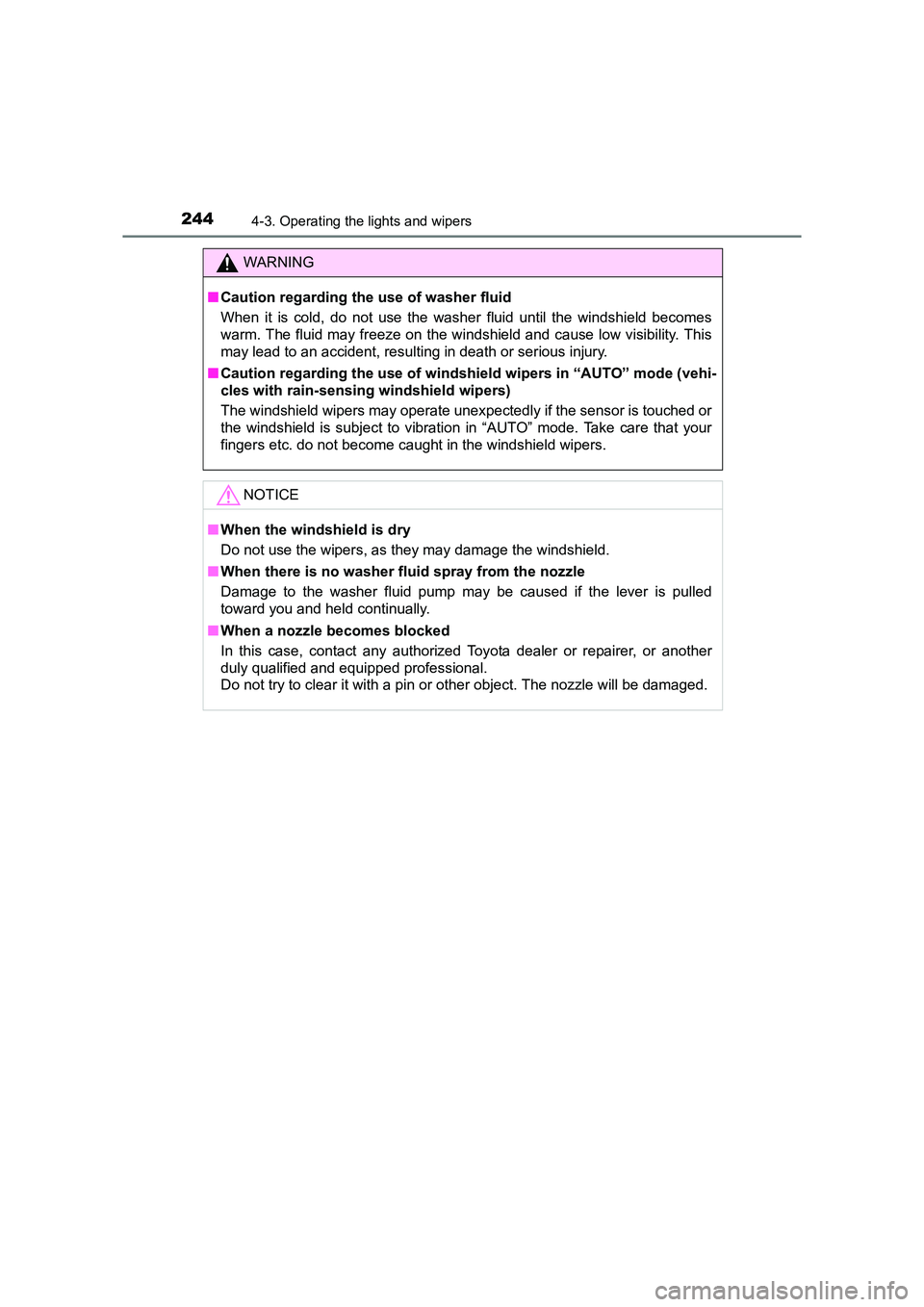

2444-3. Operating the lights and wipers
AURIS Touring Sports_EE (12K53E)
WARNING
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
■ Caution regarding the use of windshield wipers in “AUTO” mode (vehi-
cles with rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers etc. do not become caught in the windshield wipers.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes blocked
In this case, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

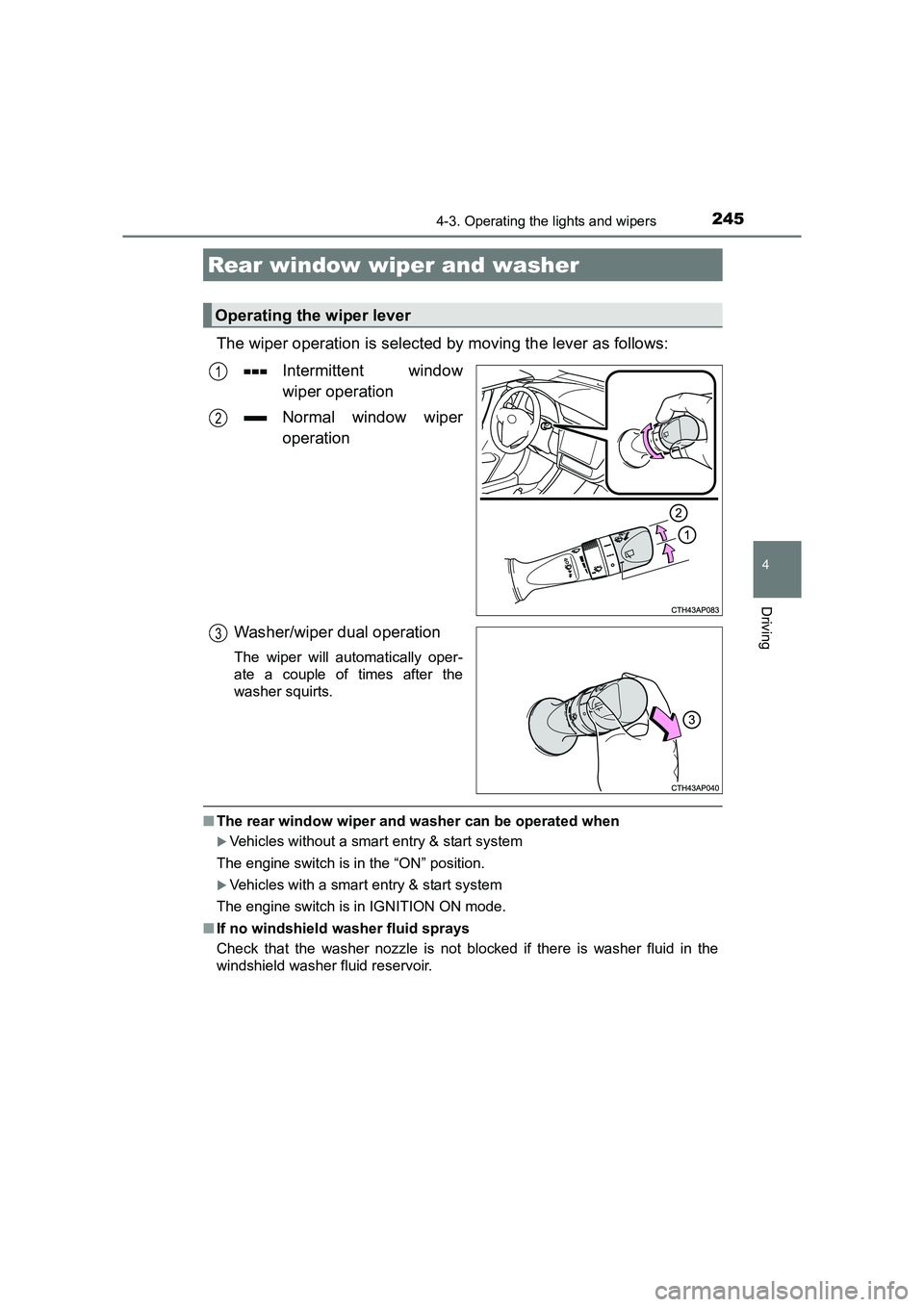

2454-3. Operating the lights and wipers
AURIS Touring Sports_EE (12K53E)
4
Driving
The wiper operation is selected by moving the lever as follows:Intermittent window
wiper operation
Normal window wiper
operation
Washer/wiper dual operation
The wiper will automatically oper-
ate a couple of times after the
washer squirts.
■ The rear window wiper and washer can be operated when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
windshield washer fluid reservoir.
Rear window wiper and washer
Operating the wiper lever
1
2
3

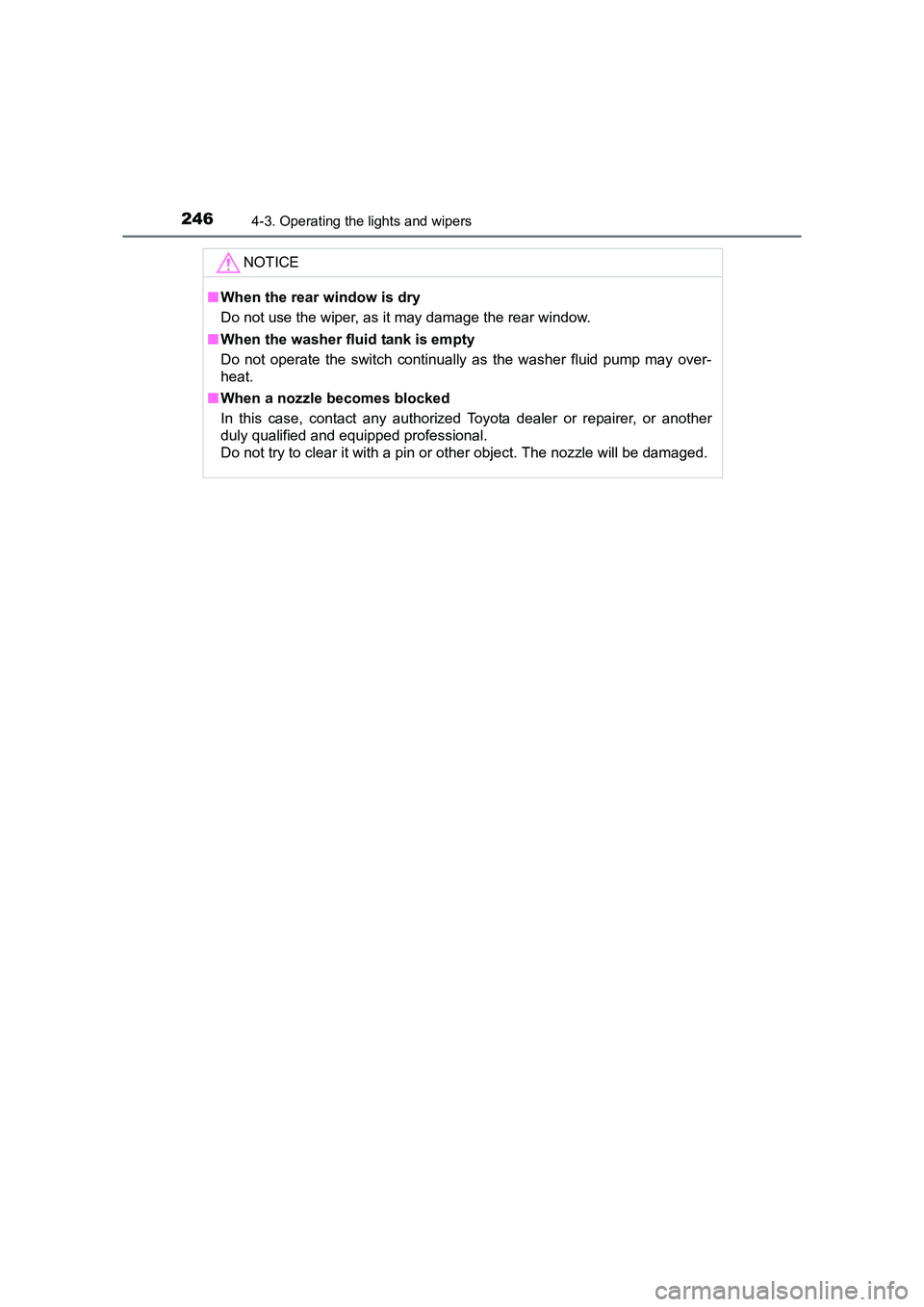

2464-3. Operating the lights and wipers
AURIS Touring Sports_EE (12K53E)NOTICE
■
When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

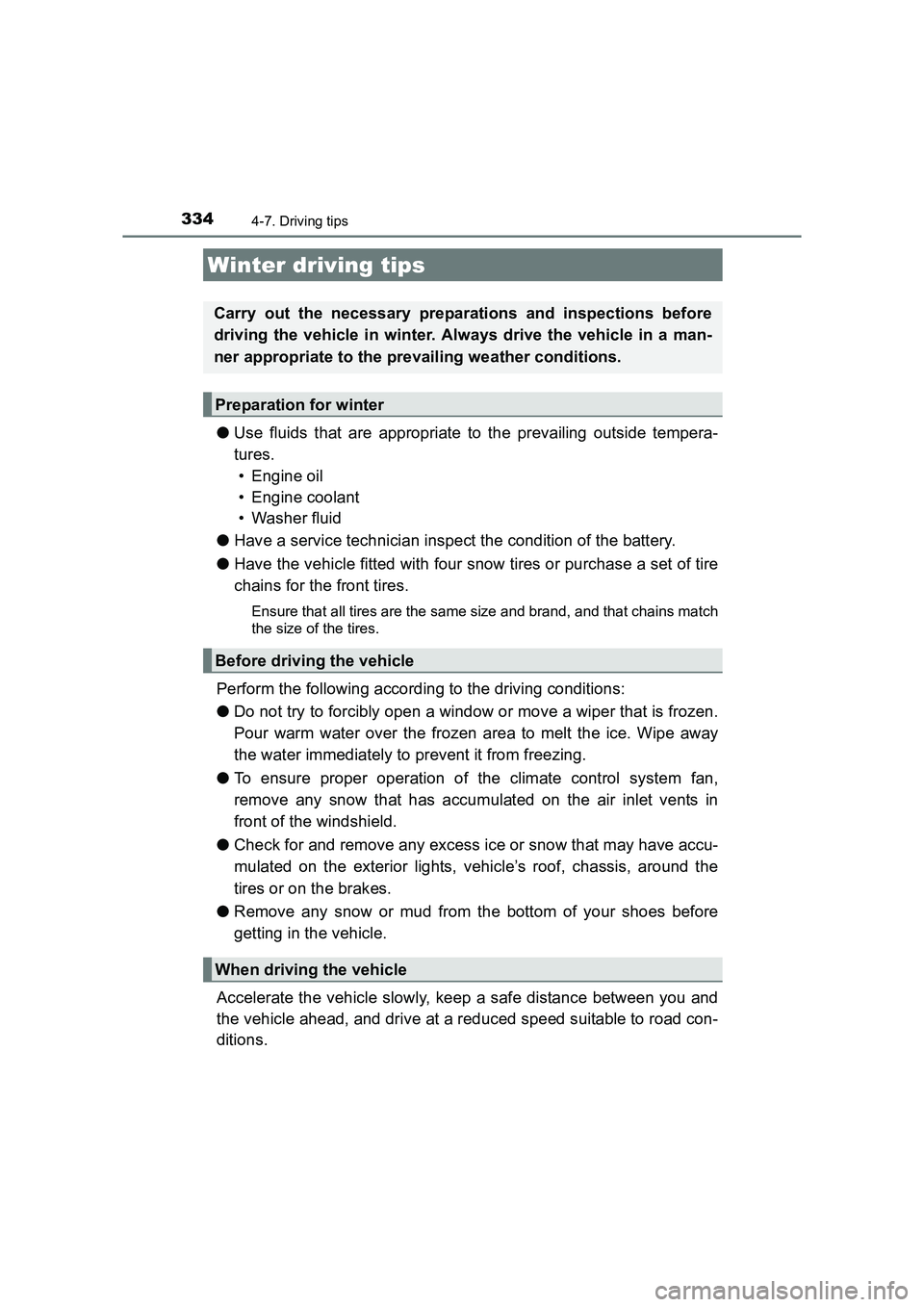

334
AURIS Touring Sports_EE (12K53E)
4-7. Driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the condition of the battery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.
Winter driving tips
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle
When driving the vehicle
