2016 TOYOTA AURIS TOURING SPORTS Owners Manual

2894-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving

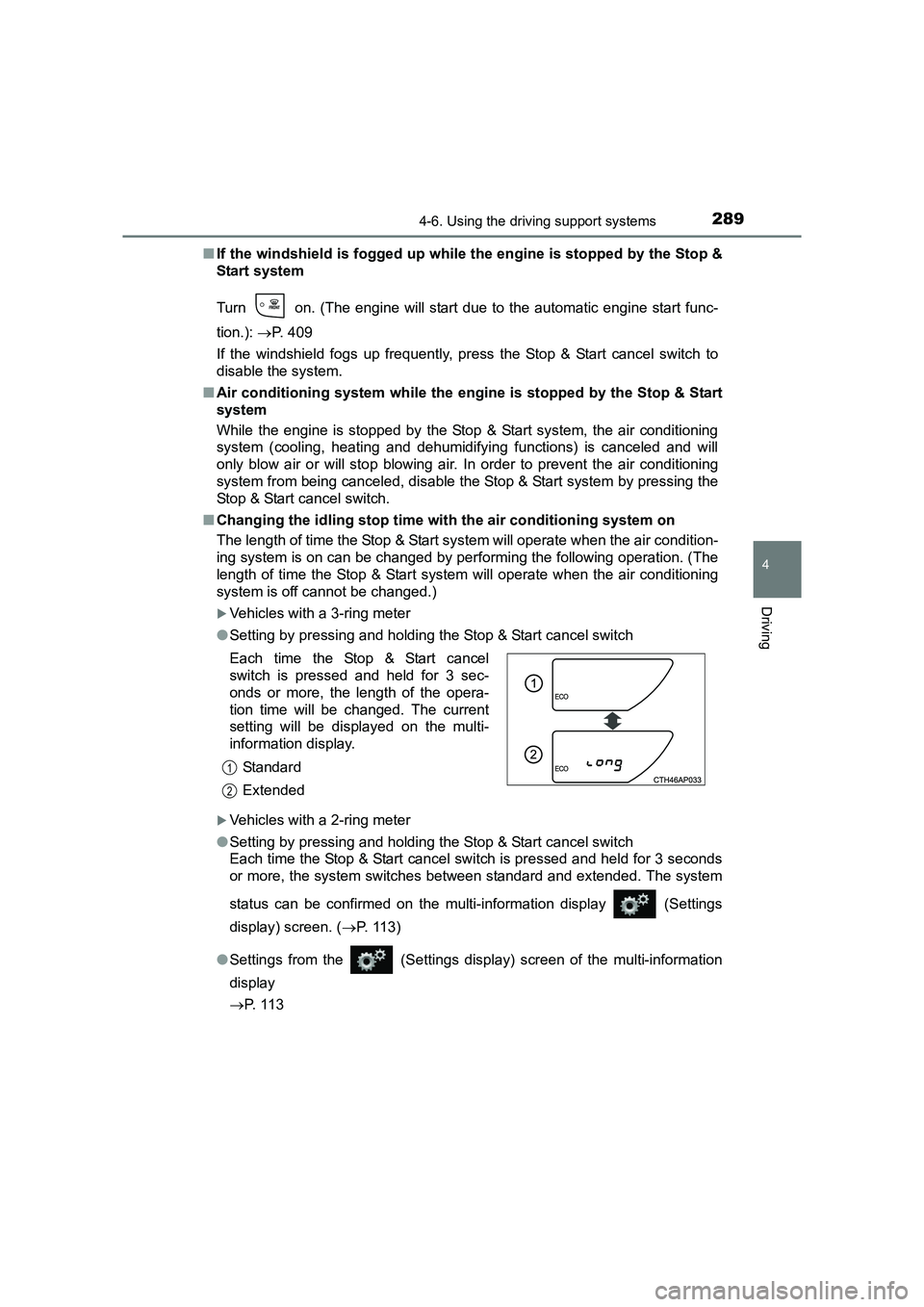

■If the windshield is fogged up while the engine is stopped by the Stop &
Start system
Turn on. (The engine will start due to the automatic engine start func-
tion.): →P. 409
If the windshield fogs up frequently, press the Stop & Start cancel switch to
disable the system.
■ Air conditioning system while the engine is stopped by the Stop & Start
system
While the engine is stopped by the Stop & Start system, the air conditioning
system (cooling, heating and dehumidifying functions) is canceled and will
only blow air or will stop blowing air. In order to prevent the air conditioning
system from being canceled, disable the Stop & Start system by pressing the
Stop & Start cancel switch.
■ Changing the idling stop time with the air conditioning system on
The length of time the Stop & Start system will operate when the air condition-
ing system is on can be changed by performing the following operation. (The
length of time the Stop & Start system will operate when the air conditioning
system is off cannot be changed.)
XVehicles with a 3-ring meter
● Setting by pressing and holding the Stop & Start cancel switch
XVehicles with a 2-ring meter
● Setting by pressing and holding the Stop & Start cancel switch
Each time the Stop & Start cancel switch is pressed and held for 3 seconds
or more, the system switches between standard and extended. The system
status can be confirmed on the multi-information display (Settings
display) screen. ( →P. 113)
● Settings from the (Settings display) screen of the multi-information
display
→ P. 1 1 3
Each time the Stop & Start cancel
switch is pressed and held for 3 sec-
onds or more, the length of the opera-
tion time will be changed. The current
setting will be displayed on the multi-
information display.
Standard
Extended
1
2

2904-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)■
The Stop & Start system protection function
●Vehicles without a smart entry & start system: When an excessively loud
sound is being projected by the audio system, the audio system may be
automatically cut off in order to reduce battery consumption. If it occurs, turn
the engine switch off, wait for 3 seconds or longer and then turn it to “ACC”
or “ON” position to re-enable the audio system.
● Vehicles with a smart entry & start system: When an excessively loud sound
is being projected by the audio system, the audio system may be automati-
cally cut off in order to reduce battery consumption. If it occurs, turn the
engine switch off, wait for 3 seconds or longer and then turn it to ACCES-
SORY mode or IGNITION ON mode to re-enable the audio system.
● The audio system may not be activated when the battery terminals are dis-
connected and then reconnected. If it occurs, turn the engine switch off and
then repeat the following operation twice to activate the audio system nor-
mally.
• Vehicles without a smart entry & start system: Turn the engine switch to
“ON” position and then to OFF.
• Vehicles with a smart entry & start system: Turn the engine switch to IGNITION ON mode and then to OFF.
■ Replacing the battery
→ P. 598
■ Displaying the Stop & Start system status
→ P. 111

2914-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving

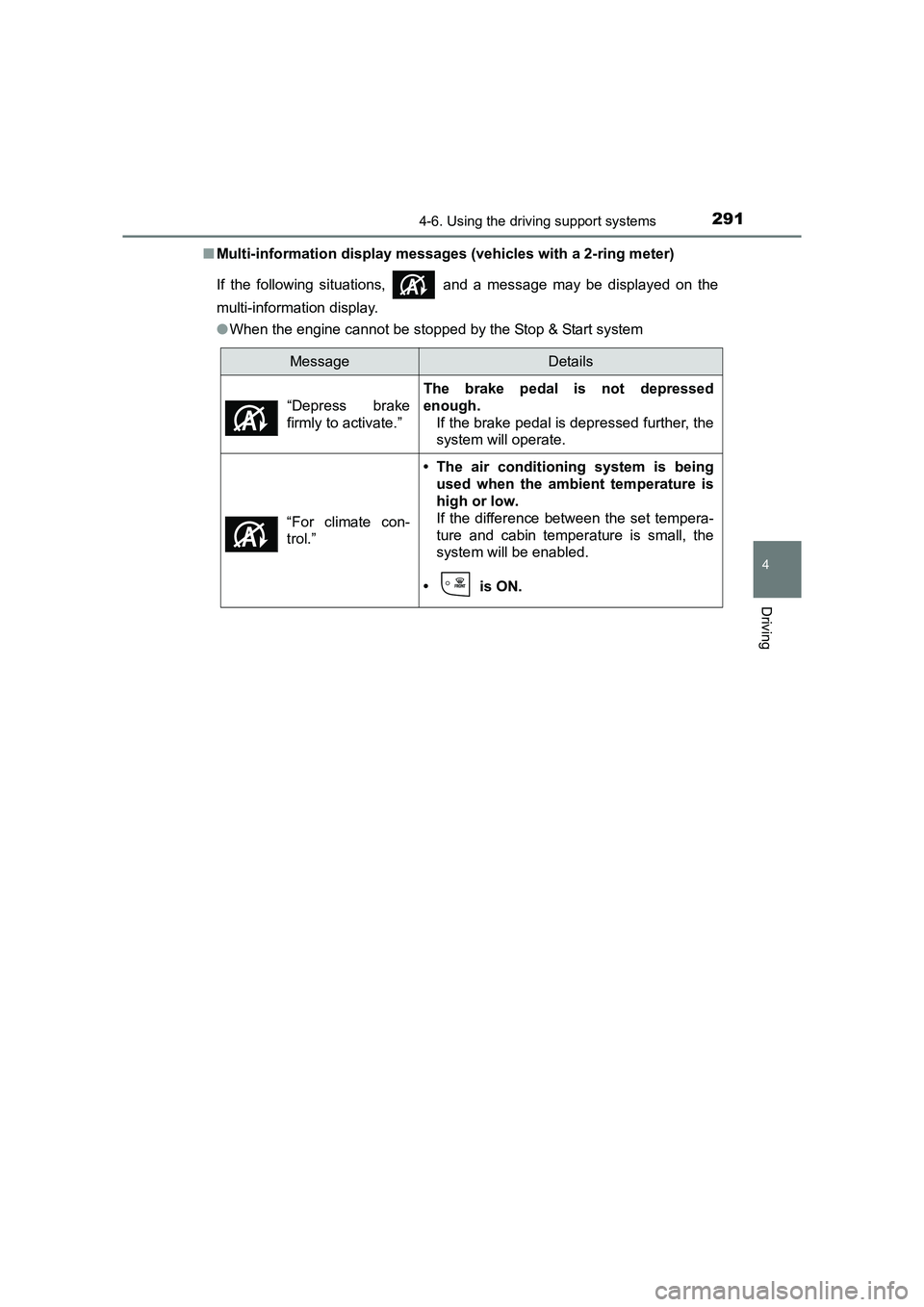

■Multi-information display messages (vehicles with a 2-ring meter)
If the following situations, and a message may be displayed on the
multi-information display.
● When the engine cannot be stopped by the Stop & Start system
MessageDetails
“Depress brake
firmly to activate.”
The brake pedal is not depressed
enough. If the brake pedal is depressed further, the
system will operate.
“For climate con-
trol.”
• The air conditioning system is being used when the ambient temperature is
high or low.
If the difference between the set tempera-
ture and cabin temperature is small, the
system will be enabled.
• is ON.

2924-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)“Battery charging.”
• The battery charge amount may be low.
Engine stop is temporarily prohibited to
prioritize charging of the battery, but if the
engine is operated for a short while,
engine stop is allowed.
• A refresh charge may be occurring (Examples: A short time after replacing
the battery, removing battery terminals,
etc.)
After a refresh charge of approximately 5
to 40 minutes completes, the system can
be operated.
• The engine may have been started with the hood opened.
Close the hood, turn the engine switch off,
wait for a short while, and then start the
engine.
• The battery may be cold. Operating the engine for a short while
allows the system to recover due to the
temperature increase in the engine com-
partment.
• The battery may be extremely hot.
If the engine is stopped and the engine
compartment is allowed to cool sufficiently,
the system recovers.
“For brake sys-
tem.”
• The vehicle is being driven in a high altitude area.
• The brake booster vacuum is low. When the brake booster vacuum reaches
a predetermined level, the system will be
enabled.
“Bonnet open.”
The engine has been started with the
hood opened. To enable the system, close the hood, turn
the engine switch off, wait for a short
while, and then start the engine.
“Driver seat belt
unbuckled.”
The driver seat belt is not fastened.
MessageDetails

2934-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving
●When the engine automatically restarts while stopped by the Stop & Start
system
● Vehicles with a manual transmission: When the engine cannot be restarted
by the Stop & Start system “Non-dedicated
battery.”
(8NR-FTS engine
only)
A non-dedicated battery for the Stop &
Start system may have been installed.
The Stop & Start system does not operate.
Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
MessageDetails
MessageDetails
“For climate con-
trol.”
• The air conditioning system has been turned on or is being used.
• has been turned on.
“For brake sys-
tem.”
The brake pedal has been depressed fur-
ther or pumped. The system will be enabled after the
engine runs and the brake booster vac-
uum reaches a predetermined level.
“Battery charging.”
The battery charge amount may be low. The engine is restarted to prioritize battery
charging. Operating the engine for a short
while allows the system to recover.
“Steering wheel
turned.”
The steering wheel was operated.
“Bonnet open.”
The hood has been opened.
“Driver seat belt
unbuckled.”
The driver seat belt has been unfastened.
MessageDetails
“Stop & Start sys-
tem active. Shift to
N and depress
clutch to restart.”
The shift lever has been shifted from N to
another position with the clutch pedal
released. To restart the engine, shift the shift lever to
N and then depress the clutch pedal.

2944-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)■

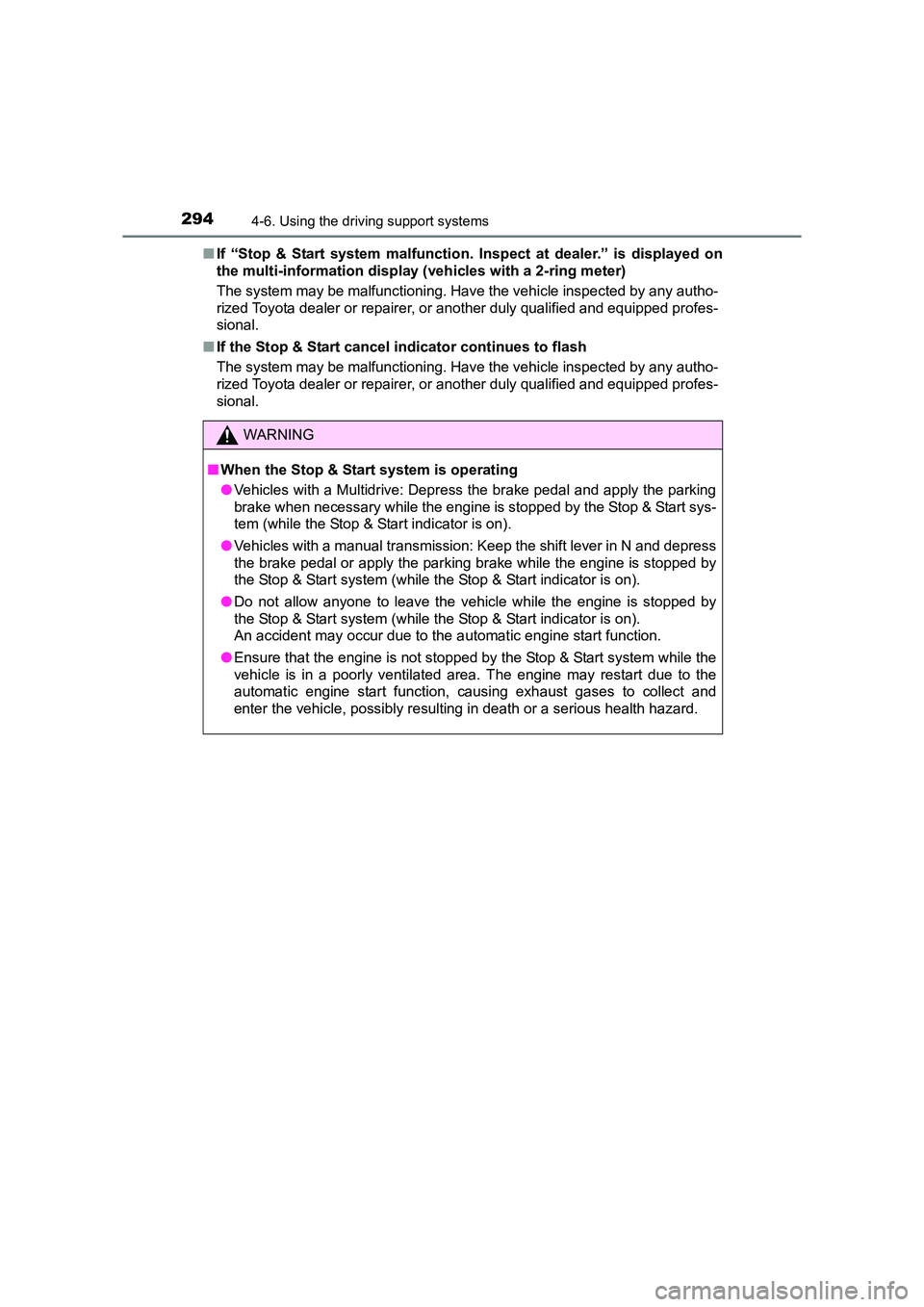

If “Stop & Start system malfunction. Inspect at dealer.” is displayed on
the multi-information display ( vehicles with a 2-ring meter)
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
■ If the Stop & Start cancel indicator continues to flash
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
WARNING
■ When the Stop & Start system is operating
●Vehicles with a Multidrive: Depress the brake pedal and apply the parking
brake when necessary while the engine is stopped by the Stop & Start sys-
tem (while the Stop & Start indicator is on).
● Vehicles with a manual transmission: Keep the shift lever in N and depress
the brake pedal or apply the parking brake while the engine is stopped by
the Stop & Start system (while the Stop & Start indicator is on).
● Do not allow anyone to leave the vehicle while the engine is stopped by
the Stop & Start system (while the Stop & Start indicator is on).
An accident may occur due to the automatic engine start function.
● Ensure that the engine is not stopped by the Stop & Start system while the
vehicle is in a poorly ventilated area. The engine may restart due to the
automatic engine start function, causing exhaust gases to collect and
enter the vehicle, possibly resulting in death or a serious health hazard.

2954-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving

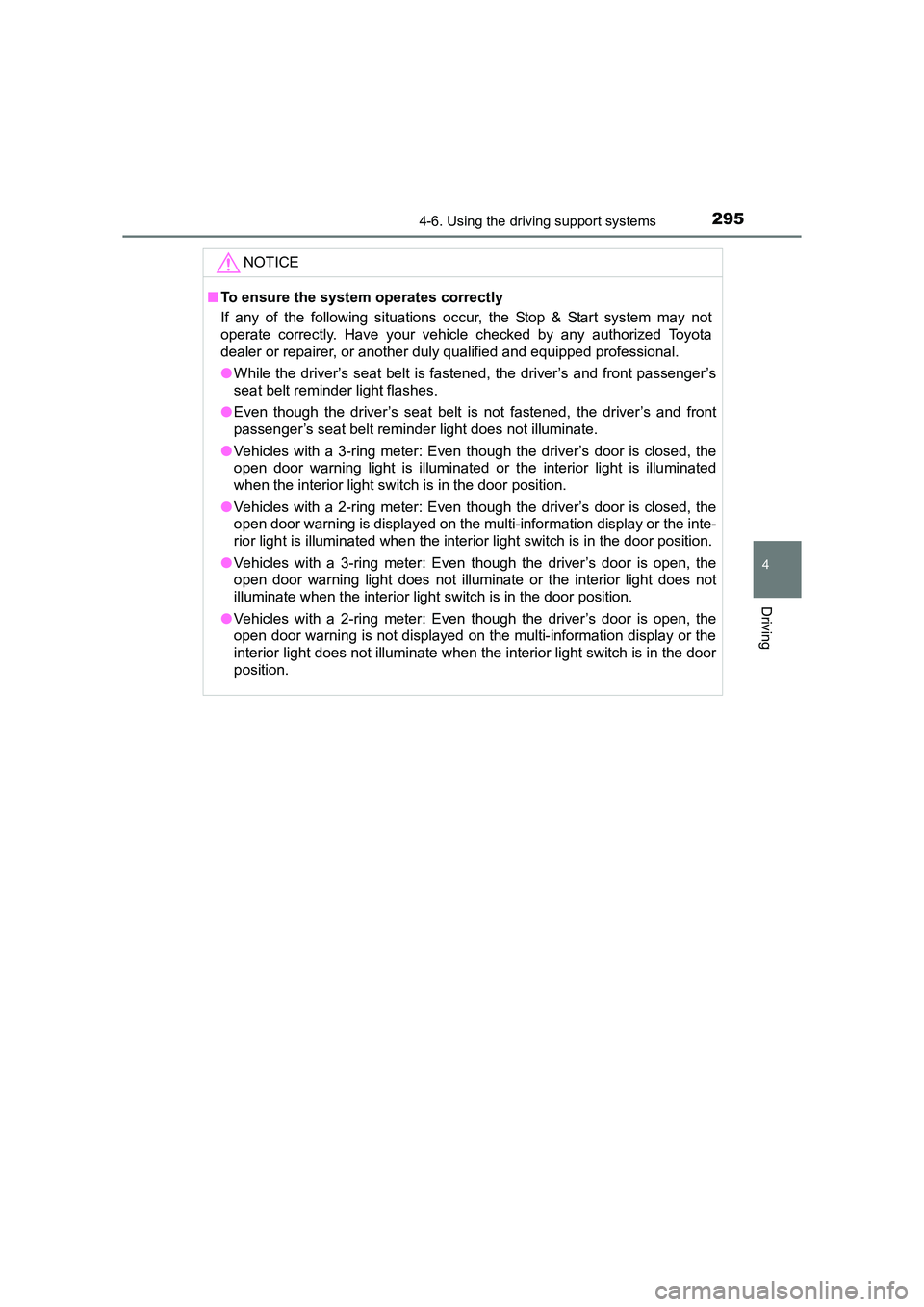

NOTICE
■To ensure the system operates correctly
If any of the following situations occur, the Stop & Start system may not
operate correctly. Have your vehicle checked by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
●While the driver’s seat belt is fastened, the driver’s and front passenger’s
seat belt reminder light flashes.
● Even though the driver’s seat belt is not fastened, the driver’s and front
passenger’s seat belt reminder light does not illuminate.
● Vehicles with a 3-ring meter: Even though the driver’s door is closed, the
open door warning light is illuminated or the interior light is illuminated
when the interior light switch is in the door position.
● Vehicles with a 2-ring meter: Even though the driver’s door is closed, the
open door warning is displayed on the multi-information display or the inte-
rior light is illuminated when the interior light switch is in the door position.
● Vehicles with a 3-ring meter: Even though the driver’s door is open, the
open door warning light does not illuminate or the interior light does not
illuminate when the interior light switch is in the door position.
● Vehicles with a 2-ring meter: Even though the driver’s door is open, the
open door warning is not displayed on the multi-information display or the
interior light does not illuminate when the interior light switch is in the door
position.

2964-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)

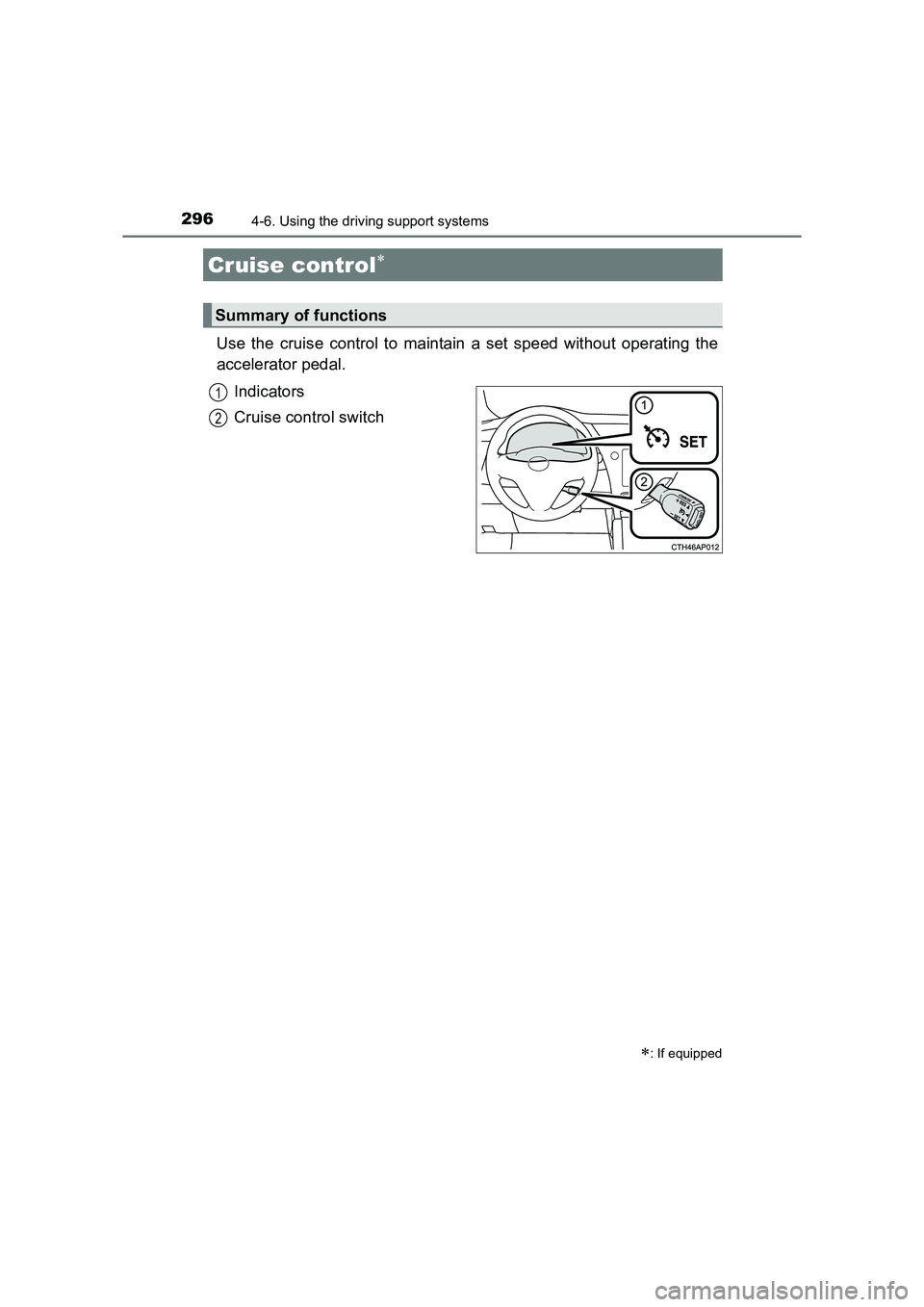

Use the cruise control to maintain a set speed without operating the
accelerator pedal. Indicators
Cruise control switch
Cruise control∗
∗: If equipped
Summary of functions
1
2
