15Pictorial index
AURIS Touring Sports_EE (12K53E)Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 614
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 486
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 626
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 334
Checking/rotation/tire pressure warning system
*1 . . . . . . . . . P. 486
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 559
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 461
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 461
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 615
Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 600
Headlights/front position lights/daytime running lights/
turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231, 233
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Stop lights/tail lights/turn signal lights . . . . . . . . . . . . P. 231, 233
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Rear fog light
*4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Back-up light
*3
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 223, 228
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Rear fog light
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Back-up light
*4
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 223, 228
Roof rails
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 198
5
6
7

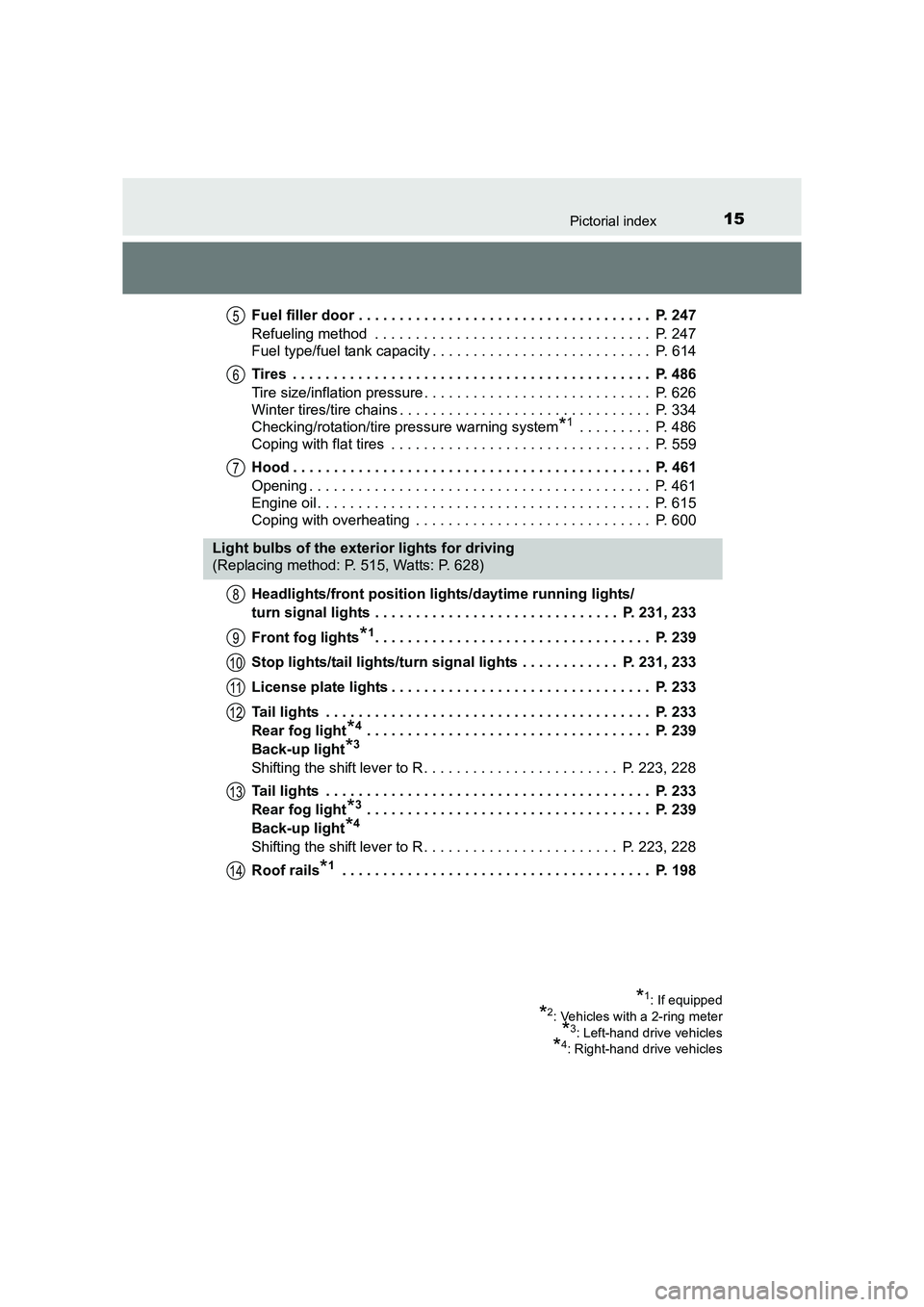

Light bulbs of the exterior lights for driving
(Replacing method: P. 515, Watts: P. 628)
*1: If equipped
*2: Vehicles with a 2-ring meter
*3: Left-hand drive vehicles
*4: Right-hand drive vehicles
8
9
10
11
12
13
14

5157-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care
Check the wattage of the light bulb to be replaced. (→P. 628)
■Front
XVehicles with halogen headlights
Light bulbs
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Preparing for light bulb replacement

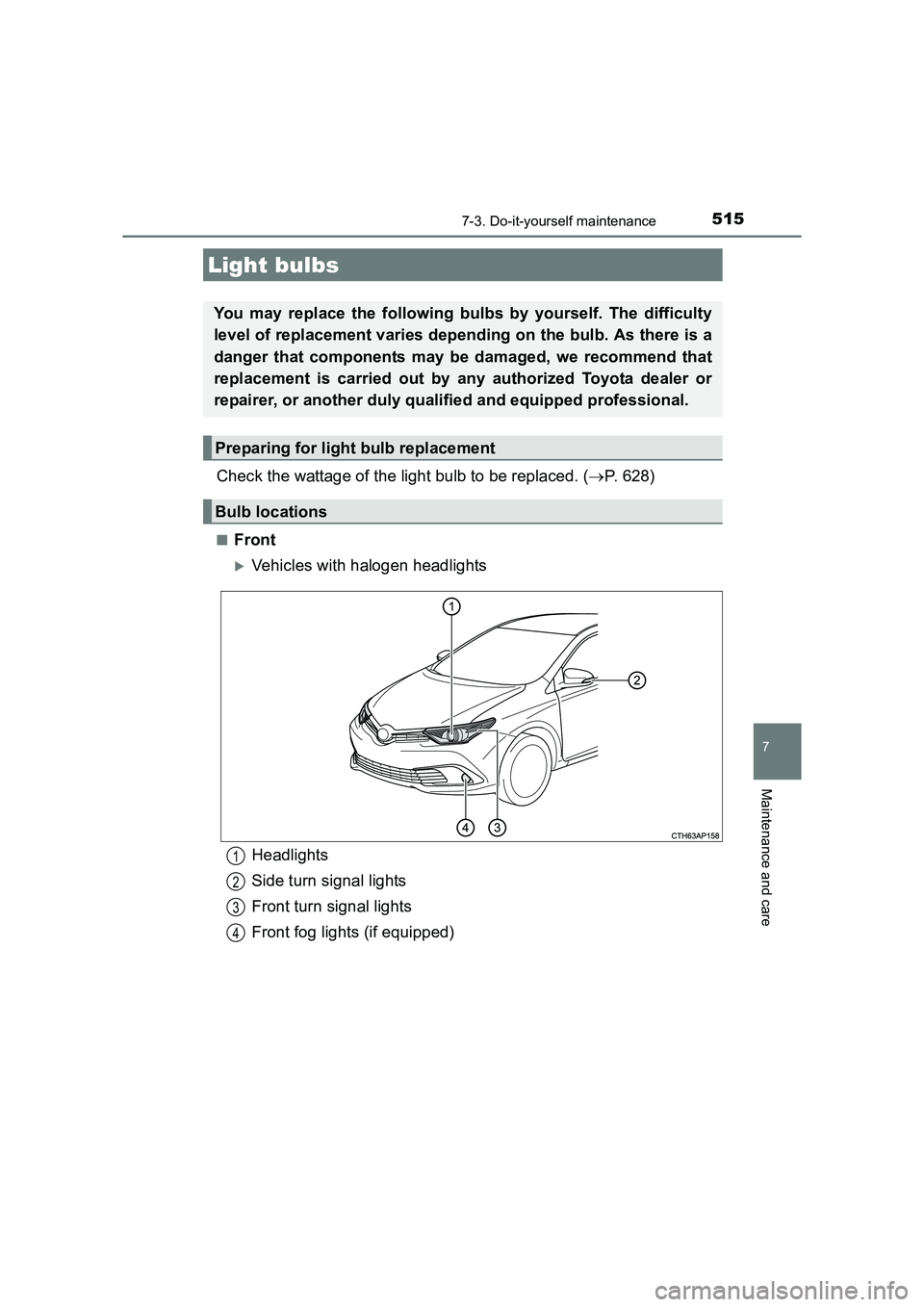

Bulb locations
Headlights
Side turn signal lights
Front turn signal lights
Front fog lights (if equipped)1
2
3
4

5187-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)■
Headlights (vehicles with halogen headlights)

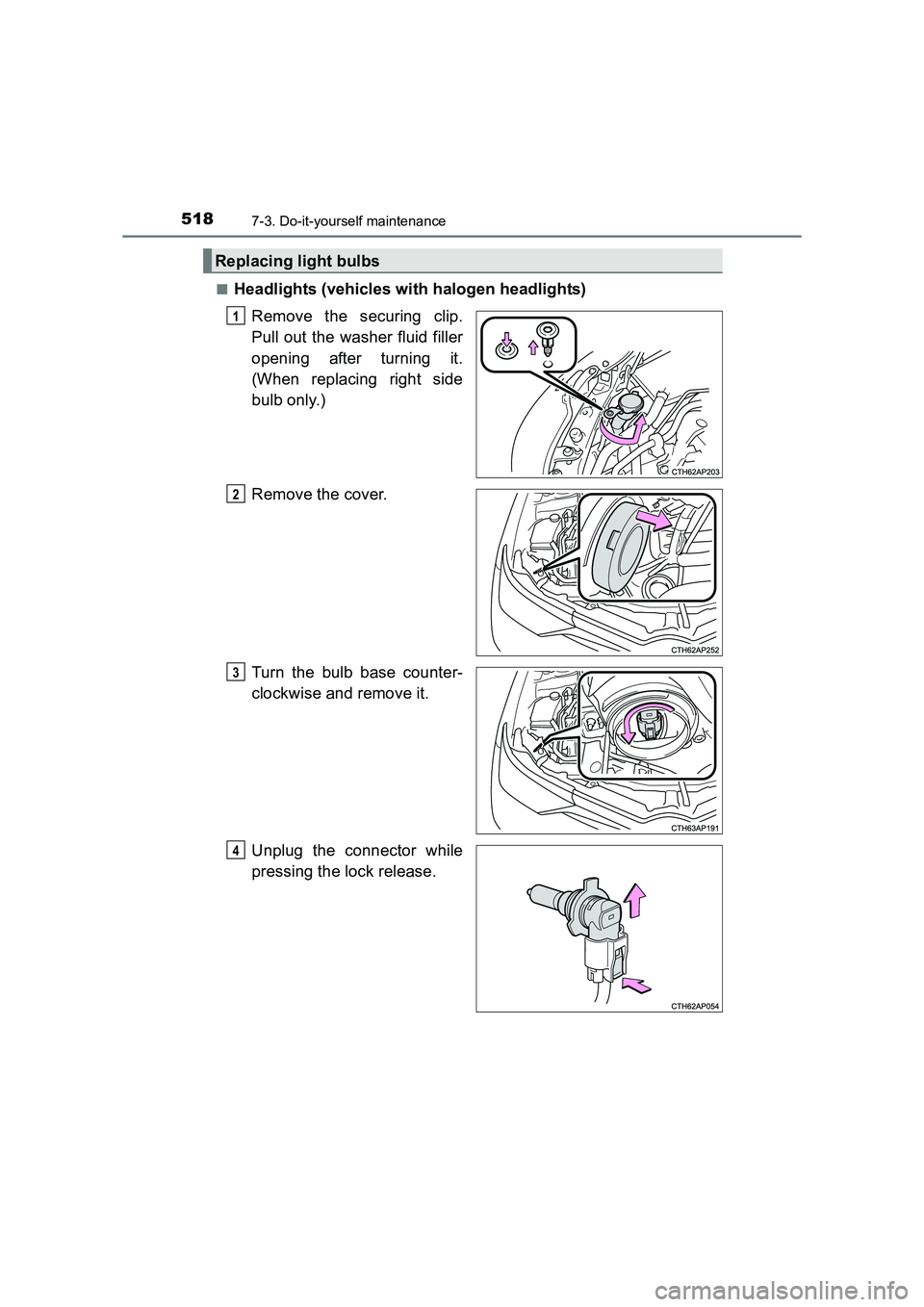

Remove the securing clip.
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
Remove the cover.
Turn the bulb base counter-
clockwise and remove it.
Unplug the connector while
pressing the lock release.
Replacing light bulbs
1
2
3
4

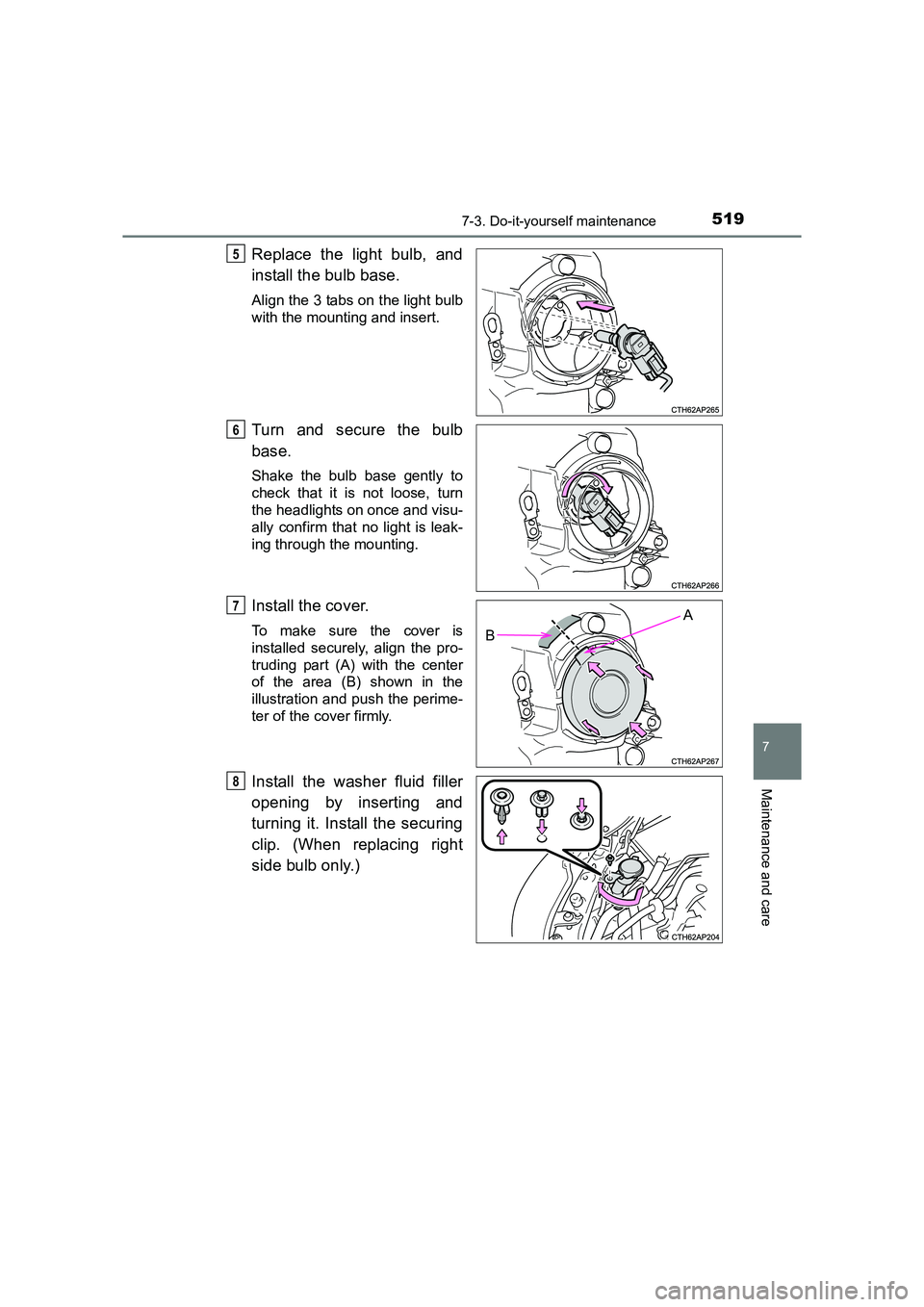

5197-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Install the cover.
To make sure the cover is
installed securely, align the pro-
truding part (A) with the center
of the area (B) shown in the
illustration and push the perime-
ter of the cover firmly.
Install the washer fluid filler
opening by inserting and
turning it. Install the securing
clip. (When replacing right
side bulb only.)
5
6
A
B
7
8

5287-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)■

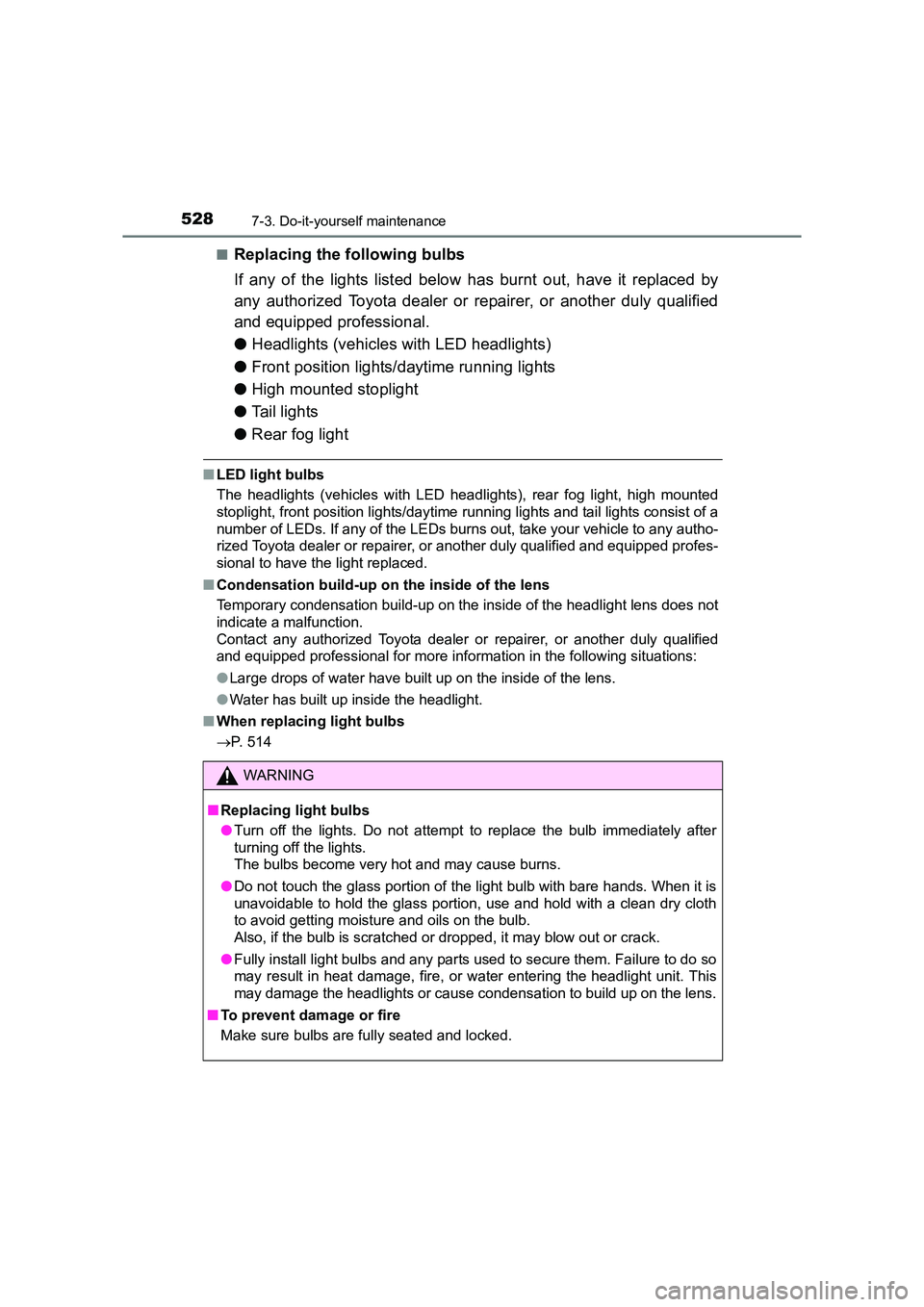

Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
●
Headlights (vehicles with LED headlights)
● Front position lights/daytime running lights
● High mounted stoplight
● Tail lights
● Rear fog light
■LED light bulbs
The headlights (vehicles with LED headl ights), rear fog light, high mounted
stoplight, front position lights/daytime running lights and tail lights consist of a
number of LEDs. If any of the LEDs burns out, take your vehicle to any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
→ P. 514
WARNING
■ Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of t he light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

6289-1. Specifications
AURIS Touring Sports_EE (12K53E)

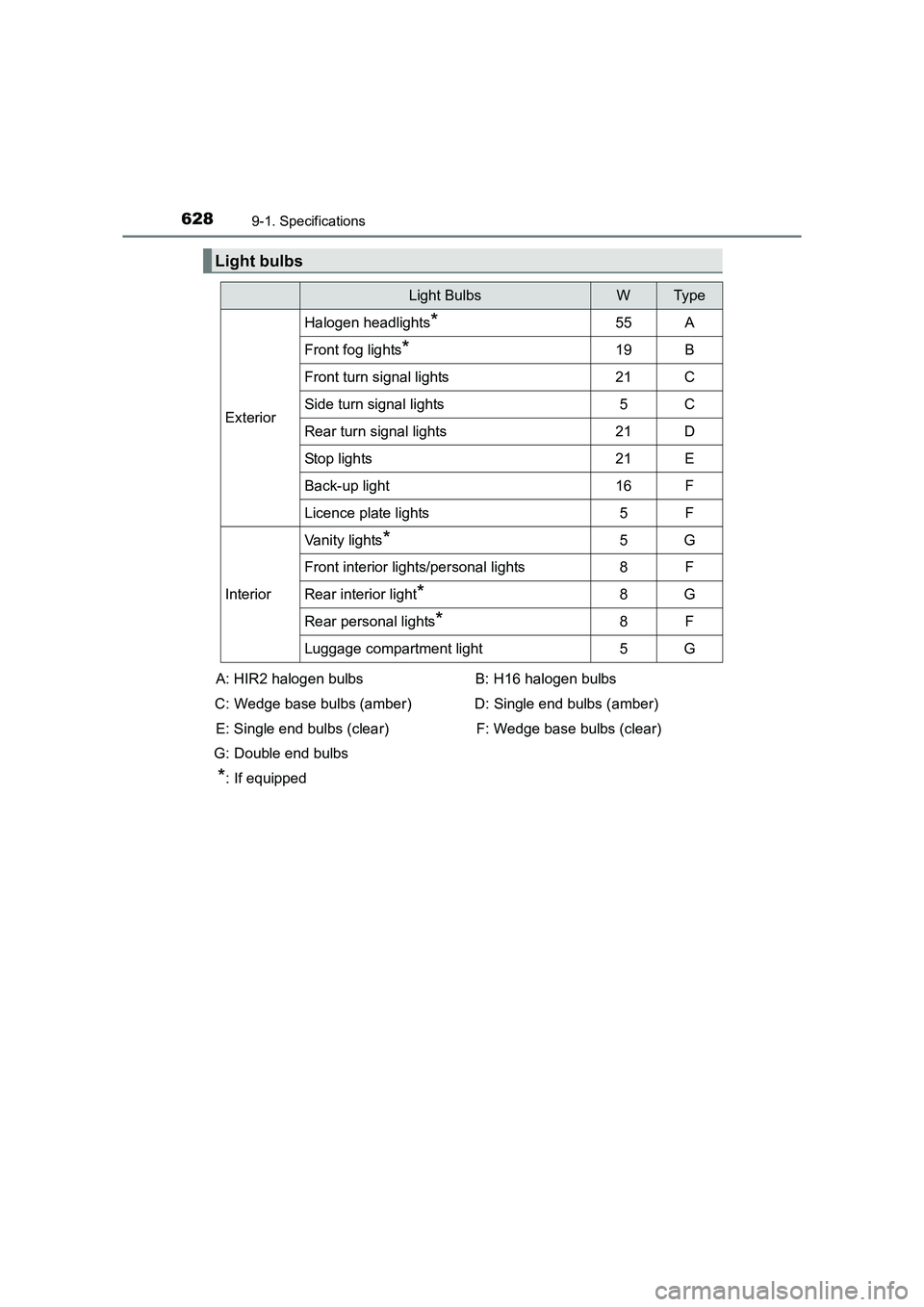

Light bulbs
Light BulbsWTyp e
Exterior
Halogen headlights*55A
Front fog lights*19B
Front turn signal lights21C
Side turn signal lights5C
Rear turn signal lights21D
Stop lights21E
Back-up light16F
Licence plate lights5F
Interior
Vanity lights*5G
Front interior lights/personal lights8F
Rear interior light*8G
Rear personal lights*8F
Luggage compartment light5G
A: HIR2 halogen bulbs
C: Wedge base bulbs (amber) E: Single end bulbs (clear)
G: Double end bulbs
*: If equipped B: H16 halogen bulbs
D: Single end bulbs (amber) F: Wedge base bulbs (clear)
