2016 TOYOTA AURIS TOURING SPORTS Owners Manual

4657-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care
■1ZR-FAE engine
Washer fluid tank(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Battery (
→P. 480)
Fuse box ( →P. 510)
Electric cooling fan
Condenser ( →P. 479)
Radiator ( →P. 479)1
2
3
4
5
6
7
8
9

4667-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)■
8NR-FTS engine
Engine coolant reservoir
(→ P. 477)
Intercooler coolant reservoir (→ P. 478)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Battery (
→P. 480)
Fuse box ( →P. 510)
Radiator ( →P. 479)
Condenser ( →P. 479)
Electric cooling fans
Intercooler
Washer fluid tank ( →P. 483)1
2
3
4
5
6
7
8
9
10
11

4677-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care
■1ND-TV engine
Washer fluid tank(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Fuel filter (
→P. 484)
Battery ( →P. 480)
Fuse box ( →P. 510)
Radiator ( →P. 479)
Electric cooling fan
Condenser ( →P. 479)
Intercooler ( →P. 479)1
2
3
4
5
6
7
8
9
10
11

4687-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)■
1WW engine
Washer fluid tank
(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Fuel filter (
→P. 485)
Fuse box ( →P. 510)
Battery ( →P. 480)
Condenser ( →P. 479)
Electric cooling fans
Intercooler ( →P. 479)
Radiator ( →P. 479)1
2
3
4
5
6
7
8
9
10
11

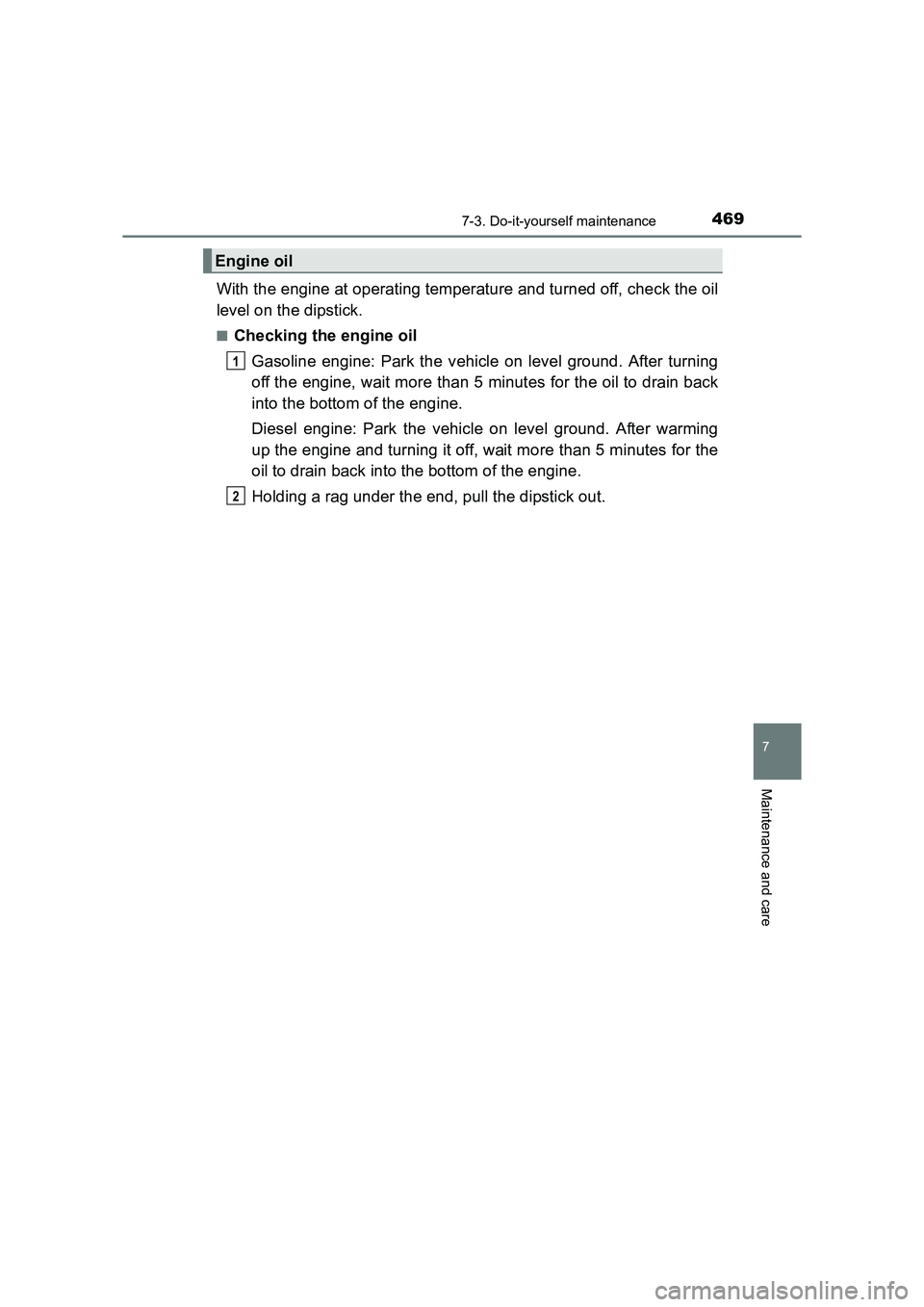

4697-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oilGasoline engine: Park the vehicle on level ground. After turning
off the engine, wait more than 5 minutes for the oil to drain back
into the bottom of the engine.
Diesel engine: Park the vehicle on level ground. After warming
up the engine and turning it off, wait more than 5 minutes for the
oil to drain back into the bottom of the engine.
Holding a rag under the end, pull the dipstick out.
Engine oil
1
2

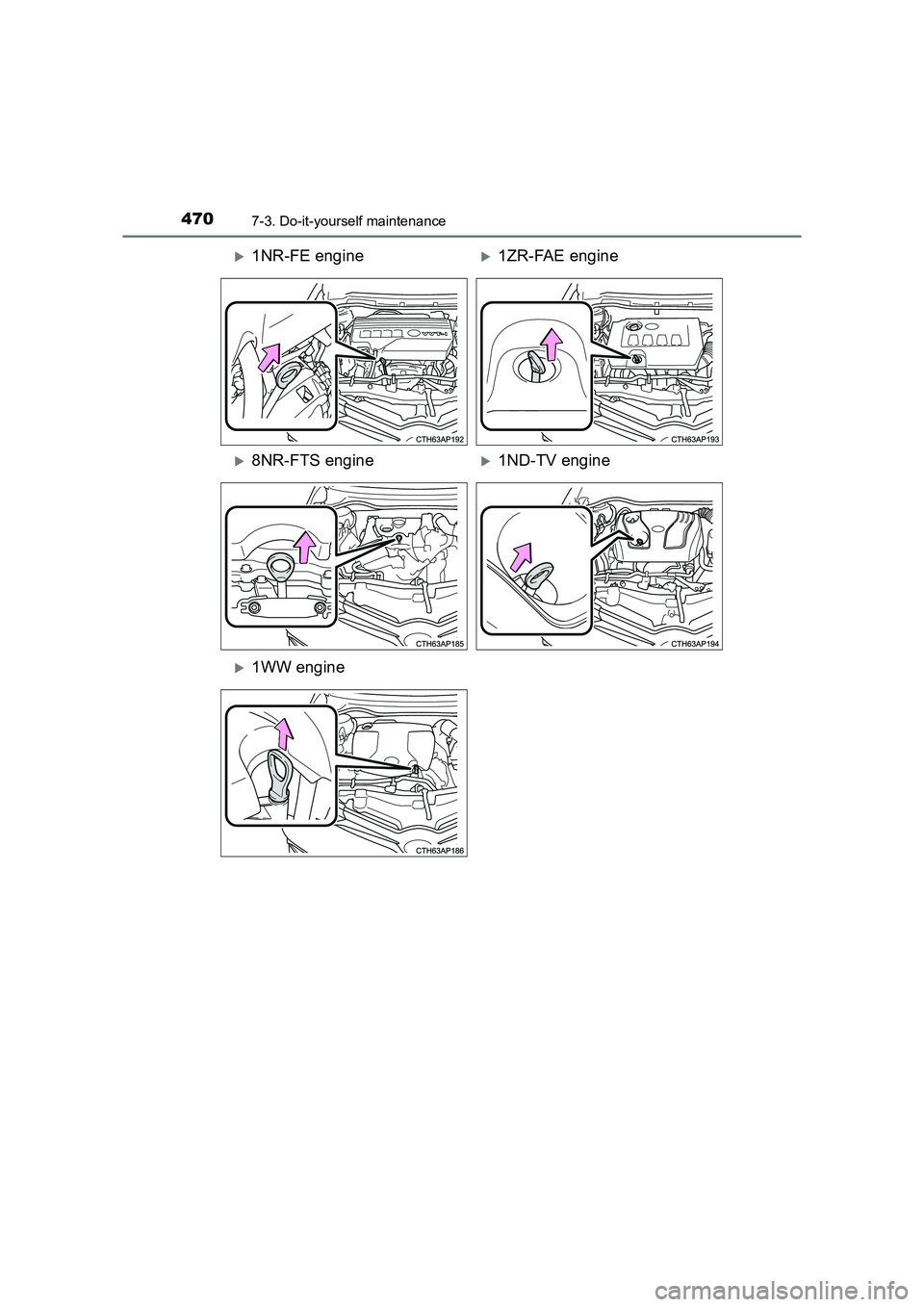

4707-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
X1NR-FE engineX1ZR-FAE engine
X8NR-FTS engineX1ND-TV engine
X1WW engine

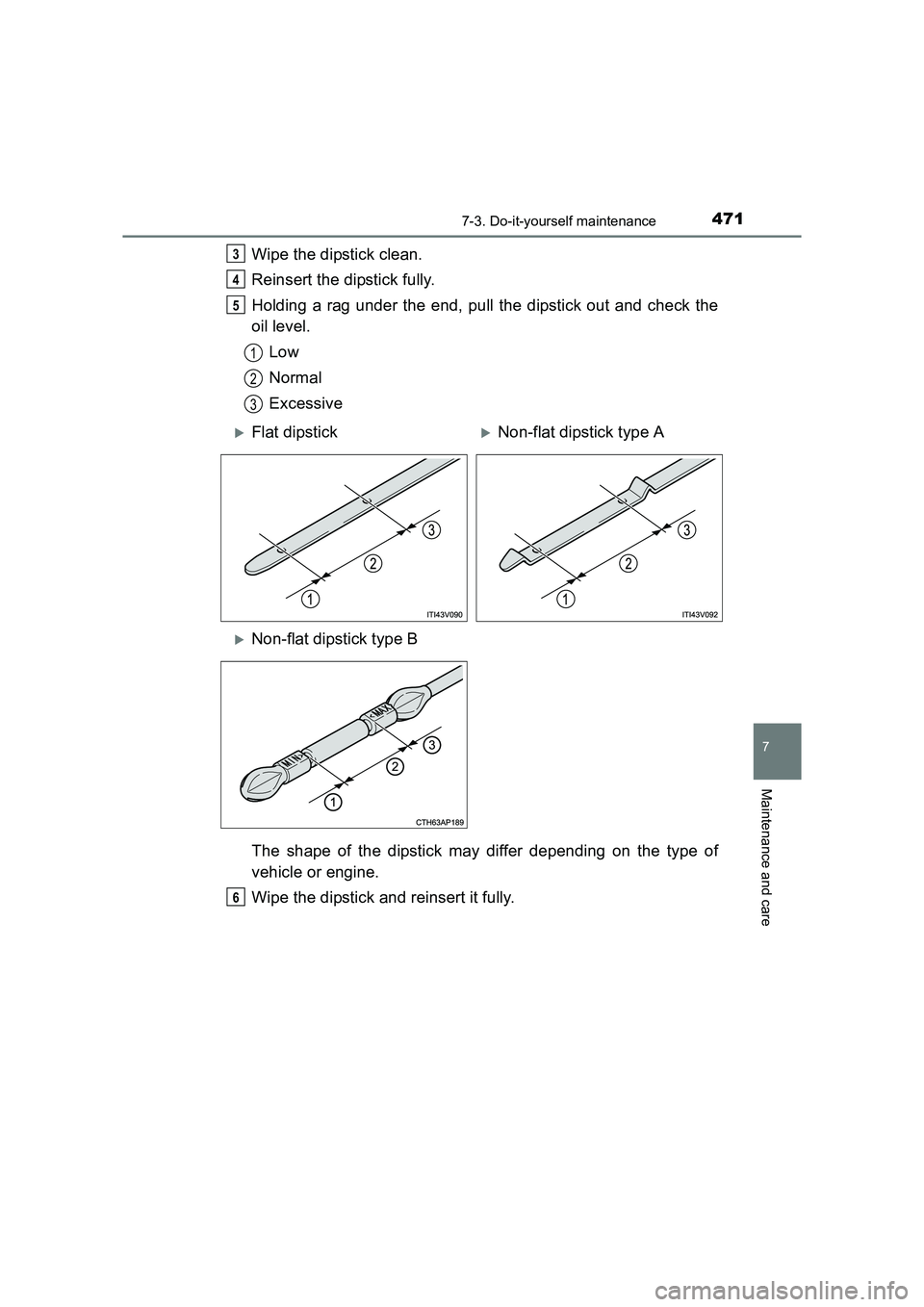

4717-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.Low
Normal
Excessive
The shape of the dipstick may differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.3
4
5
1
2
3
XFlat dipstickXNon-flat dipstick type A
XNon-flat dipstick type B
6

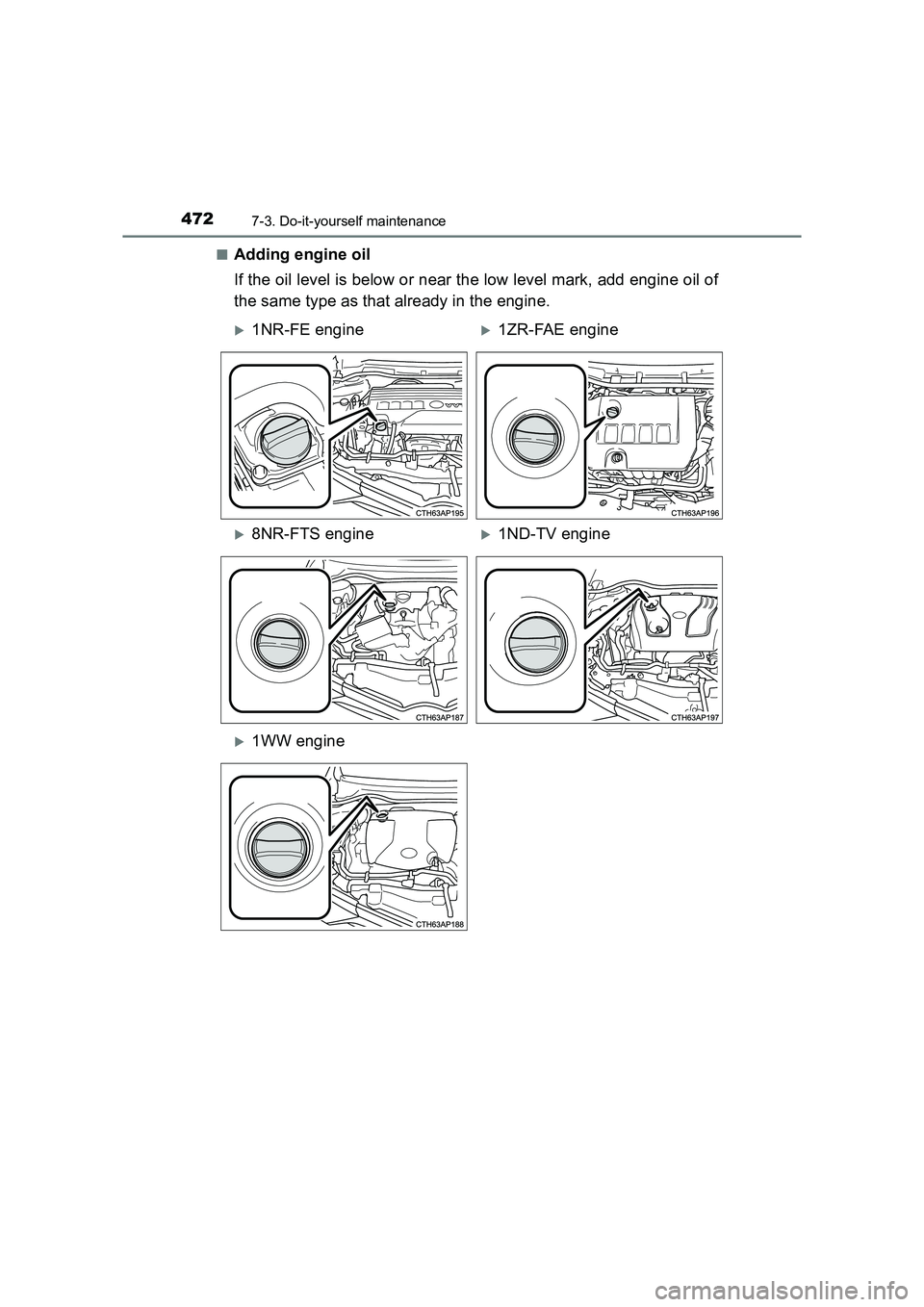

4727-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)■
Adding engine oil
If the oil level is below or near the low level mark, add engine oil of
the same type as that already in the engine.
X1NR-FE engineX1ZR-FAE engine
X8NR-FTS engineX1ND-TV engine
X1WW engine
